L131 Exponential Inverses Finding modular inverses is good enough for decoding simple modular cryptography. However, in RSA encryption consists of exponentiating.

Similar presentations


Presentation on theme: "L131 Exponential Inverses Finding modular inverses is good enough for decoding simple modular cryptography. However, in RSA encryption consists of exponentiating."— Presentation transcript:

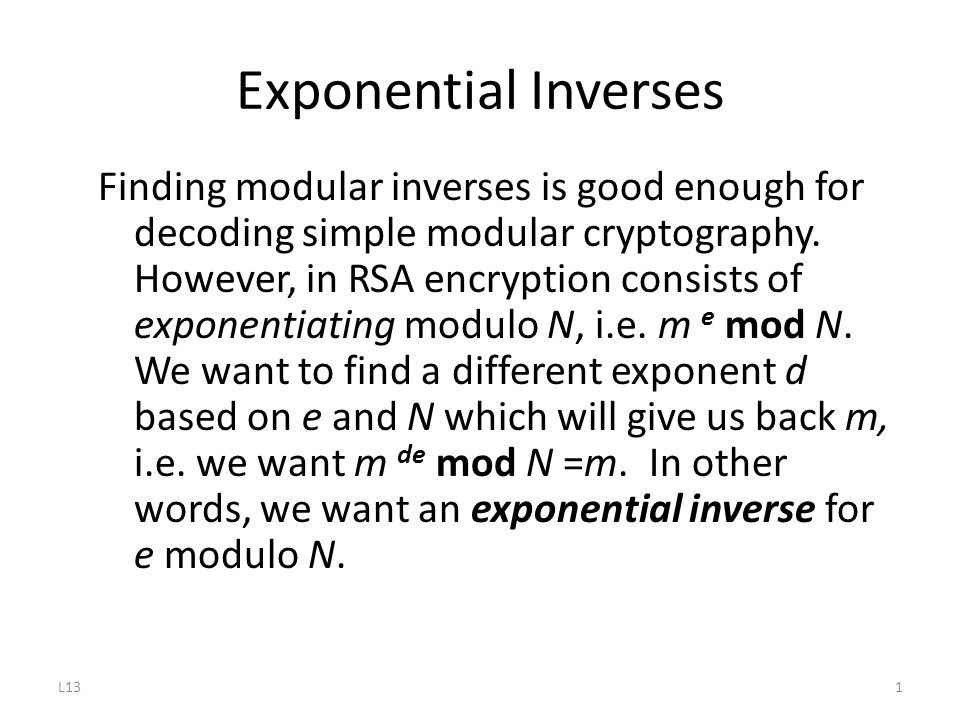

1 L131 Exponential Inverses Finding modular inverses is good enough for decoding simple modular cryptography. However, in RSA encryption consists of exponentiating modulo N, i.e. m e mod N. We want to find a different exponent d based on e and N which will give us back m, i.e. we want m de mod N =m. In other words, we want an exponential inverse for e modulo N.

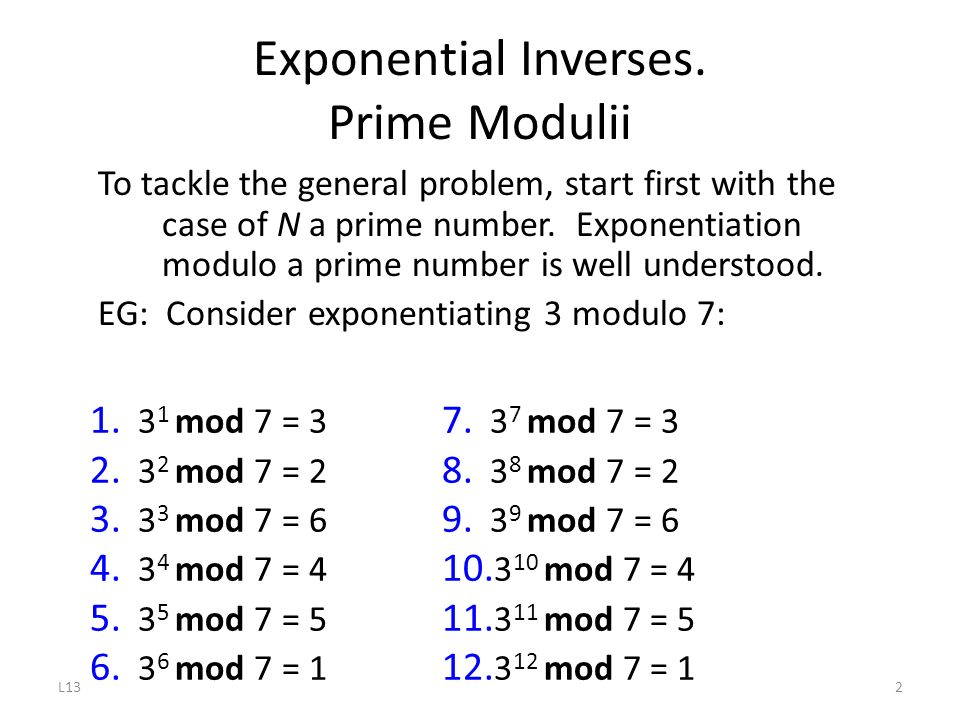

2 L132 Exponential Inverses. Prime Modulii To tackle the general problem, start first with the case of N a prime number. Exponentiation modulo a prime number is well understood. EG: Consider exponentiating 3 modulo 7: 1. 3 1 mod 7 = 3 2. 3 2 mod 7 = 2 3. 3 3 mod 7 = 6 4. 3 4 mod 7 = 4 5. 3 5 mod 7 = 5 6. 3 6 mod 7 = 1 7. 3 7 mod 7 = 3 8. 3 8 mod 7 = 2 9. 3 9 mod 7 = 6 10. 3 10 mod 7 = 4 11. 3 11 mod 7 = 5 12. 3 12 mod 7 = 1

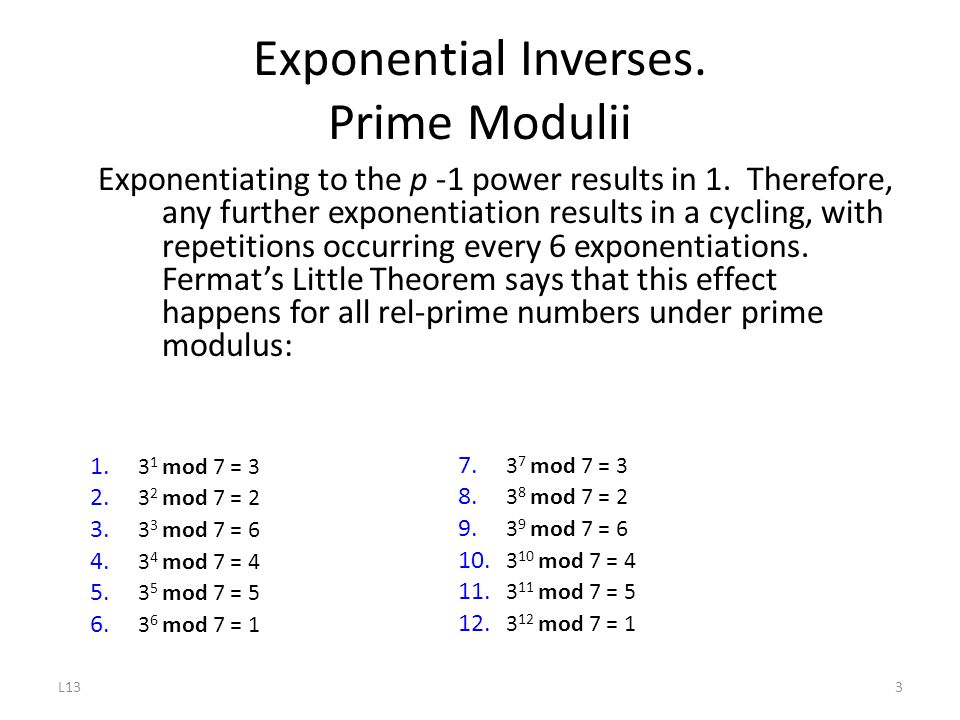

3 L133 Exponential Inverses. Prime Modulii Exponentiating to the p -1 power results in 1. Therefore, any further exponentiation results in a cycling, with repetitions occurring every 6 exponentiations. Fermat’s Little Theorem says that this effect happens for all rel-prime numbers under prime modulus: 1. 3 1 mod 7 = 3 2. 3 2 mod 7 = 2 3. 3 3 mod 7 = 6 4. 3 4 mod 7 = 4 5. 3 5 mod 7 = 5 6. 3 6 mod 7 = 1 7. 3 7 mod 7 = 3 8. 3 8 mod 7 = 2 9. 3 9 mod 7 = 6 10. 3 10 mod 7 = 4 11. 3 11 mod 7 = 5 12. 3 12 mod 7 = 1

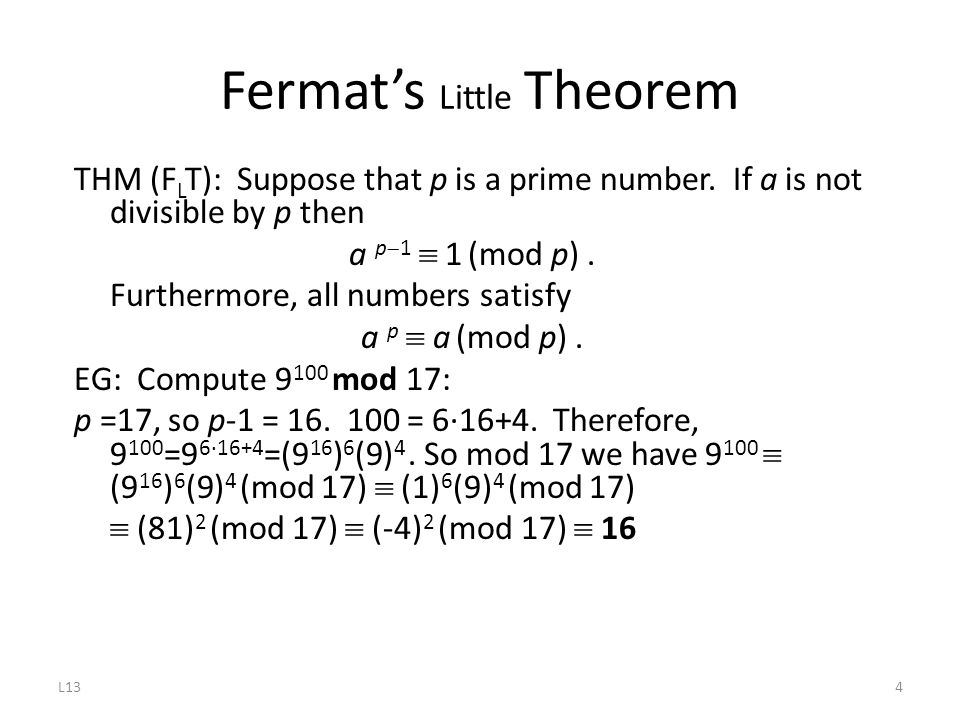

4 L134 Fermat’s Little Theorem THM (F L T): Suppose that p is a prime number. If a is not divisible by p then a p  1  1 (mod p). Furthermore, all numbers satisfy a p  a (mod p). EG: Compute 9 100 mod 17: p =17, so p-1 = 16. 100 = 6·16+4. Therefore, 9 100 =9 6·16+4 =(9 16 ) 6 (9) 4. So mod 17 we have 9 100  (9 16 ) 6 (9) 4 (mod 17)  (1) 6 (9) 4 (mod 17)  (81) 2 (mod 17)  (-4) 2 (mod 17)  16

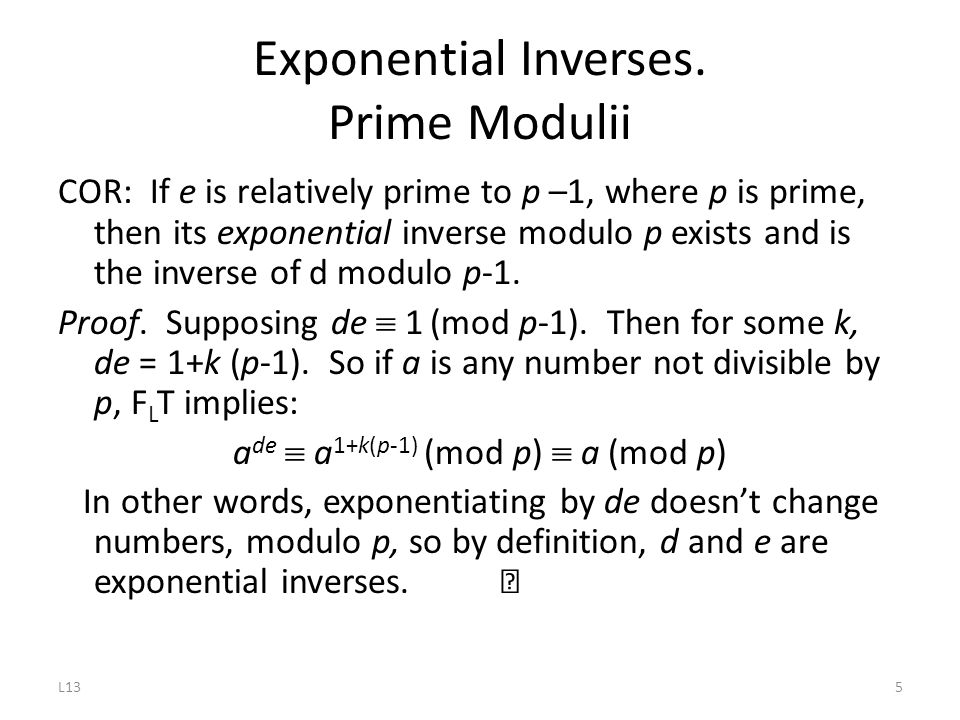

5 L135 Exponential Inverses. Prime Modulii COR: If e is relatively prime to p –1, where p is prime, then its exponential inverse modulo p exists and is the inverse of d modulo p-1. Proof. Supposing de  1 (mod p-1). Then for some k, de = 1+k (p-1). So if a is any number not divisible by p, F L T implies: a de  a 1+k(p-1) (mod p)  a (mod p) In other words, exponentiating by de doesn’t change numbers, modulo p, so by definition, d and e are exponential inverses. 

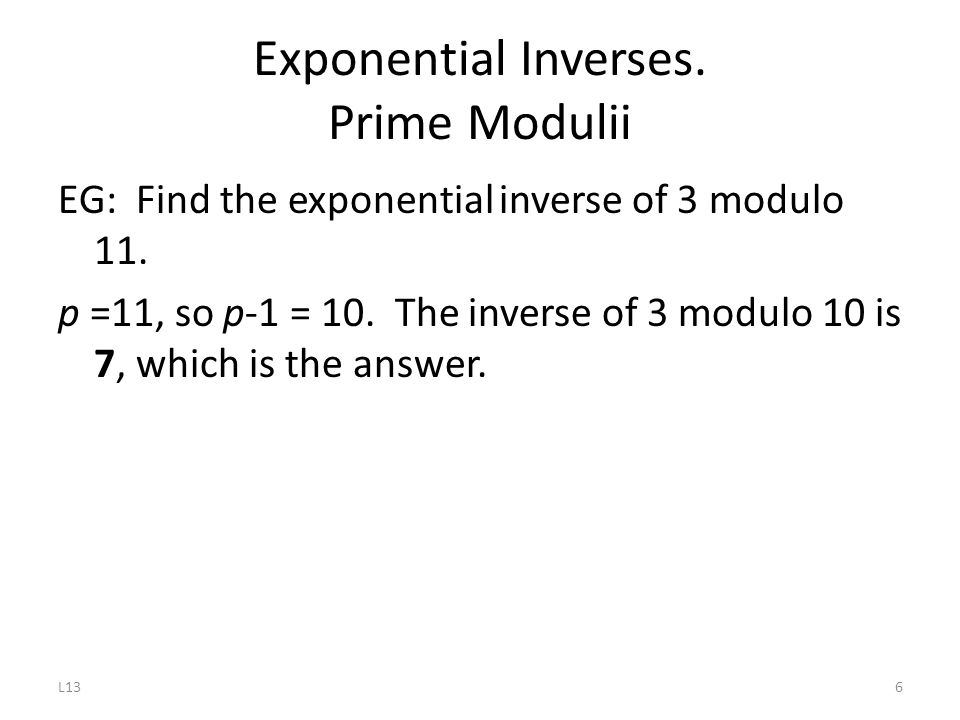

6 L136 Exponential Inverses. Prime Modulii EG: Find the exponential inverse of 3 modulo 11. p =11, so p-1 = 10. The inverse of 3 modulo 10 is 7, which is the answer.
