1 Voltage in Electrical Systems

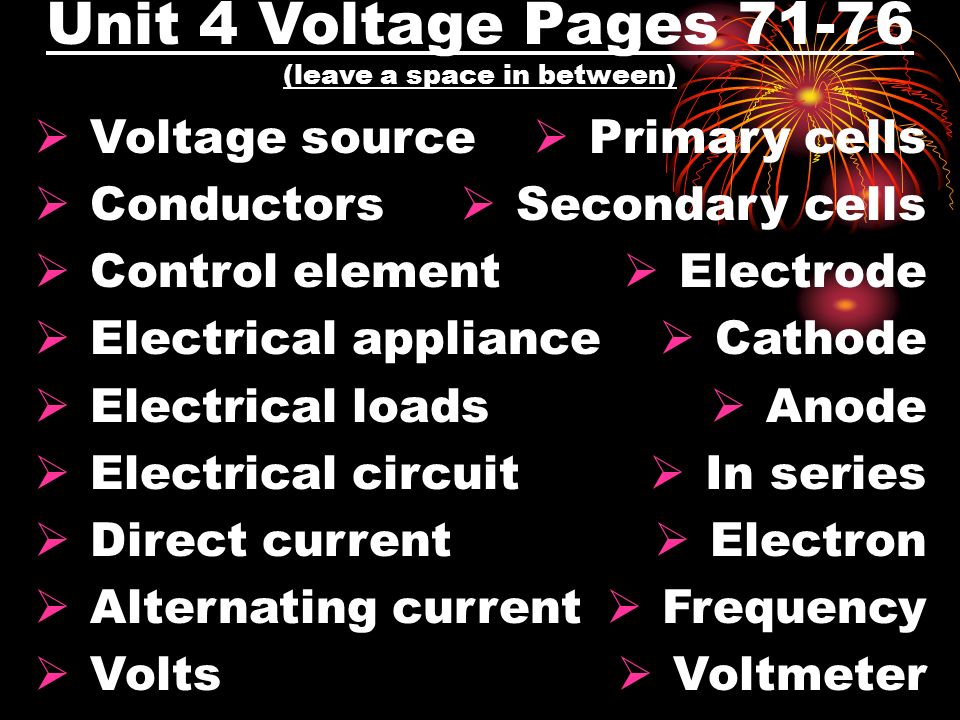

2 Unit 4 Voltage Pages 71-76 (leave a space in between)  Voltage source  Conductors  Control element  Electrical appliance  Electrical loads  Electrical circuit  Direct current  Alternating current  Volts  Primary cells  Secondary cells  Electrode  Cathode  Anode  In series  Electron  Frequency  Voltmeter

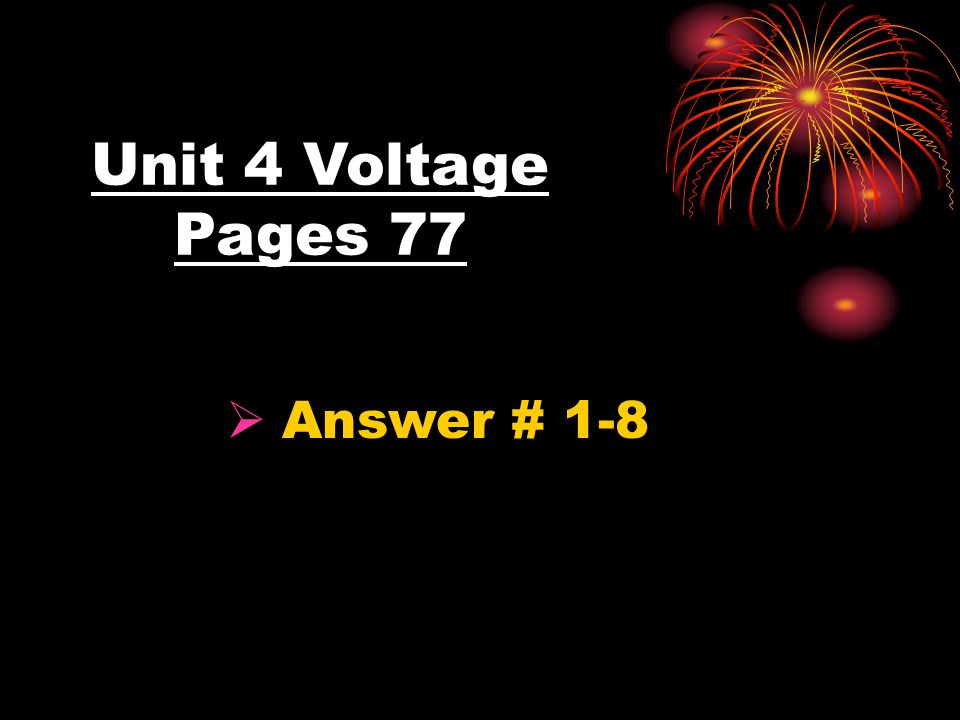

3 Unit 4 Voltage Pages 77  Answer # 1-8

4 Electrical Systems  Made up of voltage sources, conductors, control elements, and appliances and machines  Batteries/generators, wire/circuits, switches, lights/appliance

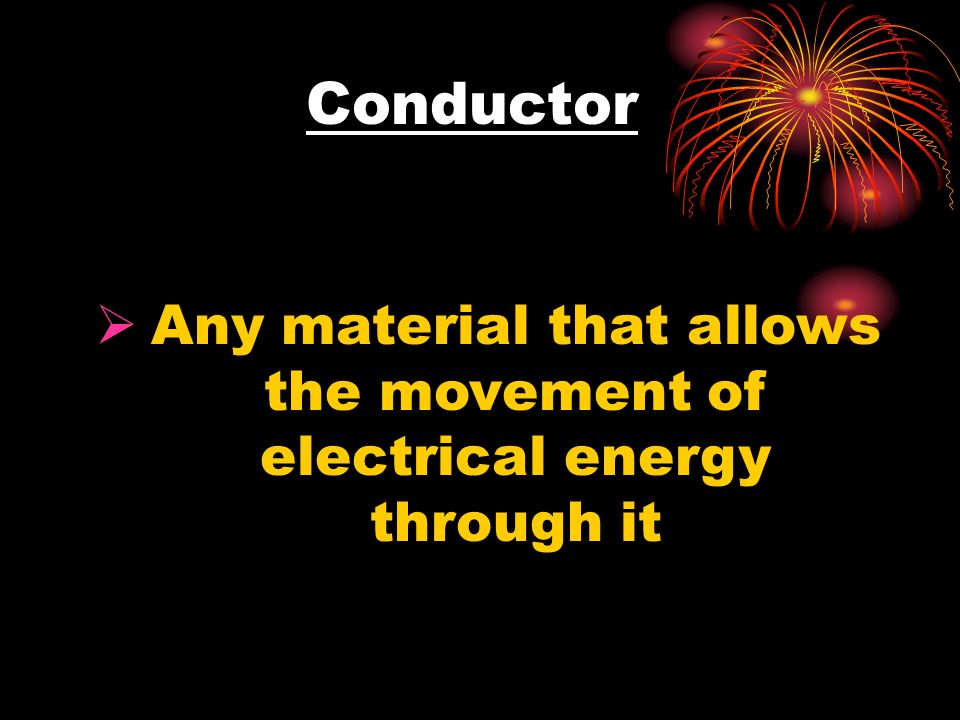

5 Conductor  Any material that allows the movement of electrical energy through it

6 Control Element  Wall switch  Volume on a radio  Variable speed switch

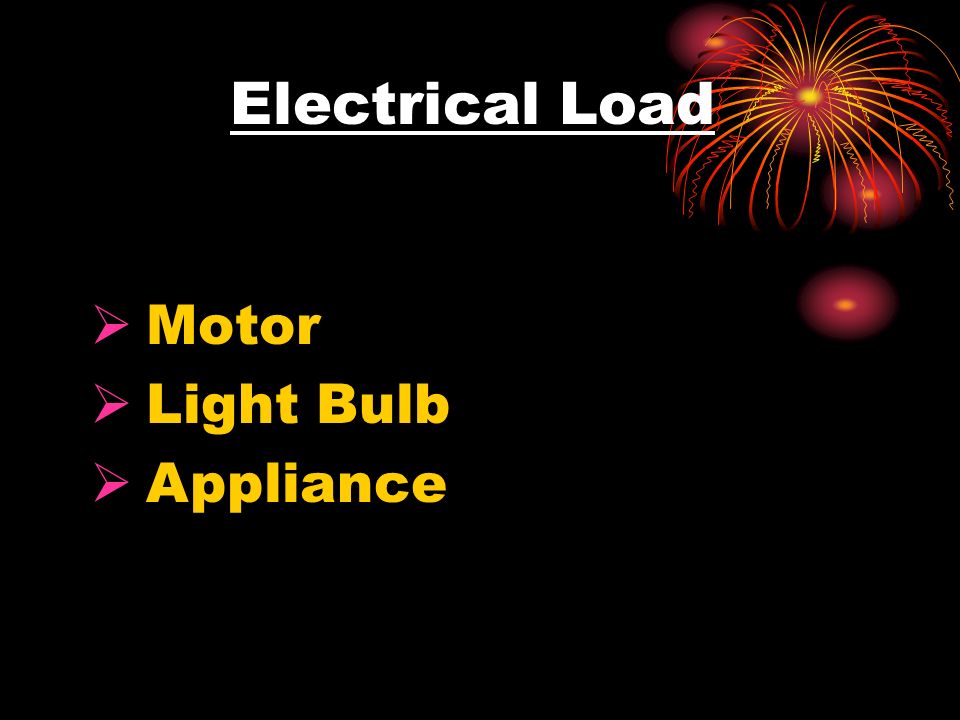

7 Electrical Load  Motor  Light Bulb  Appliance

8 Electrical Circuit  Closed path made by connecting voltage sources, control elements, and electrical loads

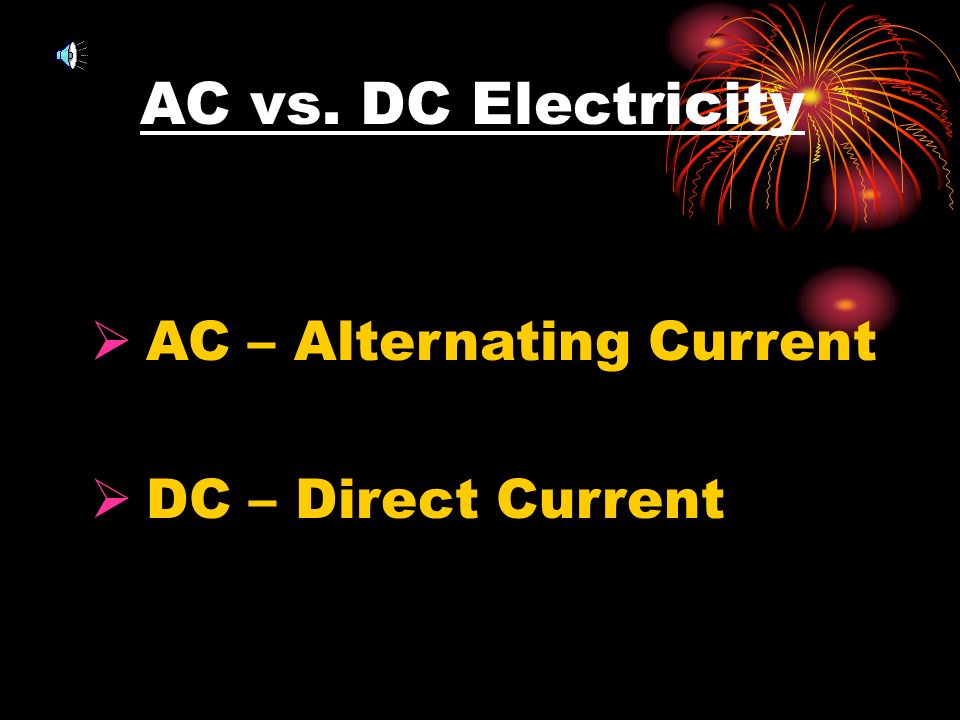

9 AC vs. DC Electricity  AC – Alternating Current  DC – Direct Current

10 AC  Electric charges move back and forth many times a second in the wire DC  Electric charges in wires always move in one direction

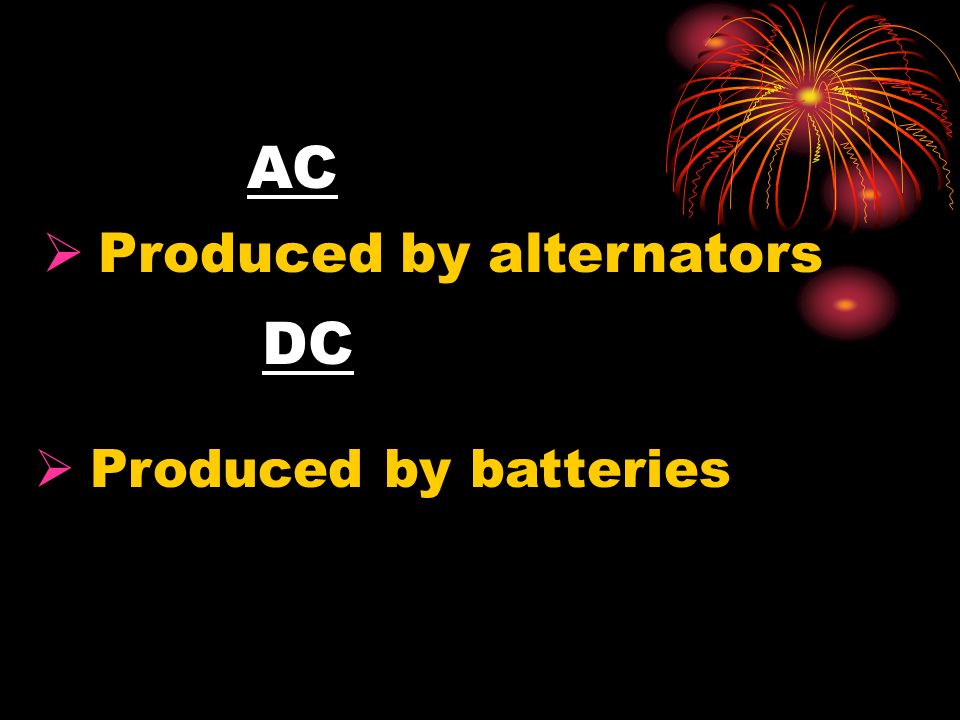

11 AC  Produced by alternators DC  Produced by batteries

12 Typical DC Voltage Sources

13 Dry-cell batteries  A chemical produces the voltage Wet-cell batteries  Contain a liquid electrolyte  Usually a strong acid  Used to start engines because they can deliver a lot of power

14 Primary cells  Not easily recharged Secondary cells  Easily recharged  The ability to recharge a battery allows us to group these chemical producers of voltage into two classes

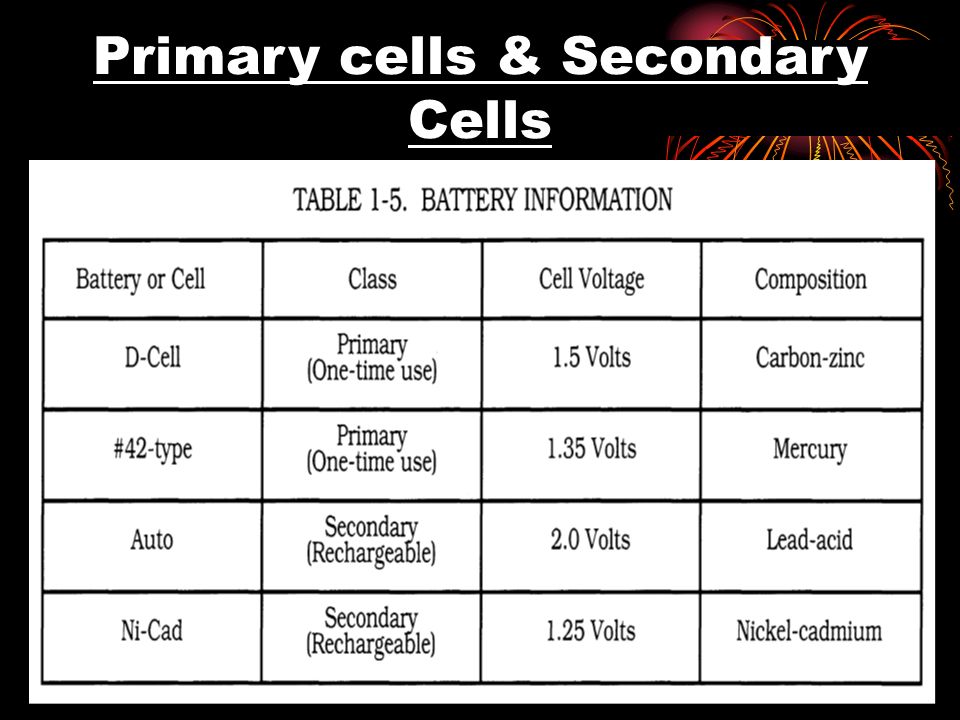

15 Primary cells & Secondary Cells

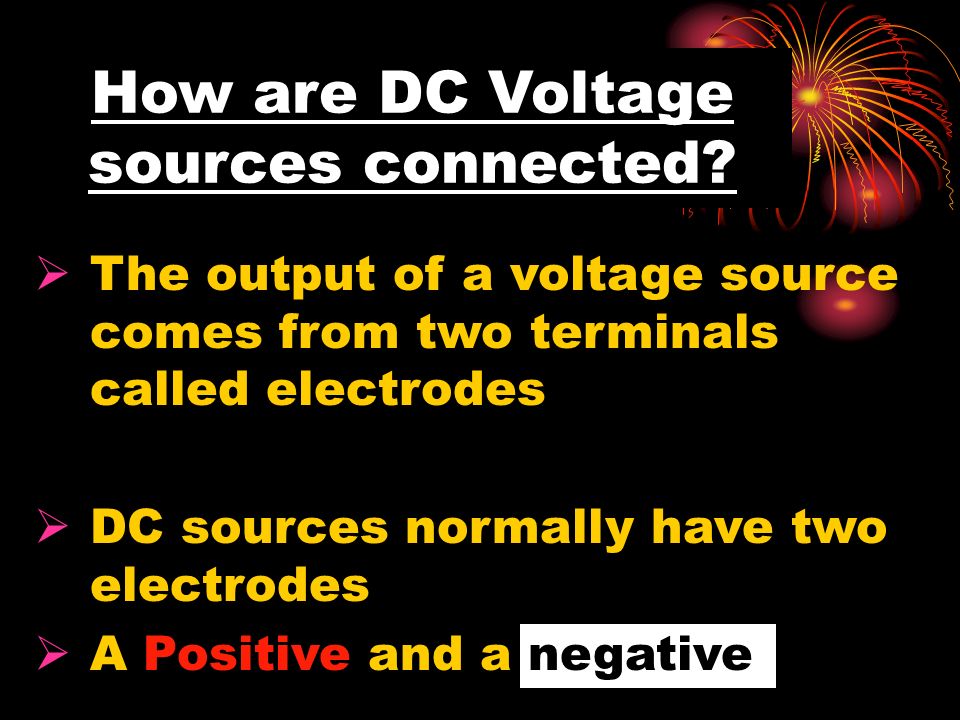

16 How are DC Voltage sources connected?  The output of a voltage source comes from two terminals called electrodes  DC sources normally have two electrodes  A Positive and a negative

17 How are DC Voltage sources connected?  Electrons move in the circuit as if they were flowing out of the negative electrode and into the positive  The negative electrode is called the “cathode”  The positive electrode is called the “anode”

18 Unit 4 Quiz 1.What is a conductor? 2.Define and explain AC and DC. 3.Explain how battery make up and “chargeability” are classified. (4 definitions)

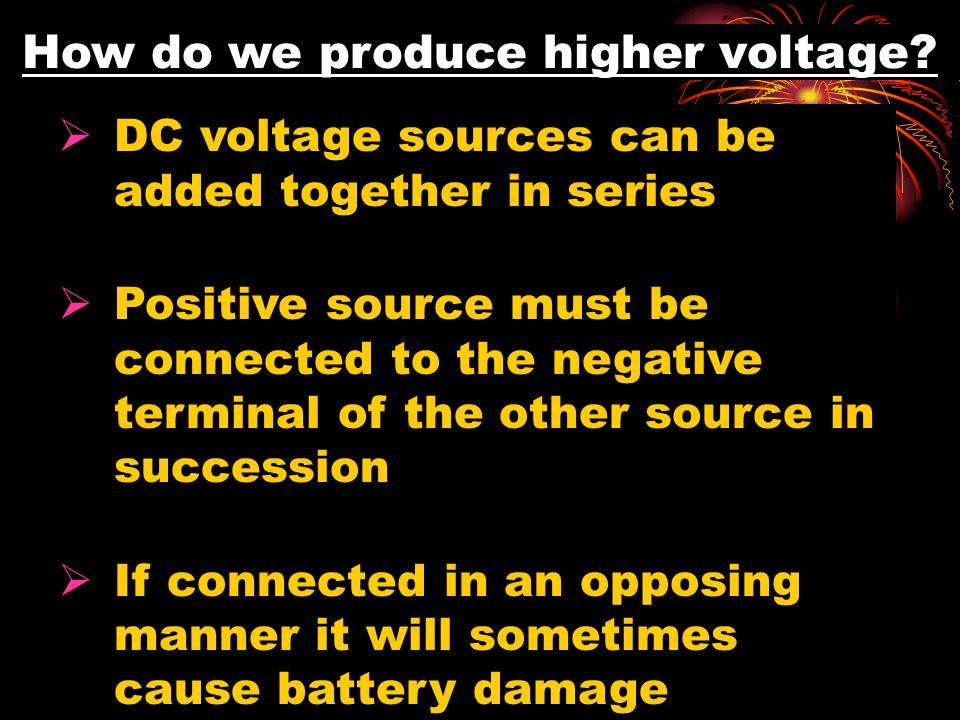

19 How do we produce higher voltage?  DC voltage sources can be added together in series  Positive source must be connected to the negative terminal of the other source in succession  If connected in an opposing manner it will sometimes cause battery damage

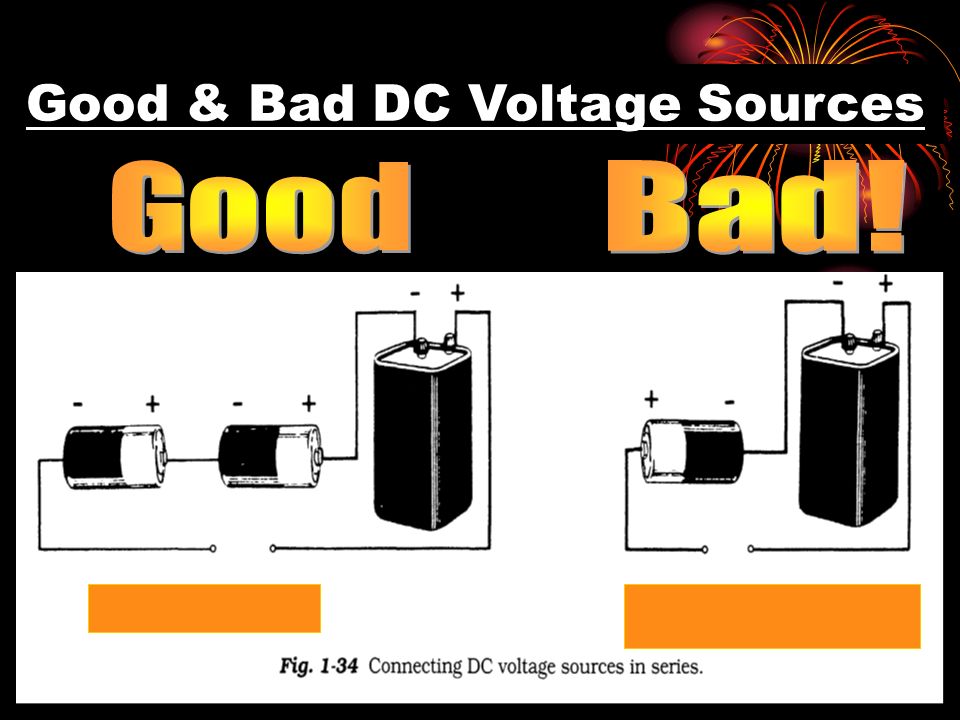

20 Good & Bad DC Voltage Sources

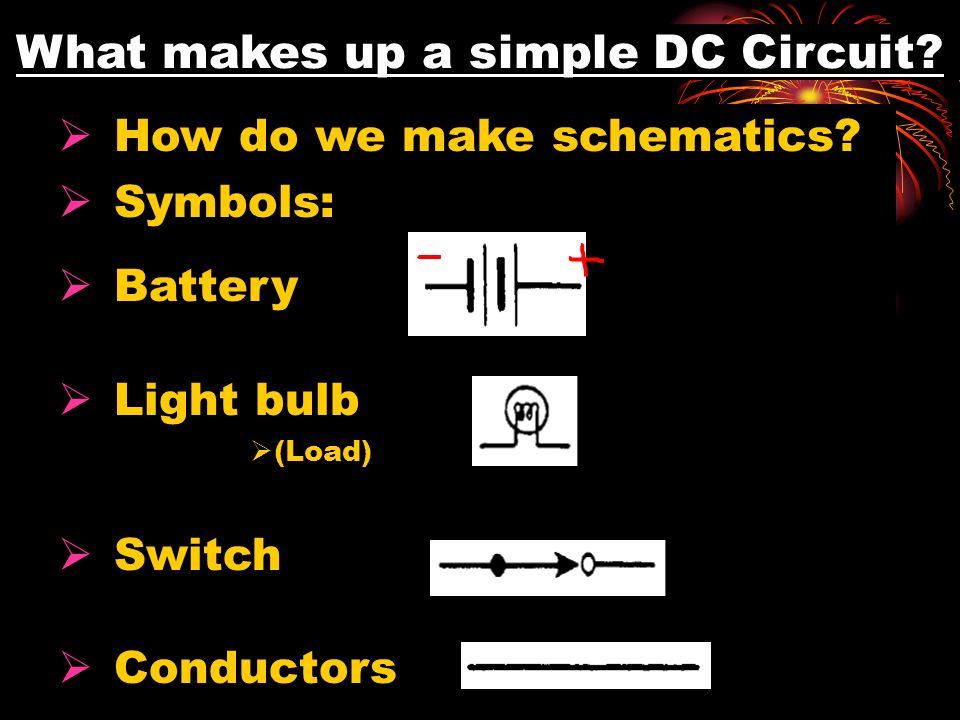

21 What makes up a simple DC Circuit?  How do we make schematics?  Symbols:  Battery  Light bulb  (Load)  Switch  Conductors

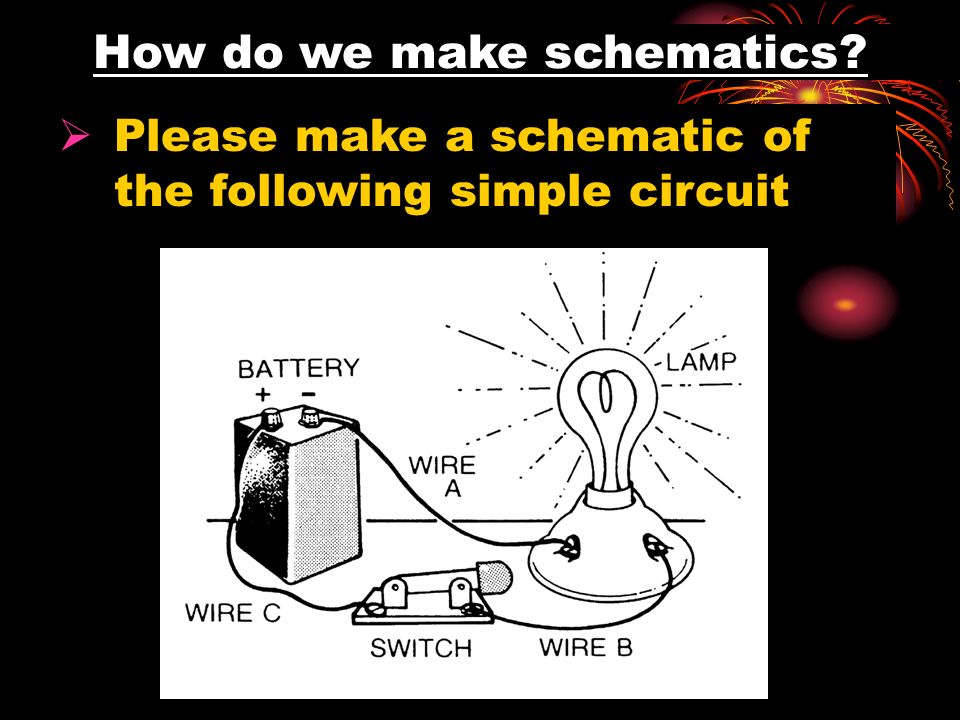

22 How do we make schematics?  Please make a schematic of the following simple circuit

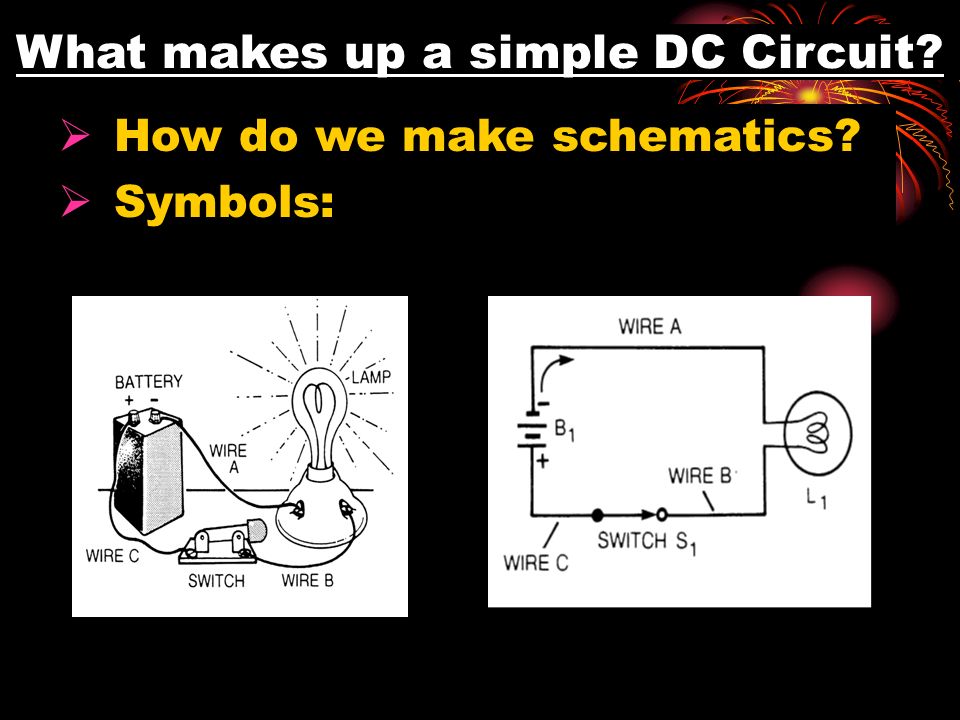

23 What makes up a simple DC Circuit?  How do we make schematics?  Symbols:

24 What makes up a simple DC Circuit?

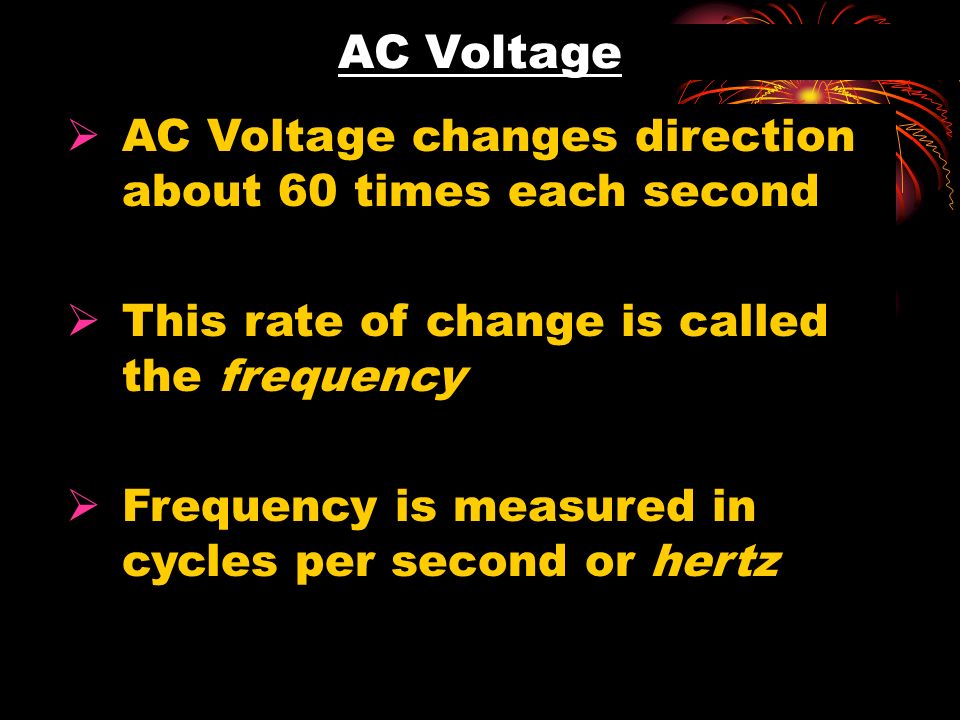

25 AC Voltage  AC Voltage changes direction about 60 times each second  This rate of change is called the frequency  Frequency is measured in cycles per second or hertz

26 Voltage acts like a force  Unlike charges attract  Like charges repel  There are three common ways of creating a voltage difference

27 How do we measure voltage  Voltmeters measure the difference in volts of any two points  Sometimes voltmeters have scales of several ranges

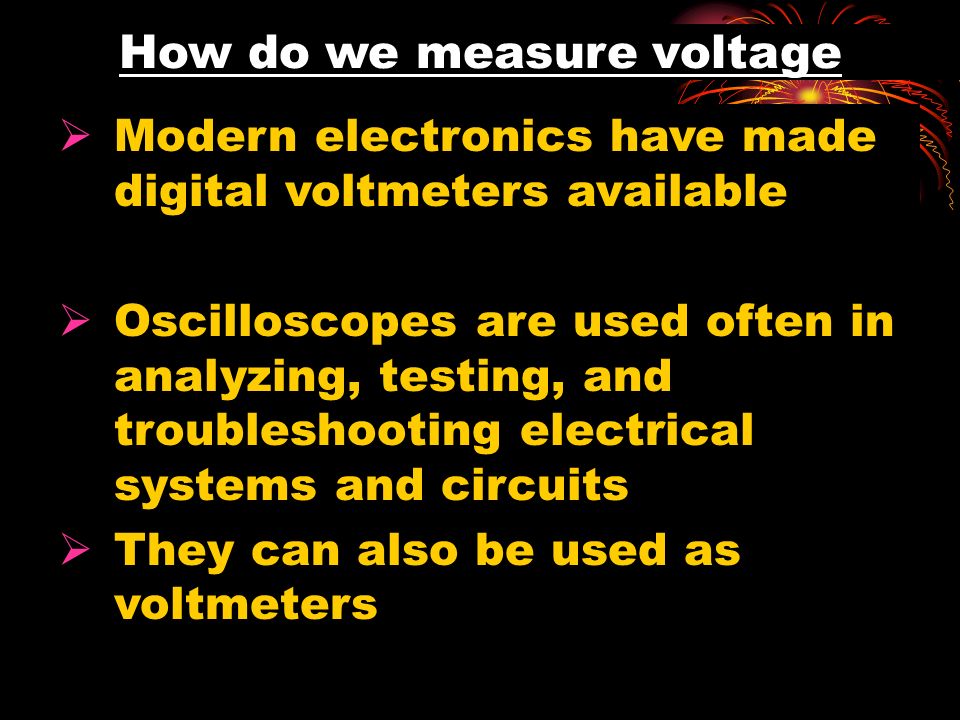

28 How do we measure voltage  Modern electronics have made digital voltmeters available  Oscilloscopes are used often in analyzing, testing, and troubleshooting electrical systems and circuits  They can also be used as voltmeters
