1. High-resolution mid-infrared spectroscopy of deuterated water clusters using a quantum cascade laser- based cavity ringdown spectrometer Jacob T. Stewart and Brian E. Brumfield, Department of Chemistry, University of Illinois at Urbana-Champaign Benjamin J. McCall, Departments of Chemistry and Astronomy, University of Illinois at Urbana-Champaign 1

2. Why water clusters? Water is ubiquitous on Earth and essential to life Complicated molecular structure due to hydrogen bonding Studying small water clusters aids in understanding interactions between water molecules 2

3. Measuring water clusters One of the primary means of studying small water clusters is through spectroscopy Lots of work in the far- infrared, much less work has been done in the infrared No data yet on the bending mode region of small water clusters at high resolution due to limited availability of mid-IR light sources 3 far-IR probes intermolecular vibrations mid- and near-IR probes intramolecular vibrations

4. Quantum cascade lasers Made from multiple stacks of quantum wells Thickness of wells determines laser frequency Frequency is adjusted through temperature and current 4 Curl et al., Chem. Phys. Lett., 487, 1 (2010).

5. Cavity ringdown spectrometer 5 B. E. Brumfield et al., Rev. Sci. Instrum. (2010), 81, 063102. Rhomb and polarizer act as an optical isolator Total internal reflection causes a phase shift in the light Rhomb and polarizer act as an optical isolator Total internal reflection causes a phase shift in the light

6. Producing clusters Clusters were generated in a continuous supersonic slit expansion (150 µm × 1.6 cm) Ar was bubbled through D 2 O and expanded at ~ 250 torr Used spectrometer to probe D 2 O bending region 6

7. What have we observed? 7 D 2 O and HOD monomer transitions have been removed for clarity Almost 10 cm -1 of continuous coverage What species are present? ArD 2 O (D 2 O) n ArD 2 O

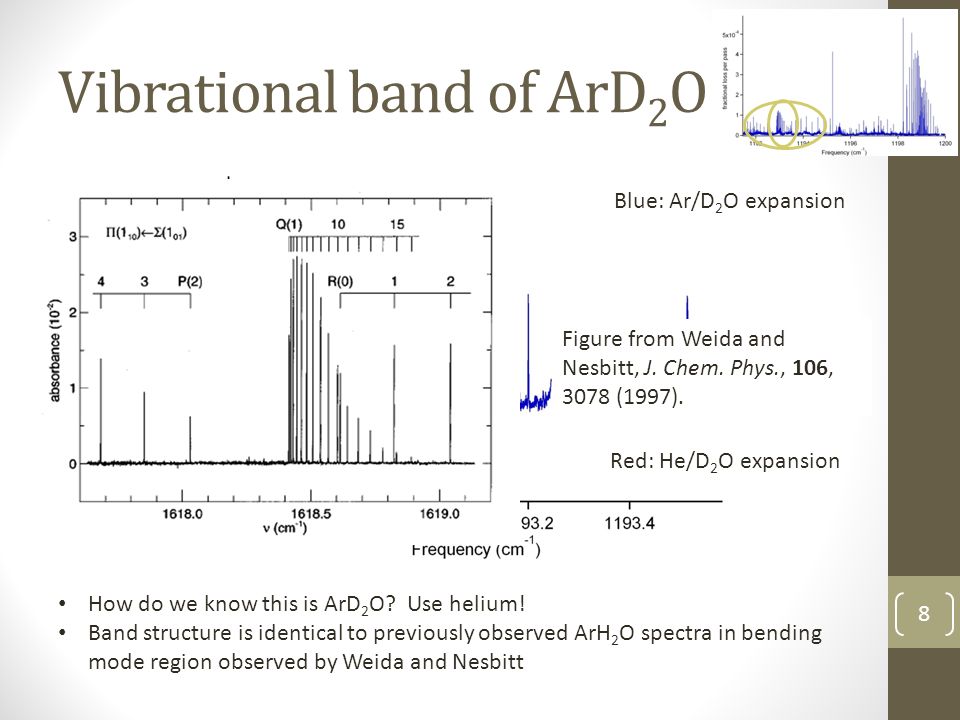

8. Vibrational band of ArD 2 O 8 How do we know this is ArD 2 O? Use helium! Band structure is identical to previously observed ArH 2 O spectra in bending mode region observed by Weida and Nesbitt Blue: Ar/D 2 O expansion Red: He/D 2 O expansion Figure from Weida and Nesbitt, J. Chem. Phys., 106, 3078 (1997).

9. Fitting the vibrational band of ArD 2 O ArD 2 O can be modeled as a pseudodiatomic system where the D 2 O subunit acts as an almost free rotor System is described by 7 quantum numbers: J (total angular momentum) Asymmetric top level of D 2 O subunit (j, k a, and k c ) K (projection of j on intermolecular axis) n (quanta of van der Waals stretch) p (parity) – for e states p=(-1) J, for f states p=(-1) J+1 For example, n=0,  e (1 01 ) is a state with no van der Waals stretch; j=1, k a =0, k c =1 for D 2 O subunit; and K=0 Energy level expression: 9

10. Fitting the vibrational band of ArD 2 O 10 Lack of P(1) and presence of R(0) indicates this is a  transition Had to fit P- & R-branches separately from Q-branch Upper  state has degeneracy split by Coriolis coupling with  state with same D 2 O quantum numbers and parity Figure from Weida and Nesbitt, J. Chem. Phys., 106, 3078 (1997). Selection rules:  J = 0, only e  f allowed – Q branch  J = ±1, only e  e or f  f allowed – P & R branches  e and  f states Coriolis coupling

11. Constants from the fit 11 (cm -1 )P&R branches  (0 00 ) (Fraser et al.)  (1 01 ) (Fraser et al.) B’’0.09103.09325842.09103364 D’’1.79×10 -6 2.571×10 -6 1.786×10 -6 Fraser et al., J. Mol. Spec., 144, 97 (1990). (cm -1 )P&R branchesQ branch 1192.96441192.9620 B’0.095220.09321 D’2.12×10 -6 2.11×10 -6  (1 01 ) assignment is also confirmed by combination differences Fit ground and excited state constants for P- & R-branch transitions (standard deviation = 13 MHz) Only fit excited state for Q-branch, ground state values were fixed to microwave data (standard deviation = 8 MHz) Need to measure upper  state to quantify Coriolis interaction in upper  state

12. Another band of ArD 2 O Another set of strong lines near 1199 cm -1 These lines do not appear in He expansions – indicates Ar cluster There are broad lines that appear in both – these are from D 2 O-only clusters - linewidth gives lifetime ~ 2 ns 12 D2OD2O

13. A D 2 O-only cluster 13 This cluster of lines appears in both Ar and He expansions indicating these features are from (D 2 O) n How do we determine the cluster size?

14. Identifying cluster size Add H 2 O to sample and observe how lines decrease Assume statistical ratio of D 2 O, H 2 O, and HOD Cluster size can be determined by a linear realtionship 14 Cruzan et al., Science (1996), 271, 59.

15. Next steps Optimize expansion conditions for production of (D 2 O) n instead of ArD 2 O Use a combination of He expansions and D 2 O/H 2 O mixtures to identify cluster composition and size Use spectra to observe if exciting bending mode leads to predissociation 15 Keutsch and Saykally, Proc. Natl. Acad. Sci. USA, 98, 10533 (2001).
