1

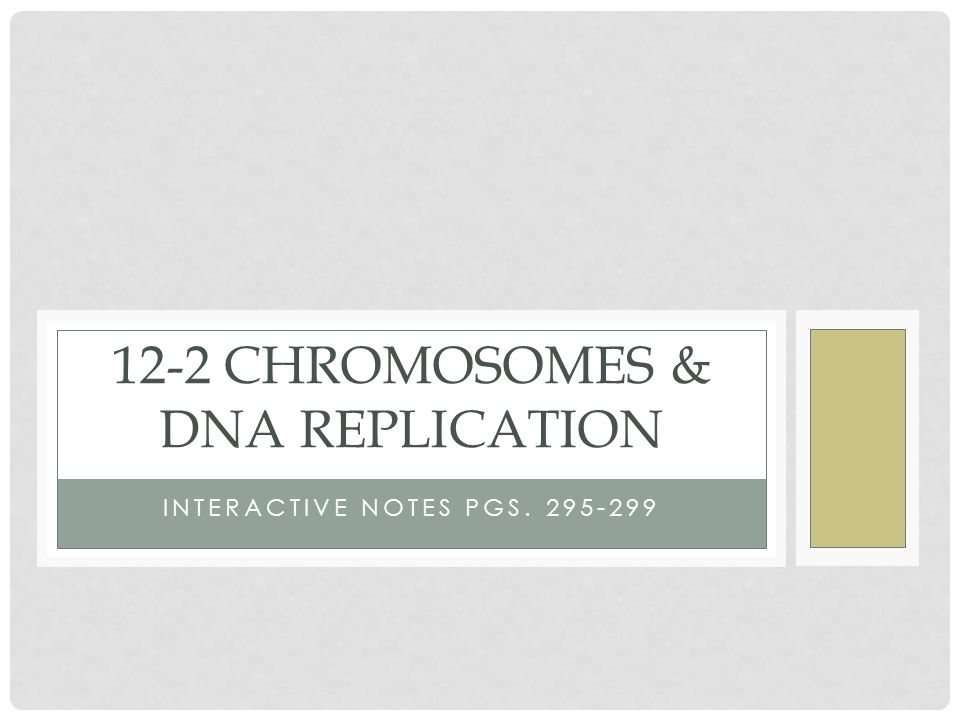

INTERACTIVE NOTES PGS. 295-299 12-2 CHROMOSOMES & DNA REPLICATION
2
LOOKING BACK… Prokaryotes DNA in the cytoplasm Single large DNA molecule, called a chromosome Eukaryotes 1000x amount of DNA as prokaryotes Many chromosomes in the nucleus
3
CHROMOSOME STRUCTURE The nucleus of a human cell must fit more than 1 meter of DNA! Chromatin = DNA + Protein packed together Chromatin is coiled around proteins, called histones
4
EUKARYOTIC CHROMOSOME STRUCTURE
5
DNA REPLICATION Replication is the copying process to duplicate DNA (before cell division) DNA strands are complementary to each other Replication fork = where separation and replication occur The DNA molecule separates and the original strand serves as a template or parent strand Two new complementary (daughter) strands are formed
6
Example: If the template strand has the sequence TACGTT What would be the sequence of the complementary DNA strand that forms during replication? Remember: Adenine (A) pairs with thymine (T) Guanine (G) pairs with cytosine (C) Answer: ATGCAA
7
MECHANISM OF DNA REPLICATION Many enzymes are involved in DNA replication DNA Helicase : Unzips the DNA strands Key Enzyme: DNA POLYMERASE Adds new nucleotides Proofreads each new DNA strand
8

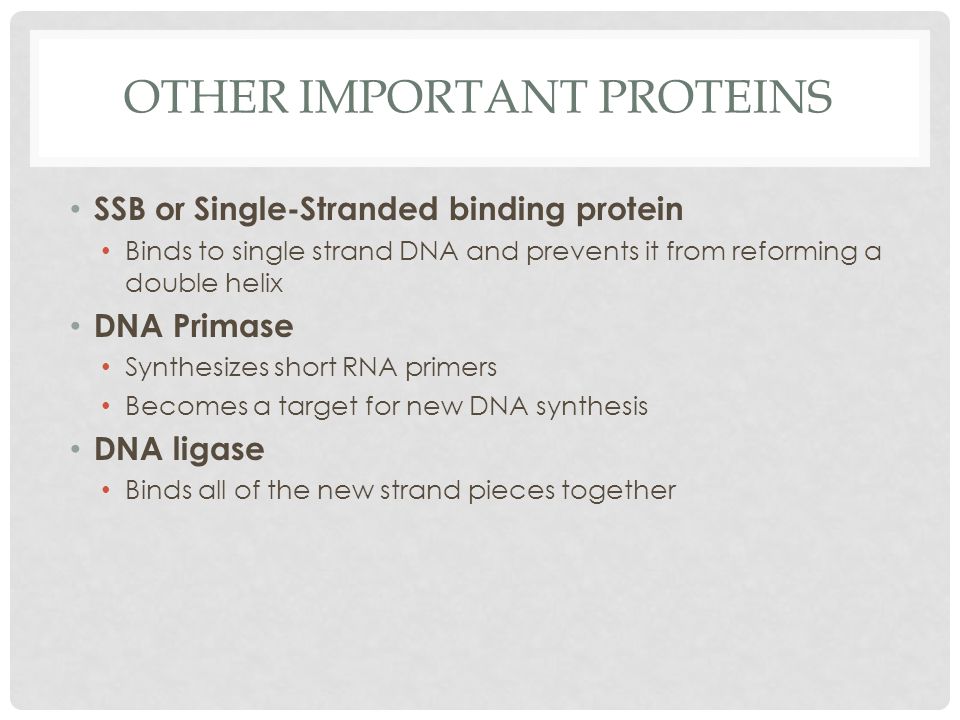

OTHER IMPORTANT PROTEINS SSB or Single-Stranded binding protein Binds to single strand DNA and prevents it from reforming a double helix DNA Primase Synthesizes short RNA primers Becomes a target for new DNA synthesis DNA ligase Binds all of the new strand pieces together
9
THREE STEPS IN DNA REPLICATION Unwinding DNA Helicase unwinds and separates the parent strands Complimentary Base Pairing DNA is synthesized in the 5’ to 3’ direction Leading strand: synthesis is easier (it is in 5’ to 3’ direction for new strand) Lagging strand: not oriented in 5’ to 3’ direction Creates Okazaki fragments joined by DNA ligase Joining DNA polymerase binds short RNA sequences together Results in two identical Semi-conservative double helix molecules One old strand and one new strand
10
REPLICATION IN ACTION… https://www.youtube.com/watch?v=zdDkiRw1PdU
11
Copyright Pearson Prentice Hall Nitrogen Bases Replication Fork DNA Polymerase Replication Fork Original strand New Strand Growth
