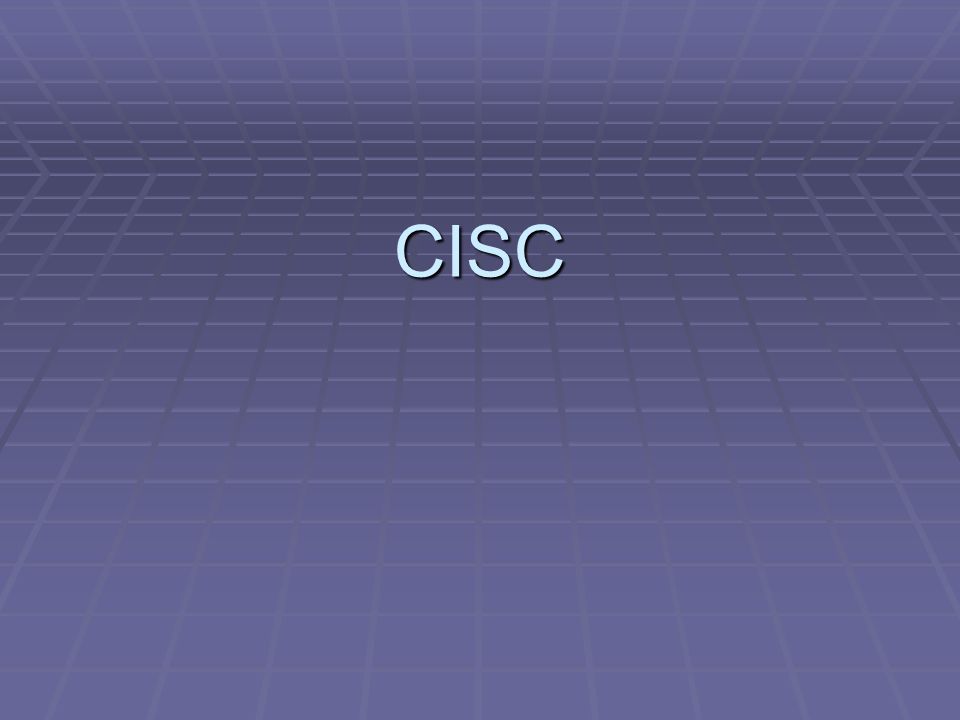

1 CISC

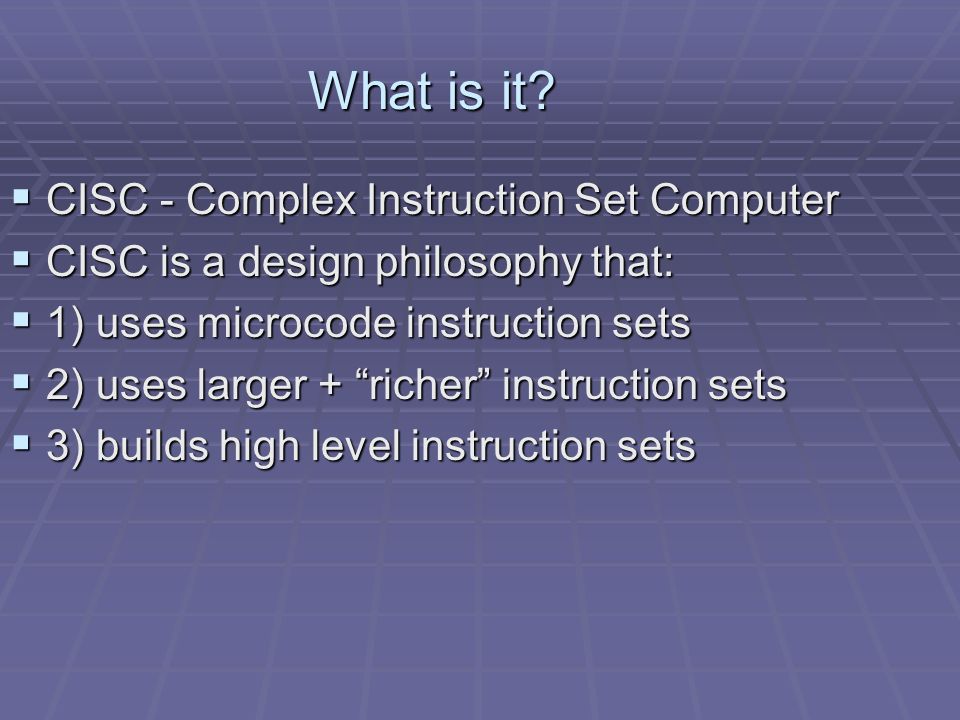

2 What is it?  CISC - Complex Instruction Set Computer  CISC is a design philosophy that:  1) uses microcode instruction sets  2) uses larger + “richer” instruction sets  3) builds high level instruction sets

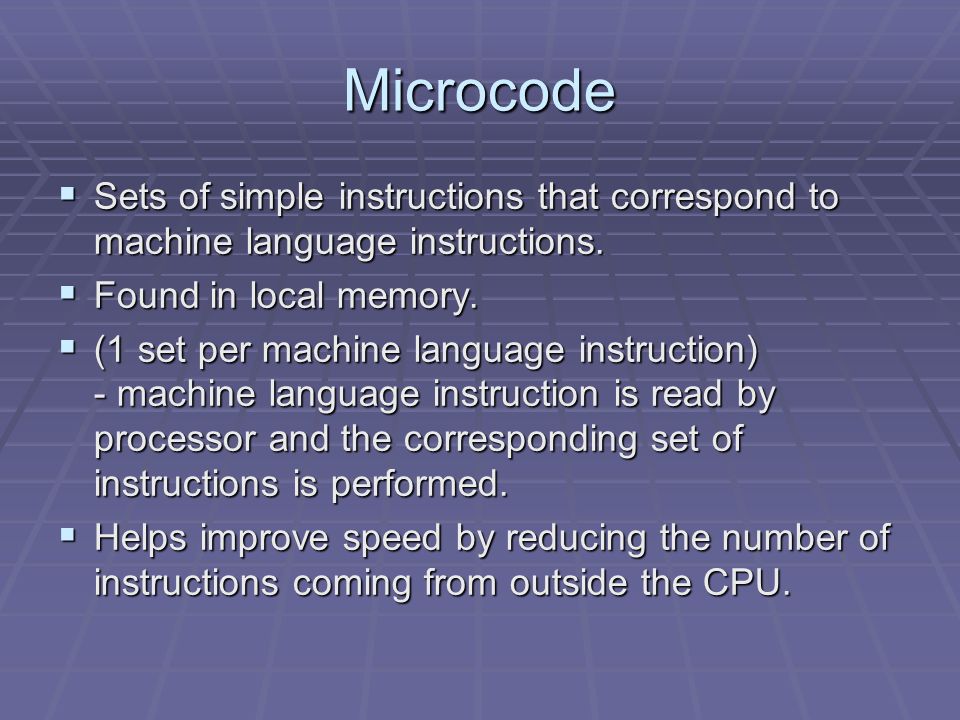

3 Microcode  Sets of simple instructions that correspond to machine language instructions.  Found in local memory.  (1 set per machine language instruction) - machine language instruction is read by processor and the corresponding set of instructions is performed.  Helps improve speed by reducing the number of instructions coming from outside the CPU.

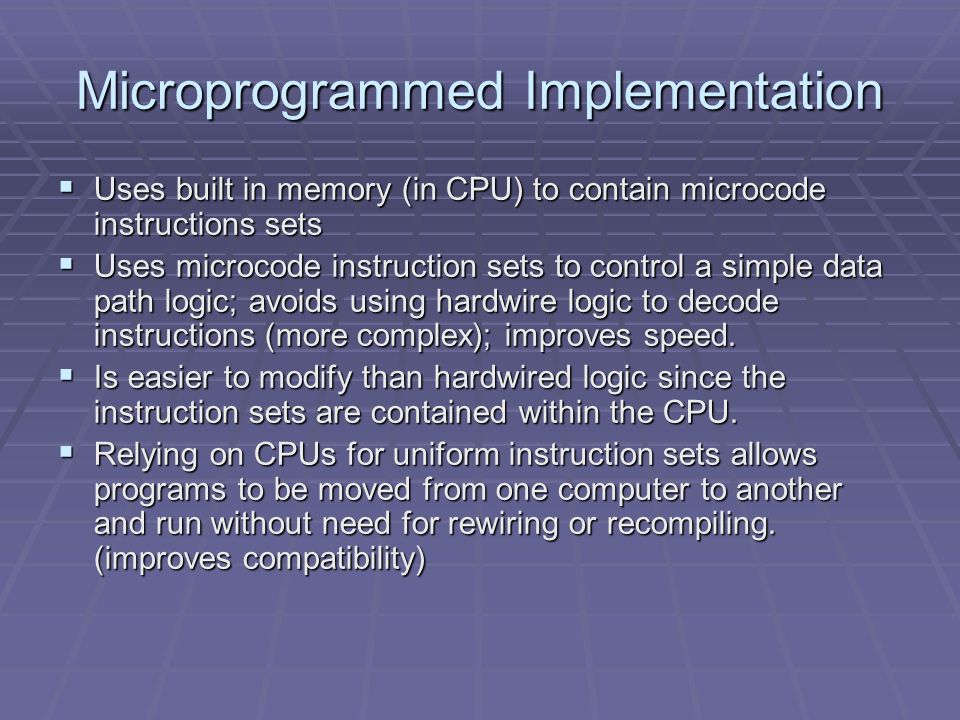

4 Microprogrammed Implementation  Uses built in memory (in CPU) to contain microcode instructions sets  Uses microcode instruction sets to control a simple data path logic; avoids using hardwire logic to decode instructions (more complex); improves speed.  Is easier to modify than hardwired logic since the instruction sets are contained within the CPU.  Relying on CPUs for uniform instruction sets allows programs to be moved from one computer to another and run without need for rewiring or recompiling. (improves compatibility)

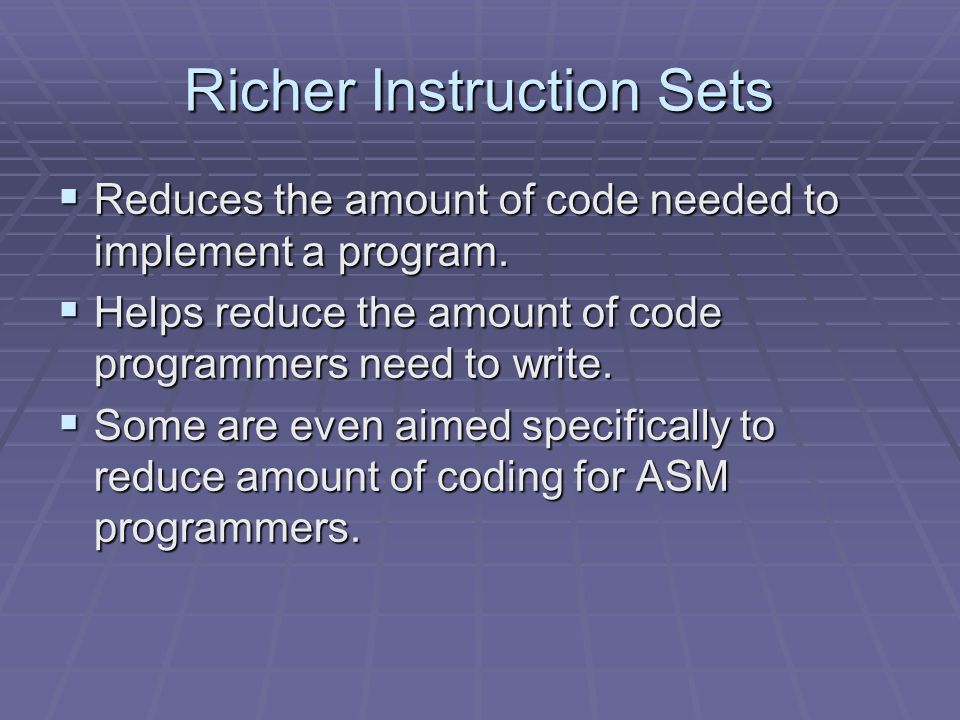

5 Richer Instruction Sets  Reduces the amount of code needed to implement a program.  Helps reduce the amount of code programmers need to write.  Some are even aimed specifically to reduce amount of coding for ASM programmers.

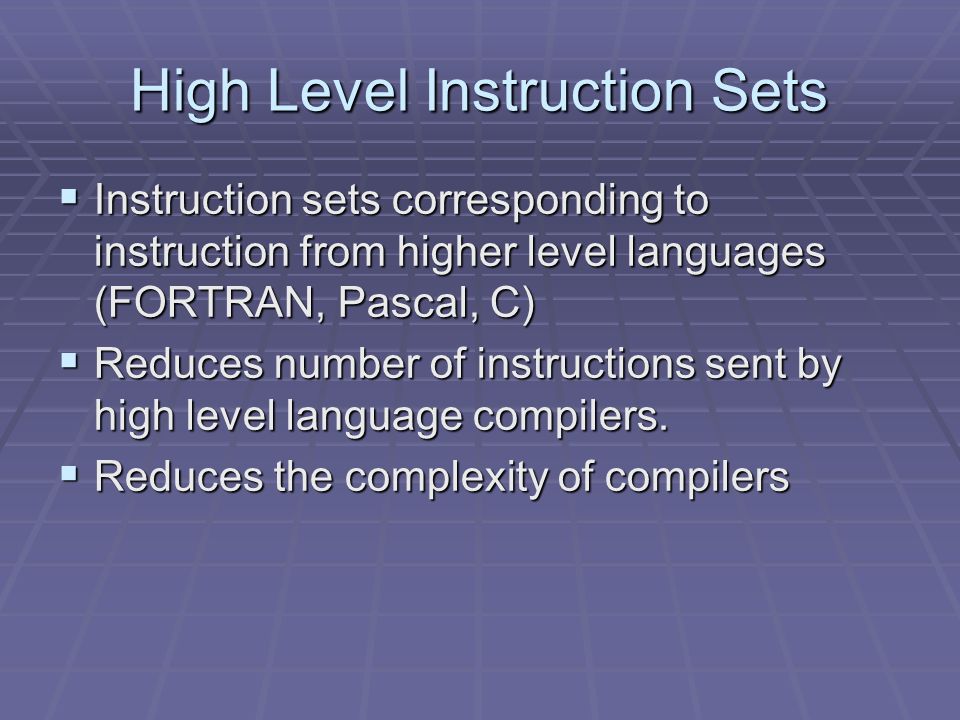

6 High Level Instruction Sets  Instruction sets corresponding to instruction from higher level languages (FORTRAN, Pascal, C)  Reduces number of instructions sent by high level language compilers.  Reduces the complexity of compilers

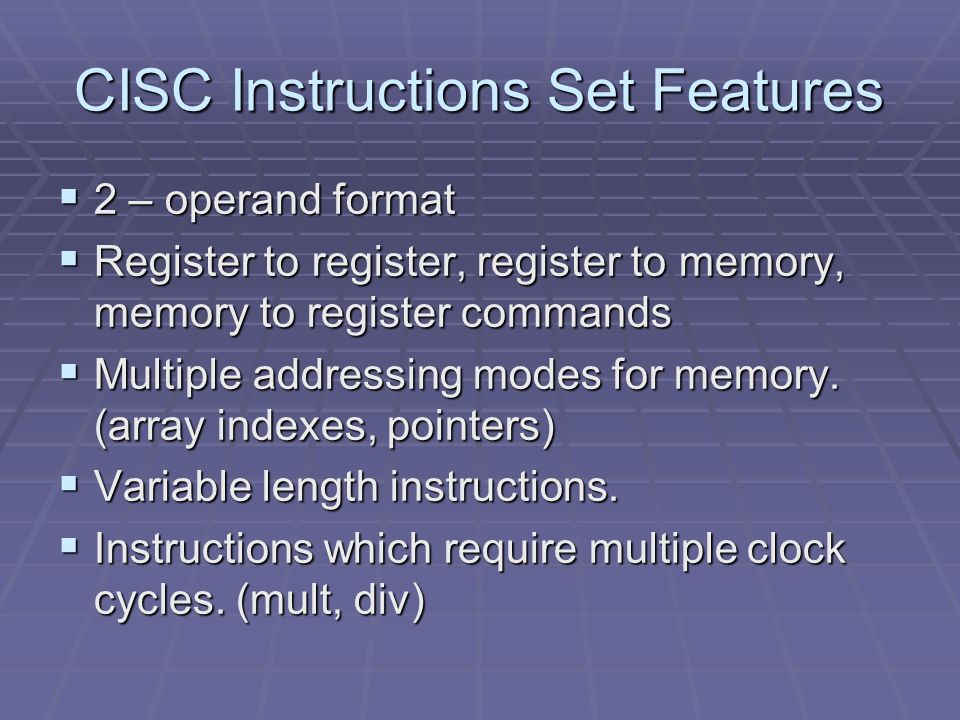

7 CISC Instructions Set Features  2 – operand format  Register to register, register to memory, memory to register commands  Multiple addressing modes for memory. (array indexes, pointers)  Variable length instructions.  Instructions which require multiple clock cycles. (mult, div)

8 CISC Hardware Features, Drawbacks  Main processor has built in memory that contains microcode instruction sets.  uses less transistors; Makes efficient use of memory.  Has special purpose registers (for stack pointers, interrupt handling)  Has a “condition code" register (for comparisons >,, <, =,!, etc)  Small number of general purpose registers  Rarely used hardwired instruction sets (wastes chip space, slows performance, generates extra heat)

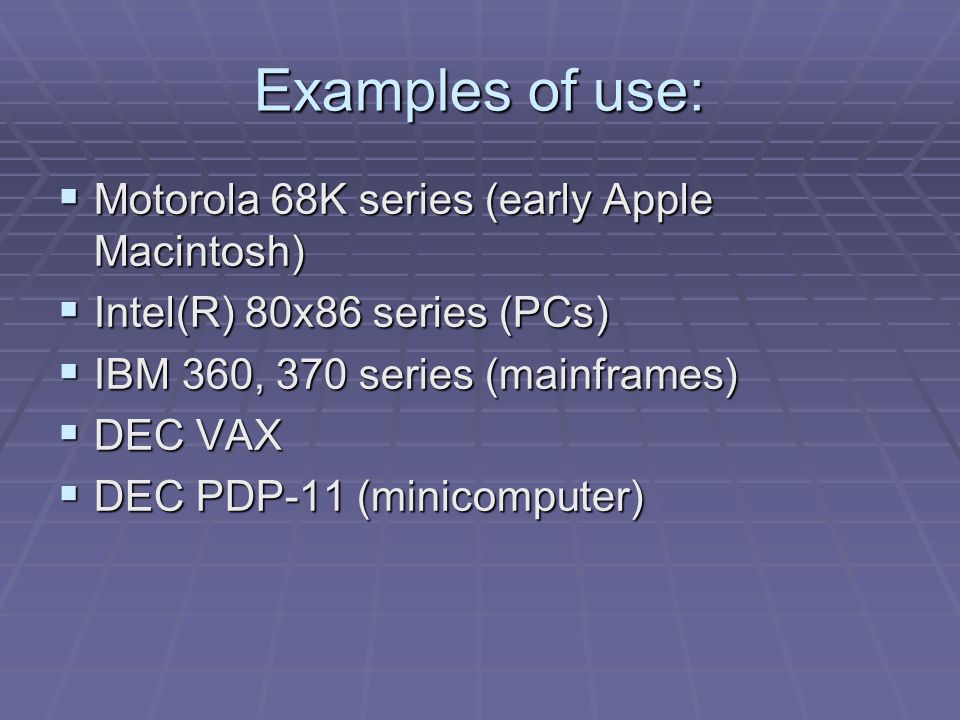

9 Examples of use:  Motorola 68K series (early Apple Macintosh)  Intel(R) 80x86 series (PCs)  IBM 360, 370 series (mainframes)  DEC VAX  DEC PDP-11 (minicomputer)

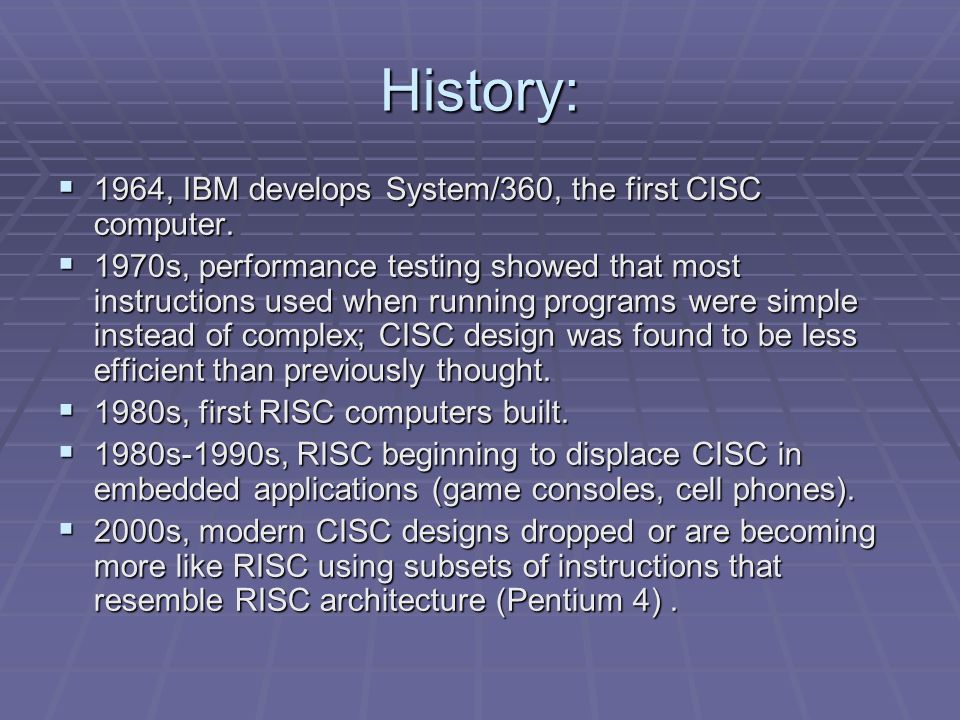

10 History:  1964, IBM develops System/360, the first CISC computer.  1970s, performance testing showed that most instructions used when running programs were simple instead of complex; CISC design was found to be less efficient than previously thought.  1980s, first RISC computers built.  1980s-1990s, RISC beginning to displace CISC in embedded applications (game consoles, cell phones).  2000s, modern CISC designs dropped or are becoming more like RISC using subsets of instructions that resemble RISC architecture (Pentium 4).

11 CISC vs RISC  Complex chip design  Has large instruction set.  Emphases workload on hardware  Uses more complex instruction; results in easier coding.  Uses multithreading to improve performance  Uses less memory; cheaper  Complex instructions already hardwired into CPU  less general purpose registers in favor of special purpose registers and instruction sets  Improves execution time by reducing number of instructions  Ideal CISC – 1 instruction per cycle  Simple chip design  Has small instruction set.  Emphases workload on software  Uses reduced instructions; results in better clock synchronizing.  Uses pipelining (and/or multithreading) to improve performance  Uses more memory; more expensive  Needs lots of simple code to simulate a complex instruction (may be fixed by more complex compiler code)  More general purpose registers in favor of speed  Improves execution time by reducing number of cycles per instruction  Ideal RISC – multiple instructions per cycle

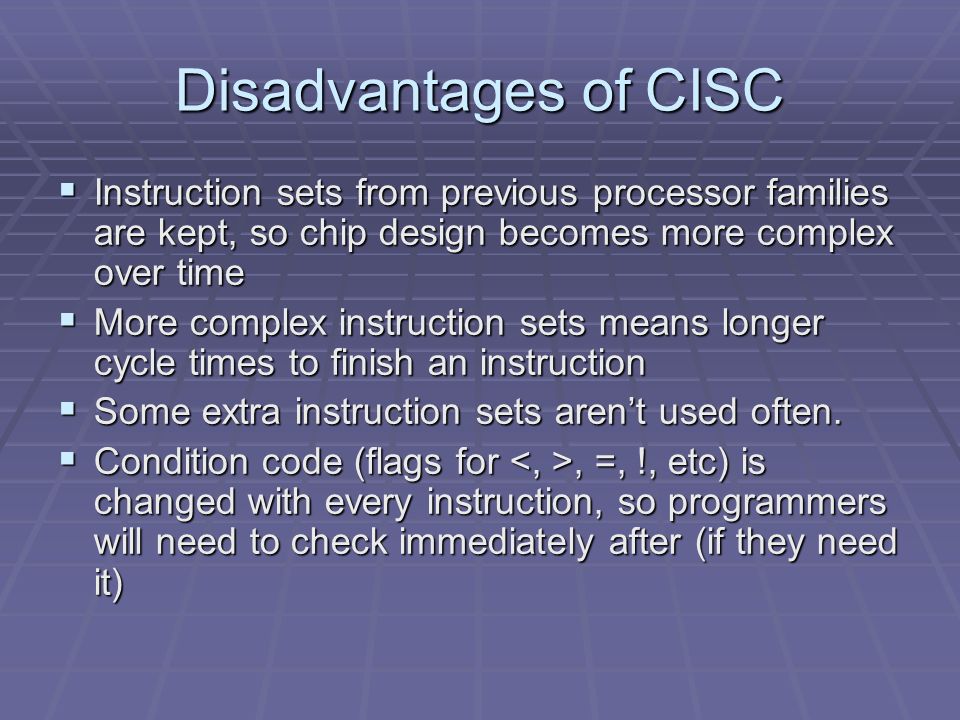

12 Disadvantages of CISC  Instruction sets from previous processor families are kept, so chip design becomes more complex over time  More complex instruction sets means longer cycle times to finish an instruction  Some extra instruction sets aren’t used often.  Condition code (flags for, =, !, etc) is changed with every instruction, so programmers will need to check immediately after (if they need it)

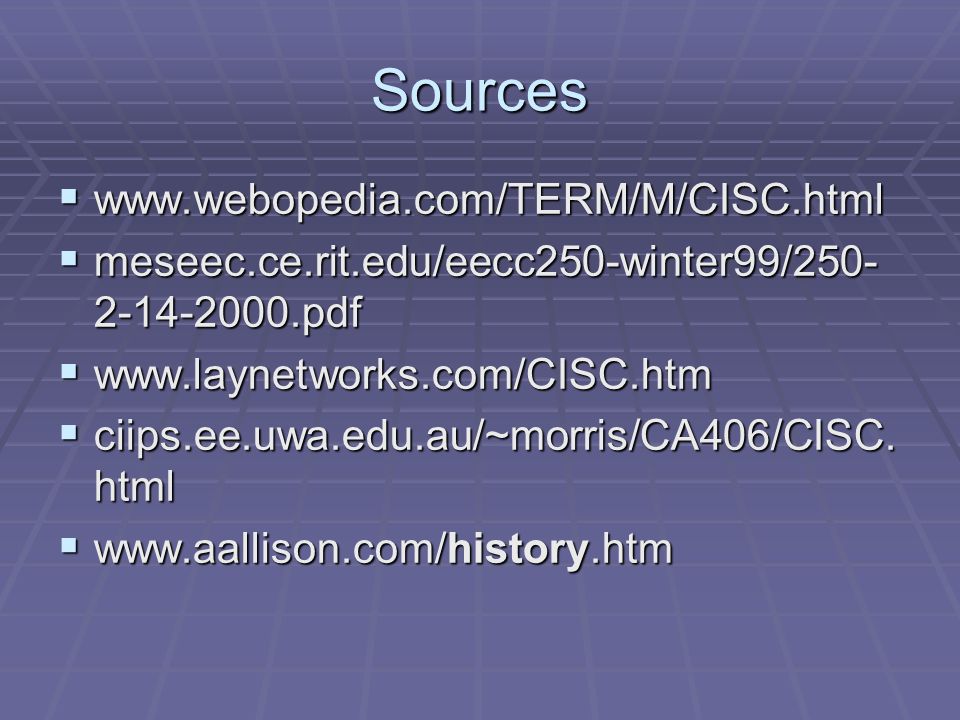

13 Sources  www.webopedia.com/TERM/M/CISC.html  meseec.ce.rit.edu/eecc250-winter99/250- 2-14-2000.pdf  www.laynetworks.com/CISC.htm  ciips.ee.uwa.edu.au/~morris/CA406/CISC. html  www.aallison.com/history.htm
