1. R EAL TIME P CR 1

2. L IMITATIONS OF E ND -P OINT PCR Poor Precision Low sensitivity Low resolution Non - Automated Size-based discrimination only Results are not expressed as numbers Ethidium bromide for staining is not very quantitative Post PCR processing 2

3. T HE E VOLUTION OF PCR TO R EAL -T IME Traditional PCRs use Agarose gels for detection of amplification at the final phase or end-point of the PCR reaction Real time PCR has advanced to allow detection before the end-point of the reaction. 3

4. R EAL - TIME PCR DETECTION While the reaction is occurring monitors the fluorescence emitted during the reaction as an indicator of amplicon production at each PCR cycle Real-Time chemistries allow for the detection of PCR amplification during the early phases of the reaction 4

5. 5

6. PCR P HASES Exponential: Exact doubling of product is accumulating at every cycle (assuming 100% reaction efficiency). The reaction is very specific and precise. Linear (High Variability): The reaction components are being consumed, the reaction is slowing, and products are starting to degrade. Plateau (End-Point: Gel detection for traditional methods): The reaction has stopped, no more products are being made and if left long enough, the PCR products will begin to degrade. 6

7. 7

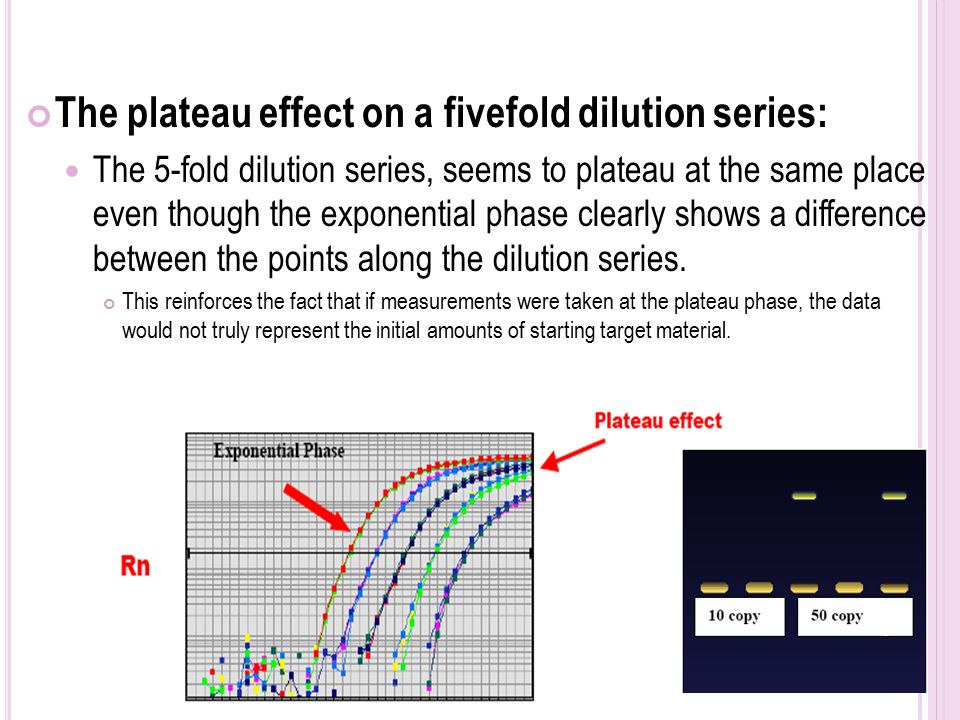

8. The plateau effect on a fivefold dilution series: The 5-fold dilution series, seems to plateau at the same place even though the exponential phase clearly shows a difference between the points along the dilution series. This reinforces the fact that if measurements were taken at the plateau phase, the data would not truly represent the initial amounts of starting target material. 8

9. R EAL - TIME P RINCIPLES Three general methods for the quantitative detection: 1. Hydrolysis probes (TaqMan). 2. DNA-binding agents (SYBR Green). 9

10. T AQ M AN C HEMISTRY Real-time systems using fluorogenic-labeled probes that use the 5´ nuclease activity of Taq DNA polymerase. Detecting only specific amplification products. Eliminate post-PCR processing for the analysis of probe degradation 10

11. A fluorogenic probe enables the detection of a specific PCR product as it accumulates during PCR. The TaqMan® Probe is designed with a high-energy dye termed a Reporter at the 5 end, and a low-energy molecule termed a Quencher at the 3 end. While the probe is intact, the proximity of the quencher dye greatly reduces the fluorescence emitted by the reporter dye by fluorescence resonance energy transfer (FRET) through space. When reporter and quencher are separated the reporter fluoroscence 11

12. H OW T AQ M AN S EQUENCE D ETECTION C HEMISTRY W ORKS 1. If the target sequence is present, the probe anneals downstream from one of the primer sites 2. During extension the probe is cleaved by the 5´ nuclease activity of Taq DNA polymerase. The reporter dye is separated from the quencher dye, increasing the reporter dye signal. The probe is removed from the target strand, allowing primer extension to continue to the end of the template strand.. 3. Additional reporter dye molecules are cleaved from their respective probes with each cycle. 12

13. The fluorescence intensity is increased proportional to the amount of amplicon produced. 13

14. SYBR ® G REEN I D YE C HEMISTRY Small molecules that bind to double- stranded DNA can be divided into two classes: Intercalators Minor-groove binders There are two requirements for a DNA binding dye for real-time detection of PCR: Increased fluorescence when bound to double-stranded DNA No inhibition of PCR 14

15. H OW THE SYBR G REEN I D YE C HEMISTRY W ORKS When SYBR Green I dye is added to a sample, it immediately binds to all double-stranded DNA present in the sample. ● During the PCR, the DNA Polymerase amplifies the target sequence, and creates the PCR products. ● The SYBR Green I dye binds to each new copy of double-stranded DNA. ● As the PCR progresses, more amplicons are created. The result is an increase in fluorescence intensity proportionate to the amount of PCR product produced. 15

16. Advantages of SYBR Green I Dye It can be used to monitor the amplification of any double- stranded DNA sequence. No probe is required, which reduces assay setup and running costs. Disadvantage of SYBR Green I Dye SYBR Green I dye chemistry may generate false positive signals SYBR Green I dye binds to nonspecific double-stranded DNA sequences. Needs fully optimized PCR system -no primer dimers or non-specific amplicons. When not to choose SYBR Green Multiplex reactions. 16

17. R EAL - TIME PCR ADVANTAGES Not influenced by non-specific amplification Amplification can be monitored in real-time No post-PCR processing of products (high throughput, low contamination risk) Ultra-rapid cycling (30 minutes to 2 hours) Most specific, sensitive and reproducible Not much more expensive than conventional PCR (except equipment cost) 17
