Losses in Loudspeakers Claus Futtrup, MSc M.E. Chief Technical Officer
2

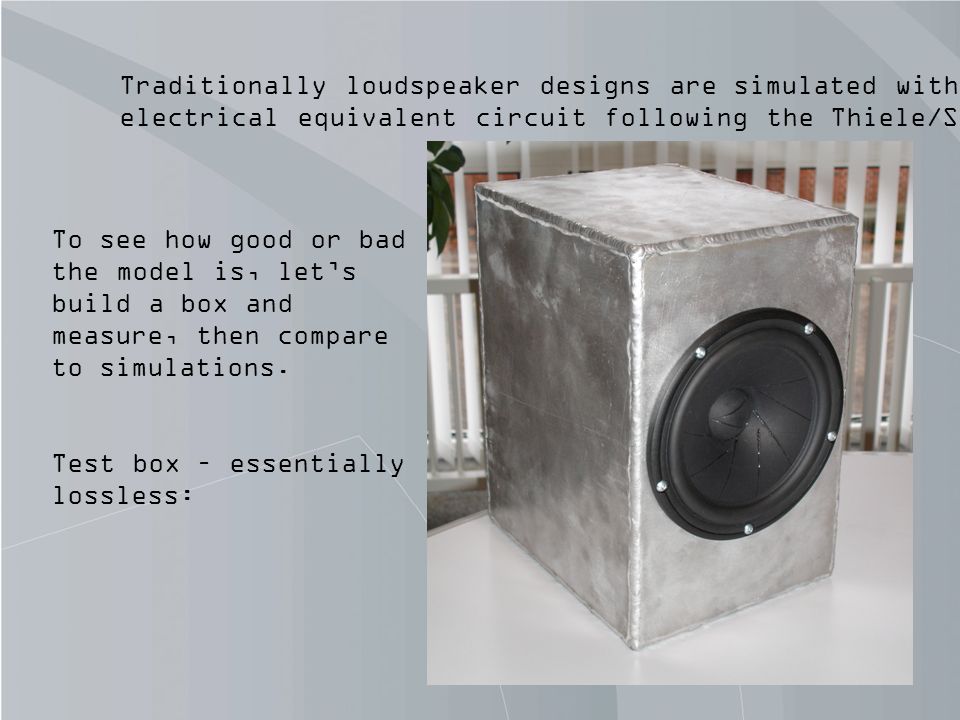

Traditionally loudspeaker designs are simulated with a standard electrical equivalent circuit following the Thiele/Small approach. To see how good or bad the model is, let’s build a box and measure, then compare to simulations. Test box – essentially lossless:
3

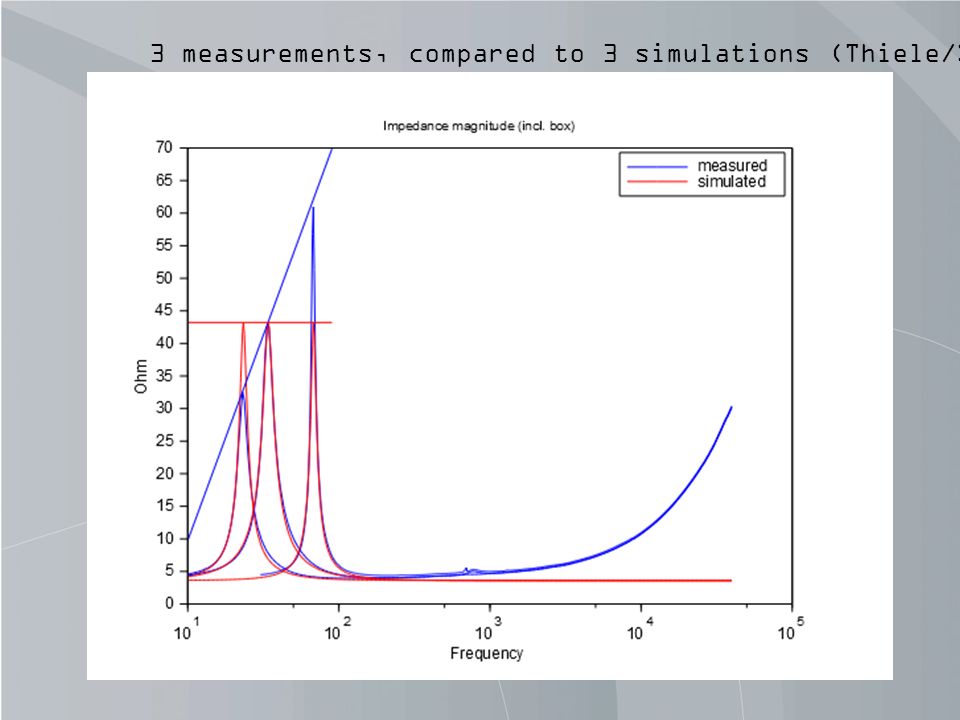

3 measurements, compared to 3 simulations (Thiele/Small)
4

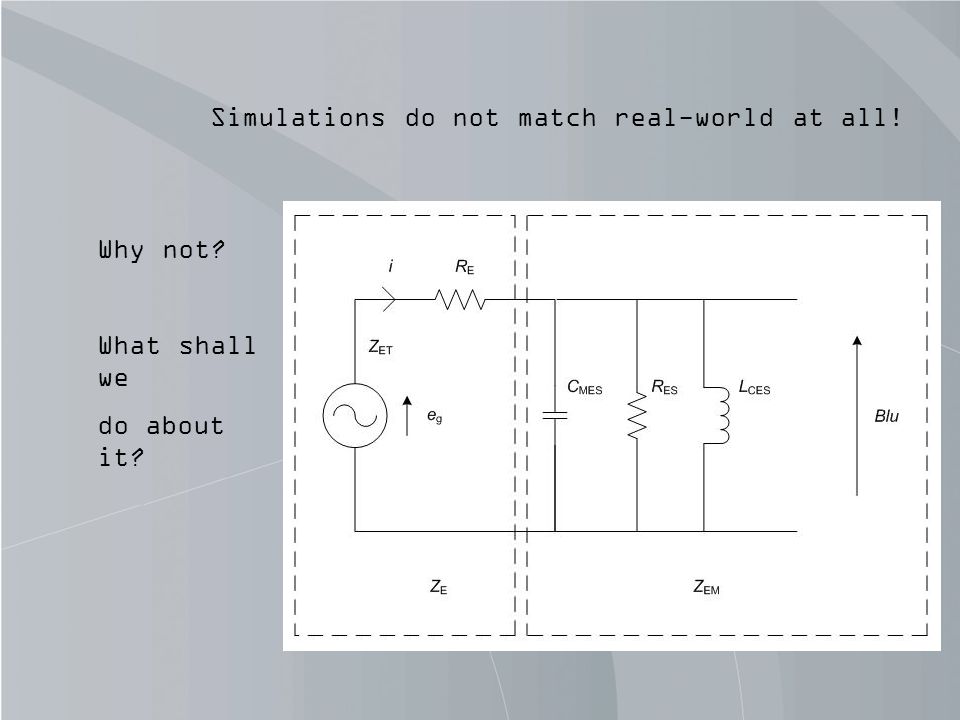

Simulations do not match real-world at all! Why not? What shall we do about it?
5

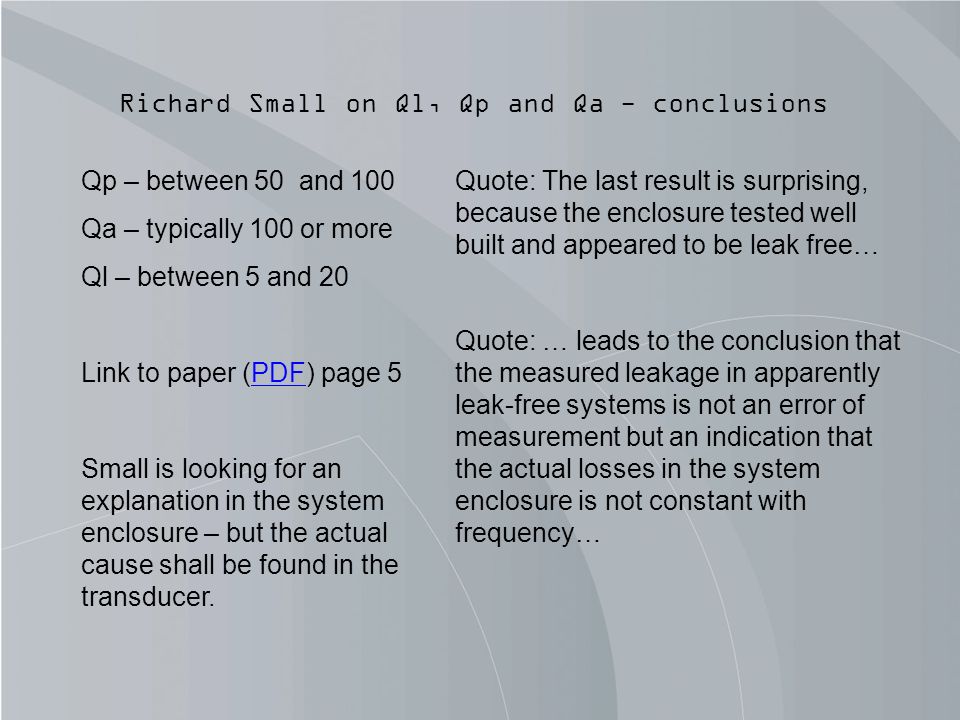

Richard Small on Ql, Qp and Qa - conclusions Qp – between 50 and 100 Qa – typically 100 or more Ql – between 5 and 20 Link to paper (PDF) page 5PDF Small is looking for an explanation in the system enclosure – but the actual cause shall be found in the transducer. Quote: The last result is surprising, because the enclosure tested well built and appeared to be leak free… Quote: … leads to the conclusion that the measured leakage in apparently leak-free systems is not an error of measurement but an indication that the actual losses in the system enclosure is not constant with frequency…
6

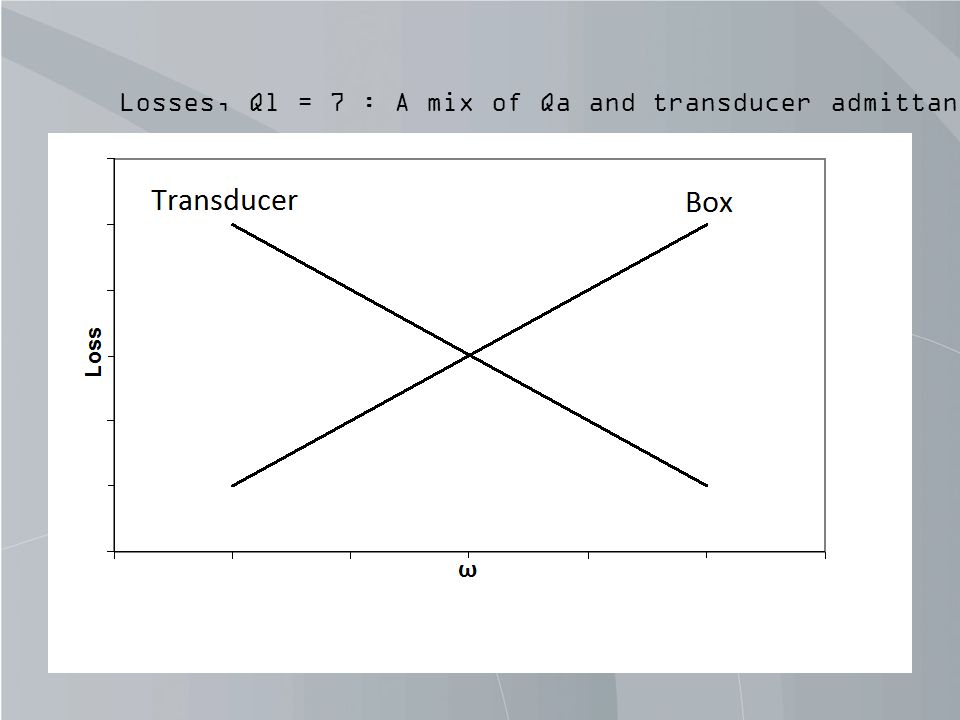

Losses, Ql = 7 : A mix of Qa and transducer admittance Λes
7

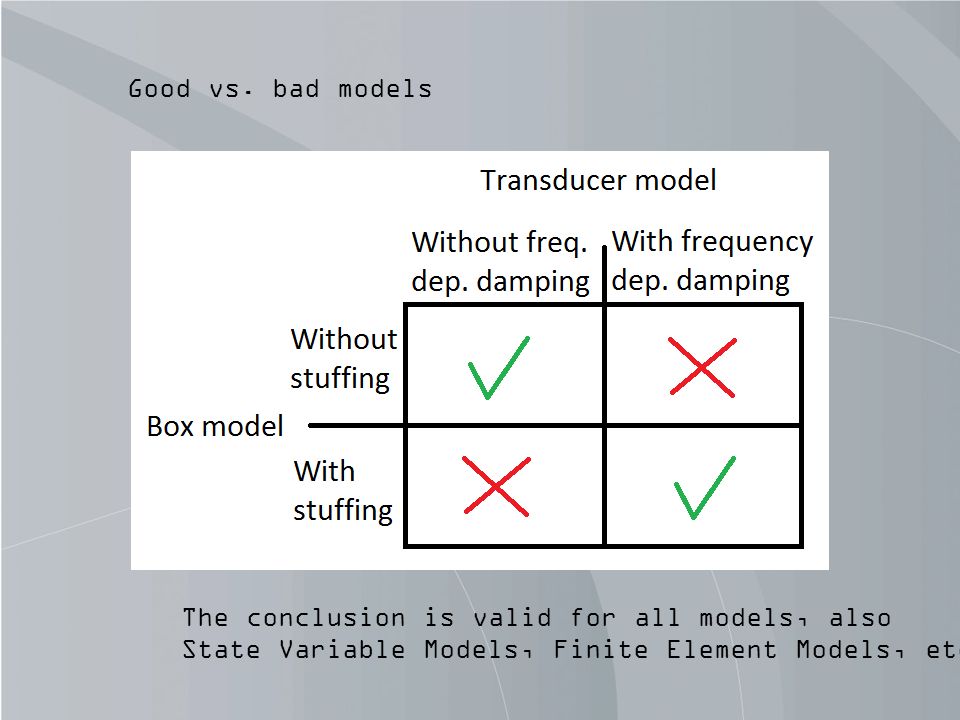

Good vs. bad models The conclusion is valid for all models, also State Variable Models, Finite Element Models, etc.
8

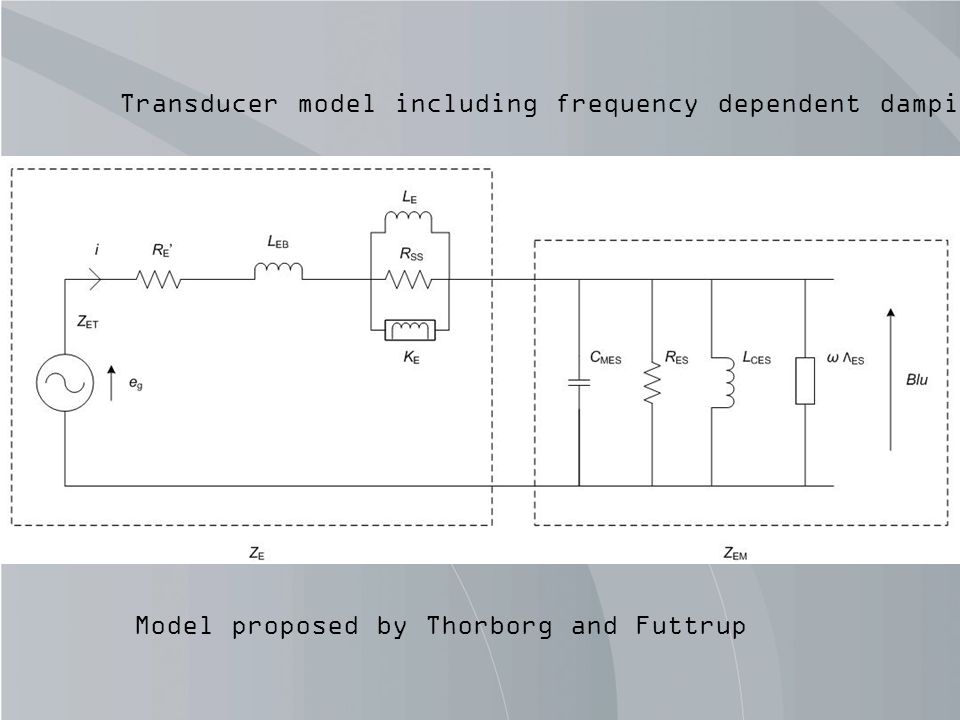

Transducer model including frequency dependent damping Model proposed by Thorborg and Futtrup
9

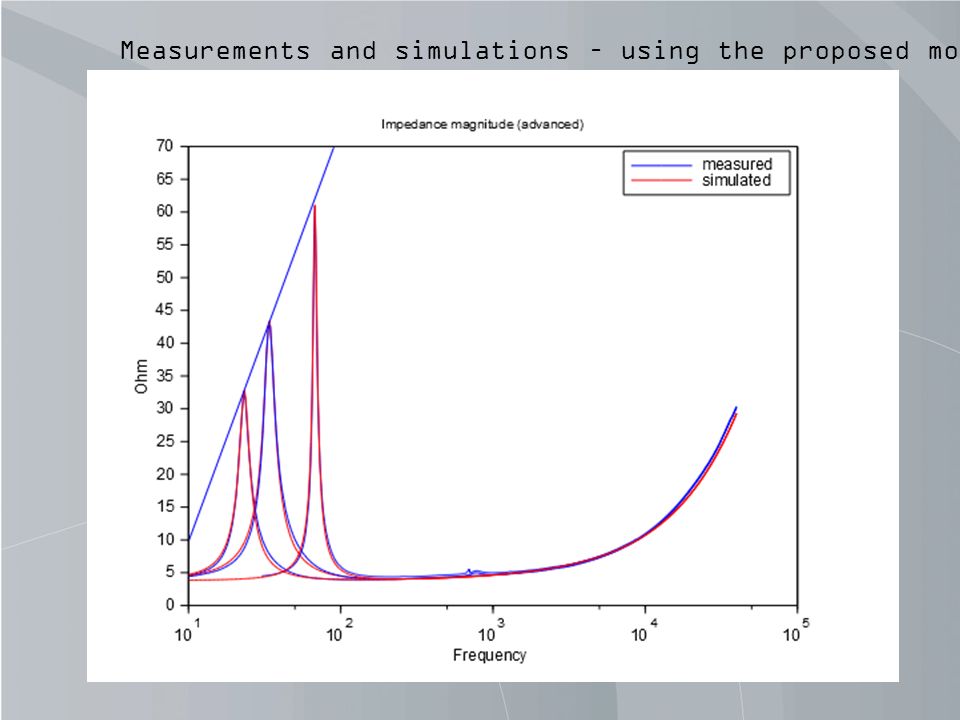

Measurements and simulations – using the proposed model
10

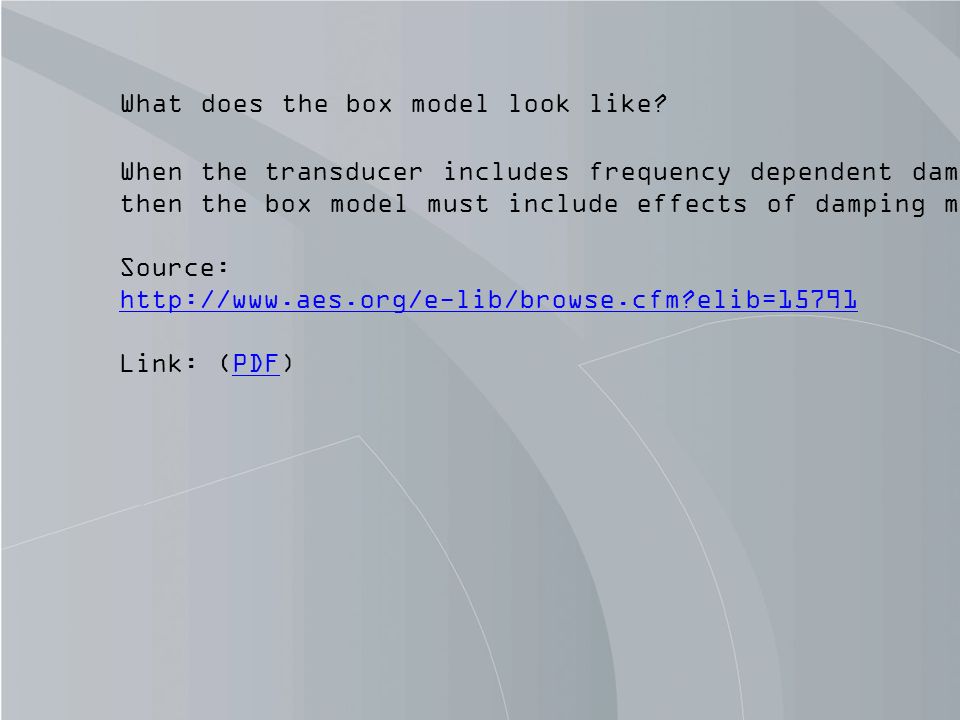

What does the box model look like? When the transducer includes frequency dependent damping then the box model must include effects of damping material. Source: http://www.aes.org/e-lib/browse.cfm?elib=15791 Link: (PDF)PDF
11

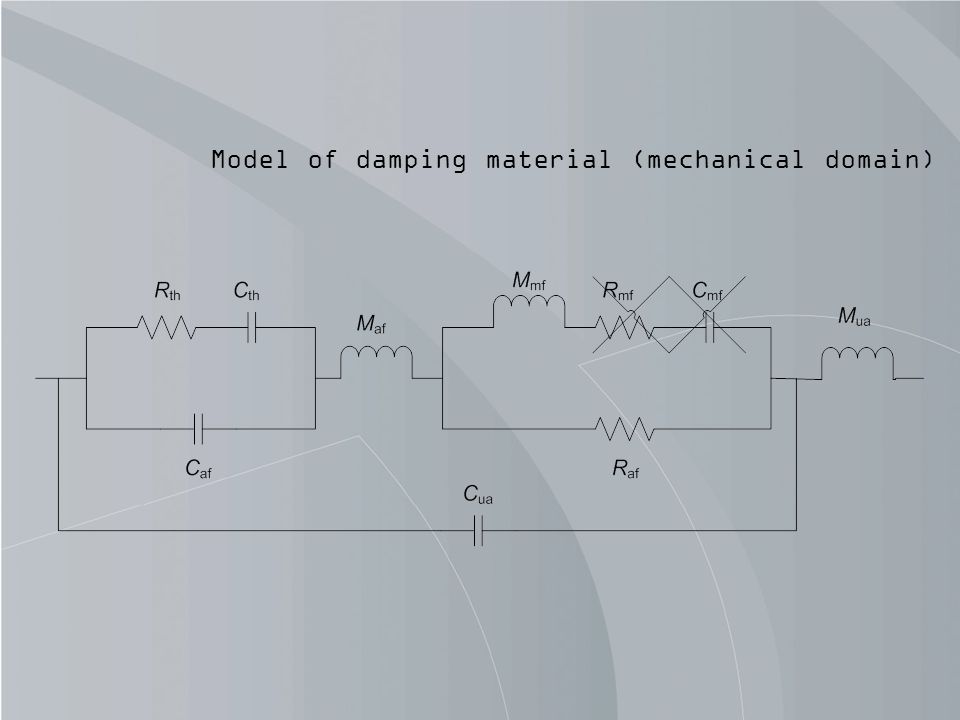

Model of damping material (mechanical domain)
12

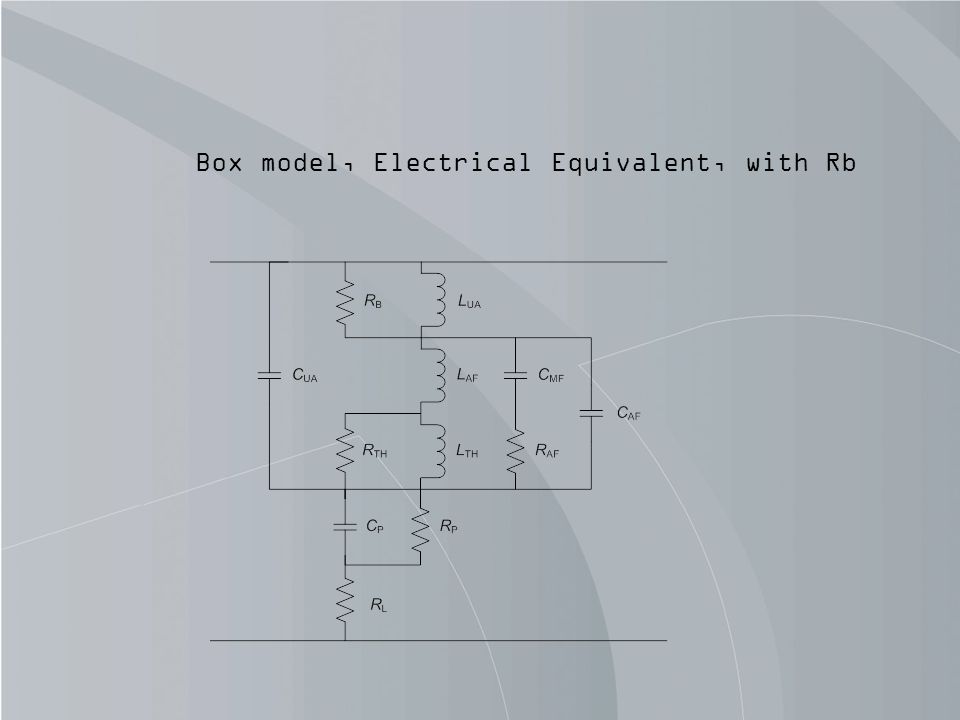

Box model, Electrical Equivalent, with Rb
13

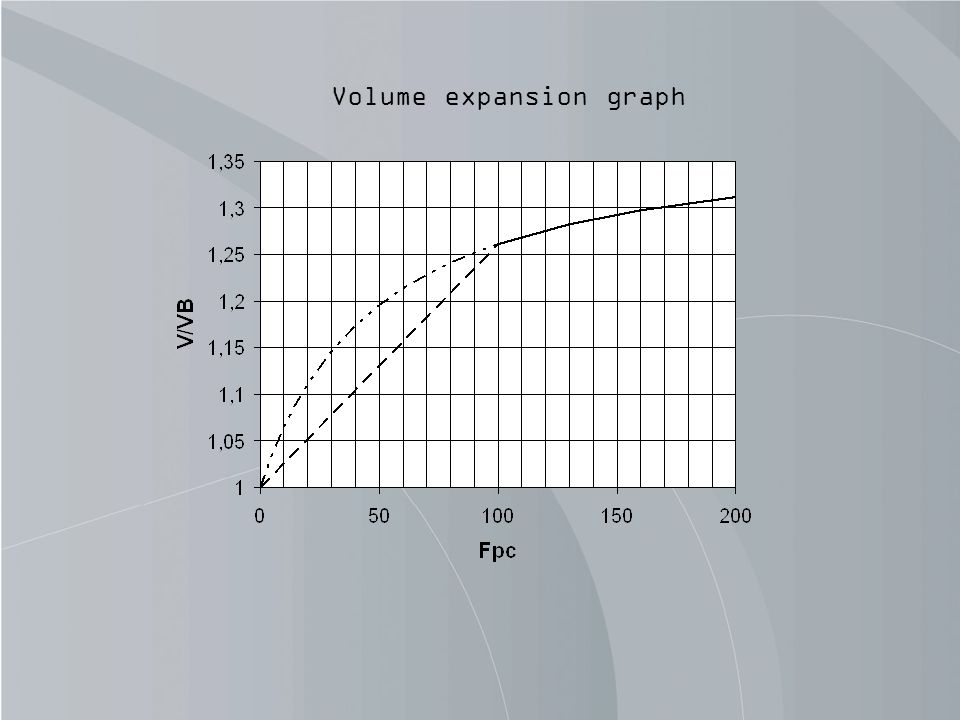

Volume expansion graph
14
Douglas Hurlburt (JAES, March 2000) Makes all the classical errors: 1)Combines the T/S transducermodel with absorption in the box. 2)Includes the Marshall Leach absorption model without a fill percentage. We can assume that Hurlburt didn’t verify his model, because we would have observed that the quality of the model vs. reality would have been worse – i.e. worse than simply assuming Ql = 7. Link to paper (PDF). See page 15.PDF
15
Mechanical model, Tarnow For standard polyester damping material. This is different from Bradburys tentative results (36) by a factor 2.5, published in the Journal of the AES, April 1976
16

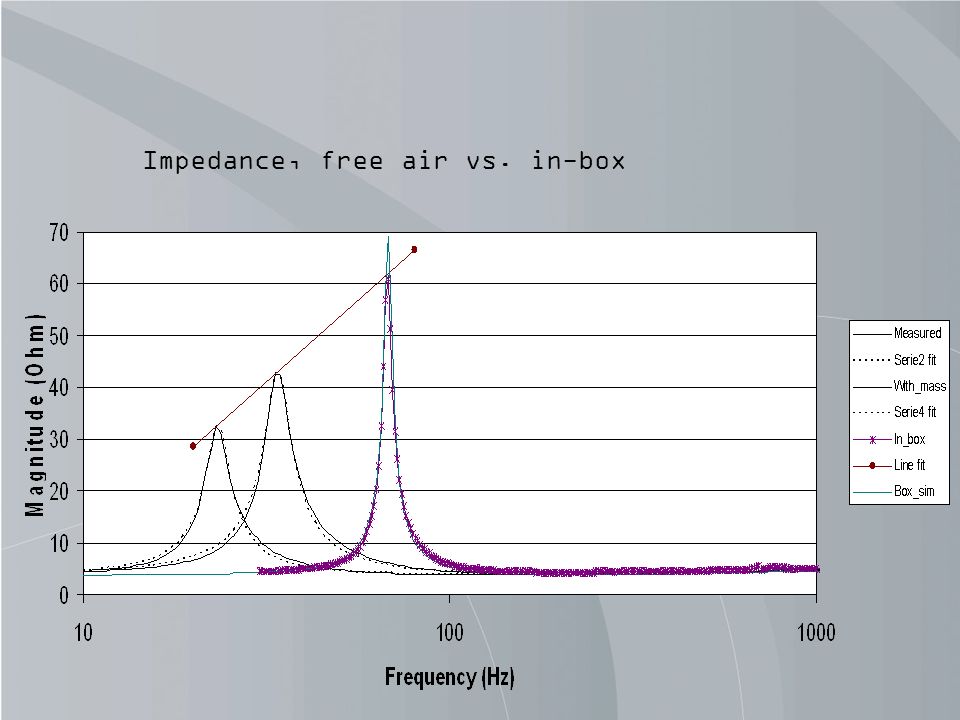

Impedance, free air vs. in-box
17

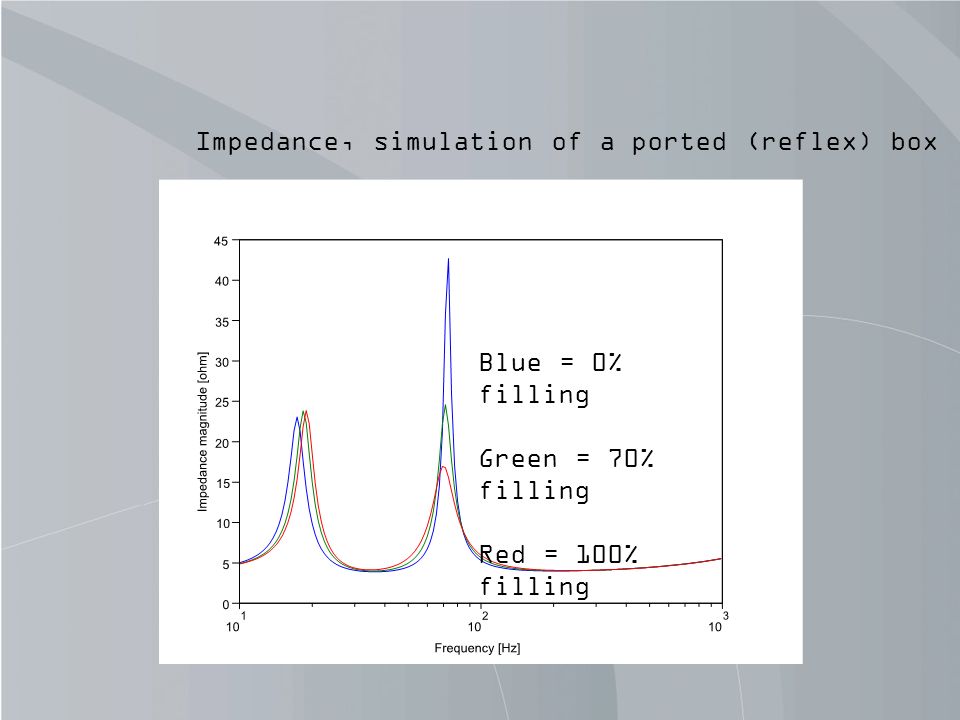

Impedance, simulation of a ported (reflex) box Blue = 0% filling Green = 70% filling Red = 100% filling
18
Thank you. Questions? Claus Futtrup futtrup@seas.no For more info see: http://www.cfuttrup.comhttp://www.cfuttrup.com
