1. Distortion Correction ECE 6276 Project Review Team 5: Basit Memon Foti Kacani Jason Haedt Jin Joo Lee Peter Karasev

2. Initial Results Image Size (Pixels) Optimization Parameters Optimization (Design Goal) Area ScoreLatency Cycles / Throughput Cycles Maximum Delay (ns) Slack (ns) 8x8No OptimizationArea14713911/125011.41-1.41 8x8No sqrtArea35231625/21549.270.73 8x8No sqrtLatency16125591/591011.41-1.41 32 x 32No sqrtArea4002.3325697/3190612.18-2.18 64 x 64No sqrtArea4077.14102593/12729812.18-2.18 256 x 256No sqrtArea3906.161639169/20984348.941.06 640 x 480No sqrtArea4392.457681921/95262429.490.51

3. Problems Old code was very slow Matlab was ported line-by-line –Redundant computations –Loops not nested correctly –Not able to exploit Catapult C features fully

4. Target & Test Vectors for Catapult Catapult C was targeted for the Stratix III FPGA with a clock frequency of 100 MHz For the following Catapult results used a 320x240 image like shown below:

5. Test Vectors Images distorted in matlab so that ground truth exists Flattened into binary streams Identical format for matlab, plain C, AC Datatypes results

6. Optimizations after CDR Look Up Tables Optimal fixed point bit sizes Algorithmic changes –Streamlined loops (allows for optimal pipelining/unrolling) –Math optimizations

7. 1. Original Power Series with AC types div() Area: 11734 Throughput Cycles: 5,145,841 (67 per pixel) AC Datatypes div() function uses only bit operations and additions

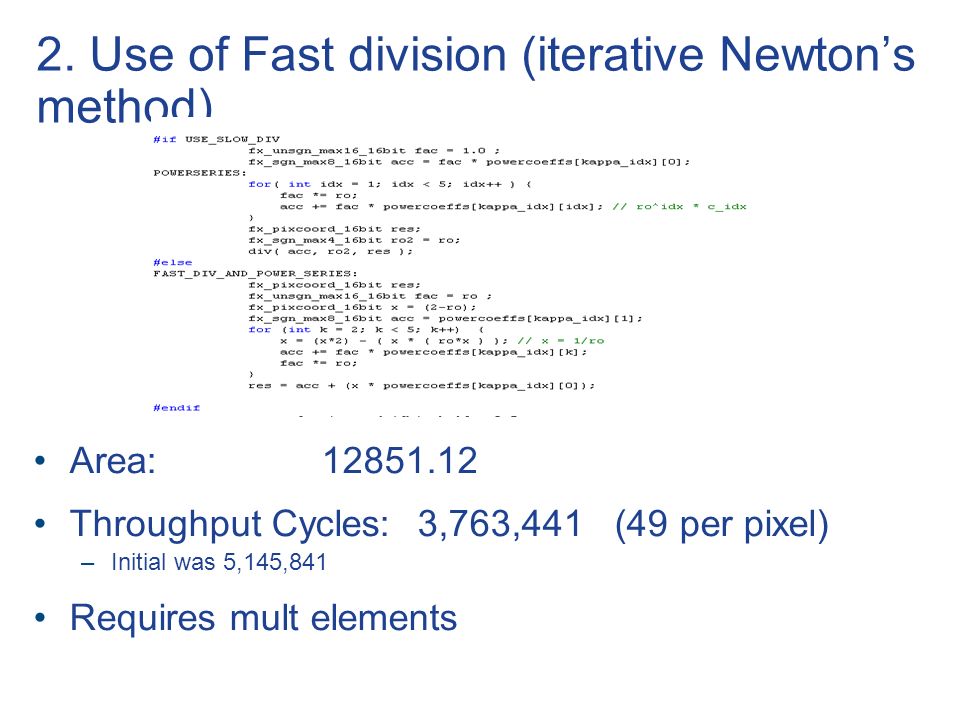

8. 2. Use of Fast division (iterative Newton’s method) Area:12851.12 Throughput Cycles:3,763,441 (49 per pixel) –Initial was 5,145,841 Requires mult elements

9. 3. Combined Power Series and Division Area:17705 Throughput Cycles:2,765,041 (36 per pixel) –Initial was 5,145,841 Appears to be an example of loop shrinking using properties of add and multiply Found by writing out the sums and substituting the power series result as a sum into the div() iterative loop.

10. 4. Add approximate square root (Taylor Series sum) Area: Throughput Cylces:1,843,441 (24 per pixel) –Initial was 5,145,841 279% total improvement in throughput Impractical total increase in area for this solution- the ROM is huge Not able to meet timing with fast square root

11. Why the approximate sqrt ROM is difficult If equal step size in variable used, 256 size ROM works everywhere except near center Getting enough precision with equal step size requires too many entries (8192) Smaller ROM fails- circle artifact in the middle Conclusion: the AC Datatypes sqrt() is quite good, it solves bit-at-a- time in the output. Only shifts and bit operations are needed. It takes a number of iterations but if the pixels are pipelined as a large block it doesn’t matter much.

12. Memory Size and Storage Optimization Change LUT to 256x4 (right side is power of 2 as well), tolerate slightly more error in approximation of inverse distortion function Use 2D arrays, get rid of indexing add and multiply See line-to-line comparison below; huge area savings! Before After

13. Catapult C Results Summary

14. Catapult C Results Summary (cont…)

15. Can meet up to 150MHz Optimized for 1 clock cycle per pixel

16. Catapult C Results Summary (cont…) Not optimal (@168MHz) Notice negative slack

17. Catapult C Results Summary (cont…) Optimal results for various images Meet 1280x960 @150MHz with minimal area overhead (according to Catapult)

18. Verification

19. Conclusions

20. Future Work Parallelize algorithm –Work in blocks of pixels Optimize buffer/memory usages –Use streaming buffers Streamline algorithm Allow variable decimation/interpolation to make smoother undistortions

21. 21 ECE 6276 Final Project Team 5 7/14/2009 Questions? ?
