 Redox reactions- reactions in which one or more electrons is transferred.

Similar presentations


Presentation on theme: " Redox reactions- reactions in which one or more electrons is transferred."— Presentation transcript:

1  Redox reactions- reactions in which one or more electrons is transferred

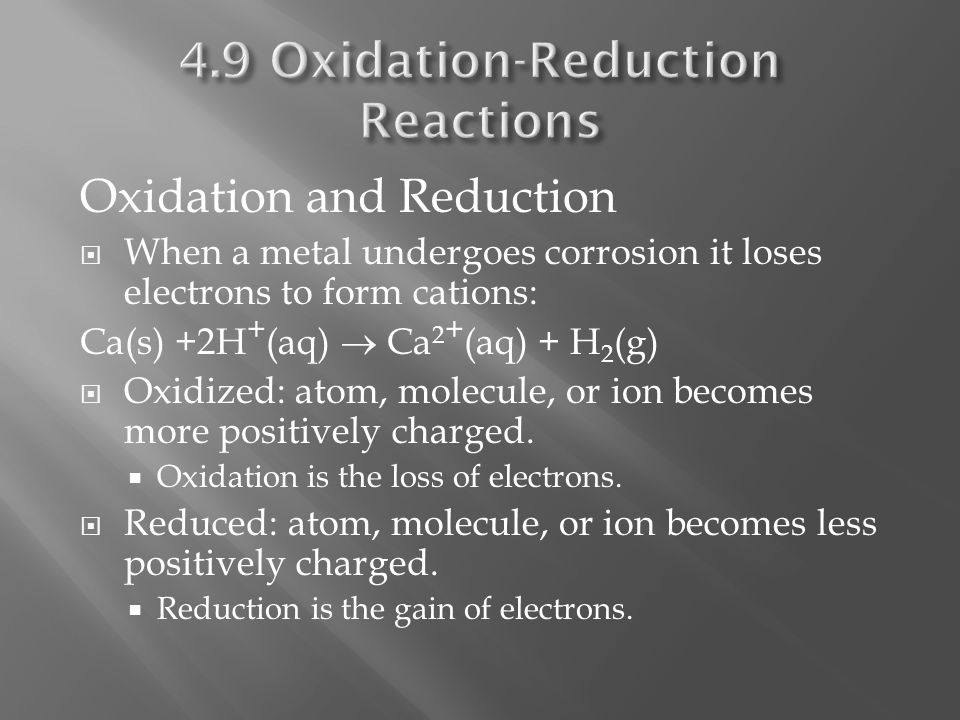

2 Oxidation and Reduction  When a metal undergoes corrosion it loses electrons to form cations: Ca(s) +2H + (aq)  Ca 2 + (aq) + H 2 (g)  Oxidized: atom, molecule, or ion becomes more positively charged.  Oxidation is the loss of electrons.  Reduced: atom, molecule, or ion becomes less positively charged.  Reduction is the gain of electrons.

3  Vanadium compounds having different oxidation numbers or oxidation states

4  How do maximum and minimum values of the oxidation number correlate with the position in the periodic table?

5

6 Œ The oxidation number of an atom in an element is 0. Ex: Na (s), O 2 (g), Hg (l)  The oxidation state of a monatomic ion is the same as its charge Ex. Na + = +1 Cl - = -1  Fluorine has an oxidation number of - 1 in its compounds

7  Oxygen usually has an oxidation number of - 2 in its compounds. There are some exceptions: a. Oxygen has an oxidation number of - 1 in peroxides, which contain the O 2 2 - ion. b. Oxygen has an oxidation number of - 1/2 in superoxides, which contain the O 2 - ion.  Hydrogen has an oxidation number of + 1 unless it is combined with metals, in which case it has an oxidation number of - 1. ‘ The sum of the oxidation numbers of all atoms in a substance must equal the total charge on the species: 0 for molecules; the ionic charge for ions.

8 The position of the element in the periodic table may be useful: a. Group IA (1) elements have oxidation numbers of + 1 in their compounds. b. Group IIA (2) elements have oxidation numbers of + 2 in their compounds. c. Group VIIA (17) elements have oxidation numbers of - 1 unless combined with oxygen or a halogen closer to the top of the group. d. In binary compounds, Group VIA (16) elements have oxidation numbers of - 2, unless combined with oxygen or halogens.

9 General Summary Element: 0 Fluorine: -1 Oxygen: -2 Hydrogen: +1

10  H 2 SO 4  H is +1  S is -2 unless combined with oxygen or a halogen, so leave this for last  O is -2  Use summation rule for S: 2(+1) + 1(S) + 4(-2) = 0  S = 0 - 2 + 8 = +6

11  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4

12  Determine values of the oxidation number of each element in these compounds or ions: H 2 O O(-2) H(+1)SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4

13  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 Cl (-1) C (+4)H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4

14  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - O(-2) N(+5)MnO 4 - CO 2 NaNO 3 KClO 4

15  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 O(-2) C(+4)NaNO 3 KClO 4

16  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4 O (-2) K (+1) Cl (+7)

17  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 O(-2) S(+4) CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4

18  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 H(+1) O(-1) NO 3 - MnO 4 - CO 2 NaNO 3 KClO 4

19  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - O(-2) Mn(+7) CO 2 NaNO 3 KClO 4

20  Determine values of the oxidation number of each element in these compounds or ions: H 2 O SO 2 CCl 4 H 2 O 2 NO 3 - MnO 4 - CO 2 NaNO 3 O(-2) Na(+1) N(+5) KClO 4

21  Oxidation- increase in oxidation state  Loss of electrons  Reduction- decrease in oxidation state  Gain of electrons  LEO goes GER

22 2Na(s) + Cl 2 (g)  2NaCl(s)  What substances are being oxidized and reduced?
