1. CS559: Computer Graphics Lecture 20: Project 2 Review and Texture mapping Li Zhang Spring 2010 Many slides from Ravi Ramamoorthi, Columbia Univ, Greg Humphreys, UVA and Rosalee Wolfe, DePaul tutorial teaching texture mapping visually

2. Sample Code by Chi Man Liu

3. Other basic features How to change speed? – Add a slider with a callback to change timePerFrame How to orient a car? How to draw trees? – A triangle + a rectangle – A cone + a cylinder Using gluQuadrics

4. Piecewise Cubics P1 P4 P3 P2

5. Piecewise Cubics Task1: draw the whole curve DrawCubic(P4,P1,P2,P3); DrawCubic(P1,P2,P3,P4); DrawCubic(P2,P3,P4,P1); DrawCubic(P3,P4,P1,P2); DrawCubic(Q1,Q2,Q3,Q4) For (t=0; t < 0.1; t+=0.01) { A=computePoint(Q1,Q2,Q3,Q4,t); B=computePoint(Q1,Q2,Q3,Q4,t+0.01); drawLine(A,B); } Task1: draw the whole curve DrawCubic(P4,P1,P2,P3); DrawCubic(P1,P2,P3,P4); DrawCubic(P2,P3,P4,P1); DrawCubic(P3,P4,P1,P2); DrawCubic(Q1,Q2,Q3,Q4) For (t=0; t < 0.1; t+=0.01) { A=computePoint(Q1,Q2,Q3,Q4,t); B=computePoint(Q1,Q2,Q3,Q4,t+0.01); drawLine(A,B); } Task 2: find where the train is at time t: If (0<=t<1) return computePoint(P4,P1,P2,P3,t) If (1<=t<2) return computePoint(P1,P2,P3,P4,t-1); If (2<=t<3) return computePoint(P2,P3,P4,P1,t-2); If (3<=t<4) return computePoint(P3,P4,P1,P2,t-3); Task 2: find where the train is at time t: If (0<=t<1) return computePoint(P4,P1,P2,P3,t) If (1<=t<2) return computePoint(P1,P2,P3,P4,t-1); If (2<=t<3) return computePoint(P2,P3,P4,P1,t-2); If (3<=t<4) return computePoint(P3,P4,P1,P2,t-3); Fine with Hermite, Catmull-Ron, Cardinal How about Bezier?

6. Arc-Length Parameterization Arbitrary curves? P1 P4 P3 P2

7. Arc-length parameterization Freeform x y 0 1 t 0 L s Arc-length parameterization

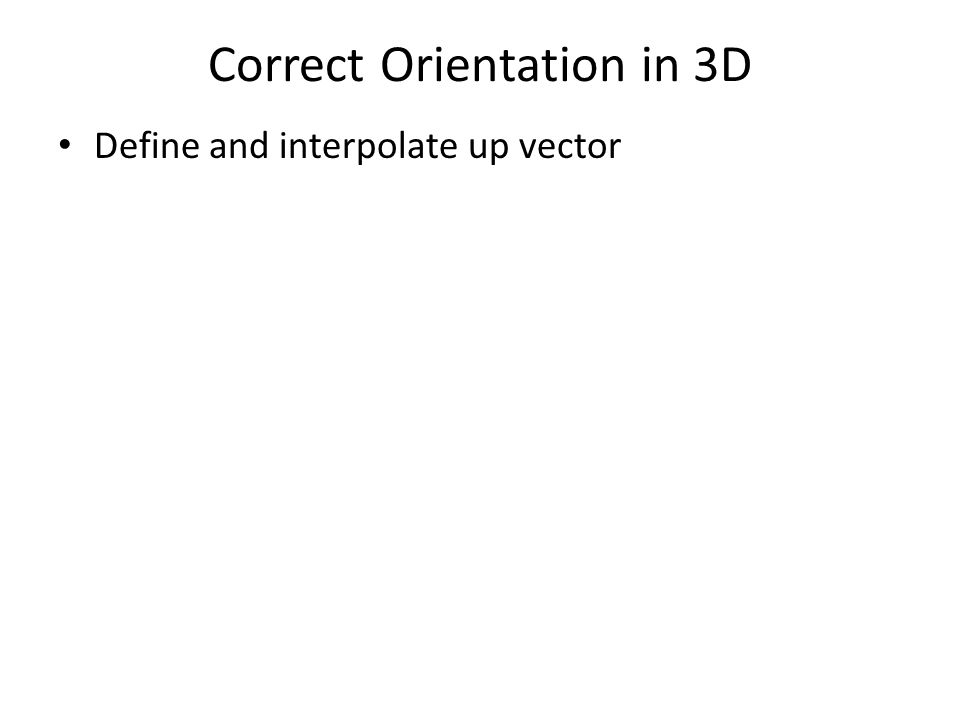

8. Correct Orientation in 3D Define and interpolate up vector

9. Implement simple physics Energy conservation

10. Multiple Cars Each has its own parameter t, assuming arc- length parameterization

11. Hack Shadow (XL,YL,ZL) (x,y,z)

12. Train smoke? Balls moving upward and dissipating

13. Texture Mapping Important topic: nearly all objects textured – Wood grain, faces, bricks and so on – Adds visual detail to scenes Polygonal model With surface texture

14. Adding Visual Detail Basic idea: use images instead of more polygons to represent fine scale color variation

15. Parameterization geometry + = image texture map Q: How do we decide where on the geometry each color from the image should go?

16. Option: Varieties of mappings [Paul Bourke]

17. Option: unfold the surface [Piponi2000]

18. Option: make an atlas [Sander2001] chartsatlassurface

19. Outline Types of mappings Interpolating texture coordinates Broader use of textures

20. How to map object to texture? To each vertex (x,y,z in object coordinates), must associate 2D texture coordinates (s,t) So texture fits “nicely” over object

21. Implementing texture mapping A texture lives in it own abstract image coordinates paramaterized by (u,v) in the range ([0..1], [0..1]): It can be wrapped around many different surfaces: Note: if the surface moves/deforms, the texture goes with it.

22. How to map object to texture? To each vertex (x,y,z in object coordinates), must associate 2D texture coordinates (s,t) So texture fits “nicely” over object

23. Planar mapping Like projections, drop z coord (u,v) = (x/W,y/H) Problems: what happens near silhouettes?

24. Cylindrical Mapping Cylinder: r, θ, z with (u,v) = (θ/(2π),z) – Note seams when wrapping around (θ = 0 or 2π)

25. Basic procedure First, map (square) texture to basic map shape Then, map basic map shape to object – Or vice versa: Object to map shape, map shape to square Usually, this is straightforward – Maps from square to cylinder, plane, … – Maps from object to these are simply coordinate transform

26. Spherical Mapping Convert to spherical coordinates: use latitude/long. – Singularities at north and south poles

27. Cube Mapping

29. Piecewise Mapping From Steve Marschner

30. Slides from Leonard Mcmillan

31. Outline Types of projections Interpolating texture coordinates Broader use of textures

32. 1 st idea: Gouraud interp. of texcoords Using barycentric Coordinates

33. 1 st idea: Gouraud interp. of texcoords Scan line

34. Artifacts McMillan’s demo of this is at http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide05.html http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide05.html Another example http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide06.html What artifacts do you see? Why? Hint: problem is in interpolating parameters

35. Interpolating Parameters The problem turns out to be fundamental to interpolating parameters in screen-space – Uniform steps in screen space  uniform steps in world space Texture image

36. Slides from Jingyi Yu Linear Interpolation in Screen Space Compare linear interpolation in screen space Without loss of generality, let’s assume that the viewport is located 1 unit away from the center of projection. That is

37. Linear Interpolation in 3-Space to interpolation in 3-space: Slides from Jingyi Yu

38. How to make them Mesh Still need to scan convert in screen space... so we need a mapping from t values to s values. We know that the all points on the 3-space edge project onto our screen-space line. Thus we can set up the following equality: and solve for s in terms of t giving: Unfortunately, at this point in the pipeline (after projection) we no longer have z 1 and z 2 lingering around (Why? Efficiency, don’t need to compute 1/z all the time). However, we do have w 1 = 1/z 1 and w 2 = 1/z 2. Slides from Jingyi Yu

39. Interpolating Parameters We can now use this expression for s to interpolate arbitrary parameters, such as texture indices (u, v), over our 3-space triangle. This is accomplished by substituting our solution for s given t into the parameter interpolation. Therefore, if we premultiply all parameters that we wish to interpolate in 3-space by their corresponding w value and add a new plane equation to interpolate the w values themselves, we can interpolate the numerators and denominator in screen-space. We then need to perform a divide a each step to get to map the screen-space interpolants to their corresponding 3-space values. This is a simple modification to the triangle rasterizer that we developed in class. Slides from Jingyi Yu

40. 1 st idea: Gouraud interp. of texcoords Scan line Replace I to uw, vw, and w, then compute (uw/w, and vw/w)

41. 1 st idea: Gouraud interp. of texcoords Scan line Do same thing for point b. From a and b, interpolate for s

42. Perspective-Correct Interpolation In short… – Rather than interpolating u and v directly, interpolate u/z and v/z These do interpolate correctly in screen space Also need to interpolate z and multiply per-pixel – Problem: we don’t keep z anymore – Solution: we do keep w  1/z – So…interpolate uw and vw and w, and compute u = uw/w and v = vw/w for each pixel This unfortunately involves a divide per pixel http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide14.html

43. Texture Mapping Linear interpolation of texture coordinates Correct interpolation with perspective divide Hill Figure 8.42 http://graphics.lcs.mit.edu/classes/6.8 37/F98/Lecture21/Slide14.html

44. Why don’t we notice? Traditional screen-space Gourand shading is wrong. However, you usually will not notice because the transition in colors is very smooth (And we don't know what the right color should be anyway, all we care about is a pretty picture). There are some cases where the errors in Gourand shading become obvious. When do we notice? – When switching between different levels-of-detail representations – At "T" joints.

45. Dealing with Incorrect Interpolation You can reduce the perceived artifacts of non-perspective correct interpolation by subdividing the texture-mapped triangles into smaller triangles (why does this work?). But, fundamentally the screen-space interpolation of projected parameters is inherently flawed. http://groups.csail.mit.edu/graphics/classes/6.837/F98/Lecture21/Slide15.html

46. Outline Types of mappings Interpolating texture coordinates Texture Resampling Broader use of textures

47. Texture Map Filtering Naive texture mapping aliases badly Look familiar? int uval = round(u * W); int vval = round(v * H); int pix = texture.getPixel(uval, vval); Nearest Neighbor Sampling

48. Texture Map Filtering Naive texture mapping aliases badly Look familiar? int uval = round(u * W); int vval = round(v * H); int pix = texture.getPixel(uval, vval); Actually, each pixel maps to a region in texture – |PIX| < |TEX| Easy: interpolate (bilinear) between texel values – |PIX| > |TEX| Hard: average the contribution from multiple texels – |PIX| ~ |TEX| Still need interpolation!

49. Mipmap Let d = |PIX| be a measure of pixel size Option 1: use the longer edge of the quadrilateral formed by the pixel's cell to approximate the pixel's coverage Option 2: use the max of |du/dx|, |du/dy|, |dv/x|, |dv/dy| Sample (u,v,d) d=0 d=1 d=2 Using tri-linear interpolation What’s the memory overhead? d=3 Then take logarithm

50. Storing MIP Maps One convienent method of storing a MIP map is shown below (It also nicely illustrates the 1/3 overhead of maintaining the MIP map).

51. Nearest Neighbor Sampling Mipmap Sampling

52. Ripmap Using Trilinaer => quadrilinearSample (u,v,du,dv) What’s the memory overhead?

53. Summed Area Table What’s the memory overhead?

54. Nearest Neighbor Sampling Mipmap Sampling Summed Area Table

55. Summed-Area Tables How much storage does a summed-area table require? Does it require more or less work per pixel than a MIP map? What sort of low-pass filter does a summed-area table implement? No Filtering MIP mapping Summed- Area Table

56. Other filtering method, see Real-Time Rendering chapter 6.

57. Outline Types of mappings Interpolating texture coordinates Texture Resampling Texture mapping OpenGL Broader use of textures

58. Slides from Jingyi Yu Simple OpenGL Example Specify a texture coordinate at each vertex (s, t) Canonical coordinates where s and t are between 0 and 1 public void Draw() { glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); glLoadIdentity(); glTranslated(centerx, centery, depth); glMultMatrixf(Rotation); : // Draw Front of the Cube glEnable(GL_TEXTURE_2D); glBegin(GL_QUADS); glTexCoord2d(0, 1); glVertex3d( 1.0, 1.0, 1.0); glTexCoord2d(1, 1); glVertex3d(-1.0, 1.0, 1.0); glTexCoord2d(1, 0); glVertex3d(-1.0,-1.0, 1.0); glTexCoord2d(0, 0); glVertex3d( 1.0,-1.0, 1.0); glEnd(); glDisable(GL_TEXTURE_2D); : glFlush(); } glTexCoord works like glColor

59. Initializing Texture Mapping static GLubyte image[64][64][4]; static GLuint texname; void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glShadeModel(GL_FLAT); glEnable(GL_DEPTH_TEST); //load in or generate image; … glPixelStorei(GL_UNPACK_ALIGNMENT, 1); glGenTextures(1, &texName); glBindTexture(GL_TEXTURE_2D, texName); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexPrameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST); glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, checkImageWidth, checkImageHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, image); } static GLubyte image[64][64][4]; static GLuint texname; void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glShadeModel(GL_FLAT); glEnable(GL_DEPTH_TEST); //load in or generate image; … glPixelStorei(GL_UNPACK_ALIGNMENT, 1); glGenTextures(1, &texName); glBindTexture(GL_TEXTURE_2D, texName); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexPrameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST); glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, checkImageWidth, checkImageHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, image); } Level index in the Pyramid

60. OpenGL Texture Peculiarities The width and height of Textures in OpenGL must be powers of 2 The parameter space of each dimension of a texture ranges from [0,1) regardless of the texture’s actual size. The behavior of texture indices outside of the range [0,1) is determined by the texture wrap options. glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP); // Draw Front of the Cube glEnable(GL_TEXTURE_2D); glBegin(GL_QUADS); glTexCoord2d(-1, 2); glVertex3d( 1.0, 1.0, 1.0); glTexCoord2d(2, 2); glVertex3d(-1.0, 1.0, 1.0); glTexCoord2d(2, -1); glVertex3d(-1.0,-1.0, 1.0); glTexCoord2d(-1, -1); glVertex3d( 1.0,-1.0, 1.0); glEnd(); glDisable(GL_TEXTURE_2D);

61. http://www.xmission.com/~nate/tutors.html

62. Slides from Jingyi Yu Simple OpenGL Example Specify a texture coordinate at each vertex (s, t) Canonical coordinates where s and t are between 0 and 1 public void Draw() { glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); glLoadIdentity(); glTranslated(centerx, centery, depth); glMultMatrixf(Rotation); : // Draw Front of the Cube glEnable(GL_TEXTURE_2D); glBegin(GL_QUADS); glTexCoord2d(0, 1); glVertex3d( 1.0, 1.0, 1.0); glTexCoord2d(1, 1); glVertex3d(-1.0, 1.0, 1.0); glTexCoord2d(1, 0); glVertex3d(-1.0,-1.0, 1.0); glTexCoord2d(0, 0); glVertex3d( 1.0,-1.0, 1.0); glEnd(); glDisable(GL_TEXTURE_2D); : glFlush(); }

63. 2/27/2016Lecture 2063 OpenGL Texture Peculiarities The width and height of Textures in OpenGL must be powers of 2 The parameter space of each dimension of a texture ranges from [0,1) regardless of the texture’s actual size. The behavior of texture indices outside of the range [0,1) is determined by the texture wrap options. glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP); // Draw Front of the Cube glEnable(GL_TEXTURE_2D); glBegin(GL_QUADS); glTexCoord2d(-1, 2); glVertex3d( 1.0, 1.0, 1.0); glTexCoord2d(2, 2); glVertex3d(-1.0, 1.0, 1.0); glTexCoord2d(2, -1); glVertex3d(-1.0,-1.0, 1.0); glTexCoord2d(-1, -1); glVertex3d( 1.0,-1.0, 1.0); glEnd(); glDisable(GL_TEXTURE_2D);

64. http://www.xmission.com/~nate/tutors.html

65. Initializing Texture Mapping Generate an artificial pattern or load in an image #define checkImageWidth 64 #define checkImageHeight 64 static GLubyte checkImage[checkImageHeight][checkImageWidth][4]; void makeCheckImage(void) { int i, j, c; for (i = 0; i < checkImageHeight; i++) { for (j = 0; j < checkImageWidth; j++) { c = ((((i&0x8)==0)^((j&0x8))==0))*255; checkImage[i][j][0] = (GLubyte) c; checkImage[i][j][1] = (GLubyte) c; checkImage[i][j][2] = (GLubyte) c; checkImage[i][j][3] = (GLubyte) 255; } #define checkImageWidth 64 #define checkImageHeight 64 static GLubyte checkImage[checkImageHeight][checkImageWidth][4]; void makeCheckImage(void) { int i, j, c; for (i = 0; i < checkImageHeight; i++) { for (j = 0; j < checkImageWidth; j++) { c = ((((i&0x8)==0)^((j&0x8))==0))*255; checkImage[i][j][0] = (GLubyte) c; checkImage[i][j][1] = (GLubyte) c; checkImage[i][j][2] = (GLubyte) c; checkImage[i][j][3] = (GLubyte) 255; }

66. Initializing Texture Mapping static GLuint texname; void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glShadeModel(GL_FLAT); glEnable(GL_DEPTH_TEST); makeCheckImage(); glPixelStorei(GL_UNPACK_ALIGNMENT, 1); glGenTextures(1, &texName); glBindTexture(GL_TEXTURE_2D, texName); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST); glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, checkImageWidth, checkImageHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, checkImage); } static GLuint texname; void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glShadeModel(GL_FLAT); glEnable(GL_DEPTH_TEST); makeCheckImage(); glPixelStorei(GL_UNPACK_ALIGNMENT, 1); glGenTextures(1, &texName); glBindTexture(GL_TEXTURE_2D, texName); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST); glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, checkImageWidth, checkImageHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, checkImage); } Level index in the Pyramid

67. Initializing Texture Mapping Red book chapter on Texture mapping, Example 9-1 All Red book example source code can be found at http://www.opengl.org/resources/code/samples/ redbook/ Course Tutorial 10, http://pages.cs.wisc.edu/~cs559- 1/Tutorial10.htm

68. Slides from Jingyi Yu OpenGL Mipmap Incorporating MIPmapping into OpenGL applications is surprisingly easy. The gluBuildMipmaps() utility routine will automatically construct a mipmap from a given texture buffer. It will filter the texture using a simple box filter and then subsample it by a factor of 2 in each dimension. It repeats this process until one of the texture’s dimensions is 1. Each texture ID, can have multiple levels associated with it. GL_LINEAR_MIPMAP_LINEAR trilinearly interploates between texture indices and MIPmap levels. Other options include GL_NEAREST_MIPMAP_NEAREST, GL_NEAREST_MIPMAP_LINEAR, and GL_LINEAR_MIPMAP_NEAREST. // Boilerplate Texture setup code glTexImage2D(GL_TEXTURE_2D, 0, 4, texWidth, texHeight, 0, GL_RGBA,GL_UNSIGNED_BYTE, data); gluBuild2DMipmaps(GL_TEXTURE_2D, 4, texWidth, texHeight, GL_RGBA, GL_UNSIGNED_BYTE, data); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR); GL_LINEAR_MIPMAP_LINEAR glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT); glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL); OpenGL also provides a facility for specifying the MIPmap image at each level using multiple calls to the glTexImage*D() function. This approach provides more control over filtering in the MIPmap construction.

69. Other Issues with Textures Tedious to specify texture coordinates for every triangle Textures are attached to the geometry Can't use just any image as a texture The "texture" can't have projective distortions Reminder: linear interpolation in image space is not equivalent to linear interpolation in 3-space (This is why we need "perspective-correct" texturing). The converse is also true. Makes it hard to use pictures as textures

70. 2/27/2016Lecture 2070 Projective Textures Treat the texture as a light source (like a slide projector) No need to specify texture coordinates explicitly A good model for shading variations due to illumination (cool spotlights) A fair model for view-dependent reflectance (can use pictures)

71. 2/27/2016Lecture 2071 The Mapping Process During the Illumination process: For each vertex of triangle (in world or lighting space) Compute ray from the projective texture's origin to point Compute homogeneous texture coordinate, [ti, tj, t] T During scan conversion (in projected screen space) Interpolate all three texture coordinates in 3-space (premultiply by w of vertex) Do normalization at each rendered pixel i = t i / t, j = t j / t Access projected texture This is the same process, albeit with an additional transform, as perspective correct texture mapping. Thus, we can do it for free! Almost.

72. 2/27/2016Lecture 2072 Another Frame “Texture Space” OpenGL is able to insert this extra projection transformation for textures by including another matrix stack, called GL_TEXTURE. The transform we want is: This matrix undoes the world-to- eye transform on the MODEL_VIEW matrix stack., so the projective texture can be specified in world coordinates. Note: If you specify your lights in eye-space then this matrix is identity. This matrix positions the projector in the world, much like the viewing matrix positions the eye within the world. (HINT, you can use gluLookAt() to set this up if you want. This matrix specifies the frustum of the projector. It is a non- affine, projection matrix. You can use any of the projection transformations to establish it, such as glFrustum(), glOrtho() or gluPerspective (). This extra matrix maps from normalized device coordinates ranging from [-1,1] to valid texture coordinates ranging from [0,1].

73. 2/27/2016Lecture 2073 OpenGL Example Here is a code fragment implementing projective textures in OpenGL // The following information is associated with the current active texture // Basically, the first group of setting says that we will not be supplying texture coordinates. // Instead, they will be automatically established based on the vertex coordinates in “EYE- SPACE” // (after application of the MODEL_VIEW matrix). glTexGeni(GL_S, GL_TEXTURE_GEN_MODE, (int) GL_EYE_LINEAR); glTexGeni(GL_T, GL_TEXTURE_GEN_MODE, (int) GL_EYE_LINEAR); glTexGeni(GL_R, GL_TEXTURE_GEN_MODE, (int) GL_EYE_LINEAR); glTexGeni(GL_Q, GL_TEXTURE_GEN_MODE, (int) GL_EYE_LINEAR); // These calls initialize the TEXTURE_MAPPING function to identity. We will be using // the Texture matrix stack to establish this mapping indirectly. float [] eyePlaneS = { 1.0f, 0.0f, 0.0f, 0.0f }; float [] eyePlaneT = { 0.0f, 1.0f, 0.0f, 0.0f }; float [] eyePlaneR = { 0.0f, 0.0f, 1.0f, 0.0f }; float [] eyePlaneQ = { 0.0f, 0.0f, 0.0f, 1.0f }; glTexGenfv(GL_S, GL_EYE_PLANE, eyePlaneS); glTexGenfv(GL_T, GL_EYE_PLANE, eyePlaneT); glTexGenfv(GL_R, GL_EYE_PLANE, eyePlaneR); glTexGenfv(GL_Q, GL_EYE_PLANE, eyePlaneQ);

74. 2/27/2016Lecture 2074 OpenGL Example (cont) The following code fragment is inserted into Draw( ) or Display( ) if (projTexture) { glEnable(GL_TEXTURE_2D); glEnable(GL_TEXTURE_GEN_S); glEnable(GL_TEXTURE_GEN_T); glEnable(GL_TEXTURE_GEN_R); glEnable(GL_TEXTURE_GEN_Q); projectTexture(); } // … draw everything that the texture is projected onto if (projTexture) { glDisable(GL_TEXTURE_2D); glDisable(GL_TEXTURE_GEN_S); glDisable(GL_TEXTURE_GEN_T); glDisable(GL_TEXTURE_GEN_R); glDisable(GL_TEXTURE_GEN_Q); }

75. 2/27/2016Lecture 2075 OpenGL Example (cont) Here is where the extra “Texture” transformation on the vertices is inserted. private void projectTexture() { glMatrixMode(GL_TEXTURE); glLoadIdentity(); glTranslated(0.5, 0.5, 0.5); // Scale and bias the [-1,1] NDC values glScaled(0.5, 0.5, 0.5); // to the [0,1] range of the texture map gluPerspective(15, 1, 5, 7); // projector "projection" and view matrices gluLookAt(lightPosition[0],lightPosition[1],lightPosition[2], 0,0,0, 0,1,0); glMatrixMode(GL_MODELVIEW); }

76. Outline Types of mappings Interpolating texture coordinates Texture Resampling Broader use of textures

77. Texture animation Basic idea: treat texture coordinate like color – Moving water texture to simulate flow – zoom, rotation, and shearing image on a surface – cross tree using alpha – Fading in and fading out (Blending marble to skin) with multi-texturing

78. The basic idea is that, instead of using a texture to change a color component in the illumination equation, we access a texture to modify the surface normal.

79. Today Bezier patch, Subdivision surface, butterfly, catmull clark Particle systems Fractals Multi-texturing ? For material lighting? Environment map Bump map, displacement map Textures for lighting and shadows Lighting with Texture Shadow mapping Projector texture mapping? 1D texture -> rain for examples Material mapping Mipmap/ripmapping

80. Bump map Displacement map Enviroment map

81. Shadow map

82. What if (u,v) falls outside of [0,1]? Repeat, mirror, clamp, border

83. Outline Types of projections Interpolating texture coordinates Broader use of textures

84. 2/27/2016Lecture 2084 Environment Maps Instead of using transformed vertices to index the projected texture', we can use transformed surface normal s to compute indices into the texture map. These sorts of mapping can be used to simulate reflections, and other shading effects. This approach is not completely accurate. It assumes that all reflected rays begin from the same point, and that all objects in the scene are the same distance from that point.

85. 2/27/2016Lecture 2085 Sphere Mapping Basics OpenGL provides special support for a particular form of Normal mapping called sphere mapping. It maps the normals of the object to the corresponding normal of a sphere. It uses a texture map of a sphere viewed from infinity to establish the color for the normal.

86. 2/27/2016Lecture 2086 Sphere Mapping Mapping the normal to a point on the sphere r1r1 r2r2 r3r3 n3n3 v3v3 n2n2 v2v2 n1n1 v1v1 Recall: r n v (-1,-1) (1,1)

87. 2/27/2016Lecture 2087 OpenGL code Example This was a very special purpose hack in OpenGL, however, we have it to thank for a lot of the flexibility in today’s graphics hardware… this hack was the genesis of programmable vertex shading. // this gets inserted where the texture is created glTexGeni(GL_S, GL_TEXTURE_GEN_MODE, (int) GL_SPHERE_MAP); glTexGeni(GL_T, GL_TEXTURE_GEN_MODE, (int) GL_SPHERE_MAP); // Add this before rendering any primatives if (texWidth > 0) { glEnable(GL_TEXTURE_2D); glEnable(GL_TEXTURE_GEN_S); glEnable(GL_TEXTURE_GEN_T); }

88. 2/27/2016Lecture 2088 What’s the Best Map? A sphere map is not the only representation choice for environment maps. There are alternatives, with more uniform sampling properties, but they require different normal-to-texture mapping functions.

89. Texture Mapping Applications Modulation, light maps Bump mapping Displacement mapping Illumination or Environment Mapping Procedural texturing And many more

90. Modulation textures Map texture values to scale factor Wood texture

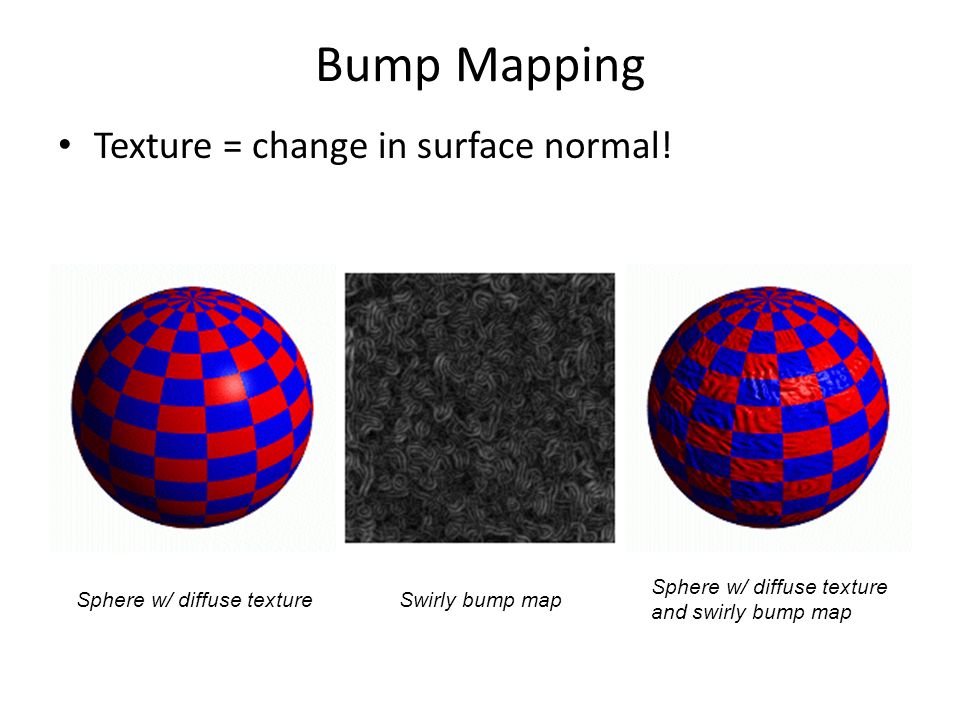

91. Bump Mapping Texture = change in surface normal! Sphere w/ diffuse textureSwirly bump map Sphere w/ diffuse texture and swirly bump map

92. Displacement Mapping

93. Illumination Maps Quake introduced illumination maps or light maps to capture lighting effects in video games Texture map: Texture map + light map: Light map

94. Cube map

95. Sphere map

96. Shaddow map

97. Environment Maps Images from Illumination and Reflection Maps: Simulated Objects in Simulated and Real Environments Gene Miller and C. Robert Hoffman SIGGRAPH 1984 “Advanced Computer Graphics Animation” Course Notes Terminator

98. Interpolating Parameters Perspective foreshortening is not getting applied to our interpolated parameters – Parameters should be compressed with distance – Linearly interpolating them in screen-space doesn’t do this Correct Mapping Results – http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html

99. 2/27/2016Lecture 2099 Bump Mapping Textures can be used to alter the surface normals of an object. This does not actual shape of the surface -- we are only shading it as if it were a different shape! This technique is called bump mapping. The texture map is treated as a single-valued height function. The value of the function is not actually used, just its partial derivatives. The partial derivatives tell how to alter the true surface normal at each point on the surface to make the object appear as if it were deformed by the height function.

100. 2/27/2016Lecture 20100 More Bump Map Examples Since the actual shape of the object does not change, the silhouette edge of the object will not change. Bump Mapping also assumes that the Illumination model is applied at every pixel (as in Phong Shading or ray tracing).

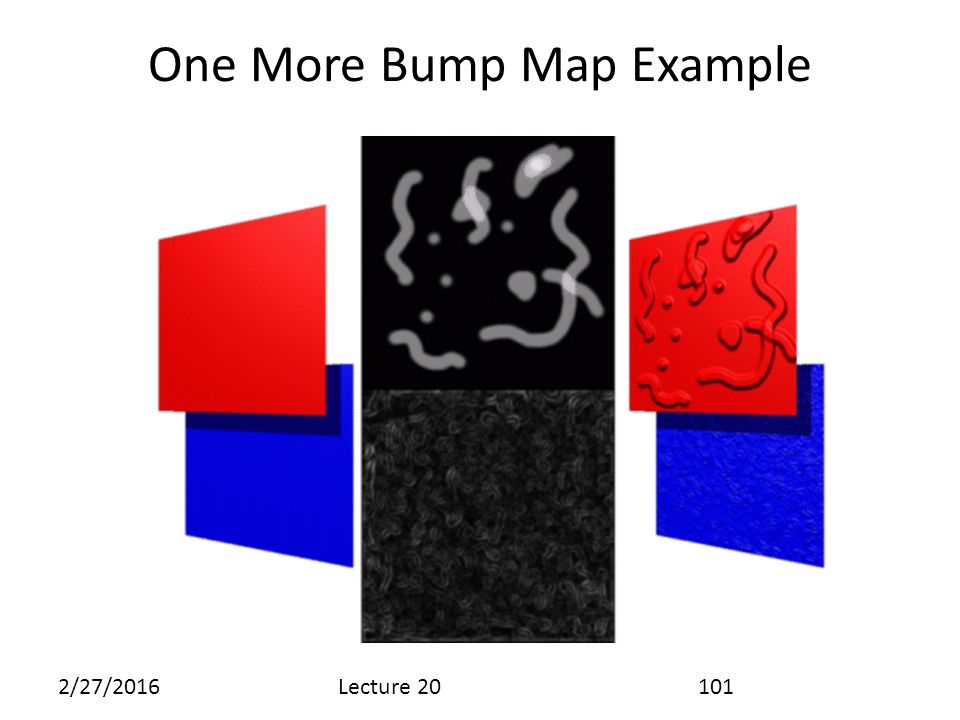

101. 2/27/2016Lecture 20101 One More Bump Map Example

102. 2/27/2016Lecture 20102 Displacement Mapping Texture maps can be used to actually move surface points. This is called displacement mapping. How is this fundamentally different than bump mapping? The geometry must be displaced before visibility is determined. Is this easily done in the graphics pipeline? In a ray-tracer?

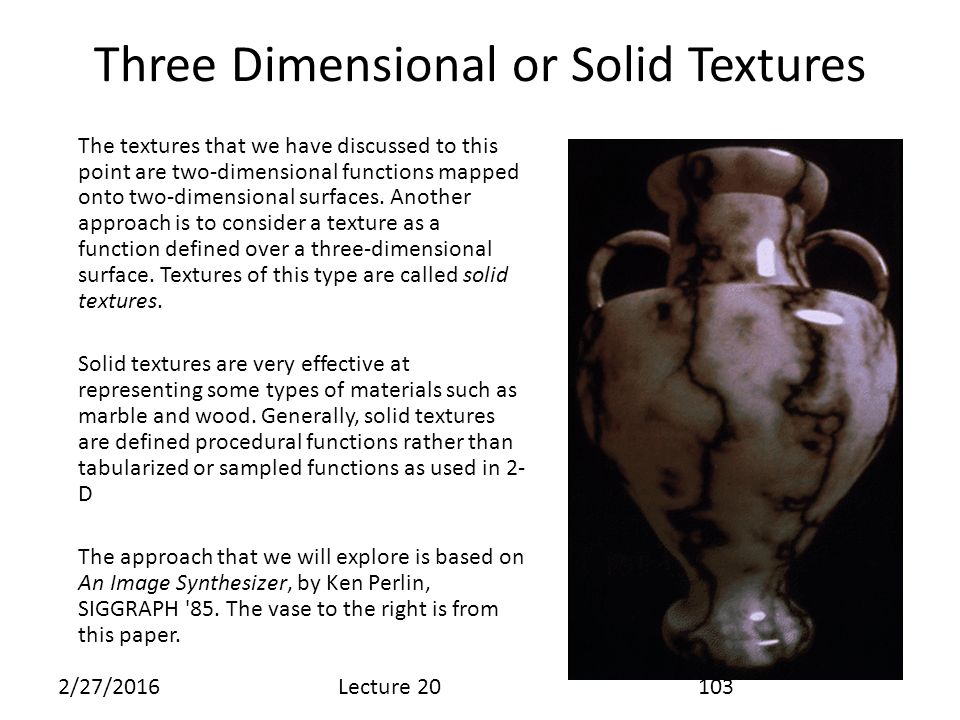

103. 2/27/2016Lecture 20103 Three Dimensional or Solid Textures The textures that we have discussed to this point are two-dimensional functions mapped onto two-dimensional surfaces. Another approach is to consider a texture as a function defined over a three-dimensional surface. Textures of this type are called solid textures. Solid textures are very effective at representing some types of materials such as marble and wood. Generally, solid textures are defined procedural functions rather than tabularized or sampled functions as used in 2- D The approach that we will explore is based on An Image Synthesizer, by Ken Perlin, SIGGRAPH '85. The vase to the right is from this paper.

104. 2/27/2016Lecture 20104 Multi-Texturing Shaders will often have uses for multiple textures, how do you bind them? How do you specify multiple texture coordinates for a vertex?

105. 2/27/2016Lecture 20105 Multi-Texture: OpenGL

106. 2/27/2016Lecture 20106 Textures in GLSL Textures are just uniforms of type sampler2D Tell GLSL that you want one of these sampler2Ds to be GL_TEXTUREi by setting the corresponding uniform to i

107. 2/27/2016Lecture 20107 Night and Day

108. 2/27/2016Lecture 20108 Night and Day Use one texture for day, one for night Use the same texture coordinates for both texture Components – Vertex program – Fragment program – OpenGL application

109. 2/27/2016Lecture 20109 Night and Day Vertex Program

110. 2/27/2016Lecture 20110 Night and Day Fragment Program

111. 2/27/2016Lecture 20111 Night and Day

112. 2/27/2016Lecture 20112 Night and Day OpenGL Program

113. 2/27/2016Lecture 20113 Render to Texture GL_EXT_framebuffer_object Render intermediate result into a texture, and then render using the texture

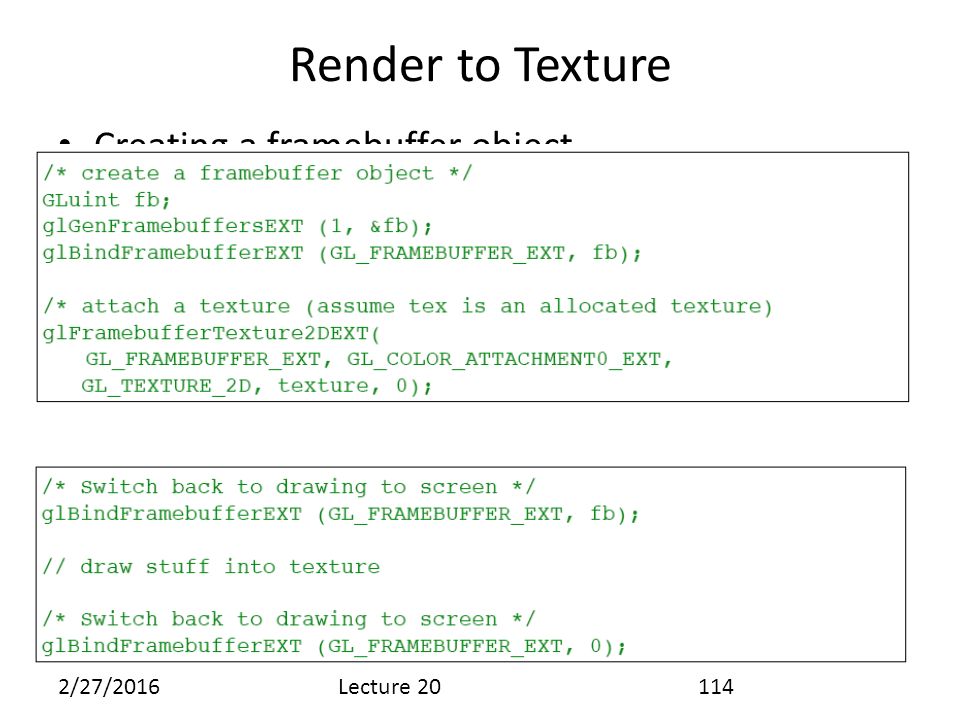

114. 2/27/2016Lecture 20114 Render to Texture Creating a framebuffer object Use a framebuffer object

115. Texture Map Filtering Naive texture mapping aliases badly Look familiar? int uval = (int) (u * W); int vval = (int) (v * H); int pix = texture.getPixel(uval, vval); Actually, each pixel maps to a region in texture – |PIX| < |TEX| Easy: interpolate (bilinear) between texel values – |PIX| > |TEX| Hard: average the contribution from multiple texels – |PIX| ~ |TEX| Still need interpolation!

116. Mip Maps Keep textures prefiltered at multiple resolutions – For each pixel, linearly interpolate between two closest levels (e.g., trilinear filtering) – Fast, easy for hardware Why “Mip” maps?

117. MIP-map Example No filtering: MIP-map texturing: AAAAAAAGH Where are my glasses?

119. Outline Types of projections Interpolating texture coordinates Broader use of textures

120. Texture Mapping Applications Modulation, light maps Bump mapping Displacement mapping Illumination or Environment Mapping Procedural texturing And many more

121. Modulation textures Map texture values to scale factor Wood texture

122. Bump Mapping Texture = change in surface normal! Sphere w/ diffuse textureSwirly bump map Sphere w/ diffuse texture and swirly bump map

123. Displacement Mapping

124. Illumination Maps Quake introduced illumination maps or light maps to capture lighting effects in video games Texture map: Texture map + light map: Light map

125. Cube map

126. Sphere map

127. Shaddow map

128. Environment Maps Images from Illumination and Reflection Maps: Simulated Objects in Simulated and Real Environments Gene Miller and C. Robert Hoffman SIGGRAPH 1984 “Advanced Computer Graphics Animation” Course Notes Terminator

129. Arc-length parameterization Freeform x y 0 1 t 0 L s Arc-length parameterization

130. Interpolating Parameters Perspective foreshortening is not getting applied to our interpolated parameters – Parameters should be compressed with distance – Linearly interpolating them in screen-space doesn’t do this Correct Mapping Results – http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html

131. Outline Types of projections Interpolating texture coordinates Broader use of textures

132. 1 st idea: Gouraud interp. of texcoords Scan line

133. Artifacts McMillan’s demo of this is at http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide05.html http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide05.html Another example http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide06.html What artifacts do you see? Why? Why not in standard Gouraud shading? Hint: problem is in interpolating parameters

134. Interpolating Parameters The problem turns out to be fundamental to interpolating parameters in screen-space – Uniform steps in screen space  uniform steps in world space Texture image

135. Texture Mapping Linear interpolation of texture coordinates Correct interpolation with perspective divide Hill Figure 8.42

136. Interpolating Parameters Perspective foreshortening is not getting applied to our interpolated parameters – Parameters should be compressed with distance – Linearly interpolating them in screen-space doesn’t do this Correct Mapping Results – http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html http://graphics.lcs.mit.edu/classes/6.837/F98/Lec ture21/Slide14.html

137. Why don’t we notice? Traditional screen-space Gourand shading is wrong. However, you usually will not notice because the transition in colors is very smooth (And we don't know what the right color should be anyway, all we care about is a pretty picture). There are some cases where the errors in Gourand shading become obvious. When switching between different levels-of-detail representations At "T" joints.

138. Dealing with Incorrect Interpolation You can reduce the perceived artifacts of non-perspective correct interpolation by subdividing the texture-mapped triangles into smaller triangles (why does this work?). But, fundamentally the screen-space interpolation of projected parameters is inherently flawed.

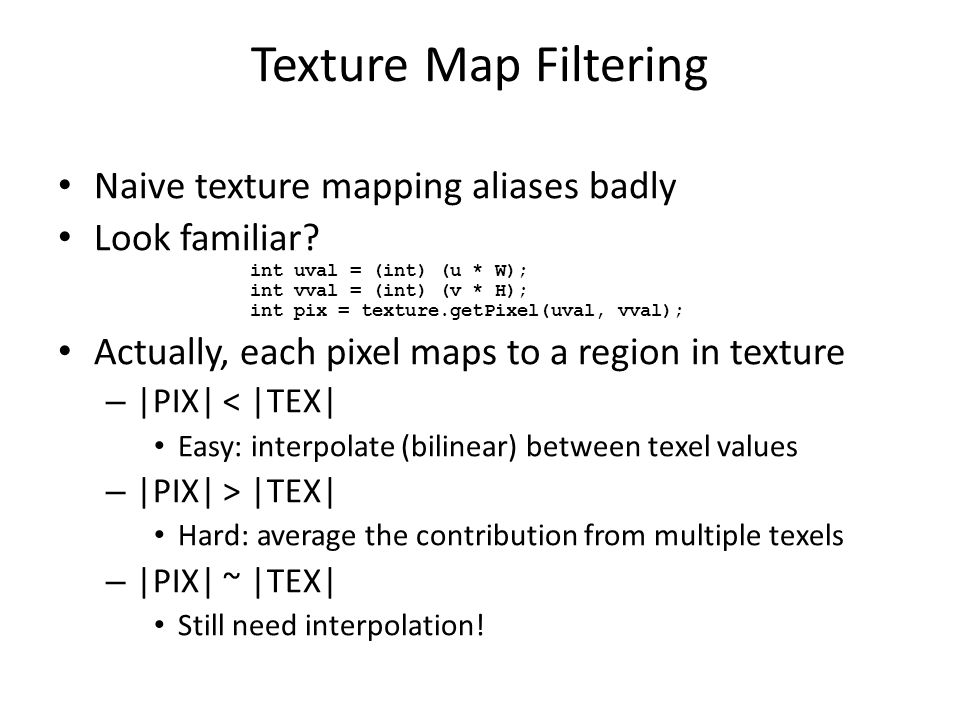

139. Texture Map Filtering Naive texture mapping aliases badly Look familiar? int uval = (int) (u * W); int vval = (int) (v * H); int pix = texture.getPixel(uval, vval); Actually, each pixel maps to a region in texture – |PIX| < |TEX| Easy: interpolate (bilinear) between texel values – |PIX| > |TEX| Hard: average the contribution from multiple texels – |PIX| ~ |TEX| Still need interpolation!

140. Mip Maps Keep textures prefiltered at multiple resolutions – For each pixel, linearly interpolate between two closest levels (e.g., trilinear filtering) – Fast, easy for hardware Why “Mip” maps?

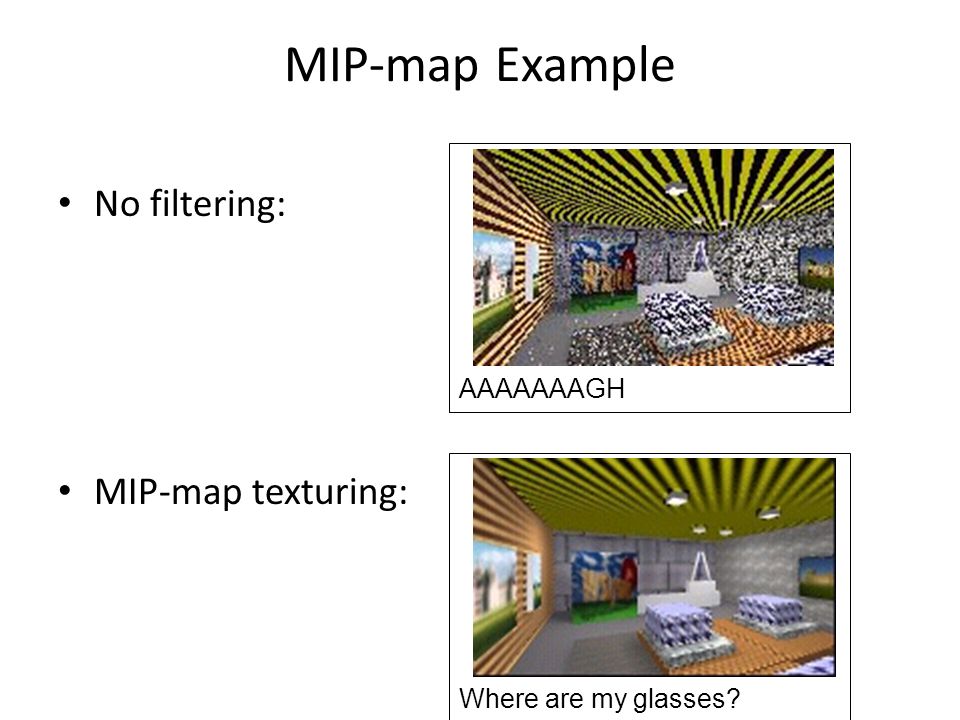

141. MIP-map Example No filtering: MIP-map texturing: AAAAAAAGH Where are my glasses?

142. Outline Types of projections Interpolating texture coordinates Broader use of textures

143. Texture Mapping Applications Modulation, light maps Bump mapping Displacement mapping Illumination or Environment Mapping Procedural texturing And many more

144. Modulation textures Map texture values to scale factor Wood texture

145. Bump Mapping Texture = change in surface normal! Sphere w/ diffuse textureSwirly bump map Sphere w/ diffuse texture and swirly bump map

146. Displacement Mapping

147. Illumination Maps Quake introduced illumination maps or light maps to capture lighting effects in video games Texture map: Texture map + light map: Light map

148. Environment Maps Images from Illumination and Reflection Maps: Simulated Objects in Simulated and Real Environments Gene Miller and C. Robert Hoffman SIGGRAPH 1984 “Advanced Computer Graphics Animation” Course Notes

149. Arc-length parameterization Freeform x y 0 1 t 0 L s Arc-length parameterization

150. Texture Interpolation Problem Notice that uniform steps on the image plane do not correspond to uniform steps along the edge. Without loss of generality, let’s assume that the viewport is located 1 unit away from the center of projection.

151. Slides from Jingyi Yu Linear Interpolation in Screen Space Compare linear interpolation in screen space

152. Linear Interpolation in 3-Space to interpolation in 3-space: Slides from Jingyi Yu

153. How to make them Mesh Still need to scan convert in screen space... so we need a mapping from t values to s values. We know that the all points on the 3-space edge project onto our screen-space line. Thus we can set up the following equality: and solve for s in terms of t giving: Unfortunately, at this point in the pipeline (after projection) we no longer have z 1 and z 2 lingering around (Why?). However, we do have w 1 = 1/z 1 and w 2 = 1/z 2. Slides from Jingyi Yu

154. Interpolating Parameters We can now use this expression for s to interpolate arbitrary parameters, such as texture indices (u, v), over our 3-space triangle. This is accomplished by substituting our solution for s given t into the parameter interpolation. Therefore, if we premultiply all parameters that we wish to interpolate in 3-space by their corresponding w value and add a new plane equation to interpolate the w values themselves, we can interpolate the numerators and denominator in screen-space. We then need to perform a divide a each step to get to map the screen-space interpolants to their corresponding 3-space values. This is a simple modification to the triangle rasterizer that we developed in class. Slides from Jingyi Yu

155. Perspective-Correct Interpolation Skipping a bit of math to make a long story short… – Rather than interpolating u and v directly, interpolate u/z and v/z These do interpolate correctly in screen space Also need to interpolate z and multiply per-pixel – Problem: we don’t know z anymore – Solution: we do know w  1/z – So…interpolate uw and vw and w, and compute u = uw/w and v = vw/w for each pixel This unfortunately involves a divide per pixel http://graphics.lcs.mit.edu/classes/6.837/F98/Lecture21/Slide14.html

156. To Do, add Leo’s sldiea Derivation Why imporant
