1. Copyright © Cengage Learning. All rights reserved. 16 Quality Control Methods

2. Copyright © Cengage Learning. All rights reserved. 16.6 Acceptance Sampling

3. 3 Items coming from a production process are often sent in groups to another company or commercial establishment. A group might consist of all units from a particular production run or shift, in a shipping container of some sort, sent in response to a particular order, and so on. The group of items is usually called a lot, the sender is referred to as a producer, and the recipient of the lot is the consumer.

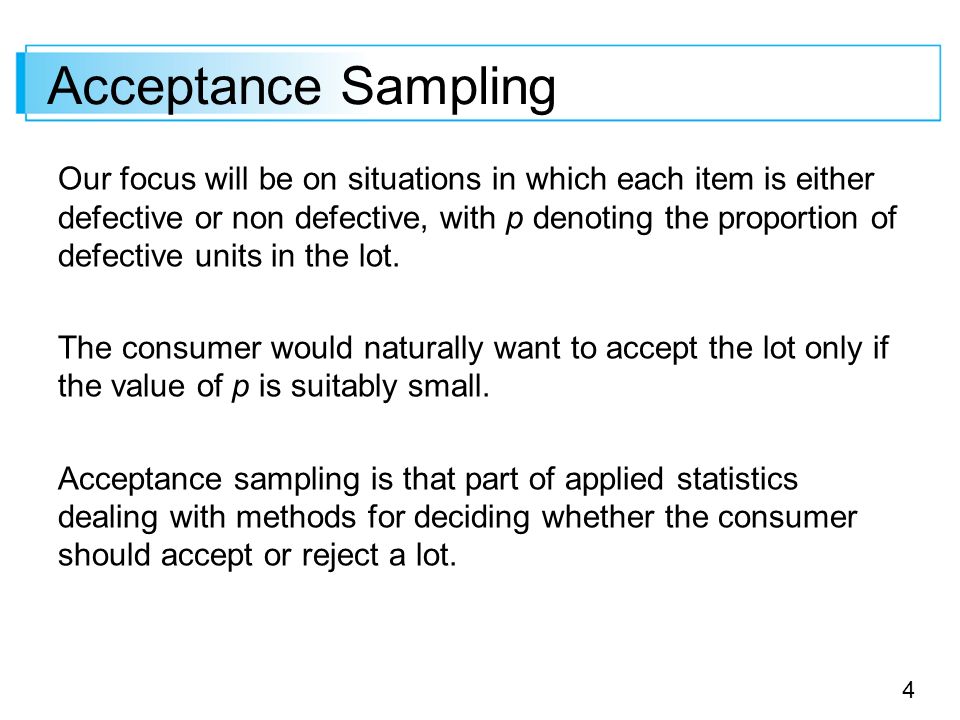

4. 4 Acceptance Sampling Our focus will be on situations in which each item is either defective or non defective, with p denoting the proportion of defective units in the lot. The consumer would naturally want to accept the lot only if the value of p is suitably small. Acceptance sampling is that part of applied statistics dealing with methods for deciding whether the consumer should accept or reject a lot.

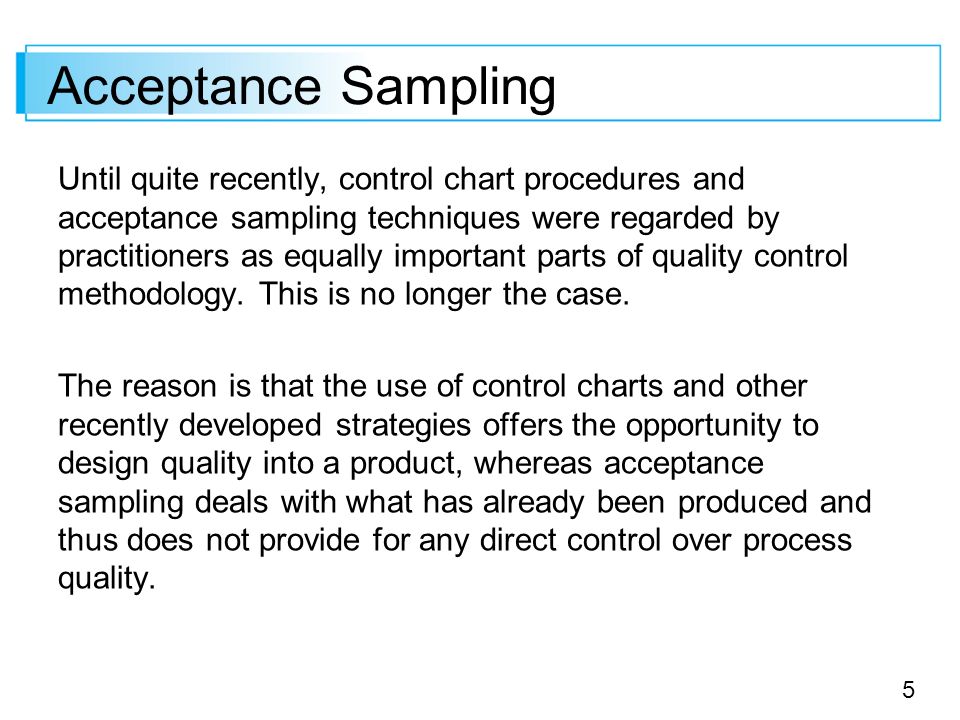

5. 5 Acceptance Sampling Until quite recently, control chart procedures and acceptance sampling techniques were regarded by practitioners as equally important parts of quality control methodology. This is no longer the case. The reason is that the use of control charts and other recently developed strategies offers the opportunity to design quality into a product, whereas acceptance sampling deals with what has already been produced and thus does not provide for any direct control over process quality.

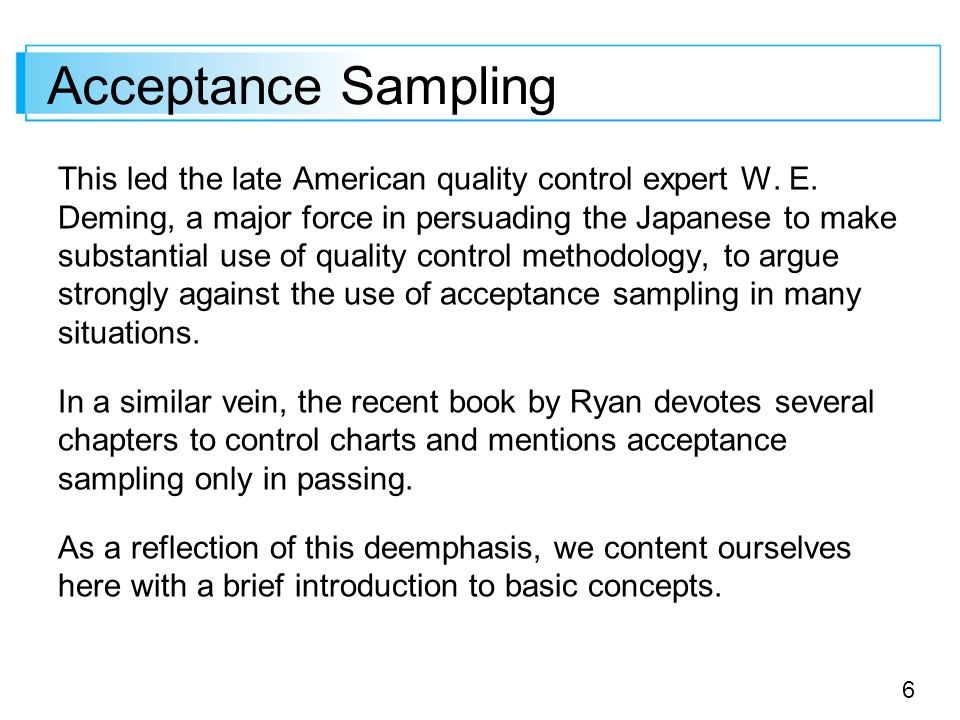

6. 6 Acceptance Sampling This led the late American quality control expert W. E. Deming, a major force in persuading the Japanese to make substantial use of quality control methodology, to argue strongly against the use of acceptance sampling in many situations. In a similar vein, the recent book by Ryan devotes several chapters to control charts and mentions acceptance sampling only in passing. As a reflection of this deemphasis, we content ourselves here with a brief introduction to basic concepts.

7. 7 Single-Sampling Plans

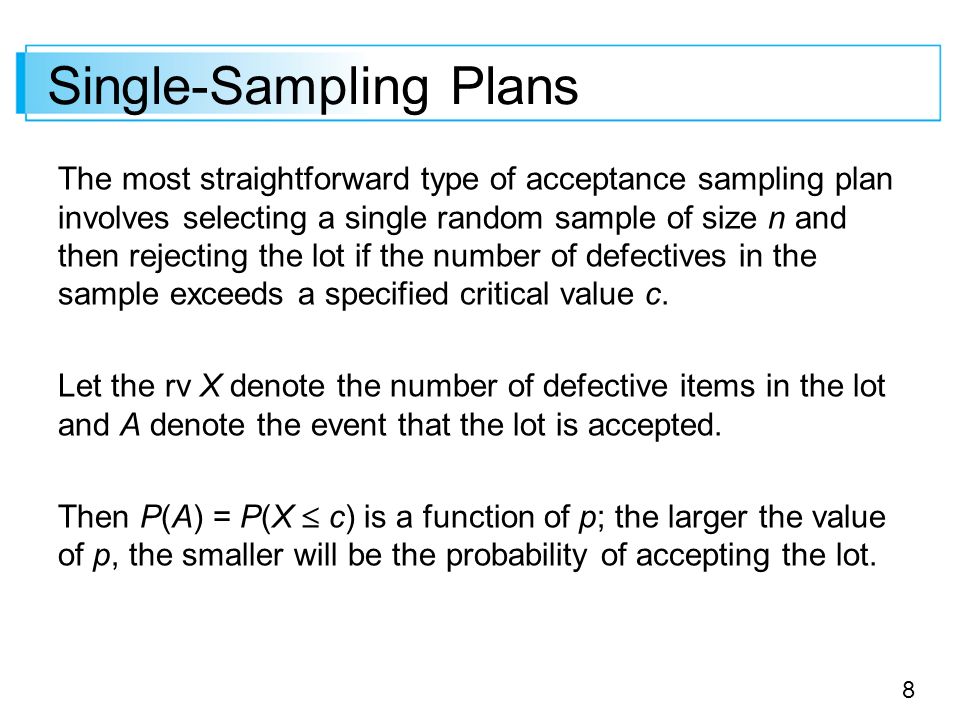

8. 8 The most straightforward type of acceptance sampling plan involves selecting a single random sample of size n and then rejecting the lot if the number of defectives in the sample exceeds a specified critical value c. Let the rv X denote the number of defective items in the lot and A denote the event that the lot is accepted. Then P(A) = P(X  c) is a function of p; the larger the value of p, the smaller will be the probability of accepting the lot.

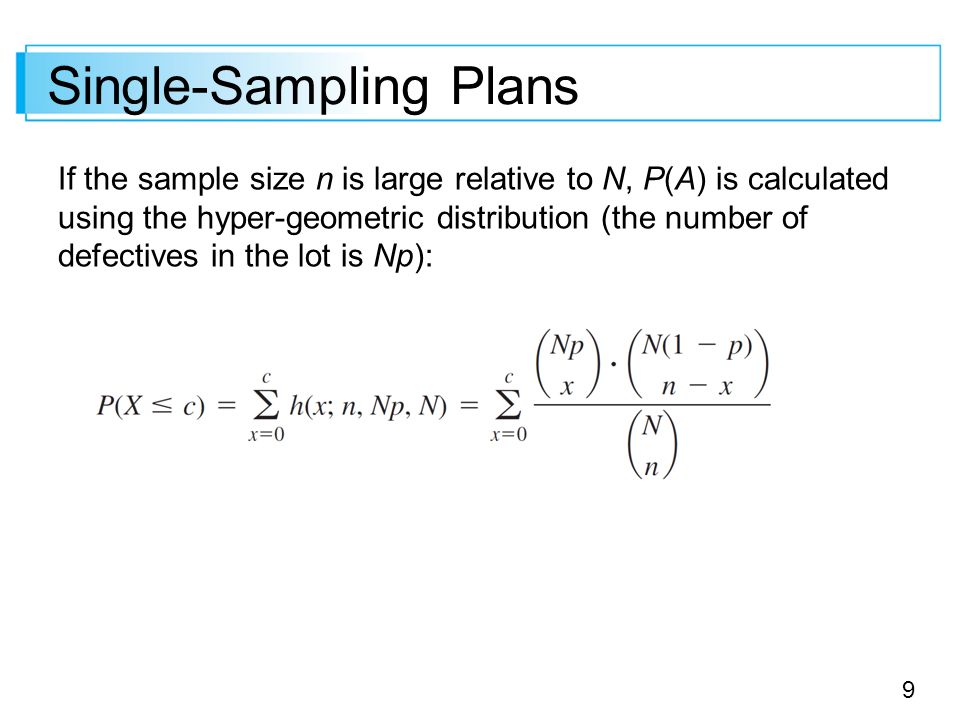

9. 9 Single-Sampling Plans If the sample size n is large relative to N, P(A) is calculated using the hyper-geometric distribution (the number of defectives in the lot is Np):

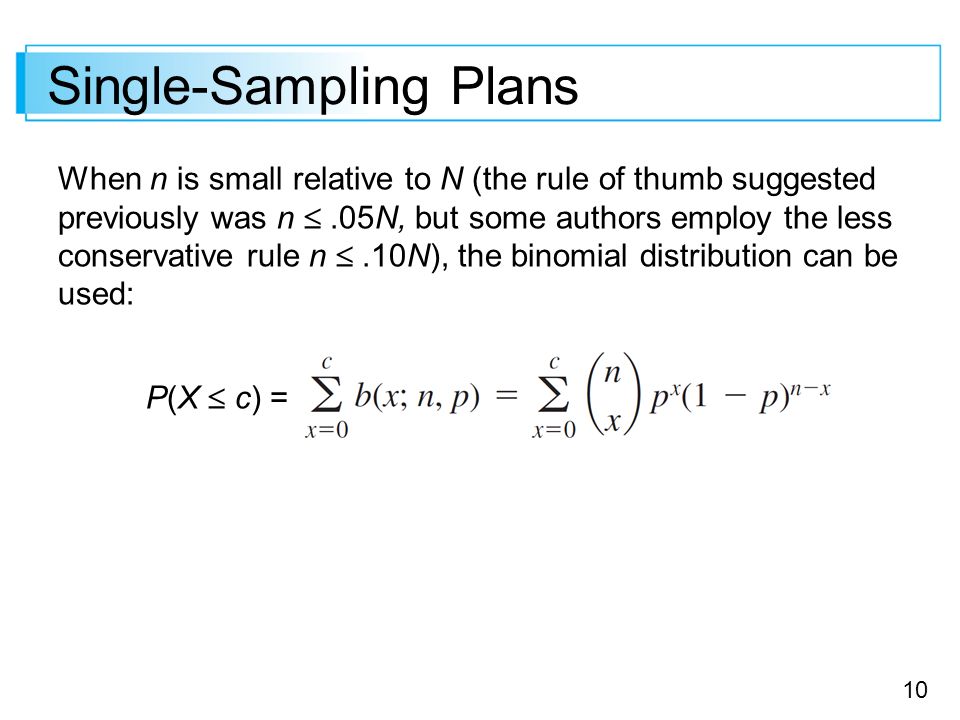

10. 10 Single-Sampling Plans When n is small relative to N (the rule of thumb suggested previously was n .05N, but some authors employ the less conservative rule n .10N), the binomial distribution can be used: P(X  c) =

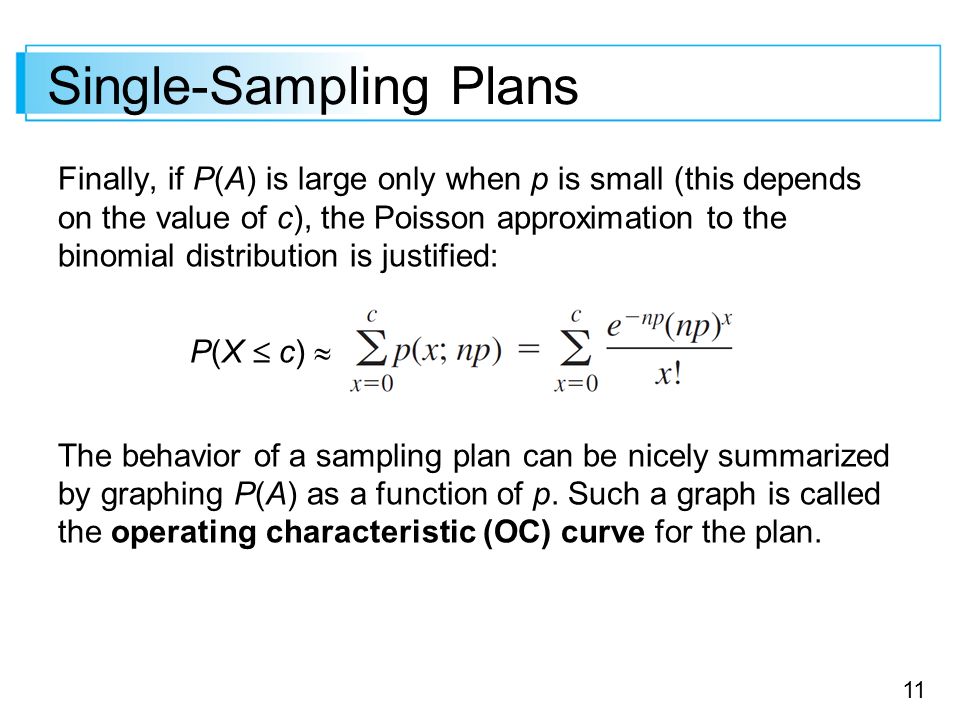

11. 11 Single-Sampling Plans Finally, if P(A) is large only when p is small (this depends on the value of c), the Poisson approximation to the binomial distribution is justified: P(X  c)  The behavior of a sampling plan can be nicely summarized by graphing P(A) as a function of p. Such a graph is called the operating characteristic (OC) curve for the plan.

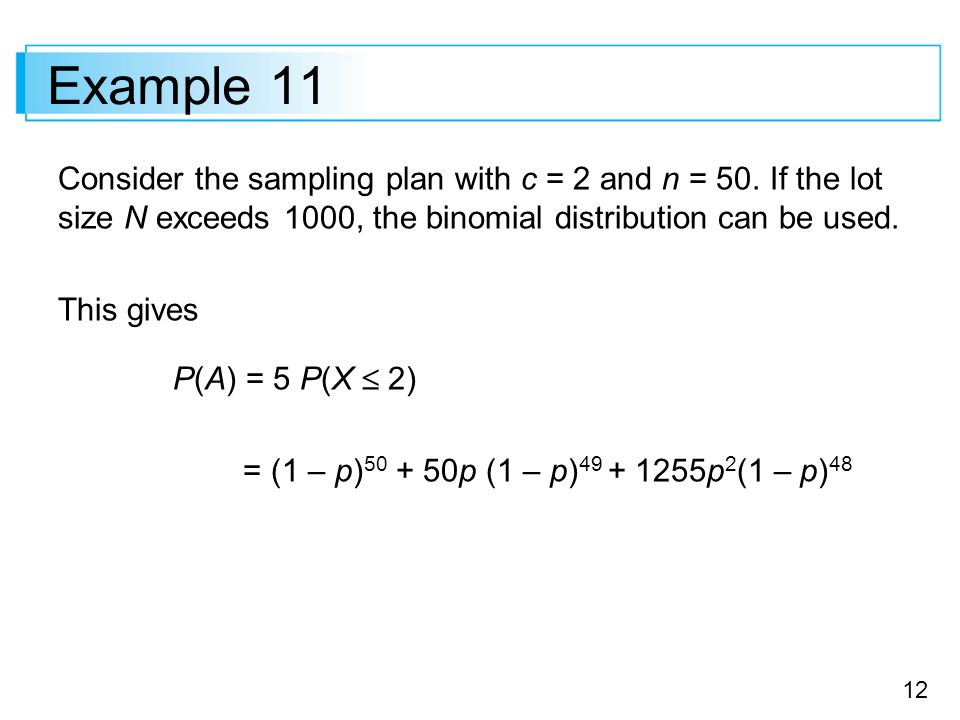

12. 12 Example 11 Consider the sampling plan with c = 2 and n = 50. If the lot size N exceeds 1000, the binomial distribution can be used. This gives P(A) = 5 P(X  2) = (1 – p) 50 + 50p (1 – p) 49 + 1255p 2 (1 – p) 48

13. 13 Example 11 The accompanying table shows P(A) for selected values of p, and the corresponding operating characteristic (OC) curve is shown in Figure 16.12 OC curve for sampling plan with c = 2, n = 50 Figure 16.12 cont’d

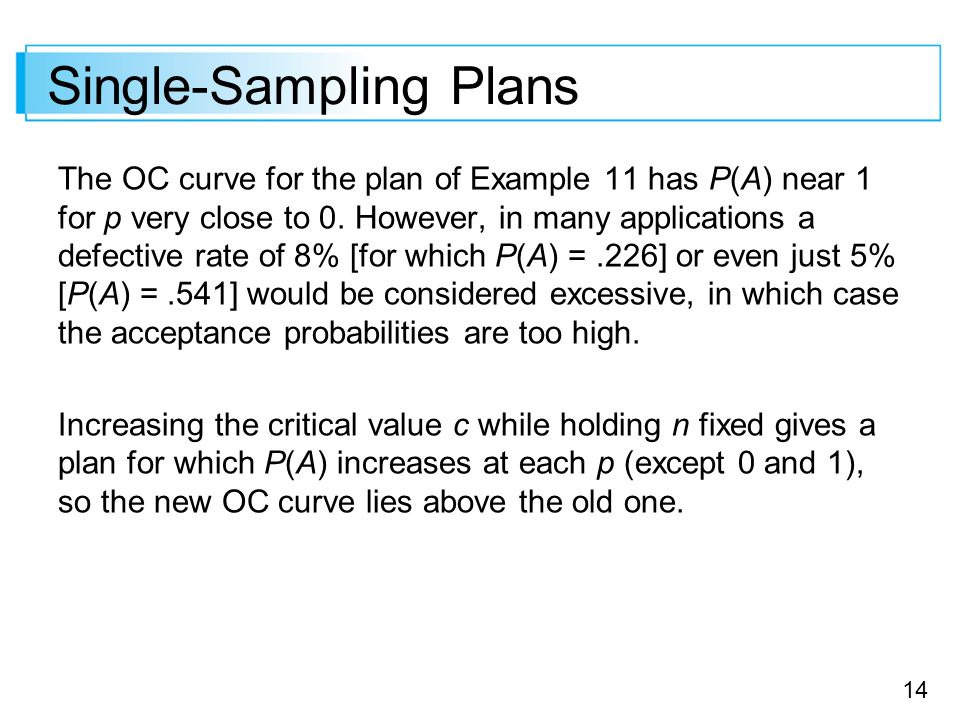

14. 14 Single-Sampling Plans The OC curve for the plan of Example 11 has P(A) near 1 for p very close to 0. However, in many applications a defective rate of 8% [for which P(A) =.226] or even just 5% [P(A) =.541] would be considered excessive, in which case the acceptance probabilities are too high. Increasing the critical value c while holding n fixed gives a plan for which P(A) increases at each p (except 0 and 1), so the new OC curve lies above the old one.

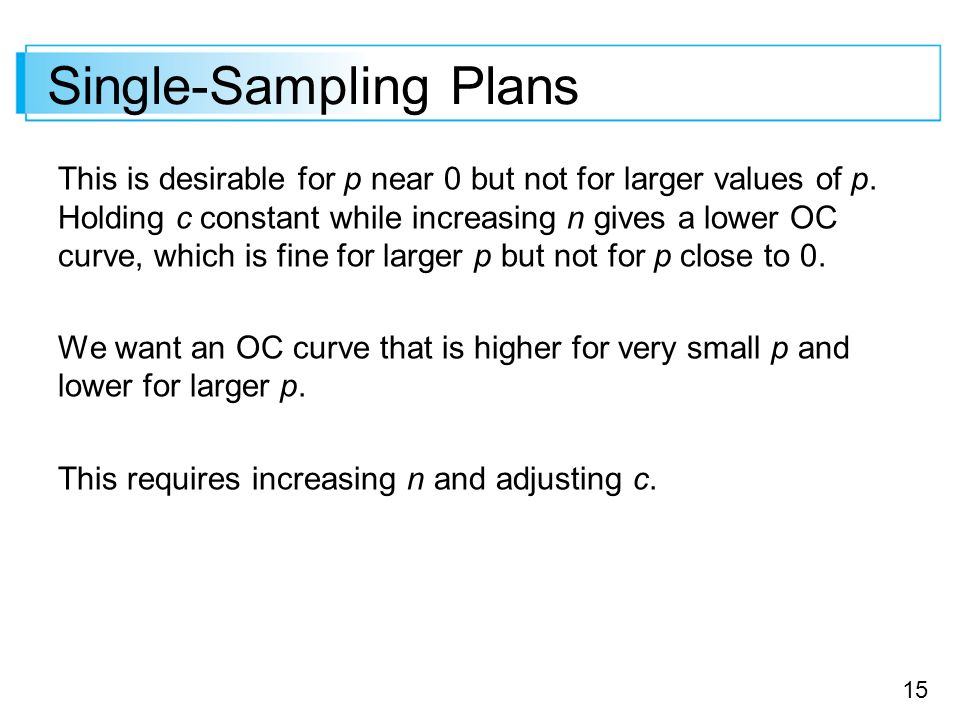

15. 15 Single-Sampling Plans This is desirable for p near 0 but not for larger values of p. Holding c constant while increasing n gives a lower OC curve, which is fine for larger p but not for p close to 0. We want an OC curve that is higher for very small p and lower for larger p. This requires increasing n and adjusting c.

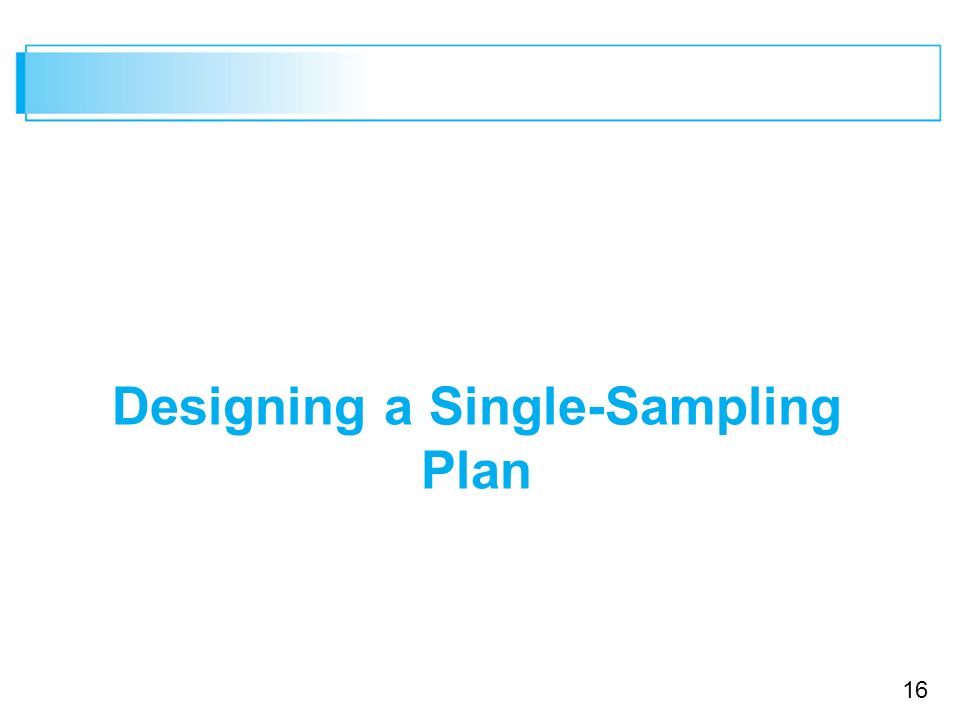

16. 16 Designing a Single-Sampling Plan

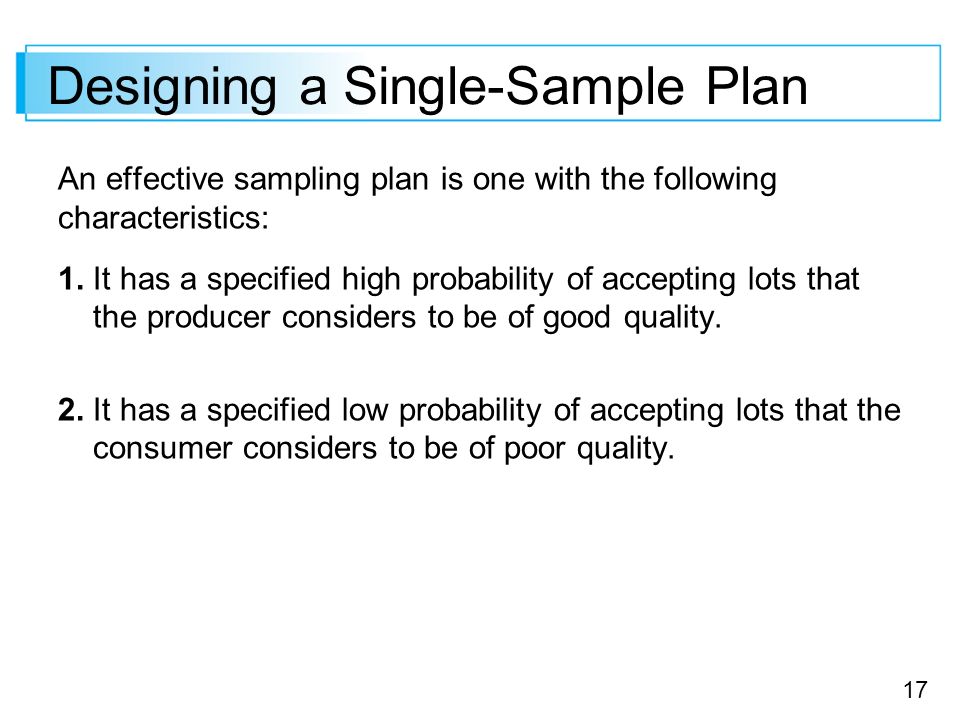

17. 17 Designing a Single-Sample Plan An effective sampling plan is one with the following characteristics: 1. It has a specified high probability of accepting lots that the producer considers to be of good quality. 2. It has a specified low probability of accepting lots that the consumer considers to be of poor quality.

18. 18 Designing a Single-Sample Plan A plan of this sort can be developed by proceeding as follows. Let’s designate two different values of p, one for which P(A) is a specified value close to 1 and the other for which P(A) is a specified value near 0. These two values of p—say, p 1 and p 2 — are often called the acceptable quality level (AQL) and the lot tolerance percent defective (LTPD).

19. 19 Designing a Single-Sample Plan That is, we require a plan for which 1. P(A) = 1 –  when p = p 1 = AQL (  small) 2. P(A) =  when p = p 2 = LTPD (  small) This is analogous to seeking a hypothesis testing procedure with specified type I error probability  and specified type II error probability .

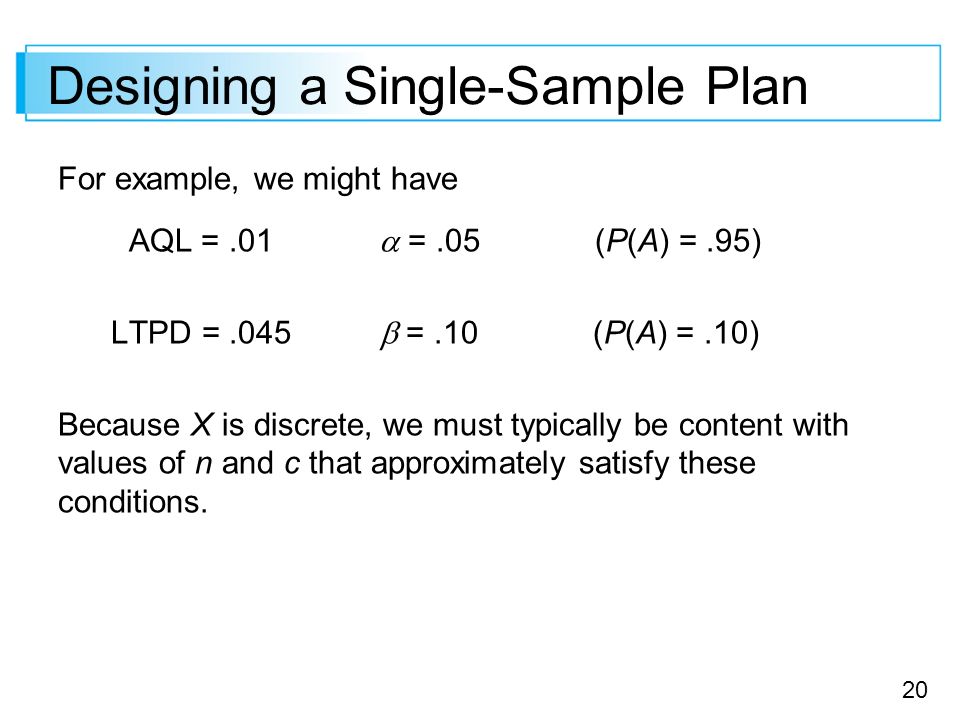

20. 20 Designing a Single-Sample Plan For example, we might have AQL =.01  =.05 (P(A) =.95) LTPD =.045  =.10 (P(A) =.10) Because X is discrete, we must typically be content with values of n and c that approximately satisfy these conditions.

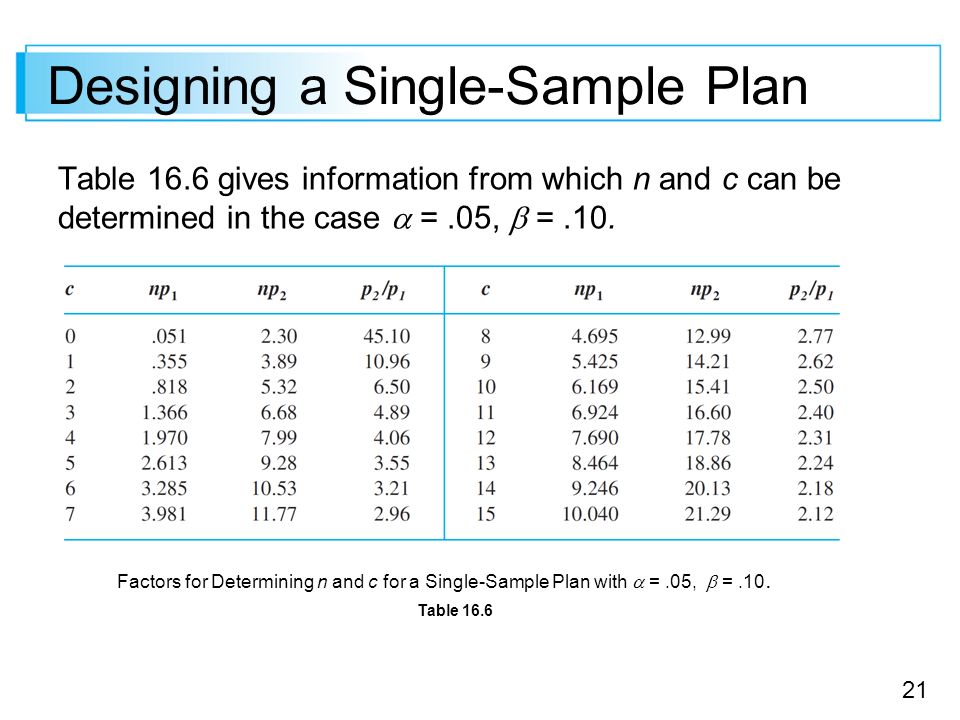

21. 21 Designing a Single-Sample Plan Table 16.6 gives information from which n and c can be determined in the case  =.05,  =.10. Table 16.6 Factors for Determining n and c for a Single-Sample Plan with  =.05,  =.10.

22. 22 Example 12 Let’s determine a plan for which AQL = p 1 =.01 and LTPD = p 2 =.045. The ratio of p 2 to p 1 is This value lies between the ratio 4.89 given in Table 16.6, for which c = 4, and 4.06, for which c = 4. Once one of these values of c is chosen, n can be determined either by dividing the np 1 value in Table 16.6 by p 1 or via np 2 /p 2.

23. 23 Example 12 Thus four different plans (two values of c, and for each two values of n) give approximately the specified value of  and . Consider, for example, using c = 3 and n = Then  = 1 – P (X  3 when p = p 1 ) =.050 (the Poisson approximation with  = 1.37 also gives.050) and  = P(X  3 when p = p 2 ) =.131 cont’d

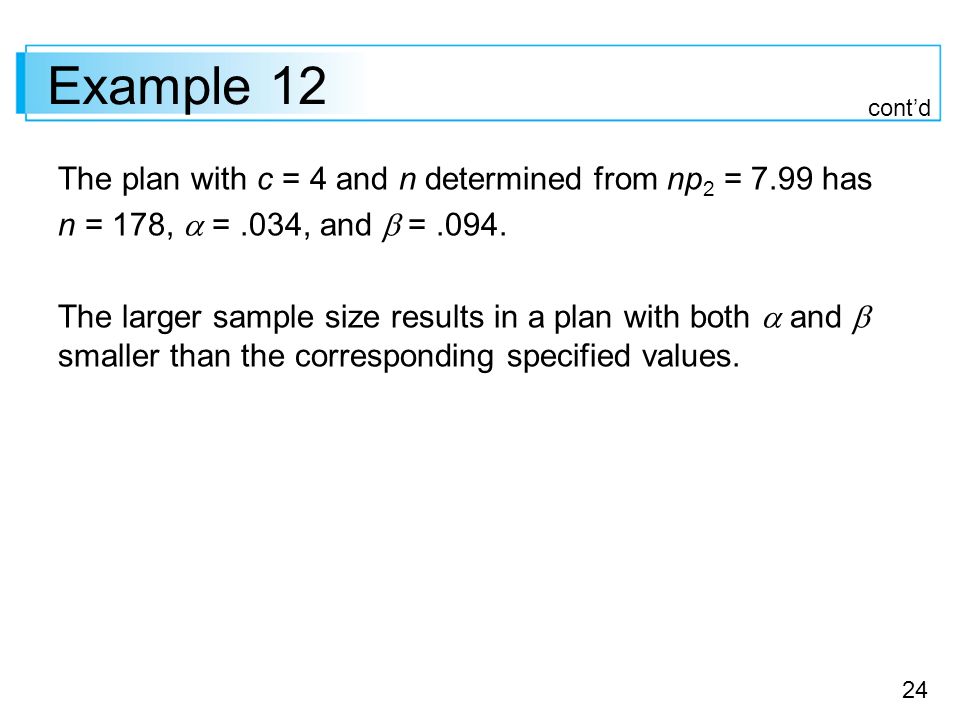

24. 24 Example 12 The plan with c = 4 and n determined from np 2 = 7.99 has n = 178,  =.034, and  =.094. The larger sample size results in a plan with both  and  smaller than the corresponding specified values. cont’d

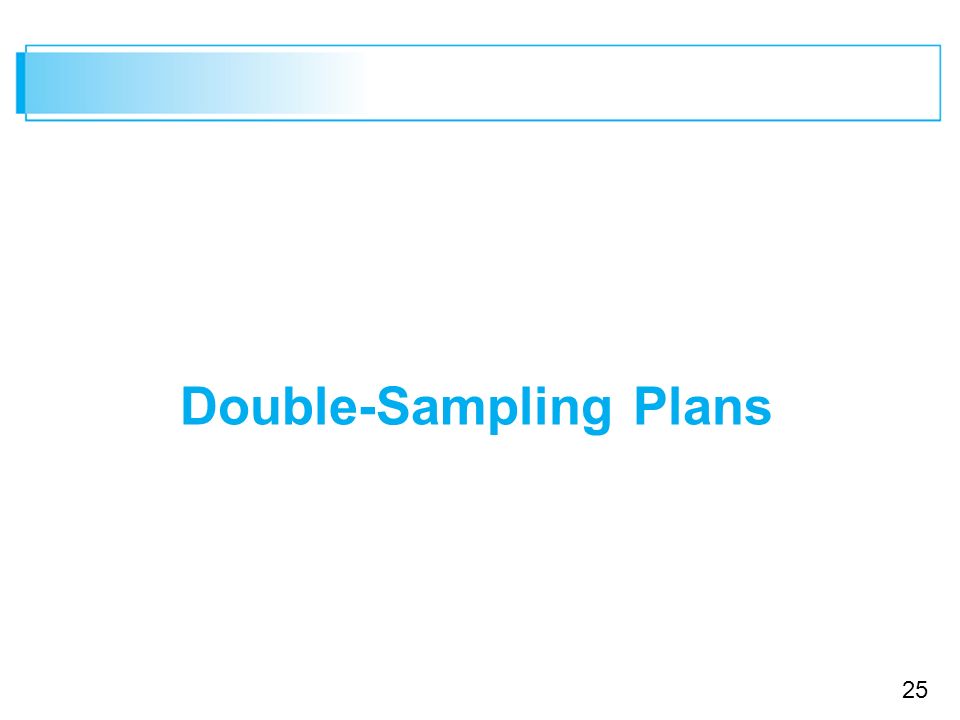

25. 25 Double-Sampling Plans

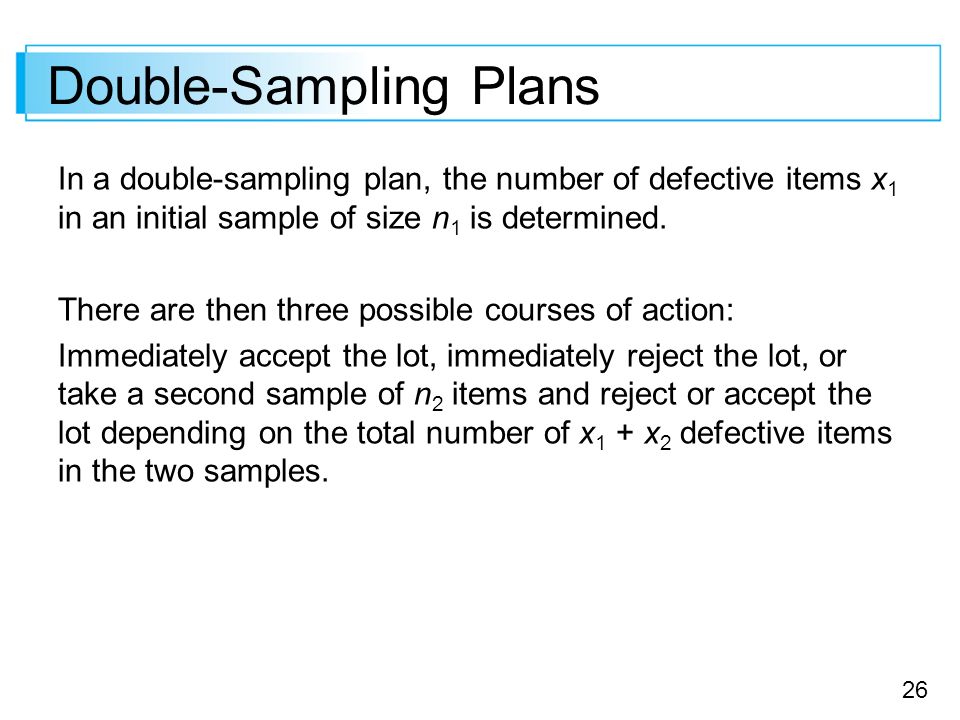

26. 26 Double-Sampling Plans In a double-sampling plan, the number of defective items x 1 in an initial sample of size n 1 is determined. There are then three possible courses of action: Immediately accept the lot, immediately reject the lot, or take a second sample of n 2 items and reject or accept the lot depending on the total number of x 1 + x 2 defective items in the two samples.

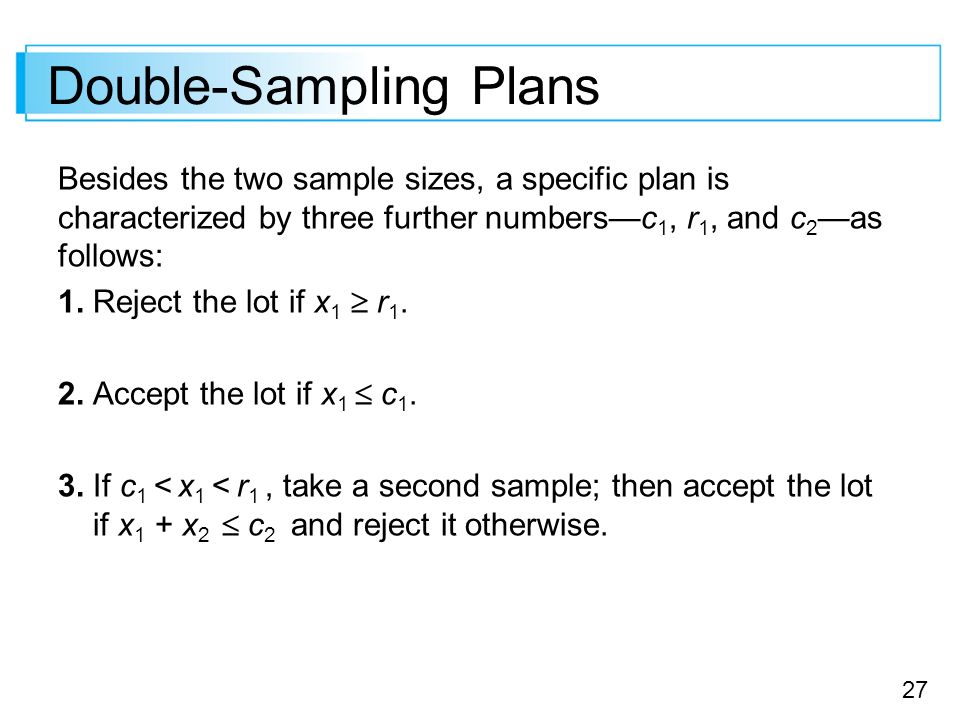

27. 27 Double-Sampling Plans Besides the two sample sizes, a specific plan is characterized by three further numbers—c 1, r 1, and c 2 —as follows: 1. Reject the lot if x 1  r 1. 2. Accept the lot if x 1  c 1. 3. If c 1 < x 1 < r 1, take a second sample; then accept the lot if x 1 + x 2  c 2 and reject it otherwise.

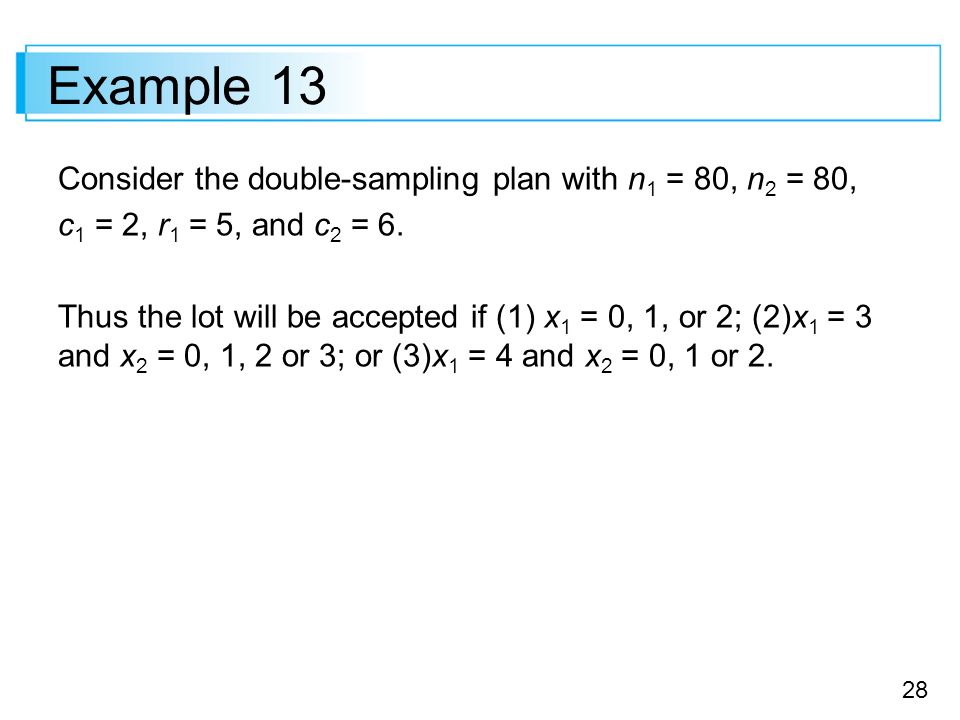

28. 28 Example 13 Consider the double-sampling plan with n 1 = 80, n 2 = 80, c 1 = 2, r 1 = 5, and c 2 = 6. Thus the lot will be accepted if (1) x 1 = 0, 1, or 2; (2)x 1 = 3 and x 2 = 0, 1, 2 or 3; or (3)x 1 = 4 and x 2 = 0, 1 or 2.

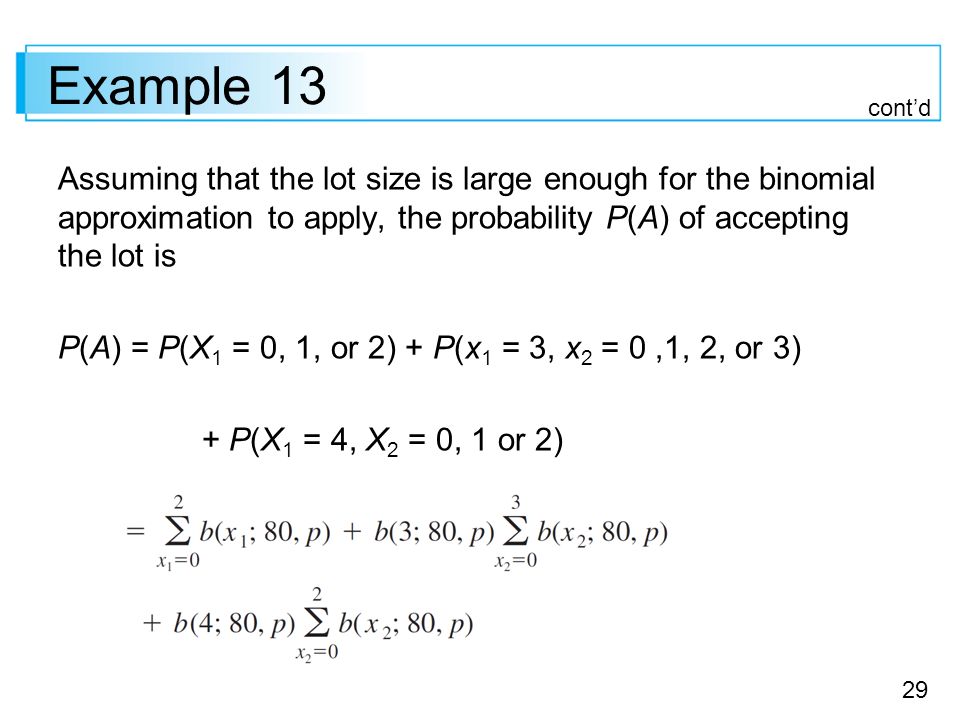

29. 29 Example 13 Assuming that the lot size is large enough for the binomial approximation to apply, the probability P(A) of accepting the lot is P(A) = P(X 1 = 0, 1, or 2) + P(x 1 = 3, x 2 = 0,1, 2, or 3) + P(X 1 = 4, X 2 = 0, 1 or 2) cont’d

30. 30 Example 13 Again the graph of P(A) versus p is the plan’s OC curve. The OC curve for this plan appears in Figure 16.13. cont’d OC curve for the double-sampling plan of Example 13 Figure 16.13

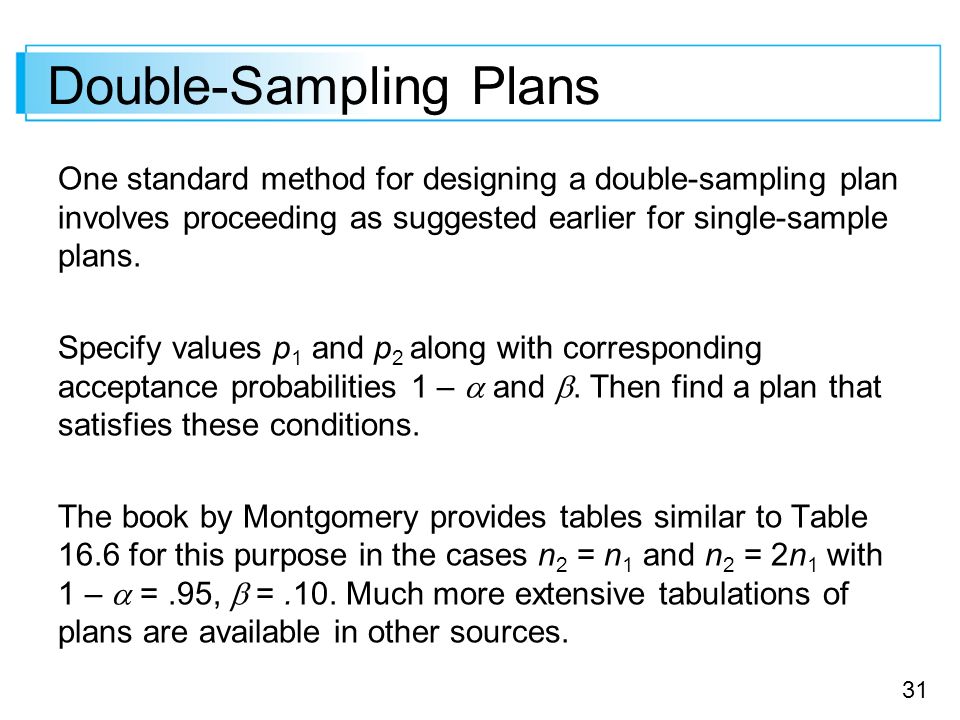

31. 31 Double-Sampling Plans One standard method for designing a double-sampling plan involves proceeding as suggested earlier for single-sample plans. Specify values p 1 and p 2 along with corresponding acceptance probabilities 1 –  and . Then find a plan that satisfies these conditions. The book by Montgomery provides tables similar to Table 16.6 for this purpose in the cases n 2 = n 1 and n 2 = 2n 1 with 1 –  =.95,  =.10. Much more extensive tabulations of plans are available in other sources.

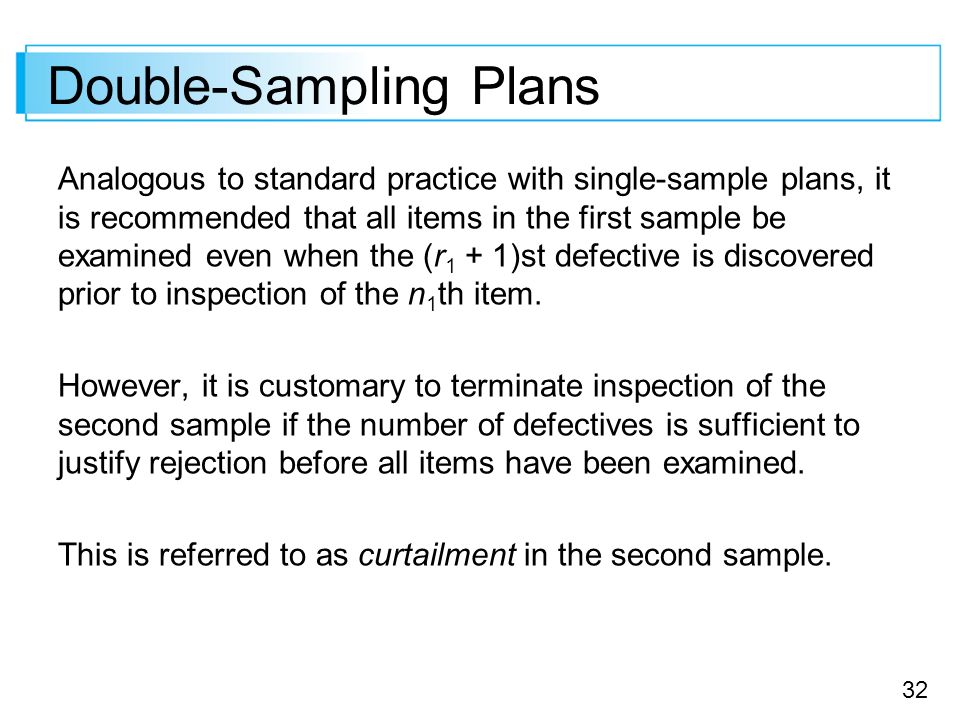

32. 32 Double-Sampling Plans Analogous to standard practice with single-sample plans, it is recommended that all items in the first sample be examined even when the (r 1 + 1)st defective is discovered prior to inspection of the n 1 th item. However, it is customary to terminate inspection of the second sample if the number of defectives is sufficient to justify rejection before all items have been examined. This is referred to as curtailment in the second sample.

33. 33 Double-Sampling Plans Under curtailment, it can be shown that the expected number of items inspected in a double-sampling plan is smaller than the number of items examined in a single- sampling plan when the OC curves of the two plans are close to being identical. This is the major virtue of double-sampling plans. For more on these matters as well as a discussion of multiple and sequential sampling plans (which involve selecting items for inspection one by one rather than in groups), a book on quality control should be consulted.

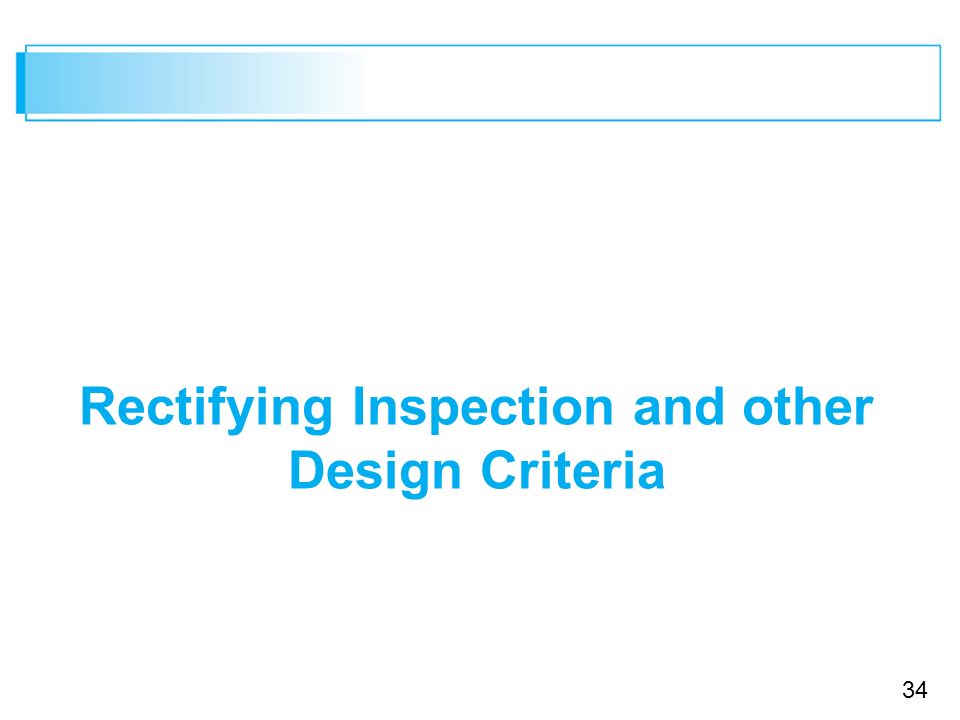

34. 34 Rectifying Inspection and other Design Criteria

35. 35 Rectifying Inspection and Other Design Criteria In some situations, sampling inspection is carried out using rectification. For single-sample plans, this means that each defective item in the sample is replaced with a satisfactory one, and if the number of defectives in the sample exceeds the acceptance cutoff c, all items in the lot are examined and good items are substituted for any defectives Let N denote the lot size. One important characteristic of a sampling plan with rectifying inspection is average outgoing quality, denoted by AOQ.

36. 36 Rectifying Inspection and Other Design Criteria This is the long-run proportion of defective items among those sent on after the sampling plan is employed. Now defectives will occur only among the N – n items not inspected in a lot judged acceptable on the basis of a sample. Suppose, for example, that P(A) = P (X  c) =.985 when p =.01.Then, in the long run, 98.5% of the items not in the sample will not be inspected, of which we expect 1% to be defective. This implies that the expected number of defectives in a randomly selected batch is (N – n)  P(A)  p =.00985(N – n).

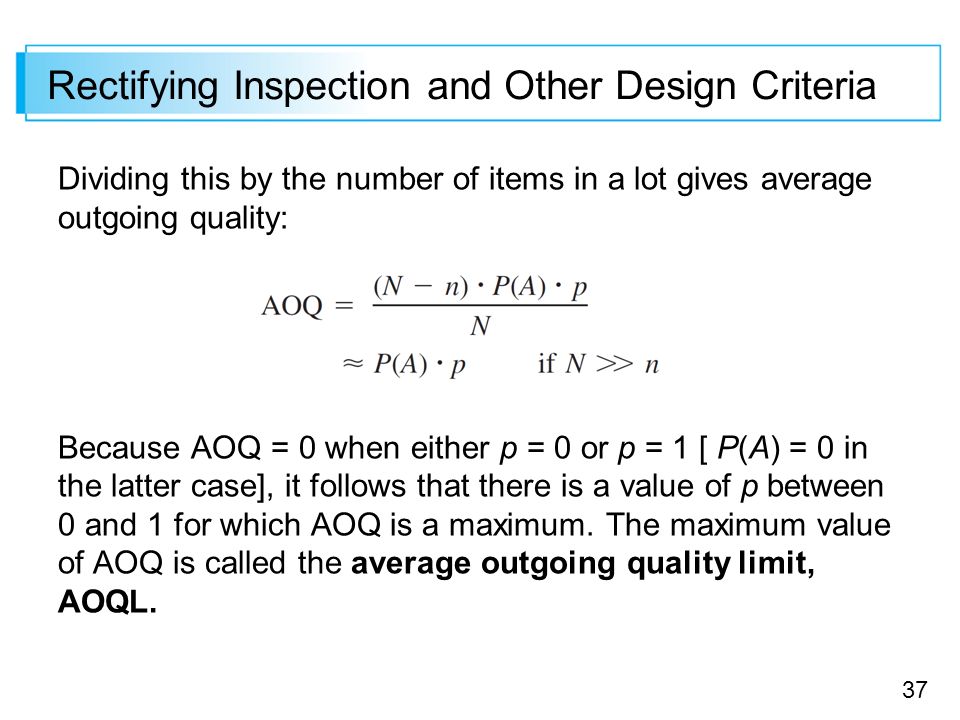

37. 37 Rectifying Inspection and Other Design Criteria Dividing this by the number of items in a lot gives average outgoing quality: Because AOQ = 0 when either p = 0 or p = 1 [ P(A) = 0 in the latter case], it follows that there is a value of p between 0 and 1 for which AOQ is a maximum. The maximum value of AOQ is called the average outgoing quality limit, AOQL.

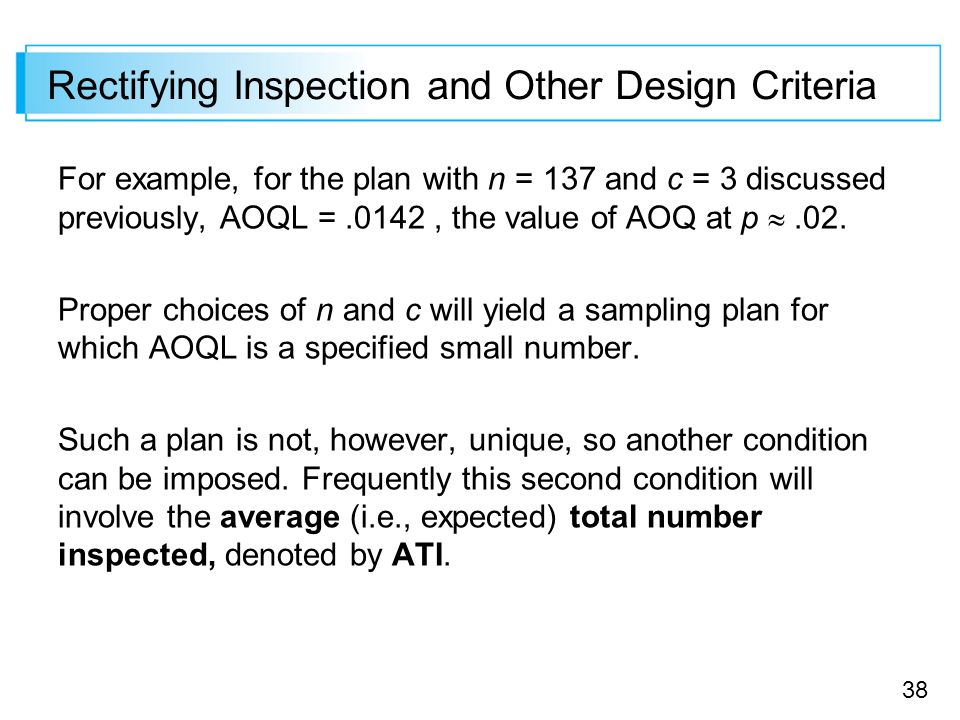

38. 38 Rectifying Inspection and Other Design Criteria For example, for the plan with n = 137 and c = 3 discussed previously, AOQL =.0142, the value of AOQ at p .02. Proper choices of n and c will yield a sampling plan for which AOQL is a specified small number. Such a plan is not, however, unique, so another condition can be imposed. Frequently this second condition will involve the average (i.e., expected) total number inspected, denoted by ATI.

39. 39 Rectifying Inspection and Other Design Criteria The number of items inspected in a randomly chosen lot is a random variable that takes on the value n with probability P(A) and N with probability 1 – P(A). Thus the expected number of items inspected in a randomly selected lot is ATI = n  P(A) + N  (1 – P(A)) It is common practice to select a sampling plan that has a specified AOQL and, in addition, minimum ATI at a particular quality level p.

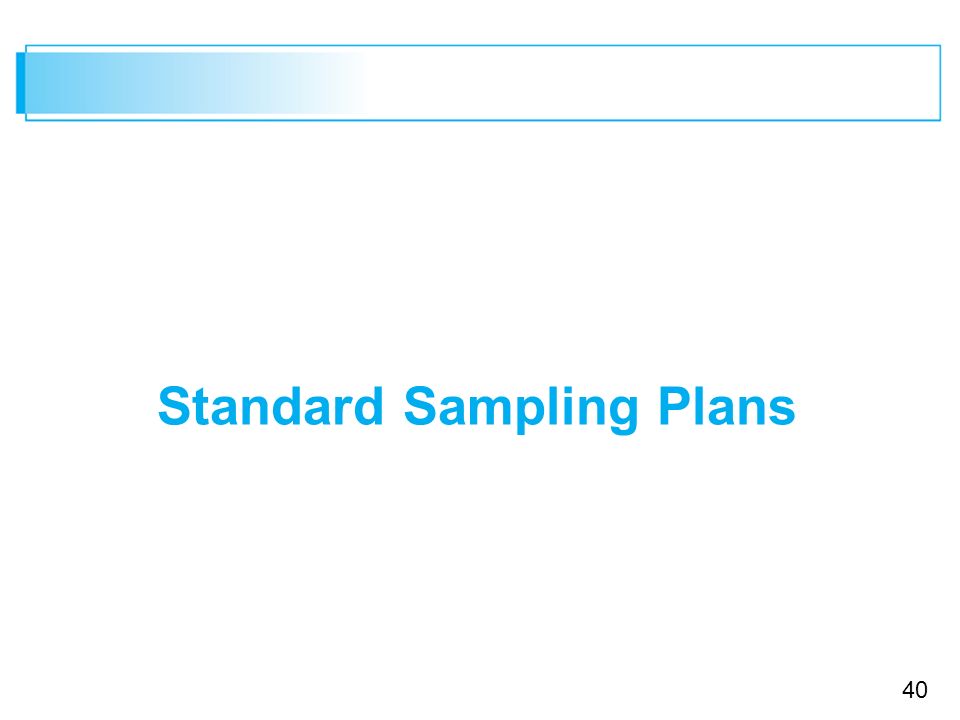

40. 40 Standard Sampling Plans

41. 41 Standard Sampling Plans It may seem as though the determination of a sampling plan that simultaneously satisfies several criteria would be quite difficult. Fortunately, others have already laid the groundwork in the form of extensive tabulations of such plans. MIL STD 105D, developed by the military after World War II, is the most widely used set of plans.

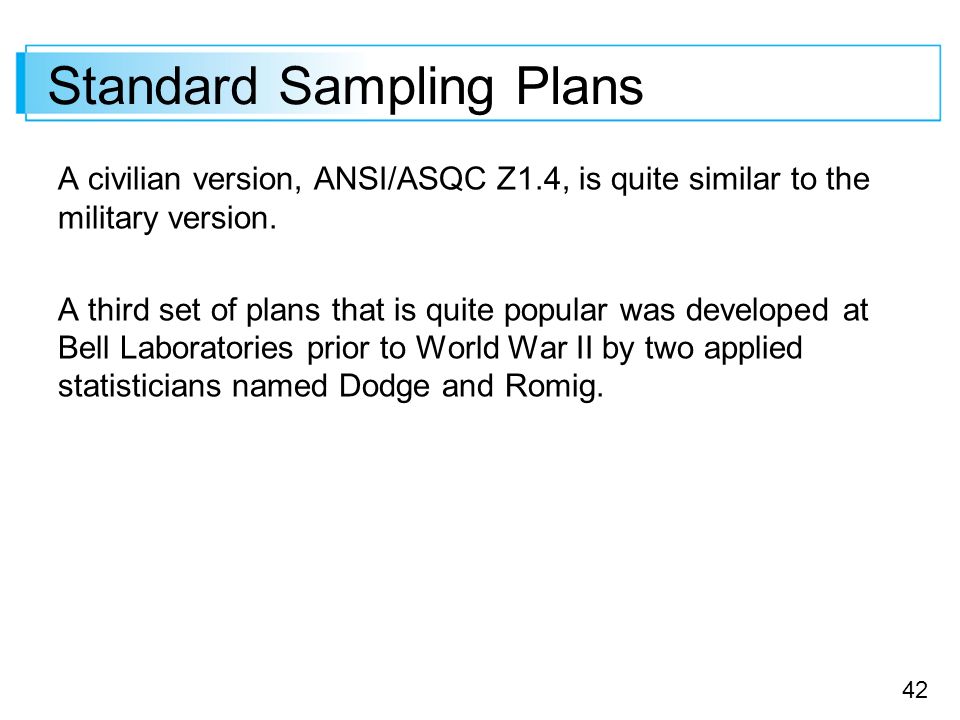

42. 42 Standard Sampling Plans A civilian version, ANSI/ASQC Z1.4, is quite similar to the military version. A third set of plans that is quite popular was developed at Bell Laboratories prior to World War II by two applied statisticians named Dodge and Romig.
