1. 1 Queues Chapter 4

2. 2 Objectives You will be able to Describe a queue as an ADT. Build a dynamic array based implementation of a queue ADT.

3. 3 Introduction to Queues In real life, a queue is a waiting line. A line of people waiting for a bank teller A line of cars at a toll both "This is the captain, we're 5 th in line for takeoff"

4. 4 The Queue As an ADT In programming, a queue is a sequence of data elements. In the sequence Items can be removed only at the front. Items can be added only at the back. Referred to as a “First In First Out” or FIFO container. Also called “First Come First Serverd” or FCFS. A stack is a “Last In First Out” or LIFO container.

5. 5 The Queue As an ADT Basic operations Construct a queue Check if empty Check if full Enqueue (add element to back) Dequeue (remove element from front and return it) Front (retrieve value of element from front) Clear (remove all elements)

6. 6 Variations of the Queue ADT Double ended queue, Deque Pronounced “deck” Permits items to be inserted and removed at either end. Priority Queue Multiple priority levels Items can be inserted at the end of any level.

7. 7 The Queue As an ADT Most of what you have learned about stacks applies to queues. Dynamic array based implementation. Linked list implementation. We will look at one other version. Multiple queues in a single array. A form of linked list implementation.

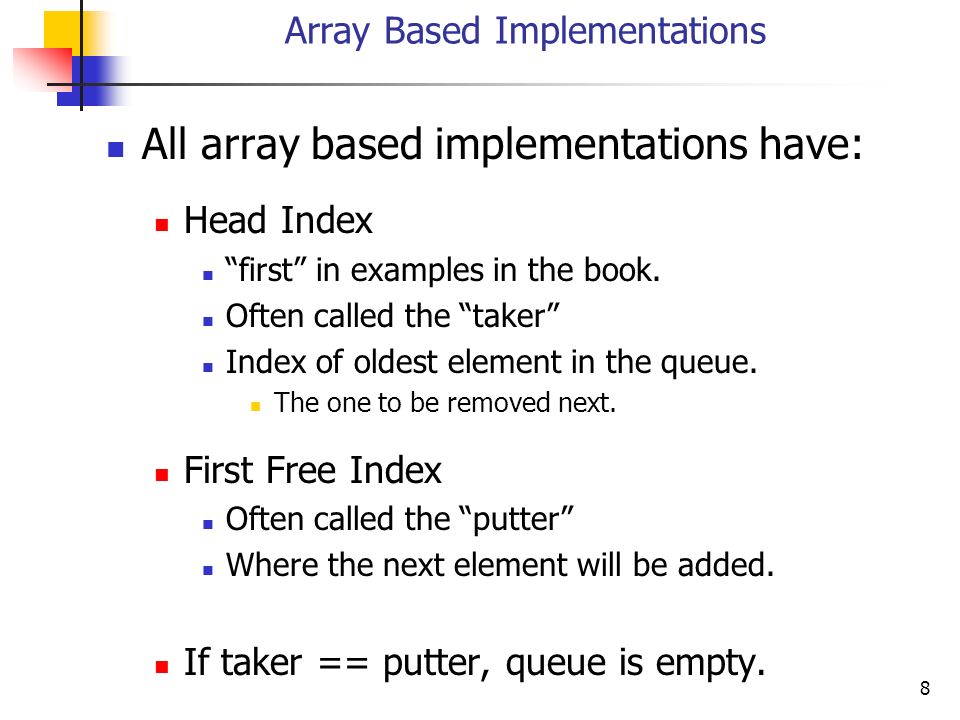

8. 8 Array Based Implementations All array based implementations have: Head Index “first” in examples in the book. Often called the “taker” Index of oldest element in the queue. The one to be removed next. First Free Index Often called the “putter” Where the next element will be added. If taker == putter, queue is empty.

9. 9 Array Based Implementations The putter advances down the array and back to the top. Circular buffer. The taker follows the putter down the array (and back around to the top.) If the putter catches up with the taker, the queue is full. If the taker catches up with the putter, the queue is empty.

10. 10 Empty and Full Conditions If putter == taker, is the queue full or empty? We need a rule to distinguish the two conditions. The rule: When putter == taker, the queue is empty.

11. 11 Empty and Full Conditions Implications of the rule: We can’t put an element into the postion just before the taker. Otherwise the queue would appear to be empty when it is acutally full. There will always be at least one empty element in the array. Actual capacity of the queue is one less than the size of the array.

12. 12 Empty and Full Conditions putter == taker Queue is empty. OK to put. Not OK to take. putter + 1 mod array_size = taker Queue is full OK to take. Not OK to put.

13. 13 Queue Example Create new empty C++ console project. Queue_Demo Add Queue.h Add Queue_Test.cpp Initially "Hello, world!"

14. 14 Queue_Test.cpp Initial stub: #include using namespace std; int main(void) { cout << "This is Stack Demo\n"; cin.get(); return 0; }

15. 15 Queue Template #pragma once #include template class Queue { public: Queue(size_t capacity = 1000); ~Queue(); bool IsEmpty() const; bool IsFull() const; // Add a value to the end of the Queue. void Enqueue(const T& value); // Remove and return value at front of Queue. T Dequeue(); // Retrieve value at front of Queue without removing it. T Front() const;

16. 16 Queue.h // Display Queue contents. void Display(std::ostream& out) const; void Clear(); private: T* data; size_t size; size_t putter; size_t taker; };

17. 17 Constructor and Destructor template Queue ::Queue(size_t capacity) { size = capacity+1; data = new T[size]; assert (data != 0); putter = 0; taker = 0; } template Queue ::~Queue() { delete[] data; }

18. 18 IsEmpty and IsFull template bool Queue ::IsEmpty() const { return putter == taker; } template bool Queue ::IsFull() const { return taker == ((putter+1) % size); }

19. 19 Enqueue template void Queue ::Enqueue(const T& value) { if (this->IsFull()) { throw "Attempt to add to full queue"; } data[putter] = value; putter = (++putter) % size; }

20. 20 Dequeue template T Queue ::Dequeue() { if (this->IsEmpty()) { throw "Dequeue called for empty Queue"; } T temp = data[taker]; taker = (++taker) % size; return temp; }

21. 21 Front template T Queue ::Front() const { if (this->IsEmpty()) { throw "Front of empty Queue requested"; } return data[taker]; }

22. 22 Display template void Queue ::Display(std::ostream& out) const { for (int i = taker; i != putter; i = (i + 1)%size) { out << data[i] << endl; }

23. 23 Create Queue_Test.cpp Update Stack_Test.cpp to be Queue_Test.cpp Download to project folder: http://www.cse.usf.edu/~turnerr/Data_Structures/Downloads/2011_02_07_Stacks/ File stack_test.cpp.txt

24. 24 Queue_Test.cpp #include #include "Queue.h" #include using namespace std; const int QUEUE_CAPACITY = 10; int main() { Queue q(QUEUE_CAPACITY); assert (q.IsEmpty()); cout << "Newly created queue is empty\n"; printf ("Enqueueing 0 - %d \n", QUEUE_CAPACITY - 1); for (int i = 0; i < QUEUE_CAPACITY; ++i) { q.Enqueue(i); }

25. 25 Queue_Test.cpp cout << "Initial queue:\n"; q.Display(cout); assert(!q.IsEmpty()); cout << "Now the queue is not empty\n"; cout << "Adding one more element, which should cause overflow. " << endl; try { q.Enqueue(1); cout << "ERROR\n"; // Should have thrown exception } catch (const char* msg) { cout << "Attempt to overfill queue threw exception as expected\n"; cout << "Message: " << msg << endl; } cout << "Queue should be unchanged\n" << endl; q.Display(cout);

26. 26 Queue_Test.cpp cout << "Now removing elements from the queue\n"; while (!q.IsEmpty()) { int front = q.Front(); cout << "queue head: " << front << endl; int next_item = q.Dequeue(); assert (next_item == front); } cout << "Queue is now empty\n";

27. 27 Queue_Test.cpp cout << "Getting front of empty queue. This should fail\n"; try { int x = q.Front(); cout << "ERROR\n"; // Should have thrown exception } catch (const char* msg) { cout << "Attempt to get front of empty queue threw exception as expected\n"; cout << "Message: " << msg << endl; }

28. 28 Queue_Test.cpp cout << "Doing one more Dequeue. This should fail\n"; try { q.Dequeue(); cout << "ERROR\n"; // Should have thrown exception cin.get(); } catch (char* msg) { cout << "Attempt to Dequeue empty queue threw exception as expected\n"; cout << "Message: " << msg << endl; }

29. 29 Queue_Test.cpp cout << "Testing dynamic allocation\n"; Queue * q2 = new Queue (QUEUE_CAPACITY); assert(q2 != 0); cout << "Allocation was successful\n"; cout << "Testing delete\n"; delete(q2); q2 = 0; cout << "Delete was successful\n"; cout << "Test complete. Press Enter to exit." << endl; cin.get(); // Hold window open return 0;

30. 30 Program Running

31. 31 Program Running
