1  2005 Pearson Education, Inc. All rights reserved. 1 Classes and Objects: A Deeper Look

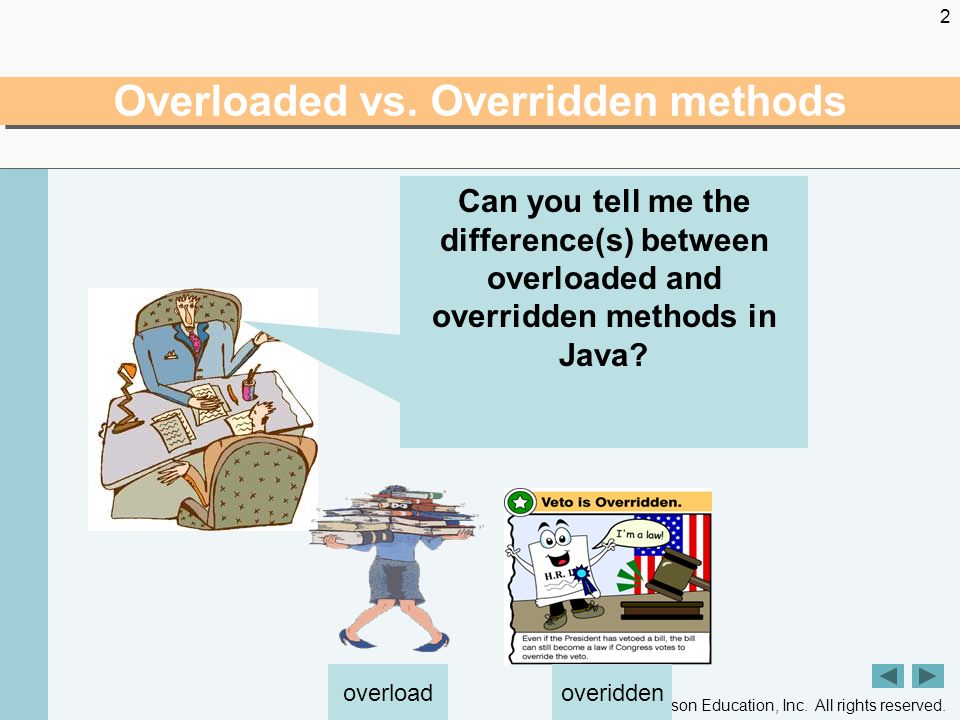

2  2005 Pearson Education, Inc. All rights reserved. 2 Overloaded vs. Overridden methods Can you tell me the difference(s) between overloaded and overridden methods in Java? overloadoveridden

3  2005 Pearson Education, Inc. All rights reserved. 3 Method Overloading Method overloading Multiple methods with the same name, but different types, number or order of parameters in their parameter lists Compiler decides which method is being called by matching the method call’s argument list to one of the overloaded methods’ parameter lists A method’s name and number, type and order of its parameters form its signature

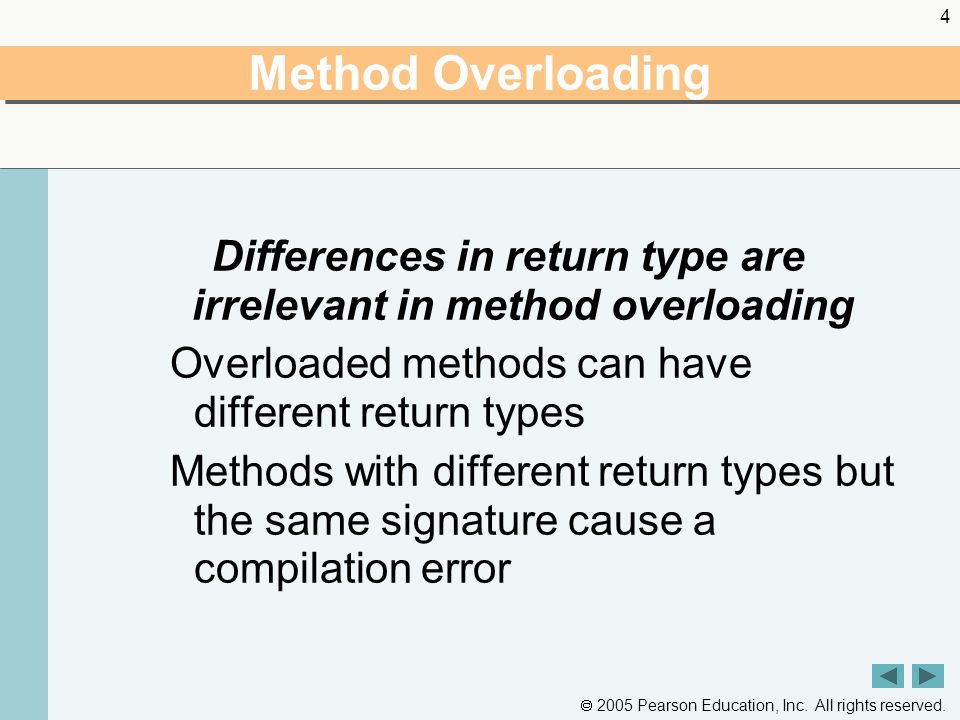

4  2005 Pearson Education, Inc. All rights reserved. 4 Method Overloading Differences in return type are irrelevant in method overloading Overloaded methods can have different return types Methods with different return types but the same signature cause a compilation error

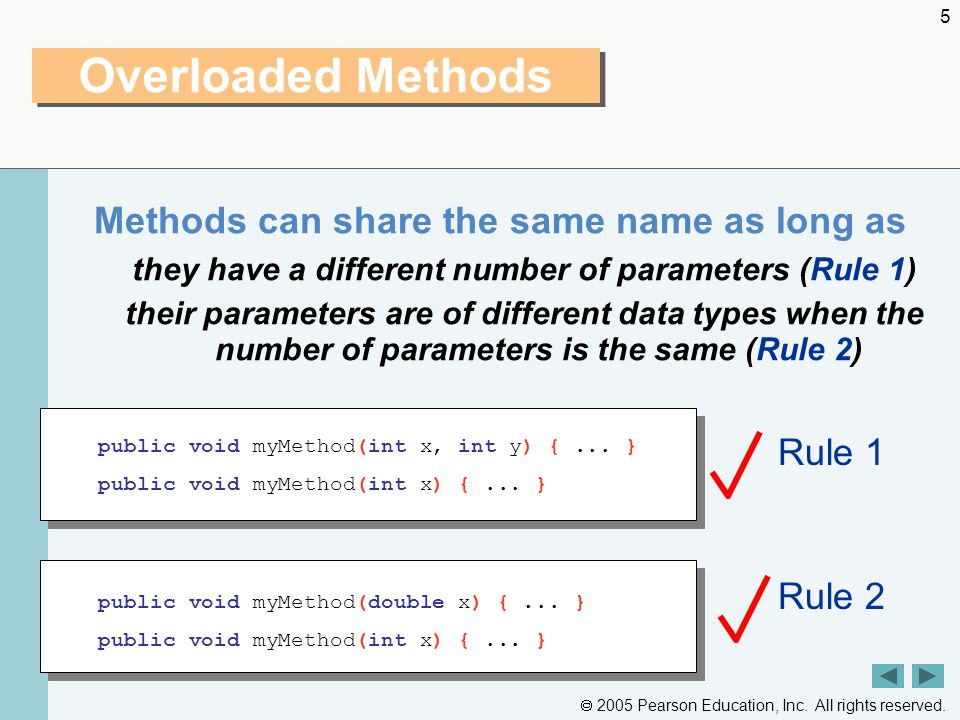

5  2005 Pearson Education, Inc. All rights reserved. 5 Overloaded Methods Methods can share the same name as long as they have a different number of parameters (Rule 1) their parameters are of different data types when the number of parameters is the same (Rule 2) public void myMethod(int x, int y) {... } public void myMethod(int x) {... } public void myMethod(double x) {... } public void myMethod(int x) {... } Rule 1 Rule 2

6  2005 Pearson Education Inc. All rights reserved. If a class does not define a constructor, a. the compiler will provide a default constructor b. We will get a compiler-time error c. We will get a run-time error d. No error but program may not run correctly What happen if

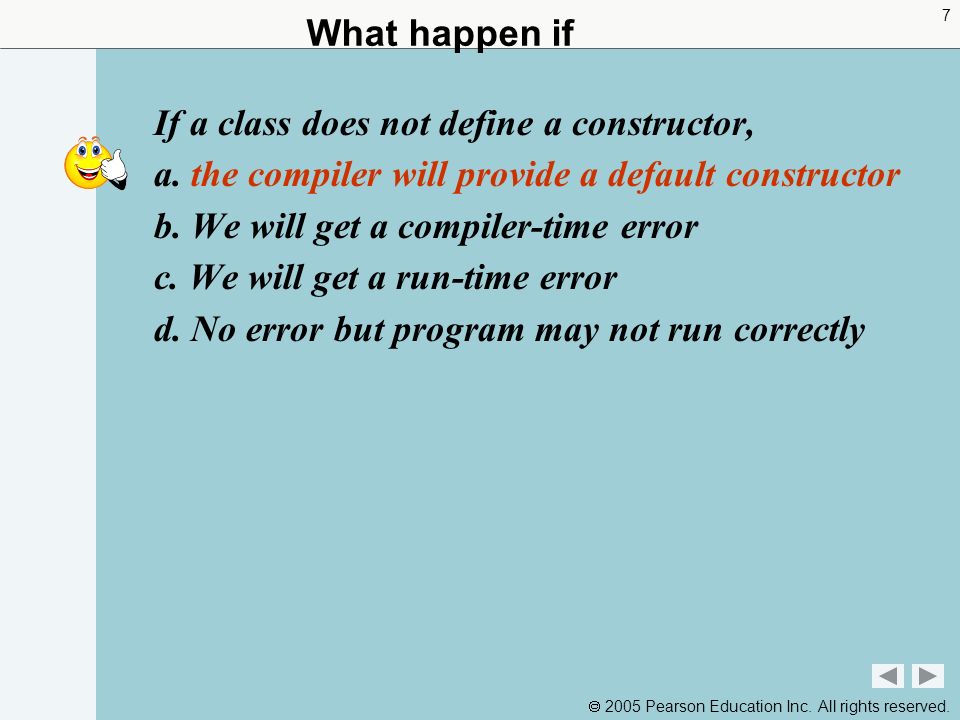

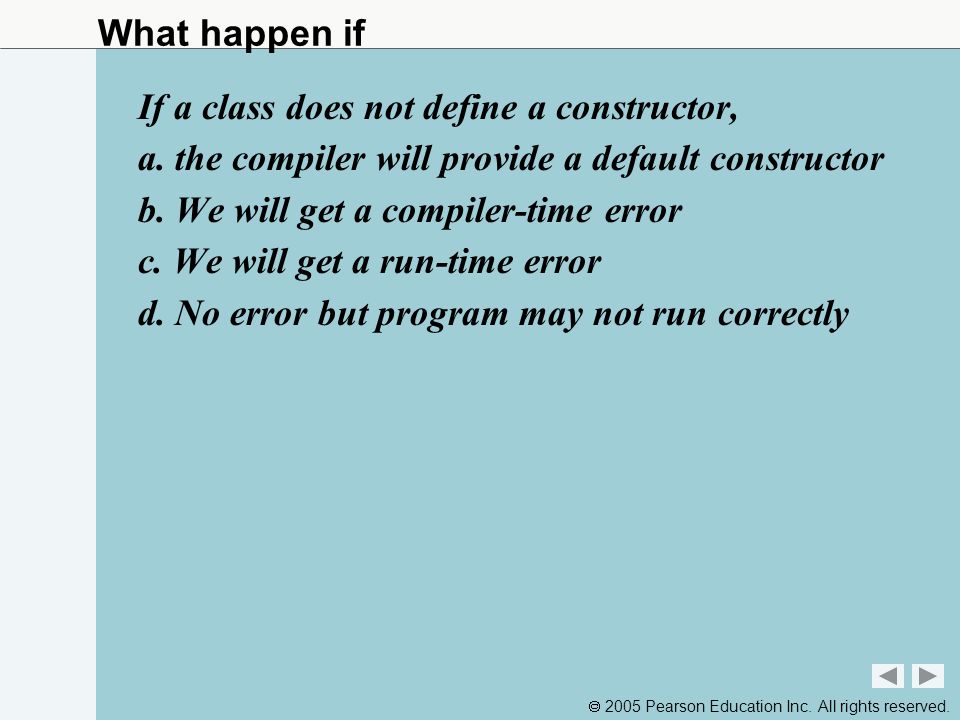

7  2005 Pearson Education Inc. All rights reserved. 7 What happen if If a class does not define a constructor, a. the compiler will provide a default constructor b. We will get a compiler-time error c. We will get a run-time error d. No error but program may not run correctly

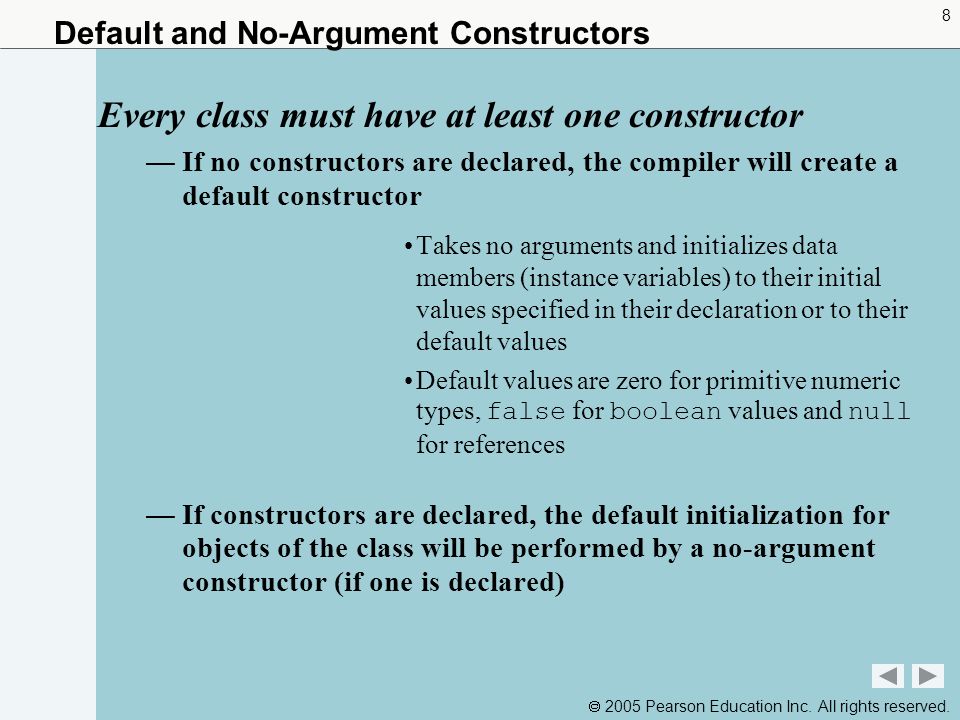

8  2005 Pearson Education Inc. All rights reserved. 8 Default and No-Argument Constructors Every class must have at least one constructor — If no constructors are declared, the compiler will create a default constructor Takes no arguments and initializes data members (instance variables) to their initial values specified in their declaration or to their default values Default values are zero for primitive numeric types, false for boolean values and null for references — If constructors are declared, the default initialization for objects of the class will be performed by a no-argument constructor (if one is declared)

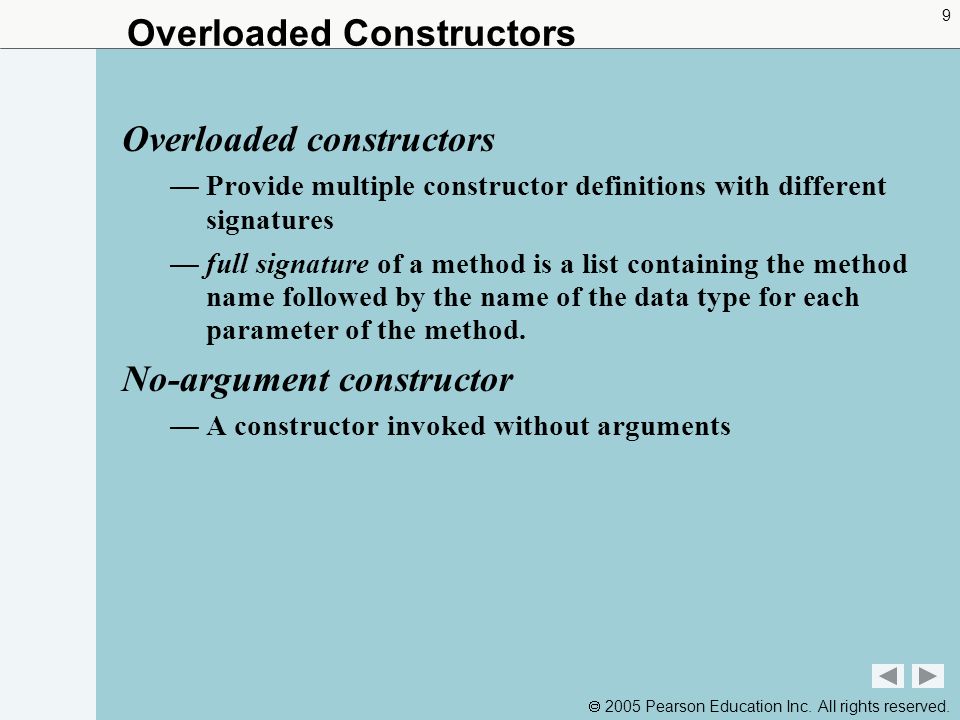

9  2005 Pearson Education Inc. All rights reserved. 9 Overloaded Constructors Overloaded constructors — Provide multiple constructor definitions with different signatures — full signature of a method is a list containing the method name followed by the name of the data type for each parameter of the method. No-argument constructor — A constructor invoked without arguments

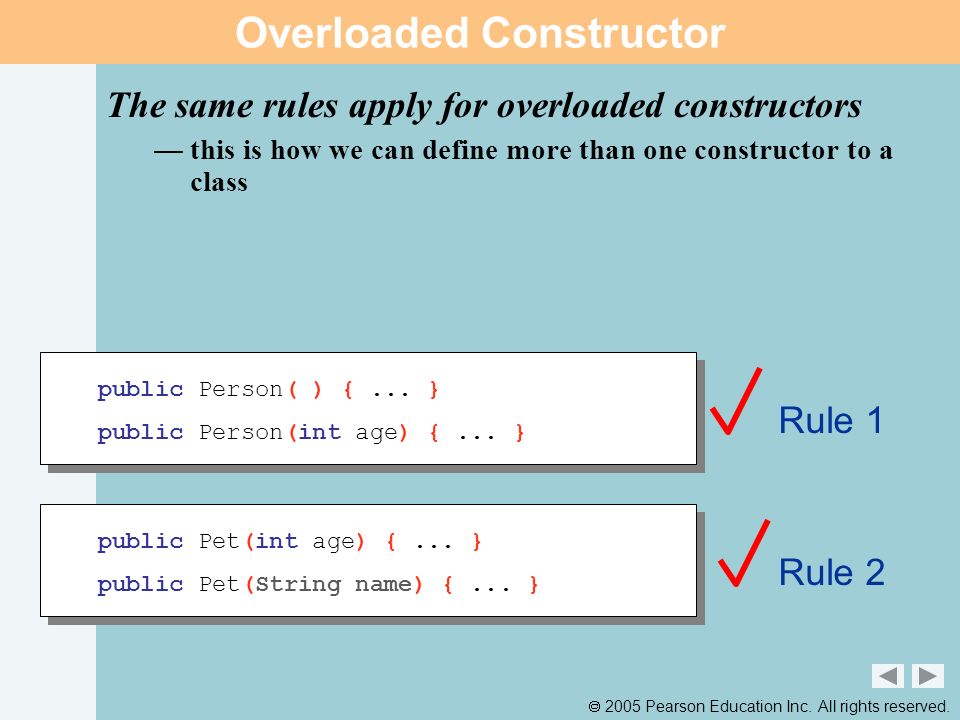

10  2005 Pearson Education Inc. All rights reserved. 10 Overloaded Constructor The same rules apply for overloaded constructors — this is how we can define more than one constructor to a class public Person( ) {... } public Person(int age) {... } public Pet(int age) {... } public Pet(String name) {... } Rule 1 Rule 2

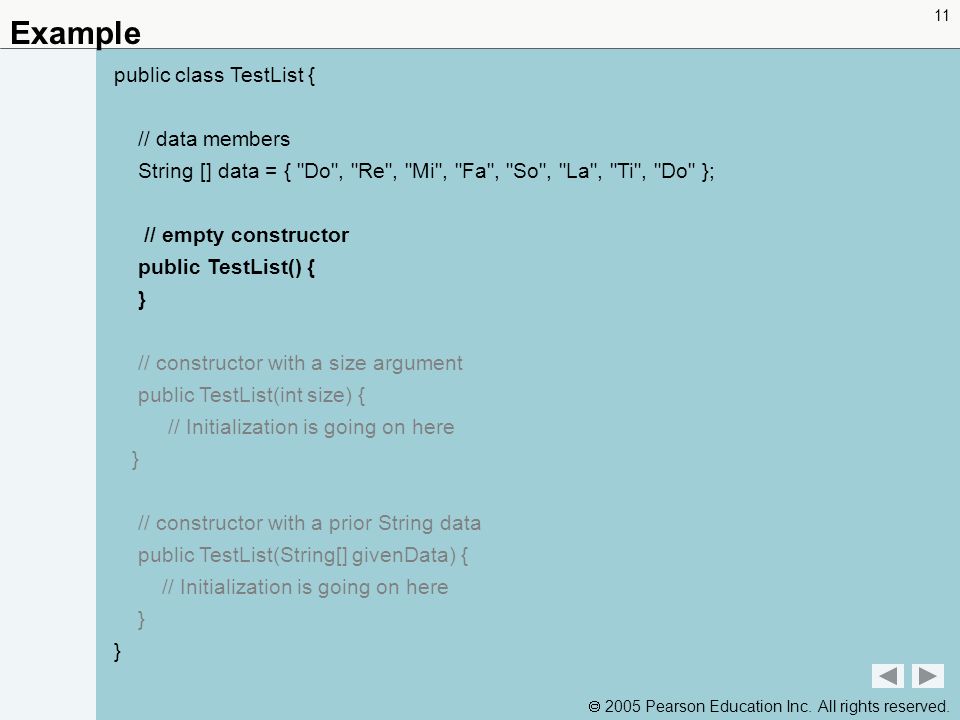

11  2005 Pearson Education Inc. All rights reserved. 11 Example public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Some initialization going on here } // constructor with a prior String data public TestList(String[] givenData) { // Some initi } public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Initialization is going on here } // constructor with a prior String data public TestList(String[] givenData) { // Initialization is going on here }

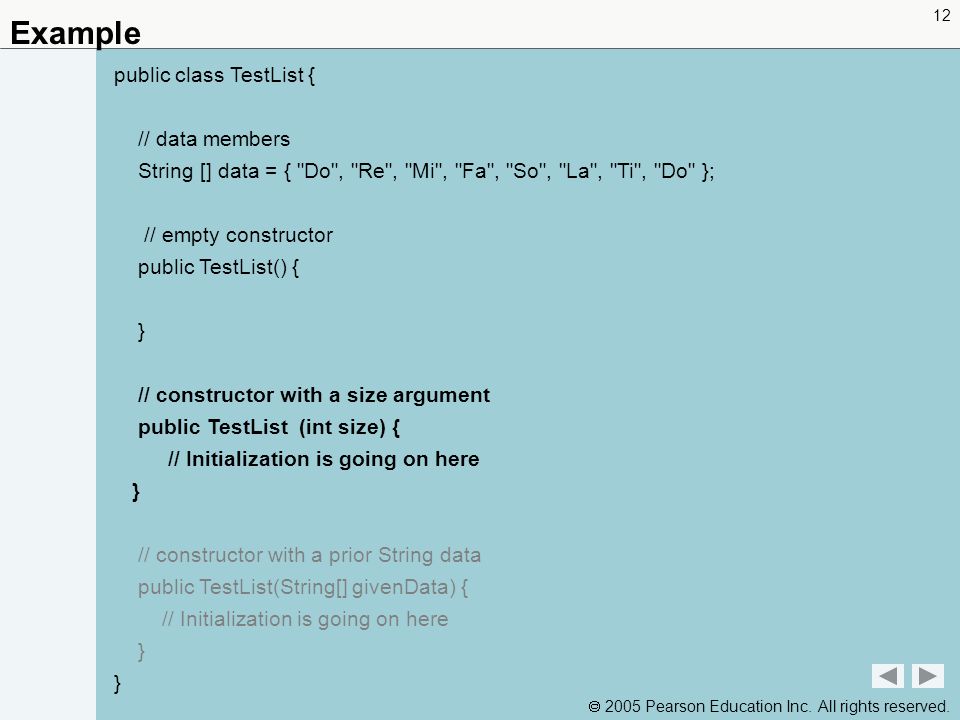

12  2005 Pearson Education Inc. All rights reserved. 12 Example public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Some initialization going on here } // constructor with a prior String data public TestList(String[] givenData) { // Some initi } public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList (int size) { // Initialization is going on here } // constructor with a prior String data public TestList(String[] givenData) { // Initialization is going on here }

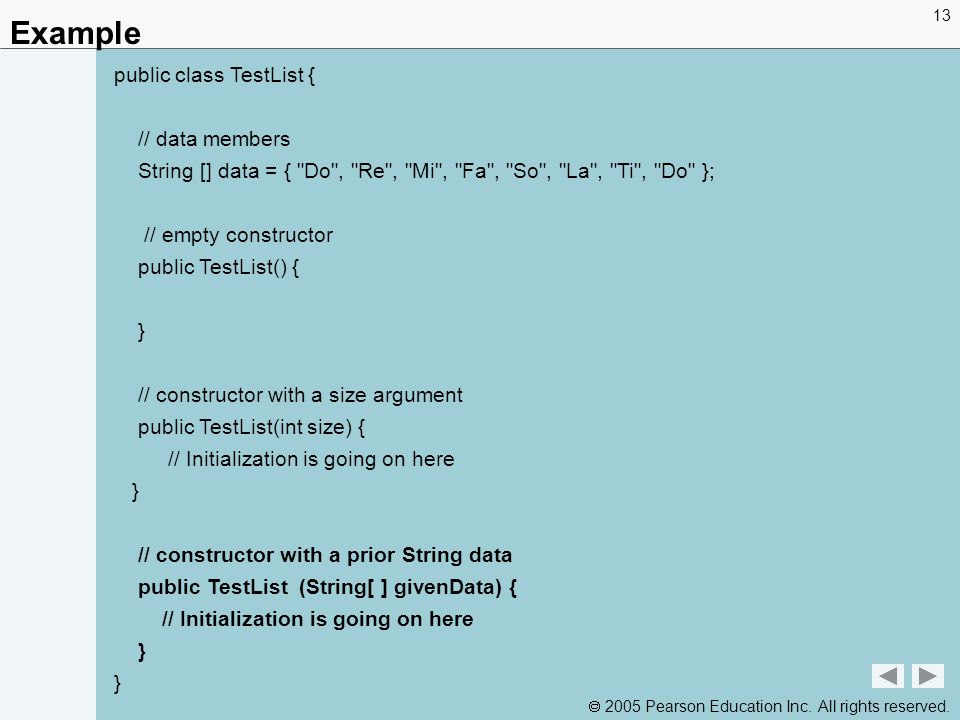

13  2005 Pearson Education Inc. All rights reserved. 13 Example public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Some initialization going on here } // constructor with a prior String data public TestList(String[] givenData) { // Some initi } public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Initialization is going on here } // constructor with a prior String data public TestList (String[ ] givenData) { // Initialization is going on here }

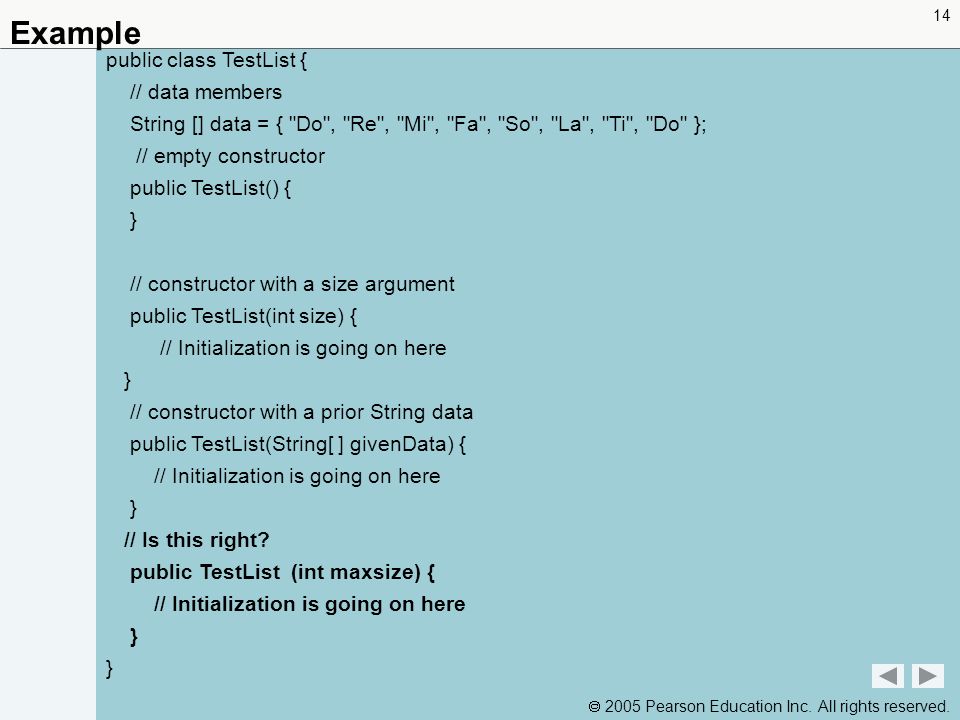

14  2005 Pearson Education Inc. All rights reserved. 14 Example public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Some initialization going on here } // constructor with a prior String data public TestList(String[] givenData) { // Some initi } public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Initialization is going on here } // constructor with a prior String data public TestList(String[ ] givenData) { // Initialization is going on here } // Is this right? public TestList (int maxsize) { // Initialization is going on here }

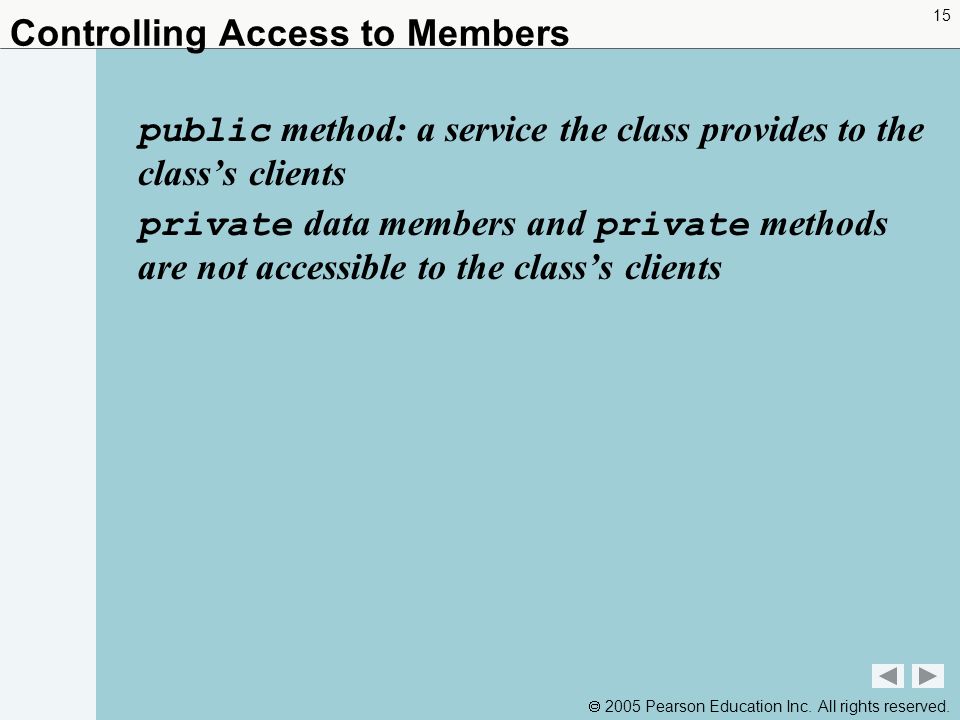

15  2005 Pearson Education Inc. All rights reserved. 15 Controlling Access to Members public method: a service the class provides to the class’s clients private data members and private methods are not accessible to the class’s clients

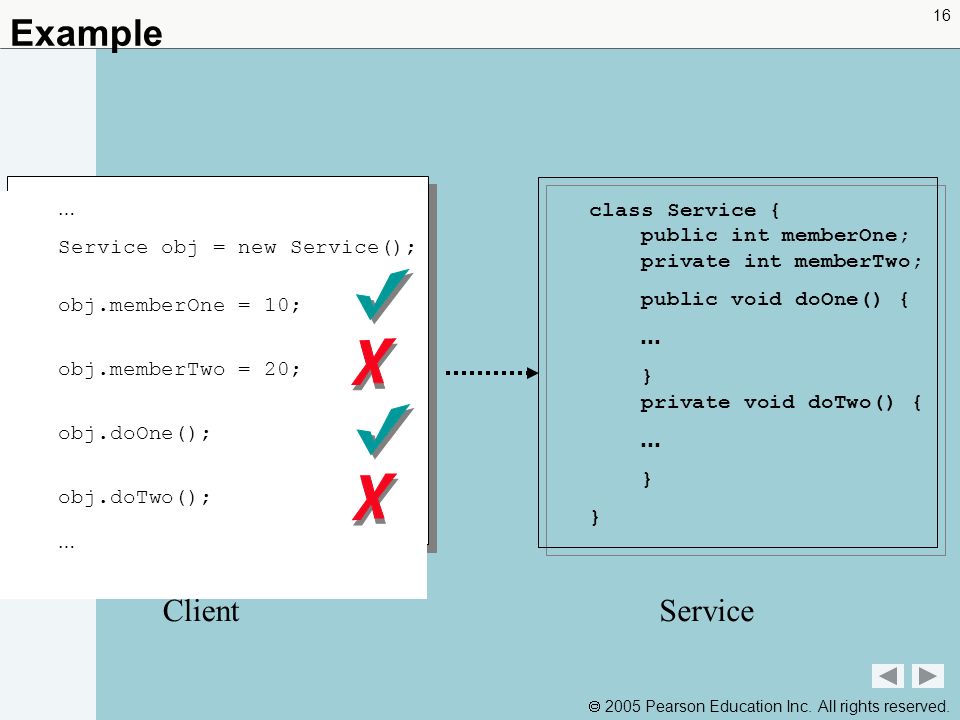

16  2005 Pearson Education Inc. All rights reserved. 16 Example class Service { public int memberOne; private int memberTwo; public void doOne() { … } private void doTwo() { … } … Service obj = new Service(); obj.memberOne = 10; obj.memberTwo = 20; obj.doOne(); obj.doTwo(); … ClientService

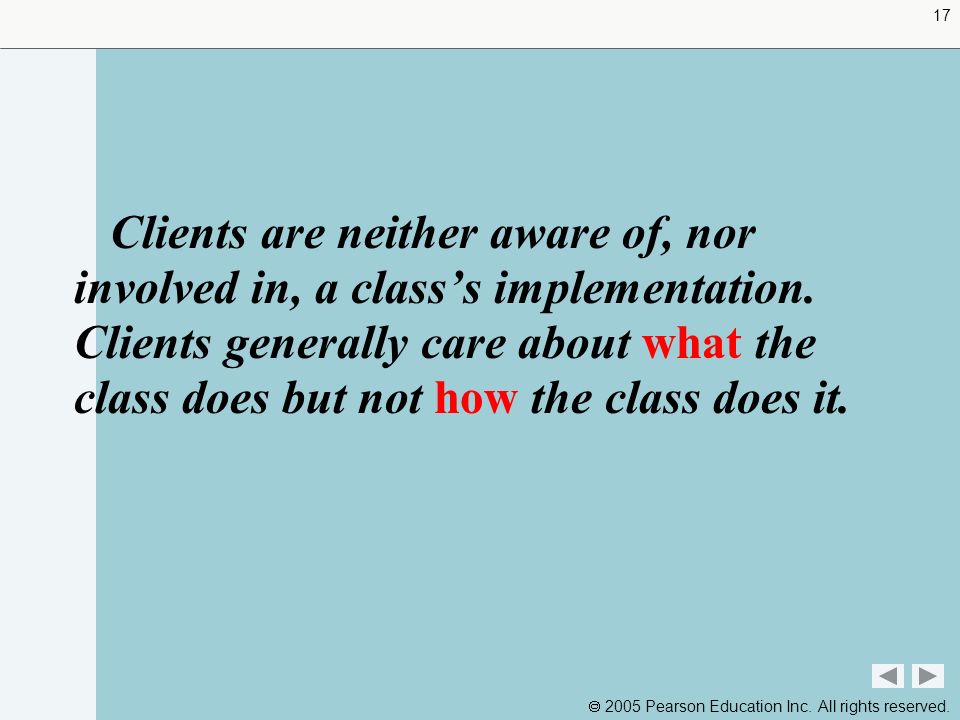

17  2005 Pearson Education Inc. All rights reserved. 17 Clients are neither aware of, nor involved in, a class’s implementation. Clients generally care about what the class does but not how the class does it.

18  2005 Pearson Education Inc. All rights reserved. 18 Local, Parameter & Data Member An identifier appearing inside a method can be a local variable, a parameter, or a data member. The rules are — If there’s a matching local variable declaration or a parameter, then the identifier refers to the local variable or the parameter. — Otherwise, if there’s a matching data member declaration, then the identifier refers to the data member. — Otherwise, it is an error because there’s no matching declaration.

19  2005 Pearson Education Inc. All rights reserved. 19 Example public class TestList { // data members String [] data = { "Do", "Re", "Mi", "Fa", "So", "La", "Ti", "Do" }; // empty constructor public TestList() { } // constructor with a size argument public TestList(int size) { // Some initialization going on here } // constructor with a prior String data public TestList(String[] givenData) { // Some initi } public class TestList { // data members int size; // empty constructor public TestList() { } // constructor with a size argument public TestList (int size) { this.size = size; }

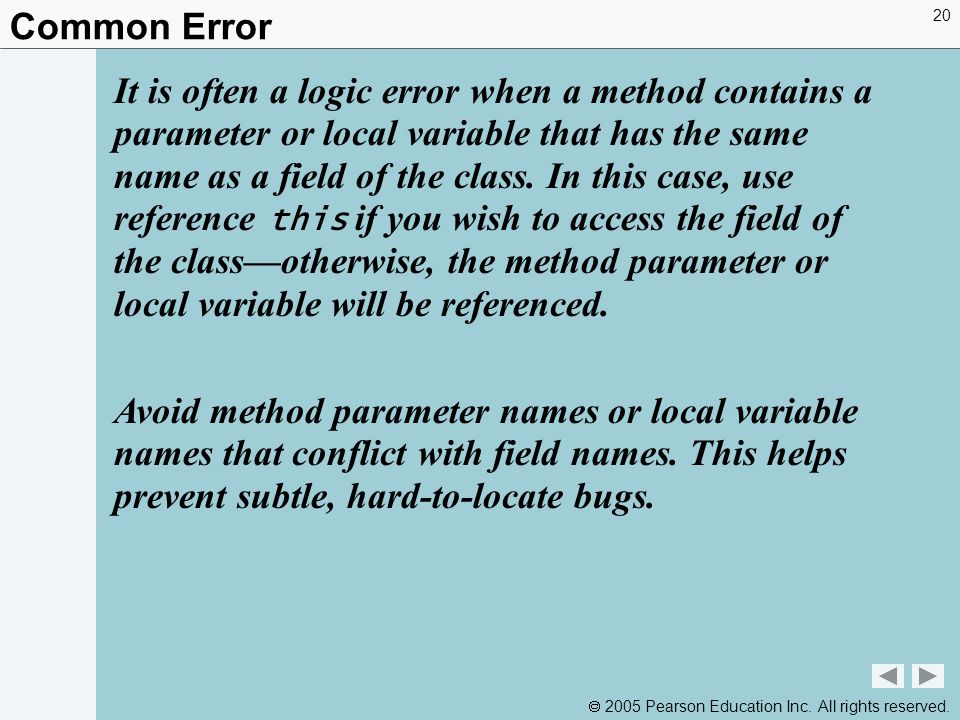

20  2005 Pearson Education Inc. All rights reserved. 20 Common Error It is often a logic error when a method contains a parameter or local variable that has the same name as a field of the class. In this case, use reference this if you wish to access the field of the class—otherwise, the method parameter or local variable will be referenced. Avoid method parameter names or local variable names that conflict with field names. This helps prevent subtle, hard-to-locate bugs.

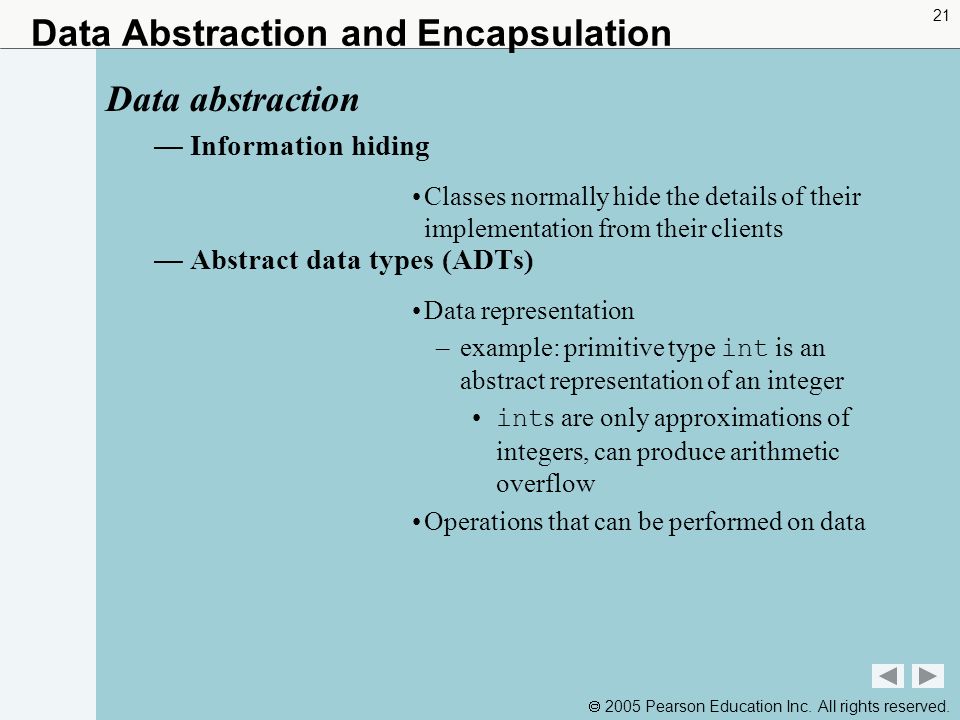

21  2005 Pearson Education Inc. All rights reserved. 21 Data Abstraction and Encapsulation Data abstraction — Information hiding Classes normally hide the details of their implementation from their clients — Abstract data types (ADTs) Data representation –example: primitive type int is an abstract representation of an integer int s are only approximations of integers, can produce arithmetic overflow Operations that can be performed on data

22  2005 Pearson Education Inc. All rights reserved. 22 Creating Packages To declare a reusable class — Declare a public class — Add a package declaration to the source-code file must be the very first executable statement in the file package name should consist of your Internet domain name in reverse order followed by other names for the package –example: com.deitel.jhtp6.ch08 – package name is part of the fully qualified class name Distinguishes between multiple classes with the same name belonging to different packages Prevents name conflict (also called name collision) –Class name without package name is the simple name

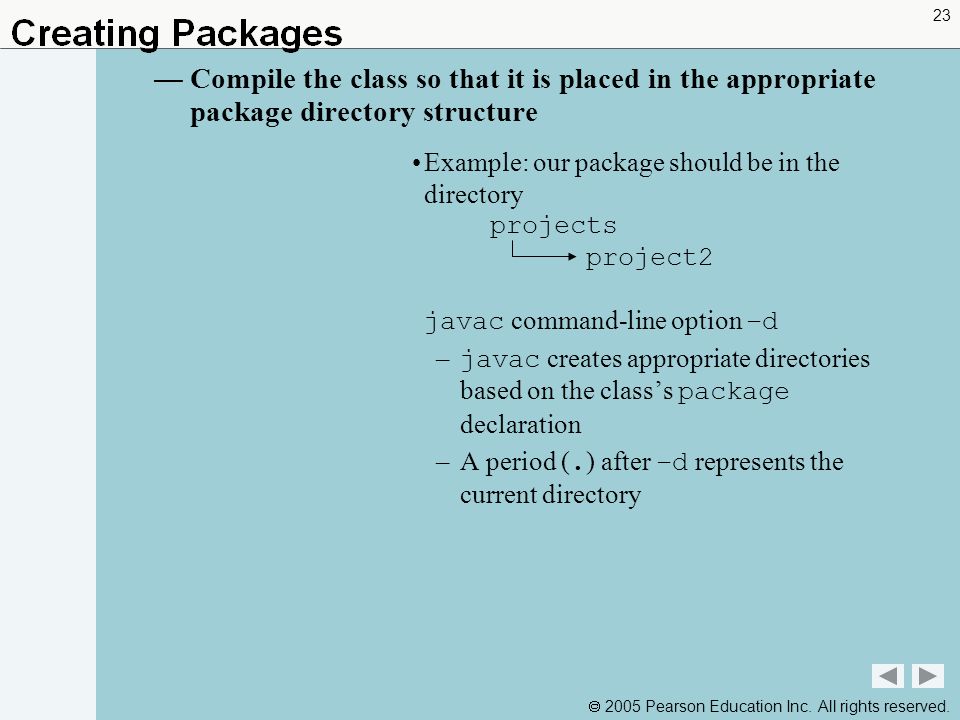

23  2005 Pearson Education Inc. All rights reserved. 23 — Compile the class so that it is placed in the appropriate package directory structure Example: our package should be in the directory projects project2 javac command-line option –d – javac creates appropriate directories based on the class’s package declaration –A period (. ) after –d represents the current directory

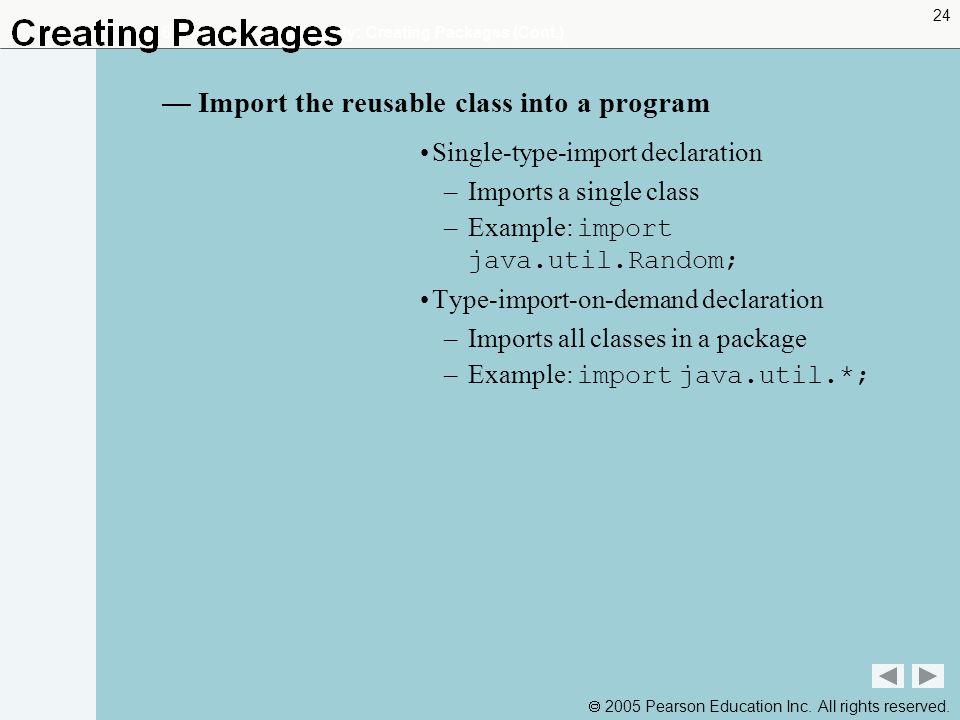

24  2005 Pearson Education Inc. All rights reserved. 24 8.16 Time Class Case Study: Creating Packages (Cont.) — Import the reusable class into a program Single-type-import declaration –Imports a single class –Example: import java.util.Random; Type-import-on-demand declaration –Imports all classes in a package –Example: import java.util.*;

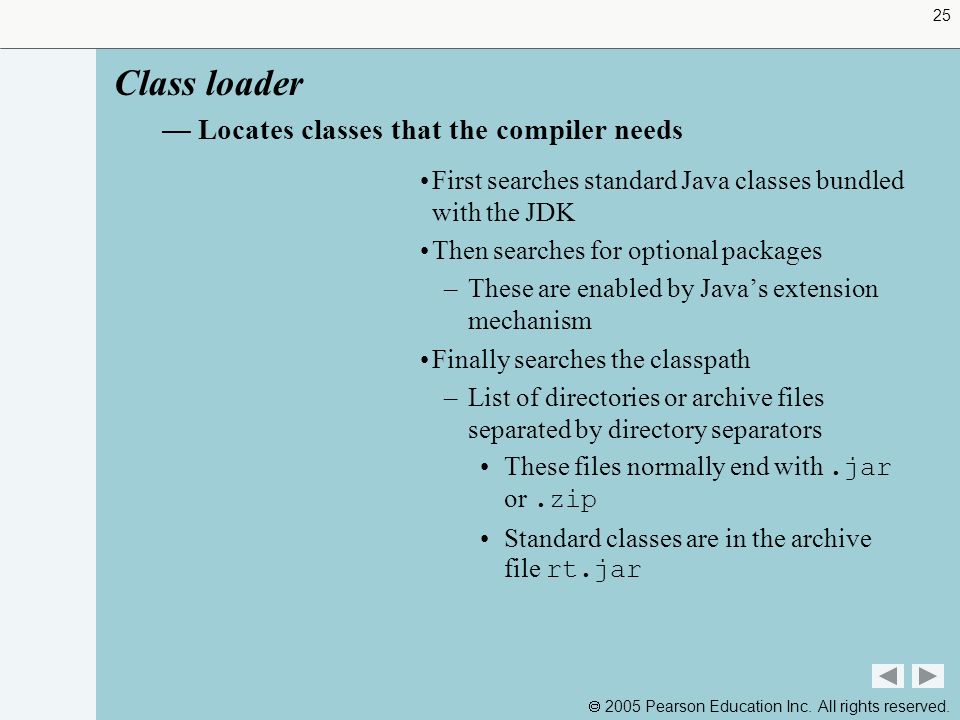

25  2005 Pearson Education Inc. All rights reserved. 25 Class loader — Locates classes that the compiler needs First searches standard Java classes bundled with the JDK Then searches for optional packages –These are enabled by Java’s extension mechanism Finally searches the classpath –List of directories or archive files separated by directory separators These files normally end with.jar or.zip Standard classes are in the archive file rt.jar

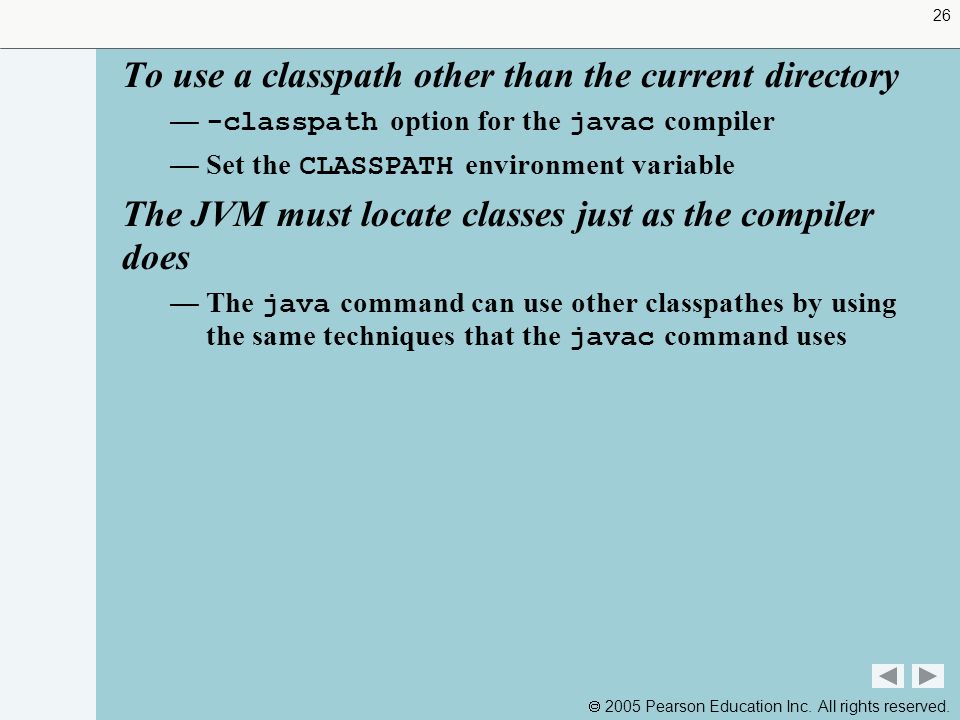

26  2005 Pearson Education Inc. All rights reserved. 26 To use a classpath other than the current directory — -classpath option for the javac compiler — Set the CLASSPATH environment variable The JVM must locate classes just as the compiler does — The java command can use other classpathes by using the same techniques that the javac command uses

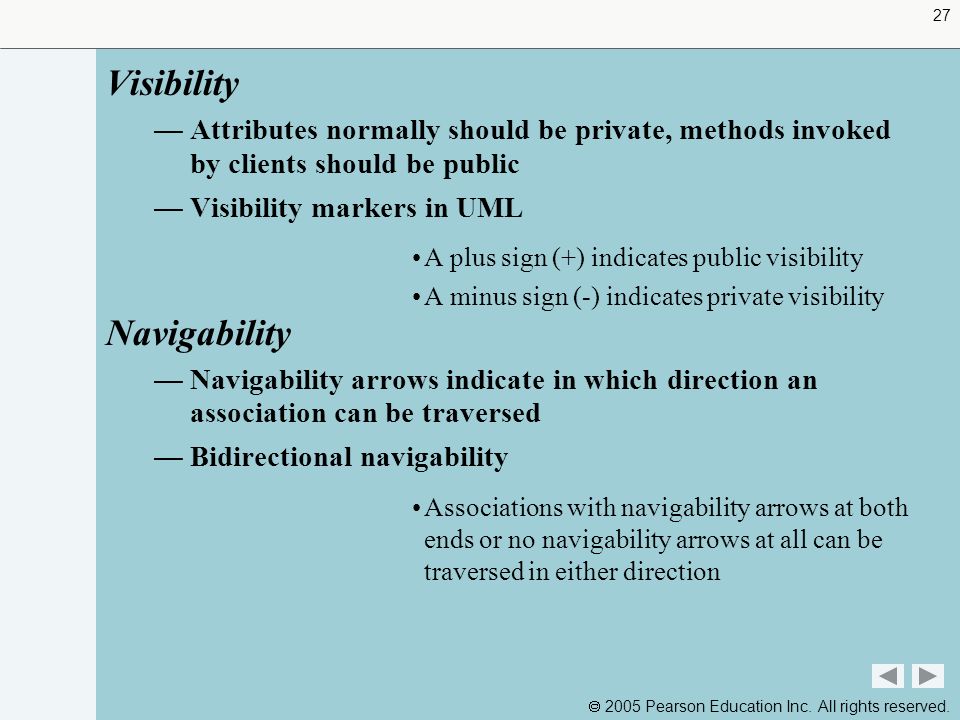

27  2005 Pearson Education Inc. All rights reserved. 27 Visibility — Attributes normally should be private, methods invoked by clients should be public — Visibility markers in UML A plus sign (+) indicates public visibility A minus sign (-) indicates private visibility Navigability — Navigability arrows indicate in which direction an association can be traversed — Bidirectional navigability Associations with navigability arrows at both ends or no navigability arrows at all can be traversed in either direction

28  2005 Pearson Education Inc. All rights reserved. 28 9 Object-Oriented Programming: Inheritance

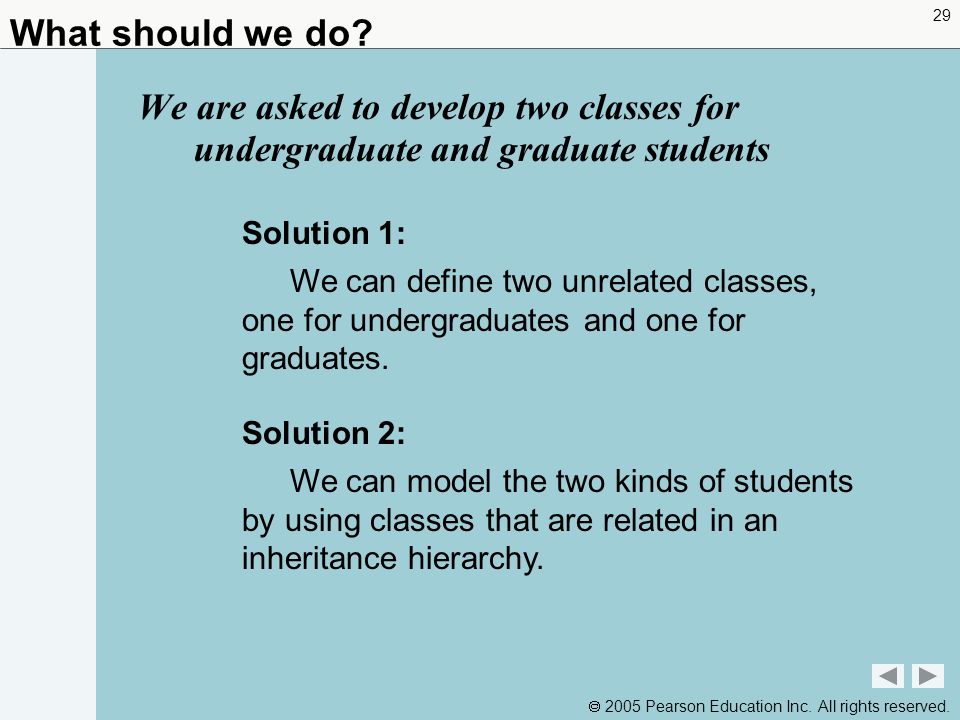

29  2005 Pearson Education Inc. All rights reserved. 29 What should we do? We are asked to develop two classes for undergraduate and graduate students Solution 1: We can define two unrelated classes, one for undergraduates and one for graduates. Solution 2: We can model the two kinds of students by using classes that are related in an inheritance hierarchy.

30  2005 Pearson Education Inc. All rights reserved. 30 We design three classes: — Student — UndergraduateStudent — GraduateStudent The Student class will incorporate behavior and data common to both UndergraduateStudent and GraduateStudent objects. The UndergraduateStudent class and the GraduateStudent class will each contain behaviors and data specific to their respective objects.

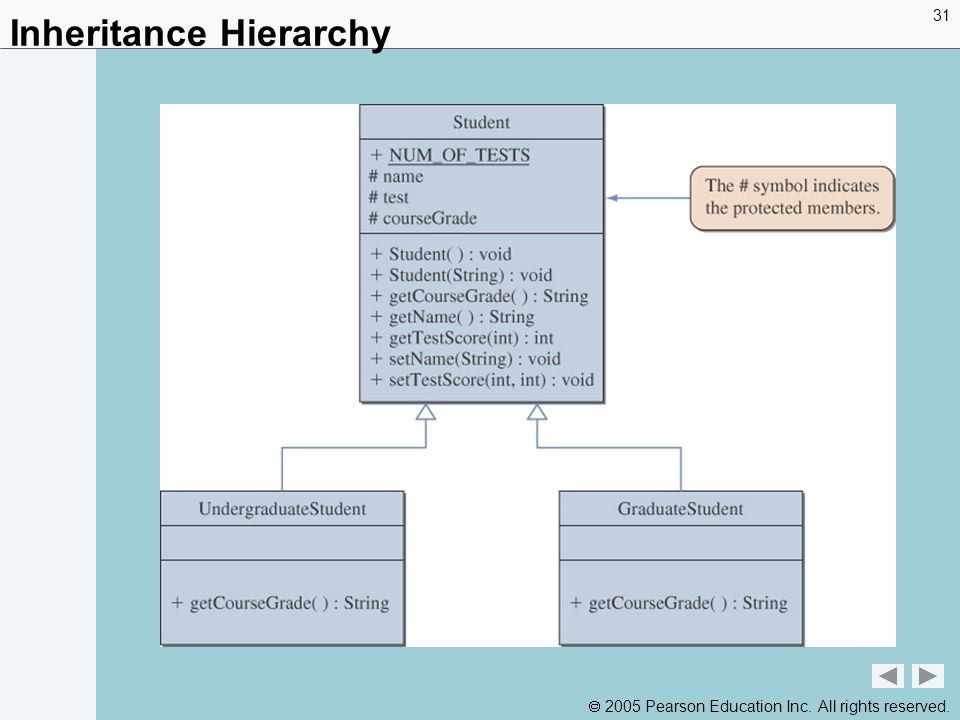

31  2005 Pearson Education Inc. All rights reserved. 31 Inheritance Hierarchy

32  2005 Pearson Education Inc. All rights reserved. 32 The Protected Modifier The modifier protected makes a data member or method visible and accessible to the instances of the class and the descendant classes. Public data members and methods are accessible to everyone. Private data members and methods are accessible only to instances of the class.

33  2005 Pearson Education Inc. All rights reserved. 33 Introduction Inheritance — Software reusability — Create new class from existing class Absorb existing class’s data and behaviors Enhance with new capabilities — Subclass extends superclass Subclass –More specialized group of objects –Behaviors inherited from superclass Can customize –Additional behaviors

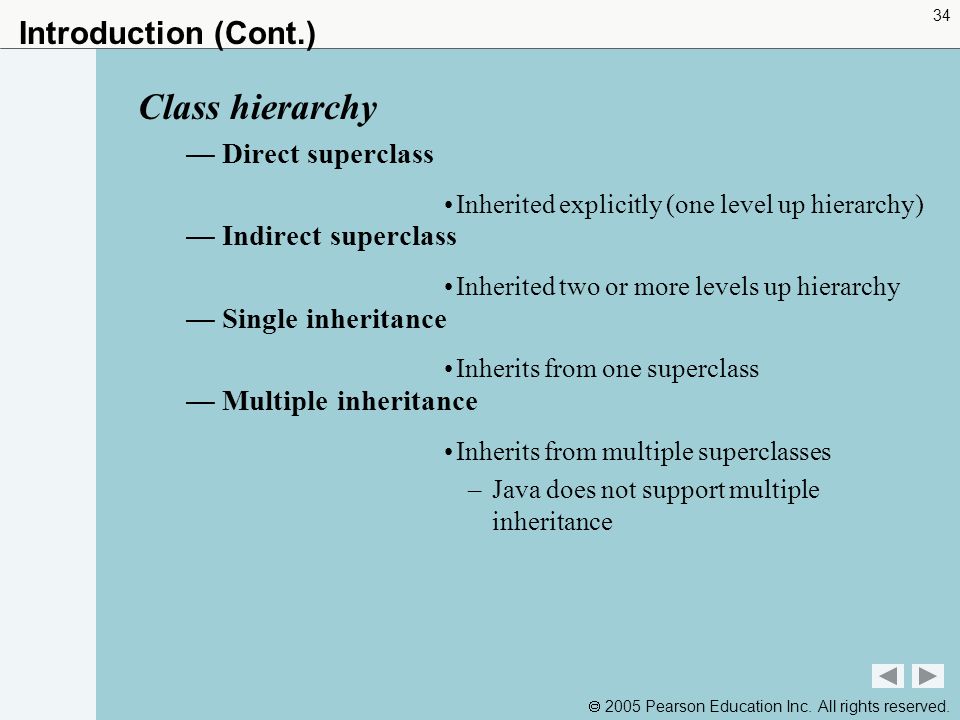

34  2005 Pearson Education Inc. All rights reserved. 34 Introduction (Cont.) Class hierarchy — Direct superclass Inherited explicitly (one level up hierarchy) — Indirect superclass Inherited two or more levels up hierarchy — Single inheritance Inherits from one superclass — Multiple inheritance Inherits from multiple superclasses –Java does not support multiple inheritance

35  2005 Pearson Education Inc. All rights reserved. 35 Inheritance examples.

36  2005 Pearson Education Inc. All rights reserved. 36 Inheritance hierarchy — Inheritance relationships: tree-like hierarchy structure — Each class becomes superclass –Supply members to other classes OR subclass –Inherit members from other classes

37  2005 Pearson Education Inc. All rights reserved. 37 Inheritance hierarchy for university CommunityMembers

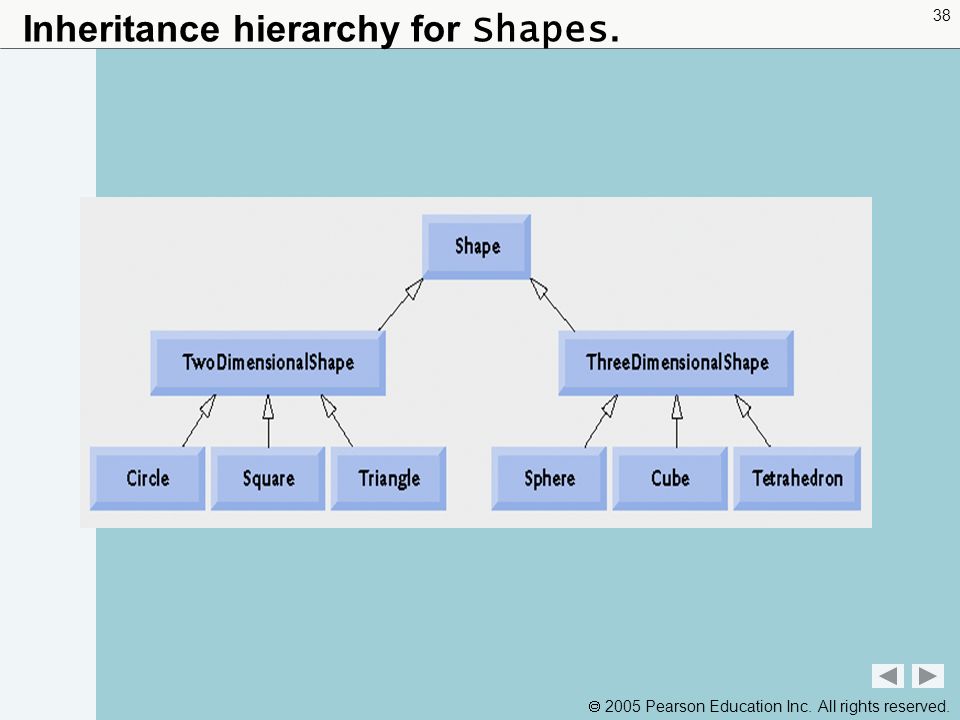

38  2005 Pearson Education Inc. All rights reserved. 38 Inheritance hierarchy for Shapes.

39  2005 Pearson Education Inc. All rights reserved. 39 Inheritance and Member Accessibility

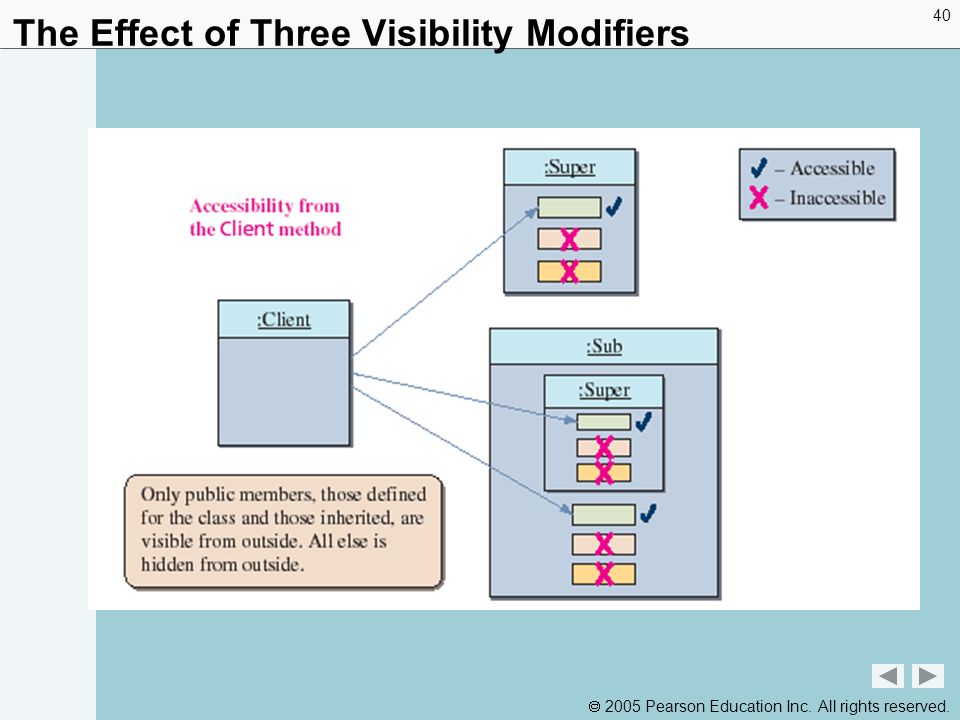

40  2005 Pearson Education Inc. All rights reserved. 40 The Effect of Three Visibility Modifiers

41  2005 Pearson Education Inc. All rights reserved. 41 Accessibility of Super from Sub Everything except the private members of the Super class is visible from a method of the Sub class.

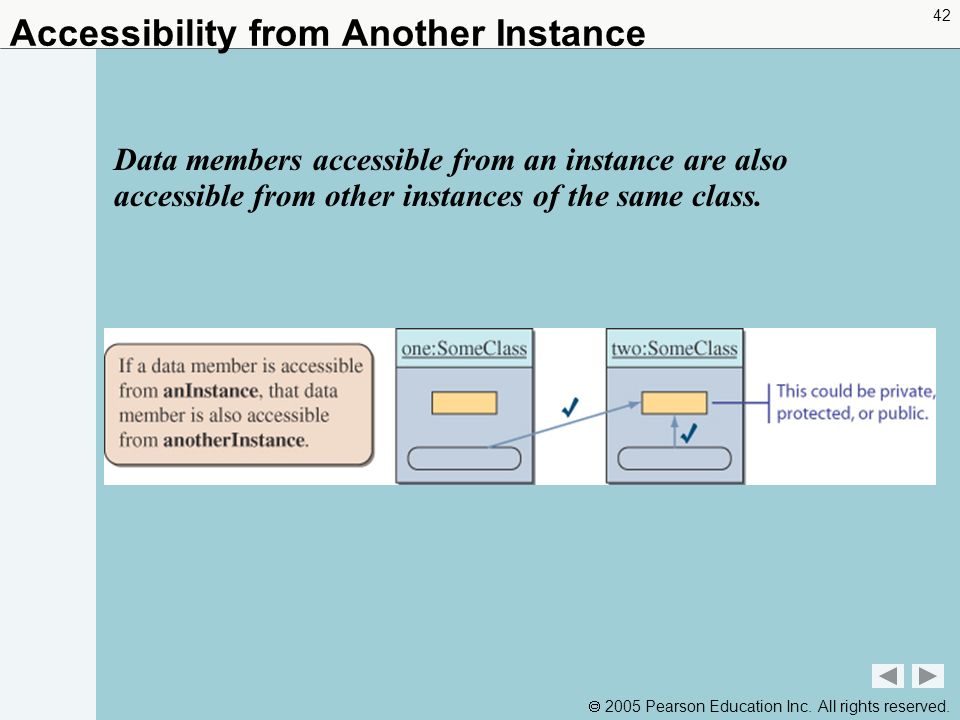

42  2005 Pearson Education Inc. All rights reserved. 42 Accessibility from Another Instance Data members accessible from an instance are also accessible from other instances of the same class.

43  2005 Pearson Education Inc. All rights reserved. 43 Inheritance and Constructors Unlike members of a superclass, constructors of a superclass are not inherited by its subclasses. You must define a constructor for a class or use the default constructor added by the compiler. The statement super(); calls the superclass’s constructor. If the class declaration does not explicitly designate the superclass with the extends clause, then the class’s superclass is the Object class.

44  2005 Pearson Education Inc. All rights reserved. 44 Abstract Superclasses and Abstract Methods When we define a superclass, we often do not need to create any instances of the superclass. Depending on whether we need to create instances of the superclass, we must define the class differently.

45  2005 Pearson Education Inc. All rights reserved. 45 Definition: Abstract Class An abstract class is a class — defined with the modifier abstract OR — that contains an abstract method OR — that does not provide an implementation of an inherited abstract method An abstract method is a method with the keyword abstract, and it ends with a semicolon instead of a method body. — Private methods and static methods may not be declared abstract. No instances can be created from an abstract class.
