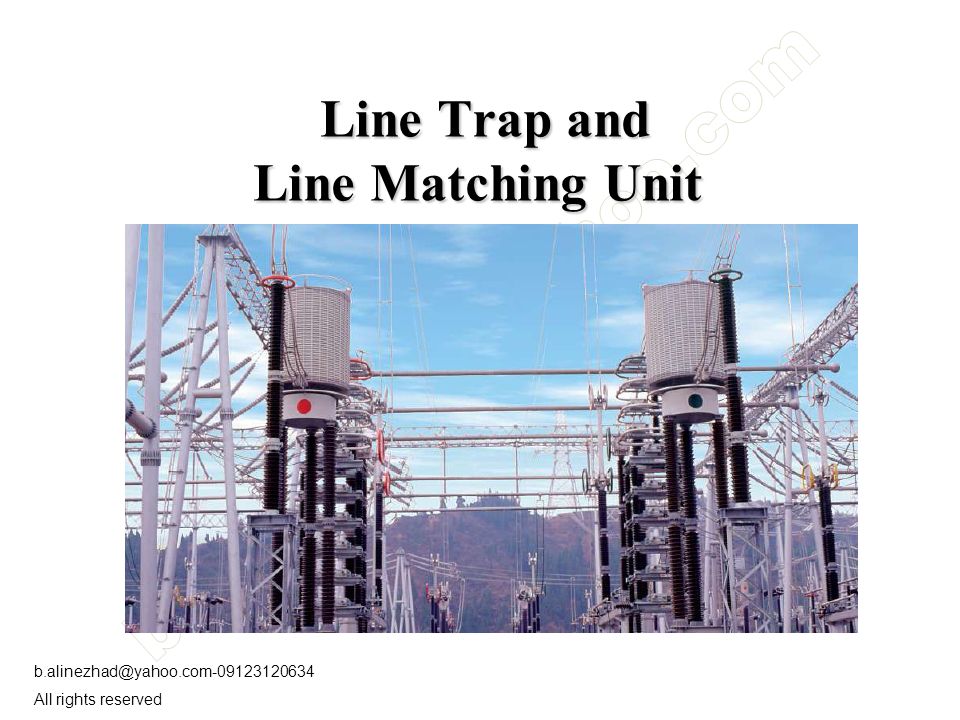

1 b.alinezhad@yahoo.com-09123120634 All rights reserved Line Trap and Line Matching Unit

2 b.alinezhad@yahoo.com-09123120634 All rights reserved STANDARDS IEC 353 Line traps for a.c. power system IEC 481 Coupling devices for power carrier system

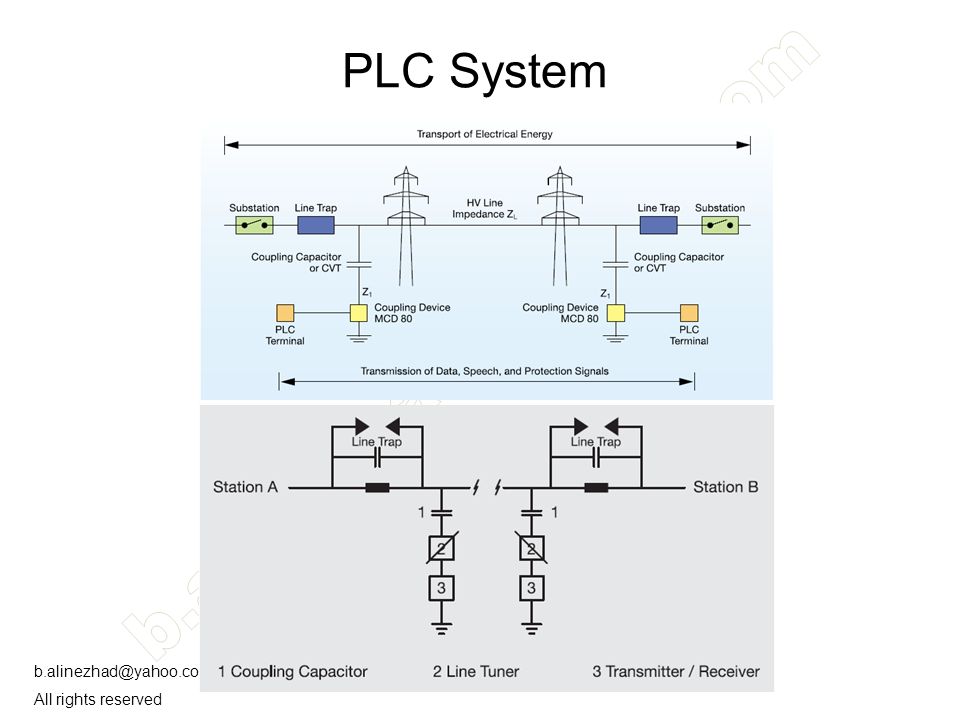

3 b.alinezhad@yahoo.com-09123120634 All rights reserved PLC System

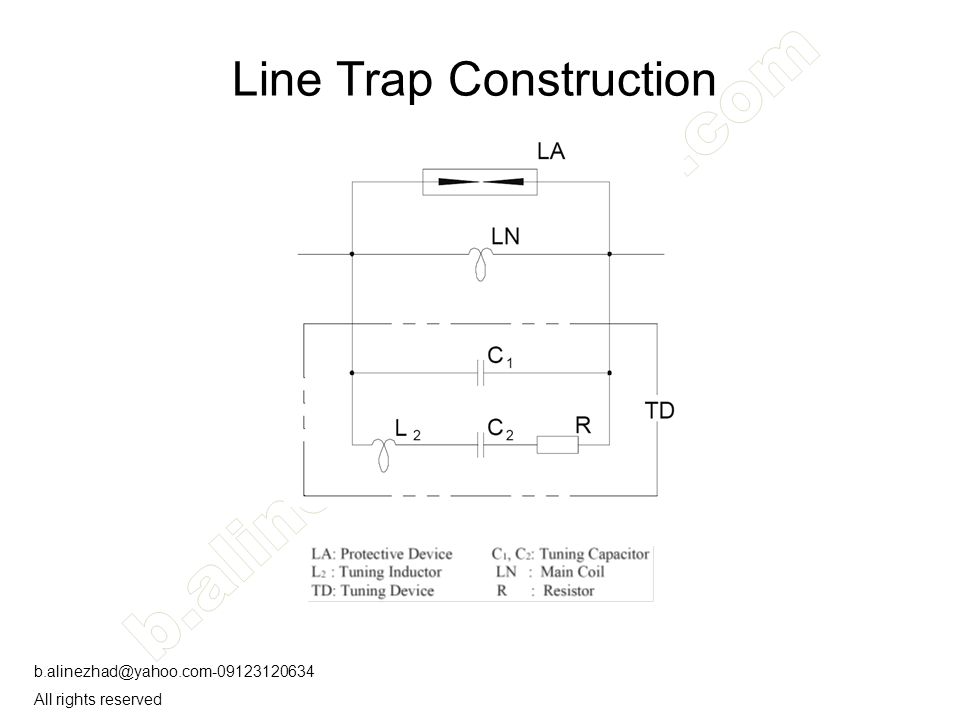

4 b.alinezhad@yahoo.com-09123120634 All rights reserved Line Trap Construction

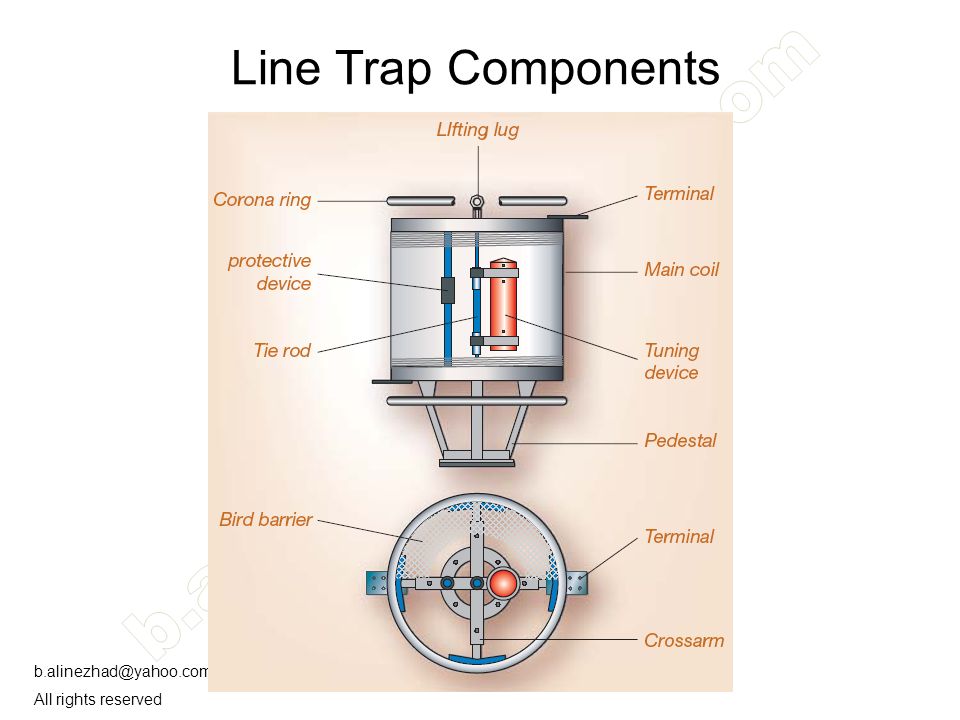

5 b.alinezhad@yahoo.com-09123120634 All rights reserved Line Trap Components

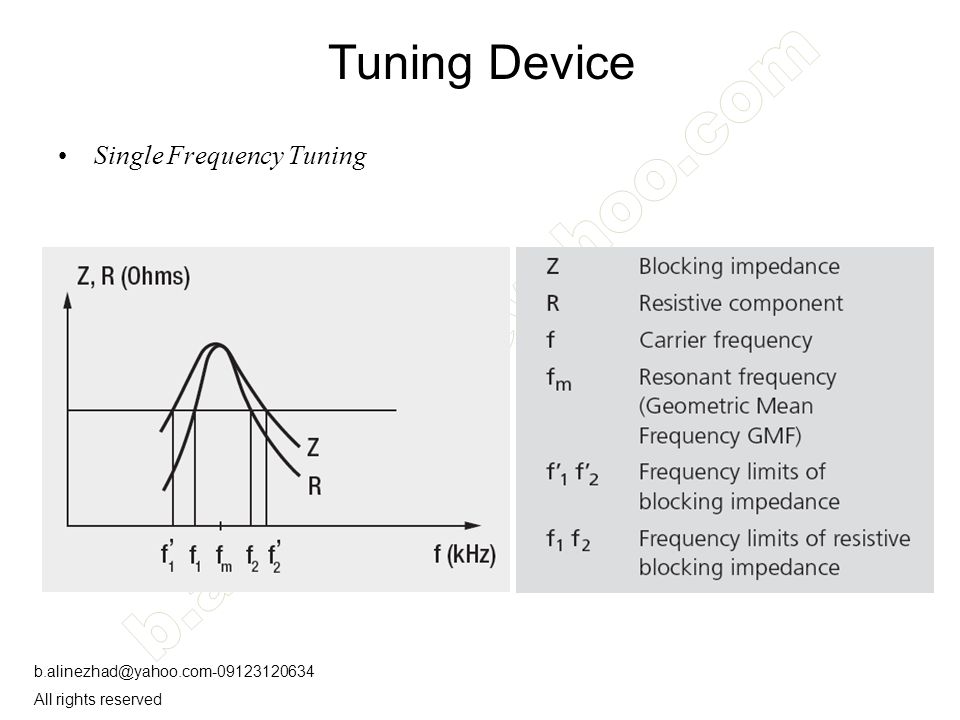

6 b.alinezhad@yahoo.com-09123120634 All rights reserved Tuning Device Single Frequency Tuning

7 b.alinezhad@yahoo.com-09123120634 All rights reserved Tuning Device Double Frequency Tuning

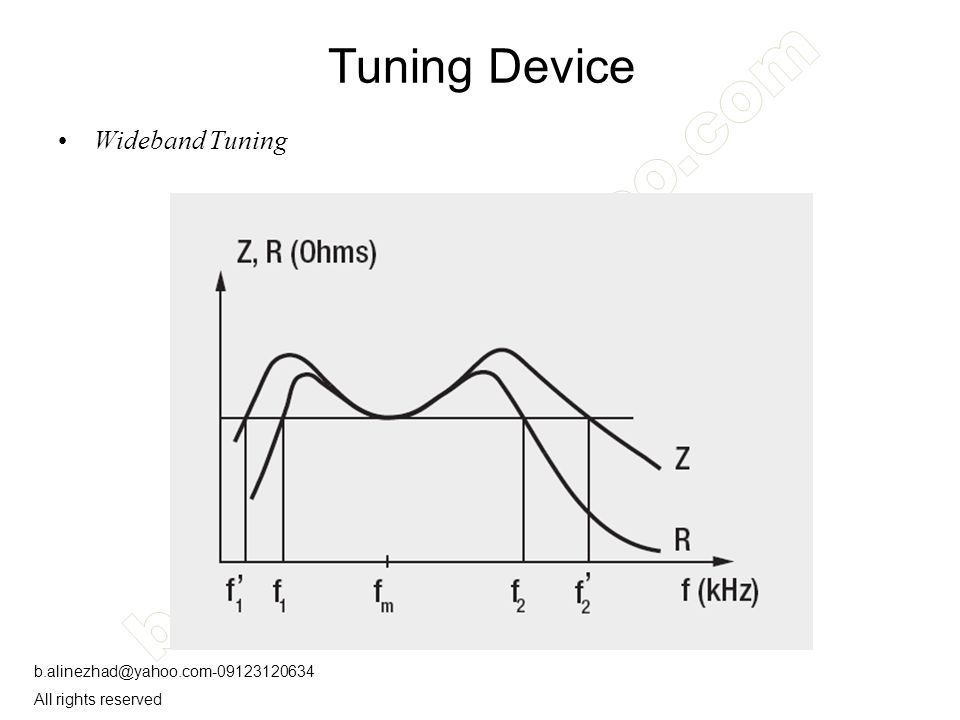

8 b.alinezhad@yahoo.com-09123120634 All rights reserved Tuning Device Wideband Tuning

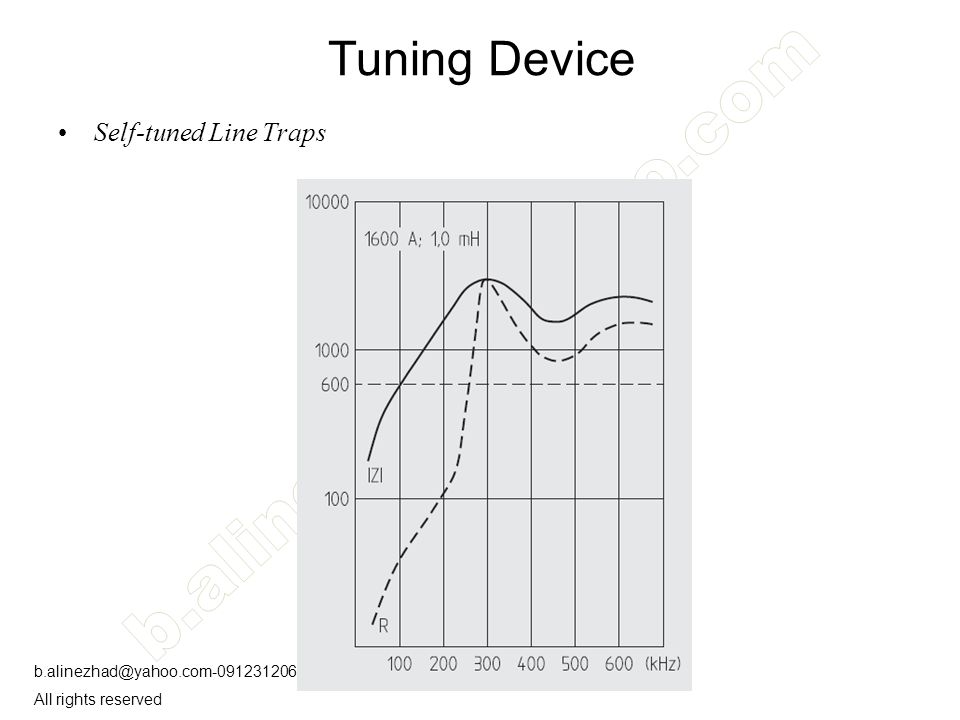

9 b.alinezhad@yahoo.com-09123120634 All rights reserved Tuning Device Self-tuned Line Traps

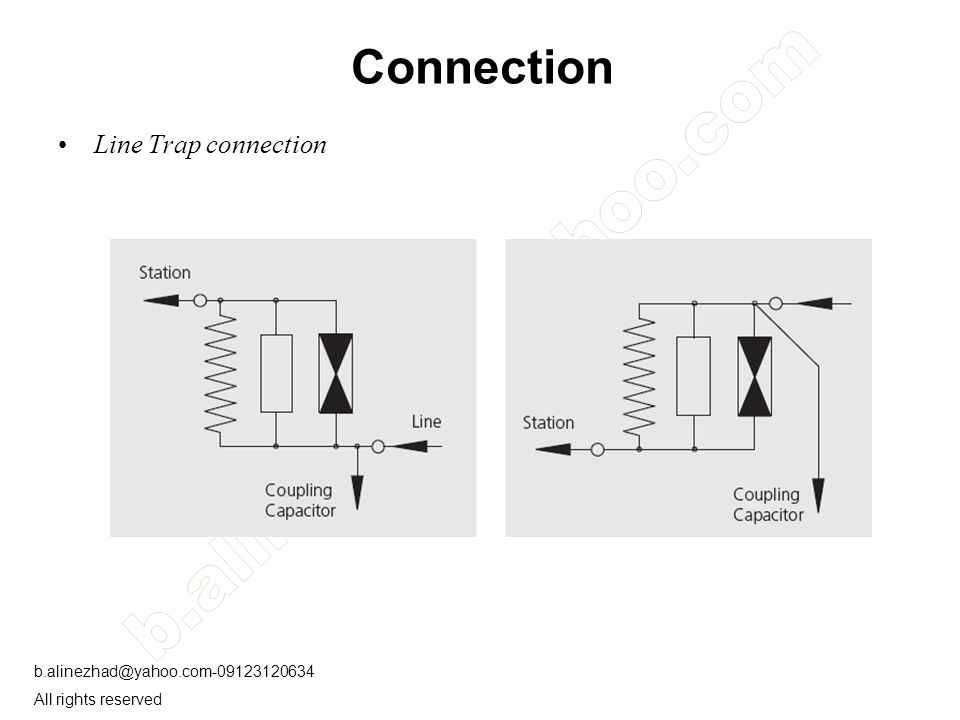

10 b.alinezhad@yahoo.com-09123120634 All rights reserved Connection Line Trap connection

11 b.alinezhad@yahoo.com-09123120634 All rights reserved INSTALLATION 1.Pedestal on PI 2.Pedestal on CVT 3.Suspension

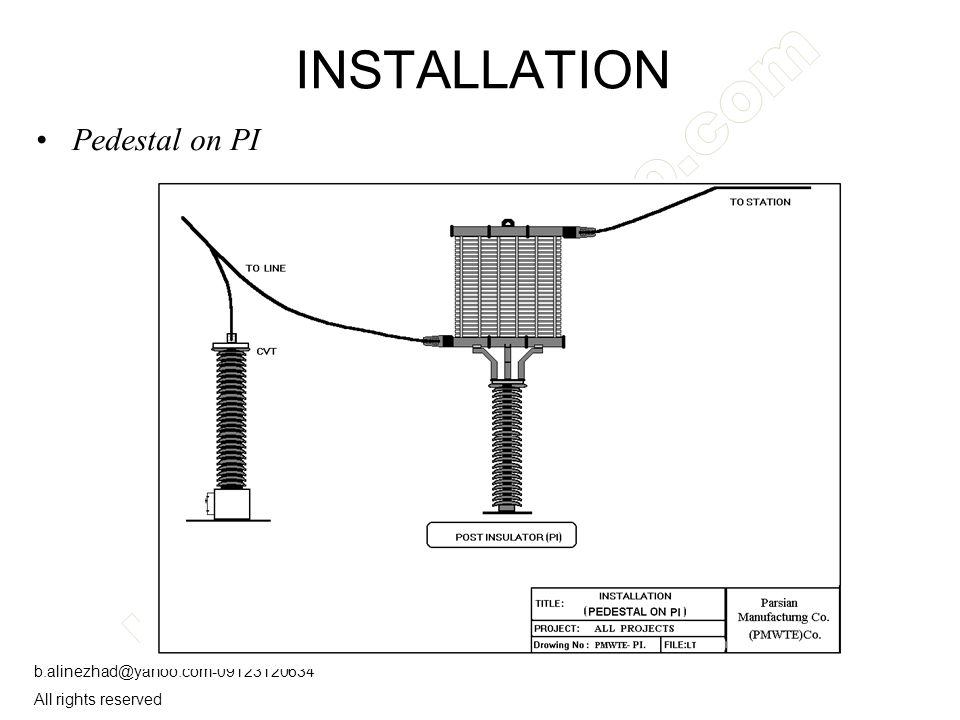

12 b.alinezhad@yahoo.com-09123120634 All rights reserved INSTALLATION Pedestal on PI

13 b.alinezhad@yahoo.com-09123120634 All rights reserved INSTALLATION Pedestal on CVT

14 b.alinezhad@yahoo.com-09123120634 All rights reserved INSTALLATION Suspension

15 b.alinezhad@yahoo.com-09123120634 All rights reserved Mounting Suspension Mounting

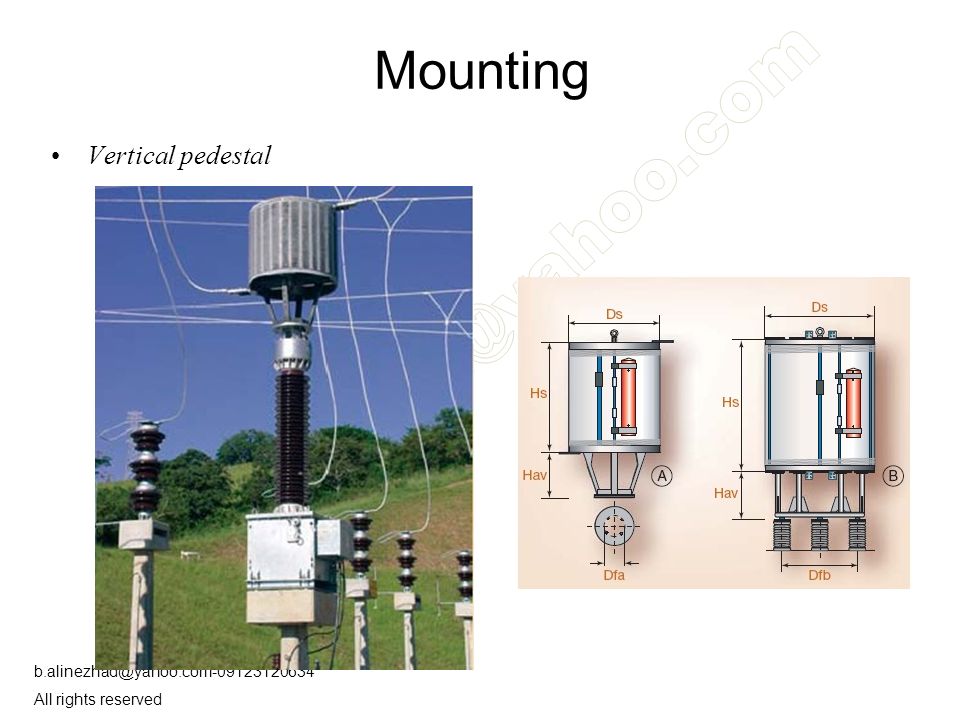

16 b.alinezhad@yahoo.com-09123120634 All rights reserved Mounting Vertical pedestal

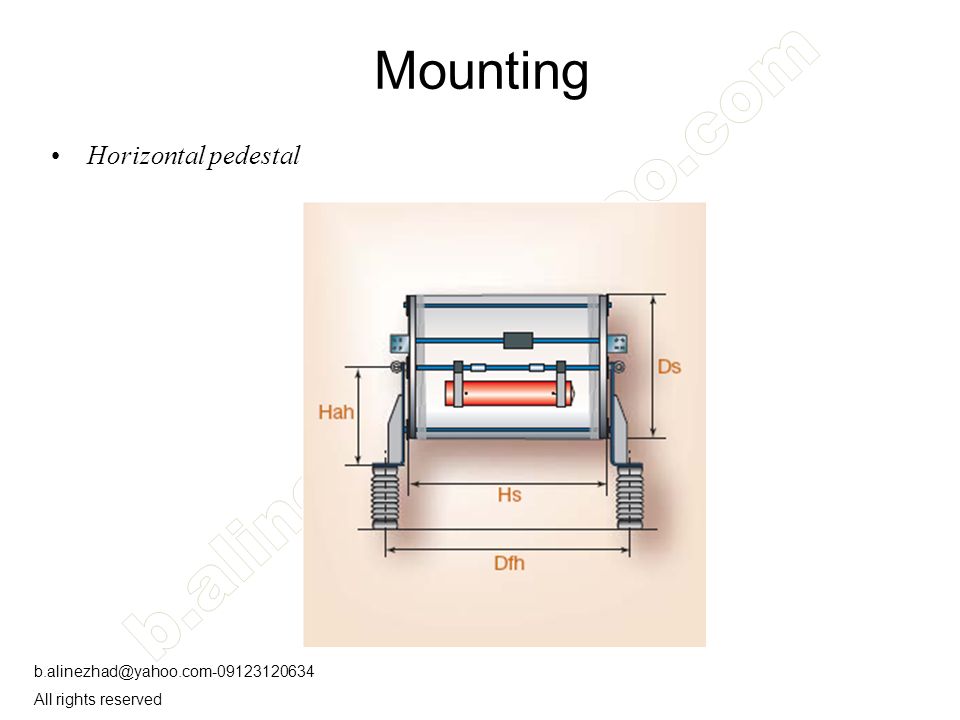

17 b.alinezhad@yahoo.com-09123120634 All rights reserved Mounting Horizontal pedestal

18 b.alinezhad@yahoo.com-09123120634 All rights reserved Line Traps with Wide Band Tuning

19 b.alinezhad@yahoo.com-09123120634 All rights reserved LINE TRAP FREQUENCY ALLOCATION

20 b.alinezhad@yahoo.com-09123120634 All rights reserved Wide Band Blocking Range

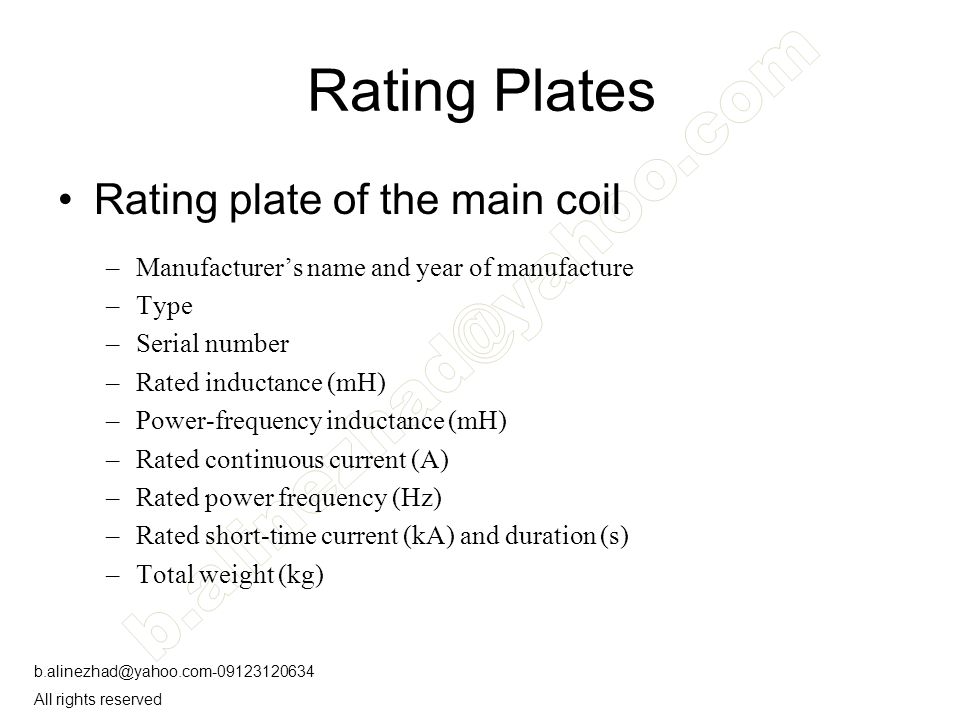

21 b.alinezhad@yahoo.com-09123120634 All rights reserved Rating Plates Rating plate of the main coil –Manufacturer’s name and year of manufacture –Type –Serial number –Rated inductance (mH) –Power-frequency inductance (mH) –Rated continuous current (A) –Rated power frequency (Hz) –Rated short-time current (kA) and duration (s) –Total weight (kg)

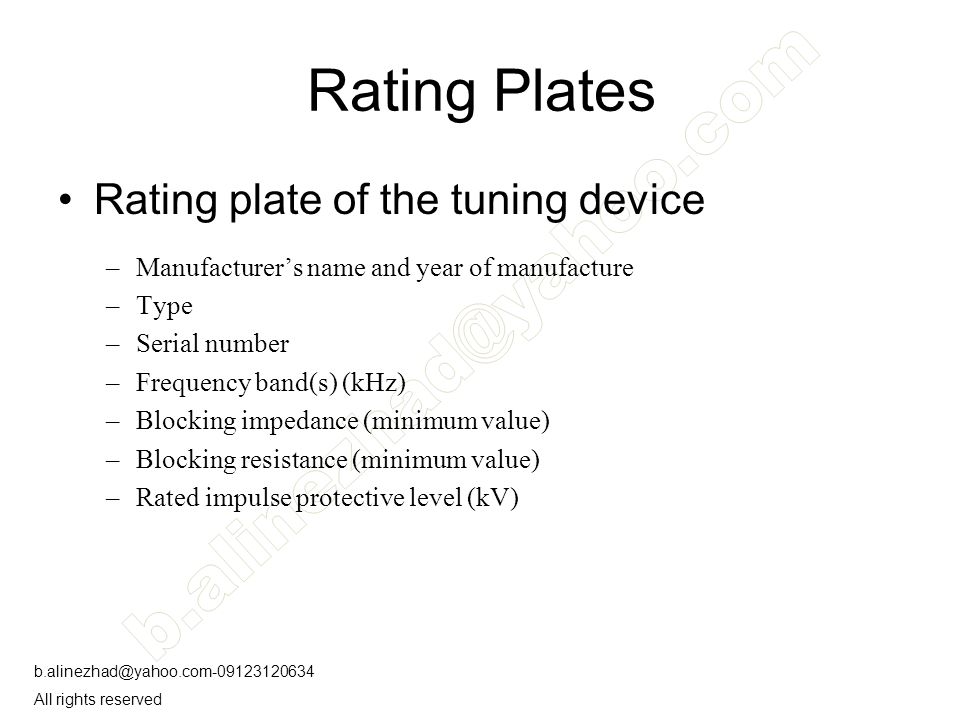

22 b.alinezhad@yahoo.com-09123120634 All rights reserved Rating Plates Rating plate of the tuning device –Manufacturer’s name and year of manufacture –Type –Serial number –Frequency band(s) (kHz) –Blocking impedance (minimum value) –Blocking resistance (minimum value) –Rated impulse protective level (kV)

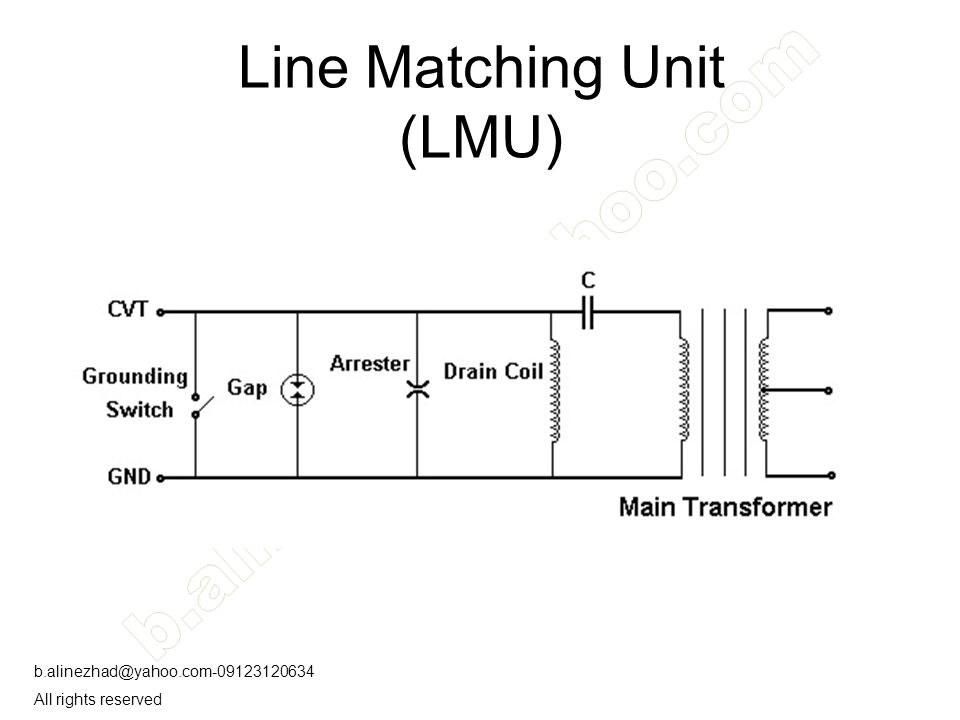

23 b.alinezhad@yahoo.com-09123120634 All rights reserved Line Matching Unit (LMU)

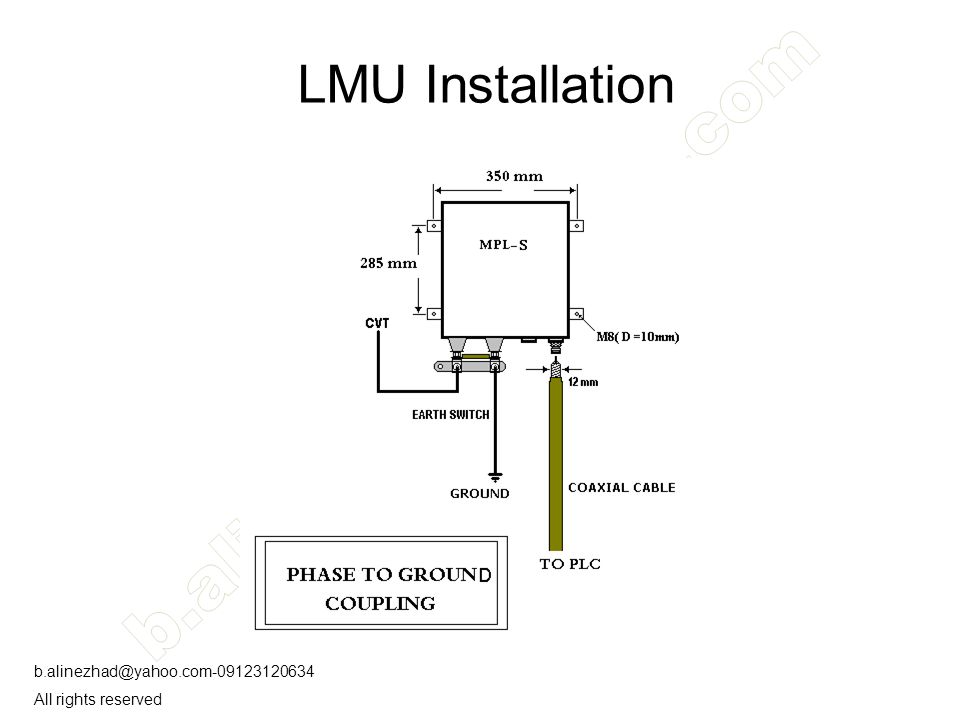

24 b.alinezhad@yahoo.com-09123120634 All rights reserved LMU Installation

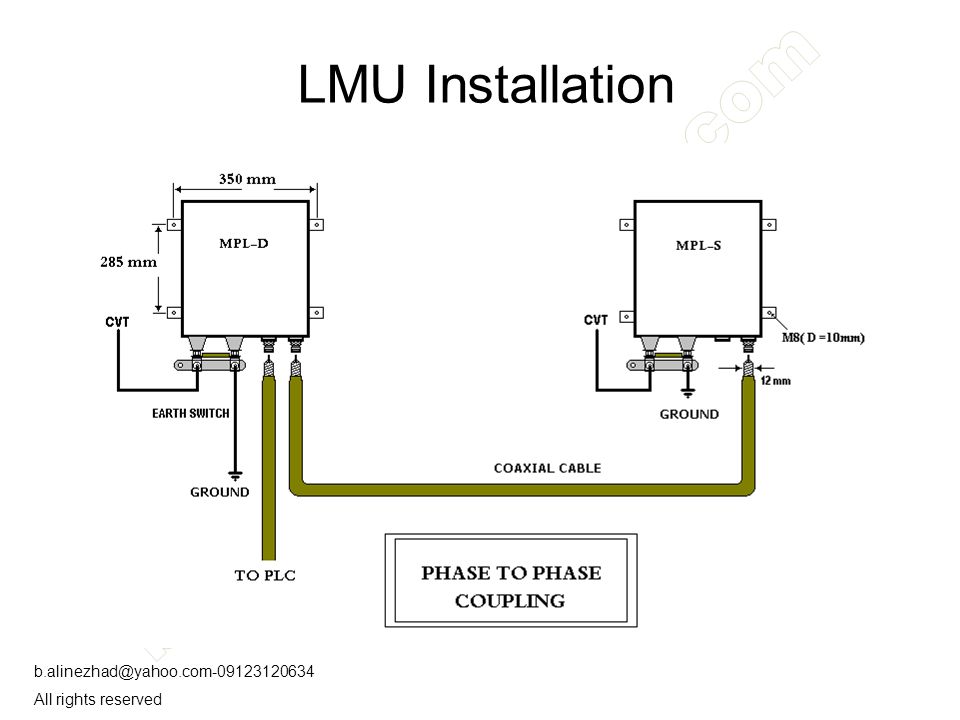

25 b.alinezhad@yahoo.com-09123120634 All rights reserved LMU Installation

26 b.alinezhad@yahoo.com-09123120634 All rights reserved Technical Specifications of the coupling device –Manufacturer’s name –Type –Serial number –Coupling scheme –Available bandwidth or carrier-frequency working range –Composite loss (< 2dB) –Return loss (< -12dB)
