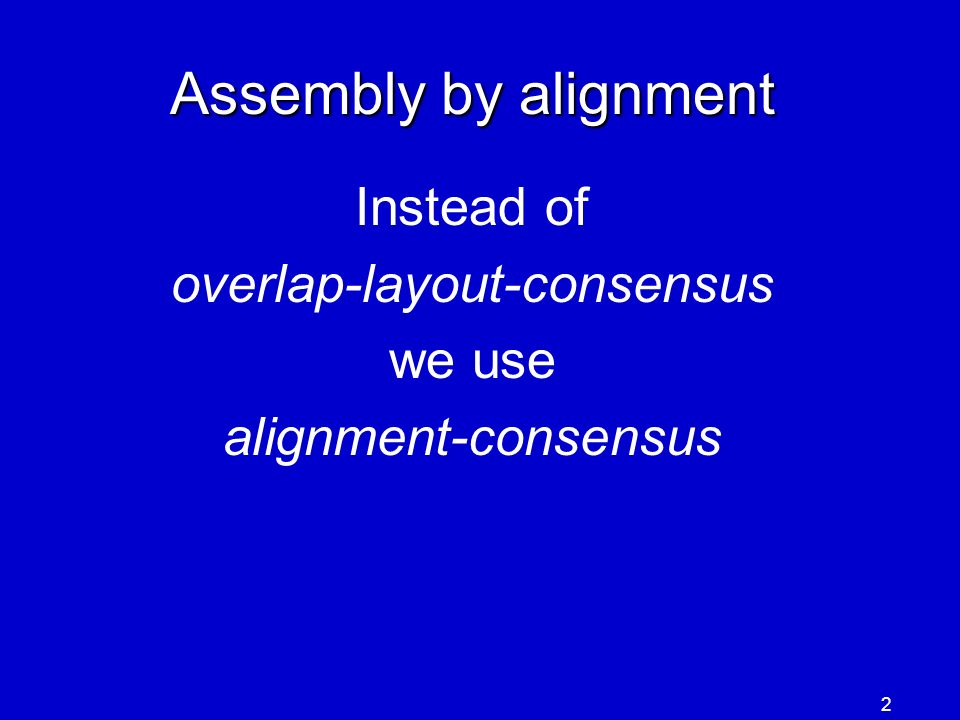

2. Assembly by alignment Instead of overlap-layout-consensus we use alignment-consensus 2

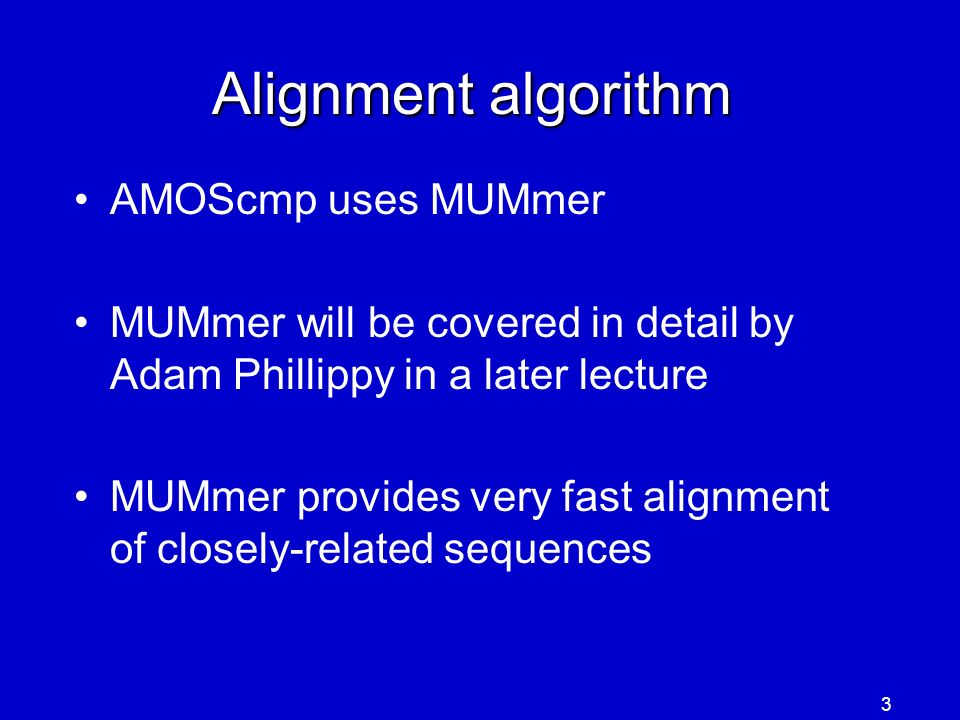

3. Alignment algorithm AMOScmp uses MUMmer MUMmer will be covered in detail by Adam Phillippy in a later lecture MUMmer provides very fast alignment of closely-related sequences 3

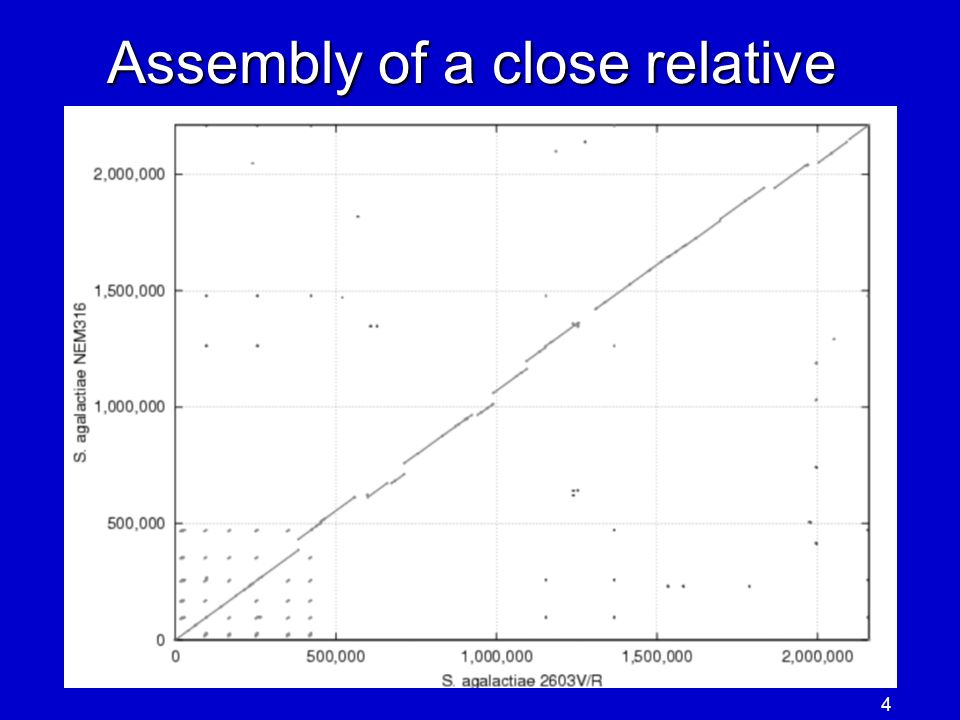

4. Assembly of a close relative 4

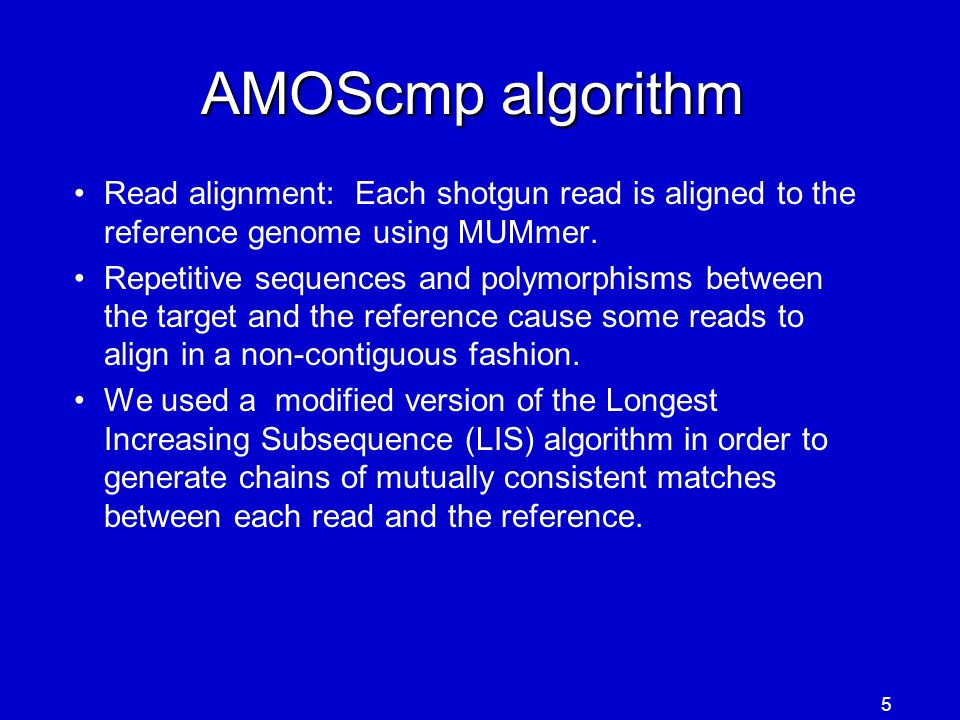

5. AMOScmp algorithm Read alignment: Each shotgun read is aligned to the reference genome using MUMmer. Repetitive sequences and polymorphisms between the target and the reference cause some reads to align in a non-contiguous fashion. We used a modified version of the Longest Increasing Subsequence (LIS) algorithm in order to generate chains of mutually consistent matches between each read and the reference. 5

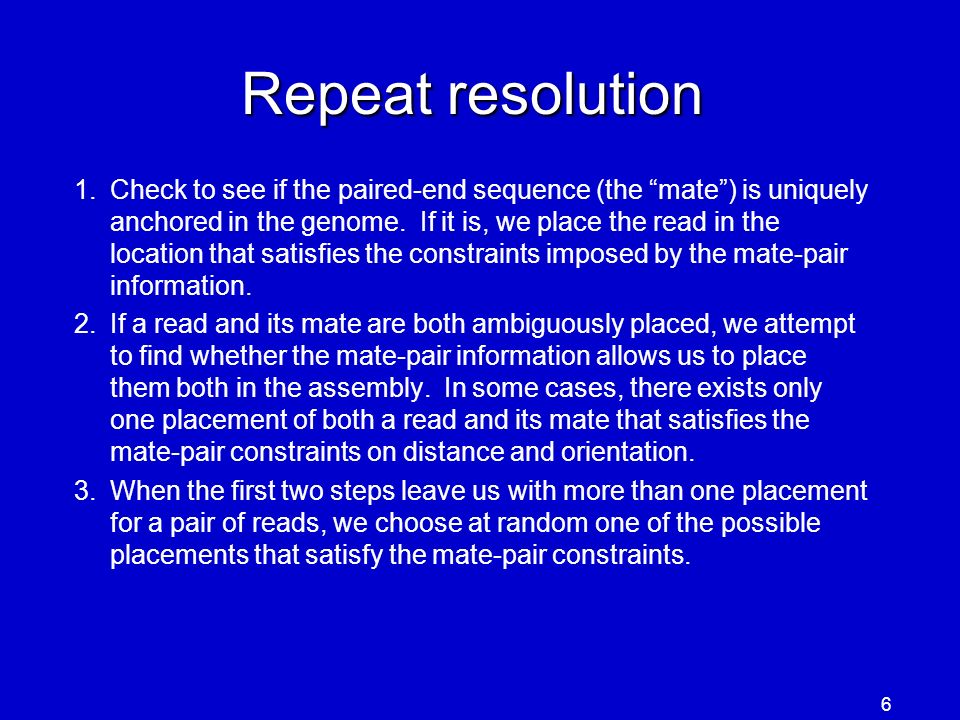

6. Repeat resolution 1.Check to see if the paired-end sequence (the “mate”) is uniquely anchored in the genome. If it is, we place the read in the location that satisfies the constraints imposed by the mate-pair information. 2.If a read and its mate are both ambiguously placed, we attempt to find whether the mate-pair information allows us to place them both in the assembly. In some cases, there exists only one placement of both a read and its mate that satisfies the mate-pair constraints on distance and orientation. 3.When the first two steps leave us with more than one placement for a pair of reads, we choose at random one of the possible placements that satisfy the mate-pair constraints. 6

7. Repeat resolution: example Aligned all shotgun reads from Streptococcus agalactiae 2603 to the final, finished genome 26,099 reads total 25,310 uniquely anchored in genome 314 placed with the help of a uniquely anchored mate 22 were placed as unique pairs, with neither read being unique on its own 442 had to be placed in a randomly chosen copy of a repeat 7

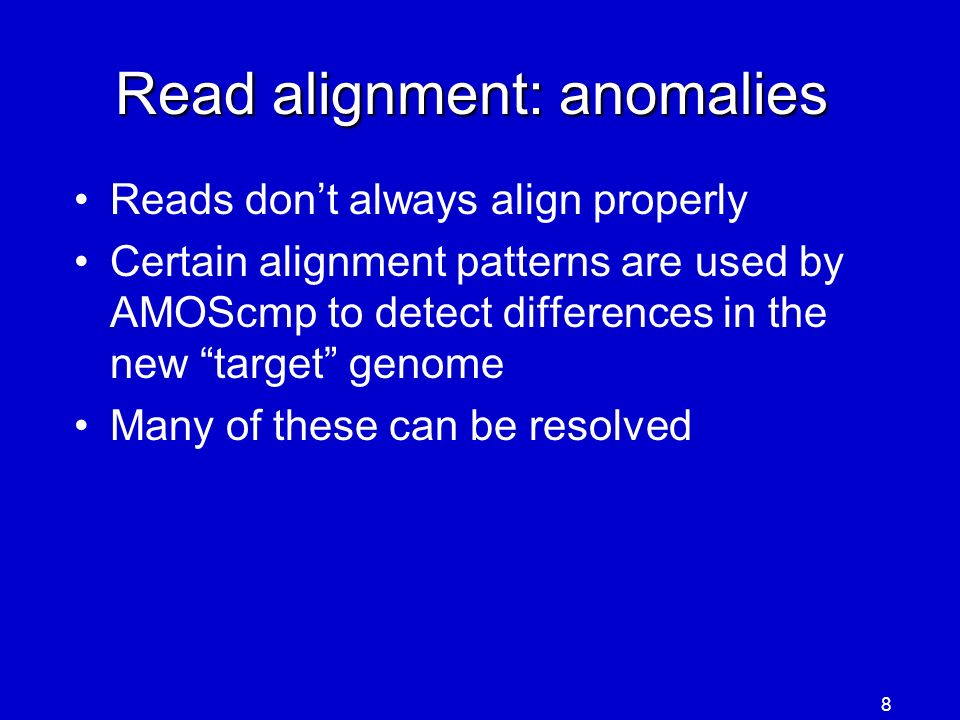

8. Read alignment: anomalies Reads don’t always align properly Certain alignment patterns are used by AMOScmp to detect differences in the new “target” genome Many of these can be resolved 8

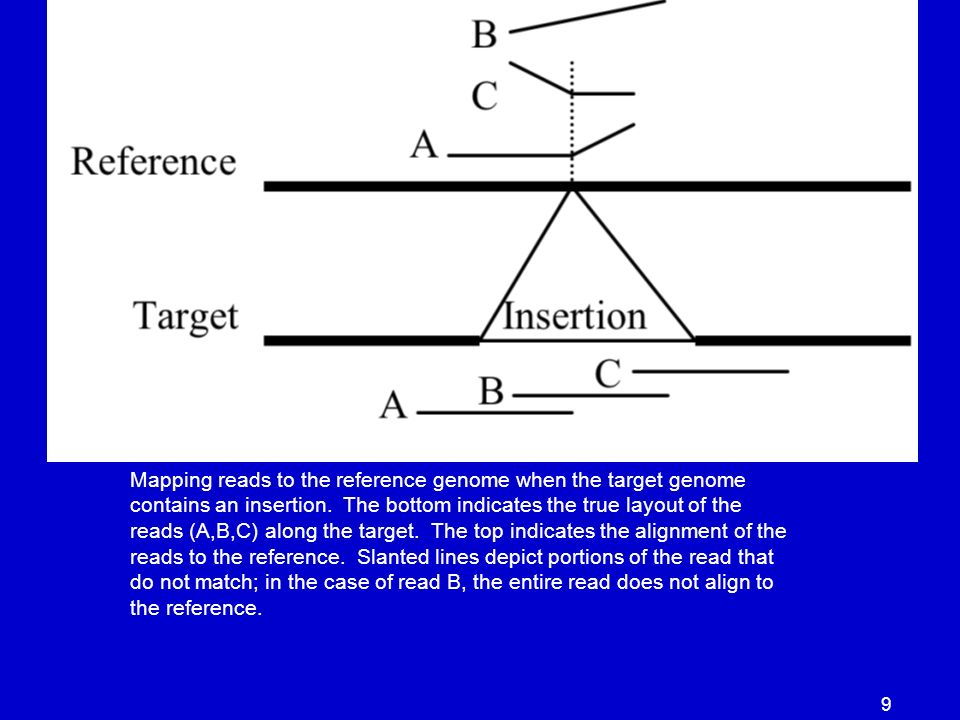

9. 9 Mapping reads to the reference genome when the target genome contains an insertion. The bottom indicates the true layout of the reads (A,B,C) along the target. The top indicates the alignment of the reads to the reference. Slanted lines depict portions of the read that do not match; in the case of read B, the entire read does not align to the reference.

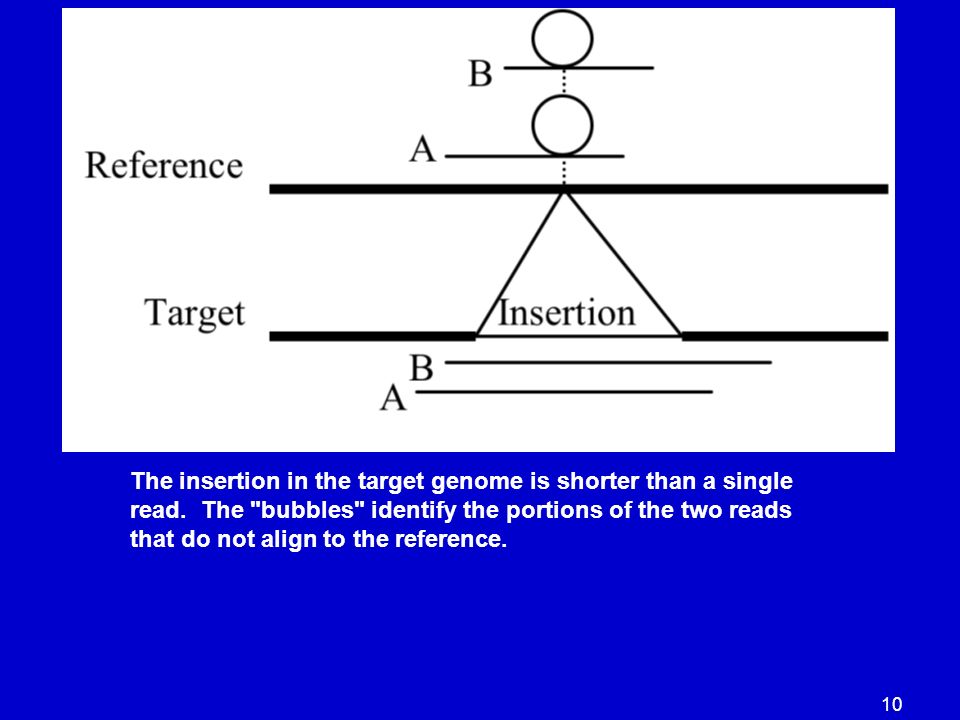

10. 10 The insertion in the target genome is shorter than a single read. The "bubbles" identify the portions of the two reads that do not align to the reference.

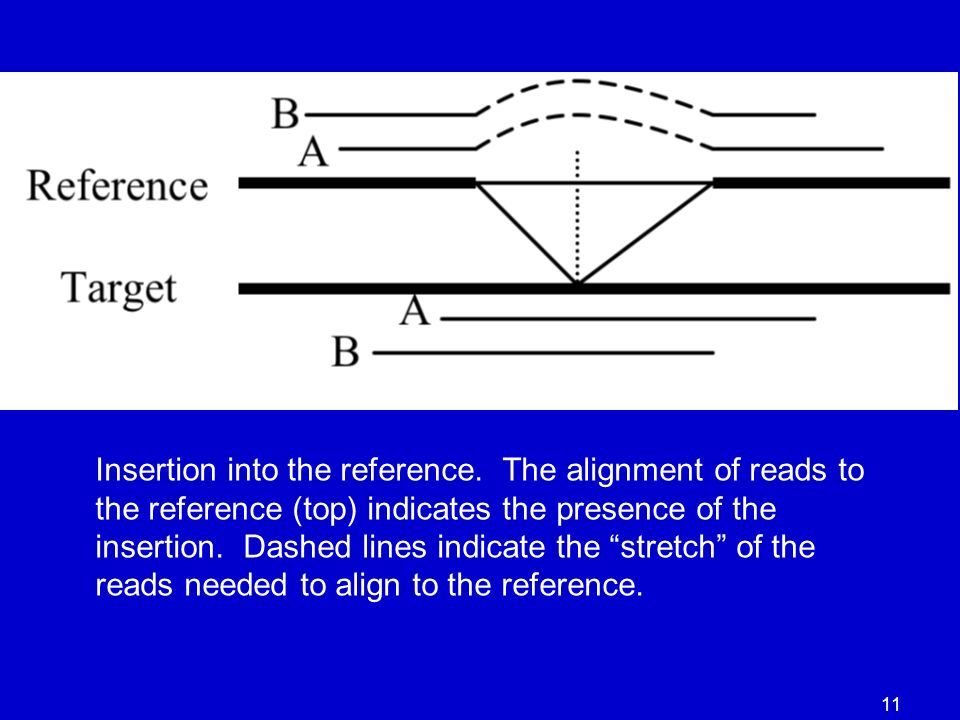

11. 11 Insertion into the reference. The alignment of reads to the reference (top) indicates the presence of the insertion. Dashed lines indicate the “stretch” of the reads needed to align to the reference.

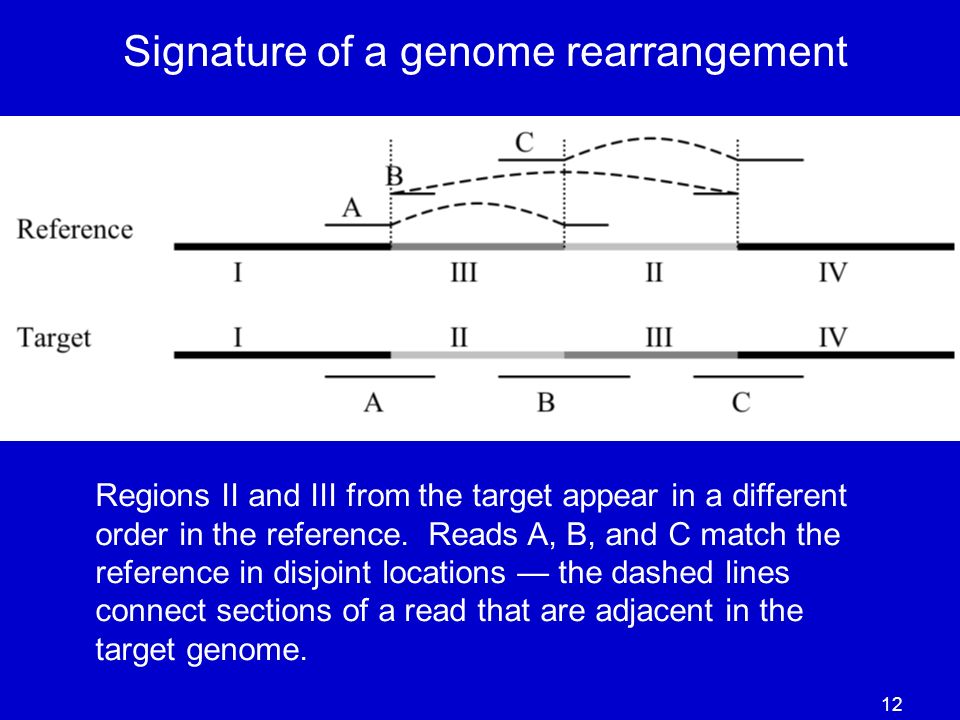

12. 12 Regions II and III from the target appear in a different order in the reference. Reads A, B, and C match the reference in disjoint locations — the dashed lines connect sections of a read that are adjacent in the target genome. Signature of a genome rearrangement

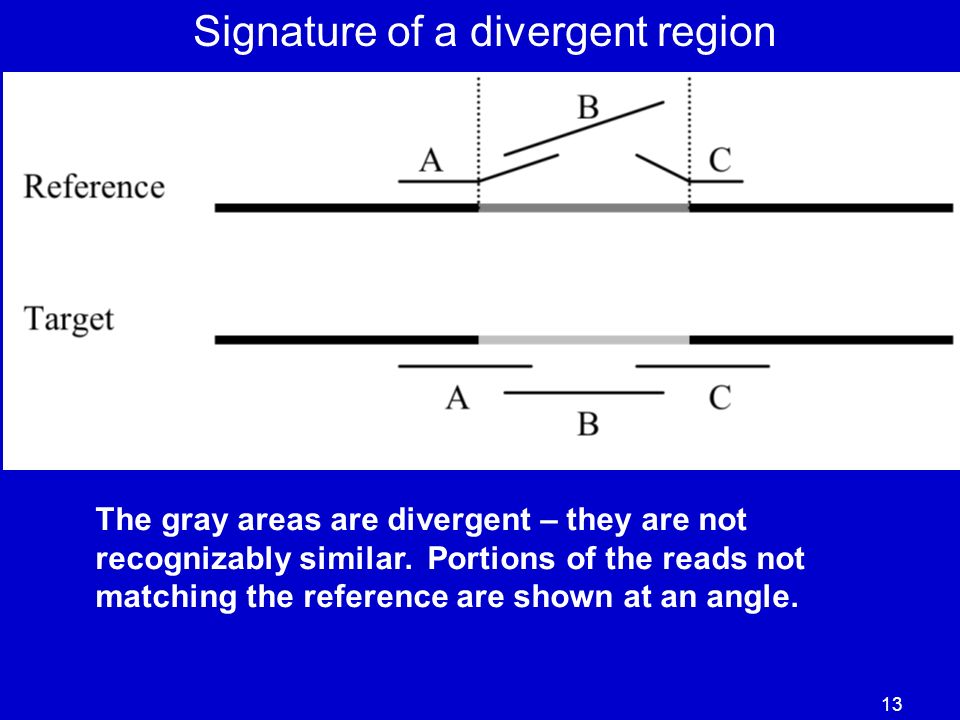

13. 13 The gray areas are divergent – they are not recognizably similar. Portions of the reads not matching the reference are shown at an angle. Signature of a divergent region

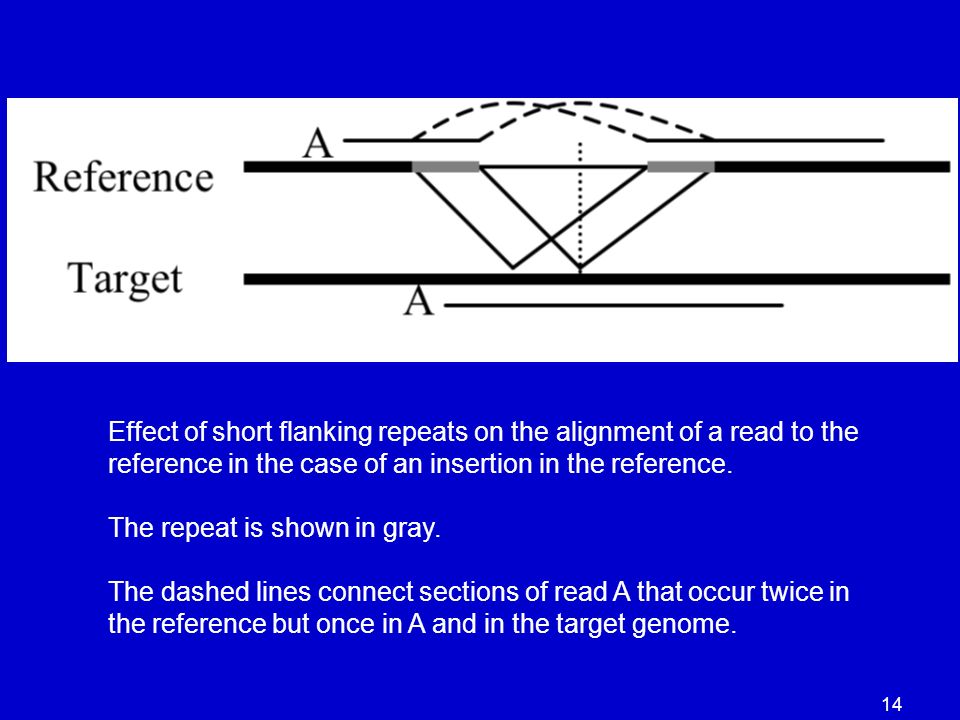

14. 14 Effect of short flanking repeats on the alignment of a read to the reference in the case of an insertion in the reference. The repeat is shown in gray. The dashed lines connect sections of read A that occur twice in the reference but once in A and in the target genome.

15. 15 The rows correspond (top to bottom) to: CA — scratch assembly contigs created by Celera Assembler; 2603 — AMOS-Comp contigs created using strain 2603 as a reference; NEM — AMOS-Comp contigs using strain NEM 316 as a reference; nucmer — the alignment of strain NEM 316 to strain 2603. Stacked arrows in the bottom row correspond to repeats. Assembly of 1Mb of S. agalactiae 2603

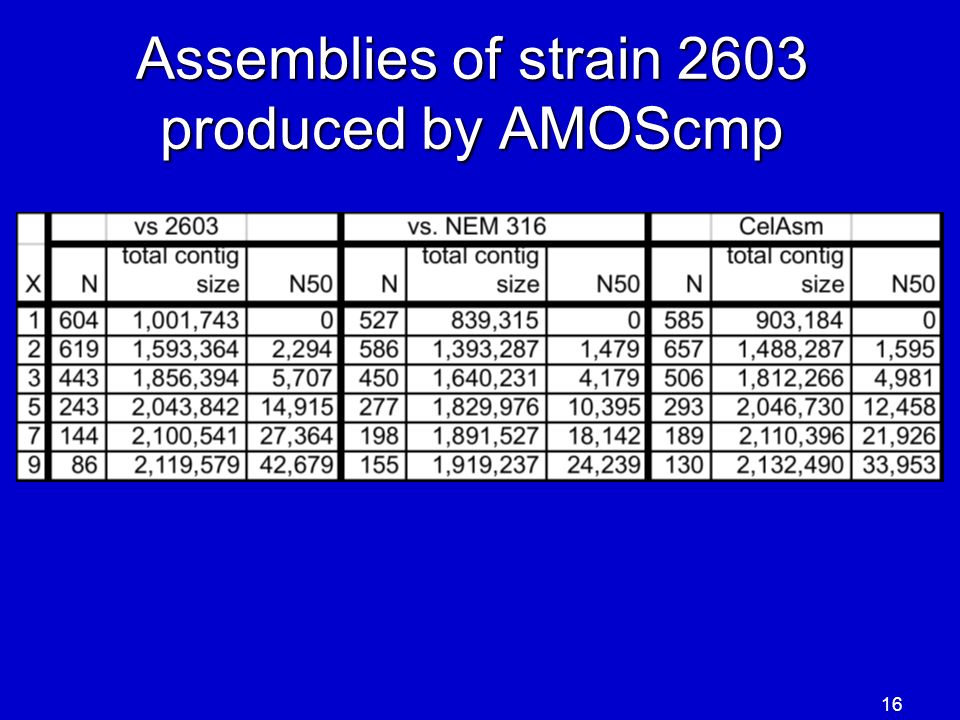

16. Assemblies of strain 2603 produced by AMOScmp 16

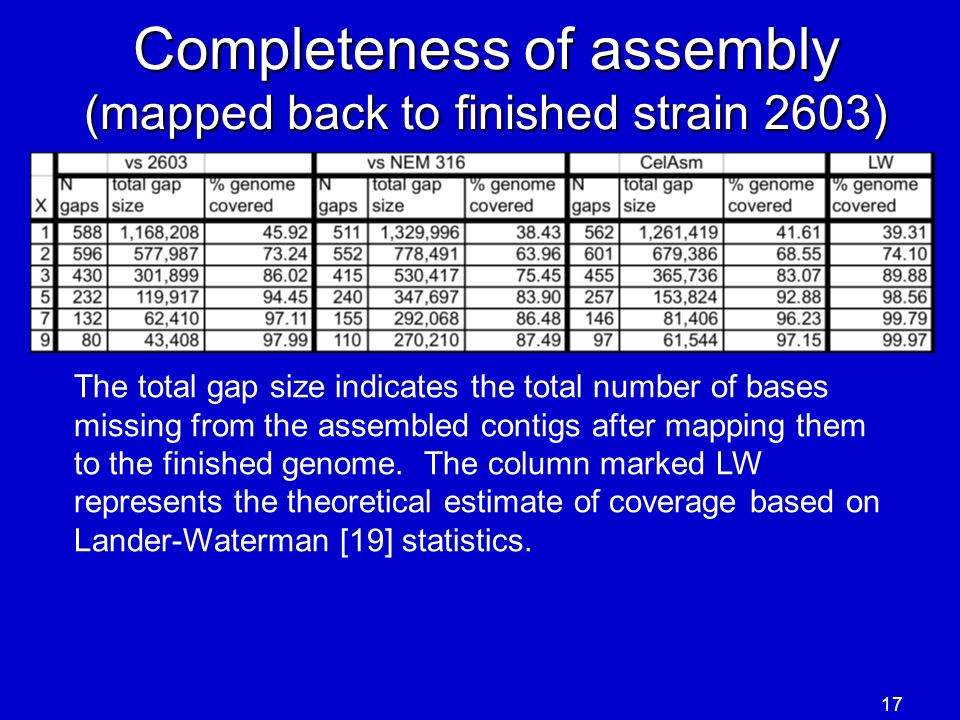

17. Completeness of assembly (mapped back to finished strain 2603) 17 The total gap size indicates the total number of bases missing from the assembled contigs after mapping them to the finished genome. The column marked LW represents the theoretical estimate of coverage based on Lander-Waterman [19] statistics.

18. Limits on comparative assembly 18

19. 19

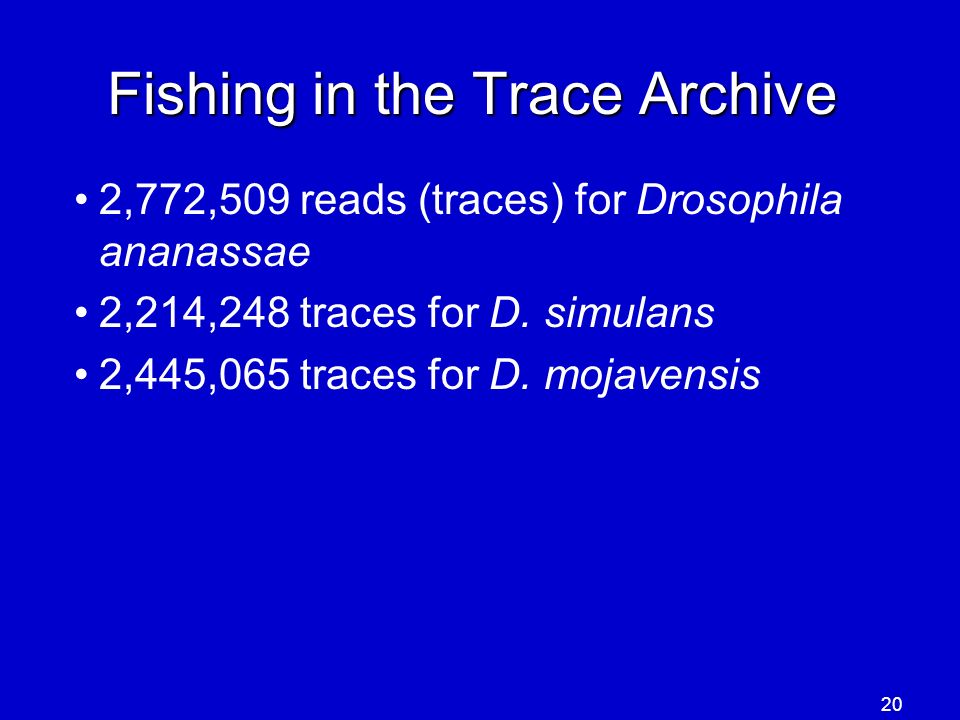

20. Fishing in the Trace Archive 2,772,509 reads (traces) for Drosophila ananassae 2,214,248 traces for D. simulans 2,445,065 traces for D. mojavensis 20

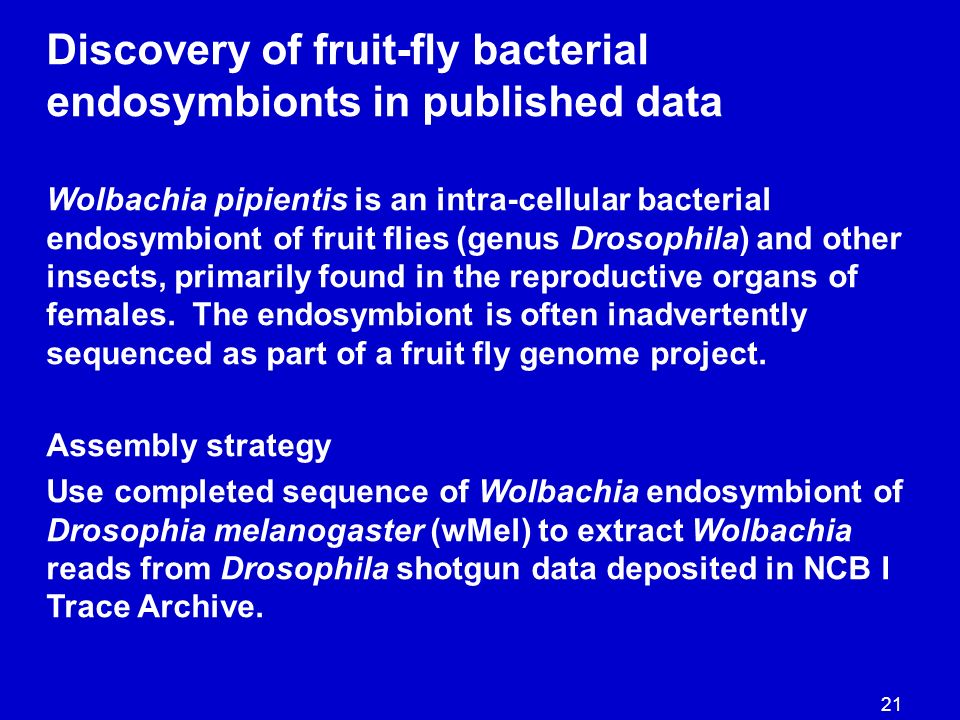

21. 21 Discovery of fruit-fly bacterial endosymbionts in published data Wolbachia pipientis is an intra-cellular bacterial endosymbiont of fruit flies (genus Drosophila) and other insects, primarily found in the reproductive organs of females. The endosymbiont is often inadvertently sequenced as part of a fruit fly genome project. Assembly strategy Use completed sequence of Wolbachia endosymbiont of Drosophia melanogaster (wMel) to extract Wolbachia reads from Drosophila shotgun data deposited in NCB I Trace Archive.

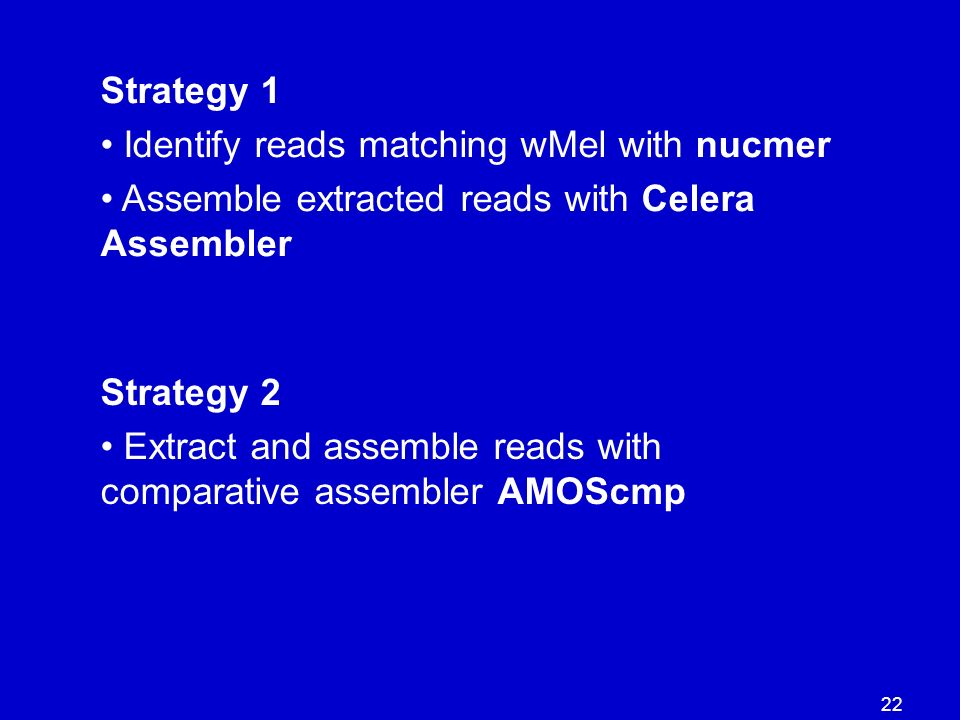

22. 22 Strategy 1 Identify reads matching wMel with nucmer Assemble extracted reads with Celera Assembler Strategy 2 Extract and assemble reads with comparative assembler AMOScmp

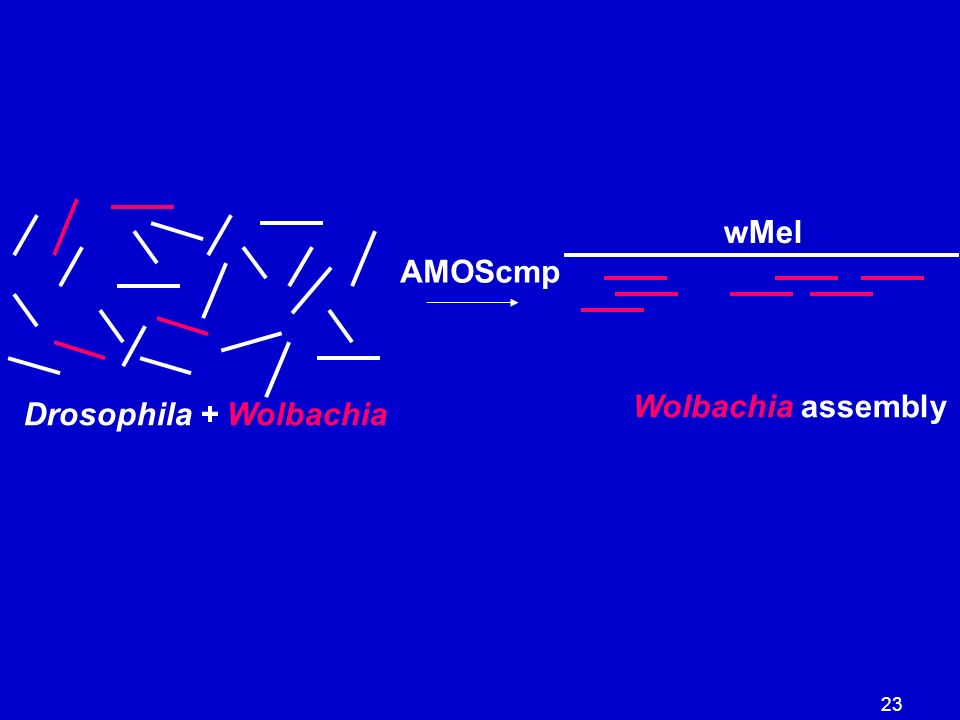

23. 23 AMOScmp wMel Drosophila + Wolbachia Wolbachia assembly

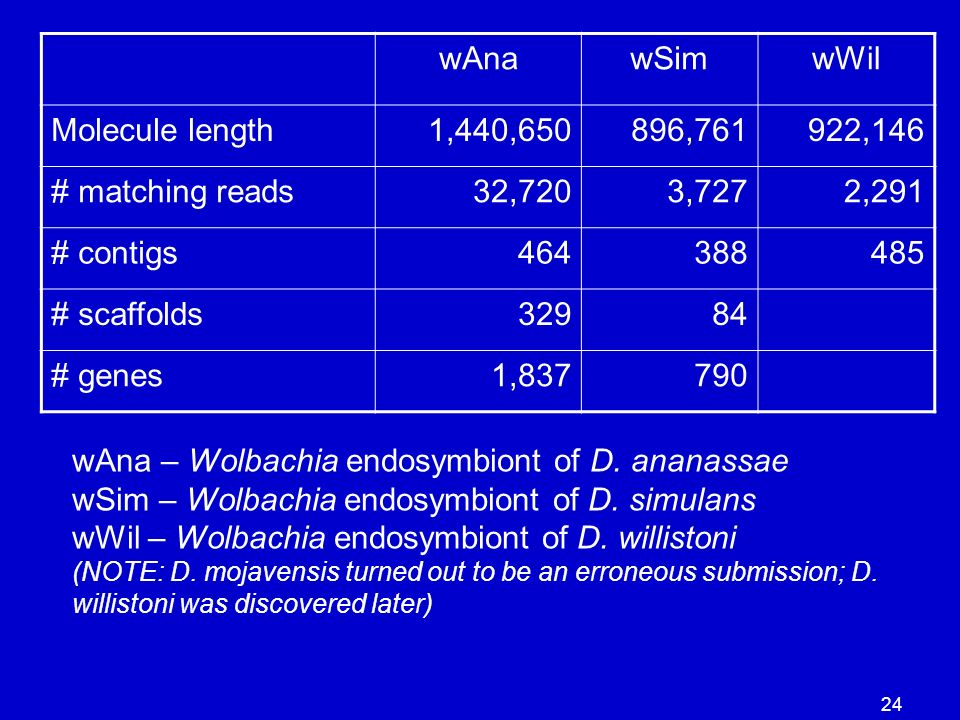

24. 24 wAnawSimwWil Molecule length1,440,650896,761922,146 # matching reads32,7203,7272,291 # contigs464388485 # scaffolds32984 # genes1,837790 wAna – Wolbachia endosymbiont of D. ananassae wSim – Wolbachia endosymbiont of D. simulans wWil – Wolbachia endosymbiont of D. willistoni (NOTE: D. mojavensis turned out to be an erroneous submission; D. willistoni was discovered later)
