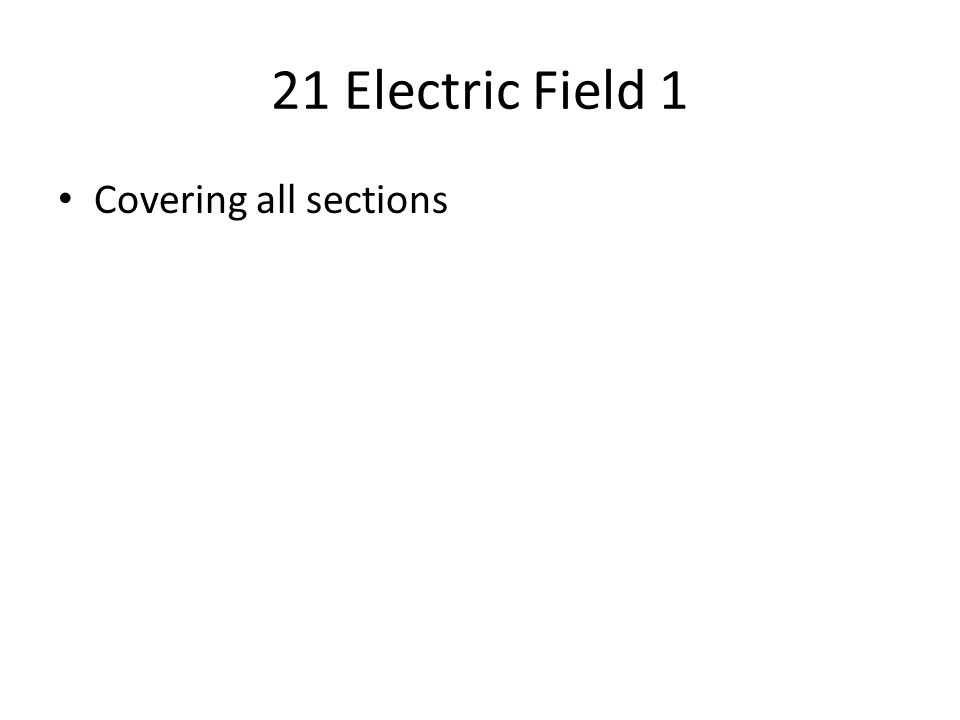

1. 21 Electric Field 1 Covering all sections

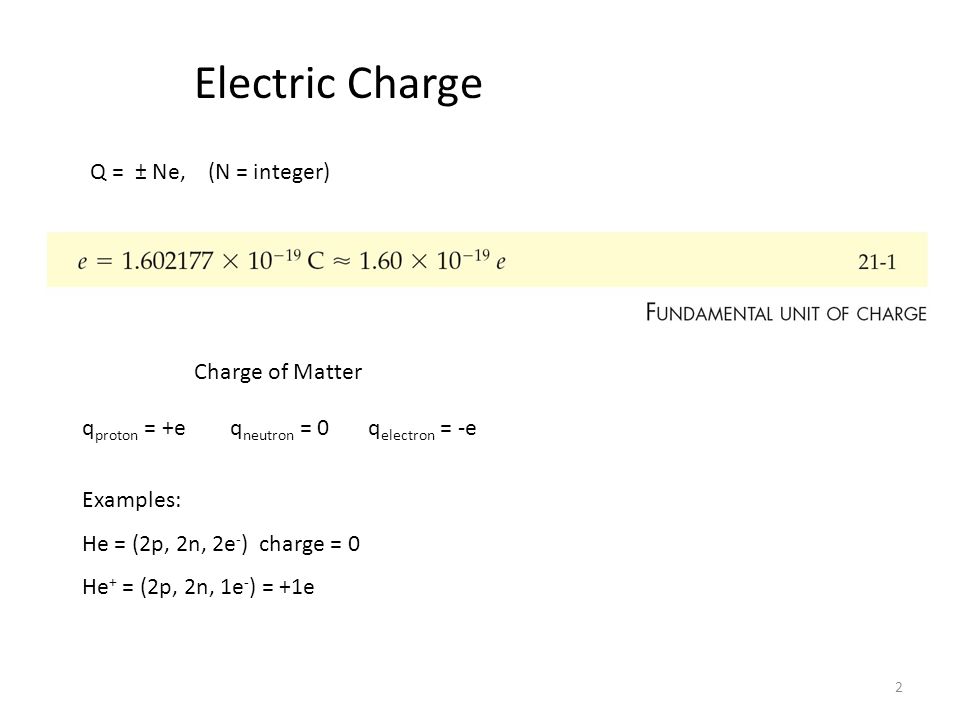

2. 2 Electric Charge Q = ± Ne, (N = integer) Charge of Matter q proton = +e q neutron = 0 q electron = -e Examples: He = (2p, 2n, 2e - ) charge = 0 He + = (2p, 2n, 1e - ) = +1e

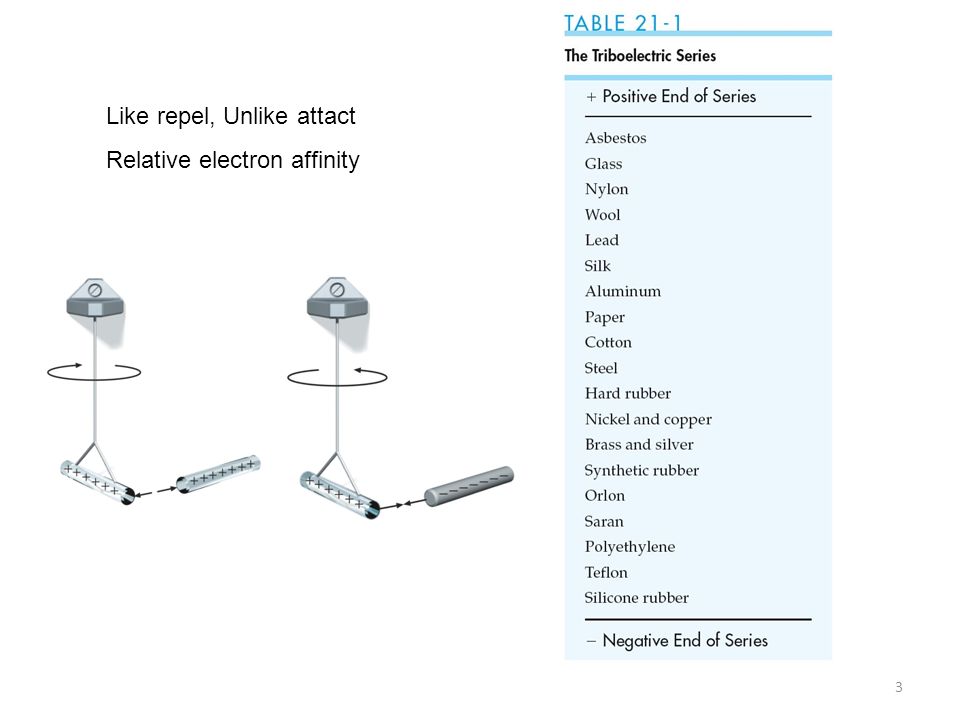

3. 3 Like repel, Unlike attact Relative electron affinity

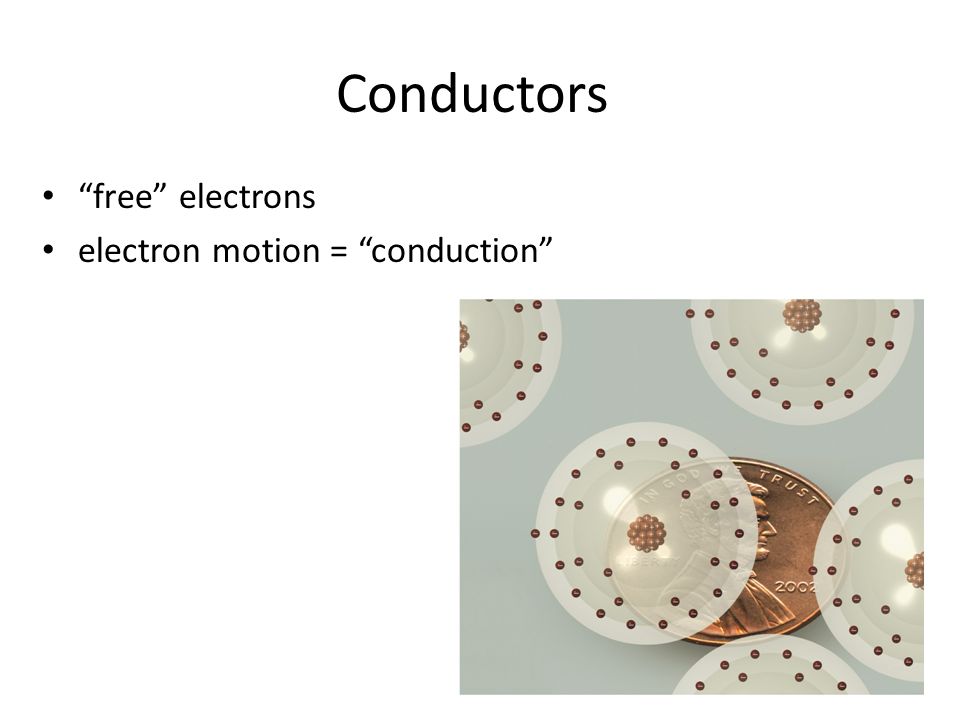

4. 4 Conductors “free” electrons electron motion = “conduction”

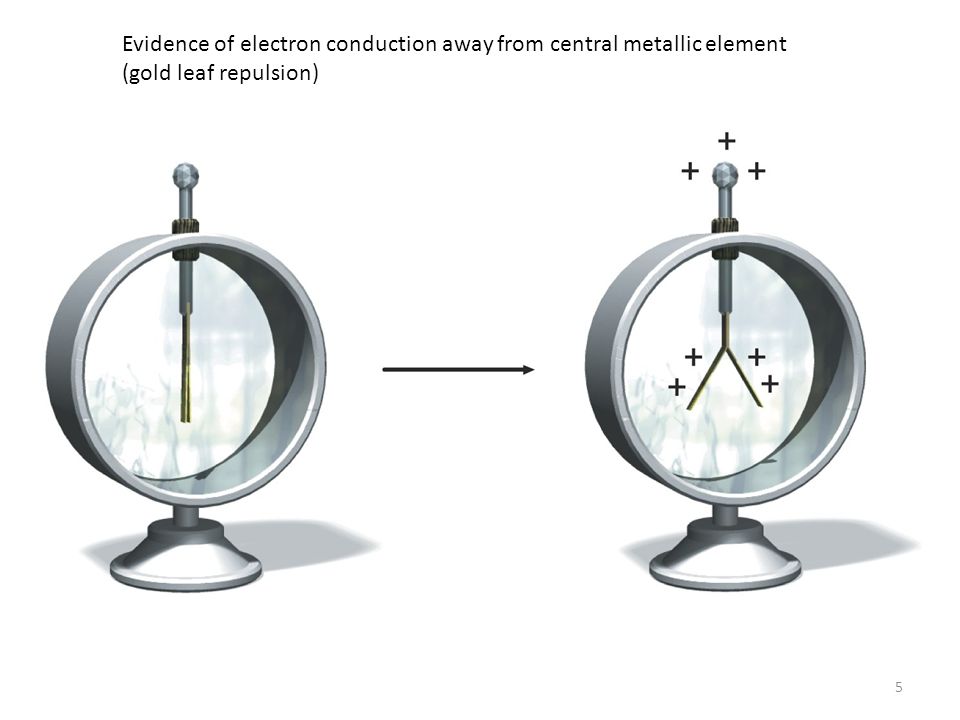

5. 5 Evidence of electron conduction away from central metallic element (gold leaf repulsion)

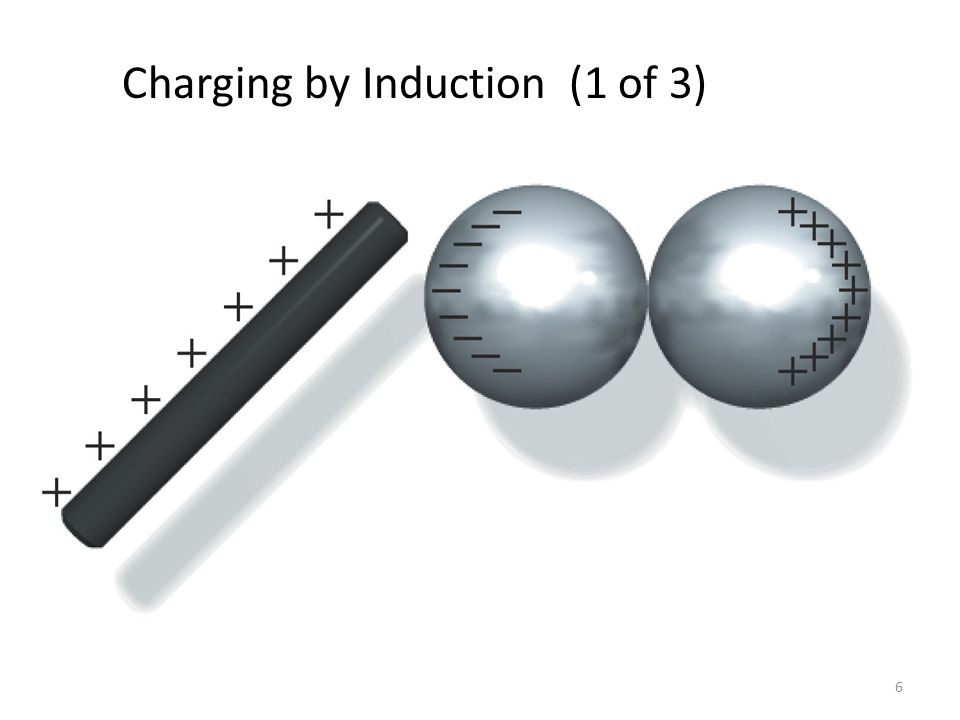

6. 6 Charging by Induction (1 of 3)

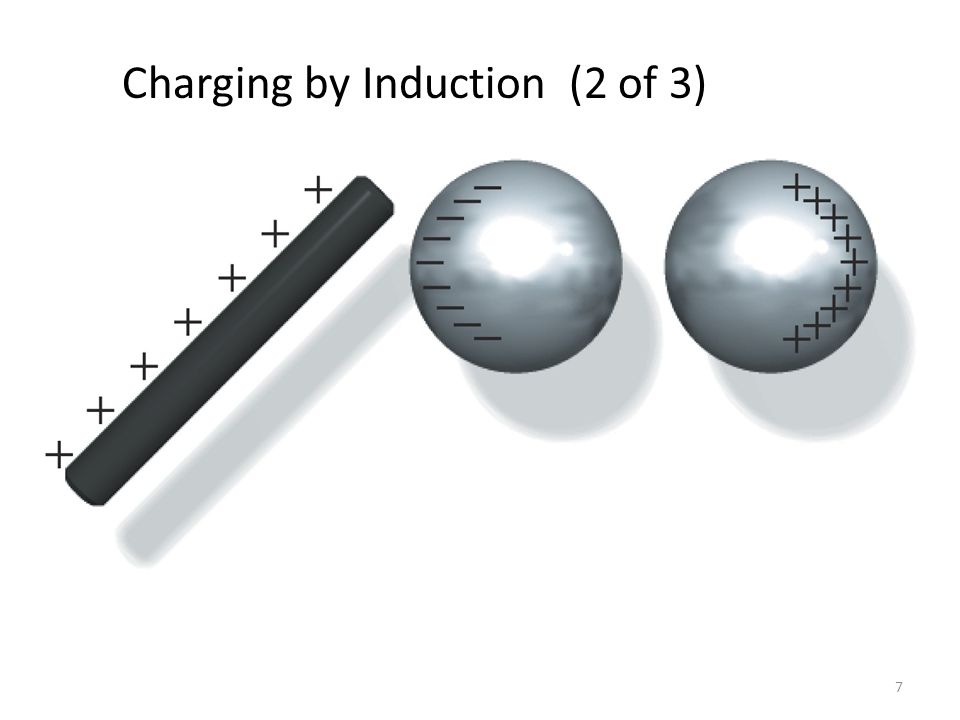

7. 7 Charging by Induction (2 of 3)

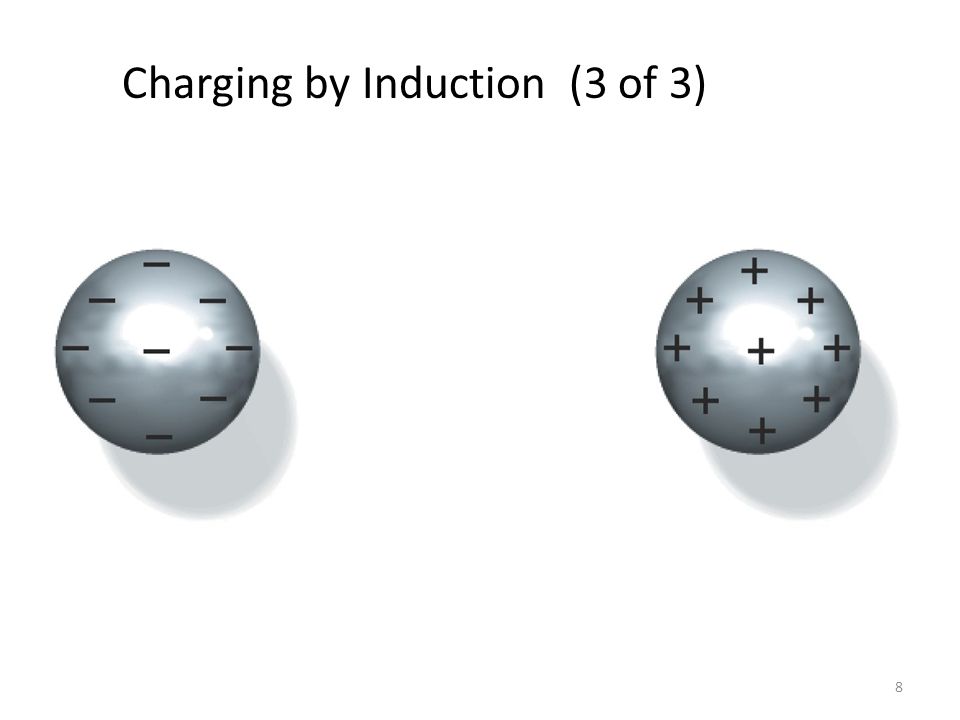

8. 8 Charging by Induction (3 of 3)

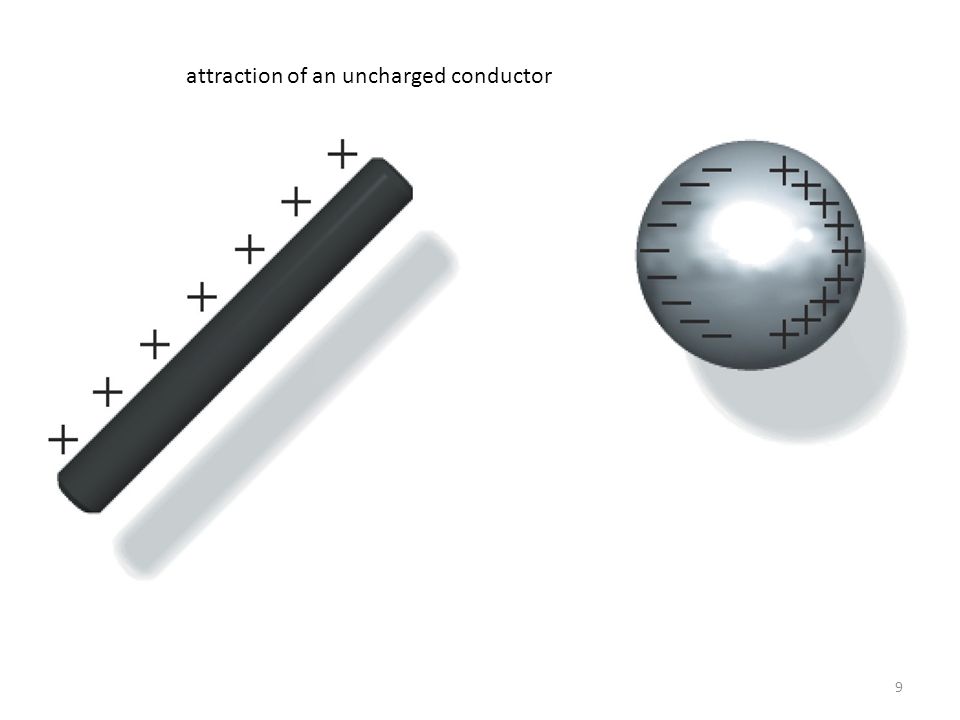

9. 9 attraction of an uncharged conductor

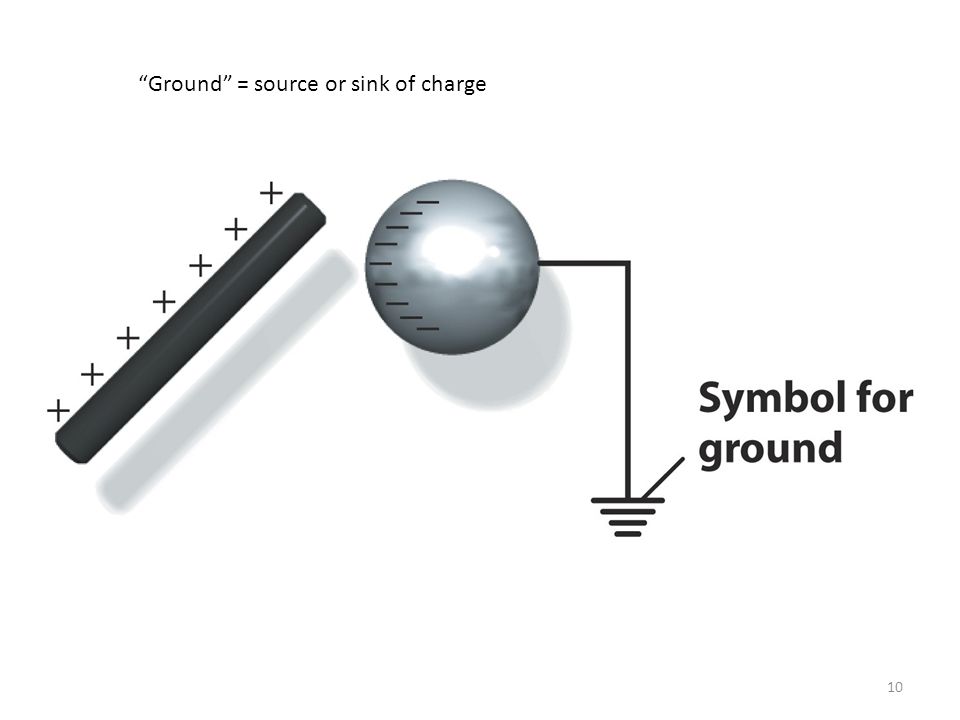

10. 10 “Ground” = source or sink of charge

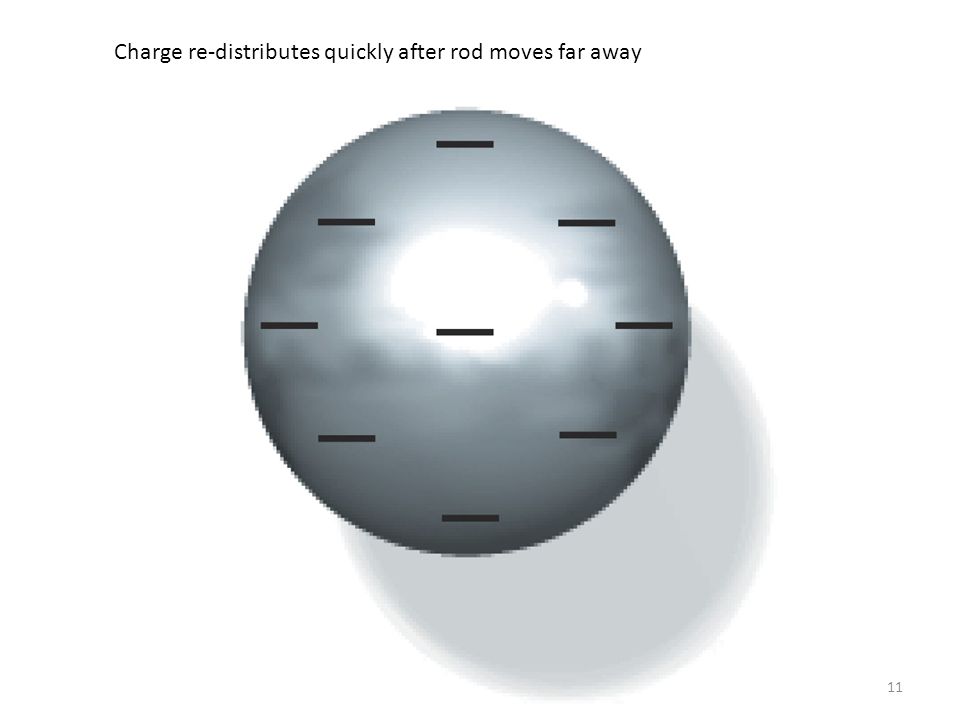

11. 11 Charge re-distributes quickly after rod moves far away

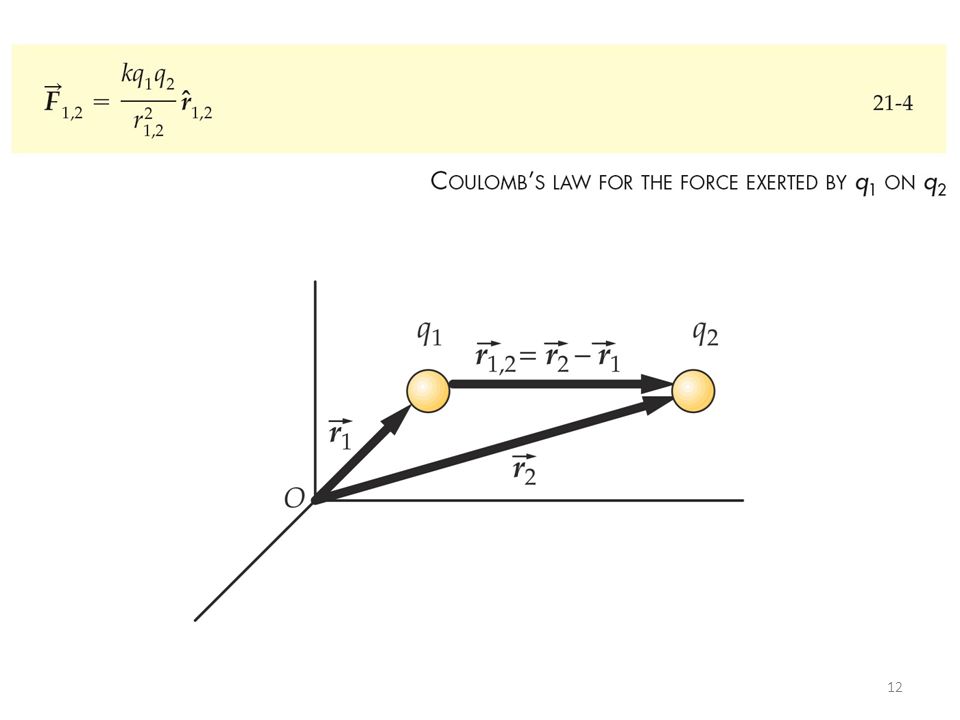

12. 12

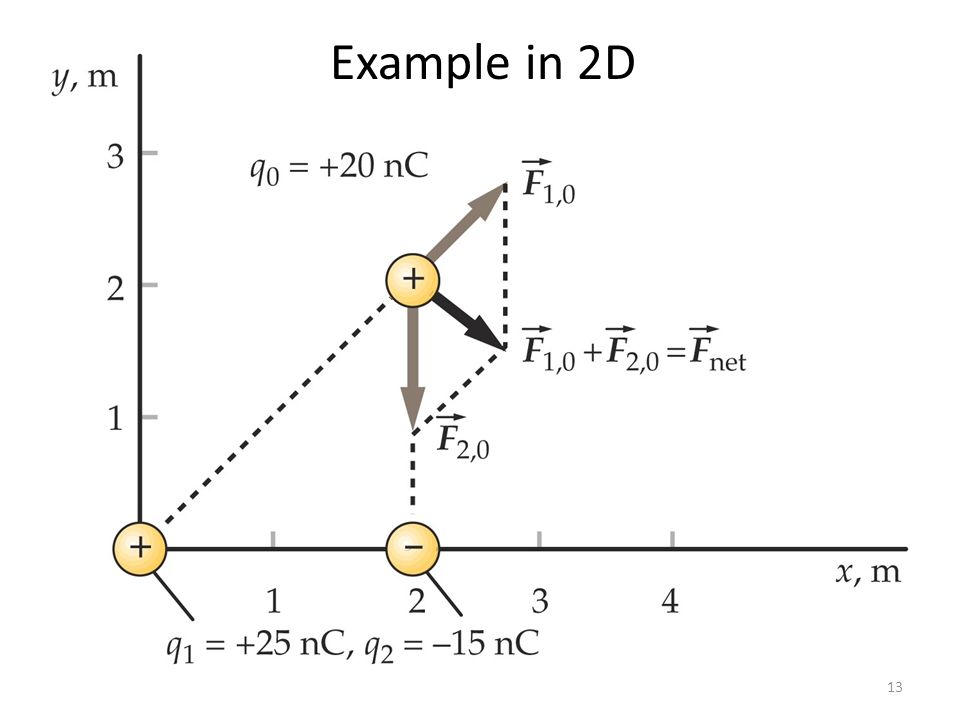

13. 13 Example in 2D

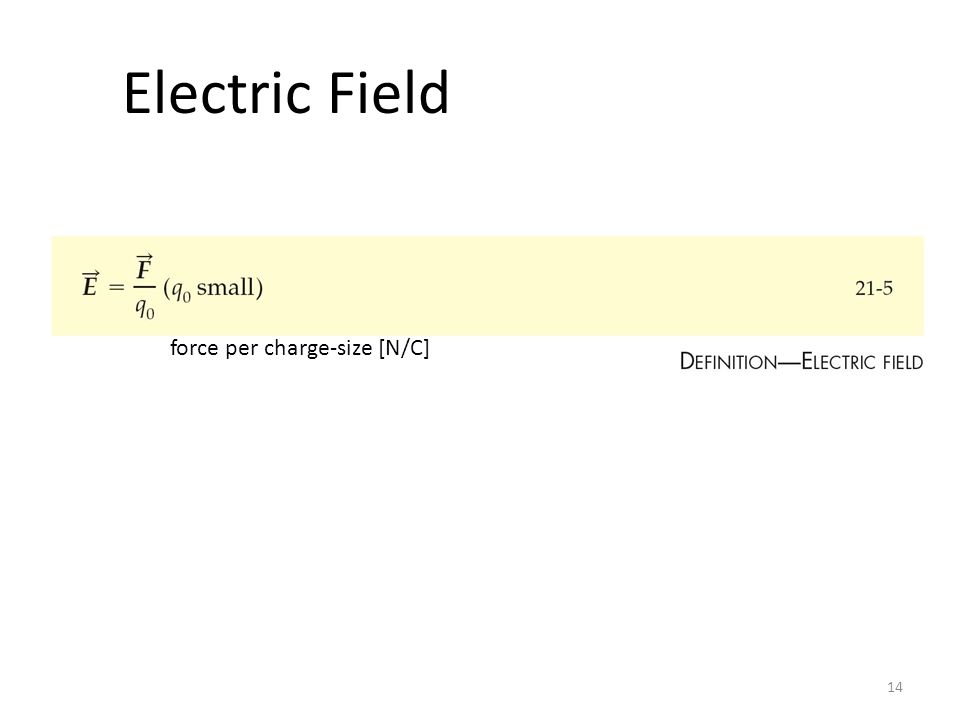

14. 14 Electric Field force per charge-size [N/C]

15. 15 Direction of E

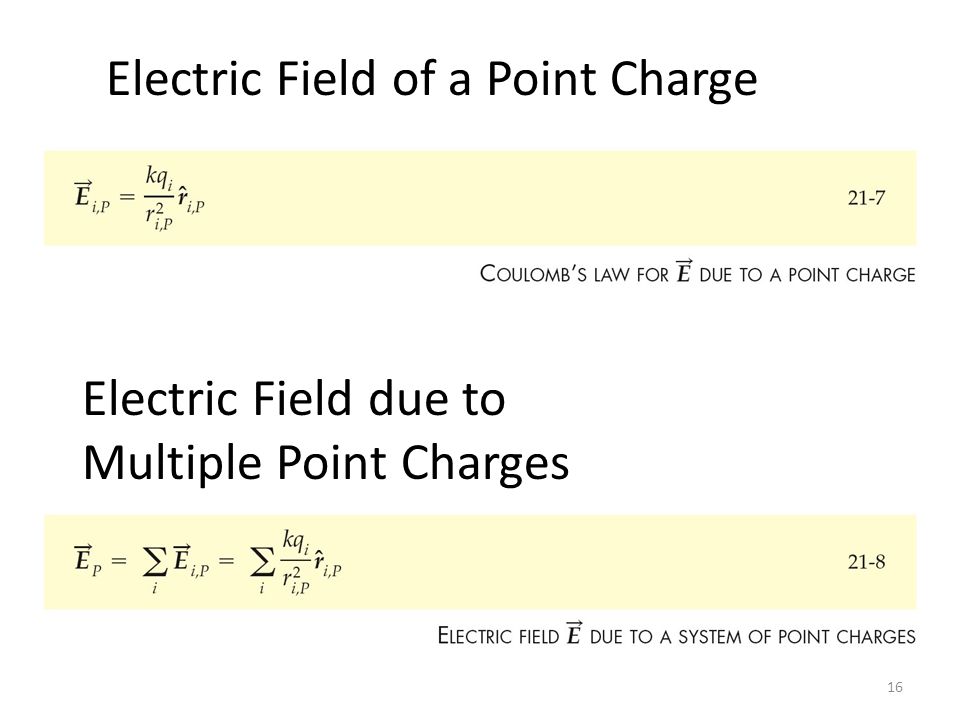

16. 16 Electric Field of a Point Charge Electric Field due to Multiple Point Charges

17. 17 Example: Approximating E above Uniform Line of Charge Given: 6 m long uniform strip of charge Q lies along x axis 0, 6 m. Estimate E at P = (6, 2)m by breaking strip into 3 discrete point charges q = Q/3 located at 1, 3, and 5 m along the x-axis. r1/r1 = {(6, 2) – (1, 0)}/  (29). = (5,2)/  (29) r2/r2 = (3, 2)/  (13) r3/r3 = (1, 2)/  (5)

18. 18 Components of Total Electric Field

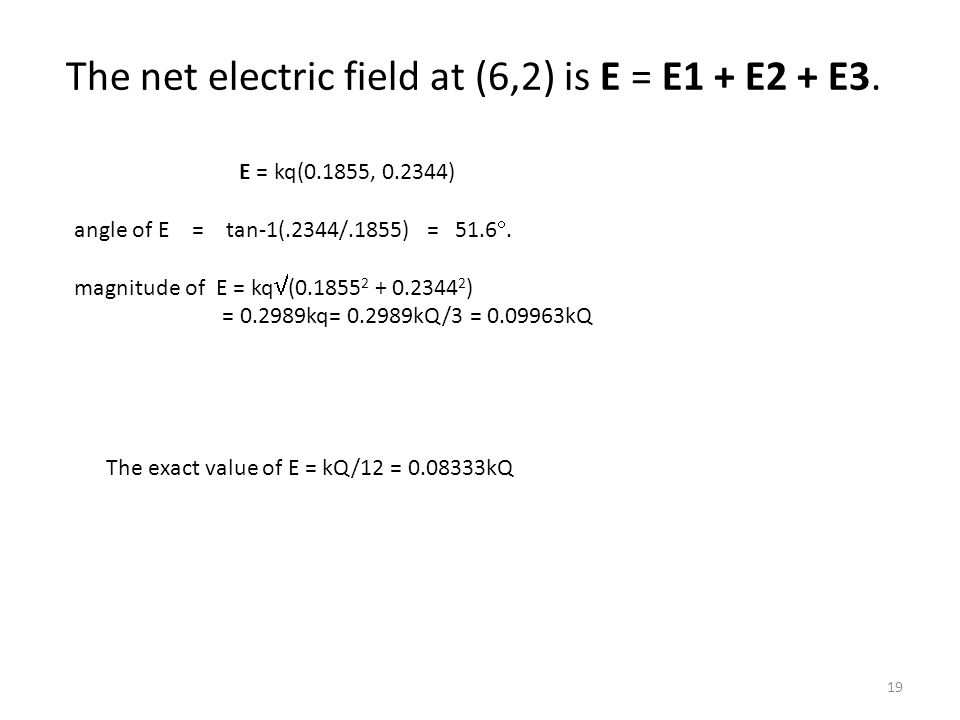

19. 19 The net electric field at (6,2) is E = E1 + E2 + E3. E = kq(0.1855, 0.2344) angle of E = tan-1(.2344/.1855) = 51.6 . magnitude of E = kq  (0.1855 2 + 0.2344 2 ) = 0.2989kq= 0.2989kQ/3 = 0.09963kQ The exact value of E = kQ/12 = 0.08333kQ

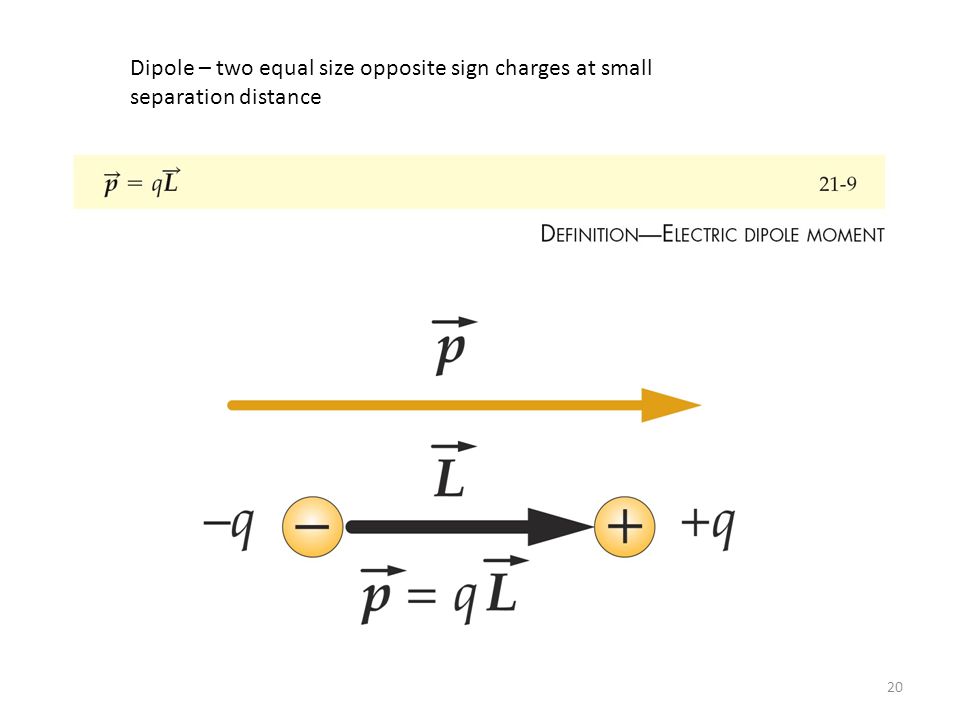

20. 20 Dipole – two equal size opposite sign charges at small separation distance

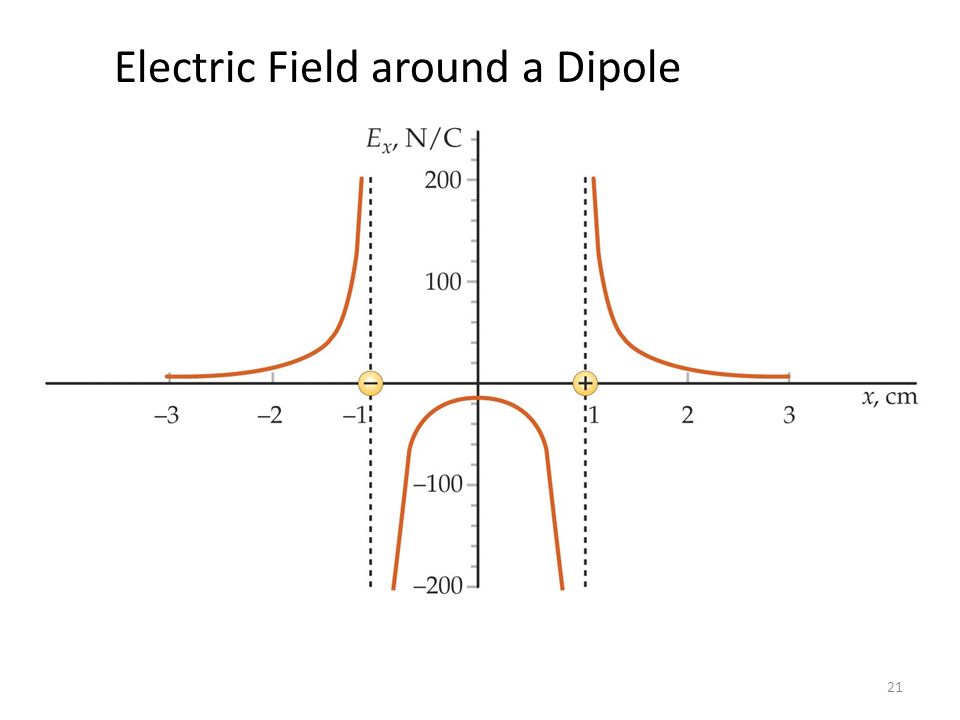

21. 21 Electric Field around a Dipole

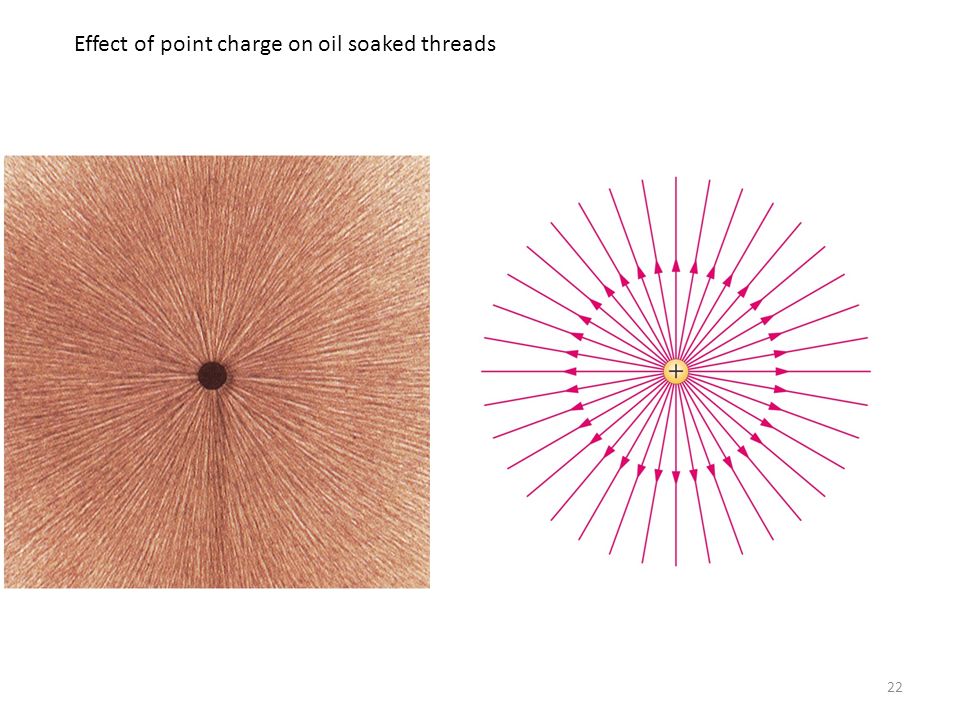

22. 22 Effect of point charge on oil soaked threads

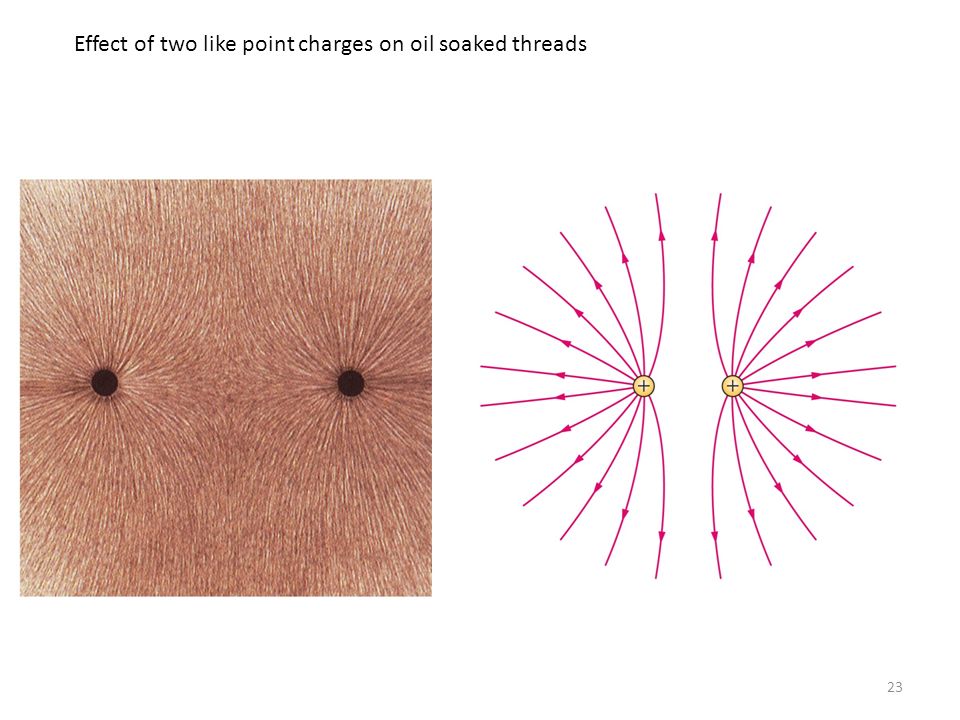

23. 23 Effect of two like point charges on oil soaked threads

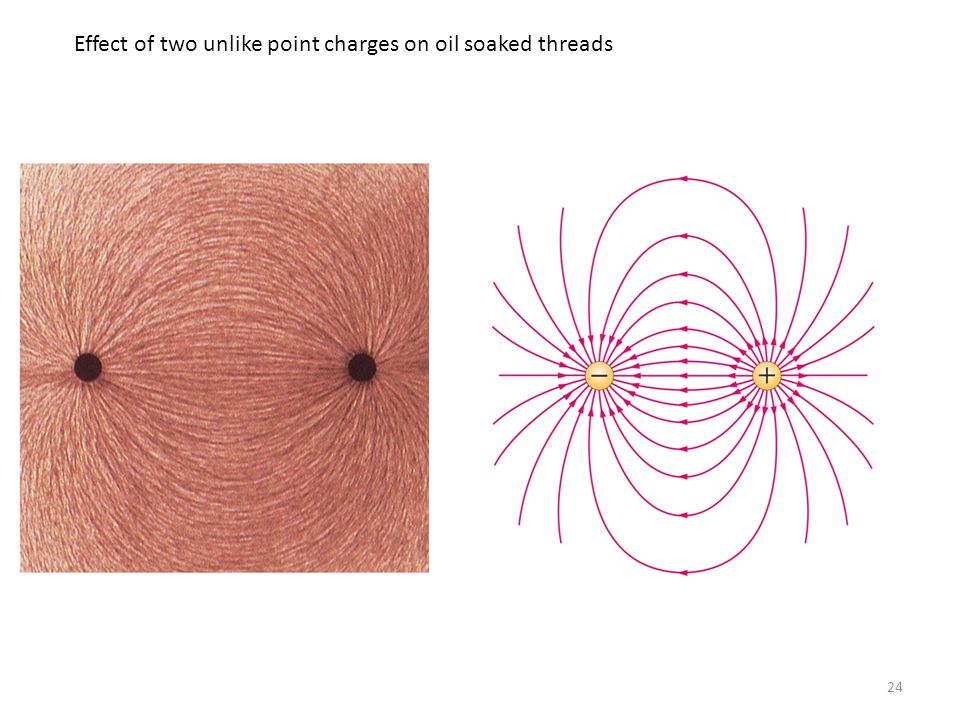

24. 24 Effect of two unlike point charges on oil soaked threads

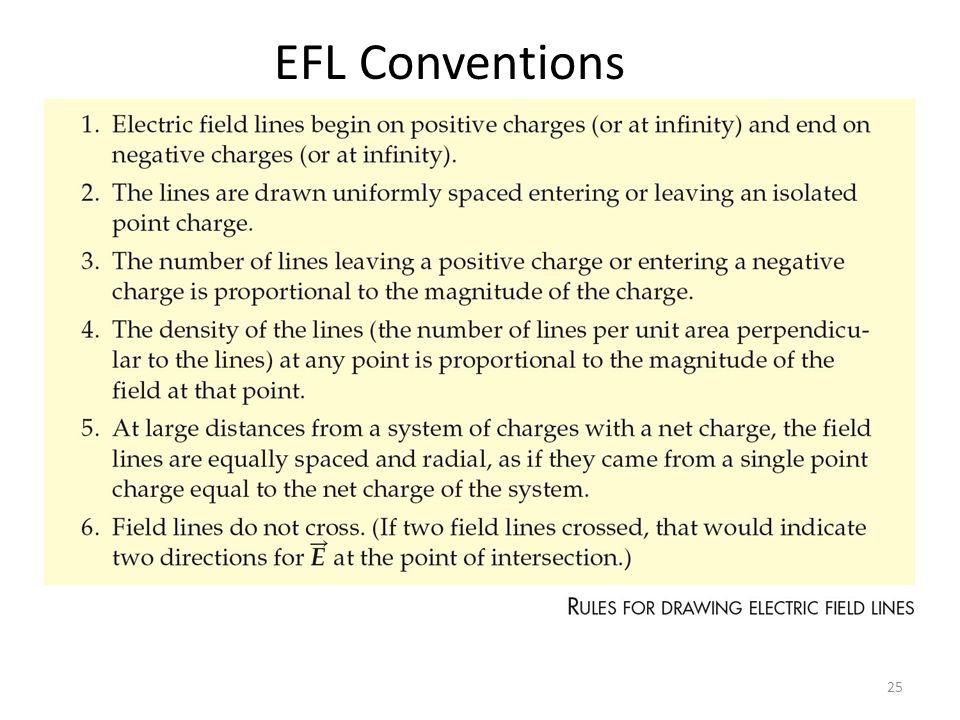

25. 25 EFL Conventions

26. 26 Force on – charge is opposite to E.

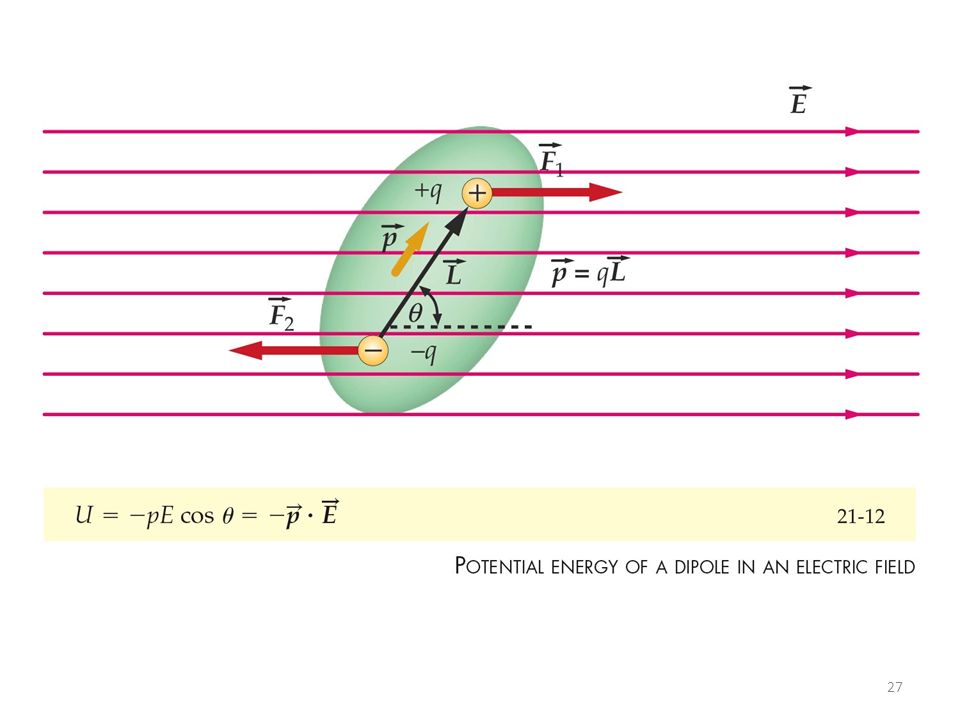

27. 27
