1. Idaho and Montana Residential Single Family New Construction Measures Mohit Singh-Chhabra Regional Technical Forum October 20 th, 2015

2. Measures Being Discussed Today New Construction: Idaho ENERGY STAR Single Family New Construction: Montana ENERGY STAR Single Family New Construction: Energy Star Homes SF - BOP2 ID/MT New Construction: Energy Star Homes SF – DHP TCO ID/MT These measures are currently active, sunset on 12/2015 2

3. Presentation Objective Today, we are seeking decisions on: 1.Deactivate DHP TCO and BOP2 prescriptive paths for ID and MT 2.Decision on ID and MT New Construction measure – Should it be (a) deactivated OR (b) accept updated measure analysis? Note: If approved, measures will be Planning due to presence of Commissioning Controls and Sizing (CC&S). RTF approved CC&S research strategy exists 3

4. Measure Overview 4 CAT Team ReviewYes Energy Savings calculated using existing QC’ed SEEM models with state code updates Tech Sub-Com Review No official subcommittee CAT have been working with Northwest ENERGY STAR team on measure specs and measure uptake CAT checked in with utilities in MT and ID on measure uptake NotesThe measure is changing from a prescriptive to a performance based measure New state codes are almost equivalent to current definition of Northwest ENERGY STAR reference home

5. Change in ENERGY STAR Program Delivery Revised measure identifiers to reflect new ENERGY STAR specification – Measure Identifiers (heating and cooling zone identifiers remain the same): – Savings now based on the “ NW ENERGY STAR Reference Home” 5 Existing ENERGY STAR Path: 1. Northwest ENERGY STAR home 2. DHP TCO 3. BOP 2 (HRV, Zonal electric) Heating/Cooling System Type: A. Gas FAF with CAC B. Gas FAF without CAC C. Air Source Heat Pump D. Zonal electric resistance heat Proposed ENERGY STAR Path: 1. Northwest ENERGY STAR Reference Home Heating/Cooling System Type: A. Gas FAF with CAC B. Gas FAF without CAC C. Electrically Heated

6. Changes in ENERGY STAR Program Delivery (contd.) The NW ENERGY STAR reference home is a performance metric Homes with modeled consumption less than the ENERGY STAR reference home qualify as ENERGY STAR – Currently modeling is done in REMRate 6

7. RTF Decision - 1 “I, _______, move the RTF to deactivate the following measures as they are not being supported by NW ENERGY STAR: New Construction: Energy Star Homes SF - BOP2 ID/MT New Construction: Energy Star Homes SF – DHP TCO ID/MT” 7

8. Change in Residential Building Code Idaho and Montana both adopted IECC 2012 with separate amendments Need to split current measure into separate measure applications for ID and MT – Current measures were combined as ID and MT used similar code for SF NC Key differences: 8 PropertyIdahoMontana Infiltration7 ACH50*4 ACH50 WindowsU-0.32U-0.35 *Some jurisdictions have opted to follow IECC standard of 3 ACH50. Population weighted average value is 6

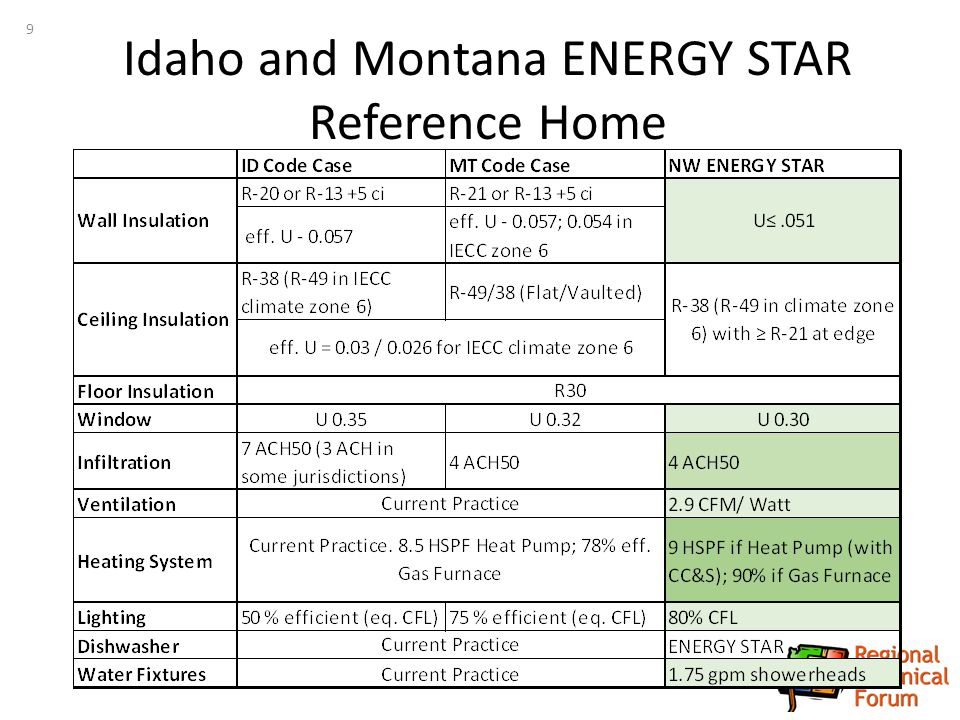

9. Idaho and Montana ENERGY STAR Reference Home 9

10. Required Changes in Published ENERGY STAR Specification This is where code has caught up: Ceiling Insulation: MT code U-value for IECC zone 6 is may be higher than ENERGY STAR requirement for that zone depending on building geometry Below Grade Walls: Must meet minimum state code requirements Infiltration: Current requirement is 4 ACH50; need to clarify that infiltration must meet IECC 2012 standard 3 ACH50 in jurisdictions that require it 10

11. Required Changes in Published ENERGY STAR Specification (contd.) These measure related requirements need to be clarified: Heat Pumps: Require all installation to do CC&S. CC&S is a significant source of savings (~66% of heating savings); presence of CC&S makes this a planning measure – All measures with CC&S are currently planning; RTF approved CC&S Research Strategy exists Appliances: Currently requires all appliances be ENERGY STAR; in the proposed measure only dishwashers are ENERGY STAR – As per current RTF workbook, no savings associated with dishwashers 11

12. Measure Specifications (contd.) Measure specification for ENERGY STAR has remain unchanged despite federal and state code upgrades – Home envelope efficiency – Appliances federal standards Reduced efficiency gap between state code and ENERGY STAR – NW ENERGY STAR team intends to move to a protocol based savings metric in the near future, keep the ENERGY STAR specification unchanged until then 12

13. RTF Direction Required CAT proposes these measures be deactivated – No significant building shell improvements over code in Montana – No significant building shell improvements over code in Idaho with the exception of infiltration in parts of Idaho – Main source of heating savings is CC&S requirement in reference home. Note: This CC&S Planning estimate would be eligible for trade off – NEEA intends to develop the Next Step Homes standard protocol measure for all Single Family New Construction RTF has been tracking progress on this standard protocol and is helping NEEA develop this NW ENERGY STAR does not plan to keep RTF UES measures for new homes past 2016; the RTF will likely deactivate these Planning measure anyway – Individual measure components can be developed as stand alone measures; DHP for new construction already planned Note: Staff will follow up on status of WA and OR ENERGY STAR SF measures w.r.t. code as well and report to the RTF if necessary 13

14. Should the Measure be Deactivated? Contacted the following utilities to inquire if they would be fine with measure deactivation, they were fine. Flathead Electric Missoula Electric Coop Mission Valley Power Ravalli Electric NW ENERGY STAR reported the following uptake in the last 2 years for SF homes (mostly pre code update): 14

15. If RTF decides to deactivate the measure, go to RTF decision slide for deactivation (next) Else, go through measure analysis 15

16. RTF Decision – 2a “I, ________, move that the RTF deactivate the following measures: New Construction: Idaho ENERGY STAR Single Family New Construction: Montana ENERGY STAR Single Family” 16

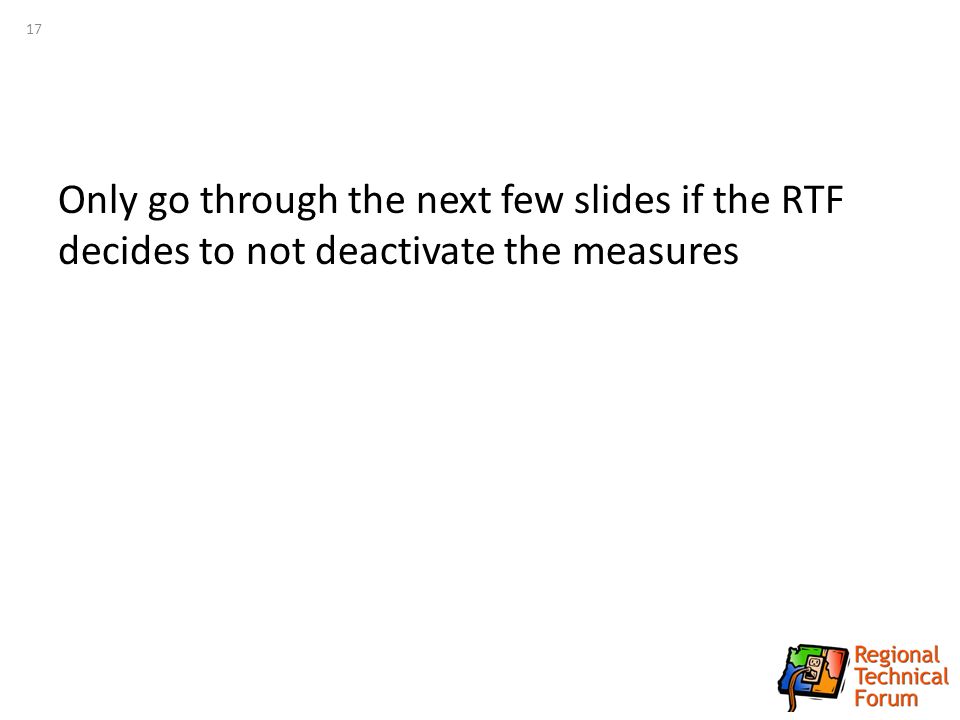

17. Only go through the next few slides if the RTF decides to not deactivate the measures 17

18. Energy Savings Analysis: What Should the Baseline Heating System Be? 18 Then: Now: Under current ENERGY STAR program, the same savings can be claimed by a home with any heating system type as long as it meets performance of Reference Design Home

19. Energy Savings Analysis: Baseline Assuming that the baseline code home has the same heating system as its energy efficient home may not be appropriate in the world of performance based measures where a builder can test different heating systems among other measures for trade-offs on energy consumption. CAT recommendation: This measure is Planning; make the simplifying assumption that base case has the same heating system type as ENERGY STAR performance reference home (Heat Pump) – A more detailed baseline discussion will be had when developing the New Construction Next Step Homes Standard Protocol 19

20. Energy Savings Analysis: Heating Savings calculated using SEEM Phase 1 and Phase 2 calibration applied New SEEM workbook developed by updating previously QC’ed new construction SEEM workbook 20

21. Energy Savings Analysis: Lighting New Residential Lighting Workbook applied to calculate baseline lighting energy use and energy savings RBSA data used to determine lamp type data per average SF home – Total sockets, sockets per lamp type Res Lighting workbook applied to RBSA- determined lamp data to calculate baseline energy consumption, savings and incremental cost 21

22. Energy Savings Analysis: Low Flow Showerhead Basis of savings calculations is latest RTF workbook Savings per home are calculated by first multiplying number of showerheads per home (RBSA) by per unit savings from showerheads (Any, Direct Install). The number of showerheads per home estimate from RBSA was adjusted to represent larger size of new construction 22

23. Energy Savings – Idaho 23

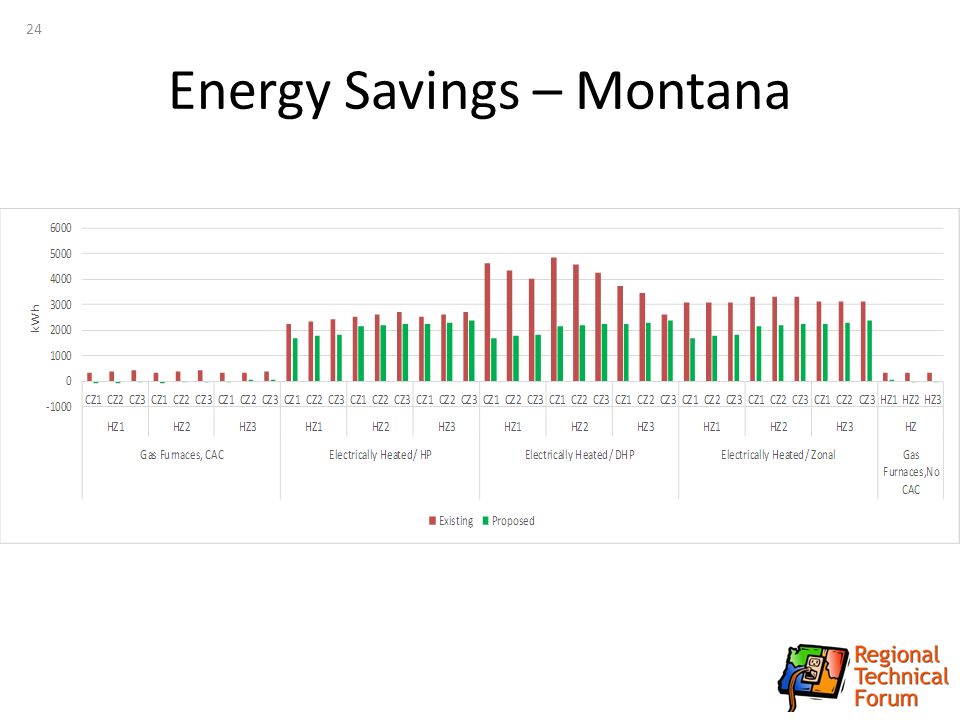

24. Energy Savings – Montana 24

25. Cost Analysis Standard Information Workbook provided incremental cost data for: Windows HP Upgrades CC&S Infiltration: Assumed same cost as existing Wx workbook No change from existing measure workbook Incremental Cost for Low Flow Showerheads and Lighting taken directly form latest RTF workbook 25

26. Incremental Cost – Idaho 26

27. Incremental Cost – Montana 27

28. TRC Results: Idaho 28

29. TRC Results: Montana 29

30. Sunset Criteria Proposed sunset date is 12/2016 NW ENERGY STAR does not plan to support a UES measure beyond 2016 30

31. RTF Decision 2b “I _________ move that the RTF approve the Idaho and Montana ENERGY STAR New Construction Single Family measure analysis as presented and: Set measure status to Active Set measure category to Planning Set sunset date to 12/2016” 31
