1. Companion slides for The Art of Multiprocessor Programming by Maurice Herlihy & Nir Shavit Concurrent Skip Lists

2. 2 Set Object Interface Collection of elements No duplicates Methods –add() a new element –remove() an element –contains() if element is present Art of Multiprocessor Programming

3. 3 Many are Cold but Few are Frozen Typically high % of contains() calls Many fewer add() calls And even fewer remove() calls –90% contains() –9% add() –1% remove() Folklore? –Yes but probably mostly true Art of Multiprocessor Programming

4. 4 Concurrent Sets Balanced Trees? –Red-Black trees, AVL trees, … Problem: no one does this well … … because rebalancing after add() or remove() is a global operation Art of Multiprocessor Programming

5. 5 Skip Lists 2 2 5 5 8 8 7 7 9 9 0 0 Probabilistic Data Structure No global rebalancing Logarithmic-time search Art of Multiprocessor Programming

6. 6 Skip List Property 9 9 0 0 Each layer is sub-list of lower levels Art of Multiprocessor Programming

7. 7 Skip List Property 7 7 9 9 0 0 Each layer is sub-list of lower-levels Art of Multiprocessor Programming

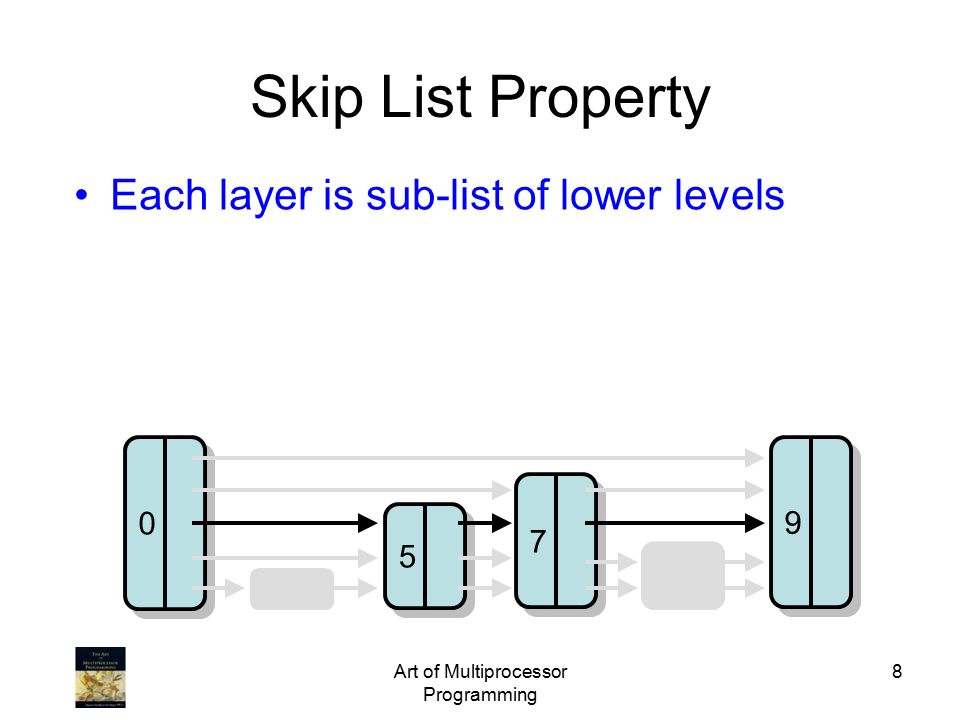

8. 8 Skip List Property 5 5 7 7 9 9 0 0 Each layer is sub-list of lower levels Art of Multiprocessor Programming

9. 9 Skip List Property 5 5 8 8 7 7 9 9 0 0 Each layer is sub-list of lower levels Art of Multiprocessor Programming

10. 10 Skip List Property 2 2 5 5 8 8 7 7 9 9 0 0 Each layer is sub-list of lower levels Lowest level is entire list Art of Multiprocessor Programming

11. 11 Skip List Property 2 2 5 5 8 8 7 7 9 9 0 0 Each layer is sub-list of lower levels Not easy to preserve in concurrent implementations … Art of Multiprocessor Programming

12. 12 Search 2 2 5 5 8 8 7 7 9 9 0 0 contains(8) Too far Art of Multiprocessor Programming

13. 13 Search 2 2 5 5 8 8 7 7 9 9 0 0 contains(8) OK Art of Multiprocessor Programming

14. 14 Search 2 2 5 5 8 8 7 7 9 9 0 0 contains(8) Too far Art of Multiprocessor Programming

15. 15 Search 2 2 5 5 8 8 7 7 9 9 0 0 contains(8) Too far Art of Multiprocessor Programming

16. 16 Search 2 2 5 5 8 8 7 7 9 9 0 0 contains(8) Yes! Art of Multiprocessor Programming

17. 17 7 7 Search 8 0 0 2 2 5 5 9 9 contains(8) Art of Multiprocessor Programming

18. 18 7 7 Logarithmic 8 0 0 2 2 5 5 9 9 contains(8) Log N Art of Multiprocessor Programming

19. 19 Why Logarthimic 2 2 5 5 8 8 7 7 9 9 0 0 Property: Each pointer at layer i jumps over roughly 2 i nodes Pick node heights randomly so property guaranteed probabilistically 2i2i 2i2i Art of Multiprocessor Programming

20. 20 Sequential Find int find(T x, Node [] preds, Node [] succs) { … } Art of Multiprocessor Programming

21. 21 Sequential Find int find(T x, Node [] preds, Node [] succs) { … } object height (-1 if not there) Art of Multiprocessor Programming

22. 22 Sequential Find int find(T x, Node [] preds, Node [] succs) { … } Object sought object height (-1 if not there) Art of Multiprocessor Programming

23. 23 Sequential Find int find(T x, Node [] preds, Node [] succs) { … } object sought return predecessors Object height (-1 if not there) Art of Multiprocessor Programming

24. 24 Sequential Find int find(T x, Node [] preds, Node [] succs) { … } object sought return predecessors Object height (-1 if not there) Art of Multiprocessor Programming return successors

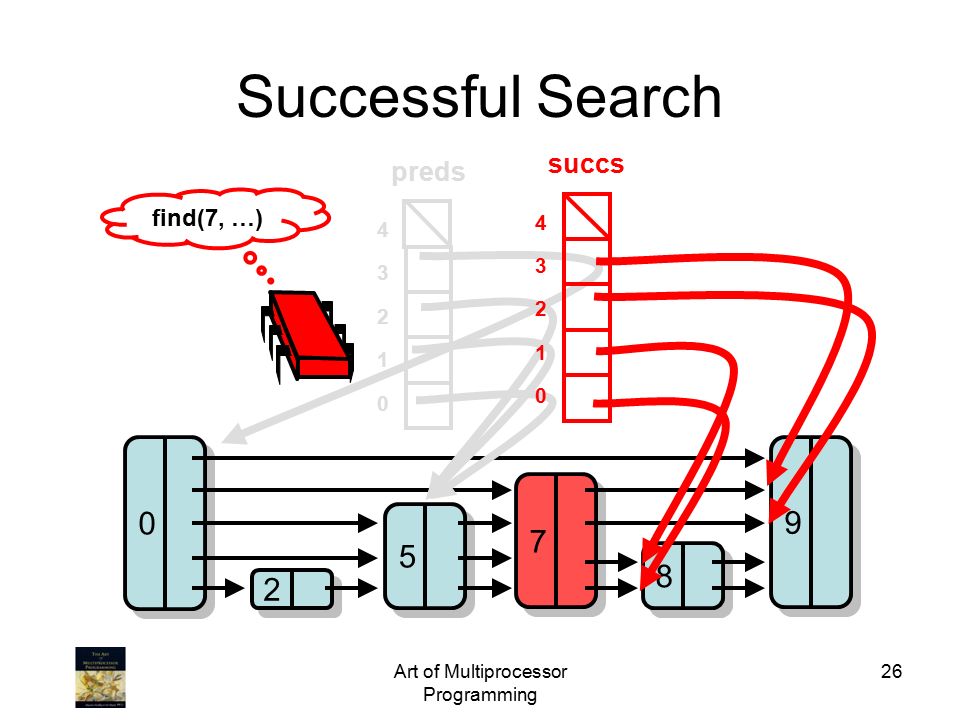

25. 25 Successful Search 2 2 5 5 8 8 7 7 9 9 0 0 find(7, …) preds 0 1 2 3 4 Art of Multiprocessor Programming

26. 26 Successful Search 2 2 5 5 8 8 7 7 9 9 0 0 find(7, …) succs 0 1 2 3 4 preds 0 1 2 3 4 Art of Multiprocessor Programming

27. 27 Unsuccessful Search 2 2 5 5 8 8 7 7 9 9 0 0 find(6, …) preds 0 1 2 3 4 Art of Multiprocessor Programming

28. 28 Unsuccessful Search 2 2 5 5 8 8 7 7 9 9 0 0 find(6, …) succs 0 1 2 3 4 preds 0 1 2 3 4 Art of Multiprocessor Programming

29. 29 Lazy Skip List Mix blocking and non-blocking techniques: –Use optimistic-lazy locking for add() and remove() –Wait-free contains() Remember: typically lots of contains() calls but few add() and remove() Art of Multiprocessor Programming

30. 30 Review: Lazy List Remove aa b c d Art of Multiprocessor Programming

31. 31 Review: Lazy List Remove aa b c d Present in list Art of Multiprocessor Programming

32. 32 Review: Lazy List Remove aa b c d Logically deleted Art of Multiprocessor Programming

33. 33 Review: Lazy List Remove aa b c d Physically deleted Art of Multiprocessor Programming

34. 34 Lazy Skip Lists 2 2 5 5 8 8 7 7 Use a mark bit for logical deletion 9 9 0 0 0 0 0 0 0 0 Art of Multiprocessor Programming

35. 35 add(6) Create node of (random) height 4 2 2 5 5 8 8 7 7 9 9 0 0 0 0 6 6 Art of Multiprocessor Programming

36. 36 add(6) find() predecessors 6 2 2 5 5 8 8 7 7 9 9 0 0 0 0 0 6 6 Art of Multiprocessor Programming

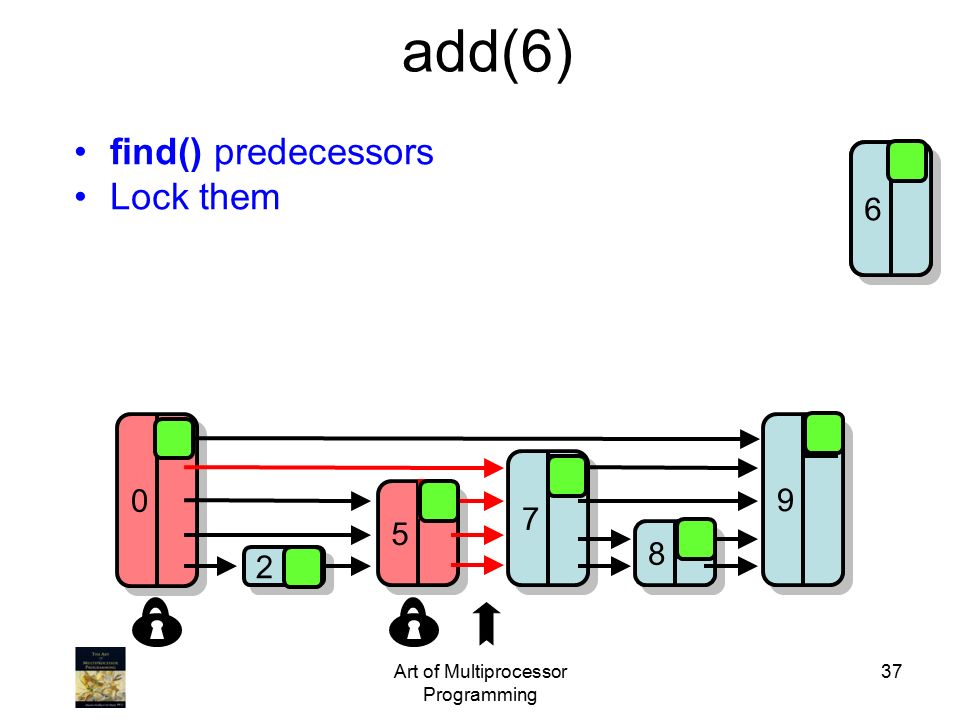

37. 37 add(6) find() predecessors Lock them 6 2 2 5 5 8 8 7 7 9 9 0 0 0 0 0 0 6 6 Art of Multiprocessor Programming

38. 38 add(6) find() predecessors Lock them Validate 6 2 2 5 5 8 8 7 7 9 9 0 0 0 0 0 0 6 6 Optimistic approach Art of Multiprocessor Programming

39. 39 add(6) 8 8 7 7 9 9 2 2 5 5 0 0 find() predecessors Lock them Validate Splice 0 6 6 0 0 0 Art of Multiprocessor Programming

40. 40 add(6) find() predecessors Lock them Validate Splice Unlock 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 Art of Multiprocessor Programming

41. 41 remove(6) 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 0 Art of Multiprocessor Programming

42. 42 remove(6) find() predecessors 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 0 Art of Multiprocessor Programming

43. 43 remove(6) find() predecessors Lock victim 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 0 Art of Multiprocessor Programming

44. 44 8 8 7 7 9 9 2 2 5 5 0 0 6 6 remove(6) find() predecessors Lock victim Set mark (if not already set) 0 0 0 0 0 Logical remove… Art of Multiprocessor Programming

45. 45 8 8 7 7 9 9 2 2 5 5 0 0 6 6 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate 0 0 1 0 0 0 Art of Multiprocessor Programming

46. 46 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate Physically remove 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 1 0 0 0 Art of Multiprocessor Programming

47. 47 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate Physically remove 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 1 0 0 0 Art of Multiprocessor Programming

48. 48 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate Physically remove 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 1 0 0 0 Art of Multiprocessor Programming

49. 49 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate Physically remove 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 1 0 0 0 Art of Multiprocessor Programming

50. 50 remove(6) find() predecessors Lock victim Set mark (if not already set) Lock predecessors (ascending order) & validate Physically remove 8 8 7 7 9 9 2 2 5 5 0 0 0 0 0 0 0 Art of Multiprocessor Programming

51. 51 contains(8) find() & not marked 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 0 Art of Multiprocessor Programming

52. 52 contains(8) 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 0 Node 6 removed while traversed Art of Multiprocessor Programming

53. 53 contains(8) 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 Node removed while being traversed Art of Multiprocessor Programming

54. 54 contains(8) 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 Prove: an unmarked node (like 8) remains reachable Art of Multiprocessor Programming

55. 55 8 8 7 7 9 9 2 2 5 5 0 0 6 6 remove(6): Linearization Successful remove happens when bit is set 0 0 0 0 0 Logical remove… Art of Multiprocessor Programming

56. 56 Add: Linearization 8 8 7 7 9 9 2 2 5 5 0 0 Successful add() at point when fully linked Add fullyLinked bit to indicate this Bit tested by contains() 0 0 6 6 0 0 0 Art of Multiprocessor Programming

57. 57 contains(7): Linearization 8 8 7 7 9 9 2 2 5 5 0 0 6 6 0 0 0 0 0 When fully-linked unmarked node found Pause while fullyLinked bit unset Art of Multiprocessor Programming

58. 58 contains(7): Linearization 8 8 6 6 9 9 2 2 5 5 0 0 7 7 0 0 1 0 0 When do we linearize unsuccessful Search? 1 So far OK… Art of Multiprocessor Programming

59. 59 contains(7): Linearization 8 8 6 6 9 9 2 2 5 5 0 0 7 7 0 0 0 0 When do we linearize unsuccessful Search? 7 7 But what if a new 7 added concurrently? Art of Multiprocessor Programming

60. 60 contains(7): Linearization 8 8 6 6 9 9 2 2 5 5 0 0 7 7 0 0 0 0 When do we linearize unsuccessful Search? 1 7 7 Prove: at some point 7 was not in the skip list Art of Multiprocessor Programming

61. 61 A Simple Experiment Each thread runs 1 million iterations, each either: –add() –remove() –contains() Item and method chosen in random from some distribution Art of Multiprocessor Programming

62. 62 Lazy Skip List: Performance Multiprogramming Art of Multiprocessor Programming

63. 63 Lazy Skip List: Performance Multiprogramming Higher contention Art of Multiprocessor Programming

64. 64 Lazy Skip List: Performance Multiprogramming Unrealistic Contention Art of Multiprocessor Programming

65. 65 Summary Lazy Skip List –Optimistic fine-grained Locking Performs as well as the lock-free solution in “common” cases Simple Art of Multiprocessor Programming
