1. Shibboleth & Federated Identity A Change of Mindset University of Texas Health Science Center at Houston Barry Ribbeck Barry.R.Ribbeck@uth.tmc.edu

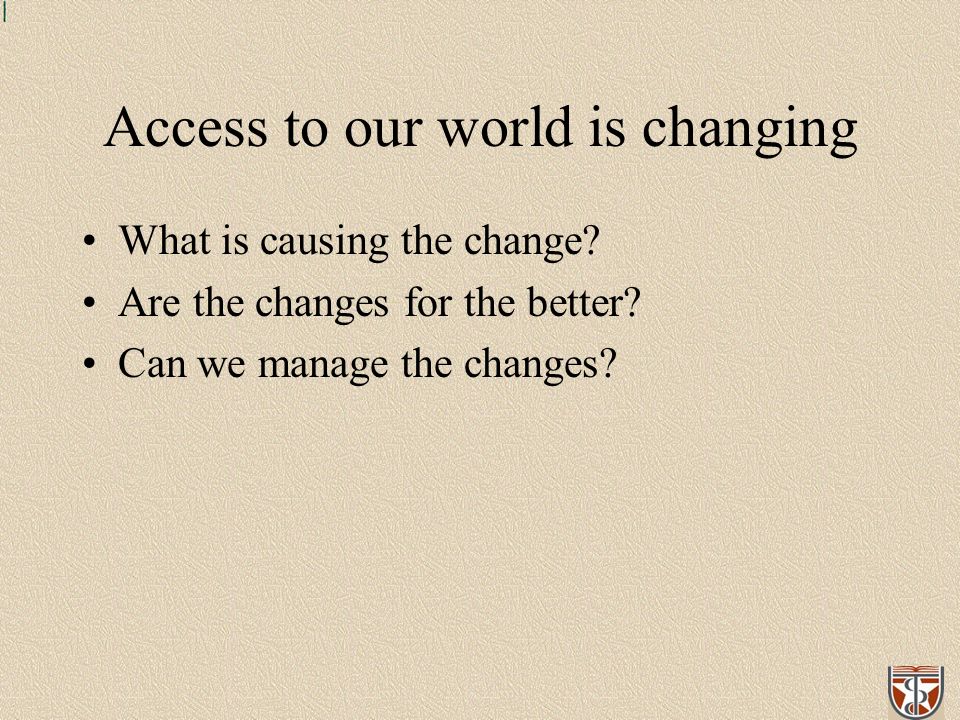

2. Access to our world is changing What is causing the change? Are the changes for the better? Can we manage the changes?

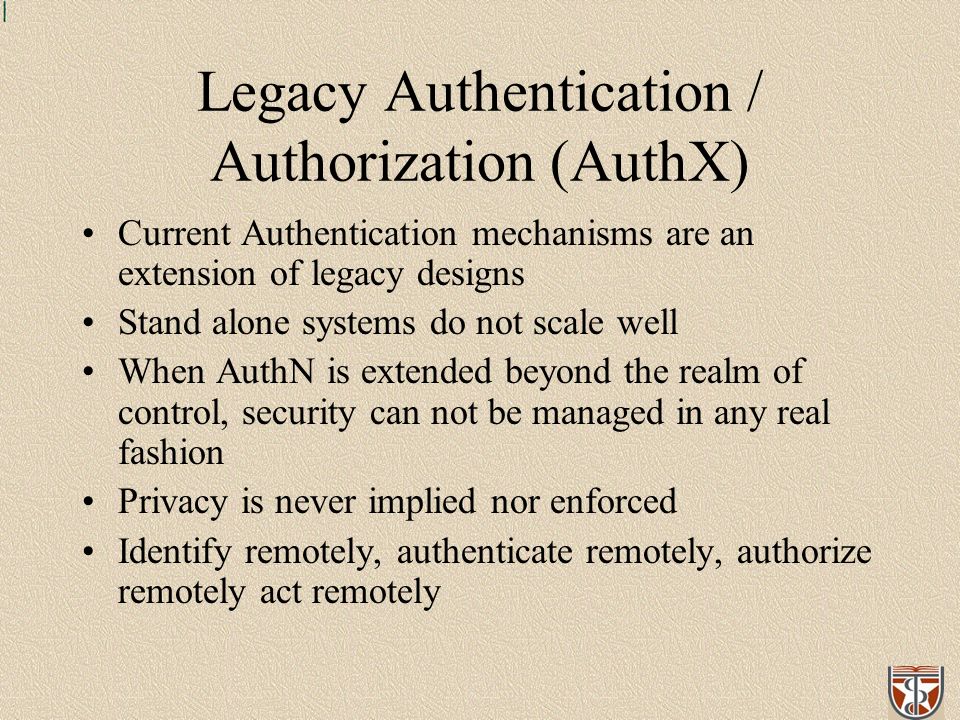

3. Legacy Authentication / Authorization (AuthX) Current Authentication mechanisms are an extension of legacy designs Stand alone systems do not scale well When AuthN is extended beyond the realm of control, security can not be managed in any real fashion Privacy is never implied nor enforced Identify remotely, authenticate remotely, authorize remotely act remotely

4. Legacy Authentication Systems Issues Scale context makes it hard to support and manage Privacy is not a concern Difficult or impossible to manage the security for Identification and Authorization reliably User experience is diminished by yet another set of electronic credentials and the possibility of identity release

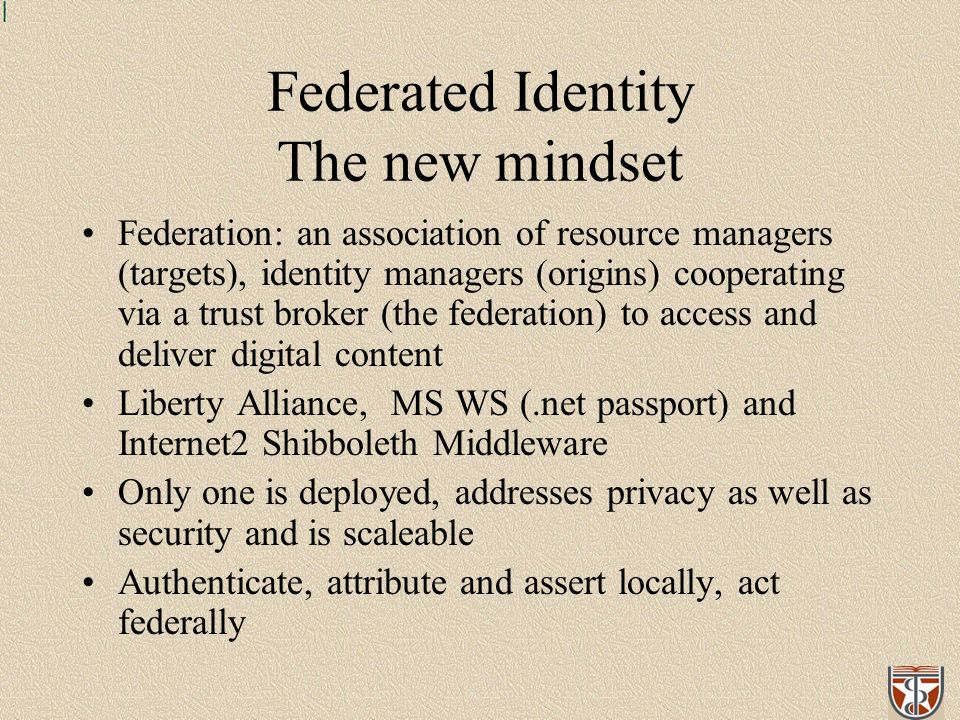

5. Federated Identity The new mindset Federation: an association of resource managers (targets), identity managers (origins) cooperating via a trust broker (the federation) to access and deliver digital content Liberty Alliance, MS WS (.net passport) and Internet2 Shibboleth Middleware Only one is deployed, addresses privacy as well as security and is scaleable Authenticate, attribute and assert locally, act federally

6. What is Shibboleth A middleware software authentication/authorization mechanism that provides security, privacy and scale. Core Enterprise Middleware infrastructure Does not provide trust, but requires and leverages the existence of a trust fabric Allows users to authenticate, attribute and assert locally and act federally

7. Middleware Land Source: http://www.internet2.edu/presentations/20020624-BaseCAMP-Frost.htm

8. Shibboleth UTHSC Houston Identity Manager Authentication System (Digital ID/LDAP) Resource Manager UTHSCH User WAYF FEDERATED Identity Providers UTHSCH Member ORIGIN TARGET LDAP (eduperson) Web Resource Role attributes sufficient, access allowed 2 3. Are you a valid UT Houston Affiliate 4. What is your role ? Trust Fabric 1 Request access

9. Shibboleth and Blackboard by Barry Ribbeck, UTHSC-Houston Home University Attribute Authority Authentication System (ISO/SSO/Cert) Handle Service Bill = X Resource Provider SHIRE Allow HomeU AA SHAR Resource Manager User “Bill” Federation WAYF SERVICE (IN COMMON) 1. I would like access? 3. Where are you from? 4. I am from HU, logged in? ORIGIN TARGET 5. Authenticate me to HU 2. Can you authenticate via my Wayf ? 7. Need eppn & eduPersonEntitlement for X? 6. AuthN ok send handle X to Target 8. Link Handle X to user and Lookup attributes RBAC Authorization System - LDAP (eduperson) 9. Attributes found and Released 10. If ARP allows, attributes are sent to Target. If attributes are sufficient, access is granted by Resource Manager on Target Bb remote user = Bill@hu.edu 11 Logged onto Bb Shib Software =

10. What is it Being Used For? Access to digital content (library resources) Learning management systems Web based online resources Systems access that require –Privacy (user anonymity can be maintained) –Security (AuthN can be anything from uid/pw to 2 factor PKI) –Granularity in access control –High scalability

11. Federations Brokers of the Trust Fabrics Provide and maintain a digital venue for members A leverage point for Relying Party Agreements (solves the N-1 problem) Enforces the rules of engagement for the Relying Parties Provide secure mechanisms for the exchange of member institution digital credentials

12. Federated Identity Liberty: Allows the end user to link and unlink identities that are provided from differing sources Shib: A method of scaling identity management Federations provide a trust Fabric, the Liberty model ties them together

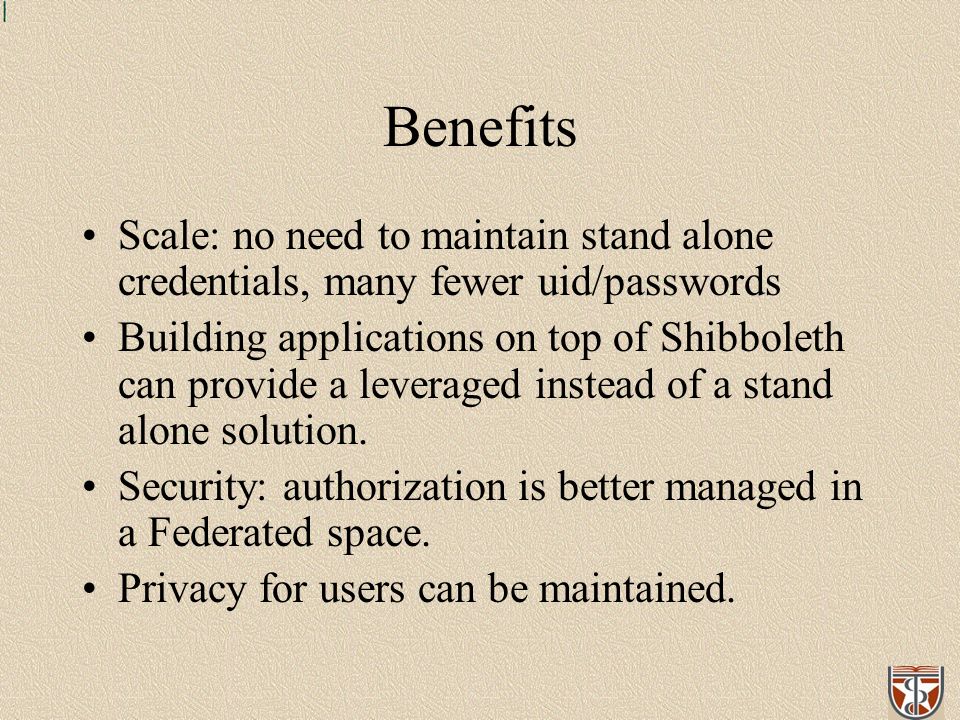

13. Benefits Scale: no need to maintain stand alone credentials, many fewer uid/passwords Building applications on top of Shibboleth can provide a leveraged instead of a stand alone solution. Security: authorization is better managed in a Federated space. Privacy for users can be maintained.

14. Demonstration http://shibpilot.jstor.org:9010 http://bbcommerce.blackboard.com/webapps/ portal/frameset.jsp http://bb.uth.tmc.edu/

15. References http://www.internet2.edu http://www.educause.edu Google searches: NMI-Edit, Shibboleth, Internet2, Middleware Barry.R.Ribbeck@uth.tmc.edu
