1. cs 152 L1 3.1 DAP Fa97,  U.CB Pipelining Lessons °Pipelining doesn’t help latency of single task, it helps throughput of entire workload °Multiple tasks operating simultaneously using different resources °Potential speedup = Number pipe stages °Pipeline rate limited by slowest pipeline stage °Unbalanced lengths of pipe stages reduces speedup °Time to “fill” pipeline and time to “drain” it reduces speedup °Stall for Dependences 6 PM 789 Time B C D A 30 TaskOrderTaskOrder

2. cs 152 L1 3.2 DAP Fa97,  U.CB The Five Stages of Load °Ifetch: Instruction Fetch Fetch the instruction from the Instruction Memory °Reg/Dec: Registers Fetch and Instruction Decode °Exec: Calculate the memory address °Mem: Read the data from the Data Memory °Wr: Write the data back to the register file Cycle 1Cycle 2Cycle 3Cycle 4Cycle 5 IfetchReg/DecExecMemWrLoad

3. cs 152 L1 3.3 DAP Fa97,  U.CB Conventional Pipelined Execution Representation IFetchDcdExecMemWB IFetchDcdExecMemWB IFetchDcdExecMemWB IFetchDcdExecMemWB IFetchDcdExecMemWB IFetchDcdExecMemWB Program Flow Time

4. cs 152 L1 3.4 DAP Fa97,  U.CB Single Cycle, Multiple Cycle, vs. Pipeline Clk Cycle 1 Multiple Cycle Implementation: IfetchRegExecMemWr Cycle 2Cycle 3Cycle 4Cycle 5Cycle 6Cycle 7Cycle 8Cycle 9Cycle 10 LoadIfetchRegExecMemWr IfetchRegExecMem LoadStore Pipeline Implementation: IfetchRegExecMemWrStore Clk Single Cycle Implementation: LoadStoreWaste Ifetch R-type IfetchRegExecMemWrR-type Cycle 1Cycle 2

5. cs 152 L1 3.5 DAP Fa97,  U.CB Why Pipeline? Because the resources are there! I n s t r. O r d e r Time (clock cycles) Inst 0 Inst 1 Inst 2 Inst 4 Inst 3 ALU Im Reg DmReg ALU Im Reg DmReg ALU Im Reg DmReg ALU Im Reg DmReg ALU Im Reg DmReg

6. cs 152 L1 3.6 DAP Fa97,  U.CB Can pipelining get us into trouble? °Yes: Pipeline Hazards structural hazards: attempt to use the same resource two different ways at the same time -E.g., combined washer/dryer would be a structural hazard or folder busy doing something else (watching TV) data hazards: attempt to use item before it is ready -E.g., one sock of pair in dryer and one in washer; can’t fold until get sock from washer through dryer -instruction depends on result of prior instruction still in the pipeline control hazards: attempt to make a decision before condition is evaulated -E.g., washing football uniforms and need to get proper detergent level; need to see after dryer before next load in -branch instructions °Can always resolve hazards by waiting pipeline control must detect the hazard take action (or delay action) to resolve hazards

7. cs 152 L1 3.7 DAP Fa97,  U.CB Mem Single Memory is a Structural Hazard I n s t r. O r d e r Time (clock cycles) Load Instr 1 Instr 2 Instr 3 Instr 4 ALU Mem Reg MemReg ALU Mem Reg MemReg ALU Mem Reg MemReg ALU Reg MemReg ALU Mem Reg MemReg Right half highlight means read, left half write

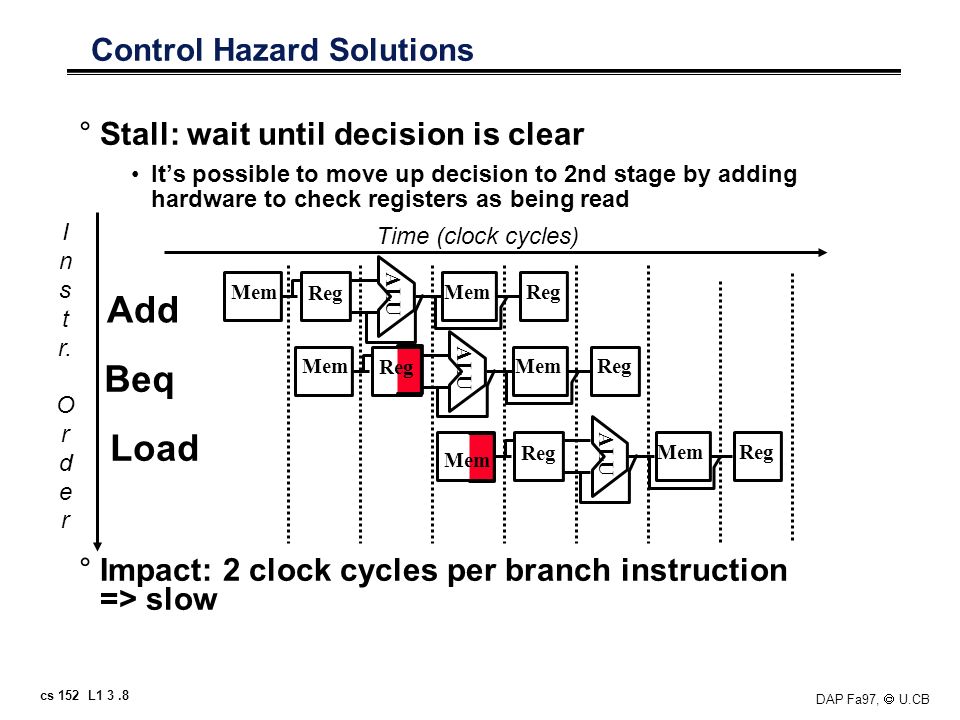

8. cs 152 L1 3.8 DAP Fa97,  U.CB °Stall: wait until decision is clear It’s possible to move up decision to 2nd stage by adding hardware to check registers as being read °Impact: 2 clock cycles per branch instruction => slow Control Hazard Solutions I n s t r. O r d e r Time (clock cycles) Add Beq Load ALU Mem Reg MemReg ALU Mem Reg MemReg ALU Reg MemReg Mem

9. cs 152 L1 3.9 DAP Fa97,  U.CB °Predict: guess one direction then back up if wrong Predict not taken °Impact: 2 clock cycles if wrong (right ­ 50% of time) °More dynamic scheme: history of 1 branch (­ 90%) Control Hazard Solutions I n s t r. O r d e r Time (clock cycles) Add Beq Load ALU Mem Reg MemReg ALU Mem Reg MemReg Mem ALU Reg MemReg

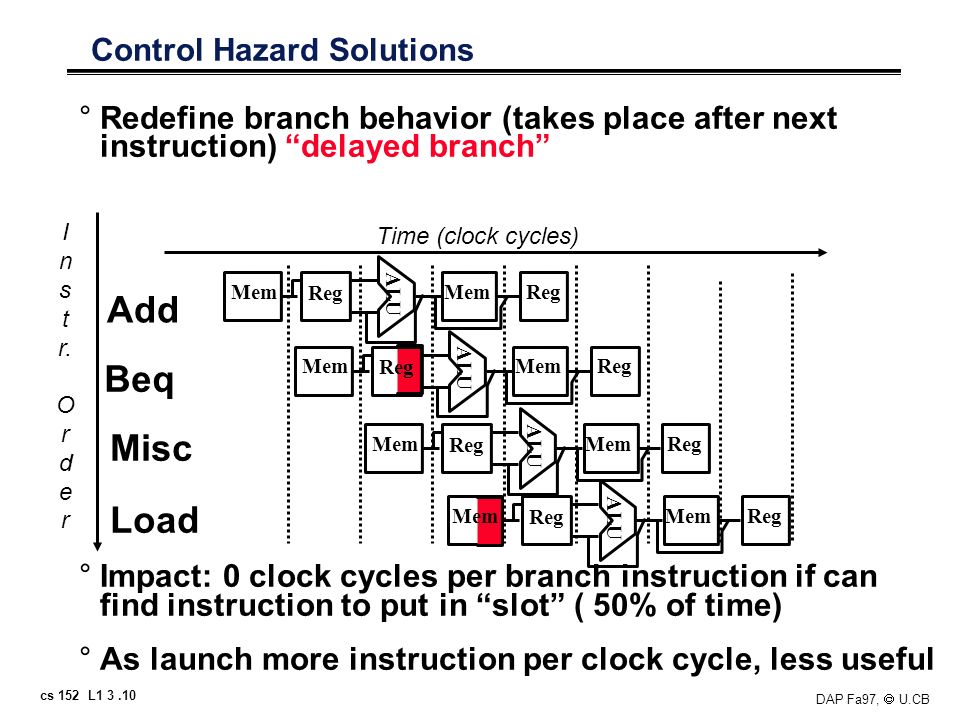

10. cs 152 L1 3.10 DAP Fa97,  U.CB °Redefine branch behavior (takes place after next instruction) “delayed branch” °Impact: 0 clock cycles per branch instruction if can find instruction to put in “slot” (­ 50% of time) °As launch more instruction per clock cycle, less useful Control Hazard Solutions I n s t r. O r d e r Time (clock cycles) Add Beq Misc ALU Mem Reg MemReg ALU Mem Reg MemReg Mem ALU Reg MemReg Load Mem ALU Reg MemReg

11. cs 152 L1 3.11 DAP Fa97,  U.CB Data Hazard on r1 add r1,r2,r3 sub r4, r1,r3 and r6, r1,r7 or r8, r1,r9 xor r10, r1,r11

12. cs 152 L1 3.12 DAP Fa97,  U.CB Dependencies backwards in time are hazards Data Hazard on r1: I n s t r. O r d e r Time (clock cycles) add r1,r2,r3 sub r4,r1,r3 and r6,r1,r7 or r8,r1,r9 xor r10,r1,r11 IFIF ID/R F EXEX ME M WBWB ALU Im Reg Dm Reg ALU Im Reg DmReg ALU Im Reg DmReg Im ALU Reg DmReg ALU Im Reg DmReg

13. cs 152 L1 3.13 DAP Fa97,  U.CB “Forward” result from one stage to another “or” OK if define read/write properly Data Hazard Solution: I n s t r. O r d e r Time (clock cycles) add r1,r2,r3 sub r4,r1,r3 and r6,r1,r7 or r8,r1,r9 xor r10,r1,r11 IFIF ID/R F EXEX ME M WBWB ALU Im Reg Dm Reg ALU Im Reg DmReg ALU Im Reg DmReg Im ALU Reg DmReg ALU Im Reg DmReg

14. cs 152 L1 3.14 DAP Fa97,  U.CB Dependencies backwards in time are hazards Can’t solve with forwarding: Must delay/stall instruction dependent on loads Forwarding (or Bypassing): What about Loads Time (clock cycles) lw r1,0(r2) sub r4,r1,r3 IFIF ID/R F EXEX ME M WBWB ALU Im Reg Dm Reg ALU Im Reg DmReg

15. cs 152 L1 3.15 DAP Fa97,  U.CB Pipelining the Load Instruction °The five independent functional units in the pipeline datapath are: Instruction Memory for the Ifetch stage Register File’s Read ports (Read Register 1 and Read Register 2) for the Reg/Dec stage ALU for the Exec stage Data Memory for the Mem stage Register File’s Write port (Write Register) for the Wr stage Clock Cycle 1Cycle 2Cycle 3Cycle 4Cycle 5Cycle 6Cycle 7 IfetchReg/DecExecMemWr1st lw IfetchReg/DecExecMemWr2nd lw IfetchReg/DecExecMemWr3rd lw

16. cs 152 L1 3.16 DAP Fa97,  U.CB The Four Stages of R-type °Ifetch: Instruction Fetch Fetch the instruction from the Instruction Memory °Reg/Dec: Registers Fetch and Instruction Decode °Exec: ALU operates on the two register operands Update PC °Wr: Write the ALU output back to the register file Cycle 1Cycle 2Cycle 3Cycle 4 IfetchReg/DecExecWrR-type

17. cs 152 L1 3.17 DAP Fa97,  U.CB Pipelining the R-type and Load Instruction °We have pipeline conflict or structural hazard: Two instructions try to write to the register file at the same time! Only one write port Clock Cycle 1Cycle 2Cycle 3Cycle 4Cycle 5Cycle 6Cycle 7Cycle 8Cycle 9 IfetchReg/DecExecWrR-type IfetchReg/DecExecWrR-type IfetchReg/DecExecMemWrLoad IfetchReg/DecExecWrR-type IfetchReg/DecExecWrR-type Ops! We have a problem!

18. cs 152 L1 3.18 DAP Fa97,  U.CB Important Observation °Each functional unit can only be used once per instruction °Each functional unit must be used at the same stage for all instructions: Load uses Register File’s Write Port during its 5th stage R-type uses Register File’s Write Port during its 4th stage IfetchReg/DecExecMemWrLoad 12345 IfetchReg/DecExecWrR-type 1234 °2 ways to solve this pipeline hazard.

19. cs 152 L1 3.19 DAP Fa97,  U.CB Solution 1: Insert “Bubble” into the Pipeline °Insert a “bubble” into the pipeline to prevent 2 writes at the same cycle The control logic can be complex. Lose instruction fetch and issue opportunity. °No instruction is started in Cycle 6! Clock Cycle 1Cycle 2Cycle 3Cycle 4Cycle 5Cycle 6Cycle 7Cycle 8Cycle 9 IfetchReg/DecExecWrR-type IfetchReg/DecExec IfetchReg/DecExecMemWrLoad IfetchReg/DecExecWr R-type IfetchReg/DecExecWr R-type Pipeline Bubble IfetchReg/DecExecWr

20. cs 152 L1 3.20 DAP Fa97,  U.CB Solution 2: Delay R-type’s Write by One Cycle °Delay R-type’s register write by one cycle: Now R-type instructions also use Reg File’s write port at Stage 5 Mem stage is a NOOP stage: nothing is being done. Clock Cycle 1Cycle 2Cycle 3Cycle 4Cycle 5Cycle 6Cycle 7Cycle 8Cycle 9 IfetchReg/DecMemWrR-type IfetchReg/DecMemWrR-type IfetchReg/DecExecMemWrLoad IfetchReg/DecMemWrR-type IfetchReg/DecMemWrR-type IfetchReg/Dec Exec WrR-type Mem Exec 123 4 5

21. cs 152 L1 3.21 DAP Fa97,  U.CB The Four Stages of Store °Ifetch: Instruction Fetch Fetch the instruction from the Instruction Memory °Reg/Dec: Registers Fetch and Instruction Decode °Exec: Calculate the memory address °Mem: Write the data into the Data Memory Cycle 1Cycle 2Cycle 3Cycle 4 IfetchReg/DecExecMemStoreWr

22. cs 152 L1 3.22 DAP Fa97,  U.CB The Three Stages of Beq °Ifetch: Instruction Fetch Fetch the instruction from the Instruction Memory °Reg/Dec: Registers Fetch and Instruction Decode °Exec: compares the two register operand, select correct branch target address update PC Cycle 1Cycle 2Cycle 3Cycle 4 IfetchReg/DecExec Mem BeqWr

23. cs 152 L1 3.23 DAP Fa97,  U.CB Pipeline Control

24. cs 152 L1 3.24 DAP Fa97,  U.CB °We have 5 stages. What needs to be controlled in each stage? Instruction Fetch and PC Increment Instruction Decode / Register Fetch Execution Memory Stage Write Back °How would control be handled in an automobile plant? a fancy control center telling everyone what to do? should we use a finite state machine? Pipeline control

25. cs 152 L1 3.25 DAP Fa97,  U.CB °Pass control signals along just like the data Pipeline Control

26. cs 152 L1 3.26 DAP Fa97,  U.CB Datapath with Control
