1. Computer Science 209 GUIs Model/View/Controller Layouts

2. Graphical User Interfaces A GUI provides a human user with a view of the state of a data model and with controls for manipulating it A GUI consists of windows, icons, a mouse, and pull-down menus (WIMP), among other things

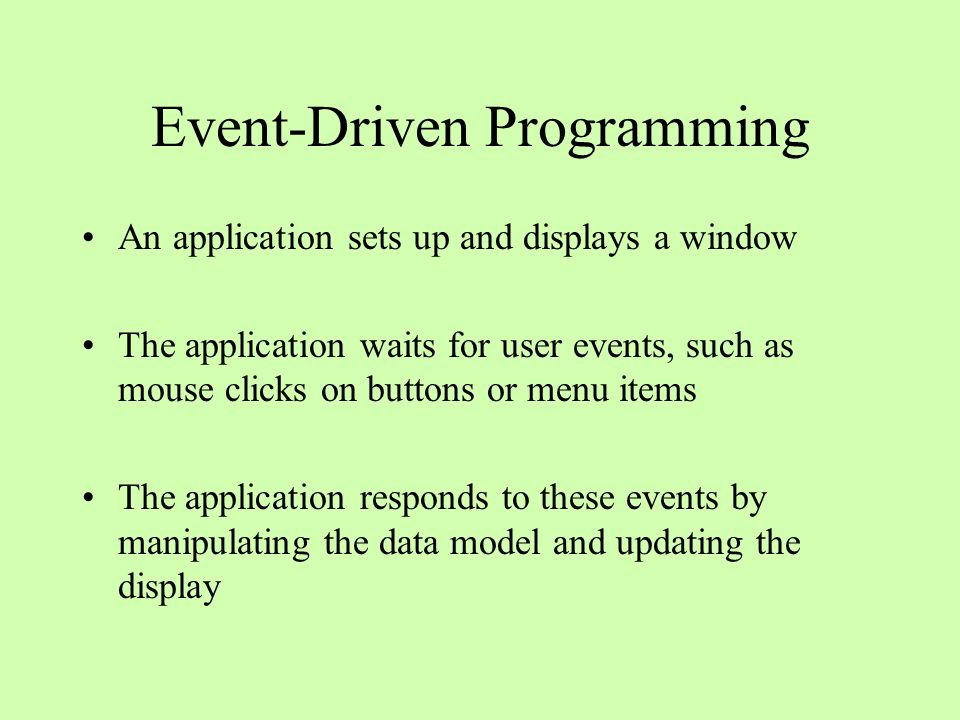

3. Event-Driven Programming An application sets up and displays a window The application waits for user events, such as mouse clicks on buttons or menu items The application responds to these events by manipulating the data model and updating the display

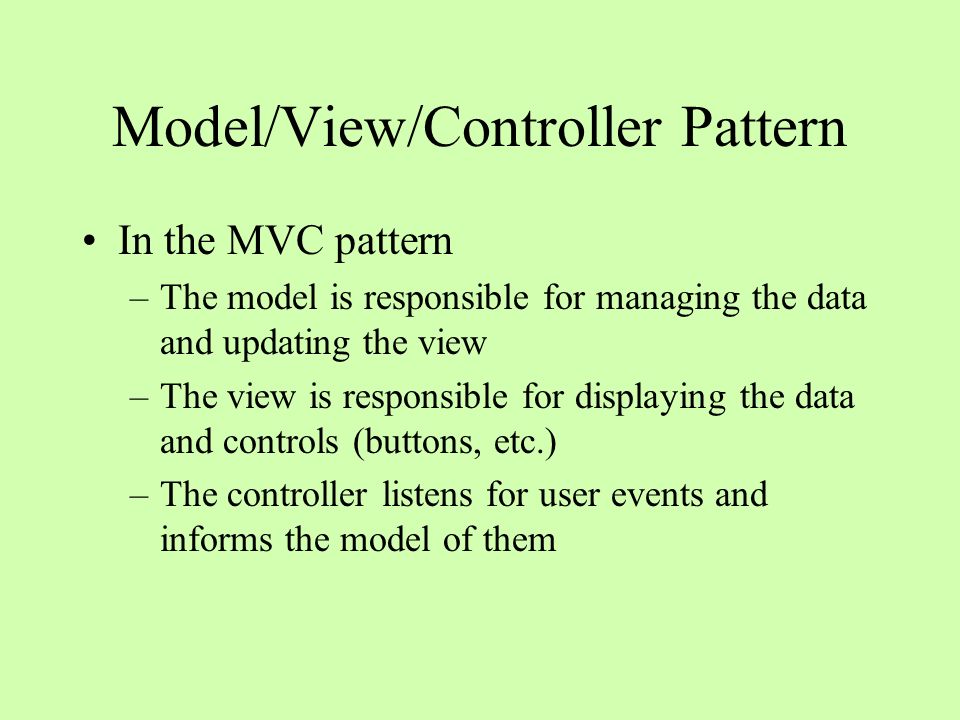

4. Model/View/Controller Pattern In the MVC pattern –The model is responsible for managing the data and updating the view –The view is responsible for displaying the data and controls (buttons, etc.) –The controller listens for user events and informs the model of them

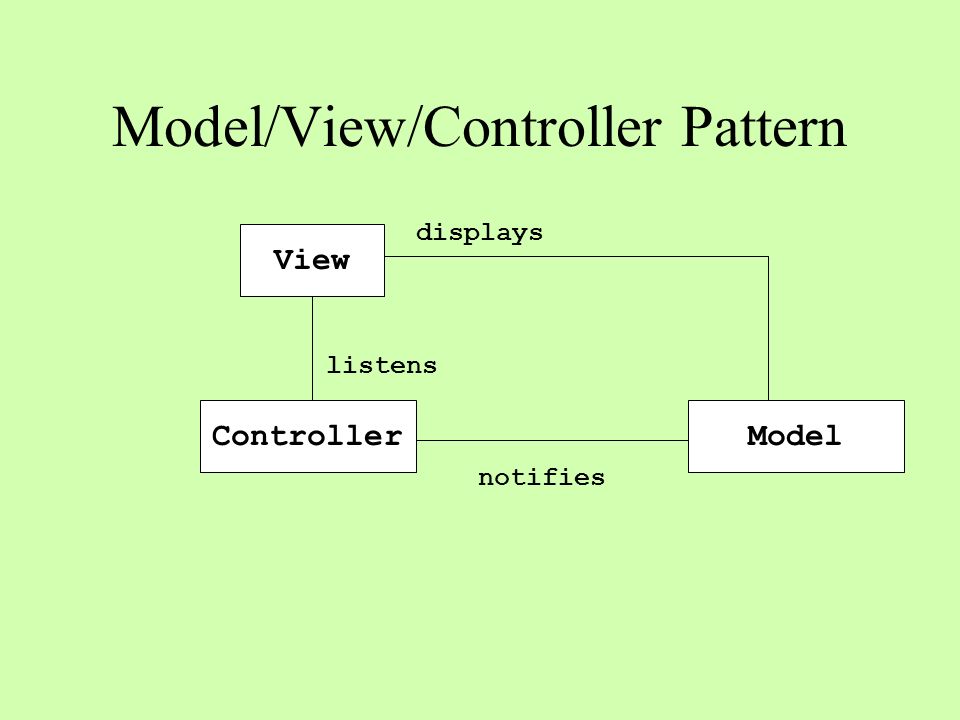

5. Model/View/Controller Pattern View ControllerModel displays listens notifies

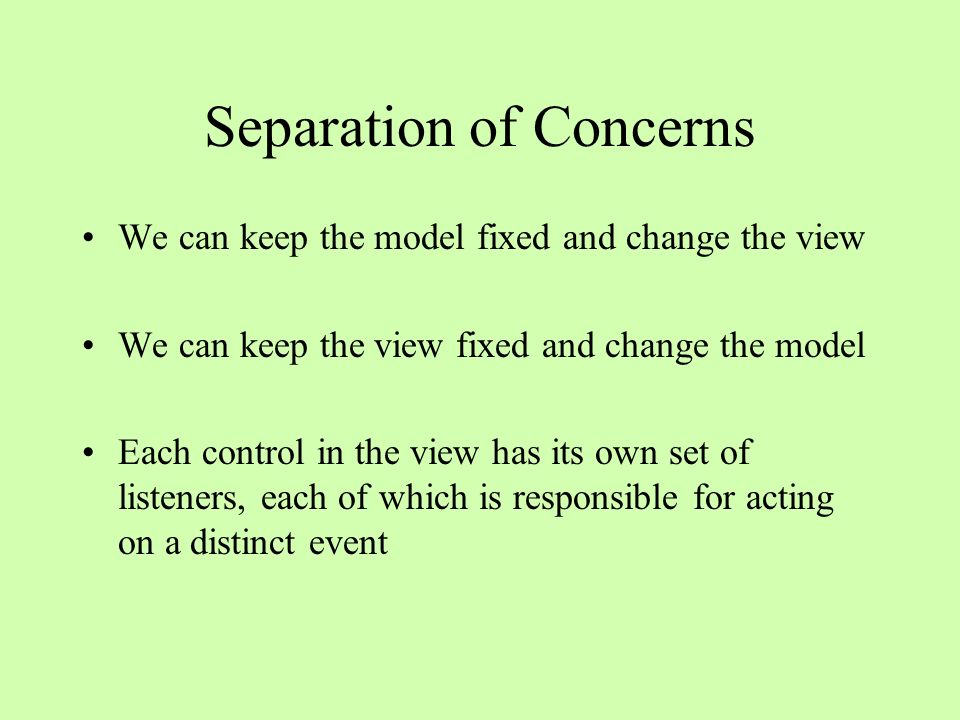

6. Separation of Concerns We can keep the model fixed and change the view We can keep the view fixed and change the model Each control in the view has its own set of listeners, each of which is responsible for acting on a distinct event

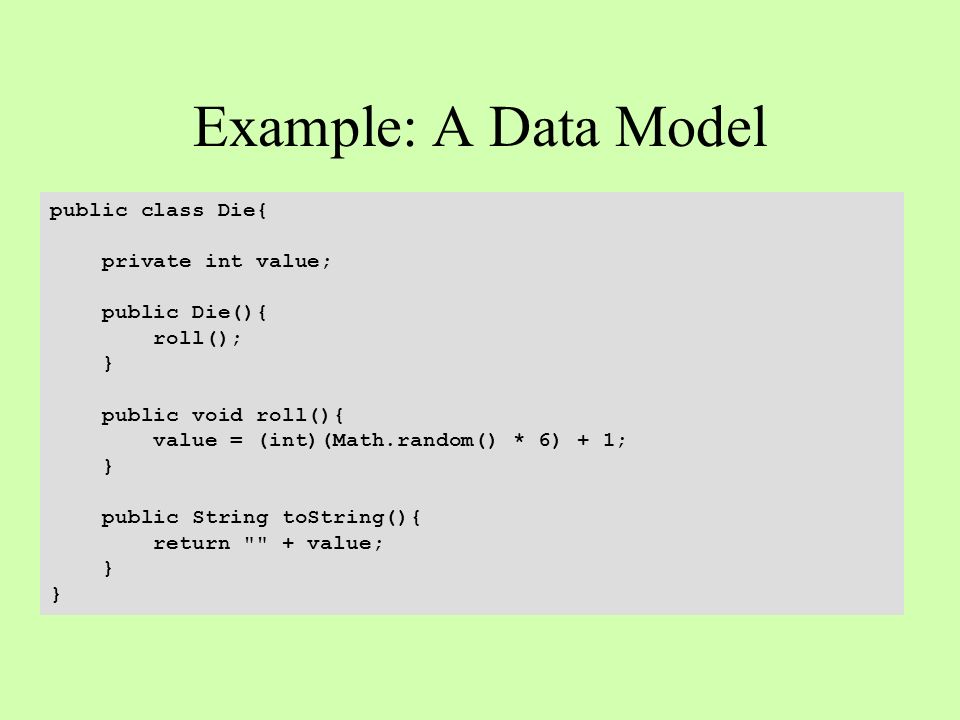

7. Example: A Data Model public class Die{ private int value; public Die(){ roll(); } public void roll(){ value = (int)(Math.random() * 6) + 1; } public String toString(){ return "" + value; }

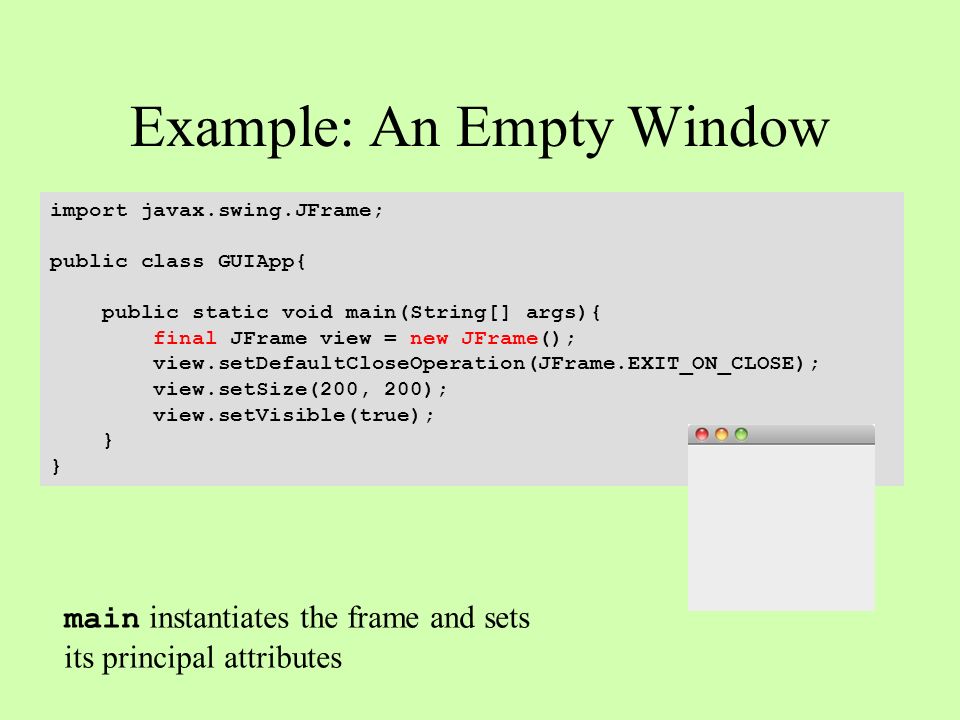

8. Example: An Empty Window import javax.swing.JFrame; public class GUIApp{ public static void main(String[] args){ final JFrame view = new JFrame(); view.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); view.setSize(200, 200); view.setVisible(true); } main instantiates the frame and sets its principal attributes

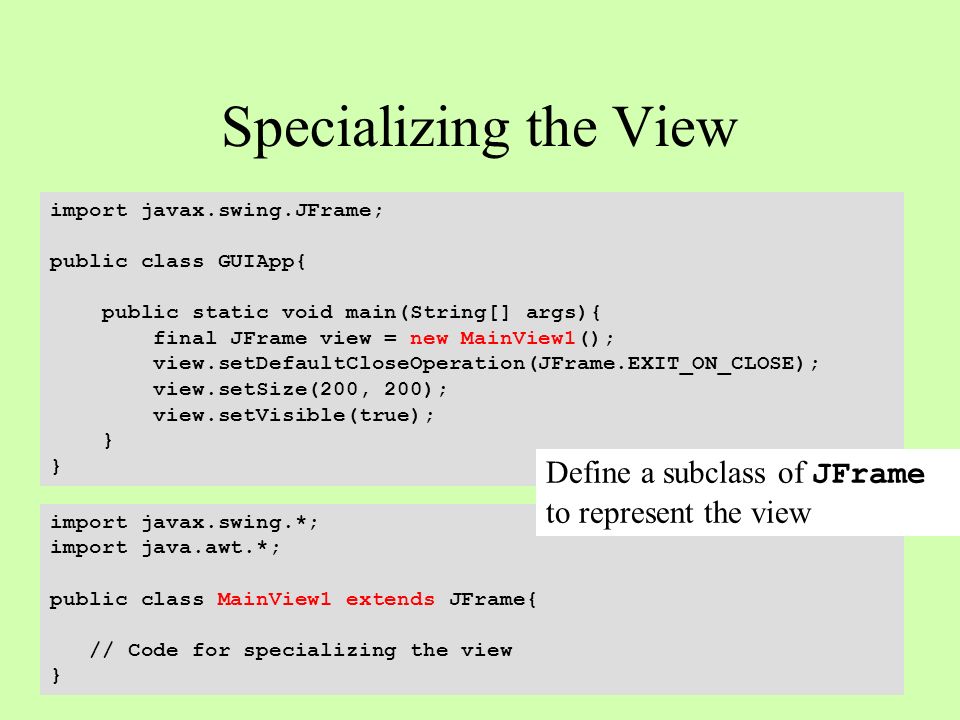

9. Specializing the View import javax.swing.JFrame; public class GUIApp{ public static void main(String[] args){ final JFrame view = new MainView1(); view.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); view.setSize(200, 200); view.setVisible(true); } import javax.swing.*; import java.awt.*; public class MainView1 extends JFrame{ // Code for specializing the view } Define a subclass of JFrame to represent the view

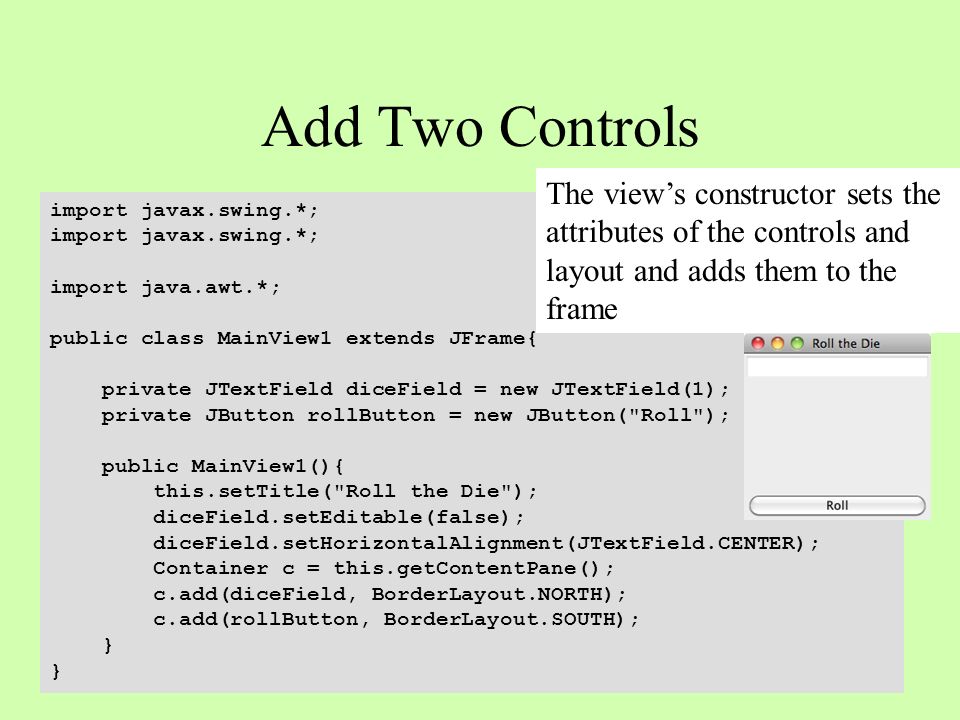

10. Add Two Controls import javax.swing.*; import java.awt.*; public class MainView1 extends JFrame{ private JTextField diceField = new JTextField(1); private JButton rollButton = new JButton("Roll"); public MainView1(){ this.setTitle("Roll the Die"); diceField.setEditable(false); diceField.setHorizontalAlignment(JTextField.CENTER); Container c = this.getContentPane(); c.add(diceField, BorderLayout.NORTH); c.add(rollButton, BorderLayout.SOUTH); } The view’s constructor sets the attributes of the controls and layout and adds them to the frame

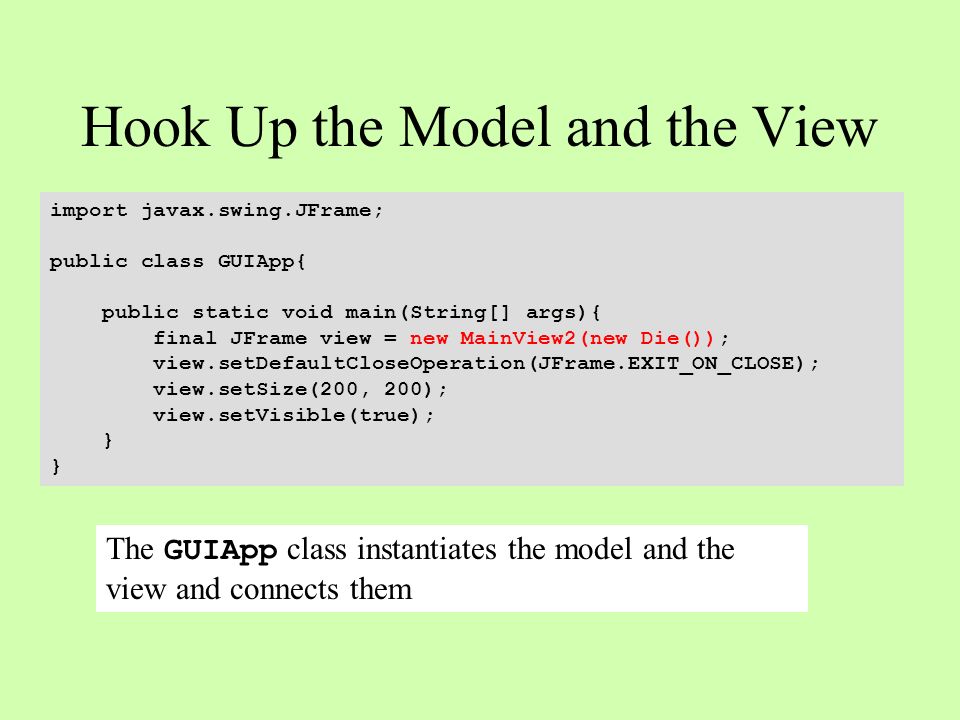

11. Hook Up the Model and the View import javax.swing.JFrame; public class GUIApp{ public static void main(String[] args){ final JFrame view = new MainView2(new Die()); view.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); view.setSize(200, 200); view.setVisible(true); } The GUIApp class instantiates the model and the view and connects them

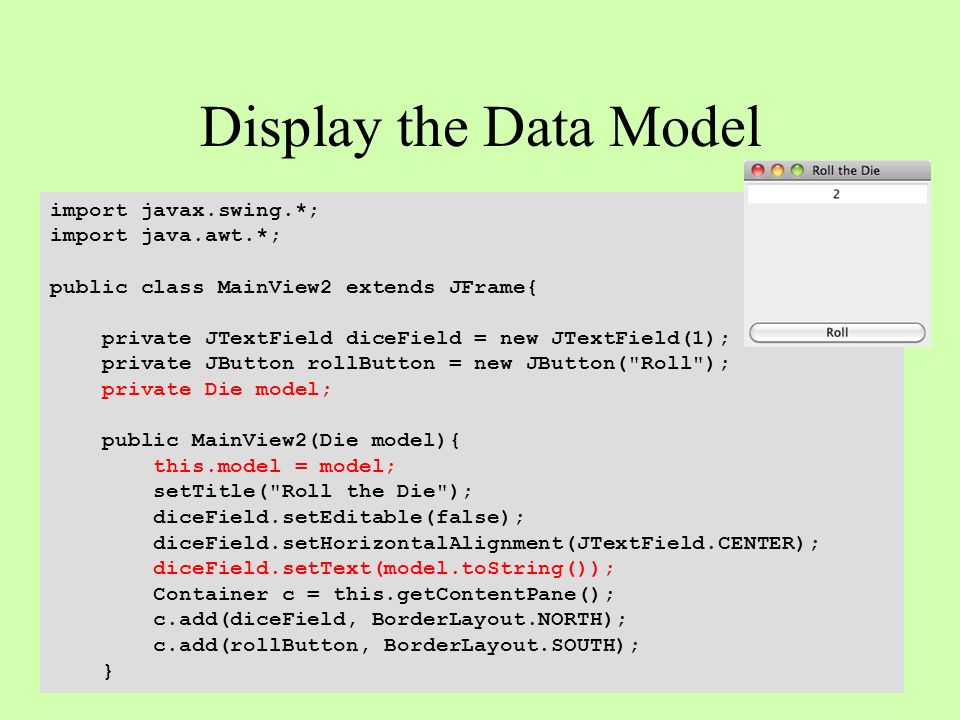

12. Display the Data Model import javax.swing.*; import java.awt.*; public class MainView2 extends JFrame{ private JTextField diceField = new JTextField(1); private JButton rollButton = new JButton("Roll"); private Die model; public MainView2(Die model){ this.model = model; setTitle("Roll the Die"); diceField.setEditable(false); diceField.setHorizontalAlignment(JTextField.CENTER); diceField.setText(model.toString()); Container c = this.getContentPane(); c.add(diceField, BorderLayout.NORTH); c.add(rollButton, BorderLayout.SOUTH); }

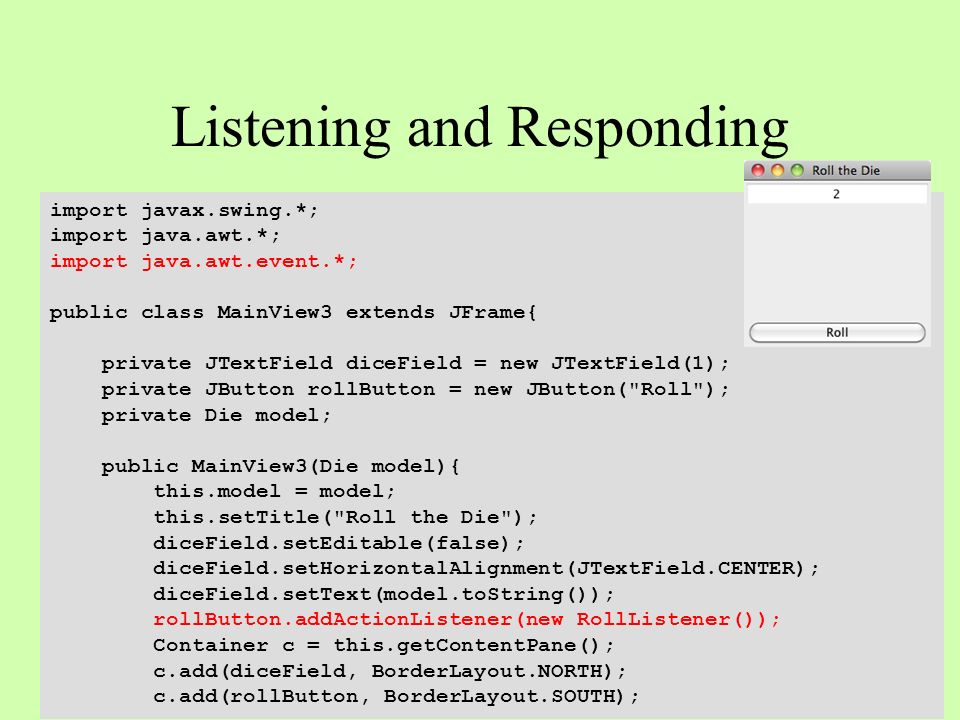

13. Listening and Responding import javax.swing.*; import java.awt.*; import java.awt.event.*; public class MainView3 extends JFrame{ private JTextField diceField = new JTextField(1); private JButton rollButton = new JButton("Roll"); private Die model; public MainView3(Die model){ this.model = model; this.setTitle("Roll the Die"); diceField.setEditable(false); diceField.setHorizontalAlignment(JTextField.CENTER); diceField.setText(model.toString()); rollButton.addActionListener(new RollListener()); Container c = this.getContentPane(); c.add(diceField, BorderLayout.NORTH); c.add(rollButton, BorderLayout.SOUTH);

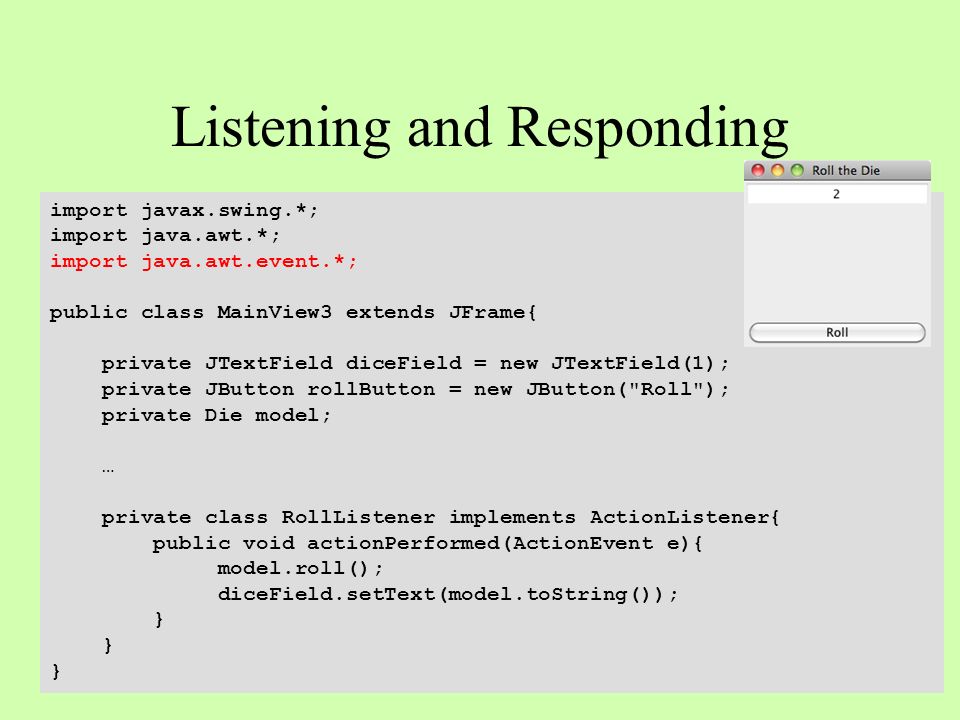

14. Listening and Responding import javax.swing.*; import java.awt.*; import java.awt.event.*; public class MainView3 extends JFrame{ private JTextField diceField = new JTextField(1); private JButton rollButton = new JButton("Roll"); private Die model; … private class RollListener implements ActionListener{ public void actionPerformed(ActionEvent e){ model.roll(); diceField.setText(model.toString()); }

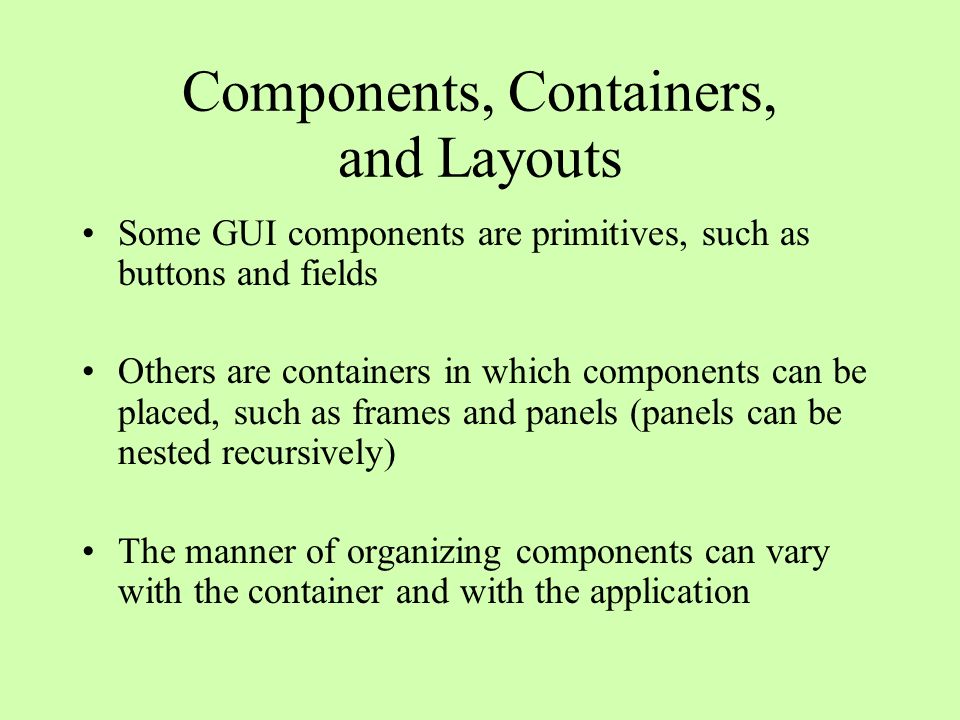

15. Components, Containers, and Layouts Some GUI components are primitives, such as buttons and fields Others are containers in which components can be placed, such as frames and panels (panels can be nested recursively) The manner of organizing components can vary with the container and with the application

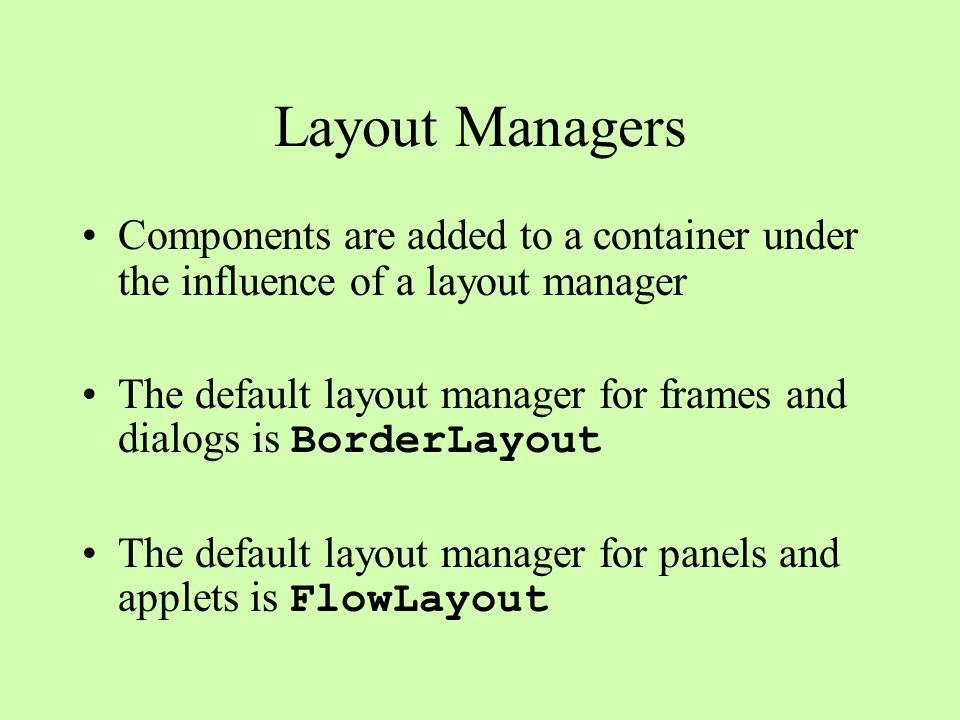

16. Layout Managers Components are added to a container under the influence of a layout manager The default layout manager for frames and dialogs is BorderLayout The default layout manager for panels and applets is FlowLayout

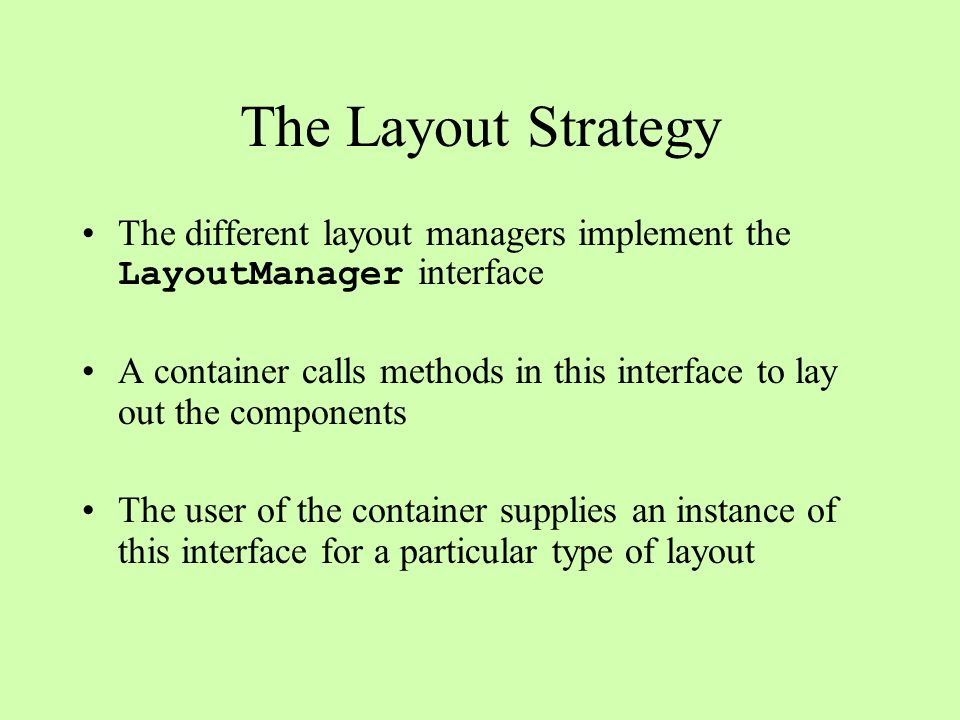

17. The Layout Strategy The different layout managers implement the LayoutManager interface A container calls methods in this interface to lay out the components The user of the container supplies an instance of this interface for a particular type of layout

18. Common Layouts FlowLayout Wrap around effect BorderLayout 5 distinct areas GridLayout Two-dimensional grid of equal-sized areas GridBagLayout Allows stretching of cells across rows and columns

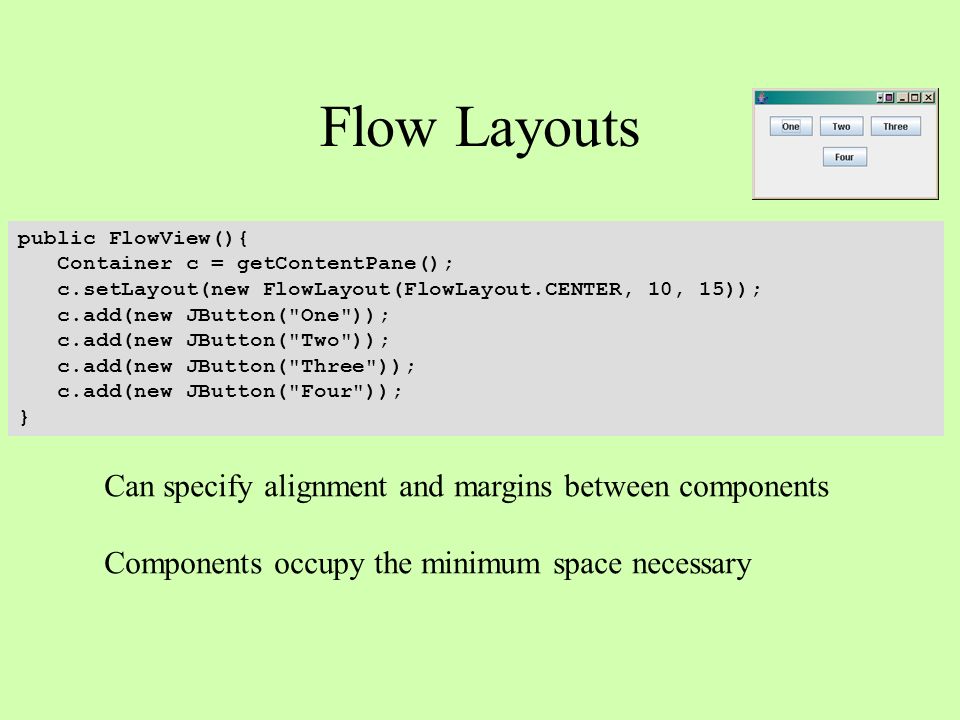

19. Flow Layouts public FlowView(){ Container c = getContentPane(); c.setLayout(new FlowLayout(FlowLayout.CENTER, 10, 15)); c.add(new JButton("One")); c.add(new JButton("Two")); c.add(new JButton("Three")); c.add(new JButton("Four")); } Can specify alignment and margins between components Components occupy the minimum space necessary

20. Border Layouts public BorderView(){ Container c = getContentPane(); c.add(new JButton("North"), BorderLayout.NORTH); c.add(new JButton("East"), BorderLayout.EAST); c.add(new JButton("South"), BorderLayout.SOUTH); c.add(new JButton("West"), BorderLayout.WEST); c.add(new JButton("Center”), BorderLayout.CENTER); } Components stretch to fill their areas Filled areas expand to fill areas left empty

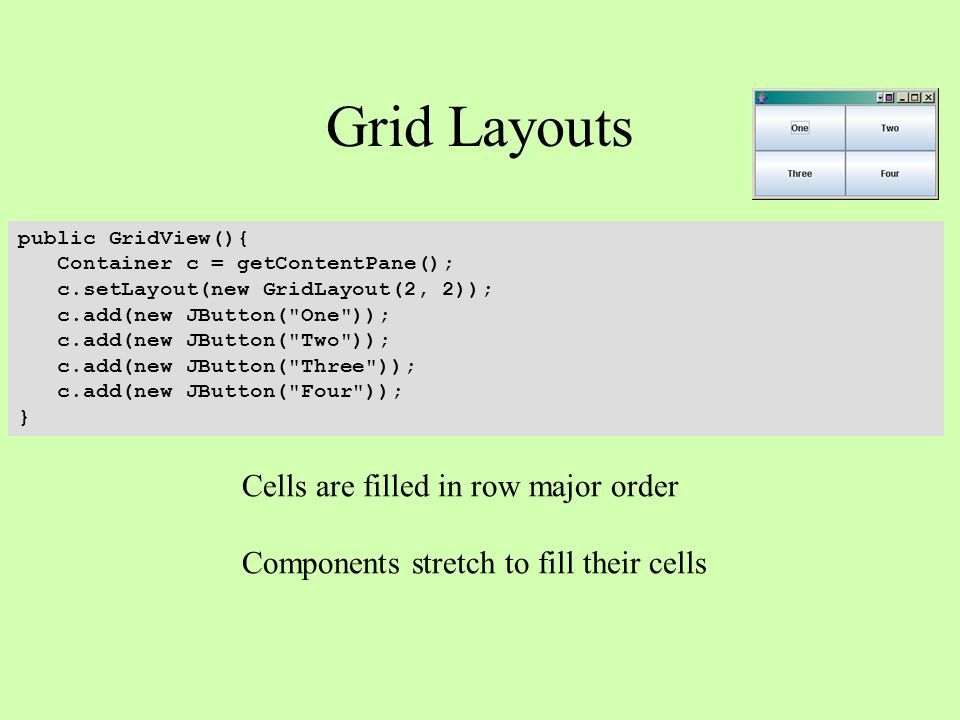

21. Grid Layouts public GridView(){ Container c = getContentPane(); c.setLayout(new GridLayout(2, 2)); c.add(new JButton("One")); c.add(new JButton("Two")); c.add(new JButton("Three")); c.add(new JButton("Four")); } Cells are filled in row major order Components stretch to fill their cells

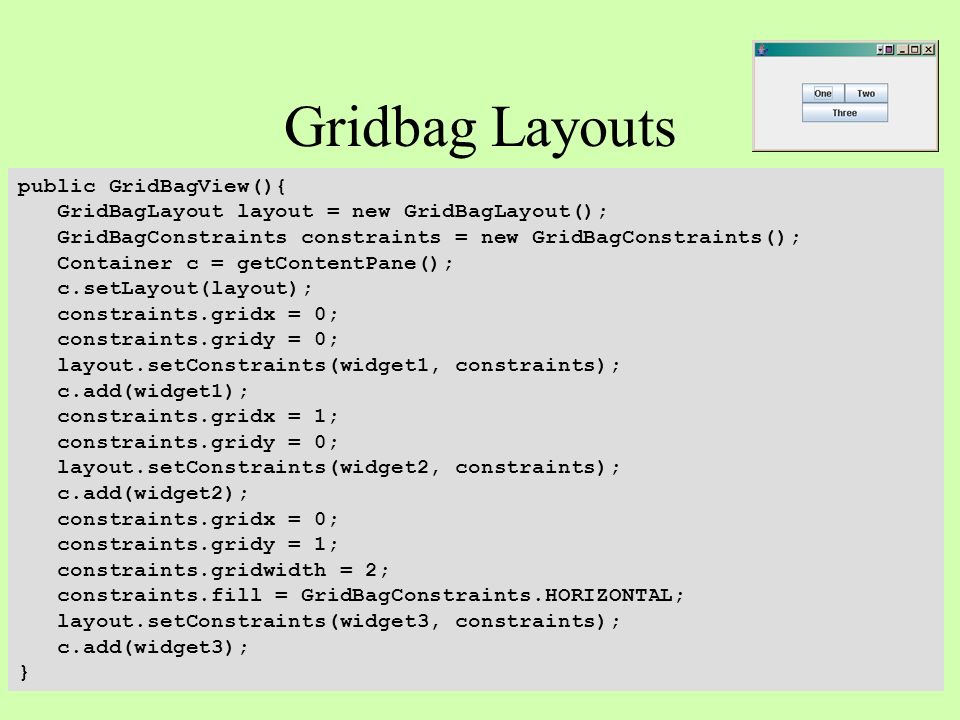

22. Gridbag Layouts public GridBagView(){ GridBagLayout layout = new GridBagLayout(); GridBagConstraints constraints = new GridBagConstraints(); Container c = getContentPane(); c.setLayout(layout); constraints.gridx = 0; constraints.gridy = 0; layout.setConstraints(widget1, constraints); c.add(widget1); constraints.gridx = 1; constraints.gridy = 0; layout.setConstraints(widget2, constraints); c.add(widget2); constraints.gridx = 0; constraints.gridy = 1; constraints.gridwidth = 2; constraints.fill = GridBagConstraints.HORIZONTAL; layout.setConstraints(widget3, constraints); c.add(widget3); }

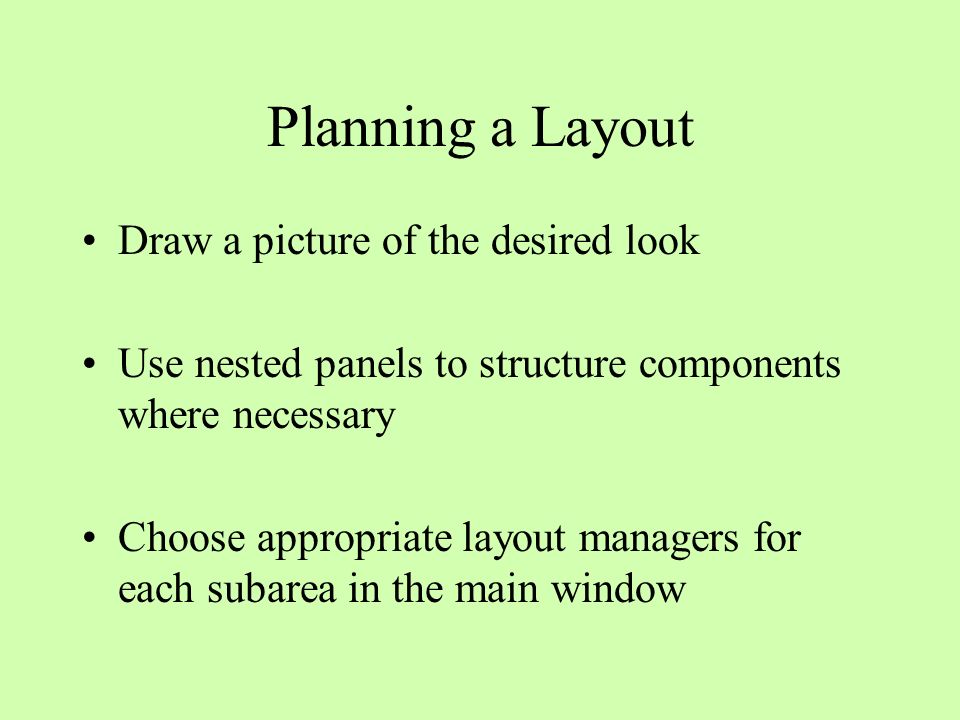

23. Planning a Layout Draw a picture of the desired look Use nested panels to structure components where necessary Choose appropriate layout managers for each subarea in the main window

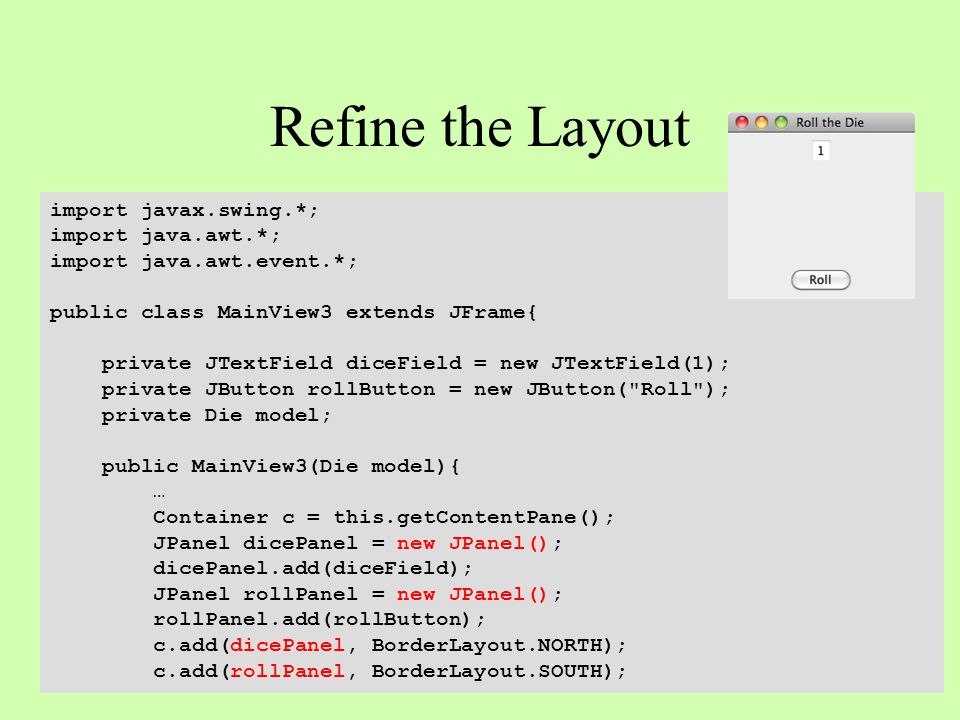

24. Refine the Layout import javax.swing.*; import java.awt.*; import java.awt.event.*; public class MainView3 extends JFrame{ private JTextField diceField = new JTextField(1); private JButton rollButton = new JButton("Roll"); private Die model; public MainView3(Die model){ … Container c = this.getContentPane(); JPanel dicePanel = new JPanel(); dicePanel.add(diceField); JPanel rollPanel = new JPanel(); rollPanel.add(rollButton); c.add(dicePanel, BorderLayout.NORTH); c.add(rollPanel, BorderLayout.SOUTH);

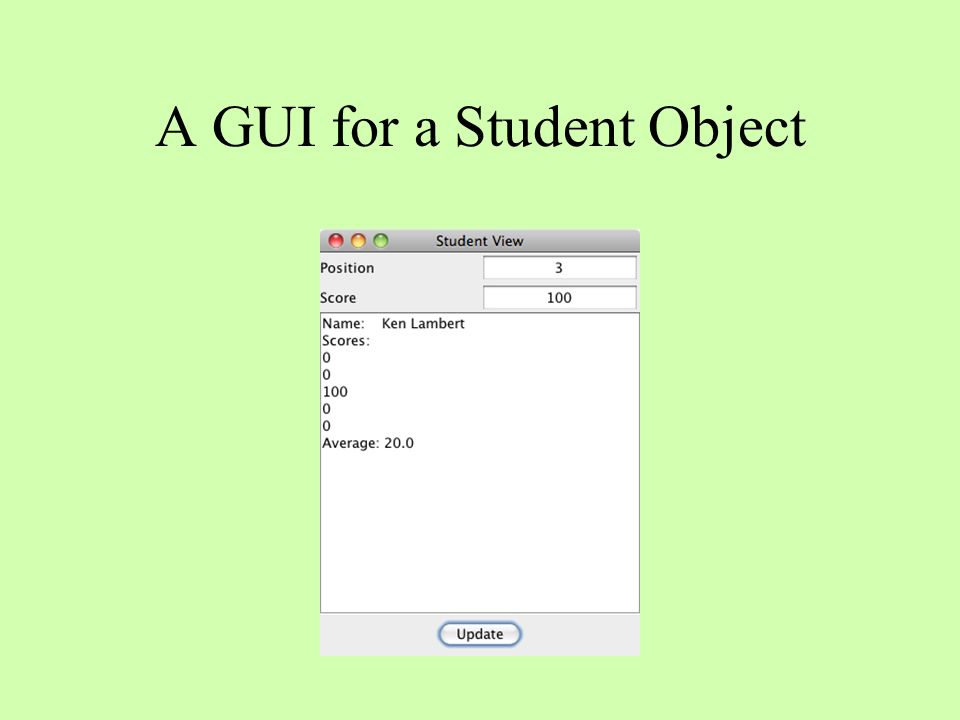

25. A GUI for a Student Object
