1 IBM Software Group/ CIO EODT ® IBM SWG Industry Solutions & CIO EODT A Proposal for a Web Services-Based Approach to Vertical Industry Standards

2 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Vertical XML Industry Standards… today’s background  Multiple industry standards use the same or similar messaging infrastructures  Example: several vertical standards use or recommend the RosettaNet Implementation Framework (RNIF) as their messaging infrastructure - CIDX, PIDX, OAGi and RosettaNet  The market is searching for less expensive and more functional interconnectivity infrastructures to increase the ROI of supply chain initiatives  Web Services now offer a robust alternative approach  Replacing RNIF with Web Services would provide Web Services with several built in business communities for transition  RosettaNet itself wishes to move away from RNIF as soon as other messaging infrastructures are available (WS, AS2, …)

3 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT RosettaNet and Web Services will both benefit RosettaNet Users Gain…  Ability to link existing RosettaNet PIPs to create more powerful automated transactions. For example:  “Query these n suppliers and buy this item on the best combination of spec, price and availability”  “Check this buyer’s credit in real time as part of his purchase request”  New combinations of PIPs and standardized “ancillary” services?  Check validity of requested product configurations (and suggest amendments for faulty configurations)  Identify services available to support a given hardware or software product (and alternatives)  Verify lines entered in an order  Automatically check validity of serial numbers  View service contract/coverage for a given serial #  Scalability - reduced boarding and implementation costs  Increased take-up of RosettaNet – ecosystem benefits Web Services Gains…  Critical mass of RN users in Technology, Logistics and Telecoms Sectors who want to see the cost and functional advantages of web services  … and of others standards users – CIDX, PIDX, OAG – who use the same existing RNIF transport as RosettaNet  Business-level standardization of deployment and use of web services

4 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT What has to be done (1/2)?  We have to replace the RosettaNet Implementation Framework (RNIF) with a web services equivalent  This will be the role of the Multiple Messaging Services (MMS) program

5 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT What has to be done (2/2)?  Existing RosettaNet PIPs will be re- factored into xml schema (as is being undertaken now)  We then have to:  Recreate the choreography and orchestration of each PIP, using Business Process Execution Language (BPEL)  Define and reference the separate web services that execute the PIP, using Web Services Description Language (WSDL)  This could be the subject of future milestone programs  In addition the Message Control and Choreography (MCC) program will define how PIPs can be linked

6 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT How is IBM supporting the creation of “RosettaNet over Web Services”?  White paper, setting out how to replace existing RNIF capabilities with web services  Whitepaper will be made available shortly  Participation in RosettaNet Multiple Messaging Services (MMS) program  We will participate in the Web Services workgroup  White Paper will provide a key input  We will be joining Intel, Cisco, HP, DHL, E2Open, Formfill, Fujitsu, Motorola, Sterling Commerce, Tyco and ePSA  As MMS completes:  Propose the re-start of Message Control and Choreography (MCC) program to identify ways to leverage web services to create more functional PIPs  Identify priorities for PIPs to recreate with BPEL

7 “IT IS CLEAR THAT ROSETTANET OVER WEB SERVICES WILL BE A DISRUPTIVE CAPABILITY FOR B2B AND WILL SPRINGBOARD ADOPTION AND ACCELERATE BUSINESS VALUE. CISCO HAS BEEN AND CONTINUES TO BE AN ACTIVE ADVOCATE OF WEB SERVICES ENABLEMENT. ” 7 ANDY STARR, Senior Director Enterprise B2B

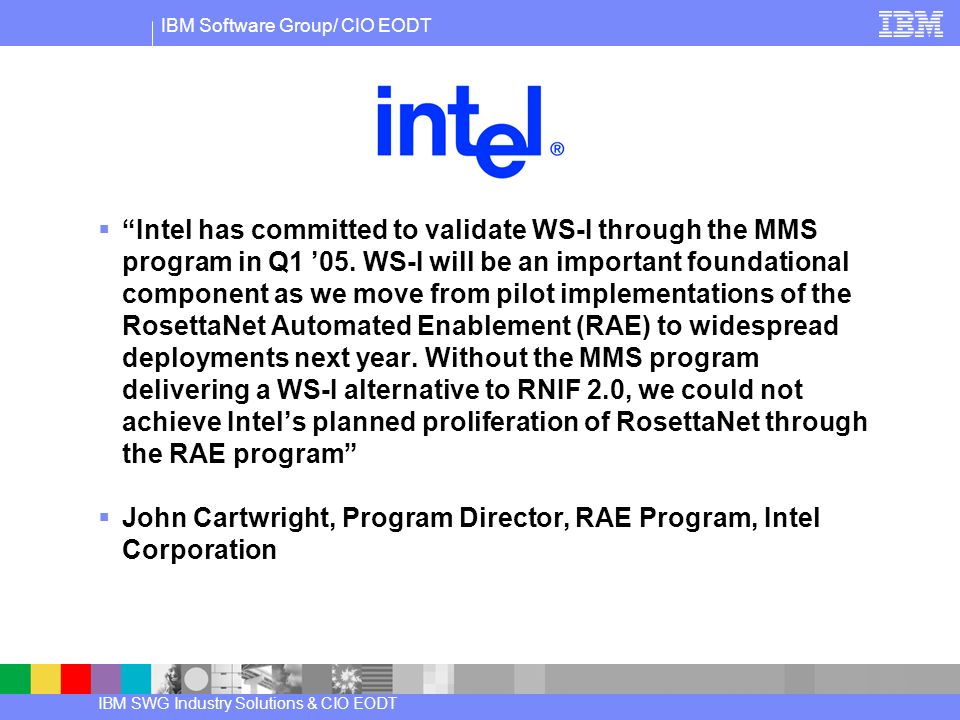

8 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT  “Intel has committed to validate WS-I through the MMS program in Q1 ’05. WS-I will be an important foundational component as we move from pilot implementations of the RosettaNet Automated Enablement (RAE) to widespread deployments next year. Without the MMS program delivering a WS-I alternative to RNIF 2.0, we could not achieve Intel’s planned proliferation of RosettaNet through the RAE program”  John Cartwright, Program Director, RAE Program, Intel Corporation

9 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT High Level Overview of WS Approach (1/2) Modernization and Repackaging or Adaptation of the Business Message  Conversion of non-schemas definitions from XML DTD to XML Schema Business Message header documents Business signal documents defined in RNIF Business action documents  Create a set of files for each role in the process (ie, buyer and seller) WSDL definitions Abstract BPEL processes WS-Policy requirements

10 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT High Level Overview of WS Approach (2/2) We propose the following Web Services runtime stack for message exchange and handling  WS-BPEL sub-system  WS-Security sub-system (inc signature/validation and encryption/decryption)  WS-ReliableMessaging sub-system  Non-repudiation sub-system (recommendation for WS-Security)  RosettaNet unique message validation sub-system  WS-Addressing sub-system.  WS-Policy (including WS-SecurityPolicy and WS- PolicyAttachment)  Implemented via sub-systems above

11 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Web Services QoS and Policy Files Covering all the security requirements and some of the timing requirements specified in the PIP requires:  QoS parameters to be defined externally using the pluggable WS-Policy framework and attached to different parts of a WSDL definition using the WS-PolicyAttachment specification  WS-Policy assertions related to WS-Security to be defined in the WS-SecurityPolicy specification  WS-Policy assertions related to WS-ReliableMessaging to be defined within the WS-ReliableMessaging specification itself

12 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT <invoke> Seller sendPO <invoke> Seller sendPO <receive> Seller confirm <receive> Seller confirm privateP rcvPO privateP rcvPO <invoke> Seller sendPO <invoke> buyer confirm Business Messages in BPEL Executable Processes - Private View (Derived from abstract) <invoke> Seller sendPO <invoke> Seller sendPO <receive> Seller confirm <receive> Seller confirm privateP rcvPO privateP rcvPO <invoke> Seller sendPO <invoke> buyer confirm privateP rcvPO buyer rcvPO privateS sendPO privateP rcvPO privateS confirm Buyer’s Backend Systems Seller’s Backend Systems privateP confirm Abstract Processes - Standards View Buyer Seller WS-Security WS-ReliableMessaging Policy Attachments SOAP w/ WS-Security WS-ReliableMessaging Headers privateP rcvPO buyer rcvPO

13 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT  In addition to the business message exchanged, the following are included in the full abstract BPEL processes:  Timers  Business level acknowledgements  Fault handling and out of band failure notification (example: PIP 0A1)  Content and business specific validation  Managed by the rest of WS stack:  Security  Retries  Schema validation Business Messages in BPEL

14 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Provider PO buyer PO Seller Event Handler: sellerFailure: throw fault Event Handler: buyerFailure: throw fault <invoke> Seller sendPO <invoke> Seller confAck Alarm Handler: 24 hours send buyerFailure invoke 0A1 throw fault Buyer FaultHandler: x send buyerFailure throw fault FaultHandler: y invoke 0A1 confirm= opaque Fault x POValid Fault x confValid Seller POAck Alarm Handler 8 Hours Send buyerFailure Throw fault y <receive> Seller confirm <receive> Seller confirm privateP rcvPO private P rcvPO buyer confAck Alarm Handler 8 Hours Send buyerFailure Throw fault y buyer confirm confValid= opaque confAck= opaque <invoke> Seller sendPO <invoke> Seller sendPO POValid= opaque POAck= opaque buyer POAck Full Abstract BPEL Processes - Typical Example FaultHandler: y invoke 0A1

15 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Our proposals and MMS  Scope of MMS program is a subset of the scope of this proposal that is specific to the aspect of finding alternates for RNIF  The recommendations in this proposal for supporting reliable messaging and RosettaNet specified QoS criteria (re-tries, timeouts, non-repudiation, encryption etc.) will help define the Web Services implementation for MMS  Will be built on the Web Services standards that include WS- Security, WS-ReliableMessaging, WS-Policy, WS-Addressing etc.  Work will be needed to define the mapping between the elements of this proposal and the Abstract Messaging Definition (AMD)

16 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT What are we proposing? RosettaNet Implementation Framework (RNIF) Policies Security (authentication, non-repudiation S/MIME, x509 v1/3) Compliance Trading Partner Agreements Specifications Network protocols Message structure Message handling Exception handling Architecture Meta-model: A generic message Network component reference model Initially, seven Web Service specifications will be used: XML Schema – Message Part Definitions WSDL – Interface & Message Definitions WS-BPEL – Process Choreography WS-Security – All Security Functions WS-Reliable Messaging – Reliable Message Delivery WS-Policy WS-SecurityPolicy - Security QOS WS-PolicyAttachment – Other QOS WS-Addressing – All Service Addressing

17 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Next Steps (1/2)  WS Standards stack:  Add functionality to existing standards Non-repudiation (recommendation made to WS-I Security Group on non-repudiation of receipt; further work needed on non- repudiation of origin and content) RN-specific processing  Validate assumptions: WS-Security sub-system must cover attachments WS-ReliableMessaging will require a policy assertion for max attempts  Areas that were left for future investigation: XML Namespace usage (currently an issue for other vertical standards)

18 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Next Steps (2/2)  MMS (Web Services)  Create WS-enabled transport mechanism and gain RosettaNet ratification  MCC  Build on existing demonstrator to define how to link multiple PIPs in more powerful transactions  Creation of “ancillary” services/PIPs?  Application to PIPs  Define priorities for enablement of existing PIPs  Undertake enablement

19 IBM Software Group/ CIO EODT ® IBM SWG Industry Solutions & CIO EODT Backup Material

20 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT RosettaNet Implementation Framework Policies Security (authentication, non- repudiation S/MIME, x509v1/3) Compliance Trading Partner Agreements Specifications Network protocols Message structure Message handling Exception handling Architecture Meta-model: A generic message Network component reference model RN Implementation Framework (RNIF) (packaging, transfer, routing, security) The RNIF is independent of the messages that it transports RNIF is the framework on which the business content/business messages rests, “implementing” the vertical standards in system to system terms

21 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Multi-Party Multi-PIP Example over RNIF 3A2 PIP 3A4 PIP 3A2 PIP 3A4 PIP BuyerSeller/Supplier 1 3A2 PIP RN-Gateway RNIF 2.0 over HTTPS RN Gateway Supplier Backend Application Supplier Backend Application Enterprise EAI Private Procurement Application RN Gateway Message ValidationRNIF InfrastructureMessage ValidationRNIF Infrastructure Message ValidationRNIF Infrastructure 3A2 – Request for Quote 3A4 – Submit Order Seller/Supplier 2 Public Process Note: Internal process engine must initiate each individual PIP process for each partner and understand total process A “Purchase via Lowest Price” Scenario

22 IBM Software Group/ CIO EODT IBM SWG Industry Solutions & CIO EODT Seller 1 Internal BPEL Seller 2 Internal BPEL Multiparty Process Flow Using WS Seller 1BuyerSeller 2 RFQ ProcurementWSDLs RFQ 1., 2. Generate RFQ RFQ 3., 4. Generate Std RFQ 5., 6. Receive RFQ Response 7., 8. Return prices PO 15. Procurement Process Done PO 11. Generate PO 12. Generate PO Request 13. Receive PO Response 14. Return Confirmation 10. Trigger PO Process WSDLs 9. Pick Winner Buyer Internal BPEL External BPEL
