2. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry ? Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects.

3. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry 30 o

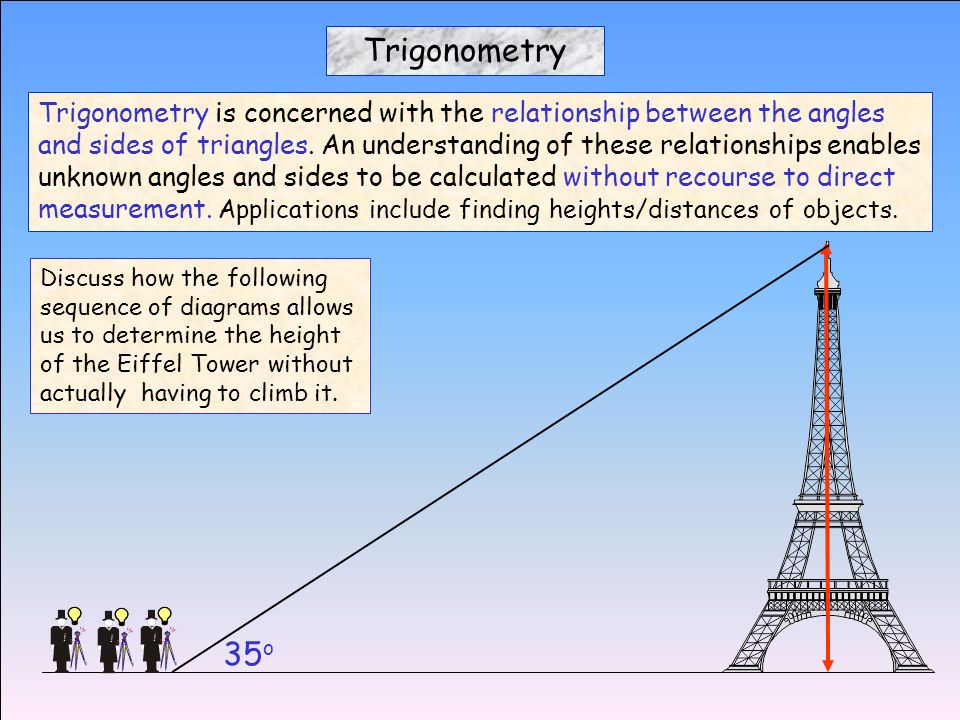

4. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry 35 o

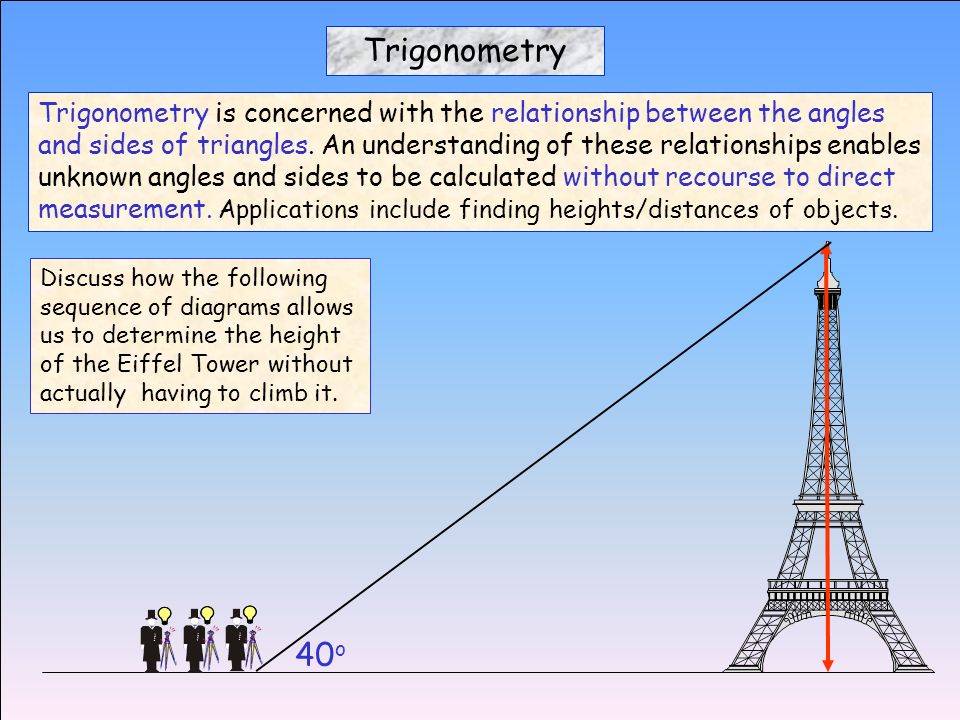

5. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry 40 o

6. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry 45 o ? What ’ s he going to do next?

7. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Discuss how the following sequence of diagrams allows us to determine the height of the Eiffel Tower without actually having to climb it. Trigonometry 45 o 324 m ? What ’ s he going to do next?

8. Trigonometry is concerned with the relationship between the angles and sides of triangles. An understanding of these relationships enables unknown angles and sides to be calculated without recourse to direct measurement. Applications include finding heights/distances of objects. Trigonometry 45 o 324 m

9. Trigonometry 324 m Eiffel Tower Facts: Designed by Gustave Eiffel. Completed in 1889 to celebrate the centenary of the French Revolution. Intended to have been dismantled after the 1900 Paris Expo. Took 26 months to build. The structure is very light and only weighs 7 300 tonnes. 18 000 pieces, 2½ million rivets. 1665 steps. Some tricky equations had to be solved for its design.

10. The Trigonometric Ratios A B C hypotenuse opposite A B C hypotenuse opposite adjacent Make up a Mnemonic! S O C HAH T OA

11. The Trigonometric Ratios (Finding an unknown side). Example 1. In triangle ABC find side CB. 70 o A B C 12 cm Diagrams not to scale. SOHCAHTOA Opp Example 2. In triangle PQR find side PQ. 22 o P Q R 7.2 cm SOHCAHTOA Example 3. In triangle LMN find side MN. 75 o L M N 4.3 m SOHCAHTOA

12. xoxo 43.5 m 75 m Anytime we come across a right-angled triangle containing 2 given sides we can calculate the ratio of the sides then look up (or calculate) the angle that corresponds to this ratio. Sin 30 o = 0.50 Cos 30 o = 0.87 Tan 30 o = 0.58 True Values (2 dp) SOHCAHTOA The Trigonometric Ratios (Finding an unknown angle). 30 o

13. Example 1. In triangle ABC find angle A. A B C 12 cm 11.3 cm Diagrams not to scale. The Trigonometric Ratios (Finding an unknown angle). SOHCAHTOA Sin -1 (11.3  12) = Key Sequence SOHCAHTOA Example 2. In triangle LMN find angle N. L M N 4.3 m 1.2 m Tan -1 (4.3  1.2) = Key Sequence SOHCAHTOA Example 3. In triangle PQR find angle Q. P Q R 7.2 cm 7.8 cm Cos -1 (7.2  7.8) = Key Sequence

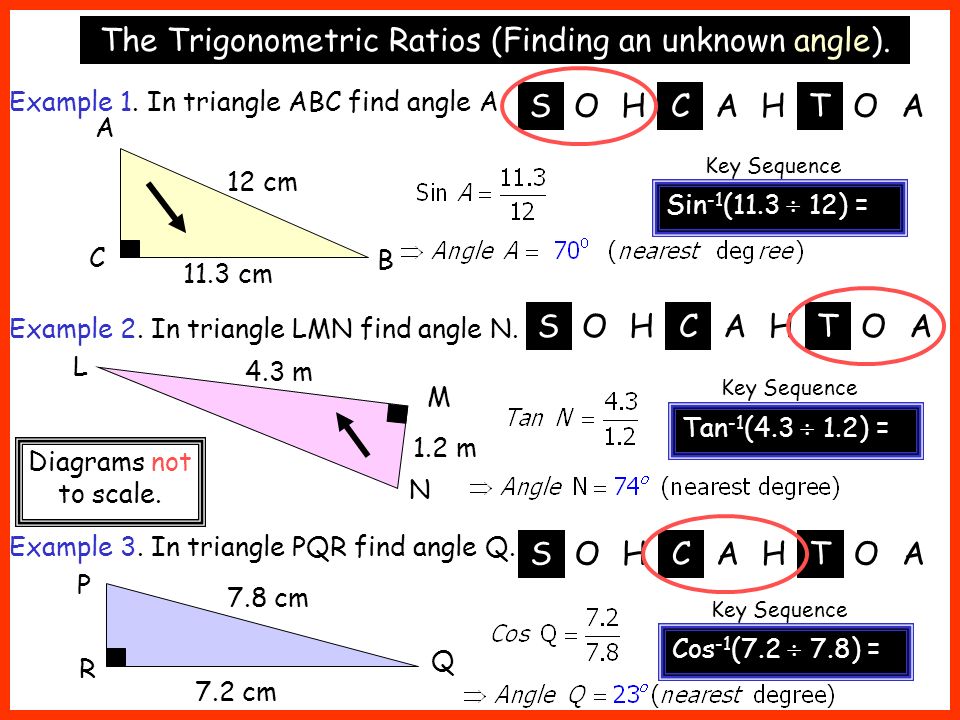

14. Applications of Trigonometry A boat sails due East from a Harbour (H), to a marker buoy (B), 15 miles away. At B the boat turns due South and sails for 6.4 miles to a Lighthouse (L). It then returns to harbour. Make a sketch of the trip and calculate the bearing of the harbour from the lighthouse to the nearest degree. H B L 15 miles 6.4 miles SOH CAH TOA

15. 12 ft 9.5 ft A 12 ft ladder rests against the side of a house. The top of the ladder is 9.5 ft from the floor. Calculate the angle that the foot of ladder makes with the ground. Applications of Trigonometry LoLo SOH CAH TOA

16. Not to Scale P 570 miles W 430 miles Q An AWACS aircraft takes off from RAF Waddington (W) on a navigation exercise. It flies 430 miles North to a point P before turning left and flying for 570 miles to a second point Q, West of W. It then returns to base. (a) Make a sketch of the flight. (b) Find the bearing of Q from P. Applications of Trigonometry SOH CAH TOA

17. Angles of Elevation and Depression. An angle of elevation is the angle measured upwards from a horizontal to a fixed point. The angle of depression is the angle measured downwards from a horizontal to a fixed point. Horizontal 25 o Angle of elevation Horizontal 25 o Angle of depression Explain why the angles of elevation and depression are always equal.

18. A man stands at a point P, 45 m from the base of a building that is 20 m high. Find the angle of elevation of the top of the building from the man. Applications of Trigonometry 20 m 45 m P SOH CAH TOA

19. A 25 m tall lighthouse sits on a cliff top, 30 m above sea level. A fishing boat is seen 100m from the base of the cliff, (vertically below the lighthouse). Find the angle of depression from the top of the lighthouse to the boat. 100 m 55 m D C D Or more directly since the angles of elevation and depression are equal. SOH CAH TOA

20. A 22 m tall lighthouse sits on a cliff top, 35 m above sea level. The angle of depression of a fishing boat is measured from the top of the lighthouse as 30 o. How far is the fishing boat from the base of the cliff? x m 57 m 30 o 60 o Or more directly since the angles of elevation and depression are equal. 30 o SOH CAH TOA
