1. SQL in Oracle

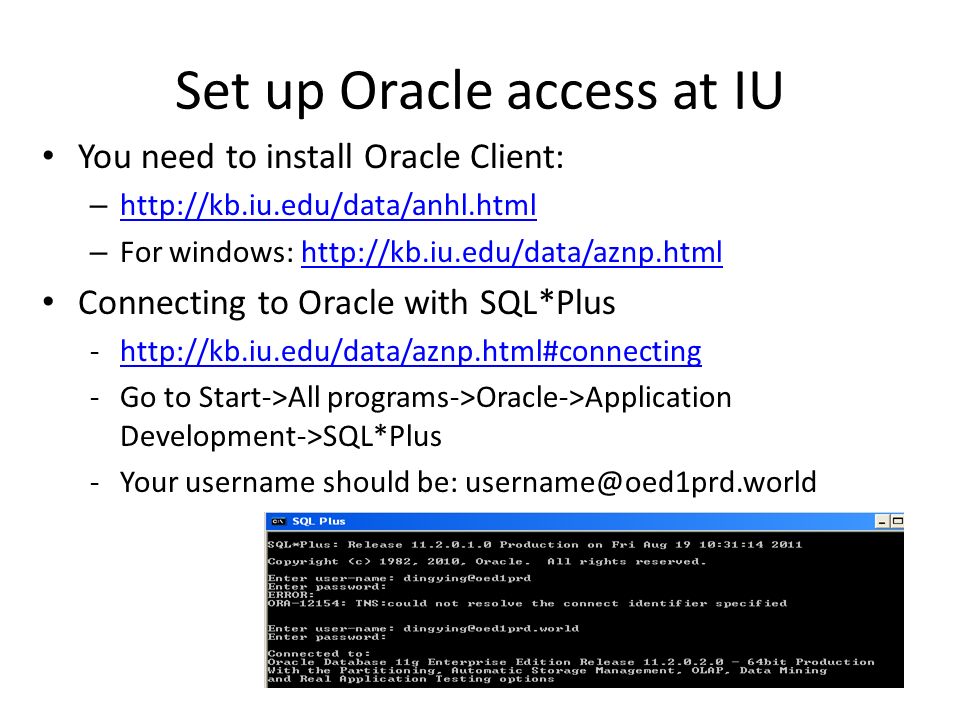

2. Set up Oracle access at IU You need to install Oracle Client: – http://kb.iu.edu/data/anhl.html http://kb.iu.edu/data/anhl.html – For windows: http://kb.iu.edu/data/aznp.htmlhttp://kb.iu.edu/data/aznp.html Connecting to Oracle with SQL*Plus -http://kb.iu.edu/data/aznp.html#connectinghttp://kb.iu.edu/data/aznp.html#connecting -Go to Start->All programs->Oracle->Application Development->SQL*Plus -Your username should be: username@oed1prd.world

3. Set up Oracle access at IU Or you can use Aqua Data Studio to access Oracle

4. Aqua Data Studio Server connection: – host: dbserv.uits.indiana.edu – port: 1521 – username: your username – passcode: your password – System Identifier of the database (SID): oed1prd

5. Relational Model Data stored in relations (tables) course attributes (or columns) tuples (or rows) course_IDcourse_namedepartment_ID CIS3100DatabaseCIS CIS4500NetworkCIS MKT3400AdvertisingMKT MKT4100MarketingMKT

6. SQL Data Definition Language (DDL) – CREATE TABLE – ALTER TABLE – DROP TABLE Data Manipulation Language (DML) – INSERT INTO – SELECT – UPDATE – DELETE

7. SQL Basic structure – query block – SELECT – FROM – WHERE clauses – GROUP BY clause – HAVING clause – ORDER BY clause – Aggregate functions COUNT, MIN, MAX, AVG, SUM

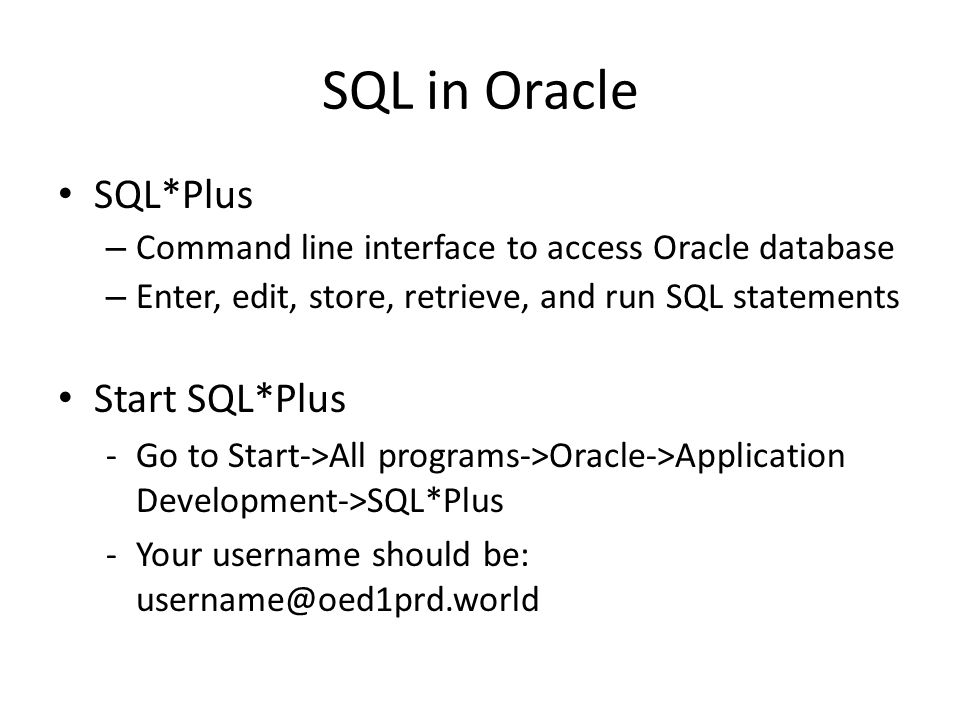

8. SQL in Oracle SQL*Plus – Command line interface to access Oracle database – Enter, edit, store, retrieve, and run SQL statements Start SQL*Plus -Go to Start->All programs->Oracle->Application Development->SQL*Plus -Your username should be: username@oed1prd.world

9. SQL*Plus Commands DESCRIBE: list the columns with data types of a table EXIT: exit the SQL*Plus program GET: load a SQL statement into the buffer LIST: list the current statement in the buffer RUN: execute the current SQL statement in the buffer SAVE: save the current SQL statement to a script file SPOOL: send the output from a SQL statement to a file START: load a SQL statement located in a script file and then run that SQL statement Commit: save your input from buffer to disk. http://download.oracle.com/docs/cd/B10501_01/server.920/a90842/ch13.htm http://download.oracle.com/docs/cd/B19306_01/server.102/b14357/ch4.htm#C HDGEEFE

10. Example student_idnamemajorGPA 101BillCIS3.45 102MaryCIS3.10 103SueMKT3.90 course_idnamedepartment_id CIS3100DatabaseCIS CIS3400Network ICIS CIS3500Network IICIS MKT3000AdvertisingMKT MKT3200Marketing IMKT MKT4200Marketing IIMKT student_idcourse_idgrade 101CIS3100A 101CIS3500B+ 102CIS3100A- 102CIS3400A 103MKT3000A 103MKT3200B 103MKT4200B+

11. DDL in Oracle Basic data types – CHAR(size) – VARCHAR2(size) – NUMBER(p, s) – DATE – BLOB/CLOB See: http://www.techonthenet.com/oracle/datatypes.php

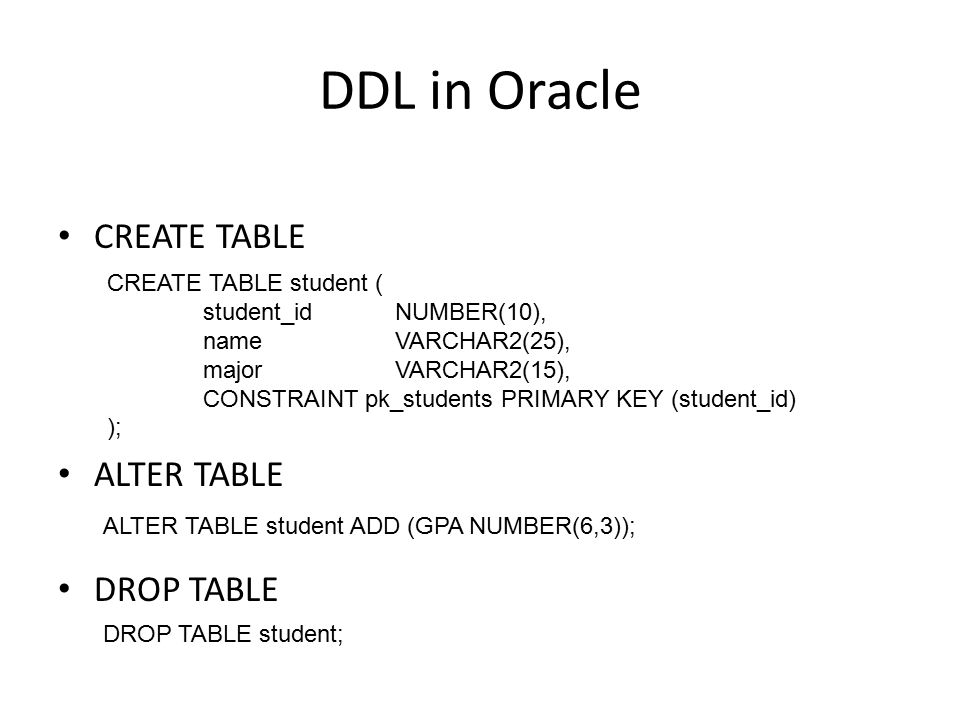

12. DDL in Oracle CREATE TABLE ALTER TABLE DROP TABLE CREATE TABLE student ( student_idNUMBER(10), nameVARCHAR2(25), majorVARCHAR2(15), CONSTRAINT pk_students PRIMARY KEY (student_id) ); ALTER TABLE student ADD (GPA NUMBER(6,3)); DROP TABLE student;

13. DML in Oracle INSERT UPDATE DELETE SELECT INSERT INTO student VALUES (101, 'Bill', 'CIS', 3.45); UPDATE student SET GPA=3.55 where student_id=101; DELETE FROM student where student_id=101; SELECT * FROM student;

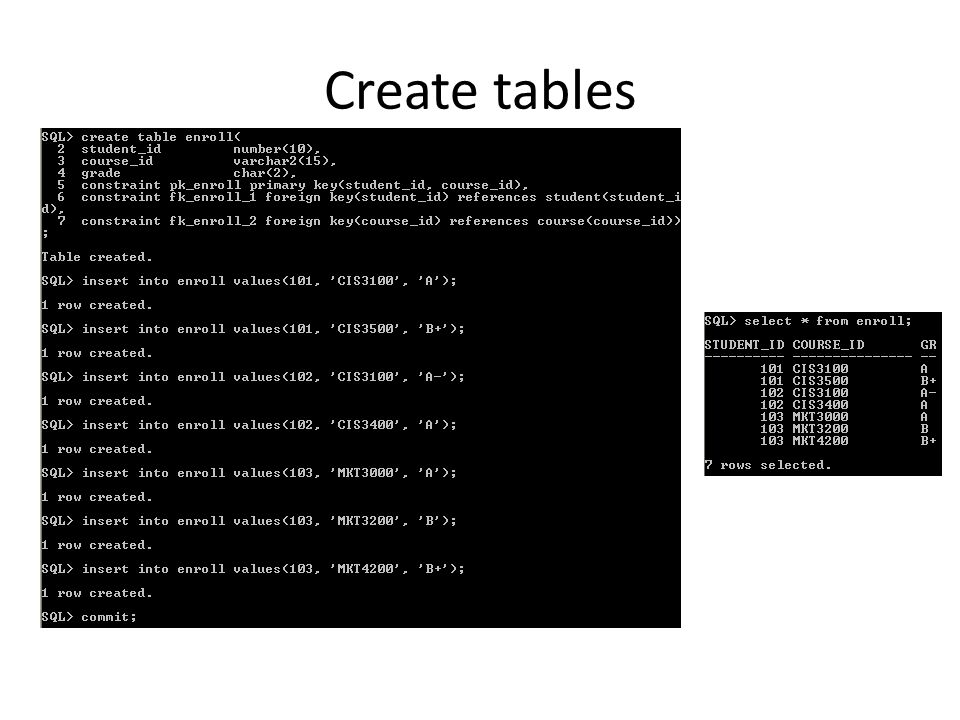

14. Create tables

15. Queries SELECT * FROM course WHERE rownum<=3; SELECT * FROM enroll WHERE grade=‘A’;

16. Queries SELECT * FROM student WHERE student.student_id=(SELECT enroll.student_id FROM enroll WHERE grade='A-'); SELECT * FROM student WHERE student.student_id IN (SELECT enroll.student_id FROM enroll WHERE grade='A’); SELECT student.name FROM student, enroll WHERE student.student_id=enroll.student_id AND enroll.grade=‘A’;

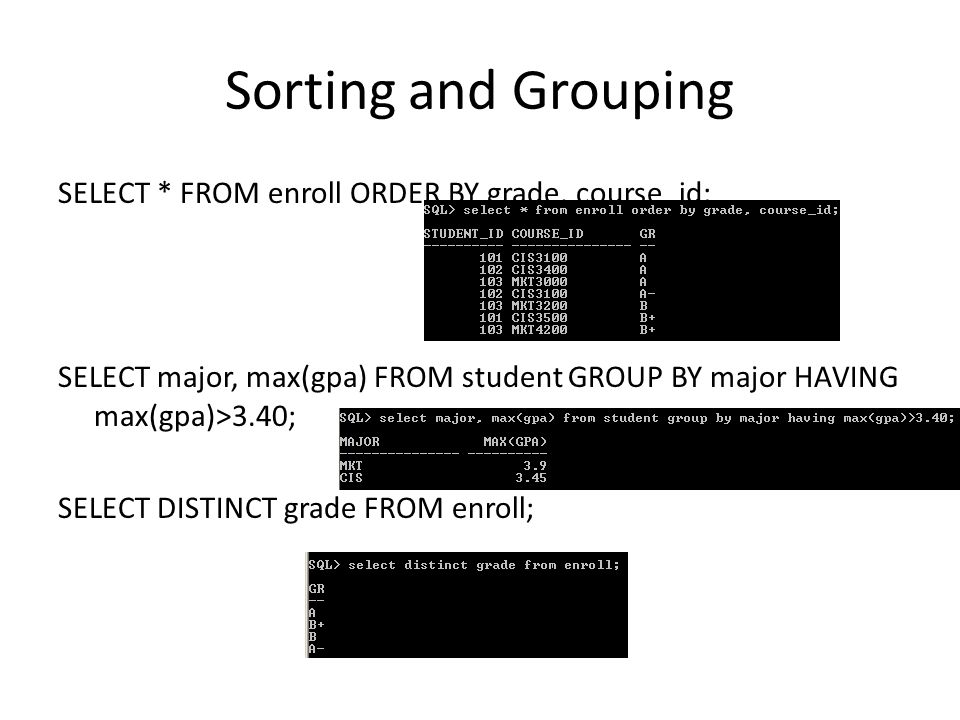

17. Sorting and Grouping SELECT * FROM enroll ORDER BY grade, course_id; SELECT major, max(gpa) FROM student GROUP BY major HAVING max(gpa)>3.40; SELECT DISTINCT grade FROM enroll;

18. Joining tables SELECT student.name, enroll.course_id, enroll.grade FROM student INNER JOIN enroll ON student.student_id=enroll.student_id;

19. Joining tables SELECT * FROM student LEFT JOIN enroll ON student.student_id=enroll.student_id;

20. Joining tables SELECT * FROM student RIGHT JOIN enroll ON student.student_id=enroll.student_id;

21. References www.oracle.com Oracle tutorial: http://dbis.ucdavis.edu/courses/sqltutorial/tutorial.pdf http://cisnet.baruch.cuny.edu/holowczak/oracle/sqlplus/
