1. Highly Secured Robotic Control For Military Operation Using MSP430 Student Name USN NO Guide Name H.O.D Name Name Of The College & Dept

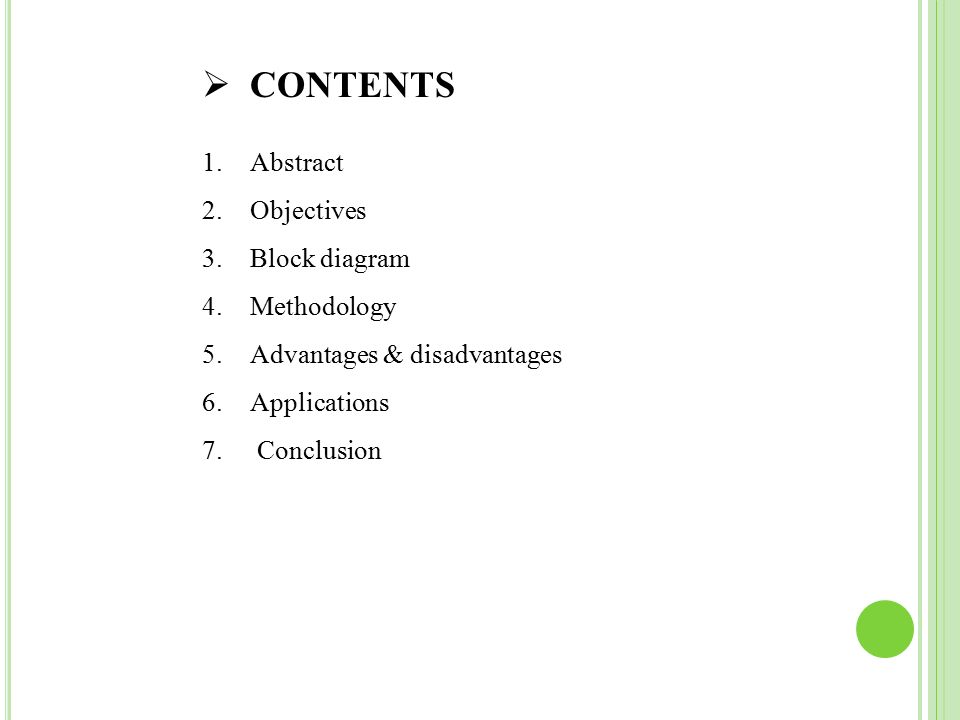

2.  CONTENTS 1.Abstract 2.Objectives 3.Block diagram 4.Methodology 5.Advantages & disadvantages 6.Applications 7. Conclusion

3. 1.ABSTRACT: As it is known embedded system is a special-purpose computer system designed to perform a dedicated function. As a spice we also included robotics domain and achieved this project successfully. In this project, the control of a robot using MSP 430 is done from the base station using RF communication and with highly secured password authentication to access that robot.

4. 2.OBJECTIVES: Since the main intension of this projects is to design Highly Secured Robotic Control For Military Operation Using MSP430 in order to control from remote place order to fulfill this application there are few steps that has been performed..

5. 3.BLOCK DIAGRAM :  TRANSMITTER STAGE :

6.  RECEIVER STAGE:

7. 4. METHODOLOGY: A block diagram which is shown above is divided into two parts that is transmitter and receiver. The transmitter part is which is in the base station which can be controlled by authorized person consider in border area a head. First to control the receiver part that is the robot he should enter the password which is highly secured in this system we are using MSP 430 as a controller device at the transmitting end. Once authorized person enters the password he can control the receiver end which is at the military border the wireless communication takes via RF which we using of 4- channel for prototype.

8. 5. ADVANTAGES & DISADVANTAGES:  ADVANTAGES: 1.Wireless control 2.Surveillance System. 3.Vehicle Navigation with use of 3G technology. 4.Takes in use of the RF technology which is almost available everywhere. 5.This wireless device has no foundation of range and can be controlled as far as network of cell phone.

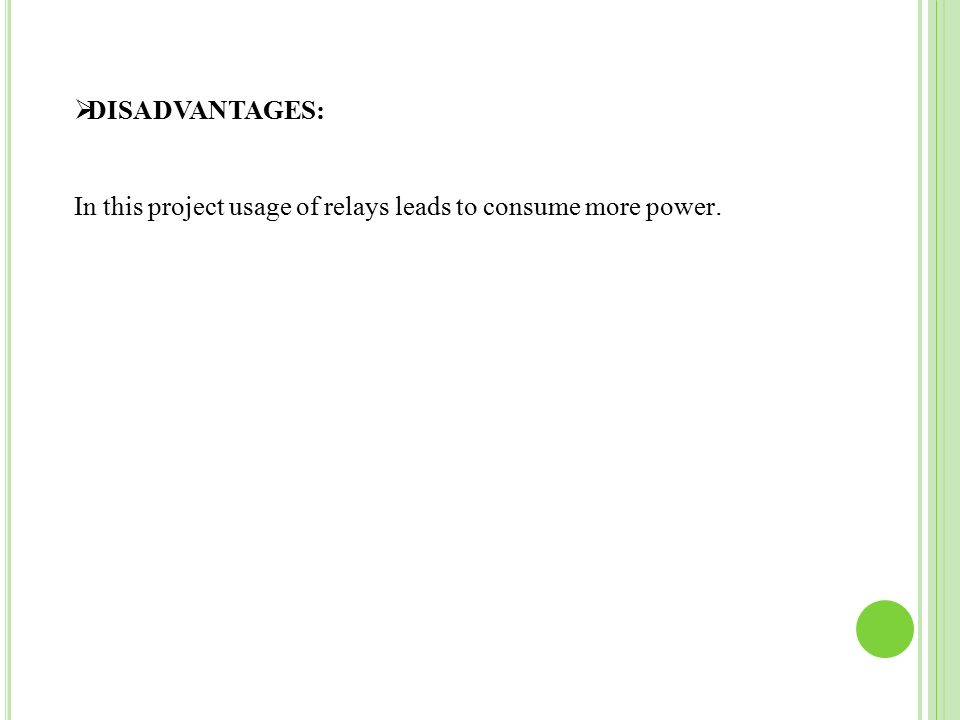

9.  DISADVANTAGES: In this project usage of relays leads to consume more power.

10. 6.APPLICATIONS: 1.The sensors with smaller range frequencies are sufficient to install this robot in residents. 2.The sensors with very high frequencies are required to install this robot in the IT industries 3.This robot can be installed in banks, especially in the places where jewels are kept (locker area). 4.In the educational institutions, this robot can play a vital role in the areas of library and laboratory where valuable equipments are kept.

11. 7.CONCLUSION: Thus the full system work deals for the secure way of governing our properties in the absence of the authorized person. Though the design and architecture of the robot resemble strange yet is an effective way of security system. Thus it is an evidence to prove that robots can assist human effectively without any difficulty

12. THANK YOU
