1. Python Crash Course File I/O Sterrenkundig Practicum 2 V1.0 dd 07-01-2015 Hour 5

2. File I/O Types of input/output available –Interactive Keyboard Screen –Files Ascii/text –txt –csv Binary Structured –FITS > pyFITS, astropy.io.fits URL Pipes

3. Interactive I/O, fancy output >>> s = 'Hello, world.' >>> str(s) 'Hello, world.' >>> repr(s) "'Hello, world.'" >>> str(1.0/7.0) '0.142857142857' >>> repr(1.0/7.0) '0.14285714285714285' >>> x = 10 * 3.25 >>> y = 200 * 200 >>> s = 'The value of x is ' + repr(x) + ', and y is ' + repr(y) + '...' >>> print s The value of x is 32.5, and y is 40000... >>> # The repr() of a string adds string quotes and backslashes:... hello = 'hello, world\n' >>> hellos = repr(hello) >>> print hellos 'hello, world\n' >>> # The argument to repr() may be any Python object:... repr((x, y, ('spam', 'eggs'))) "(32.5, 40000, ('spam', 'eggs'))"

4. Interactive I/O, fancy output >>> import math >>> print 'The value of PI is approximately %5.3f.' % math.pi The value of PI is approximately 3.142. Old string formatting >>> table = {'Sjoerd': 4127, 'Jack': 4098, 'Dcab': 7678} >>> for name, phone in table.items():... print '{0:10} ==> {1:10d}'.format(name, phone)... Jack ==> 4098 Dcab ==> 7678 Sjoerd ==> 4127 New string formatting

5. Formatting I/O A conversion specifier contains two or more characters and has the following components, which must occur in this order: The "%" character, which marks the start of the specifier. Mapping key (optional), consisting of a parenthesised sequence of characters (for example, (somename)). Conversion flags (optional), which affect the result of some conversion types. Minimum field width (optional). If specified as an "*" (asterisk), the actual width is read from the next element of the tuple in values, and the object to convert comes after the minimum field width and optional precision. Precision (optional), given as a "." (dot) followed by the precision. If specified as "*" (an asterisk), the actual width is read from the next element of the tuple in values, and the value to convert comes after the precision. Length modifier (optional). Conversion type. >>> print '%(language)s has %(#)03d quote types.' % \ {'language': "Python", "#": 2} Python has 002 quote types.

6. ConversionMeaning dSigned integer decimal. i oUnsigned octal. uUnsigned decimal. xUnsigned hexadecimal (lowercase). XUnsigned hexadecimal (uppercase). eFloating point exponential format (lowercase). EFloating point exponential format (uppercase). fFloating point decimal format. F gSame as "e" if exponent is greater than -4 or less than precision, "f" otherwise. GSame as "E" if exponent is greater than -4 or less than precision, "F" otherwise. cSingle character (accepts integer or single character string). rString (converts any python object using repr()). sString (converts any python object using str()). %No argument is converted, results in a "%" character in the result. The conversion types are: Formatting I/O

7. Interactive I/O >>> print “Python is great,”, ”isn’t it?” >>> str = raw_input( “Enter your input: ”) >>> print “Received input is: “,str Enter your input: Hello Python Received input is: Hello Python >>> str = input("Enter your input: "); >>> print "Received input is: ", str Enter your input: [x*5 for x in range(2,10,2)] Received input is: [10, 20, 30, 40] If the readline modules was loaded the raw_input() will use it to provide elaborate line editing and history features.

8. File I/O >>> fname = ‘myfile.dat’ >>> f = file(fname) >>> lines = f.readlines() >>> f.close() >>> f = file(fname) >>> firstline = f.readline() >>> secondline = f.readline() >>> f = file(fname) >>> for l in f:... print l.split()[1] >>> f.close() >>> outfname = ‘myoutput’ >>> outf = file(outfname, ‘w’) # second argument denotes writable >>> outf.write(‘My very own file\n’) >>> outf.close()

9. Read File I/O >>> f = open("test.txt") >>> # Read everything into single string: >>> content = f.read() >>> len(content) >>> print content >>> f.read() # At End Of File >>> f.close() >>> # f.read(20) reads (at most) 20 bytes Using with block: >>> with open(’test.txt’, ’r’) as f:... content = f.read() >>> f.closed CSV file: >>> import csv >>> ifile = open(’photoz.csv’, "r") >>> reader = csv.reader(ifile) >>> for row in reader:... print row, >>> ifile.close()

10. Read and write text file >>> from numpy import * >>> data = loadtxt("myfile.txt") # myfile.txt contains 4 columns of numbers >>> t,z = data[:,0], data[:,3] # data is a 2D numpy array, t is 1 st col, z is 4 th col >>> t,x,y,z = loadtxt("myfile.txt", unpack=True) # to automatically unpack all columns >>> t,z = loadtxt("myfile.txt", usecols = (0,3), unpack=True) # to select just a few columns >>> data = loadtxt("myfile.txt", skiprows = 7) # to skip 7 rows from top of file >>> data = loadtxt("myfile.txt", comments = '!') # use '!' as comment char instead of '#' >>> data = loadtxt("myfile.txt", delimiter=';') # use ';' as column separator instead of whitespace >>> data = loadtxt("myfile.txt", dtype = int) # file contains integers instead of floats >>> from numpy import * >>> savetxt("myfile.txt", data) # data is 2D array >>> savetxt("myfile.txt", x) # if x is 1D array then get 1 column in file. >>> savetxt("myfile.txt", (x,y)) # x,y are 1D arrays. 2 rows in file. >>> savetxt("myfile.txt", transpose((x,y))) # x,y are 1D arrays. 2 columns in file. >>> savetxt("myfile.txt", transpose((x,y)), fmt='%6.3f') # use new format instead of '%.18e' >>> savetxt("myfile.txt", data, delimiter = ';') # use ';' to separate columns instead of space

11. String formatting for output >>> sigma = 6.76/2.354 >>> print(‘sigma is %5.3f metres’%sigma) sigma is 2.872 metres >>> d = {‘bob’: 1.87, ‘fred’: 1.768} >>> for name, height in d.items():... print(‘%s is %.2f metres tall’%(name.capitalize(), height))... Bob is 1.87 metres tall Fred is 1.77 metres tall >>> nsweets = range(100) >>> calories = [i * 2.345 for i in nsweets] >>> fout = file(‘sweetinfo.txt’, ‘w’) >>> for i in range(nsweets):... fout.write(‘%5i %8.3f\n’%(nsweets[i], calories[i]))... >>> fout.close()

12. File I/O, CSV files CSV (Comma Separated Values) format is the most common import and export format for spreadsheets and databases. Functions –csv.reader –csv.writer –csv.register_dialect –csv.unregister_dialect –csv.get_dialect –csv.list_dialects –csv.field_size_limit

13. File I/O, CSV files Reading CSV files Writing CSV files import csv # imports the csv module f = open('data1.csv', 'rb') # opens the csv file try: reader = csv.reader(f) # creates the reader object for row in reader: # iterates the rows of the file in orders print row # prints each row finally: f.close() # closing import csv ifile = open('test.csv', "rb") reader = csv.reader(ifile) ofile = open('ttest.csv', "wb") writer = csv.writer(ofile, delimiter='\t', quotechar='"', quoting=csv.QUOTE_ALL) for row in reader: writer.writerow(row) ifile.close() ofile.close()

14. File I/O, CSV files The csv module contains a the following quoting options. csv.QUOTE_ALL Quote everything, regardless of type. csv.QUOTE_MINIMAL Quote fields with special characters csv.QUOTE_NONNUMERIC Quote all fields that are not integers or floats csv.QUOTE_NONE Do not quote anything on output

15. Handling FITS files - PyFITS http://www.stsci.edu/resources/software_hardware/pyfits Read, write and manipulate all aspects of FITS files extensions headers images tables Low-level interface for details High-level functions for quick and easy use

16. PyFITS - reading >>> import pyfits >>> imgname = “testimage.fits” >>> img = pyfits.getdata(imgname) >>> img array([[2408, 2408, 1863,..., 3660, 3660, 4749], [2952, 2408, 1863,..., 3660, 3115, 4204], [2748, 2748, 2204,..., 4000, 3455, 4000],..., [2629, 2901, 2357,..., 2261, 2806, 2261], [2629, 2901, 3446,..., 1717, 2261, 1717], [2425, 2697, 3242,..., 2942, 2125, 1581]], dtype=int16) >>> img.mean() 4958.4371977768678 >>> img[img > 2099].mean() 4975.1730909593043 >> import numpy >>> numpy.median(img) 4244.0

17. PyFITS – reading FITS images row = y = first index column = x = second index numbering runs as normal (e.g. in ds9) BUT zero indexed! >>> x = 348; y = 97 >>> delta = 5 >>> print img[y-delta:y+delta+1,... x-delta:x+delta+1].astype(numpy.int) [[5473 5473 3567 3023 3295 3295 3839 4384 4282 4282 3737] [3295 4384 3567 3023 3295 3295 3295 3839 3737 3737 4282] [2478 3567 4112 3023 3295 3295 3295 3295 3397 4486 4486] [3023 3023 3023 3023 2750 2750 3839 3839 3397 4486 3941] [3295 3295 3295 3295 3295 3295 3839 3839 3397 3941 3397] [3295 3295 2750 2750 3295 3295 2750 2750 2852 3397 4486] [2887 2887 2887 2887 3976 3431 3159 2614 3125 3669 4758] [2887 2887 3431 3431 3976 3431 3159 2614 3669 4214 4214] [3159 3703 3159 3703 3431 2887 3703 3159 3941 4486 3669] [3703 3159 2614 3159 3431 2887 3703 3159 3397 3941 3669] [3431 3431 2887 2887 3159 3703 3431 2887 3125 3669 3669]]

18. PyFITS – reading FITS tables >>> tblname = ‘data/N891PNdata.fits’ >>> d = pyfits.getdata(tblname) >>> d.names ('x0', 'y0', 'rah', 'ram', 'ras', 'decd', 'decm', 'decs', 'wvl', 'vel', 'vhel', 'dvel', 'dvel2', 'xL', 'yL', 'xR', 'yR', 'ID', 'radeg', 'decdeg', 'x', 'y') >>> d.x0 array([ 928.7199707, 532.61999512, 968.14001465, 519.38000488,… 1838.18994141, 1888.26000977, 1516.2199707 ], dtype=float32) >>> d.field(‘x0’) # case-insensitive array([ 928.7199707, 532.61999512, 968.14001465, 519.38000488,… 1838.18994141, 1888.26000977, 1516.2199707 ], dtype=float32) >>> select = d.x0 < 200 >>> dsel = d[select] # can select rows all together >>> print dsel.x0 [ 183.05000305 165.55000305 138.47999573 158.02999878 140.96000671 192.58000183 157.02999878 160.1499939 161.1000061 136.58999634 175.19000244]

19. PyFITS – reading FITS headers >>> h = pyfits.getheader(imgname) >>> print h SIMPLE = T /FITS header BITPIX = 16 /No.Bits per pixel NAXIS = 2 /No.dimensions NAXIS1 = 1059 /Length X axis NAXIS2 = 1059 /Length Y axis EXTEND = T / DATE = '05/01/11 ' /Date of FITS file creation ORIGIN = 'CASB -- STScI ' /Origin of FITS image PLTLABEL= 'E30 ' /Observatory plate label PLATEID = '06UL ' /GSSS Plate ID REGION = 'XE295 ' /GSSS Region Name DATE-OBS= '22/12/49 ' /UT date of Observation UT = '03:09:00.00 ' /UT time of observation EPOCH = 2.0499729003906E+03 /Epoch of plate PLTRAH = 1 /Plate center RA PLTRAM = 26 / PLTRAS = 5.4441800000000E+00 / PLTDECSN= '+ ' /Plate center Dec PLTDECD = 30 / PLTDECM = 45 / >>> h[‘KMAGZP’] >>> h['REGION'] 'XE295‘ # Use h.items() to iterate through all header entries

20. PyFITS – writing FITS images >>> newimg = sqrt((sky+img)/gain + rd_noise**2) * gain >>> newimg[(sky+img) < 0.0] = 1e10 >>> hdr = h.copy() # copy header from original image >>> hdr.add_comment(‘Calculated noise image’) >>> filename = ‘sigma.fits’ >>> pyfits.writeto(filename, newimg, hdr) # create new file >>> pyfits.append(imgname, newimg, hdr) # add a new FITS extension >>> pyfits.update(filename, newimg, hdr, ext) # update a file # specifying a header is optional, # if omitted automatically adds minimum header

21. PyFITS – writing FITS tables >>> import pyfits >>> import numpy as np >>> # create data >>> a1 = numpy.array(['NGC1001', 'NGC1002', 'NGC1003']) >>> a2 = numpy.array([11.1, 12.3, 15.2]) >>> # make list of pyfits Columns >>> cols = [] >>> cols.append(pyfits.Column(name='target', format='20A', array=a1)) >>> cols.append(pyfits.Column(name='V_mag', format='E', array=a2)) >>> # create HDU and write to file >>> tbhdu=pyfits.new_table(cols) >>> tbhdu.writeto(’table.fits’) # these examples are for a simple FITS file containing just one # table or image but with a couple more steps can create a file # with any combination of extensions (see the PyFITS manual online)

22. URL URLS can be used for reading >>> import urllib2 >>> url = 'http://python4astronomers.github.com/_downloads/data.txt' >>> response = urllib2.urlopen(url) >>> data = response.read() >>> print data RAJ DEJ Jmag e_Jmag 2000 (deg) 2000 (deg) 2MASS (mag) (mag) ---------- ---------- ----------------- ------ ------ 010.684737 +41.269035 00424433+4116085 9.453 0.052 010.683469 +41.268585 00424403+4116069 9.321 0.022 010.685657 +41.269550 00424455+4116103 10.773 0.069 010.686026 +41.269226 00424464+4116092 9.299 0.063 010.683465 +41.269676 00424403+4116108 11.507 0.056 010.686015 +41.269630 00424464+4116106 9.399 0.045 010.685270 +41.267124 00424446+4116016 12.070 0.035 URL

23. URL URLS sometimes need input data. Such as POST data for a form import urllib import urllib2 url = 'http://www.someserver.com/cgi-bin/register.cgi' values = {'name' : 'Michael Foord', 'location' : 'Northampton', 'language' : 'Python' } data = urllib.urlencode(values) req = urllib2.Request(url, data) response = urllib2.urlopen(req) the_page = response.read() URL

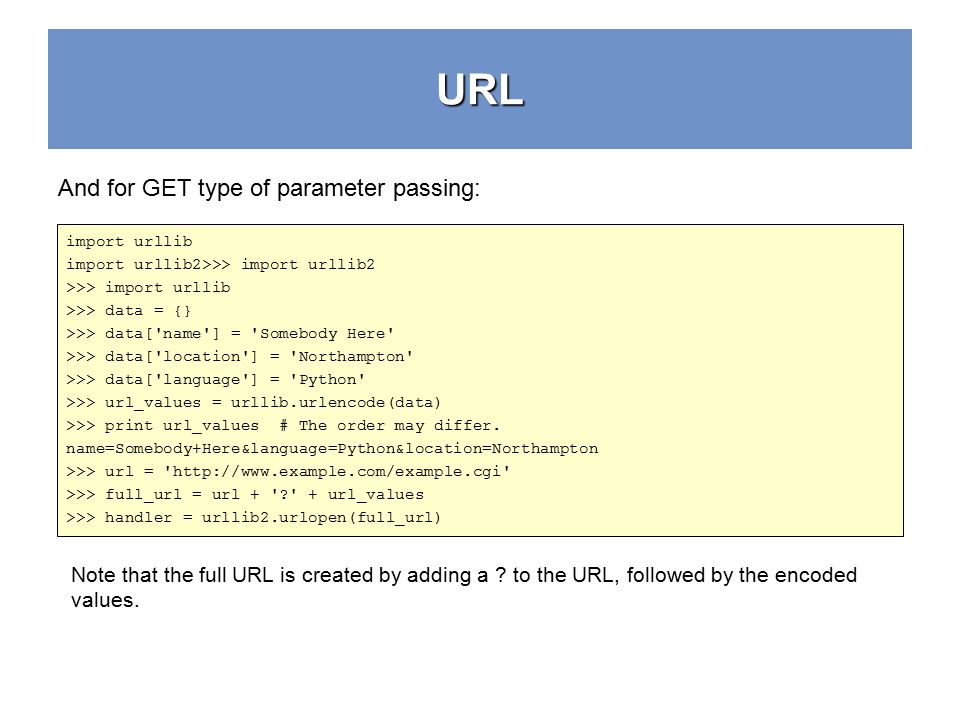

24. URL And for GET type of parameter passing: import urllib import urllib2>>> import urllib2 >>> import urllib >>> data = {} >>> data['name'] = 'Somebody Here' >>> data['location'] = 'Northampton' >>> data['language'] = 'Python' >>> url_values = urllib.urlencode(data) >>> print url_values # The order may differ. name=Somebody+Here&language=Python&location=Northampton >>> url = 'http://www.example.com/example.cgi' >>> full_url = url + '?' + url_values >>> handler = urllib2.urlopen(full_url) Note that the full URL is created by adding a ? to the URL, followed by the encoded values. URL

25. Introduction to language End
