1. Representation of Curves & Surfaces Prof. Lizhuang Ma Shanghai Jiao Tong University

2. Contents Specialized Modeling Techniques Polygon Meshes Parametric Cubic Curves Parametric Bi-Cubic Surfaces Quadric Surfaces Specialized Modeling Techniques

3. The Teapot

4. Representing Polygon Meshes Explicit representation By a list of vertex coordinates Pointers to a vertex list Pointers to an edge list

5. Pointers to A Vertex List

6. Pointers to An Edge List

7. Parametric Cubic Curves The cubic polynomials that define a curve segment are of the form:

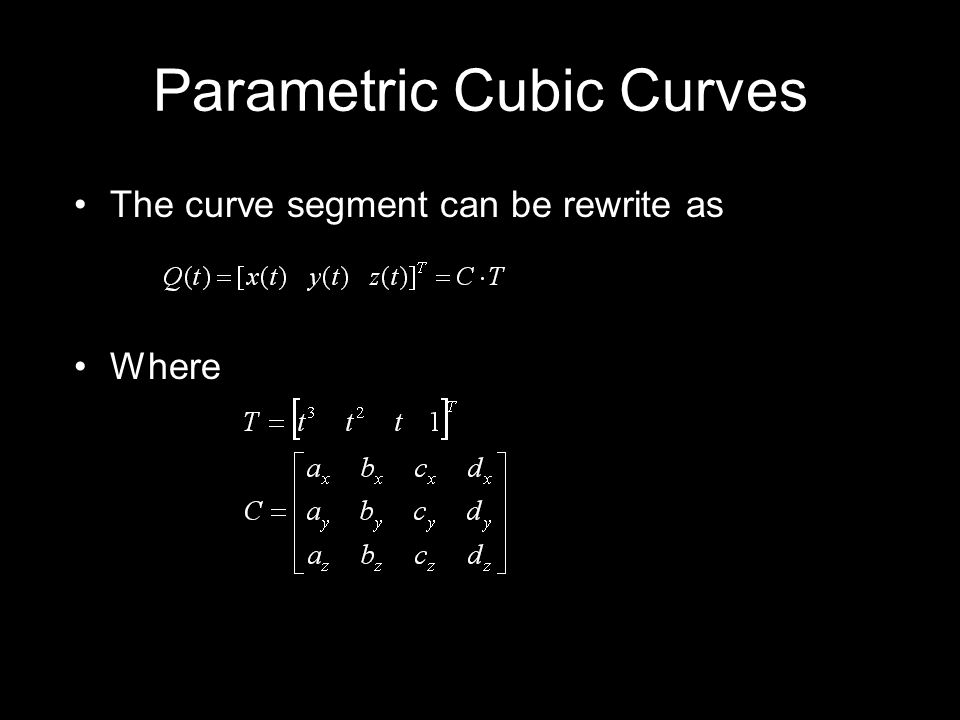

8. Parametric Cubic Curves The curve segment can be rewrite as Where

9. Parametric Cubic Curves

10. Tangent Vector

11. Continuity Between Curve Segments G 0 geometric continuity –Two curve segments join together G 1 geometric continuity –The directions (but not necessarily the magnitudes) of the two segments’ tangent vectors are equal at a join point

12. Continuity Between Curve Segments C 1 continuous –The tangent vectors of the two cubic curve segments are equal (both directions and magnitudes) at the segments’ joint point C n continuous –The direction and magnitude of through the nth derivative are equal at the joint point

13. Continuity Between Curve Segments

15. Three Types of Parametric Cubic Curves Hermite Curves –Defined by two endpoints and two endpoint tangent vectors Bézier Curves –Defined by two endpoints and two control points which control the endpoint’ tangent vectors Splines –Defined by four control points

16. Parametric Cubic Curves Representation: Rewrite the coefficient matrix as –where M is a 4x4 basis matrix, G is called the geometry matrix –So 4 endpoints or tangent vectors

17. Parametric Cubic Curves –Where is called the blending functions

18. Hermite Curves Given the endpoints P 1 and P 4 and tangent vectors at them R 1 and R 4 What is –Hermite basis matrix M H –Hermite geometry vector G H –Hermite blending functions B H By definition G H =[P 1 P 4 R 1 R 4 ]

19. Hermite Curves Since

20. Hermite Curves So And

21. Given the endpoints P 1 and P 4 and two control points P 2 and P 3 which determine the endpoints’ tangent vectors, such that What is –Bézier basis matrix M B –Bézier geometry vector G B –Bézier blending functions B B Bézier Curves

22. By definition Then So

23. Bézier Curves And (Bernstein polynomials)

24. Convex Hull

25. The polynomial coefficients for natural cubic splines are dependent on all n control points –Has one more degree of continuity than is inherent in the Hermite and Bézier forms –Moving any one control point affects the entire curve –The computation time needed to invert the matrix can interfere with rapid interactive reshaping of a curve Spline

26. B-Spline

27. Cubic B-Spline Has m+1 control points Has m-2 cubic polynomial curve segments Uniform –The knots are spaced at equal intervals of the parameter t Non-rational –Not rational cubic polynomial curves Uniform NonRational B-Splines

28. Curve segment Qi is defined by points B-Spline geometry matrix If Then Uniform NonRational B-Splines

29. So B-Spline basis matrix B-Spline blending functions Uniform NonRational B-Splines

30. The knot-value sequence is a nondecreasing sequence Allow multiple knot and the number of identical parameter is the multiplicity –Ex. (0,0,0,0,1,1,2,3,4,4,5,5,5,5) So Uniform NonRational B-Splines

31. Where is j th-order blending function for weighting control point P i

32. Knot Multiplicity & Continuity Since is within the convex hull of and If is within the convex hull of, and and the convex hull of and,so it will lie on If will lie on If will lie on both and, and the curve becomes broken

33. Multiplicity 1 : C 2 continuity Multiplicity 2 : C 1 continuity Multiplicity 3 : C 0 continuity Multiplicity 4 : no continuity Knot Multiplicity & Continuity

34. NURBS: NonUniform Rational B-Splines Rational and are defined as the ratio of two cubic polynomials Rational cubic polynomial curve segments are ratios of polynomials Can be Bézier, Hermite, or B-Splines

35. Parametric Bi-Cubic Surfaces Parametric cubic curves are So, parametric bi-cubic surfaces are If we allow the points in G to vary in 3D along some path, then Since are cubics:, where

36. Parametric Bi-Cubic Surfaces So

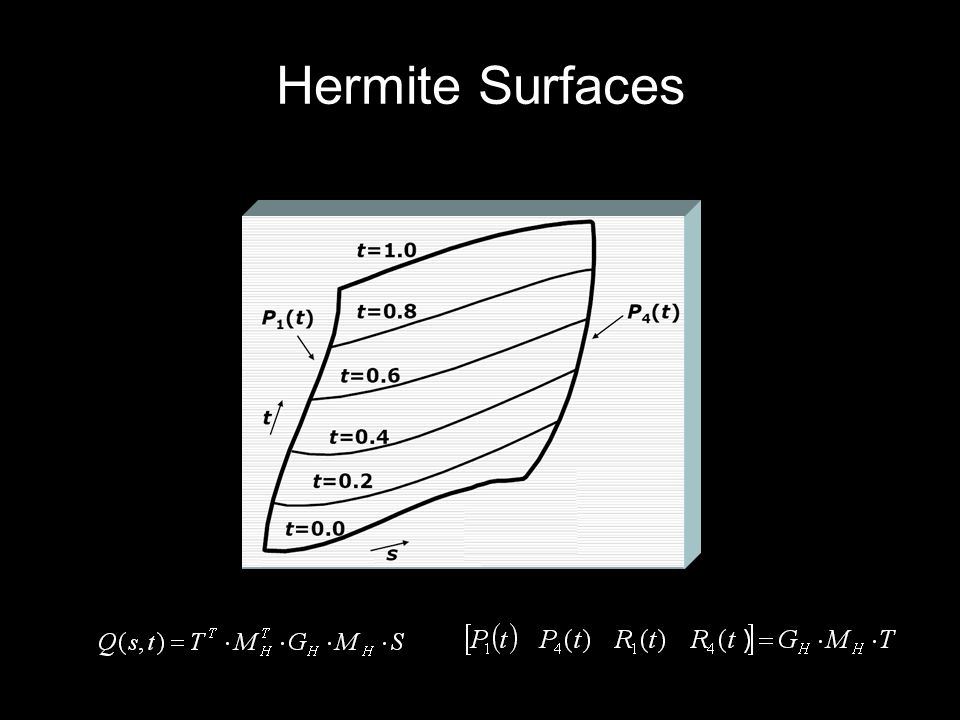

37. Hermite Surfaces

38. Bézier Surfaces

39. Normals to Surfaces normal vector

40. Quadric Surfaces Implicit surface equation An alternative representation with

41. Advantages: –Computing the surface normal –Testing whether a point is on the surface –Computing z given x and y –Calculating intersections of one surface with another Quadric Surfaces

42. Fractal Models

43. Grammar-Based Models L-grammars –A -> AA –B -> A[B]AA[B]
