1. Multiplexing and Spreading (Bandwidth Utilization)

2. 1. Multiplexing Multiplexing is the set of techniques that allow the simultaneous transmission of multiple signals across a single data link Improves link efficiency by “sharing” Categories – Frequency-Division Multiplexing (FDM) – Wavelength-Division Multiplexing (WDM) – Time-Division Multiplexing (TDM) – Code-Division Multiplexing (CDM)

3. Diving a link into multiple (n) channels using mux and demux Mux and Demux

4. Analog multiplexing technique that combines analog signals Frequency-Division Multiplexing (FDM)

5. FDM Muxing

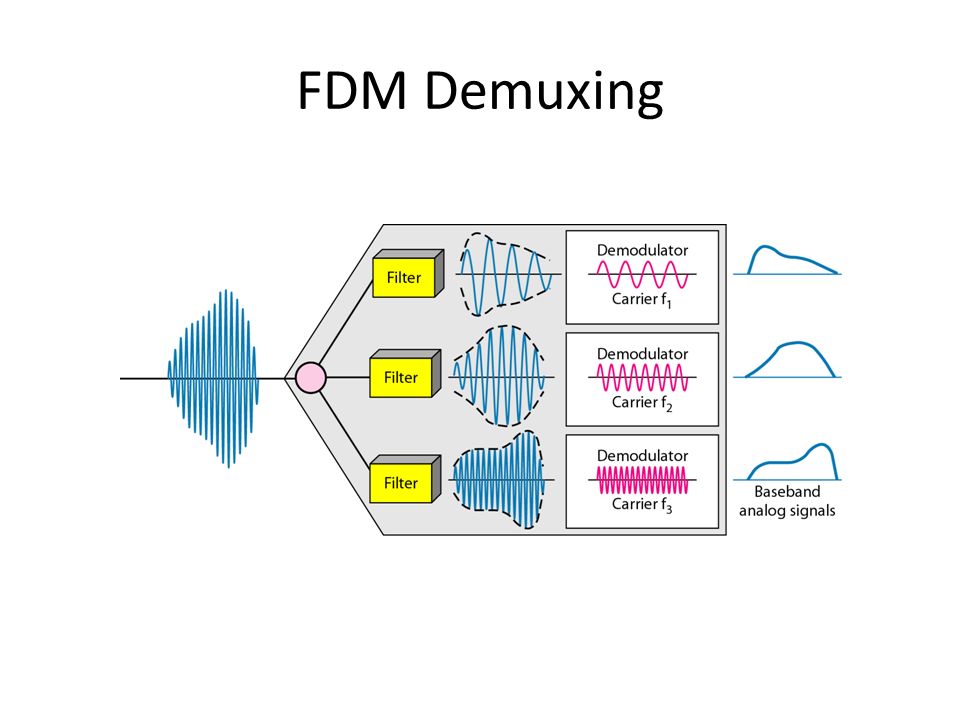

6. FDM Demuxing

7. Example: Voice channel We want to combine three voice channels into a link Each voice channel occupies 4 kHz Link has a bandwidth of 12 kHz, from 20 to 32 kHz  Modulate each of the three voice channels to a different bandwidth

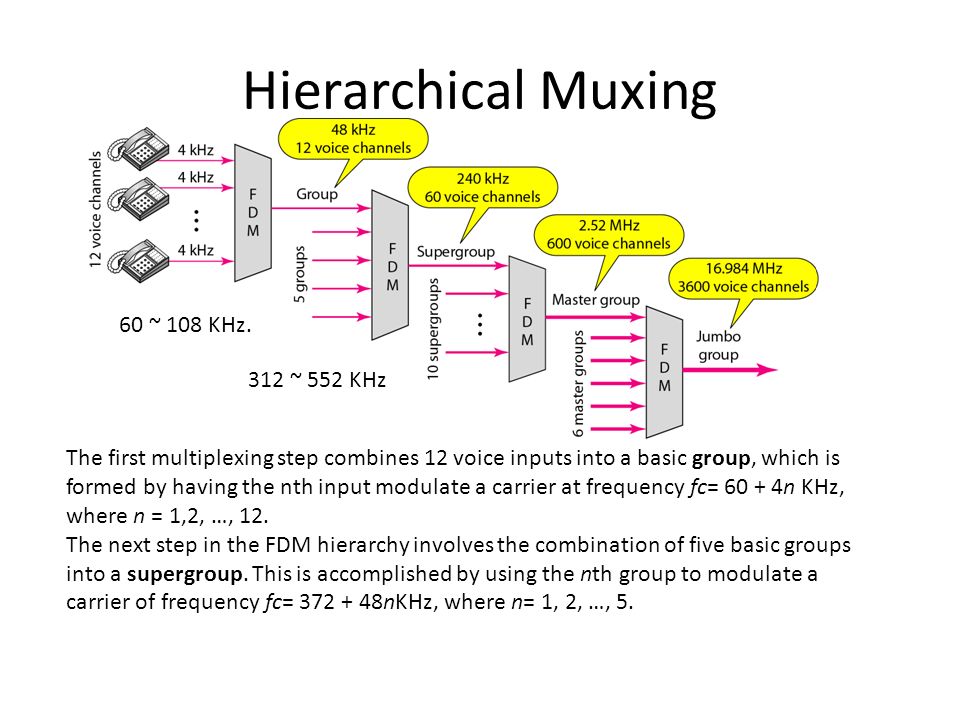

8. Hierarchical Muxing The first multiplexing step combines 12 voice inputs into a basic group, which is formed by having the nth input modulate a carrier at frequency fc= 60 + 4n KHz, where n = 1,2, …, 12. The next step in the FDM hierarchy involves the combination of five basic groups into a supergroup. This is accomplished by using the nth group to modulate a carrier of frequency fc= 372 + 48nKHz, where n= 1, 2, …, 5. 60 ~ 108 KHz. 312 ~ 552 KHz

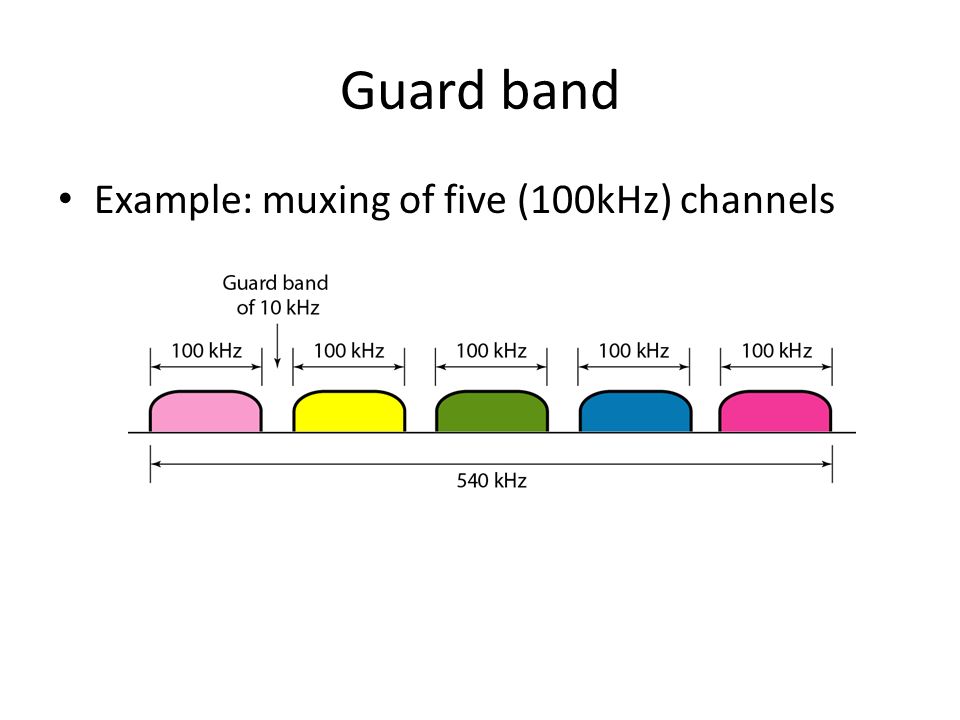

9. Guard band Example: muxing of five (100kHz) channels

10. Wavelength-Division Multiplexing (WDM) Is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e colours) of laser light.

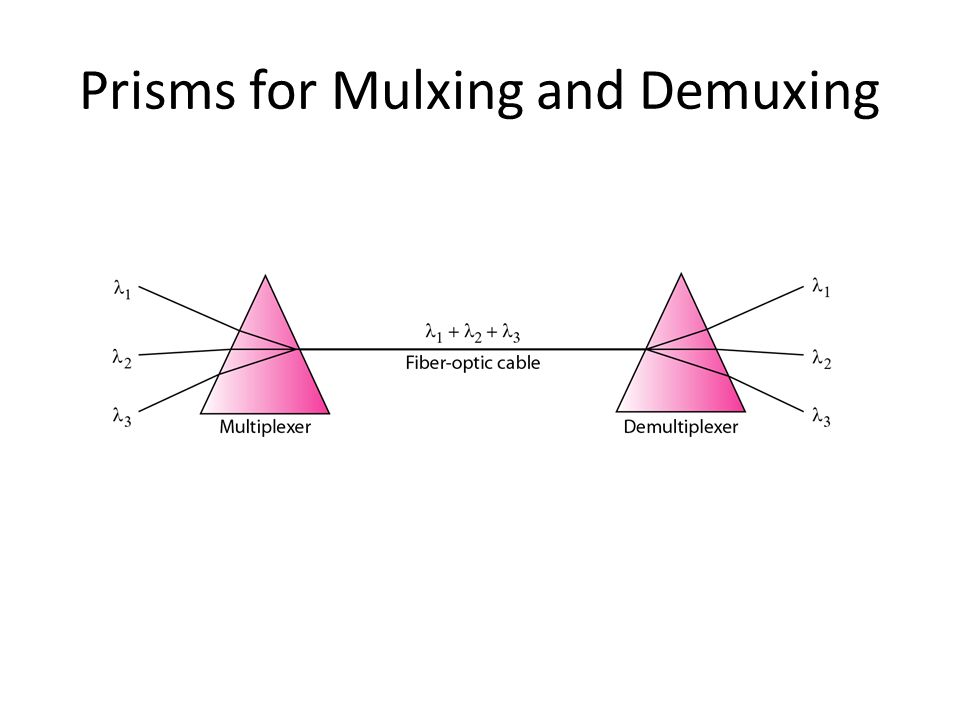

11. Prisms for Mulxing and Demuxing

12. Digital multiplexing combining multiple low rate channels into a single high rate channel Time-Division Multiplexing (TDM)

13. Link has a speed-up of n to combine n channels Synchronous TDM

14. TDM Example 1 Synchronous TDM system – Combine four 1 Mbps streams – Unit of data is 1 bit Questions – Input bit duration? – Output bit duration? – Output bit rate? – Output frame rate?

15. Questions Input bit duration? Output bit duration? Output bit rate? Output frame rate? 1 bit / 1Mbps = 1 μs 1/4 μs 4 Mbps 1 M frames / s

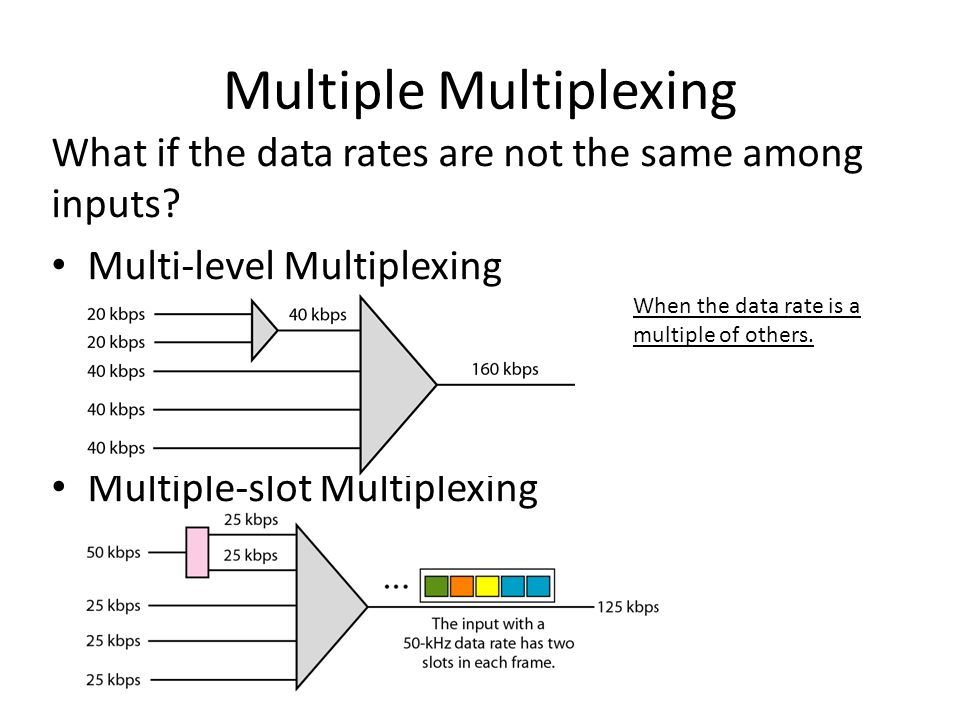

16. What if the data rates are not the same among inputs? Multi-level Multiplexing Multiple-slot Multiplexing Multiple Multiplexing When the data rate is a multiple of others.

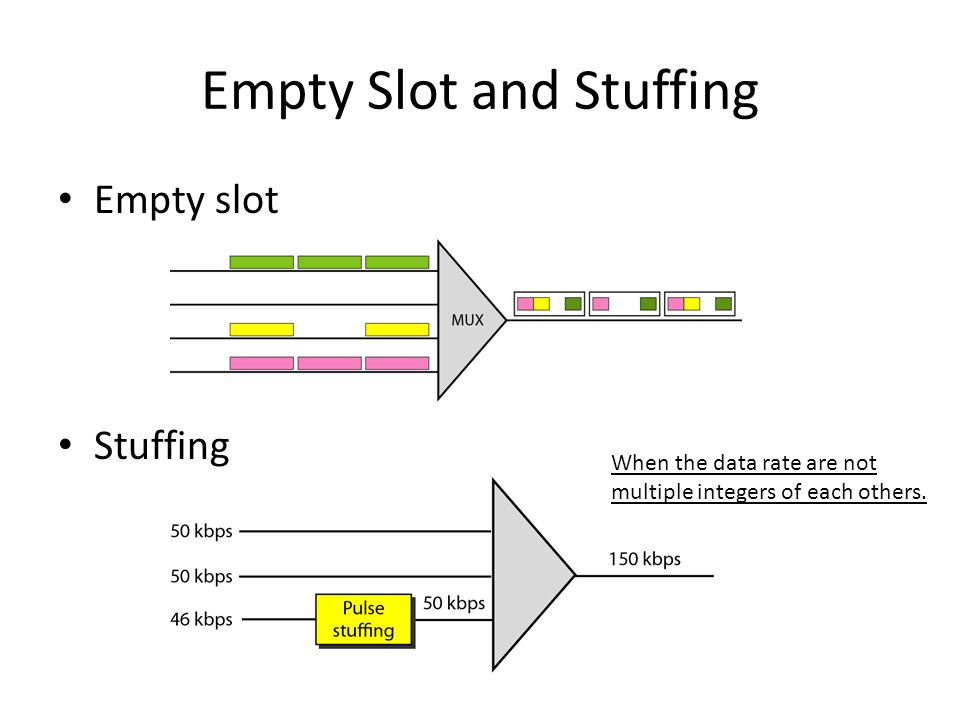

17. Empty Slot and Stuffing Empty slot Stuffing When the data rate are not multiple integers of each others.

18. Frame Synchronization Synchronization between the multiplexer and demultiplexer is a major issue. If not synchronized, a bit belonging to one channel may be received by a wrong channel. Additional information is need: frame bits

19. TDM Example 2 Synchronous TDM system – Combine four 250 characters/s streams – Unit of data is 1 character (8 bits) – 1 synchronization bit is added to each frame Questions – Input character duration? – Output frame rate? – Output frame duration? – Output bit rate? 1 / 250 = 4 ms 250 frames / s 1 / 250 = 4 ms 33 x 250 bits / s * Each frame has 33 (= 4 x 8 + 1) bits

20. Multiplexing Hierarchy Telephone system (US)

21. T-1 Line Multiplexing

22. European Telephone System

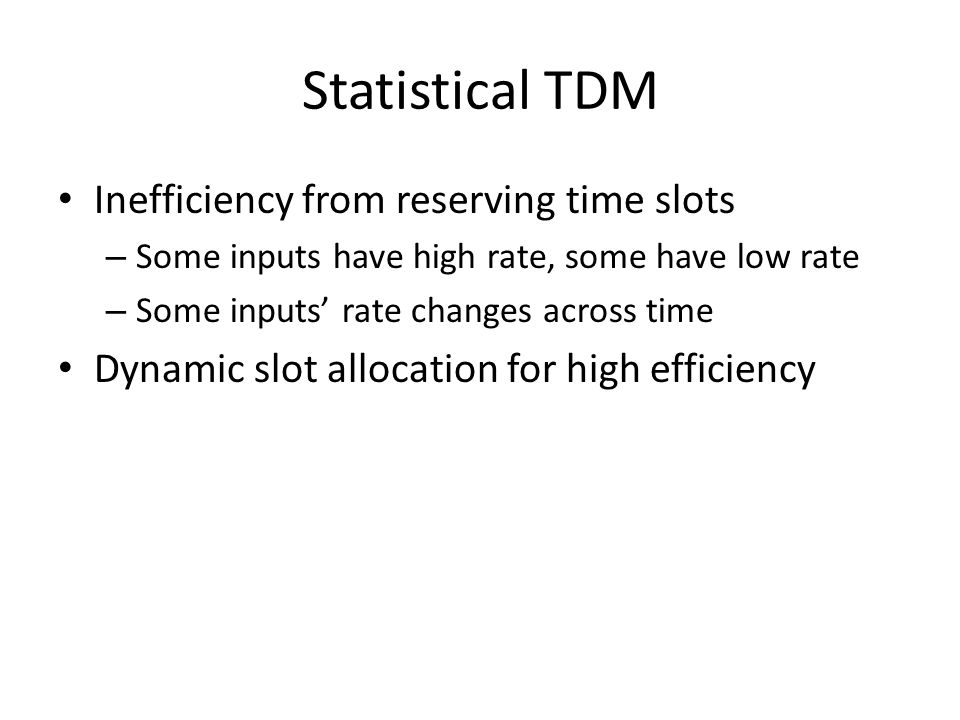

23. Statistical TDM Inefficiency from reserving time slots – Some inputs have high rate, some have low rate – Some inputs’ rate changes across time Dynamic slot allocation for high efficiency

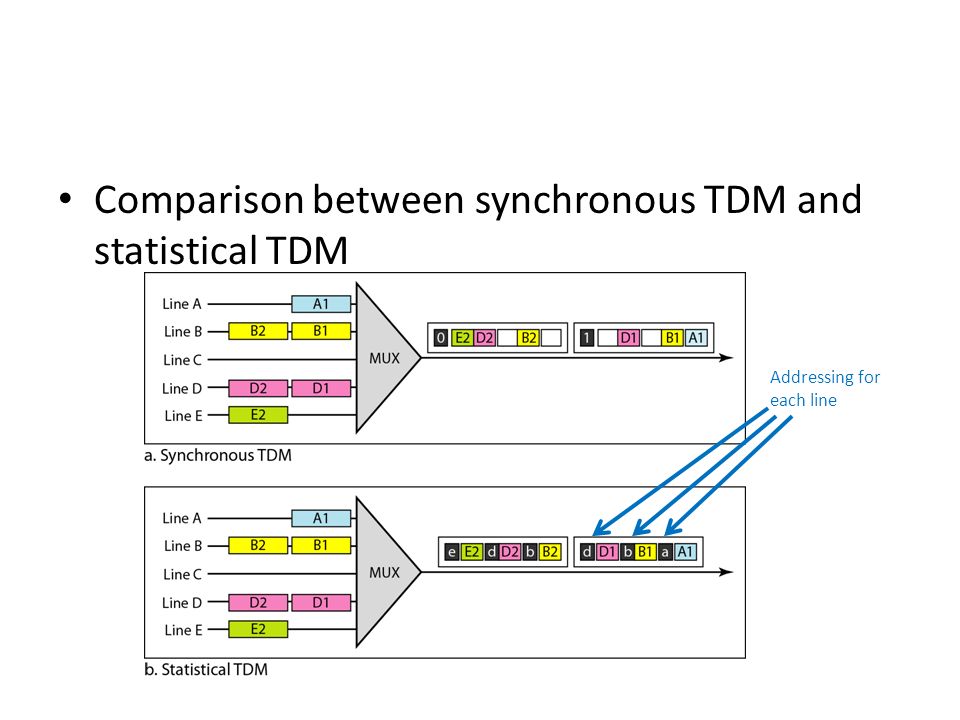

24. Comparison between synchronous TDM and statistical TDM Addressing for each line

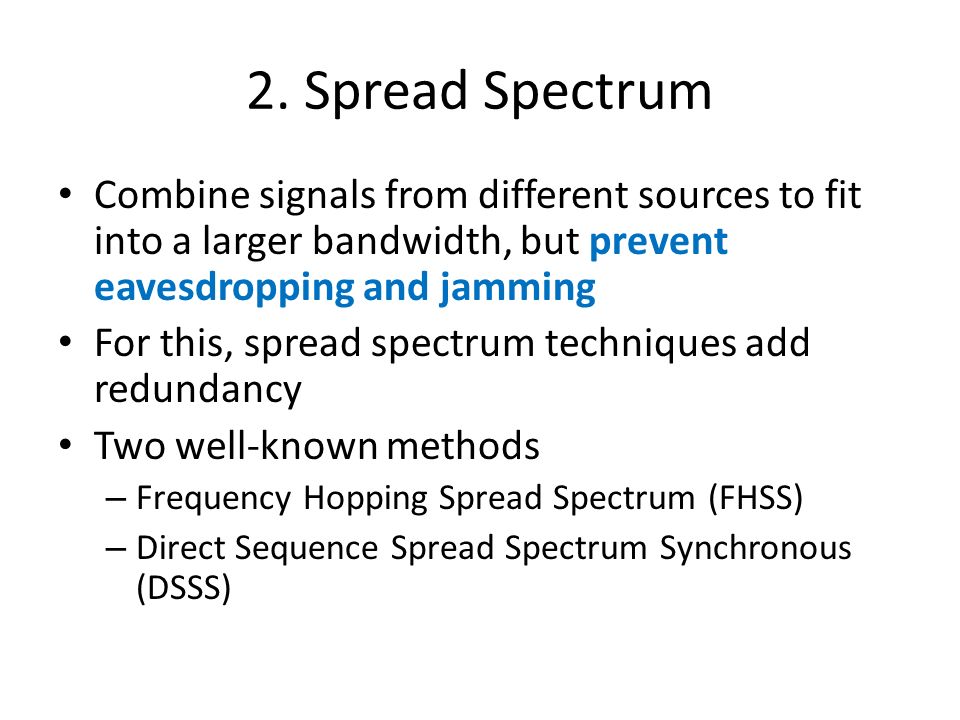

25. 2. Spread Spectrum Combine signals from different sources to fit into a larger bandwidth, but prevent eavesdropping and jamming For this, spread spectrum techniques add redundancy Two well-known methods – Frequency Hopping Spread Spectrum (FHSS) – Direct Sequence Spread Spectrum Synchronous (DSSS)

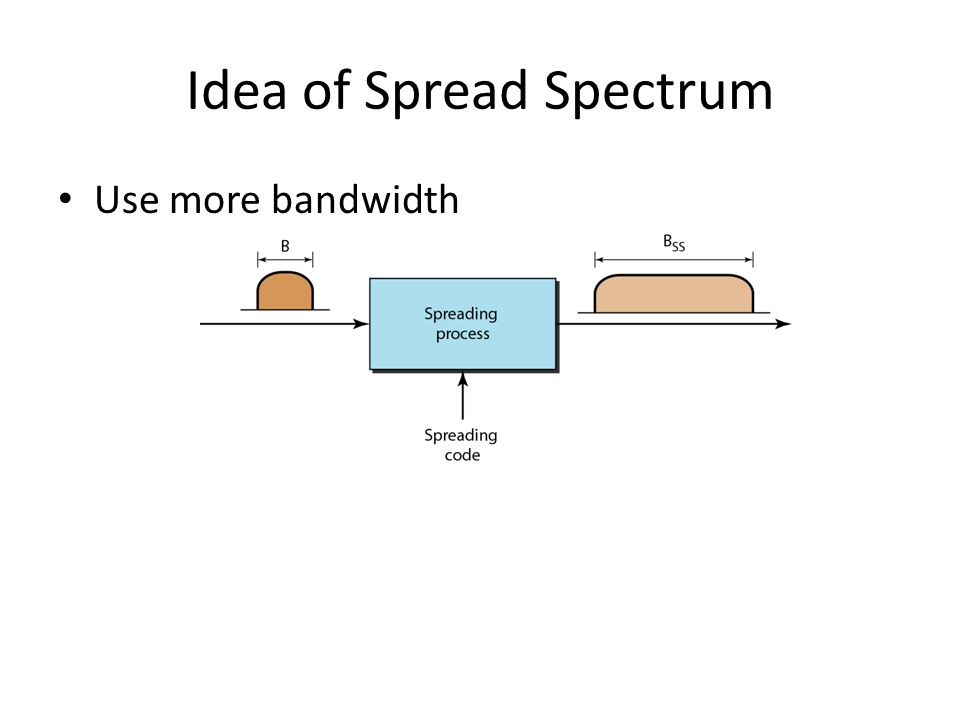

26. Idea of Spread Spectrum Use more bandwidth

27. FHSS System Frequency hopping spread spectrum (at sender)

28. Frequency Selection Time is divided into cycles of the same length, each cycle has multiple periods (called “hop period”) – Different frequency is used at a different period – Each cycle has the same pattern of frequencies – The patterns are known to both sender and receiver ** pattern during a cycle

29. FHSS Cycles Frequency usage i.e., time

30. FDM vs. FHSS Recall the reasons why we spread signals – Security issues – eavesdropping, and jamming

31. DSSS System Direct Sequence Spread Spectrum Synchronous (at sender)

32. Spread Signal of DSSS At each period, codes change instead of freq. To decode, one should know the seq. of codes

33. Homework Exercise in Chap. 6 – 16 – 18 (Assume that the system can support 6 active sources simultaneously.) – 23
