1. Bugs (part 1) CPS210 Spring 2006

2. Papers  Bugs as Deviant Behavior: A General Approach to Inferring Errors in System Code  Dawson Engler  Eraser: A Dynamic Data Race Detector for Multithreaded Programs  Stefan Savage

3. Take a deep breath  One month is over, 2.5 left  15 papers down, 19 to go  (the reading schedule lightens)  Done with most “core OS” topics  Address spaces, page tables, threads, etc

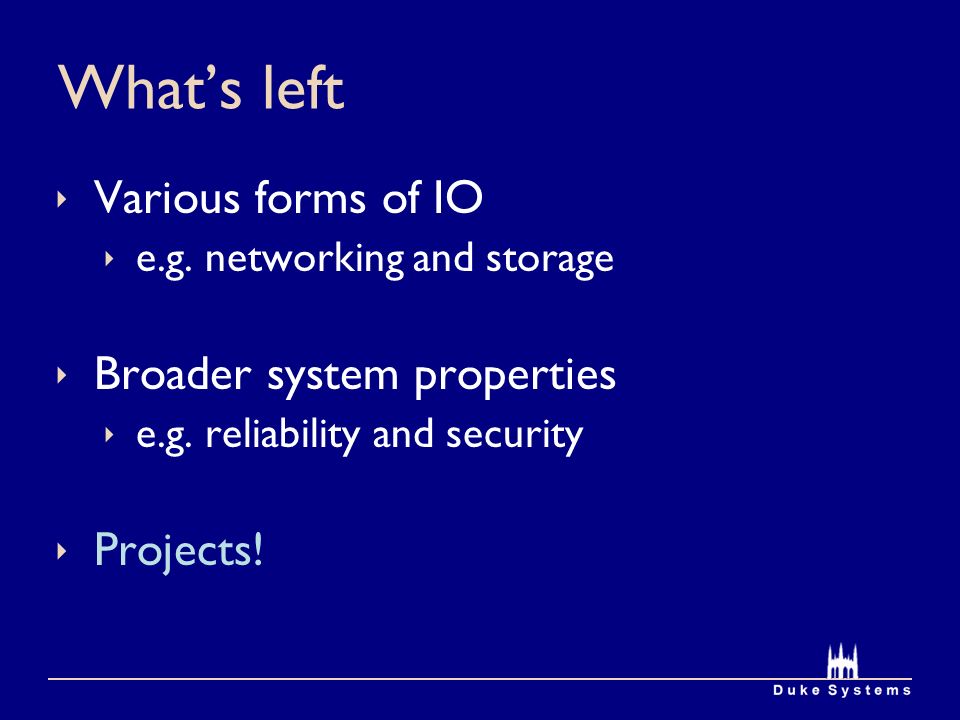

4. What’s left  Various forms of IO  e.g. networking and storage  Broader system properties  e.g. reliability and security  Projects!

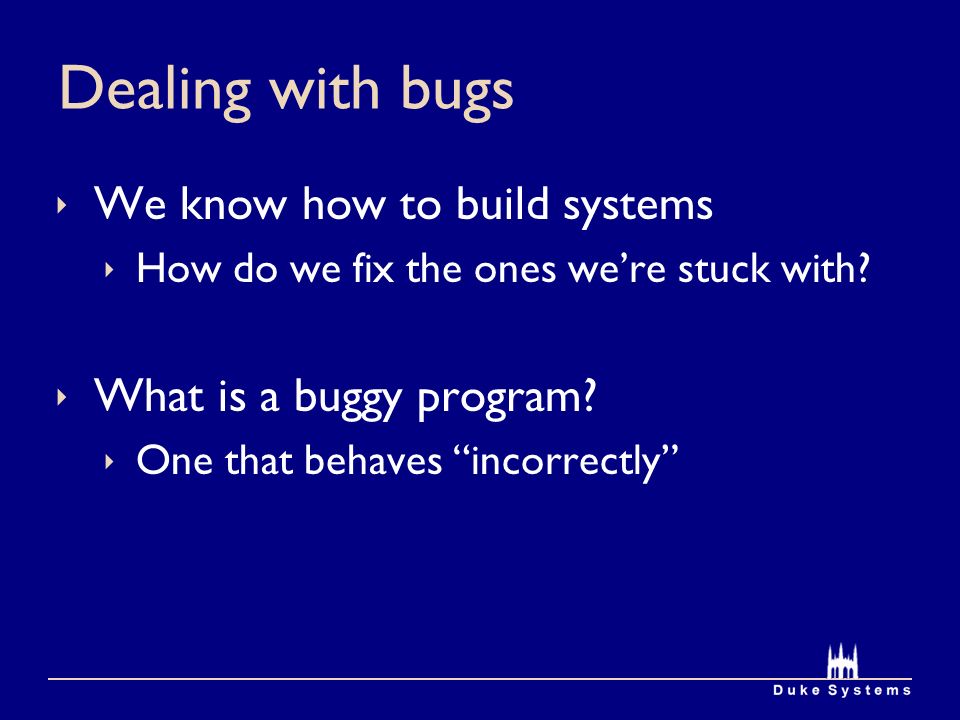

5. Dealing with bugs  We know how to build systems  How do we fix the ones we’re stuck with?  What is a buggy program?  One that behaves “incorrectly”

6. What does “correct” look like?  At the macro-level this is really hard  Need to know user expectations  Need to know programmers intentions  Easier to look at a micro-level  Are variables used as we expect?  Are primitives used as we expect?

7. Consistency example 1.int mxser_write (strcut ttyp_struct *tty) { // B(tty)=unknown 2. struct msxer_sstruct *info = tty>driver_data; // B(tty)=notnull 3. unsigned long flags; 4. 5. if (!tty || !info->xmit_buf) // B(tty)=null,notnull 6. return 0; 7. … Beliefs are MUST beliefs

8. Example template  T = “do not dereference null pntr ”  Slote instance p  Belief set B p  {}, {null}, {notnull}, {null, notnull}  Which actions matter?  Pointer dereferences, comparisons to null

9. Statistical analysis example 1.lock l; // lock 2.int a,b; // variables potentially protected by l 3.void foo () { 4. lock (l); // enter critical section 5. a = a + b; // MAY: a, b protected by l 6. unlock (l); // exit critical section 7. b = b + 1; // MUST: b not protected by l 8.} 9.void bar () { 10. lock (l); 11. a = a + 1; // MAY: a protected by l 12. unlock (l); 13.} 14.void baz () { 15. a = a + 1; // MAY: a protected by l 16. unlock (l); 17. b = b – 1; // MUST: b not protected by l 18. a = a / 5; // MUST: a not protected by l 19.} check Slot combination = ( a, l ) T = variable must be protected by lock check check (ERROR)

10. Statistical analysis example 1.lock l; // lock 2.int a,b; // variables potentially protected by l 3.void foo () { 4. lock (l); // enter critical section 5. a = a + b; // MAY: a, b protected by l 6. unlock (l); // exit critical section 7. b = b + 1; // MUST: b not protected by l 8.} 9.void bar () { 10. lock (l); 11. a = a + 1; // MAY: a protected by l 12. unlock (l); 13.} 14.void baz () { 15. a = a + 1; // MAY: a protected by l 16. unlock (l); 17. b = b – 1; // MUST: b not protected by l 18. a = a / 5; // MUST: a not protected by l 19.} check Slot combination = ( b, l ) T = variable must be protected by lock check (ERROR)

11. Eraser variable state machine Virgin Exclusive Shared- modified Shared wr, new thread rd/wr, first thread wr rd, new thread rd wr C(v) does not change C(v) changes No errors reported C(v) changes Errors reported

12. Intentional races 1.if (p->ip_fp == (NI2_XFILE *) 0) { // fpntr set? 2. NI2_LOCKS_LOCK (&p->ip_lock); // acq lock 3. if (p->ip_fp == (NI2_XFILE *) 0) { // fpntr set since we last checked? 4. p->ip_fp = ni2_xfopen (p->ip_name, “rb”); 5. } 6. NI2_LOCKS_UNLOCK (&p->ip_lock); // rel lock 7.} 8.… // no locking overhead if fpntr set
