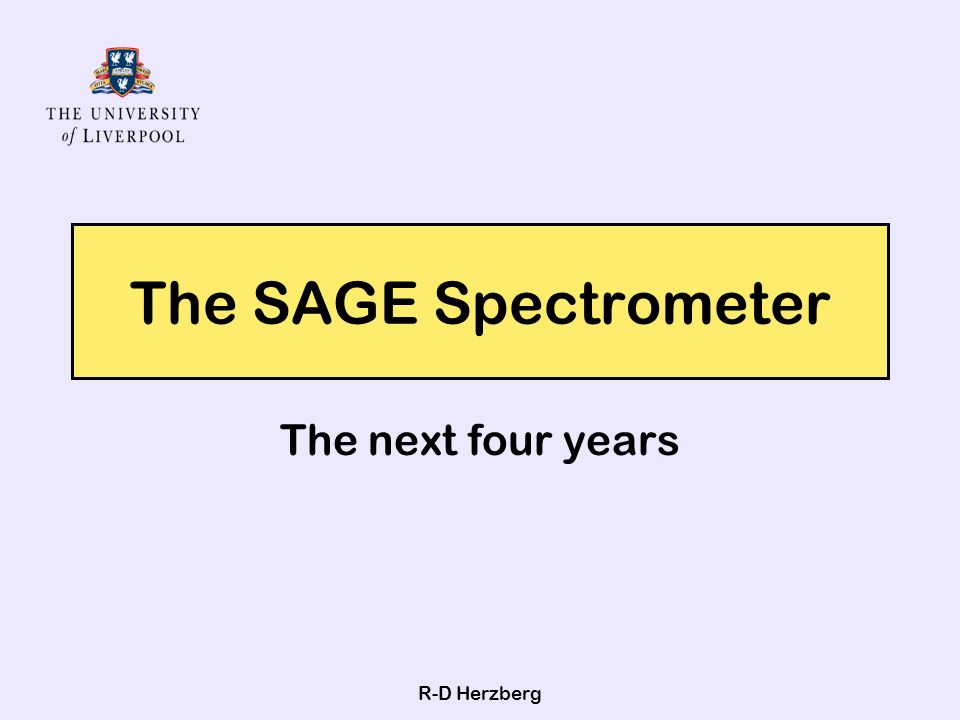

1. R-D Herzberg The SAGE Spectrometer The next four years

2. R-D Herzberg Overview Brief Physics Case Technical description Work to be done

3. R-D Herzberg Physics In heavy nuclei Gamma rays and conversion electrons compete. E.g. for Z~100: E2: Conversion is dominant above 400 keV M1: Conversion is dominant above 200 keV

4. R-D Herzberg Physics Any heavy (trans-)actinide nucleus must be studied twice: gammas and electrons SAGE allows the simultaneous investigation of gamma rays and conversion electrons in the same experiment!

5. R-D Herzberg Why us? We’ve done Juroshpere/gam Dito SACRED Dito GREAT Dito TDR Dito a lot of heavy element work A lot of experience and expertise is collected in this room!

6. R-D Herzberg Ingredients Ge – Array John, Pete Solenoid Paul, Juha Si – detector Rodi, Robert Electronics Ian, Jim, Patrick, Dave Mechanics Dave Software John, Simon, Vic

7. R-D Herzberg Technical details

8. R-D Herzberg Ge array What shape do we want Jurogam to take in the future? As is? Clovers?

9. R-D Herzberg Solenoid Need to efficiently transport the electrons from the target to the detector Must not interfere with Ge detectors Tricky: need optimisation

10. R-D Herzberg Si detector High pixellation Rate distribution High rate capability

11. R-D Herzberg Electronics DIGITAL TNT2 tests have been done Total capability up by a factor 12: 4 x segmentation, 3 x rate/pixel Huge data rates!

12. R-D Herzberg Mechanics Target chamber Solenoid support Si detector chamber Ge frame Target wheel Windowless operation?

13. R-D Herzberg 20052006200720082009 Q2Q2 Q3Q3 Q4Q4 Q1Q1 Q2Q2 Q3Q3 Q4Q4 Q1Q1 Q2Q2 Q3Q3 Q4Q4 Q1Q1 Q2Q2 Q3Q3 Q4Q4 Q1Q1 Q2Q2 Q3Q3 Conceptual and mechanical design of SAGE Manufacture, testing and installation Electronics design and implementation Support of experimental programme GREAT, JUROGAM, SACRED exploitation SAGE + GREAT exploitation Data analysis and dissemination
