1 Monitor CE52SR3 SANYO Sales & Marketing Europe GmbH

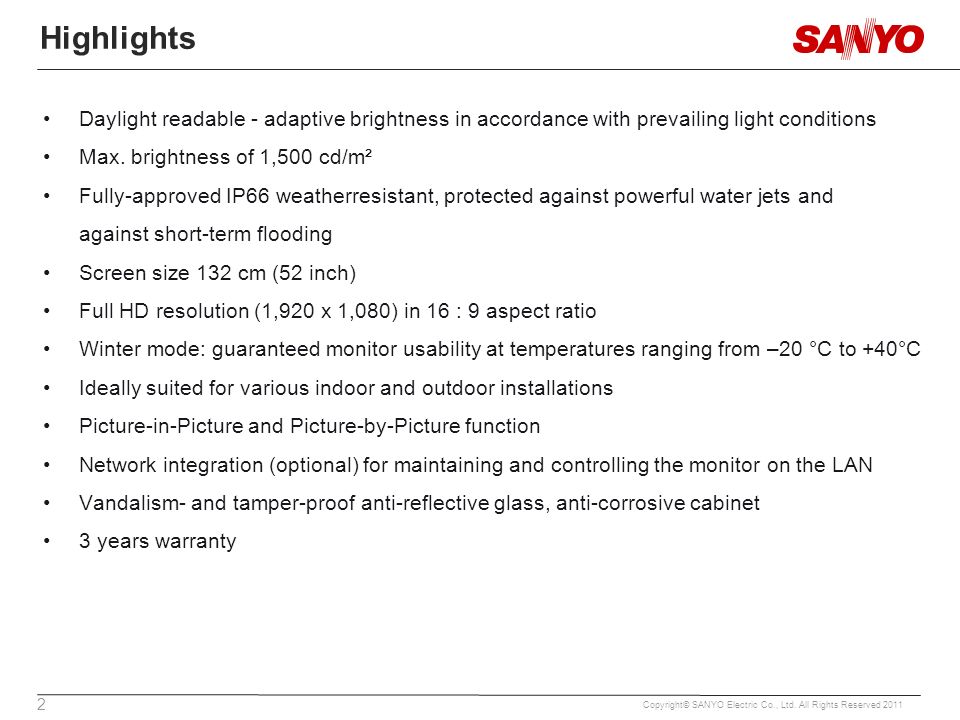

2 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 2 Highlights Daylight readable - adaptive brightness in accordance with prevailing light conditions Max. brightness of 1,500 cd/m² Fully-approved IP66 weatherresistant, protected against powerful water jets and against short-term flooding Screen size 132 cm (52 inch) Full HD resolution (1,920 x 1,080) in 16 : 9 aspect ratio Winter mode: guaranteed monitor usability at temperatures ranging from –20 °C to +40°C Ideally suited for various indoor and outdoor installations Picture-in-Picture and Picture-by-Picture function Network integration (optional) for maintaining and controlling the monitor on the LAN Vandalism- and tamper-proof anti-reflective glass, anti-corrosive cabinet 3 years warranty

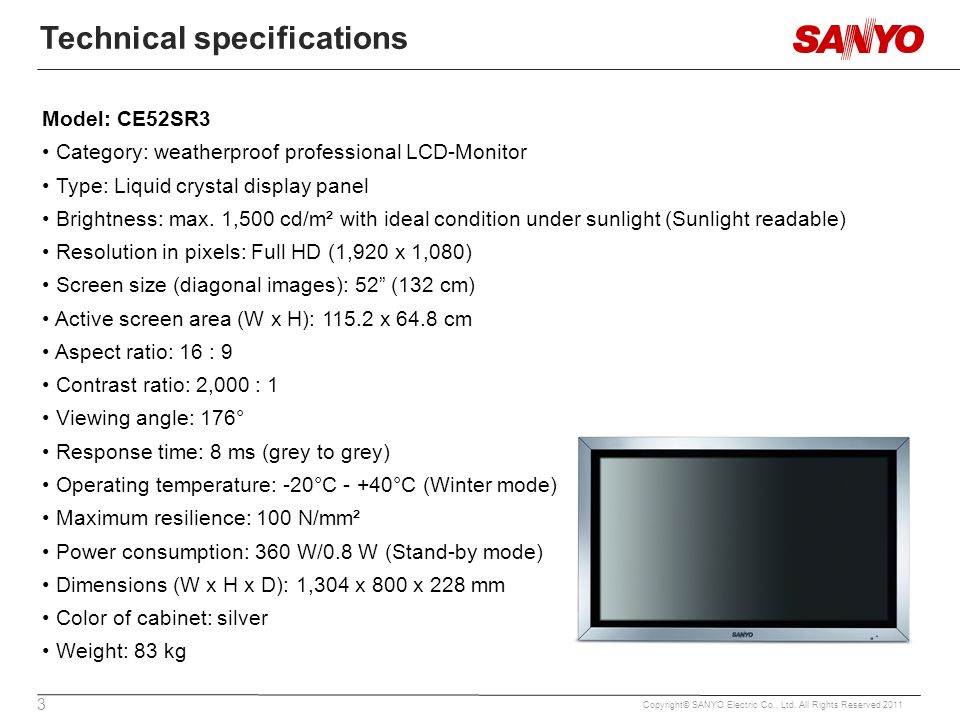

3 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 3 Technical specifications Model: CE52SR3 Category: weatherproof professional LCD-Monitor Type: Liquid crystal display panel Brightness: max. 1,500 cd/m² with ideal condition under sunlight (Sunlight readable) Resolution in pixels: Full HD (1,920 x 1,080) Screen size (diagonal images): 52” (132 cm) Active screen area (W x H): 115.2 x 64.8 cm Aspect ratio: 16 : 9 Contrast ratio: 2,000 : 1 Viewing angle: 176° Response time: 8 ms (grey to grey) Operating temperature: -20°C - +40°C (Winter mode) Maximum resilience: 100 N/mm² Power consumption: 360 W/0.8 W (Stand-by mode) Dimensions (W x H x D): 1,304 x 800 x 228 mm Color of cabinet: silver Weight: 83 kg

4 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 4 Connections Input terminals DVI-D (digital/HDCP) D-Sub15 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) Component (Y, Pb, Pr) BNC (Video) Scart (RGB) Video D-Sub 9 (RS232) 2 x RCA (R/L mono) for Audio 3.5 mm Stereo Jack for Audio Output terminals 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) Component (Y, Pb, Pr) BNC (Video) D-Sub 9 (RS232) 2 x RCA (R/L mono) for Audio External speaker output (2 x 8 W)

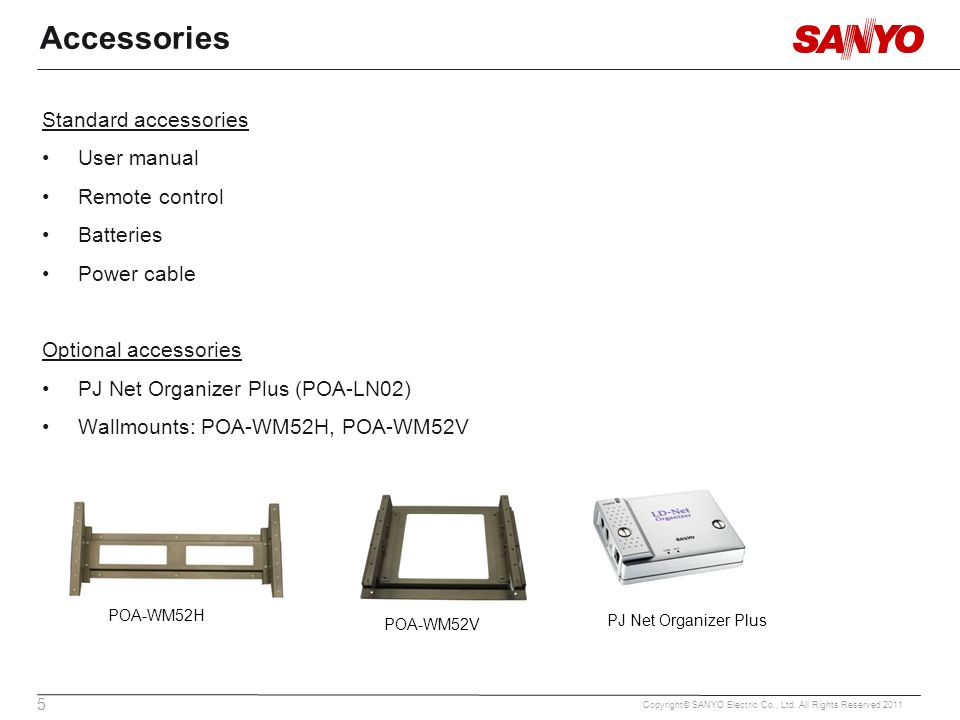

5 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 5 Accessories Standard accessories User manual Remote control Batteries Power cable Optional accessories PJ Net Organizer Plus (POA-LN02) Wallmounts: POA-WM52H, POA-WM52V PJ Net Organizer Plus POA-WM52H POA-WM52V

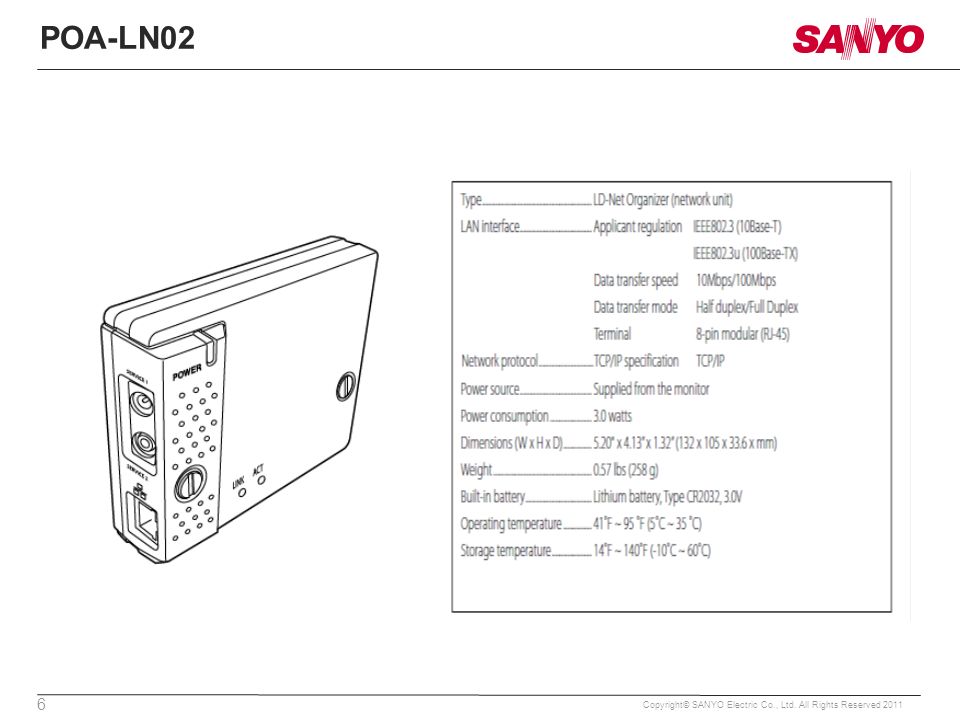

6 6 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 POA-LN02

7 7 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 POA-LN02 - Operating Environment

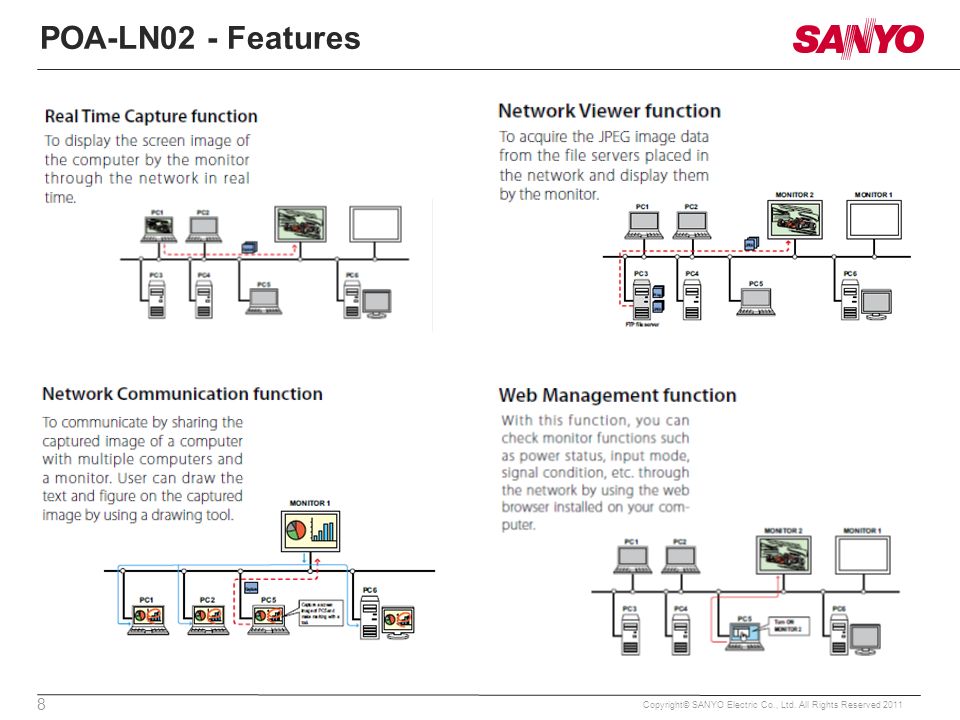

8 8 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 POA-LN02 - Features

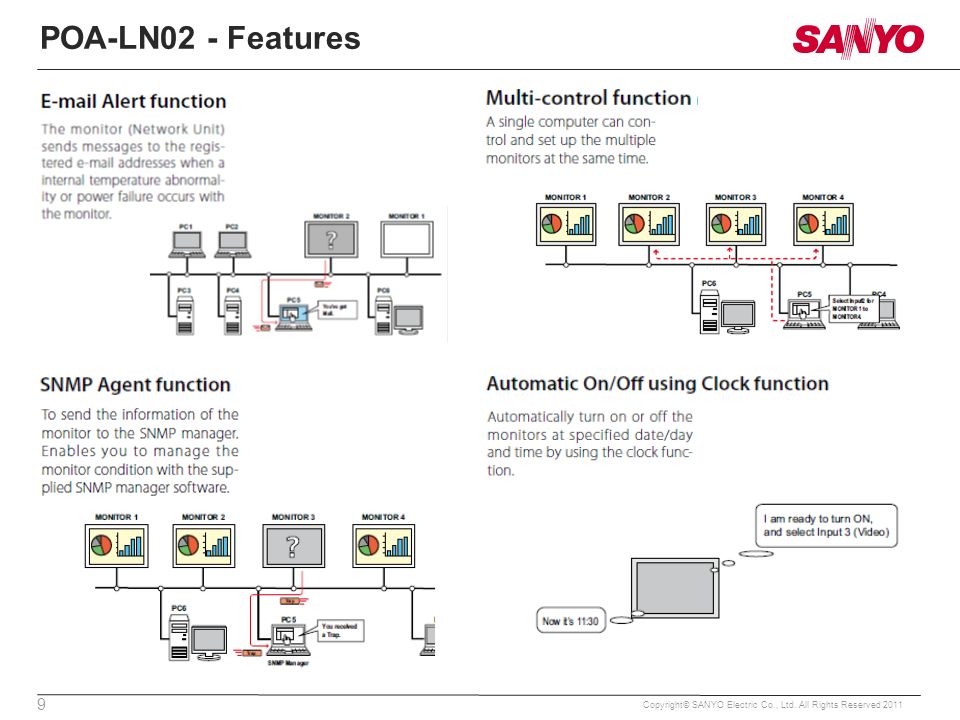

9 9 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 POA-LN02 - Features

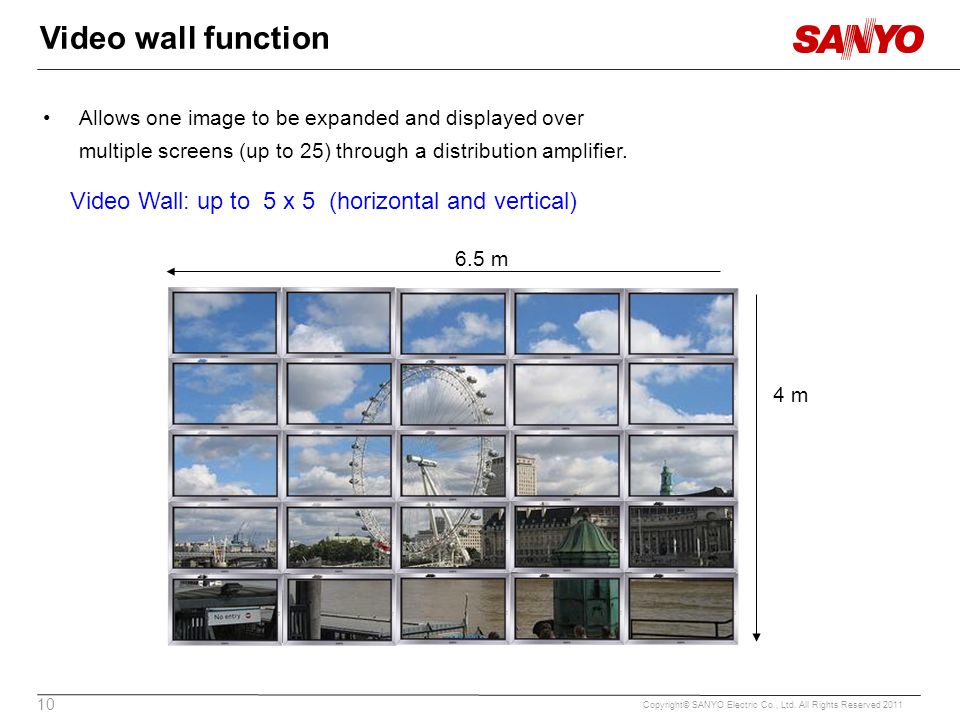

10 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 10 Video wall function Allows one image to be expanded and displayed over multiple screens (up to 25) through a distribution amplifier. Video Wall: up to 5 x 5 (horizontal and vertical) 6.5 m 4 m

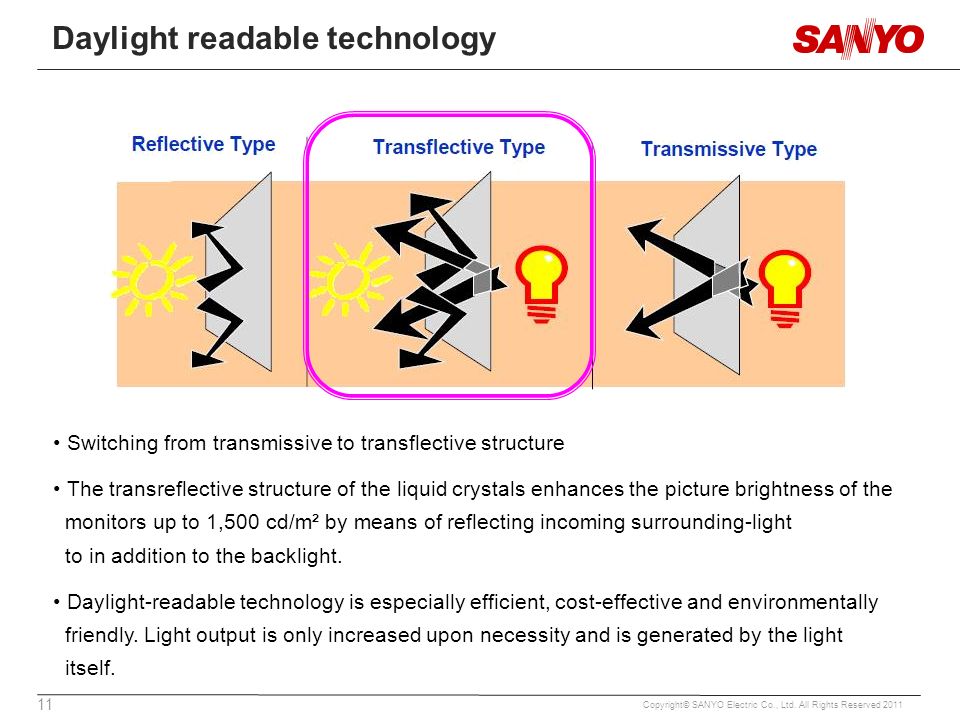

11 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 11 Switching from transmissive to transflective structure The transreflective structure of the liquid crystals enhances the picture brightness of the monitors up to 1,500 cd/m² by means of reflecting incoming surrounding-light to in addition to the backlight. Daylight-readable technology is especially efficient, cost-effective and environmentally friendly. Light output is only increased upon necessity and is generated by the light itself. Daylight readable technology

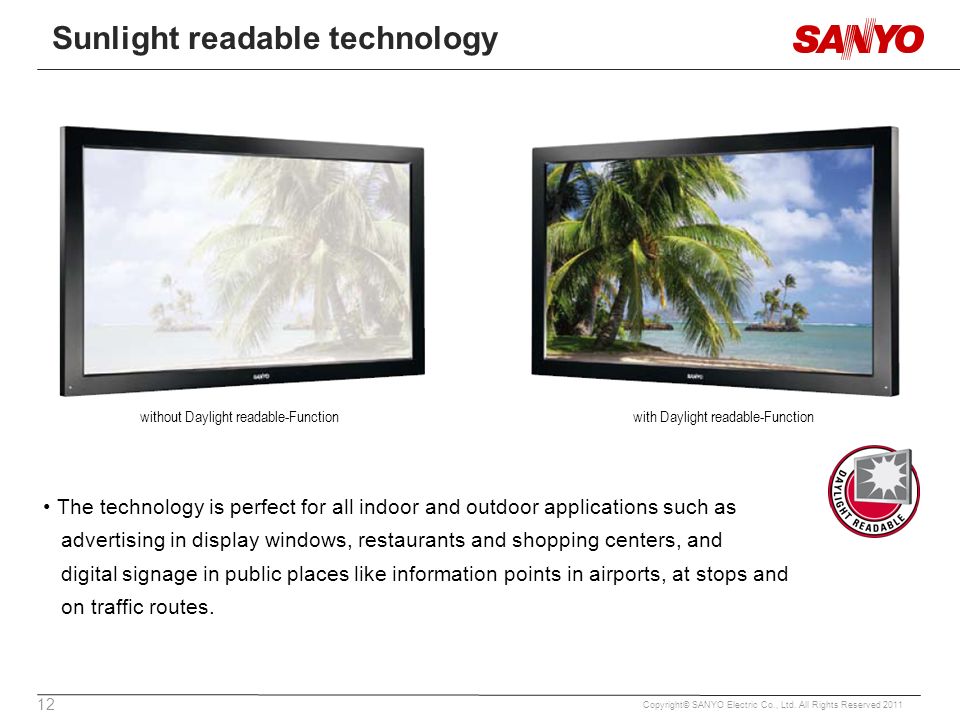

12 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 12 with Daylight readable-Functionwithout Daylight readable-Function Sunlight readable technology The technology is perfect for all indoor and outdoor applications such as advertising in display windows, restaurants and shopping centers, and digital signage in public places like information points in airports, at stops and on traffic routes.

13 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 13 Weatherproof monitors No limits to entertainment and information: weatherproof monitors for all indoor and outdoor installations Such as in heavy frost or in wet or hot weather Comply with the IP66 standard (protect against strong jets of water, temporary flooding and dust penetration) Used in temperatures as low as -20°C (winter mode) The rust-proof anodized aluminium housing is especially durable Extremely resistant non-reflective screen protect against vandalism and foreign particles Applications: ski resorts, amusement parks, industrial plants, railway stations, simulations, car washes, etc.

14 Copyright© SANYO Electric Co., Ltd. All Rights Reserved 2011 14 Weatherproof monitors Overview: Degree of protection
