1. Dynamic Programming Presenters: Michal Karpinski Eric Hoffstetter

2. Background “Dynamic programming” originates with Richard Bellman (1940s) in multistage decision process problems. –While at RAND Corp, he wanted his work to appear more practical (“real work”) as opposed to theoretical. To shield himself from scrutiny, Bellman chose the word “programming,” which implies fruitful, deliberate effort and embellished it with “dynamic.” As he puts it “it’s impossible to use dynamic in a pejorative sense.” Applications: –String alignments / problems –Pattern recognition: Image matching / image recognition (2D & 3D) Speech recognition (Viterbi algorithm) –Manufacturing – find fastest way through factory –Order of matrices in matrix multiplication to minimize cost –Build optimal binary search tree – minimize number of nodes visited during search Language translator – most common words near root of tree

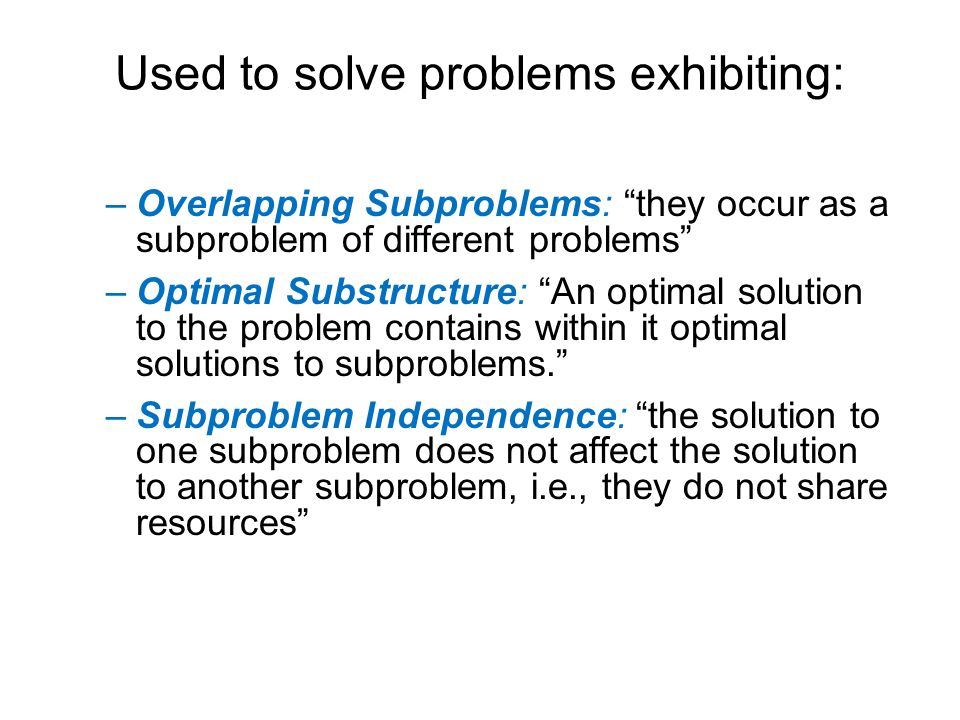

3. Used to solve problems exhibiting: –Overlapping Subproblems: “they occur as a subproblem of different problems” –Optimal Substructure: “An optimal solution to the problem contains within it optimal solutions to subproblems.” –Subproblem Independence: “the solution to one subproblem does not affect the solution to another subproblem, i.e., they do not share resources”

4. Tops Down and Bottoms Up –Top-down: problem is broken down to subproblems then solved using memoization to remember the solutions to subproblems already solved. Top down: function fib(n) if n = 0 return 0 if n = 1 return 1 else return fib(n − 1) + fib(n − 2) Top down with memoization (not memorization) var m := map(0 → 1, 1 → 1) function fib(n) if map m does not contain key n m[n] := fib(n − 1) + fib(n − 2) return m[n] –Bottom-up: all subproblems must be solved in advance to build solutions to larger problems function fib(n) var previousFib := 0, currentFib := 1 repeat n − 1 times var newFib := previousFib + currentFib previousFib := currentFib currentFib := newFib return currentFib

5. Biological Sequence Matching Problems 1 DNA –Two strands –Four letter alphabet (four bases) –Base pairing rules –Strands are directional and, within a gene, only one strand is translated RNA –Functional or intermediate step of protein manufacturing –Four letter alphabet Proteins –20 letter alphabet

6. Biological Sequence Matching Problems 2 Applications –Identify strains of viruses, bacteria –Identify genes (hair, skin, eye color, height) and genetic basis for diseases (lethal or susceptibility to cancer, etc.) –Identify evolutionary relationships Dynamic programming is the basis of BLAST (Basic Local Alignment Search Tool) – in top 3 of most cited papers in recent bioscience history (was #1 in 1990s)

7. Sequence Alignment Algorithm 1 -AGGCGGATC--- TAG-C--ATCTAC Given two strings x = x 1 x 2...x M, y = y 1 y 2 …y N, Find the alignment with maximum score F = (# matches)  m - (# mismatches)  s – (#gaps)  d AGGCGGATC TAGCATCTAC

8. Sequence Alignment Algorithm 2 AGTGCCCTGGAACCCTGACGGTGGGTCACAAAACTTCTGGA AGTGACCTGGGAAGACCCTGACCCTGGGTCACAAAACTC There are > 2 N possible alignments.

9. Sequence Alignment Algorithm 3 Note: The score of aligningx 1 ……x M y 1 ……y N is additive Say thatx 1 …x i x i+1 …x M aligns to y 1 …y j y j+1 …y N Add the two scores: F(x 1 …x M, y 1 …y N ) = F(x 1 …x i, y 1...y j ) + F(x i+1 …x m, y j+1 …y N )

10. Sequence Alignment Algorithm 4 Original problem –Align x 1 …x M to y 1 …y N Divide into a finite number of subproblems (non-overlapping for efficiency) –Align x 1 …x i to y 1 …y j Subdivide the subproblem and construct the solution from smaller subproblems rogrammingClassic problem type for dynamic programming Let F(i, j) = optimal score of aligning x 1 ……x i y 1 ……y j F is the “matrix” or “table” or “program.” Hence the term “dynamic programming.”

11. Sequence Alignment Algorithm 5 Three cases: 1.x i aligns to y j x 1 ……x i-1 x i y 1 ……y j-1 y j 2.x i aligns to a gap x 1 ……x i-1 x i y 1 ……y j - 3.y j aligns to a gap x 1 ……x i - y 1 ……y j-1 y j diagonal move m, if x i = y j F(i, j) = F(i – 1, j – 1) + -s, if not horizontal move F(i, j) = F(i – 1, j) – d vertical move F(i, j) = F(i, j – 1) – d F = (# matches)  m - (# mismatches)  s – (# gaps)  d Scoring function s(x i, y j ) F(i, j) calculated with scoring function s(x i, y j ) or gap function g Gap function

12. Sequence Alignment Algorithm 6 How do we choose the case for each matrix position? Assume that the subproblems are solved: F(i, j – 1), F(i – 1, j), F(i – 1, j – 1) are optimal Therefore, F(i – 1, j – 1) + s(x i, y j ) F(i, j) = max F(i – 1, j) – d F(i, j – 1) – d Where s(x i, y j ) = m, if x i = y j ;-s, if not

13. Set d = 1, m = 1, s = -0.5 F(i – 1, j – 1) + s(x i, y j ) F(i, j) = max F(i – 1, j) – 1 F(i, j – 1) – 1 Where s(x i, y j ) = 1, if x i = y j -0.5, if not Sequence Alignment Algorithm 7

14. Needleman-Wunsch Algorithm 1: Finds Global Optimal Alignment 1.Initialization a.F(0, 0) = 0 b.F(0, j) = - j  d c.F(i, 0)= - i  d 2.Main Iteration Filling-in partial alignments a.For each i = 1……M For each j = 1……N F(i – 1,j – 1) + s(x i, y j ) [case 1] F(i, j) = max F(i – 1, j) – d [case 2] F(i, j – 1) – d [case 3]  if [case 1] Ptr(i, j)=  if [case 2]  if [case 3] 3.Termination F(M, N) is the optimal score, and from Ptr(M, N) can trace back optimal alignment

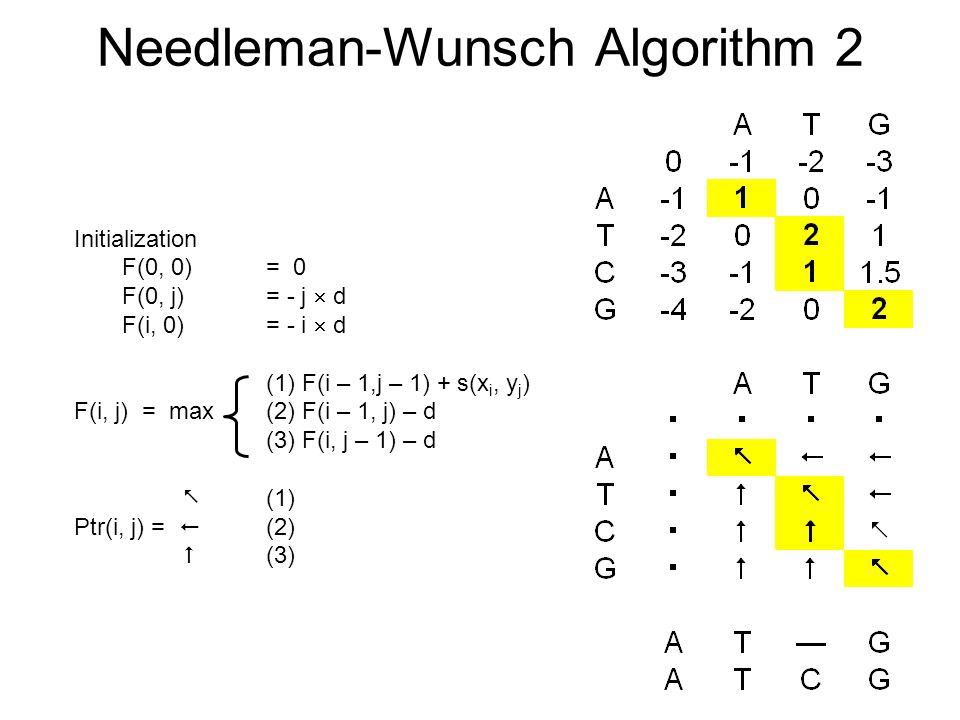

15. Needleman-Wunsch Algorithm 2 Initialization F(0, 0) = 0 F(0, j) = - j  d F(i, 0)= - i  d (1) F(i – 1,j – 1) + s(x i, y j ) F(i, j) = max (2) F(i – 1, j) – d (3) F(i, j – 1) – d  (1) Ptr(i, j) =  (2)  (3)

16. Smith-Waterman Algorithm 1: Finds local optimal alignment(s) Ignore poorly aligned regions 1.Initialization a.F(0, 0) = 0 b.F(0, j) = 0 c.F(i, 0)= 0 2.Main Iteration Filling-in partial alignments a.For each i = 1……M For each j = 1……N 0 F(i – 1,j – 1) + s(x i, y j ) [case 1] F(i, j) = max F(i – 1, j) – d [case 2] F(i, j – 1) – d [case 3]  if [case 1] Ptr(i, j)=  if [case 2]  if [case 3] 3.Termination F(M, N) is the optimal score, and from Ptr(M, N) can trace back optimal alignment

17. Smith-Waterman Algorithm 2 Initialization F(0, 0) = 0 F(0, j) = 0 F(i, 0)= 0 (1) F(i – 1,j – 1) + s(x i, y j ) F(i, j) = max (2) F(i – 1, j) – d (3) F(i, j – 1) – d  (1) Ptr(i, j) =  (2)  (3)

18. Smith-Waterman Algorithm 3

19. Smith-Waterman Algorithm 4

20. Overlap Detection 1 When searching for matches of a short string in database of long strings, we don’t want to penalize overhangs x 1 …………………… x M y 1 ………………… y N x 1 …………………… x M y 1 ………… y N x y x y

21. Overlap Detection 2 F(i – 1, 0) F(i, 0) = maxF(i – 1, m) – T F(i – 1,j – 1) + s(x i, y j ) F(i, j) = max F(i – 1, j) – d F(i, j – 1) – d

22. Overlap Detection 3 Needleman-Wunsch with Overlap Detection Smith-Waterman with Overlap Detection F(i – 1, 0) F(i, 0) = maxF(i – 1, m) – T 0 F(i – 1,j – 1) + s(x i, y j ) F(i, j) = max F(i – 1, j) – d F(i, j – 1) – d

23. Bounded Dynamic Programming Initialization: F(i,0), F(0,j) undefined for i, j > k Iteration: For i = 1…M For j = max(1, i – k)…min(N, i+k) F(i – 1, j – 1)+ s(x i, y j ) F(i, j) = maxF(i, j – 1) – d, if j > i – k(N) F(i – 1, j) – d, if j < i + k(N) Termination:same x 1 ………………………… x M y 1 ……………………… y N k(N)

24. Largest Common Subsequence 1 1.Initialization a.F(0, 0) = 0 b.F(0, j) = 0 c.F(i, 0)= 0 2.Main Iteration a.For each i = 1……M For each j = 1……N F(i – 1,j – 1) + 1, if x i = y j [case 1] F(i, j) = max F(i – 1, j), if not(x i = y j )[case 2] F(i, j – 1), if not(x i = y j ) [case 3]  if [case 1] Ptr(i, j)=  if [case 2]  if [case 3] 3.Termination F(M, N) is the optimal score, and from Ptr(M, N) can trace back optimal alignment

25. Largest Common Subsequence 2 Initialization F(0, 0) = 0 F(0, j) = 0 F(i, 0)= 0 (1) F(i – 1,j – 1) + 1, if x i = y j F(i, j) = max (2) F(i – 1, j), if not(x i = y j ) (3) F(i, j – 1), if not(x i = y j )  (1) Ptr(i, j) =  (2)  (3)

26. Cormen: error on page 353 Corrected (to obtain figure 15.6) m = length[X] n = length[Y] for i = 1 to m do c[i,0] = 0 for j = 0 to n do c[0,j] = 0 for i = 1 to m for j = 1 to n if x i = y j then c[i,j] = c[i-1, j-1] + 1] b[i,j] = “  ” else if c[i-1, j] > c[i, j-1] then c[i,j] = c[i-1, j] b[i,j] = “  ” else c[i,j] = c[i, j-1] b[i,j] = “  ” return c and b Largest Common Subsequence 3

27. Performance Running Time: O(mn) + O(m+n) for output Storage: O(mn) –Possible to eliminate backpointer matrix for some problems Improvements –Overlap detection –Partitioning: Find local alignments to seed global alignment –Bounded DP –Gap opening vs. gap extension –Biochemically significant scoring function

28. Sources Altschul, S.F., et al. Basic Local Alignment Search Tool. J. Molec. Biol. 215(3): 403-10, 1990. Bellman, Richard. Dynamic Programming. Princeton University Press, Princeton: 1957. Cormen et al. Introduction to Algorithms. MIT Press, Cambridge: 2001. Dreyfus, Stuart. 2002. Richard Bellman on the birth of dynamic programming. Operations Research 50: 48-51. Durbin et al. Biological Sequence Analysis: Probabilistic models of proteins and nucleic acids. Cambridge University Press, New York: 1998. Gotoh, O. 1982. An improved algorithm for matching biological sequences. Journal of Molecular Biology 162: 705-708. Gusfield, Dan. Algorithms on Strings, Trees, and Sequences, Cambridge University Press, New York: 1997. Needleman, S.B. and Wunsch, C.D. 1970. A general method applicable to the search for similarities in the amino acid sequence of two proteins. Journal of Molecular Biology 48: 443-453. Preiss. B.R. Data Structures and Algorithms with Object-Oriented Design Patterns in C#. Smith, T. F. and Waterman, M.S. 1981. Identification of common molecular subsequences. Journal of Molecular Biology 147: 195-197. Wikipedia

29. Sequence Alignment Algorithm X -AGGCTATCACCTGACCTCCAGGCCGA--TGCCC--- TAG-CTATCAC--GACCGC--GGTCGATTTGCCCGAC Given two strings x = x 1 x 2...x M, y = y 1 y 2 …y N, Find the alignment with maximum score F = (# matches)  m - (# mismatches)  s – (#gaps)  d AGGCTATCACCTGACCTCCAGGCCGATGCCC TAGCTATCACGACCGCGGTCGATTTGCCCGAC
