1. Endeavor Safety: Pooled Analysis of Early and Late Safety of a Zotarolimus-Eluting Stent Laura Mauri, MD, MSc Brigham and Women’s Hospital Harvard Clinical Research Institute Boston, Massachusetts October 24, 2007 TCT Late Breaking Clinical Trial Disclosures: Advisory Board Member Medtronic 1

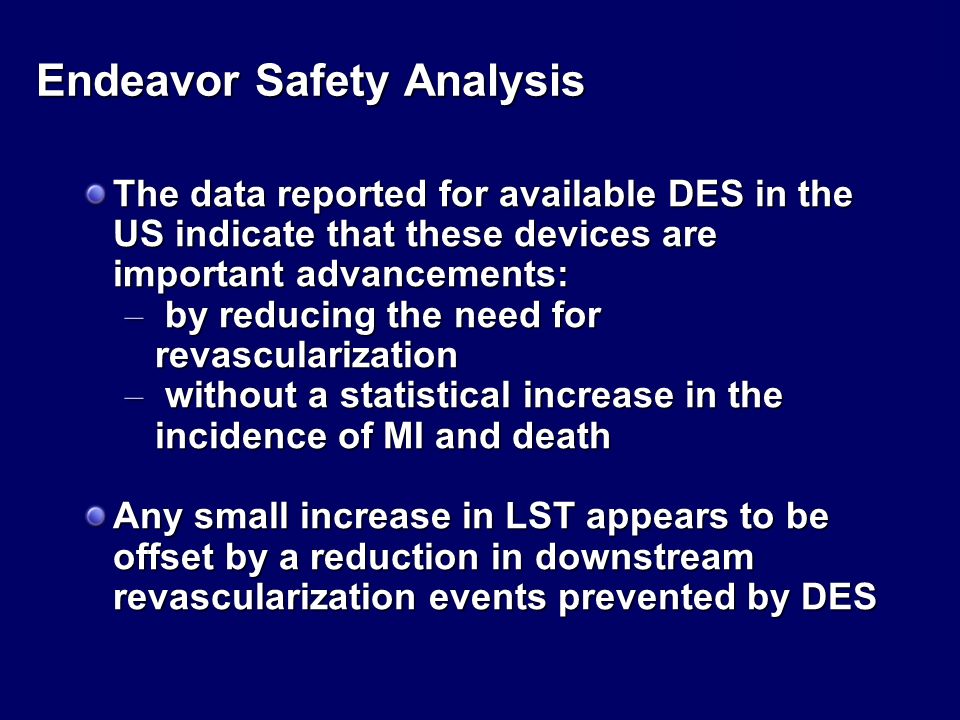

2. Endeavor Safety Analysis The data reported for available DES in the US indicate that these devices are important advancements: – by reducing the need for revascularization – without a statistical increase in the incidence of MI and death Any small increase in LST appears to be offset by a reduction in downstream revascularization events prevented by DES

3. Endeavor Safety Analysis An ideal DES would: 1) Reduce the incidence of revascularization and its downstream events and 2) Provide equivalent or better safety results compared with BMS Single randomized trials have been sufficient to show efficacy, but not to show safety

4. 4 ENDEAVOR IV Taxus(n=54/734)Endeavor(n=50/740) Target Vessel Failure P for Non-Inferiority < 0.001 Δ=3.8% Primary Endpoint Result at 9 months Primary Endpoint Result at 9 months 7.4% 6.8%

5. 5 ENDEAVOR I Registry 48 months n=97/100 (97%) Registry ENDEAVOR II Double-blind Randomized Trial 36 months n=577/598 (97%) Double-blind Randomized Trial 36 months n=577/598 (97%) ENDEAVOR II CA Registry Continued Access Registry 24 months n=288/296 (97%) Continued Access Registry 24 months n=288/296 (97%) ENDEAVOR III Confirmatory Trial vs. Cypher 24 months n=313/323 (97%) Confirmatory Trial vs. Cypher 24 months n=313/323 (97%) ENDEAVOR IV Confirmatory Trial vs. Taxus 12 months n=749/773 (97%) Confirmatory Trial vs. Taxus 12 months n=749/773 (97%) ENDEAVOR PK Pharmacokinetic Trial 9 months n=42/43 (98%) Pharmacokinetic Trial 9 months n=42/43 (98%) 360day follow up n=2050 720day follow up n=1287 1080day follow up n=675 Endeavor Safety Analysis

6. 6 Patient Demographics n = 2132 Endeavor treated patients EI n = 100 EII n = 598 EII CA n = 296 EIII n = 323 EIV n = 773 EPK n = 43 E2 Driver N = 599 Diabetes (%)16.018.225.829.731.241.922.2 RVD (mm)2.962.732.632.752.732.542.76 Lesion Length (mm)10.9414.0416.4914.9613.4115.0214.38 Recommended Clopidogrel Duration3m3m3m3m6m3m3m Clinical F/U 12m (%) 12m (%) 2y (%) 2y (%) 3y (%) 3y (%)99999898.798.296.598.697.399.196.996.997.7*98.397.896.7 *9 months

7. 7 Endeavor Safety Analysis Endeavor (n = 2132) Driver (n = 596) p value RVD (mm) 2.732.760.128 Lesion length (mm) 14.1614.380.446 Diabetes Mellitus (%) 26.122.20.054 Insulin Dependent Diabetes Insulin Dependent Diabetes8.37.40.49 Age – yrs 62.5±10.761.9±10.50.23 Male (%) 71.575.30.06 History of Smoking (%) 49.235.2<0.001 Prior PCI (%) 26.018.0<0.001 Hyperlipidemia (%) 81.276.90.02 Hypertension (%) 73.068.20.02 Patient Characteristics

8. 8 Endeavor (n = 2132) Driver (n = 596) p value EF % 58.9±10.960.8±11.80.002 Angina Category % 0.514 Stable Angina Stable Angina49.350.8 Unstable Angina Unstable Angina40.833.3 MI MI9.915.8 Number of Diseased Vessels % 0.030 158.862.9 226.726.3 314.510.7 Patient Characteristics Endeavor Safety Analysis

9. 9 Dual Antiplatelet Therapy (DAPT) Usage 1 Year 2 Years Endeavor (EI, EII, EIICA) 29.1% (279/958) 11.2% (106/943) Driver(EII) 29.0% (166/572) 13.5% (76/562) Percent of Patients on DAPT at: Endeavor Pooled Safety Analysis

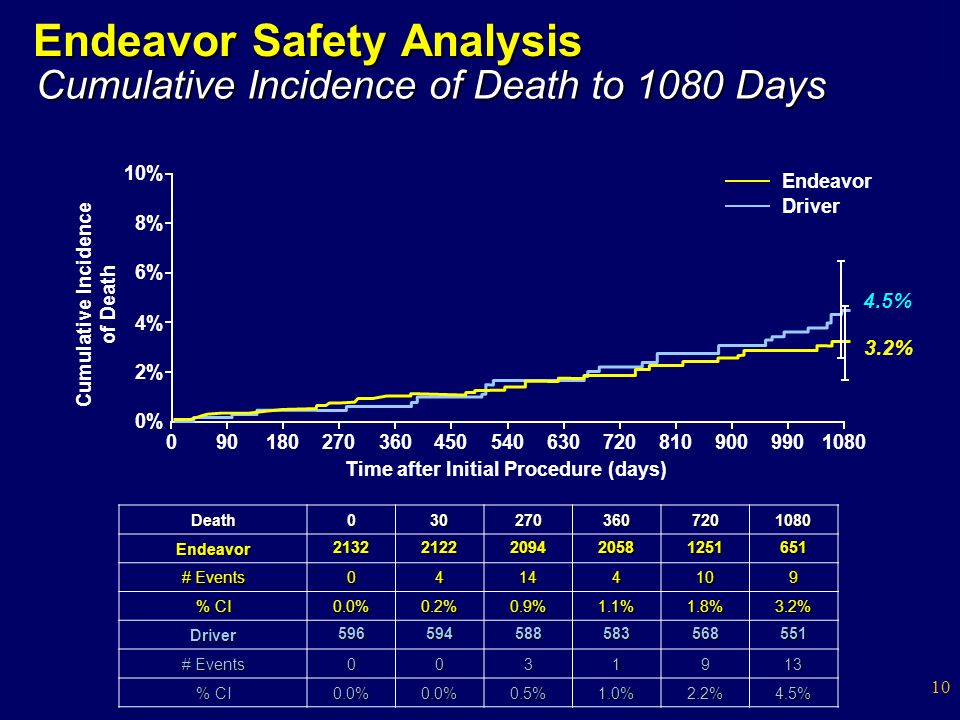

10. 10 Endeavor Safety Analysis Death0302703607201080 Endeavor21322122209420581251651 # Events 04144109 % CI 0.0%0.2%0.9%1.1%1.8%3.2% Driver596594588583568551 # Events 0031913 % CI 0.0%0.0%0.5%1.0%2.2%4.5% Cumulative Incidence of Death to 1080 Days Cumulative Incidence of Death 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Endeavor Driver Time after Initial Procedure (days) 4.5% 3.2%

11. 11 Endeavor Safety Analysis Cardiac Death0302703607201080 Endeavor21322122209420581251651 # Events 039221 % CI 0.0%0.1%0.6%0.7%0.8%1.0% Driver596594588583568551 # Events 003173 % CI 0.0%0.0%0.5%0.7%1.9%2.4% Cumulative Incidence of Cardiac Death to 1080 Days Cumulative Incidence of Cardiac Death 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Endeavor Driver Time after Initial Procedure (days) 2.4% 1.0%

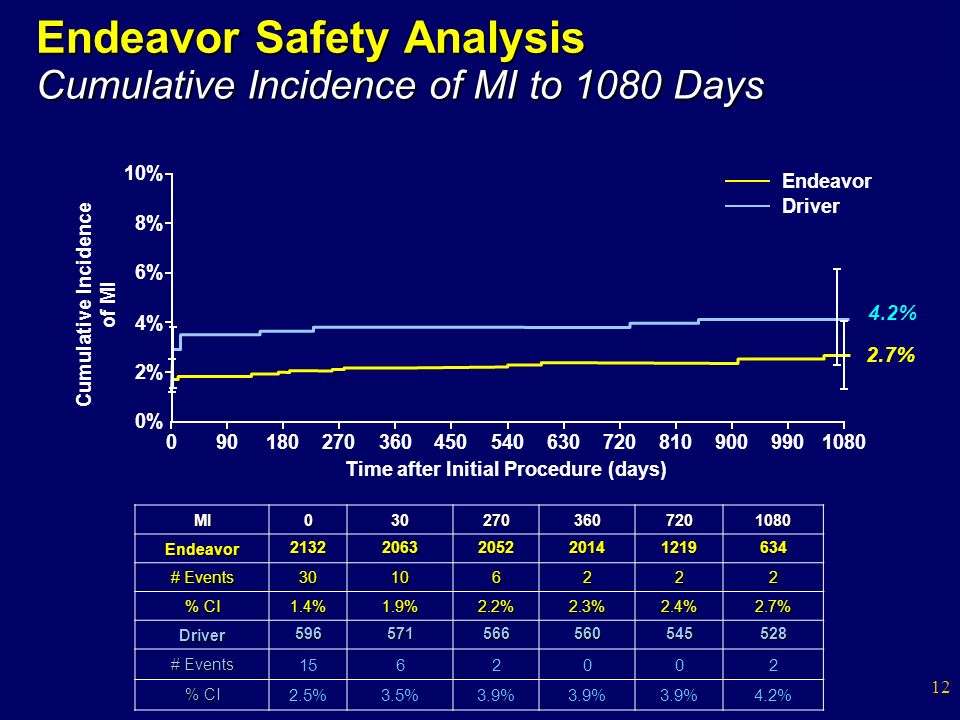

12. 12 Endeavor Safety Analysis MI0302703607201080 Endeavor21322063205220141219634 # Events 30106222 % CI 1.4%1.9%2.2%2.3%2.4%2.7% Driver596571566560545528 # Events 1562002 % CI 2.5%3.5%3.9% 4.2% Cumulative Incidence of MI 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Cumulative Incidence of MI to 1080 Days Endeavor Driver Time after Initial Procedure (days) 4.2% 2.7%

13. 13 Endeavor Safety Analysis Cardiac Death or MI0302703607201080 Endeavor21322083205220141219634 # Events 301214433 % CI 1.4%2.0%2.6%2.8%3.1%3.5% Driver596573566560545528 # Events 1565175 % CI 2.5%3.5%4.4%4.5%5.8%6.6% Cumulative Incidence of Cardiac Death and MI to 1080 Days Cumulative Incidence of Cardiac Death or MI 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Endeavor Driver Time after Initial Procedure (days) 6.6% 3.5%

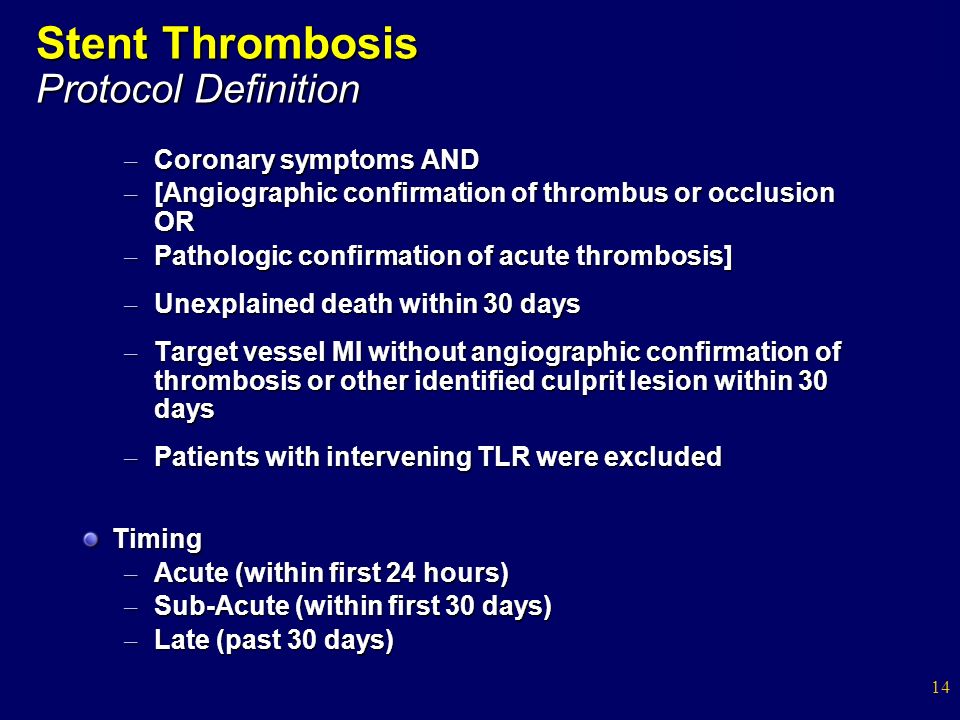

14. 14 Stent Thrombosis Protocol Definition – Coronary symptoms AND – [Angiographic confirmation of thrombus or occlusion OR – Pathologic confirmation of acute thrombosis] – Unexplained death within 30 days – Target vessel MI without angiographic confirmation of thrombosis or other identified culprit lesion within 30 days – Patients with intervening TLR were excluded Timing – Acute (within first 24 hours) – Sub-Acute (within first 30 days) – Late (past 30 days)

15. 15 Stent Thrombosis Academic Research Consortium (ARC) Definite/Confirmed Definite/Confirmed – Coronary symptoms AND – [Angiographic confirmation of thrombus or occlusion OR – Pathologic confirmation of acute thrombosis] Probable – Unexplained death within 30 days – Target vessel MI without angiographic confirmation of thrombosis or other identified culprit lesion Possible – Unexplained death after 30 days Timing – Early (within first 30 days) – Late (30 days to 1 year) – Very Late (past 1 year)

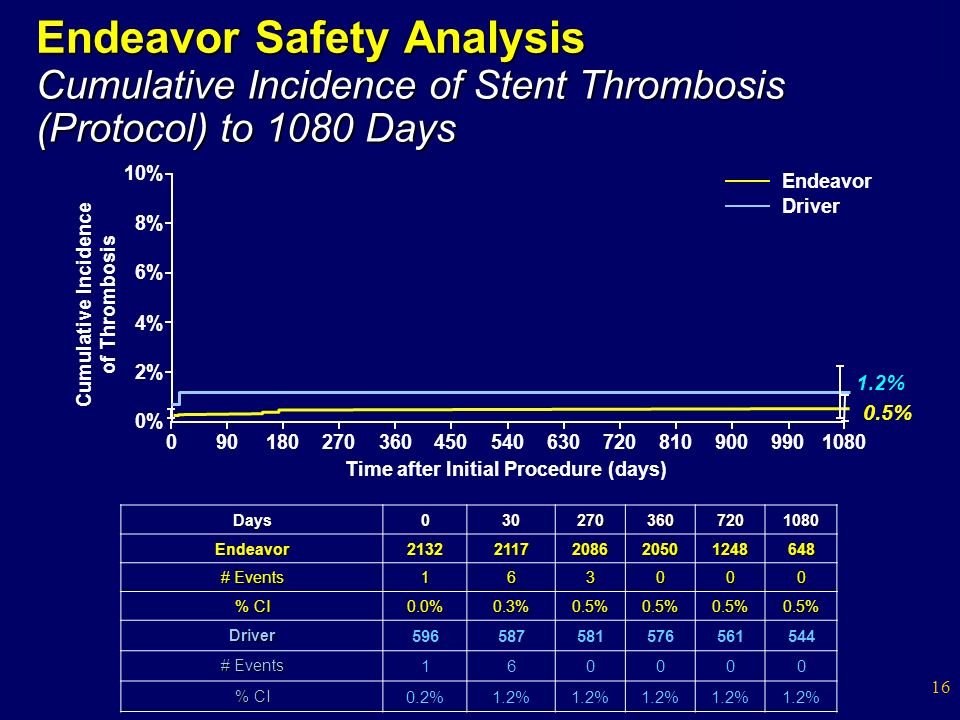

16. 16 Endeavor Safety Analysis Days0302703607201080 Endeavor21322117208620501248648 # Events 163000 % CI 0.0%0.3%0.5%0.5%0.5%0.5% Driver 596587581576561544 # Events 160000 % CI 0.2%1.2% Cumulative Incidence of Thrombosis 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Cumulative Incidence of Stent Thrombosis (Protocol) to 1080 Days Endeavor Driver Time after Initial Procedure (days) 1.2% 0.5%

17. 17 Endeavor Safety Analysis Def/Prob Thrombosis0302703607201080 Endeavor21322117208520491247648 # Events 164210 % CI 0.0%0.3%0.5%0.6%0.7% Driver596585581575560542 # Events 161001 % CI 0.2%1.2%1.3% 1.5% Cumulative Incidence of ARC Definite/Probable 0 0% 2% 4% 6% 8% 10% 901802703604505406307208109009901080 Cumulative Incidence of ARC Definite/Probable ST to 1080 Days Endeavor Driver Time after Initial Procedure (days) 1.5% 0.7%

18. 18 Endeavor Safety Analysis Cumulative Incidence of Stent Thrombosis by Time Interval (ARC definite and probable) Endeavorn=2132 [95% CI] Drivern=596 Early(0-30d)0.3%[0.09,0.57]1.2%[0.03,2.04] Late(31-360d)0.3%[0.04,0.55]0.2%[0.00,0.51] Very Late (361d-3y)0.1%[0.00,0.32]0.2%[0.00,0.59] Cumulative (to 3y) 0.7%[0.00,1.41]1.5%[0.35,2.71] Cumulative Incidence -% Standard error was estimated by Peto formula

19. 19 Endeavor Safety Analysis Cumulative Incidence of Safety Endpoints to 1080 days Endeavorn=2132 [95% CI] Drivern=596 Death3.2[1.71,4.65]4.5[2.59,6.49] Cardiac Death 1.0[0.14,1.81]2.4[0.96,3.88] MI2.7[1.35,4.12]4.2[2.30,6.15] Cardiac Death/MI 3.5[1.97,5.10]6.6[4.28,8.99] Thrombosis (protocol) 0.5 [0.00, 1.06] 1.2[0.14,2.21] Thrombosis(Def/Prob)0.7[0.00,1.41]1.5[0.35,2.71] Cumulative Incidence -% Standard error was estimated by Peto formula

20. 20 ENDEAVOR Safety Analysis Error bars represent 95% confidence intervals Cumulative Incidence of Safety Endpoints to 1080 Days Clinical Event (%) DeathCardiac Death MICardiac Death/MI Protocol ST Definition ARC Def/Prob ST Definition DriverEndeavor 3.2% 1.0% 2.7% 3.5% 0.5% 0.7% 4.5% 2.4% 4.2% 6.6% 1.2% 1.5% n=2132 n=596

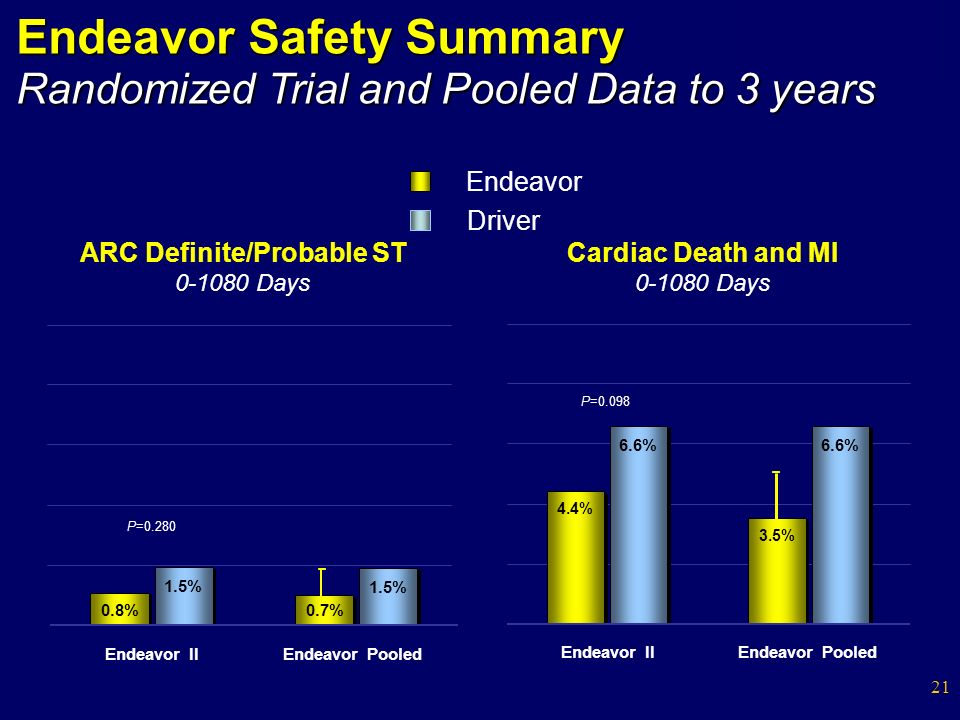

21. 21 Endeavor Driver ARC Definite/Probable ST 0-1080 Days Cardiac Death and MI 0-1080 Days P=0.280 4.4% 3.5% 6.6% Endeavor IIEndeavor Pooled P=0.098 0.8%0.7% 1.5% Endeavor IIEndeavor Pooled Endeavor Safety Summary Randomized Trial and Pooled Data to 3 years

22. 22 Endeavor Safety Summary: Diabetics Cumulative Incidence of Safety Endpoints to 1080 Days Clinical Event (%) DeathCardiac Death MICardiac Death/MI Protocol ST Definition ARC Def/Prob ST Definition DriverEndeavor n=555 n=132 4.2% 7.8% 1.1% 4.7% 2.7% 4.6% 3.2% 9.2% 0.5% 2.3% 1.3% 3.1%

23. 23 Endeavor Clinical Program: Small Vessels Cumulative Incidence of Safety Endpoints to 1080 Days (RVD<2.5mm) Clinical Event (%) DeathCardiac Death MICardiac Death/MI Protocol ST Definition ARC Def/Prob ST Definition DriverEndeavor n=733 n=195 3.5% 4.7% 1.4% 3.6% 1.7% 5.7% 2.9% 9.3% 0.3% 2.6% 0.5% 3.6%

24. 24 Endeavor Clinical Program: Long Lesions Cumulative Incidence of Safety Endpoints to 1080 Days (>15mm) Clinical Event (%) DeathCardiac Death MICardiac Death/MI Protocol ST Definition ARC Def/Prob ST Definition DriverEndeavor n=805 n=232 2.6% 6.6% 0.9% 3.5% 3.8% 7.4% 4.5% 10.9% 0.5% 1.7% 0.8% 2.6%

25. 25 ENDEAVOR Safety Analysis From the ENDEAVOR clinical program dataset of 2132 patients treated with Endeavor and 596 patients treated with Driver: There was no evidence of increased rates of death, cardiac death, or myocardial infarction in patients treated with the Endeavor stent compared with Driver BMS to 3 years follow up There was no evidence of increased stent thrombosis risk within 1 year (0.7% vs 1.3% ARC definite/probable) or in years 1-3 (0.1 vs 0.2%) in patients treated with the Endeavor stent compared with those treated with the Driver BMS Conclusions 1

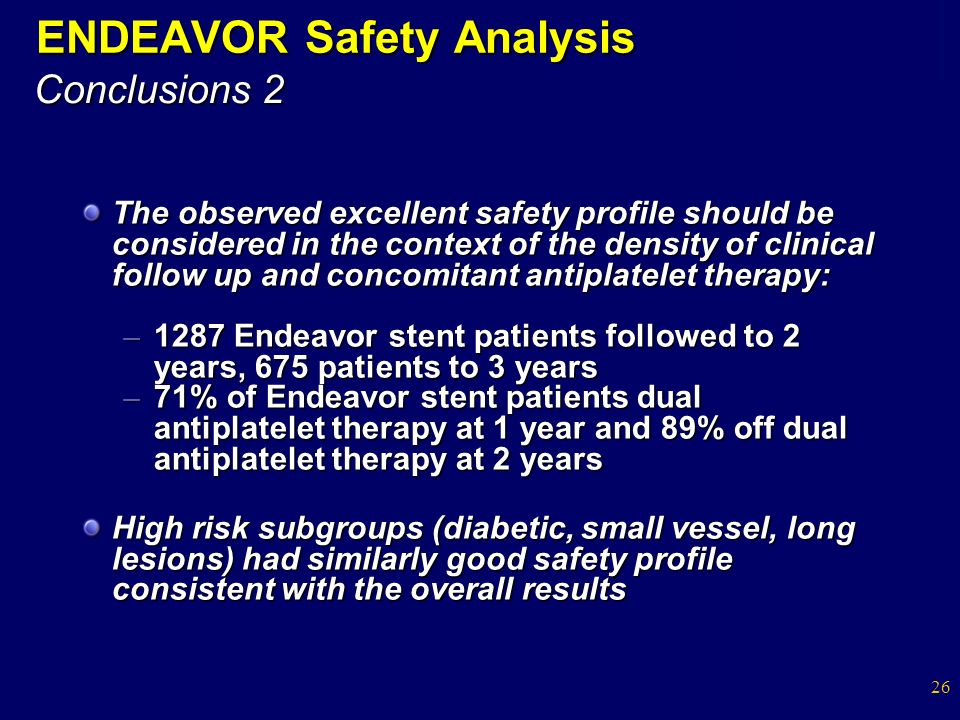

26. 26 ENDEAVOR Safety Analysis The observed excellent safety profile should be considered in the context of the density of clinical follow up and concomitant antiplatelet therapy: – 1287 Endeavor stent patients followed to 2 years, 675 patients to 3 years – 71% of Endeavor stent patients dual antiplatelet therapy at 1 year and 89% off dual antiplatelet therapy at 2 years High risk subgroups (diabetic, small vessel, long lesions) had similarly good safety profile consistent with the overall results Conclusions 2
