1. Personalized Social Search Based on the User’s Social Network David Carmel et al. IBM Research Lab in Haifa, Israel CIKM’09 16 February 2011 Presentation @ IDB Lab Seminar IDB Tagging Team, School of CSE, SNU Presented by Kangpyo Lee

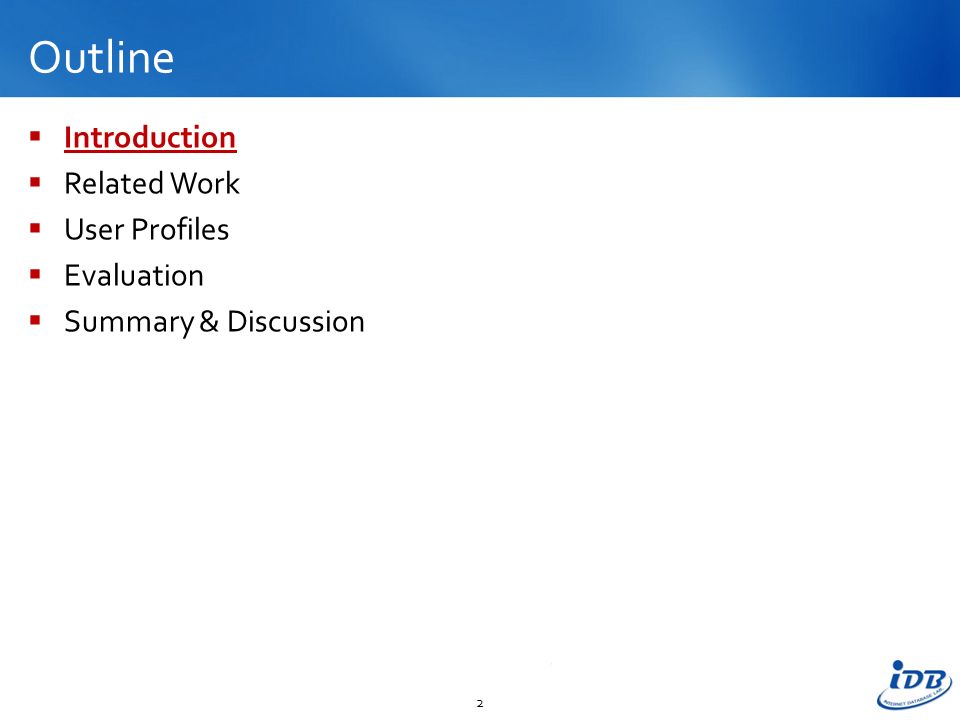

2. Outline  Introduction  Related Work  User Profiles  Evaluation  Summary & Discussion 2

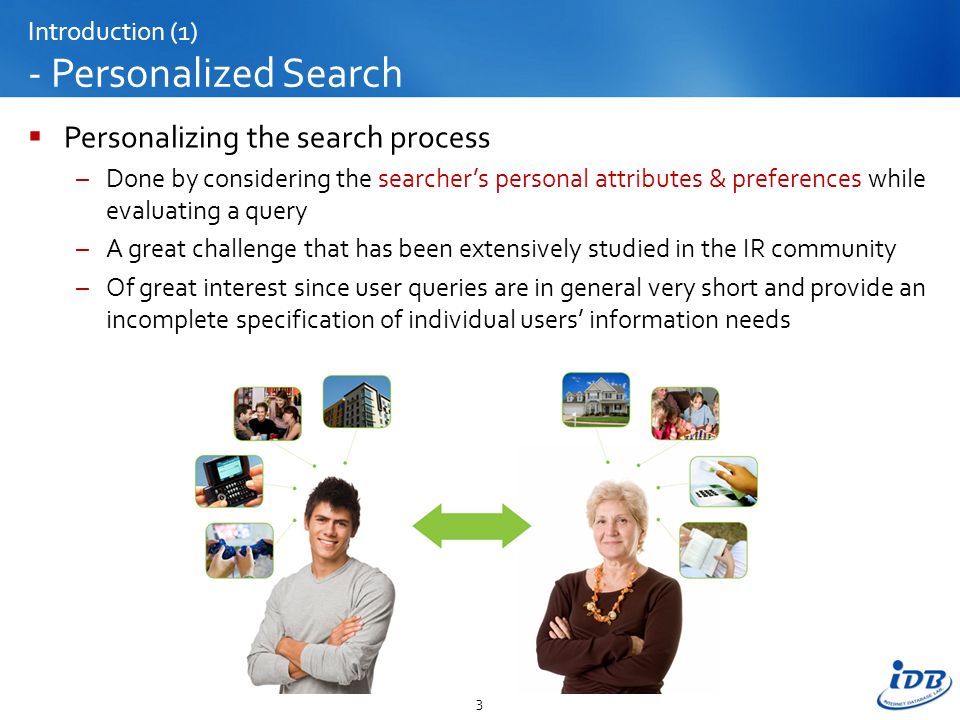

3.  Personalizing the search process –Done by considering the searcher’s personal attributes & preferences while evaluating a query –A great challenge that has been extensively studied in the IR community –Of great interest since user queries are in general very short and provide an incomplete specification of individual users’ information needs 3 Introduction (1) - Personalized Search

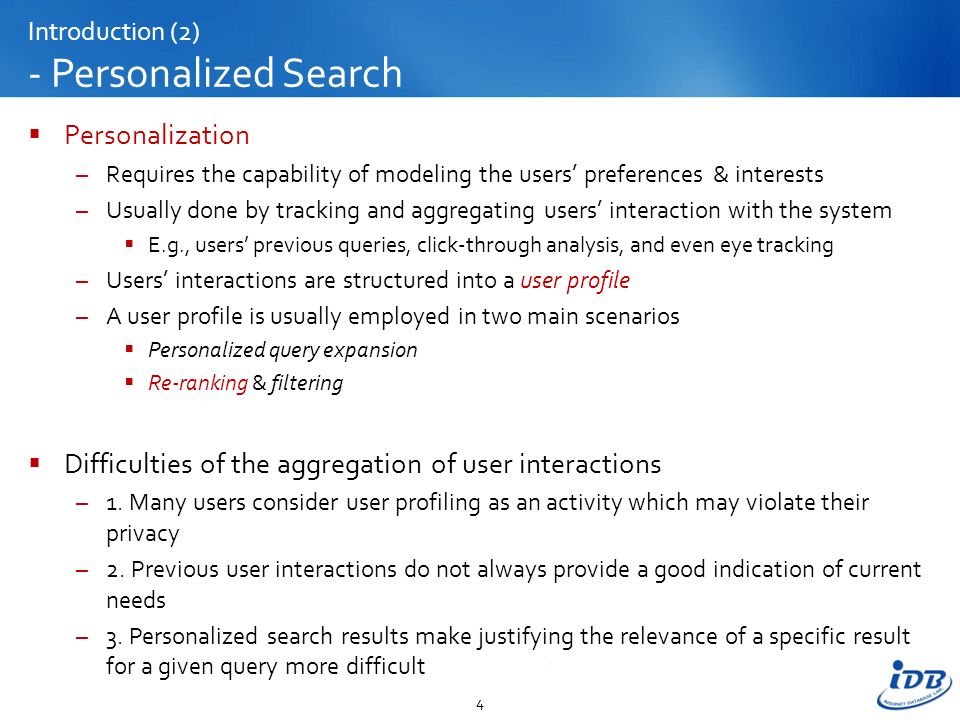

4.  Personalization –Requires the capability of modeling the users’ preferences & interests –Usually done by tracking and aggregating users’ interaction with the system  E.g., users’ previous queries, click-through analysis, and even eye tracking –Users’ interactions are structured into a user profile –A user profile is usually employed in two main scenarios  Personalized query expansion  Re-ranking & filtering  Difficulties of the aggregation of user interactions –1. Many users consider user profiling as an activity which may violate their privacy –2. Previous user interactions do not always provide a good indication of current needs –3. Personalized search results make justifying the relevance of a specific result for a given query more difficult 4 Introduction (2) - Personalized Search

5. 5 Introduction (3) - Personalized Social Search  Social search –There are several alternative definitions of the concept social search –In this work, it means the search process over “social” data gathered from Web 2.0 applications  E.g. social bookmarking systems, wikis, blogs, forums, SNSs, etc. –Provides an ideal testbed for personalization due to the explicit user interactions through Web 2.0 tools  1. A user profile derived from user feedback (bookmarking, rating, commenting, blogging, etc.) provided a very good indication of the user’s interests  2. When the user’s social network (SN) is available, the preferences of the user’s related people can be utilized to assist in obtaining the user’s preferences –Assuming closely related people have similar interests –Collaborative filtering (CF)

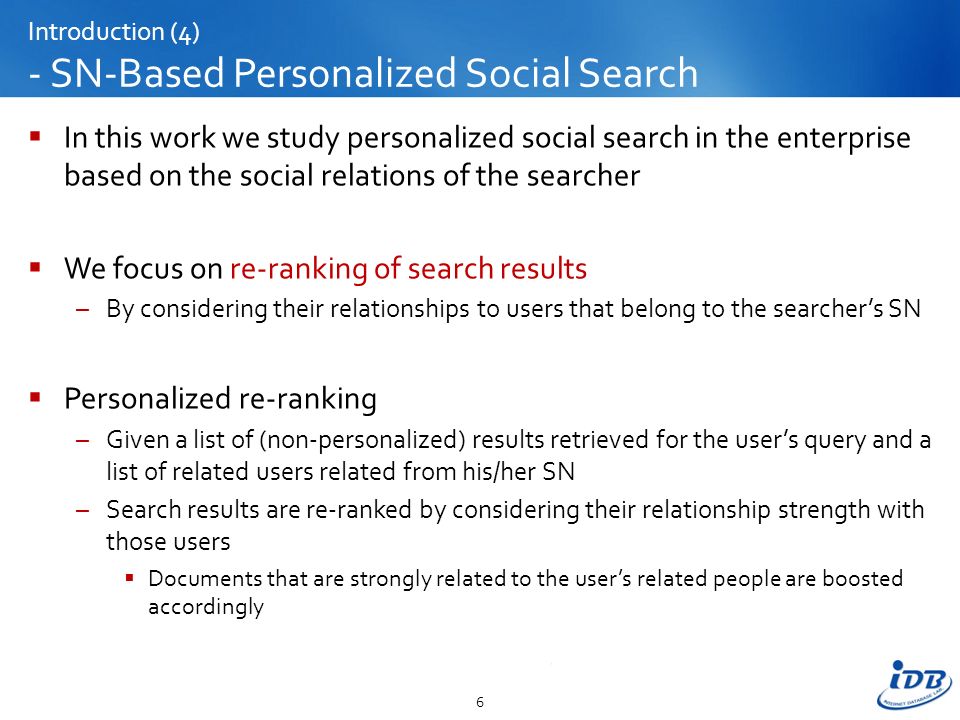

6. 6 Introduction (4) - SN-Based Personalized Social Search  In this work we study personalized social search in the enterprise based on the social relations of the searcher  We focus on re-ranking of search results –By considering their relationships to users that belong to the searcher’s SN  Personalized re-ranking –Given a list of (non-personalized) results retrieved for the user’s query and a list of related users related from his/her SN –Search results are re-ranked by considering their relationship strength with those users  Documents that are strongly related to the user’s related people are boosted accordingly

7. 7 Introduction (5) - SN-Based Personalized Social Search  SaND (SociAl Network & Discovery) –An enterprise social search system used in IBM –To retrieve the user’s social network and the user-document relationship matrix –Provides for each user related people  Ranked list of people, who relate to the user either –through explicit familiarity connections (e.g., co-authorship of a wiki page or a connection within an SNS) –or by some kind of similarity as reflected by their social activity (e.g. usage of the same tags or commenting on the same blog entry) –Provides for each user all related documents (e.g., web pages, blog entries)  each associated with relationship strength to the user –The relative strength of each relationship type is determined by an appropriate weight

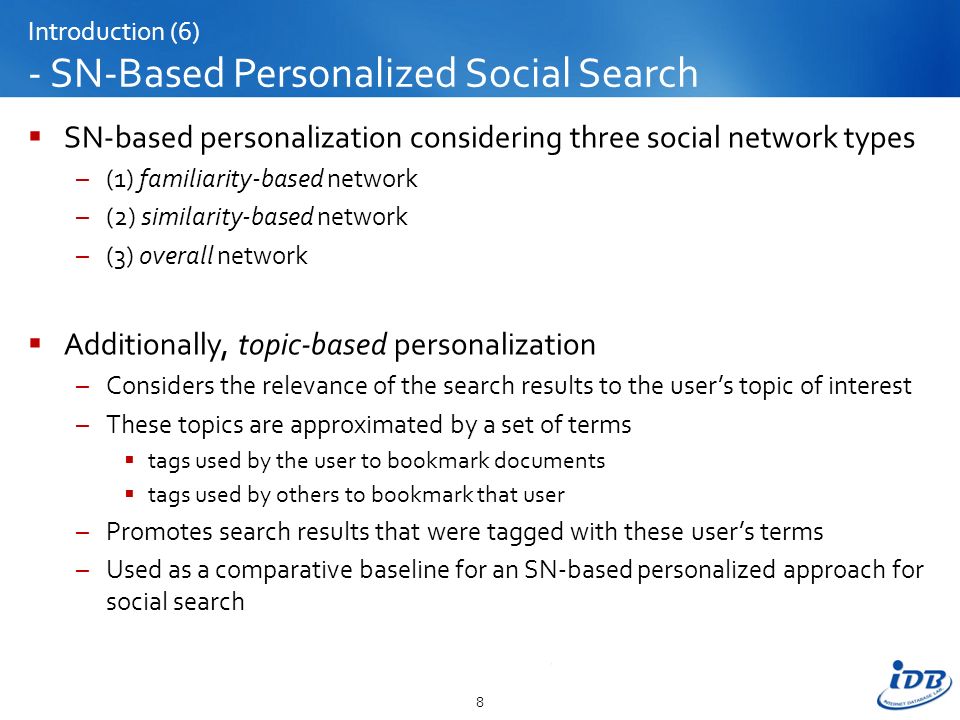

8. 8 Introduction (6) - SN-Based Personalized Social Search  SN-based personalization considering three social network types –(1) familiarity-based network –(2) similarity-based network –(3) overall network  Additionally, topic-based personalization –Considers the relevance of the search results to the user’s topic of interest –These topics are approximated by a set of terms  tags used by the user to bookmark documents  tags used by others to bookmark that user –Promotes search results that were tagged with these user’s terms –Used as a comparative baseline for an SN-based personalized approach for social search

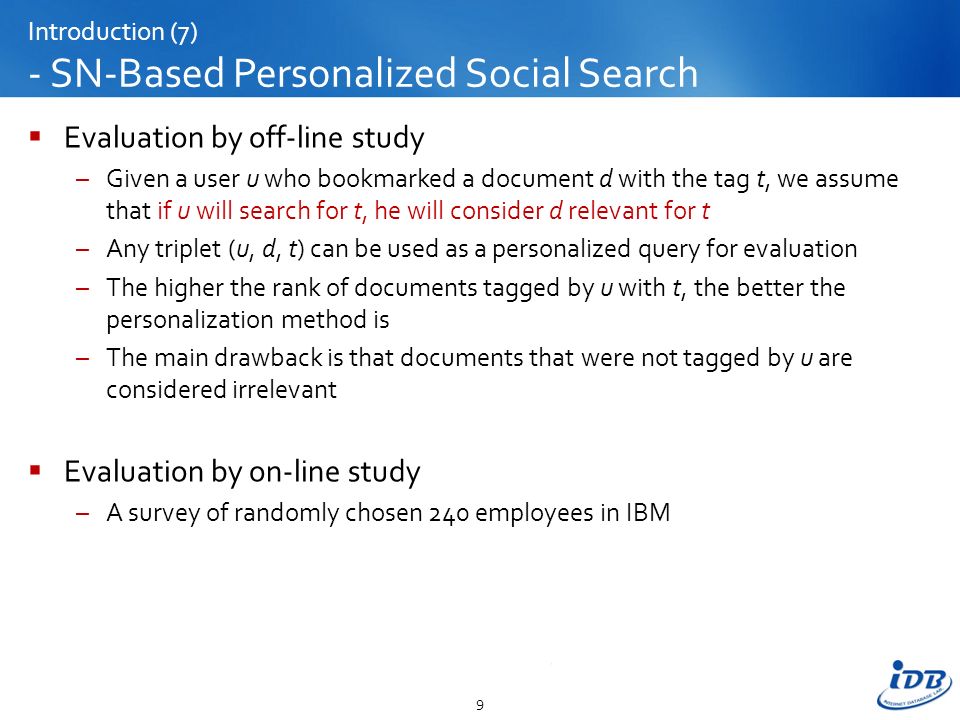

9. 9 Introduction (7) - SN-Based Personalized Social Search  Evaluation by off-line study –Given a user u who bookmarked a document d with the tag t, we assume that if u will search for t, he will consider d relevant for t –Any triplet (u, d, t) can be used as a personalized query for evaluation –The higher the rank of documents tagged by u with t, the better the personalization method is –The main drawback is that documents that were not tagged by u are considered irrelevant  Evaluation by on-line study –A survey of randomly chosen 240 employees in IBM

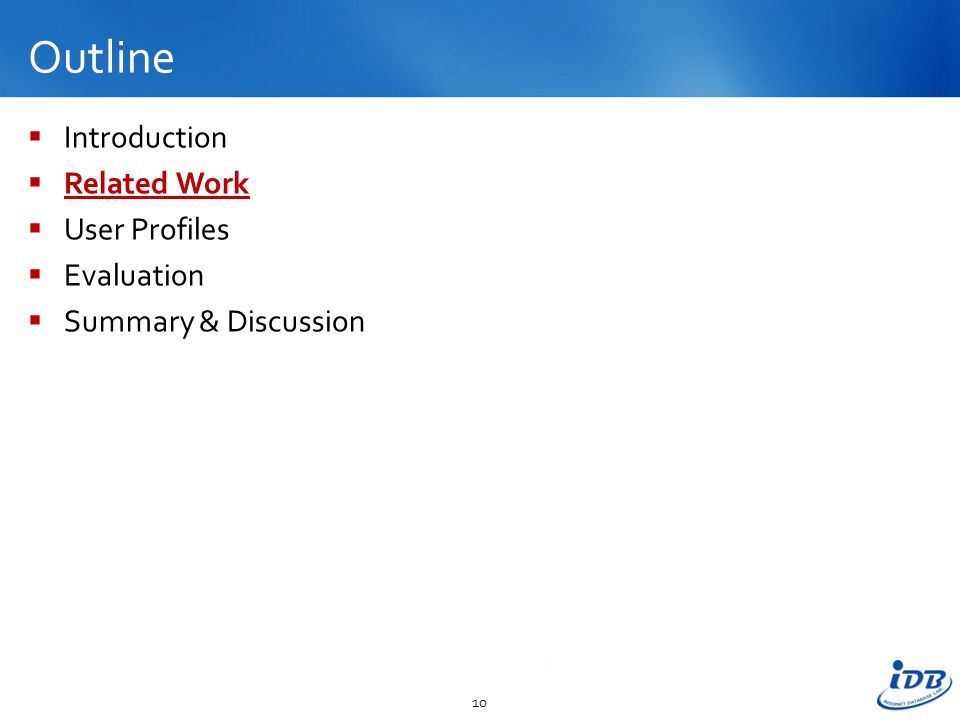

10. Outline  Introduction  Related Work  User Profiles  Evaluation  Summary & Discussion 10

11. Related Work  Personalized search –Many researchers utilize query logs & click-through analysis for web search personalization –In addition to regular web log data, several works consider using desktop data & external resources –New approaches for adaptive personalization focus on the user task & the current activity context  Social search –The amount of social data is rapidly growing and has become a main focus of research on social search –Tags & other conceptual structures emerging in social systems are typically modeled as graphs  Personalized social search –Directly or indirectly employing users’ social relations for personalization 11

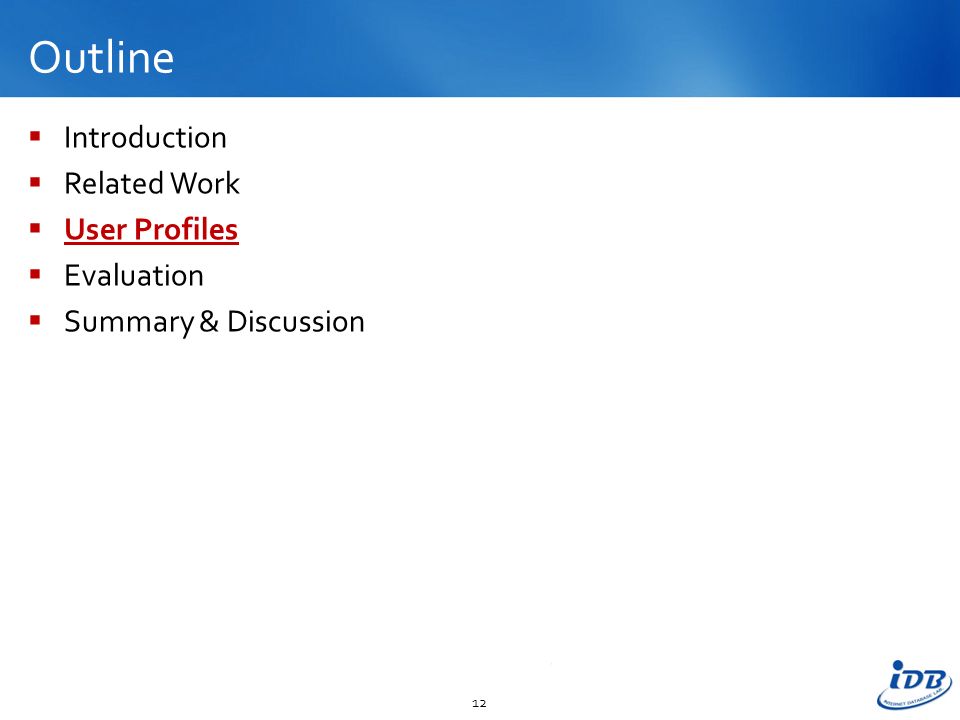

12. Outline  Introduction  Related Work  User Profiles  Evaluation  Summary & Discussion 12

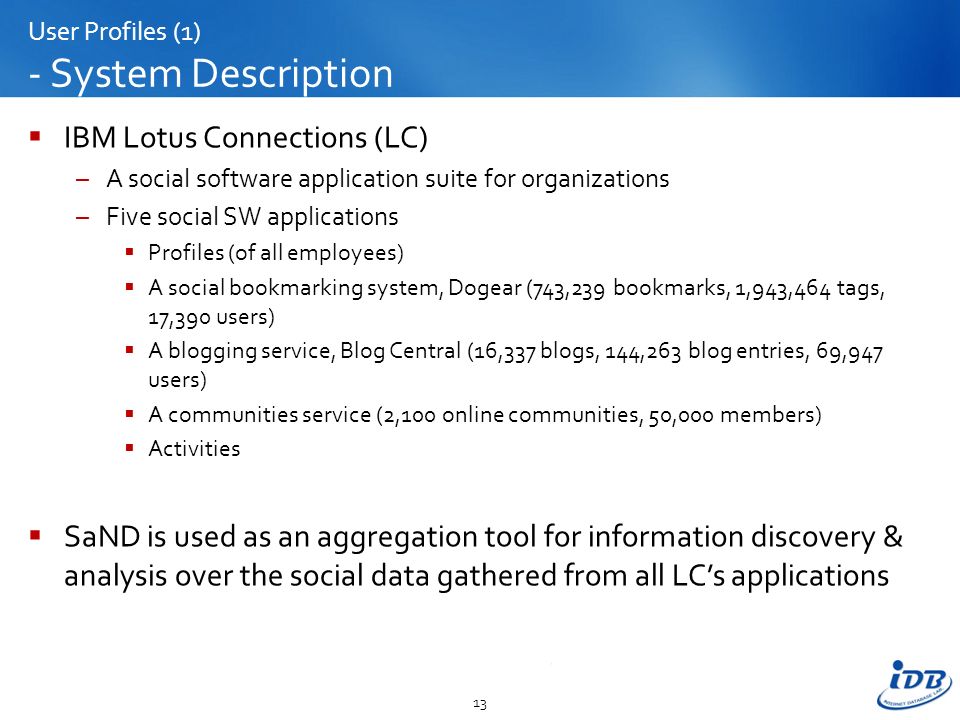

13. User Profiles (1) - System Description  IBM Lotus Connections (LC) –A social software application suite for organizations –Five social SW applications  Profiles (of all employees)  A social bookmarking system, Dogear (743,239 bookmarks, 1,943,464 tags, 17,390 users)  A blogging service, Blog Central (16,337 blogs, 144,263 blog entries, 69,947 users)  A communities service (2,100 online communities, 50,000 members)  Activities  SaND is used as an aggregation tool for information discovery & analysis over the social data gathered from all LC’s applications 13

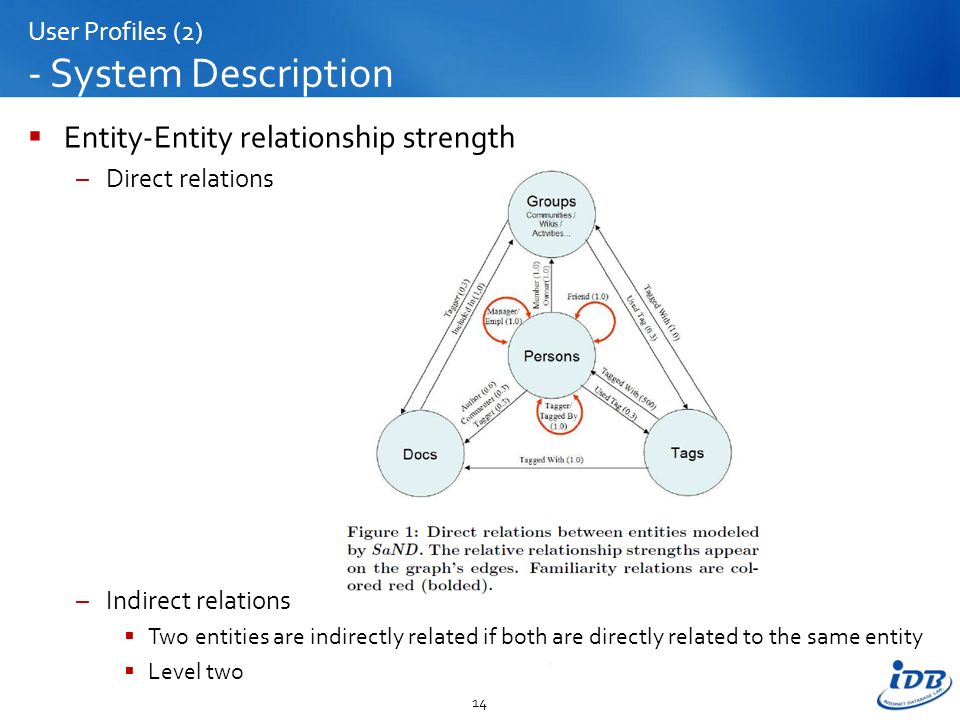

14. User Profiles (2) - System Description  Entity-Entity relationship strength –Direct relations –Indirect relations  Two entities are indirectly related if both are directly related to the same entity  Level two 14

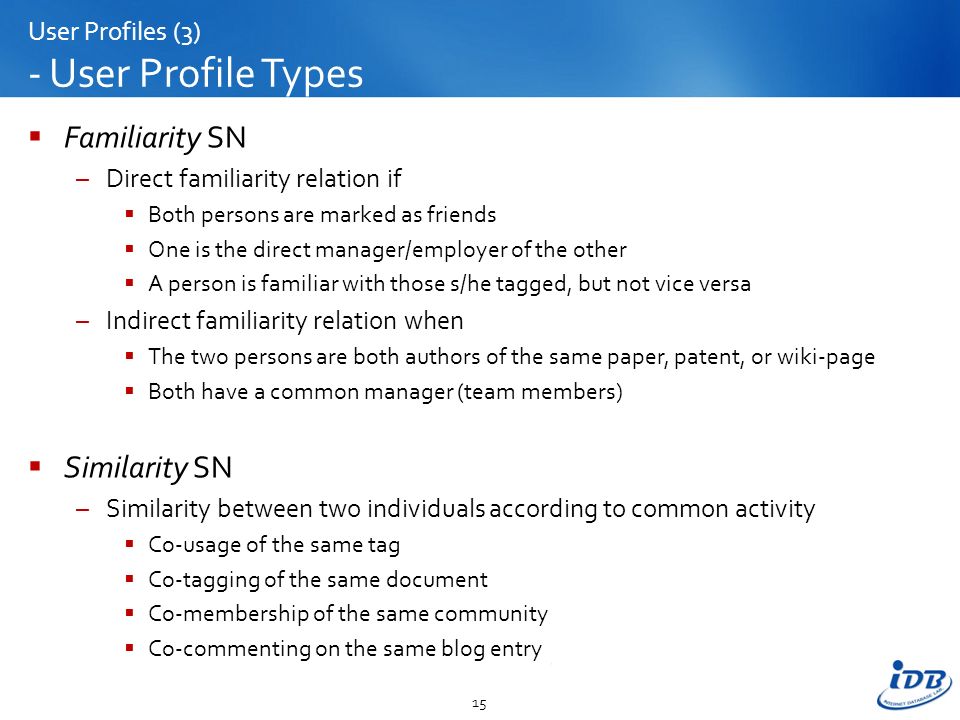

15. User Profiles (3) - User Profile Types 15  Familiarity SN –Direct familiarity relation if  Both persons are marked as friends  One is the direct manager/employer of the other  A person is familiar with those s/he tagged, but not vice versa –Indirect familiarity relation when  The two persons are both authors of the same paper, patent, or wiki-page  Both have a common manager (team members)  Similarity SN –Similarity between two individuals according to common activity  Co-usage of the same tag  Co-tagging of the same document  Co-membership of the same community  Co-commenting on the same blog entry

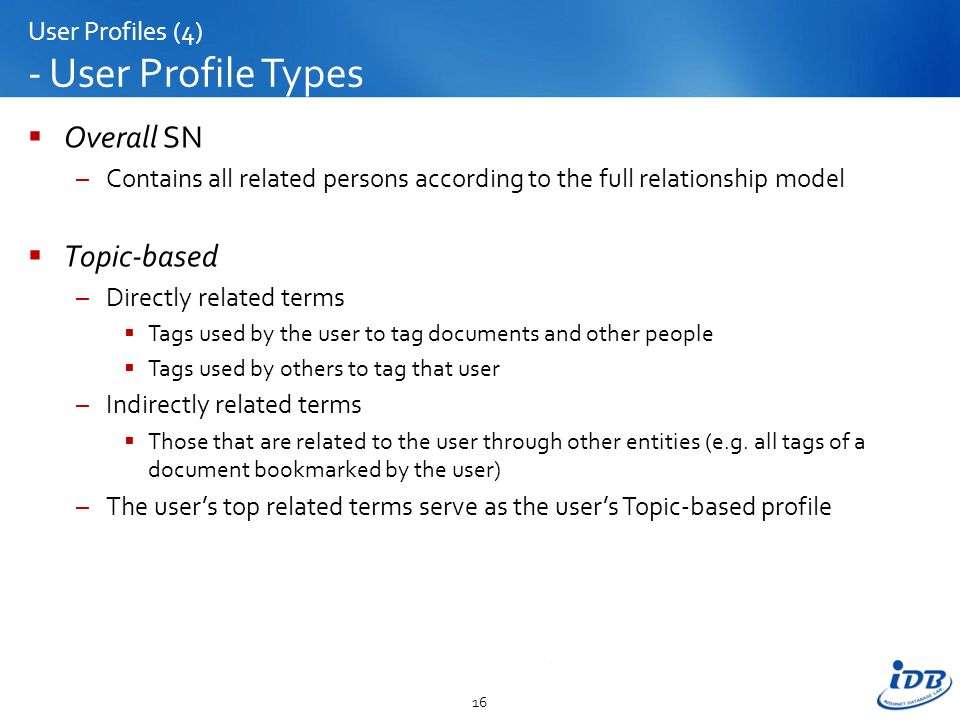

16. User Profiles (4) - User Profile Types 16  Overall SN –Contains all related persons according to the full relationship model  Topic-based –Directly related terms  Tags used by the user to tag documents and other people  Tags used by others to tag that user –Indirectly related terms  Those that are related to the user through other entities (e.g. all tags of a document bookmarked by the user) –The user’s top related terms serve as the user’s Topic-based profile

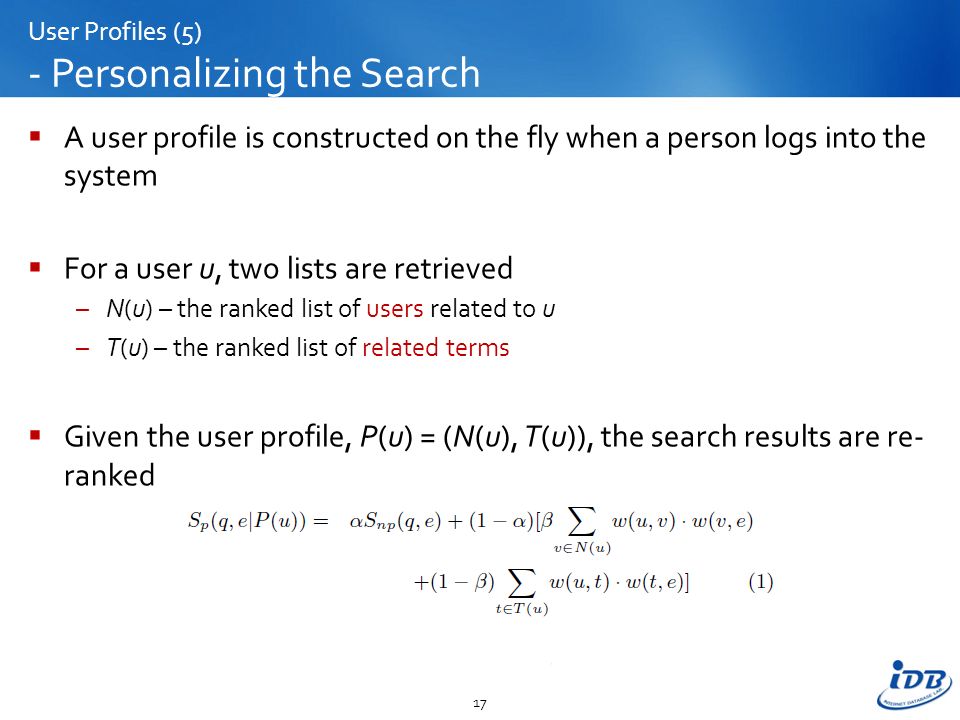

17. User Profiles (5) - Personalizing the Search 17  A user profile is constructed on the fly when a person logs into the system  For a user u, two lists are retrieved –N(u) – the ranked list of users related to u –T(u) – the ranked list of related terms  Given the user profile, P(u) = (N(u), T(u)), the search results are re- ranked

18. Outline  Introduction  Related Work  User Profiles  Evaluation  Summary & Discussion 18

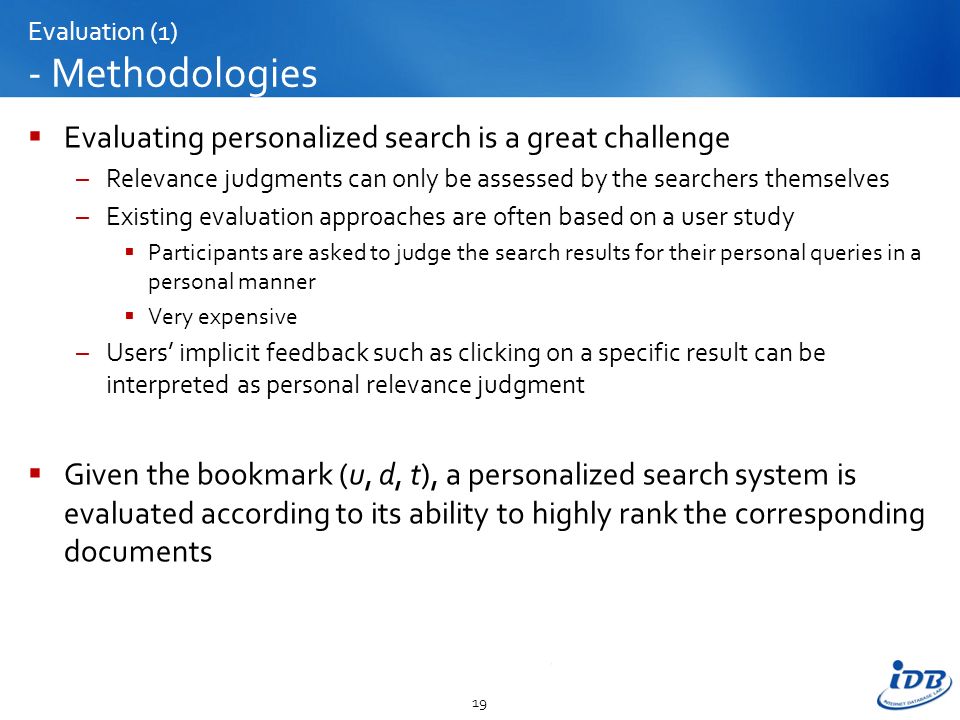

19. Evaluation (1) - Methodologies  Evaluating personalized search is a great challenge –Relevance judgments can only be assessed by the searchers themselves –Existing evaluation approaches are often based on a user study  Participants are asked to judge the search results for their personal queries in a personal manner  Very expensive –Users’ implicit feedback such as clicking on a specific result can be interpreted as personal relevance judgment  Given the bookmark (u, d, t), a personalized search system is evaluated according to its ability to highly rank the corresponding documents 19

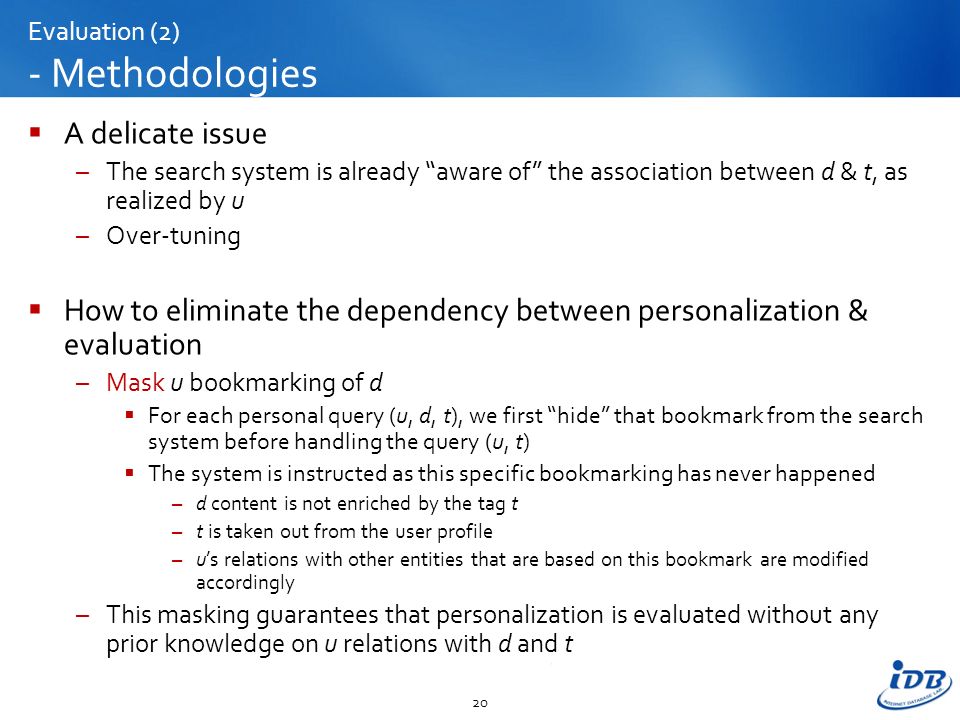

20. Evaluation (2) - Methodologies  A delicate issue –The search system is already “aware of” the association between d & t, as realized by u –Over-tuning  How to eliminate the dependency between personalization & evaluation –Mask u bookmarking of d  For each personal query (u, d, t), we first “hide” that bookmark from the search system before handling the query (u, t)  The system is instructed as this specific bookmarking has never happened –d content is not enriched by the tag t –t is taken out from the user profile –u’s relations with other entities that are based on this bookmark are modified accordingly –This masking guarantees that personalization is evaluated without any prior knowledge on u relations with d and t 20

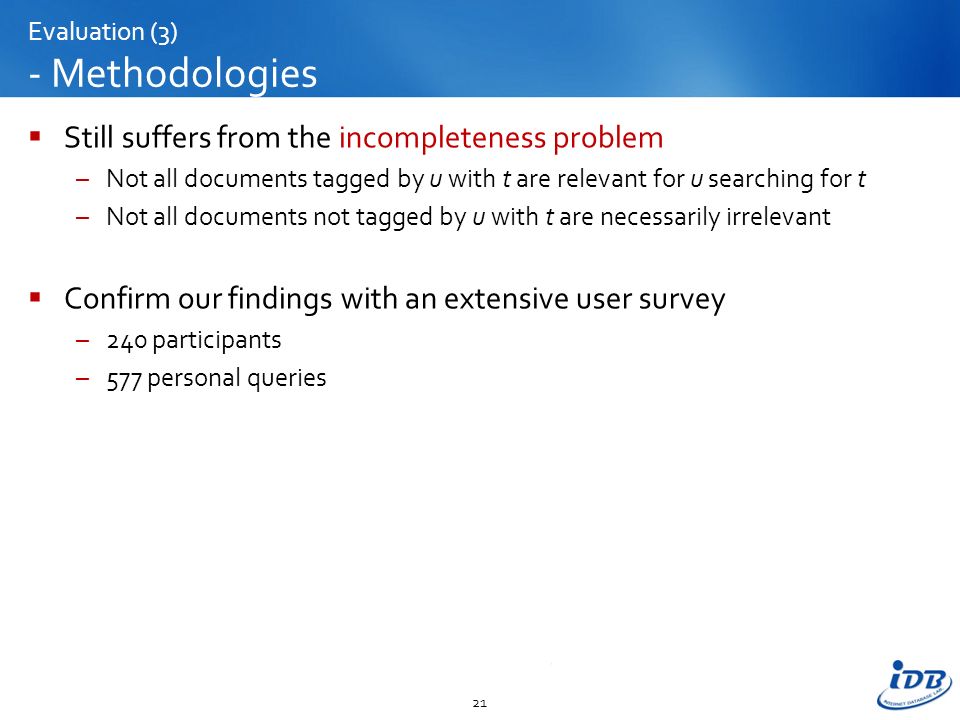

21. Evaluation (3) - Methodologies  Still suffers from the incompleteness problem –Not all documents tagged by u with t are relevant for u searching for t –Not all documents not tagged by u with t are necessarily irrelevant  Confirm our findings with an extensive user survey –240 participants –577 personal queries 21

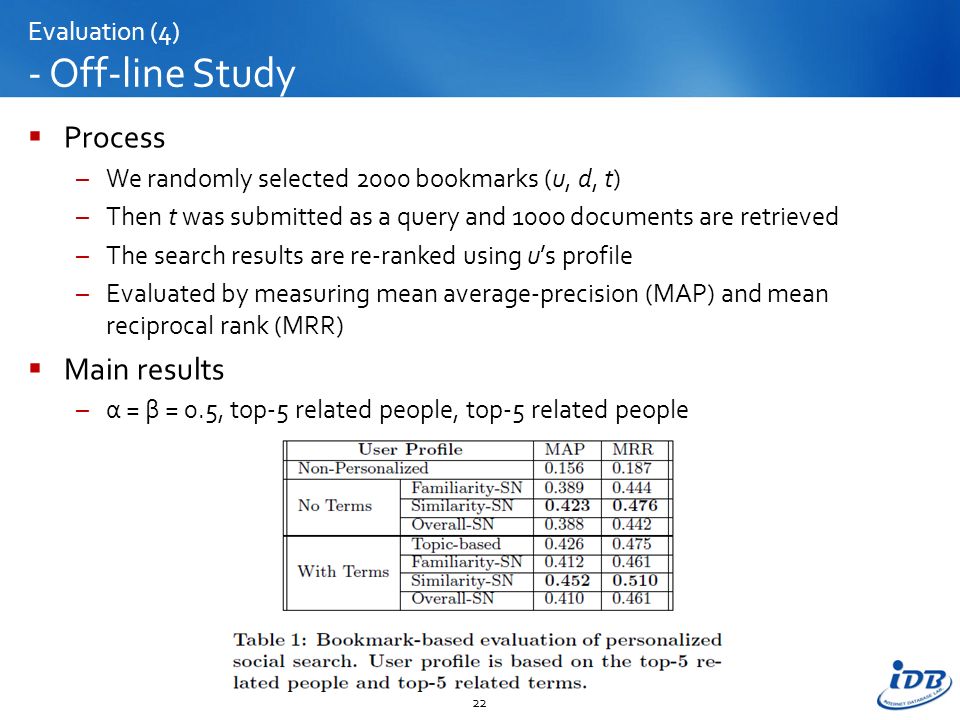

22. Evaluation (4) - Off-line Study  Process –We randomly selected 2000 bookmarks (u, d, t) –Then t was submitted as a query and 1000 documents are retrieved –The search results are re-ranked using u’s profile –Evaluated by measuring mean average-precision (MAP) and mean reciprocal rank (MRR)  Main results –α = β = 0.5, top-5 related people, top-5 related people 22

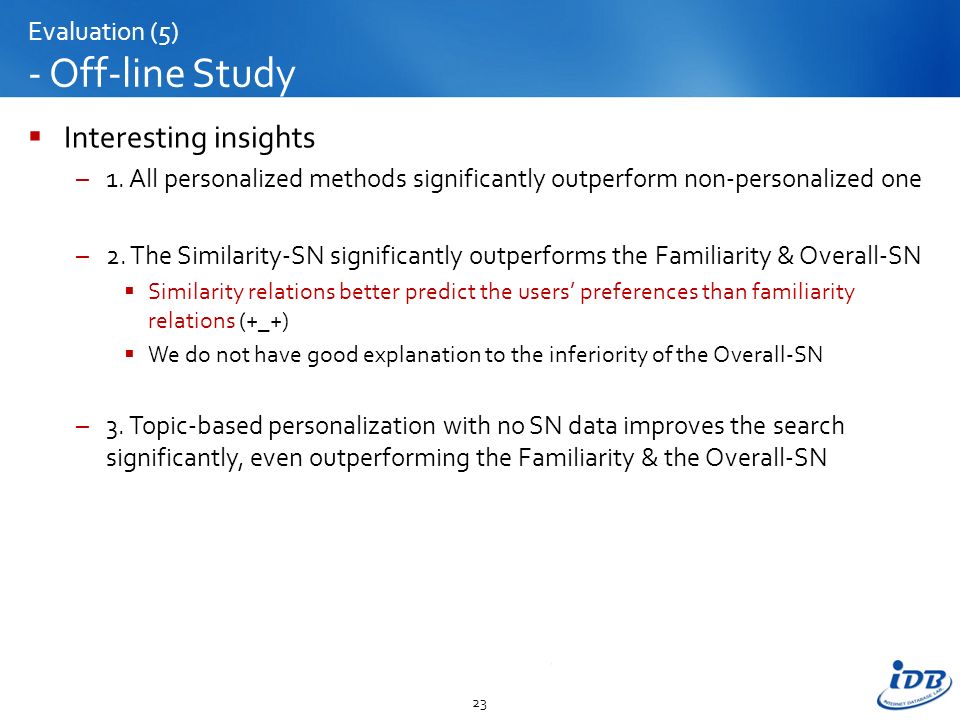

23. Evaluation (5) - Off-line Study  Interesting insights –1. All personalized methods significantly outperform non-personalized one –2. The Similarity-SN significantly outperforms the Familiarity & Overall-SN  Similarity relations better predict the users’ preferences than familiarity relations (+_+)  We do not have good explanation to the inferiority of the Overall-SN –3. Topic-based personalization with no SN data improves the search significantly, even outperforming the Familiarity & the Overall-SN 23

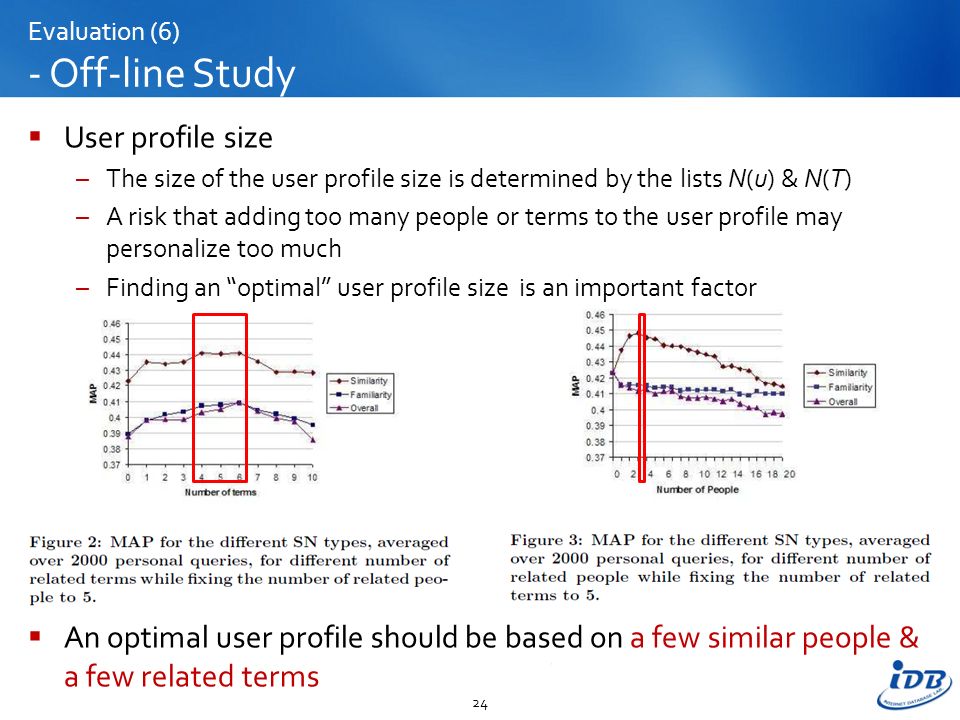

24. Evaluation (6) - Off-line Study  User profile size –The size of the user profile size is determined by the lists N(u) & N(T) –A risk that adding too many people or terms to the user profile may personalize too much –Finding an “optimal” user profile size is an important factor  An optimal user profile should be based on a few similar people & a few related terms 24

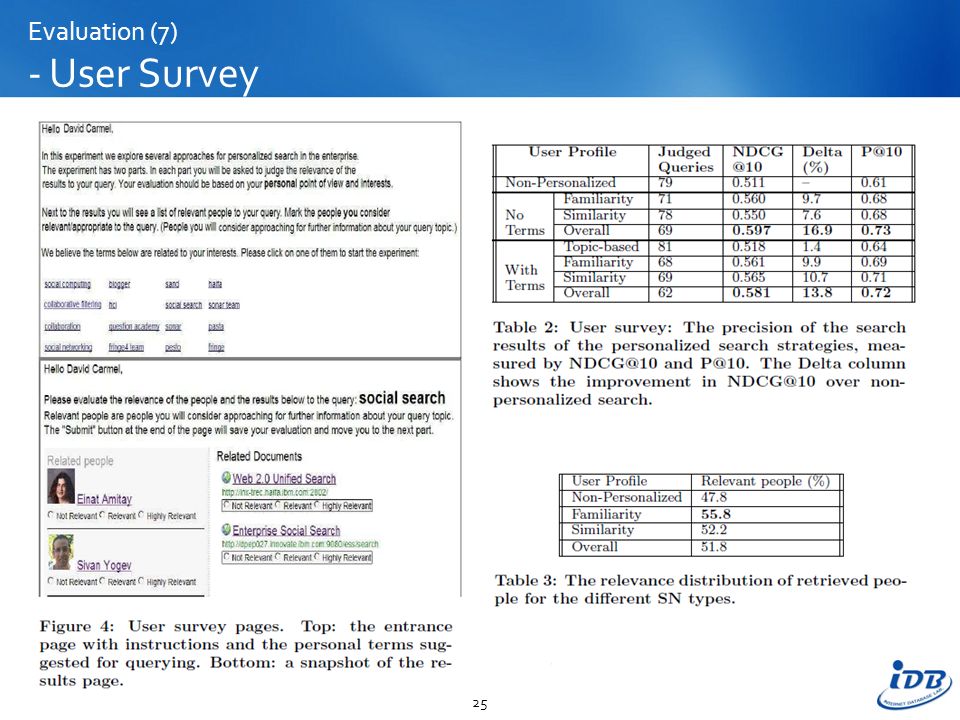

25. Evaluation (7) - User Survey 25

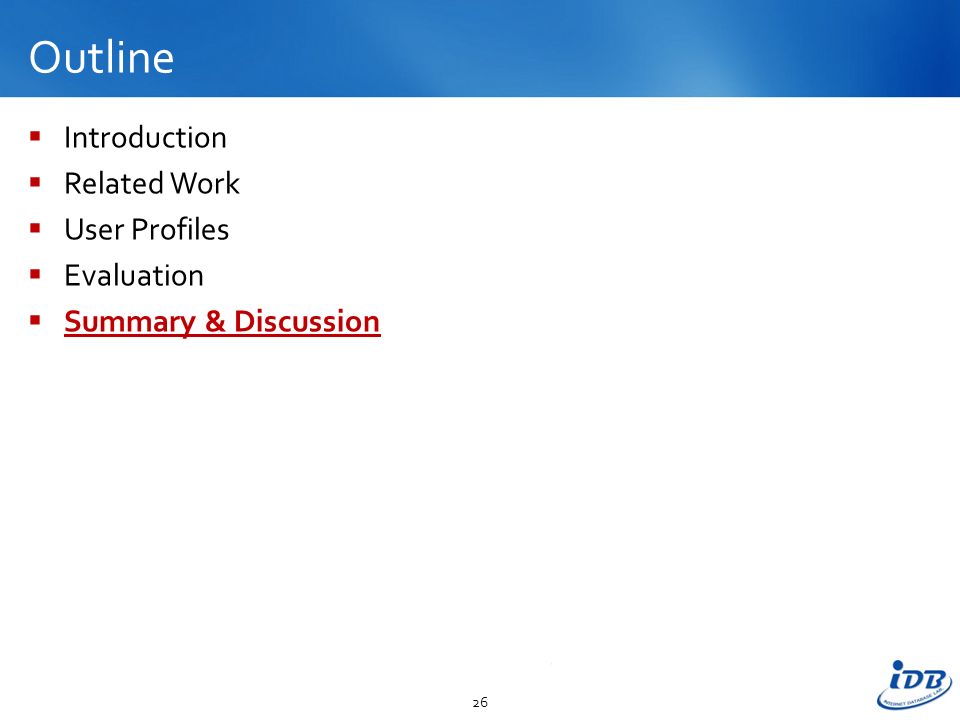

26. Outline  Introduction  Related Work  User Profiles  Evaluation  Summary & Discussion 26

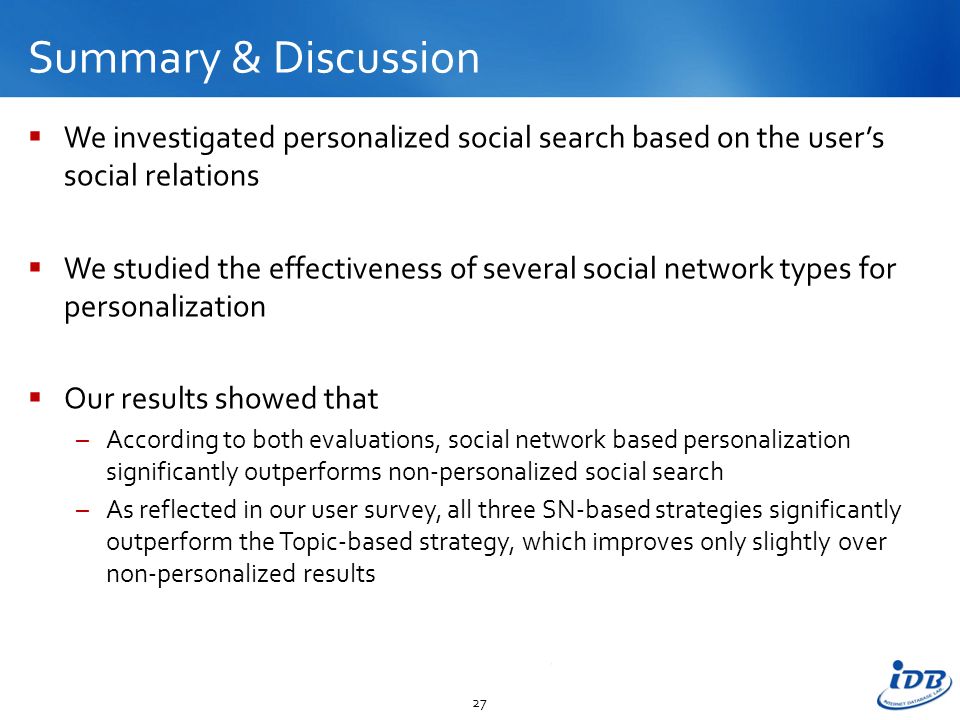

27. Summary & Discussion  We investigated personalized social search based on the user’s social relations  We studied the effectiveness of several social network types for personalization  Our results showed that –According to both evaluations, social network based personalization significantly outperforms non-personalized social search –As reflected in our user survey, all three SN-based strategies significantly outperform the Topic-based strategy, which improves only slightly over non-personalized results 27

28. Thank You! Any Questions or Comments?
