2. ITED 434 Quality Assurance Statistics Overview: From HyperStat Online Textbook http://davidmlane.com/hyperstat/index.html by David Lane, Ph.D. Rice University

3. 28-Oct-03 ITED 434 - J. Wixson2 Class Objectives n Learn about the standard normal distribution n Discuss descriptive and inferential statistics n Learn how to calculate proportions under the normal curve. n Discuss sampling distributions n Learn how to calculate sample size from a normal distribution n Discuss Hypothesis Testing 2 approaches: –Classical method –P-value method

4. 28-Oct-03 ITED 434 - J. Wixson3 n The standard normal distribution is a normal distribution with a mean of 0 and a standard deviation of 1. Normal distributions can be transformed to standard normal distributions by the formula: n X is a score from the original normal distribution,  is the mean of the original normal distribution, and  is the standard deviation of original normal distribution. Standard normal distribution

5. 28-Oct-03 ITED 434 - J. Wixson4 Standard normal distribution n A z score always reflects the number of standard deviations above or below the mean a particular score is. n For instance, if a person scored a 70 on a test with a mean of 50 and a standard deviation of 10, then they scored 2 standard deviations above the mean. Converting the test scores to z scores, an X of 70 would be: n So, a z score of 2 means the original score was 2 standard deviations above the mean. Note that the z distribution will only be a normal distribution if the original distribution (X) is normal.

6. 28-Oct-03 ITED 434 - J. Wixson5 Applying the formula Applying the formula will always produce a transformed variable with a mean of zero and a standard deviation of one. However, the shape of the distribution will not be affected by the transformation. If X is not normal then the transformed distribution will not be normal either. One important use of the standard normal distribution is for converting between scores from a normal distribution and percentile ranks. Areas under portions of the standard normal distribution are shown to the right. About.68 (.34 +.34) of the distribution is between -1 and 1 while about.96 of the distribution is between -2 and 2.

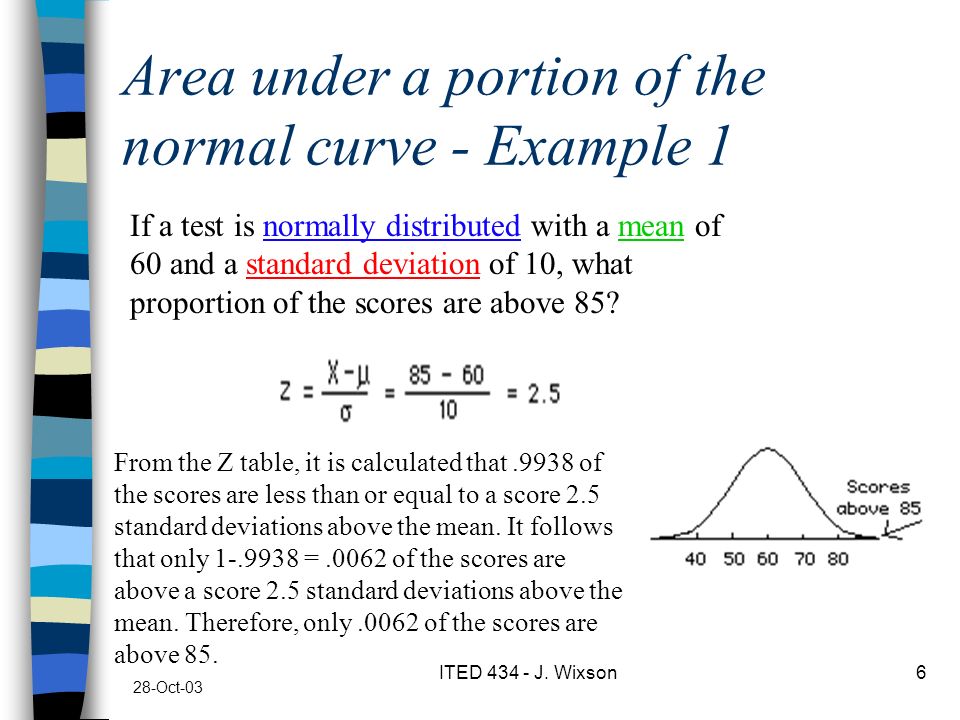

7. 28-Oct-03 ITED 434 - J. Wixson6 Area under a portion of the normal curve - Example 1 If a test is normally distributed with a mean of 60 and a standard deviation of 10, what proportion of the scores are above 85? From the Z table, it is calculated that.9938 of the scores are less than or equal to a score 2.5 standard deviations above the mean. It follows that only 1-.9938 =.0062 of the scores are above a score 2.5 standard deviations above the mean. Therefore, only.0062 of the scores are above 85.

8. 28-Oct-03 ITED 434 - J. Wixson7 Example 2  Suppose you wanted to know the proportion of students receiving scores between 70 and 80. The approach is to figure out the proportion of students scoring below 80 and the proportion below 70.  The difference between the two proportions is the proportion scoring between 70 and 80.  First, the calculation of the proportion below 80. Since 80 is 20 points above the mean and the standard deviation is 10, 80 is 2 standard deviations above the mean. The z table is used to determine that.9772 of the scores are below a score 2 standard deviations above the mean.

9. 28-Oct-03 ITED 434 - J. Wixson8 Example 2 Cont’d To calculate the proportion below 70:  The difference between the two proportions is the proportion scoring between 70 and 80.  Next, calculate the proportion below 70. Note that the area of the curve below 70 is 1 standard deviation, or.1359  To calculate the proportion between 70 and 80, subtract the proportion above 80 from the proportion below 70. That is.8413 -.0228 =.1359.  Therefore, only 13.59% of the scores are between 70 and 80.

10. 28-Oct-03 ITED 434 - J. Wixson9 Example 3  Assume a test is normally distributed with a mean of 100 and a standard deviation of 15. What proportion of the scores would be between 85 and 105?  The solution to this problem is similar to the solution to the last one. The first step is to calculate the proportion of scores below 85.  Next, calculate the proportion of scores below 105. Finally, subtract the first result from the second to find the proportion scoring between 85 and 105.

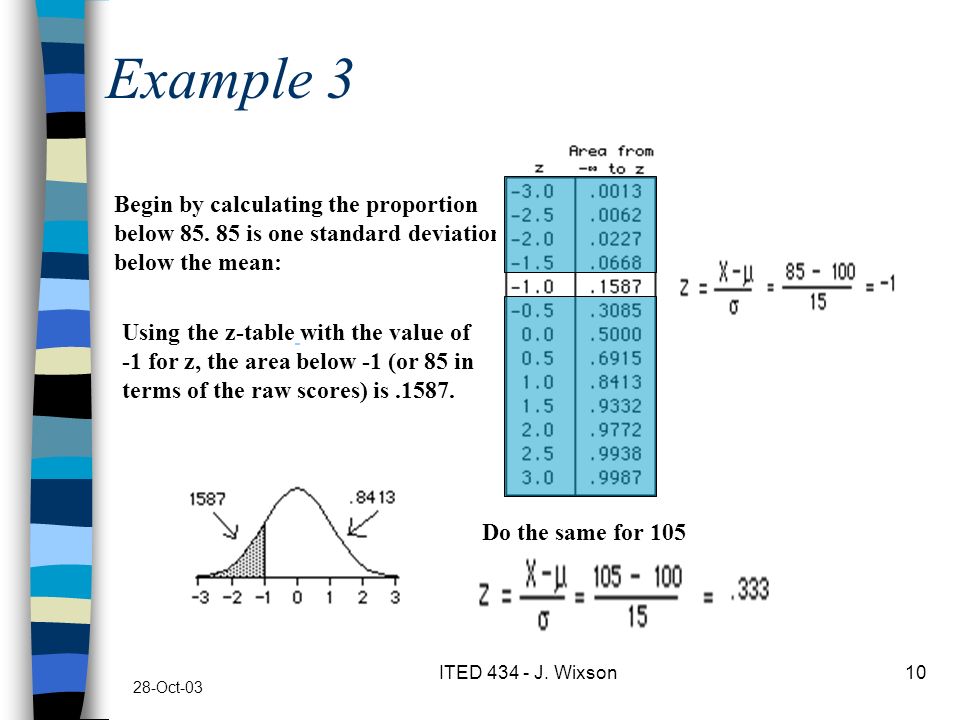

11. 28-Oct-03 ITED 434 - J. Wixson10 Example 3 Begin by calculating the proportion below 85. 85 is one standard deviation below the mean: Using the z-table with the value of -1 for z, the area below -1 (or 85 in terms of the raw scores) is.1587. Do the same for 105

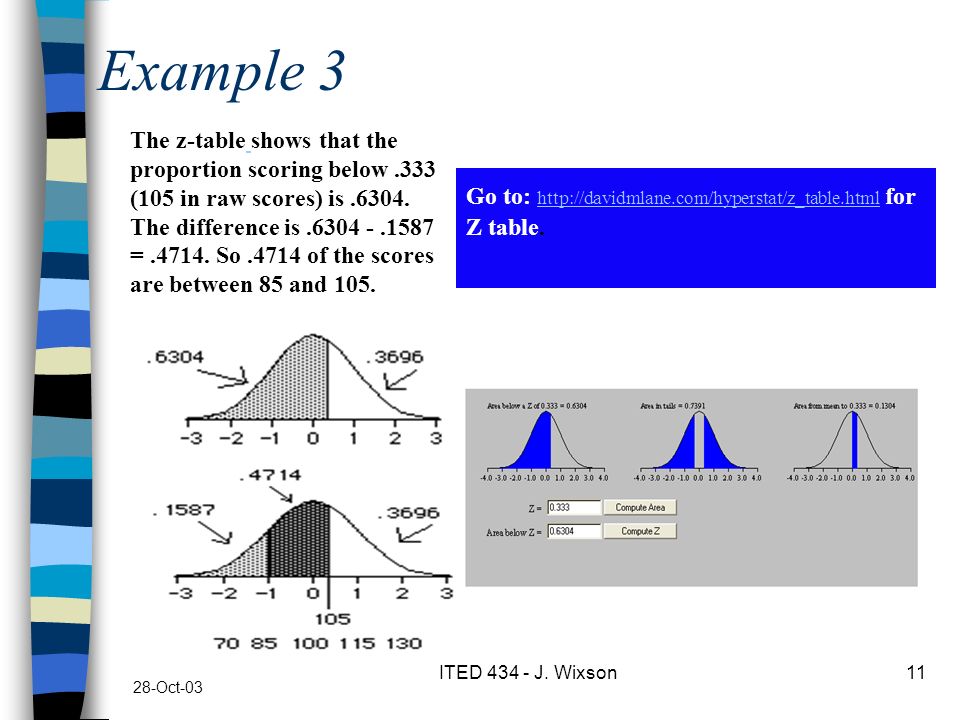

12. 28-Oct-03 ITED 434 - J. Wixson11 Example 3 The z-table shows that the proportion scoring below.333 (105 in raw scores) is.6304. The difference is.6304 -.1587 =.4714. So.4714 of the scores are between 85 and 105. Go to: http://davidmlane.com/hyperstat/z_table.html for Z table. http://davidmlane.com/hyperstat/z_table.html

13. 28-Oct-03 ITED 434 - J. Wixson12 Sampling Distributions

14. 28-Oct-03 ITED 434 - J. Wixson13 Sampling Distributions  If you compute the mean of a sample of 10 numbers, the value you obtain will not equal the population mean exactly; by chance it will be a little bit higher or a little bit lower.  If you sampled sets of 10 numbers over and over again (computing the mean for each set), you would find that some sample means come much closer to the population mean than others. Some would be higher than the population mean and some would be lower.  Imagine sampling 10 numbers and computing the mean over and over again, say about 1,000 times, and then constructing a relative frequency distribution of those 1,000 means.

15. 28-Oct-03 ITED 434 - J. Wixson14 5 Samples

16. 28-Oct-03 ITED 434 - J. Wixson15 10 Samples

17. 28-Oct-03 ITED 434 - J. Wixson16 15 Samples

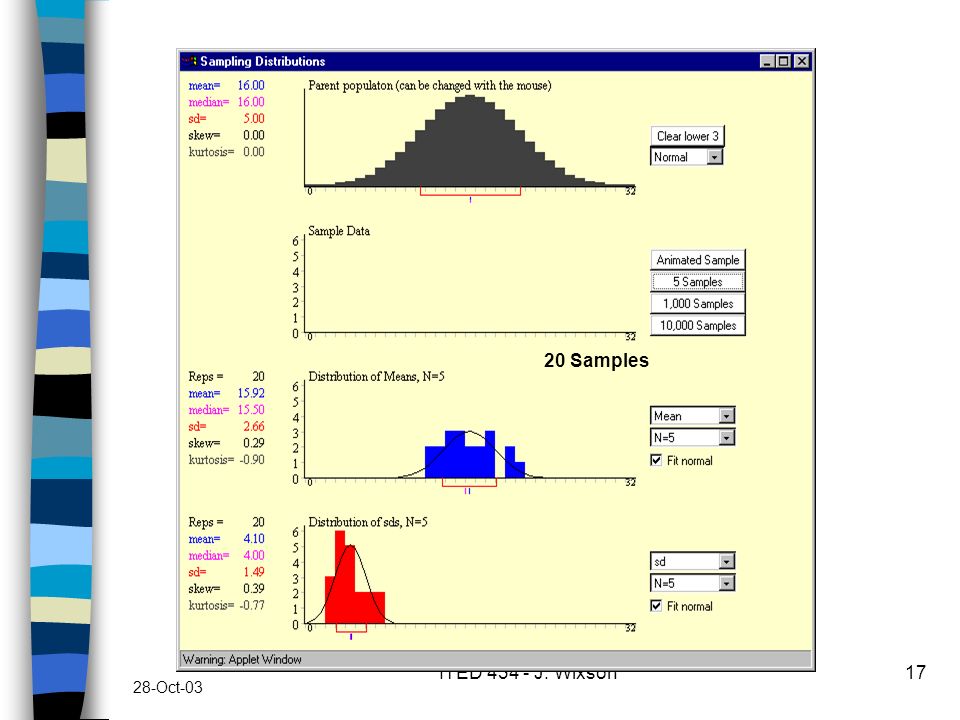

18. 28-Oct-03 ITED 434 - J. Wixson17 20 Samples

19. 28-Oct-03 ITED 434 - J. Wixson18 100 Samples

20. 28-Oct-03 ITED 434 - J. Wixson19 1,000 Samples

21. 28-Oct-03 ITED 434 - J. Wixson20 10,000 Samples

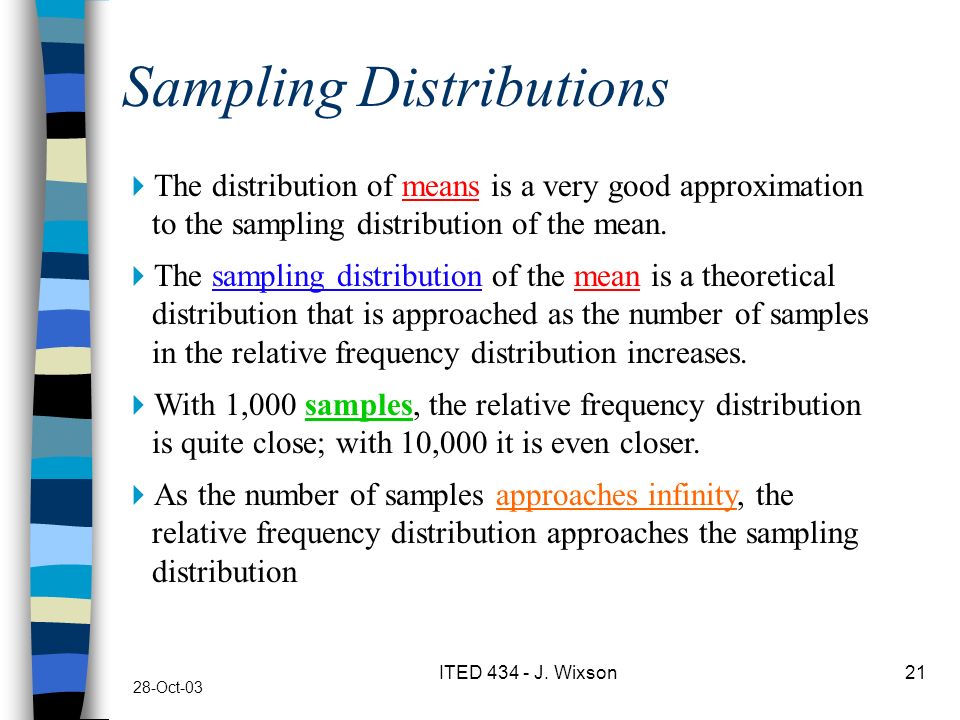

22. 28-Oct-03 ITED 434 - J. Wixson21 Sampling Distributions  The distribution of means is a very good approximation to the sampling distribution of the mean.  The sampling distribution of the mean is a theoretical distribution that is approached as the number of samples in the relative frequency distribution increases.  With 1,000 samples, the relative frequency distribution is quite close; with 10,000 it is even closer.  As the number of samples approaches infinity, the relative frequency distribution approaches the sampling distribution

23. 28-Oct-03 ITED 434 - J. Wixson22 Sampling Distributions  The sampling distribution of the mean for a sample size of 10 was just an example; there is a different sampling distribution for other sample sizes.  Also, keep in mind that the relative frequency distribution approaches a sampling distribution as the number of samples increases, not as the sample size increases since there is a different sampling distribution for each sample size.

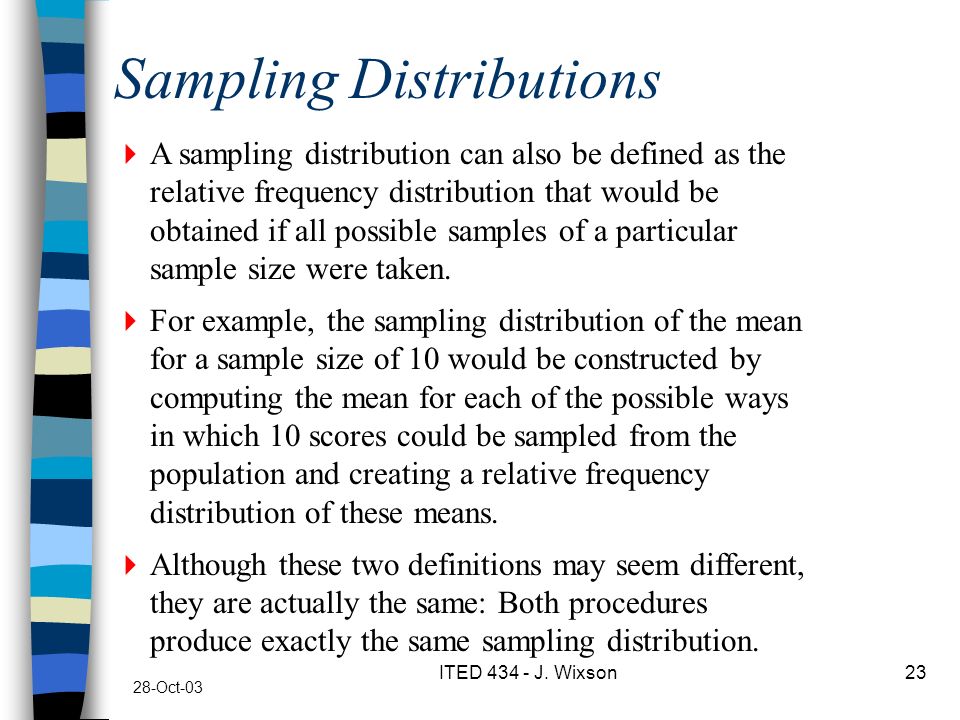

24. 28-Oct-03 ITED 434 - J. Wixson23 Sampling Distributions  A sampling distribution can also be defined as the relative frequency distribution that would be obtained if all possible samples of a particular sample size were taken.  For example, the sampling distribution of the mean for a sample size of 10 would be constructed by computing the mean for each of the possible ways in which 10 scores could be sampled from the population and creating a relative frequency distribution of these means.  Although these two definitions may seem different, they are actually the same: Both procedures produce exactly the same sampling distribution.

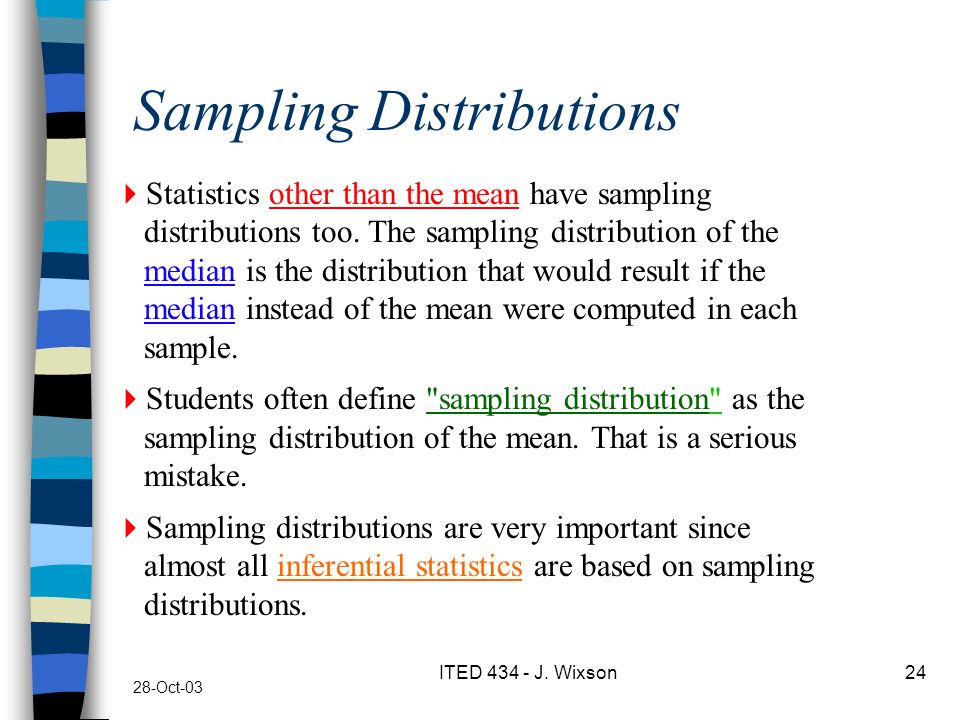

25. 28-Oct-03 ITED 434 - J. Wixson24 Sampling Distributions  Statistics other than the mean have sampling distributions too. The sampling distribution of the median is the distribution that would result if the median instead of the mean were computed in each sample.  Students often define "sampling distribution" as the sampling distribution of the mean. That is a serious mistake.  Sampling distributions are very important since almost all inferential statistics are based on sampling distributions.

26. 28-Oct-03 ITED 434 - J. Wixson25  The sampling distribution of the mean is a very important distribution. In later chapters you will see that it is used to construct confidence intervals for the mean and for significance testing.  Given a population with a mean of  and a standard deviation of , the sampling distribution of the mean has a mean of  and a standard deviation of  N, where N is the sample size.  The standard deviation of the sampling distribution of the mean is called the standard error of the mean. It is designated by the symbol .. Sampling Distribution of the mean

27. 28-Oct-03 ITED 434 - J. Wixson26 Sampling Distribution of the mean  Note that the spread of the sampling distribution of the mean decreases as the sample size increases. An example of the effect of sample size is shown above. Notice that the mean of the distribution is not affected by sample size.

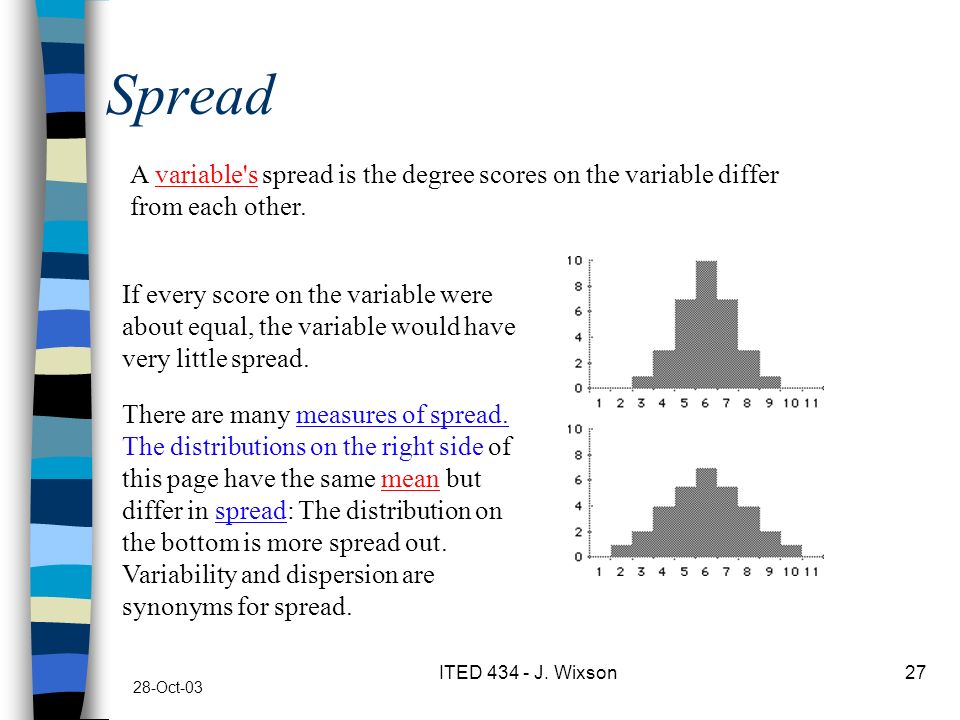

28. 28-Oct-03 ITED 434 - J. Wixson27 Spread A variable's spread is the degree scores on the variable differ from each other. If every score on the variable were about equal, the variable would have very little spread. There are many measures of spread. The distributions on the right side of this page have the same mean but differ in spread: The distribution on the bottom is more spread out. Variability and dispersion are synonyms for spread.

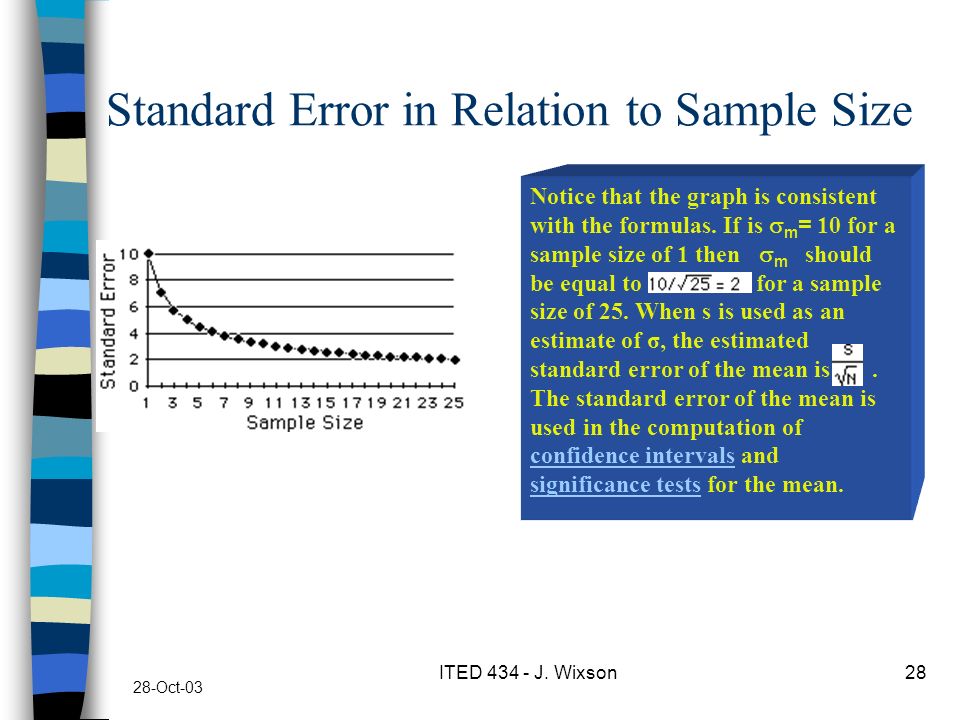

29. 28-Oct-03 ITED 434 - J. Wixson28 Standard Error in Relation to Sample Size Notice that the graph is consistent with the formulas. If is  m = 10 for a sample size of 1 then  m should be equal to for a sample size of 25. When s is used as an estimate of σ, the estimated standard error of the mean is. The standard error of the mean is used in the computation of confidence intervals and significance tests for the mean. confidence intervals significance tests

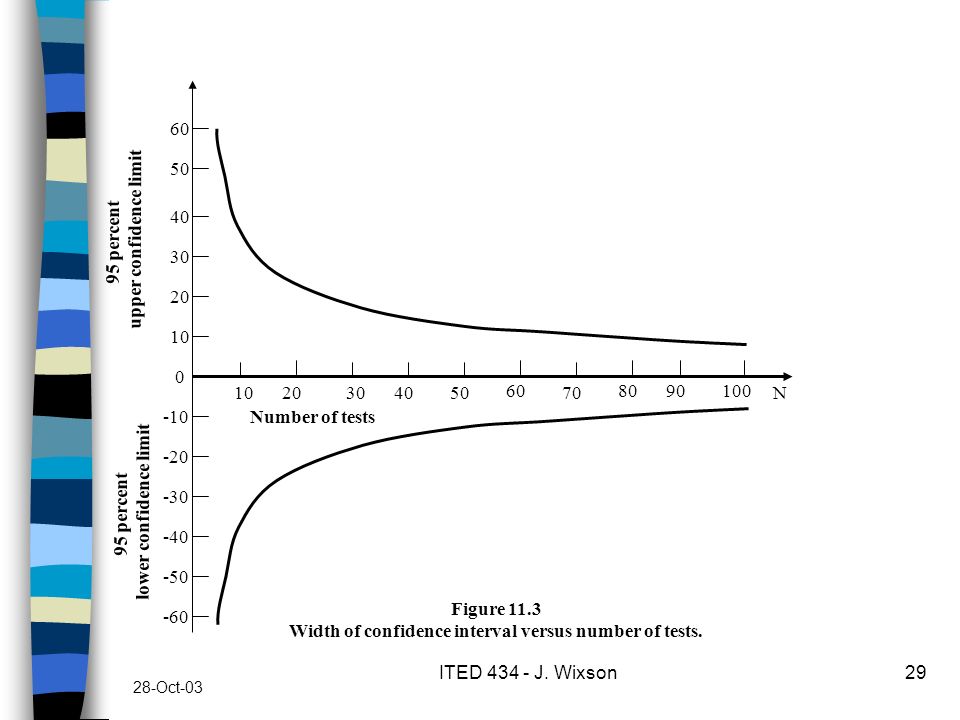

30. 28-Oct-03 ITED 434 - J. Wixson29 60 50 40 30 20 10 0 -10 -20 -30 -40 -50 -60 1020304050 60 70 8090100 N Figure 11.3 Width of confidence interval versus number of tests. 95 percent upper confidence limit 95 percent lower confidence limit Number of tests

31. 28-Oct-03 ITED 434 - J. Wixson30 SEE TABLE 11.1 Summary of confidence limit formulas

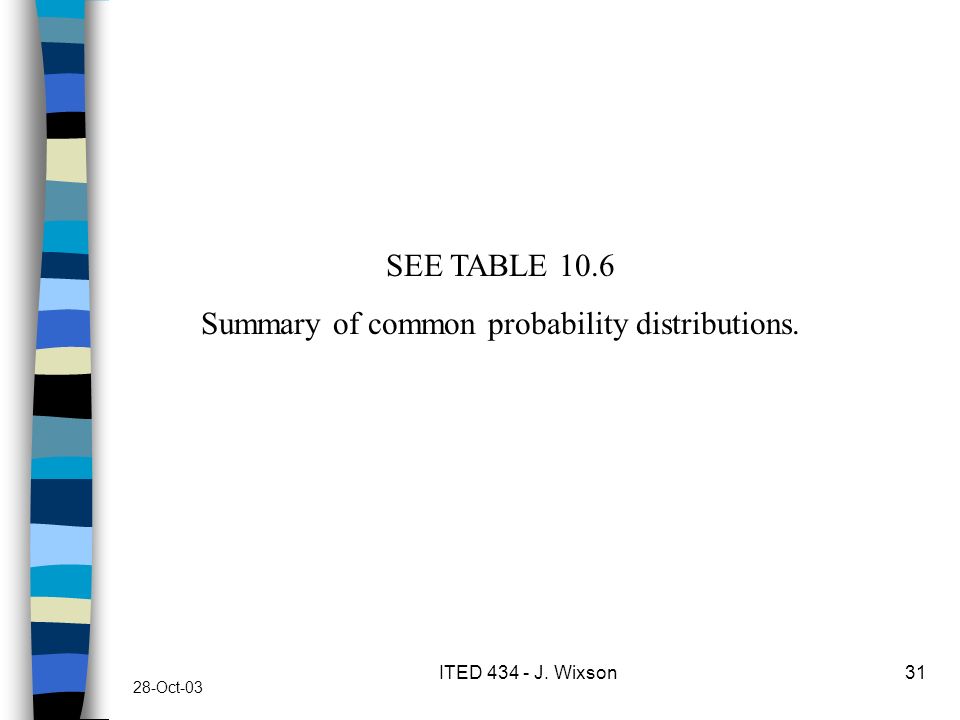

32. 28-Oct-03 ITED 434 - J. Wixson31 SEE TABLE 10.6 Summary of common probability distributions.

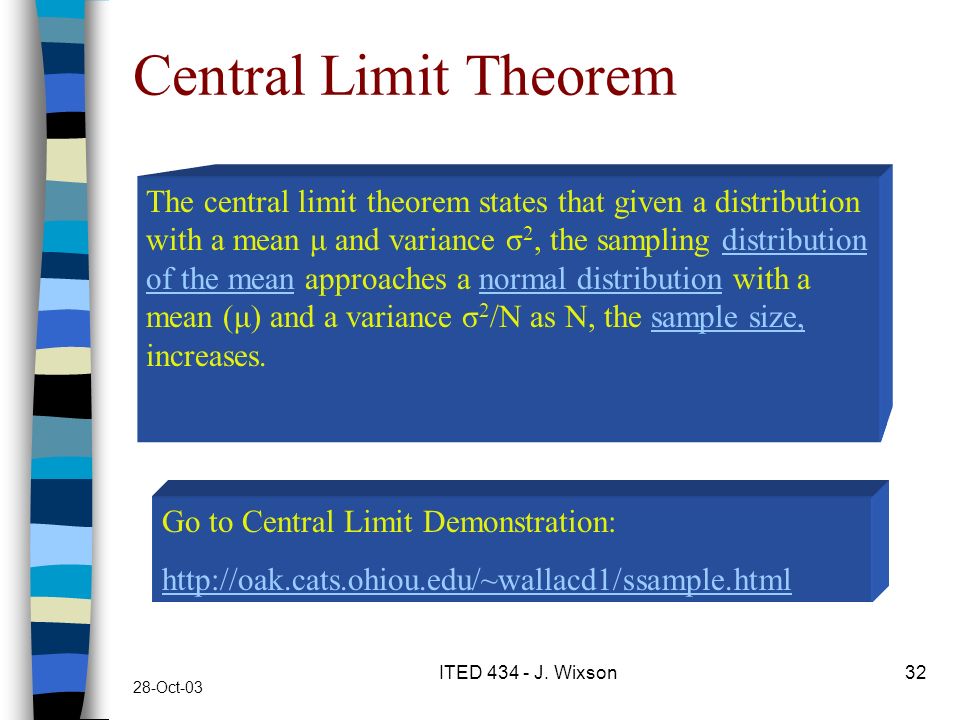

33. 28-Oct-03 ITED 434 - J. Wixson32 Central Limit Theorem The central limit theorem states that given a distribution with a mean μ and variance σ 2, the sampling distribution of the mean approaches a normal distribution with a mean (μ) and a variance σ 2 /N as N, the sample size, increases.distribution of the meannormal distributionsample size, Go to Central Limit Demonstration: http://oak.cats.ohiou.edu/~wallacd1/ssample.html

34. 28-Oct-03 ITED 434 - J. Wixson33 Central Limit Theorem n The central limit theorem also states that the larger our set of samples the more normal our distribution will be. n Thus, the sampling distribution of the mean will have a normal shape and be come increasingly normal in shape as the number of samples increases. n The sampling distribution of the mean will be normal regardless of the shape of the population distribution. n Whether the population distribution is normal,positively or negatively skewed, unimodal or bimodal in shape,the sampling distribution of the mean will have a normal shape.

35. 28-Oct-03 ITED 434 - J. Wixson34 Central Limit Theorem (Cont’d) n In the following example we start out with a uniform distribution. The sampling distribution of the mean, however, will contain variability in the mean values we obtain from sample to sample. Thus, the sampling distribution of the mean will have a normal shape, even though the population distribution does not. Notice that because we are taking a sample of values from all parts of the population, the mean of the samples will be close to the center of the population distribution.

36. 28-Oct-03 ITED 434 - J. Wixson35

37. 36 Hypothesis Testing

38. 28-Oct-03 ITED 434 - J. Wixson37 Classical Approach  The Classical Approach to hypothesis testing is to compare a test statistic and a critical value. It is best used for distributions which give areas and require you to look up the critical value (like the Student's t distribution) rather than distributions which have you look up a test statistic to find an area (like the normal distribution).  The Classical Approach also has three different decision rules, depending on whether it is a left tail, right tail, or two tail test.  One problem with the Classical Approach is that if a different level of significance is desired, a different critical value must be read from the table.

39. 28-Oct-03 ITED 434 - J. Wixson38 Why not accept the null hypothesis? n A null hypothesis is not accepted just because it is not rejected. n Data not sufficient to show convincingly that a difference between means is not zero do not prove that the difference is zero. n No experiment can distinguish between the case of no difference between means and an extremely small difference between means. n If data are consistent with the null hypothesis, they are also consistent with other similar hypotheses.

40. 28-Oct-03 ITED 434 - J. Wixson39 Left Tailed Test H 1 : parameter < value Notice the inequality points to the left Decision Rule: Reject H 0 if t.s. < c.v. Right Tailed Test H 1 : parameter > value Notice the inequality points to the right Decision Rule: Reject H 0 if t.s. > c.v. Two Tailed Test H 1 : parameter not equal value Another way to write not equal is Notice the inequality points to both sides Decision Rule: Reject H 0 if t.s. c.v. (right) The decision rule can be summarized as follows: Reject H 0 if the test statistic falls in the critical region (Reject H 0 if the test statistic is more extreme than the critical value)

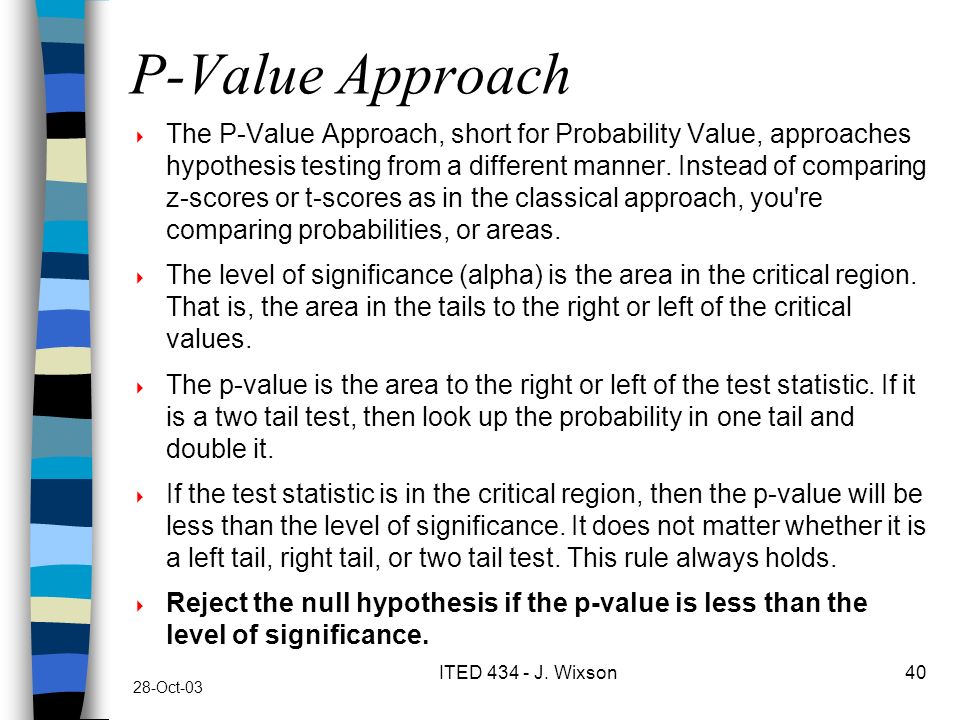

41. 28-Oct-03 ITED 434 - J. Wixson40 P-Value Approach  The P-Value Approach, short for Probability Value, approaches hypothesis testing from a different manner. Instead of comparing z-scores or t-scores as in the classical approach, you're comparing probabilities, or areas.  The level of significance (alpha) is the area in the critical region. That is, the area in the tails to the right or left of the critical values.  The p-value is the area to the right or left of the test statistic. If it is a two tail test, then look up the probability in one tail and double it.  If the test statistic is in the critical region, then the p-value will be less than the level of significance. It does not matter whether it is a left tail, right tail, or two tail test. This rule always holds.  Reject the null hypothesis if the p-value is less than the level of significance.

42. 28-Oct-03 ITED 434 - J. Wixson41 P-Value Approach (Cont’d)  You will fail to reject the null hypothesis if the p-value is greater than or equal to the level of significance.  The p-value approach is best suited for the normal distribution when doing calculations by hand. However, many statistical packages will give the p-value but not the critical value. This is because it is easier for a computer or calculator to find the probability than it is to find the critical value.  Another benefit of the p-value is that the statistician immediately knows at what level the testing becomes significant. That is, a p- value of 0.06 would be rejected at an 0.10 level of significance, but it would fail to reject at an 0.05 level of significance. Warning: Do not decide on the level of significance after calculating the test statistic and finding the p-value.

43. 28-Oct-03 ITED 434 - J. Wixson42 P-Value Approach (Cont’d)  Any proportion equivalent to the following statement is correct: The test statistic is to the p-value as the critical value is to the level of significance and the test is know as a “significance test.”  The null hypothesis is rejected if p is at or below the significance level; it is not rejected if p is above the significance level.  The degree to which p ends up being above or below the significance level does not matter.

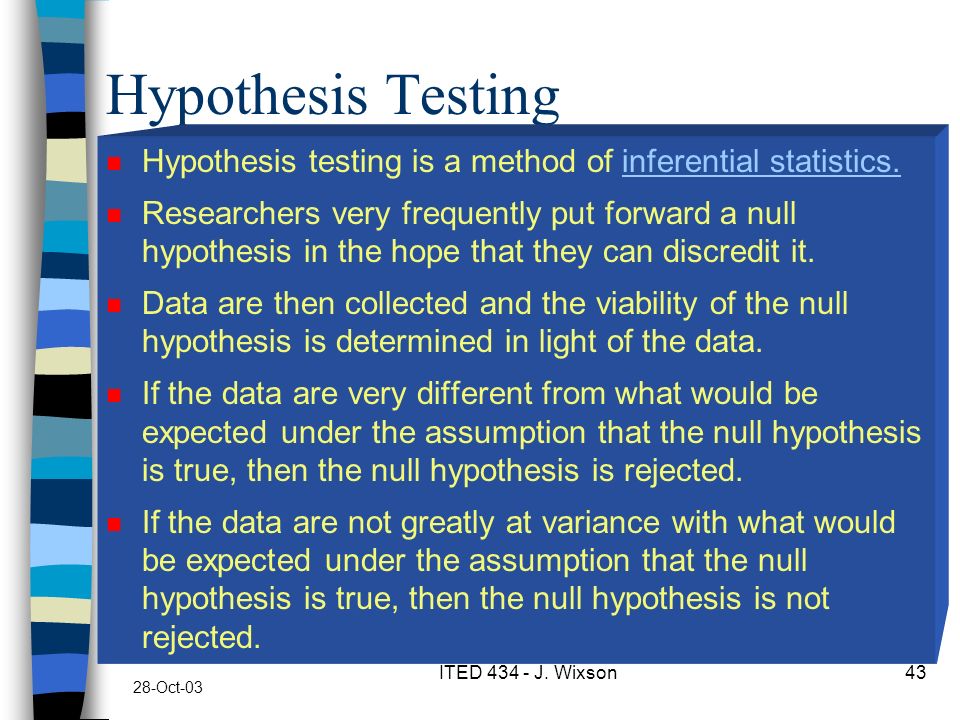

44. 28-Oct-03 ITED 434 - J. Wixson43 Hypothesis Testing n Hypothesis testing is a method of inferential statistics.inferential statistics. n Researchers very frequently put forward a null hypothesis in the hope that they can discredit it. n Data are then collected and the viability of the null hypothesis is determined in light of the data. n If the data are very different from what would be expected under the assumption that the null hypothesis is true, then the null hypothesis is rejected. n If the data are not greatly at variance with what would be expected under the assumption that the null hypothesis is true, then the null hypothesis is not rejected.

45. 28-Oct-03 ITED 434 - J. Wixson44 Hypothesis Testing n Note: Failure to reject the null hypothesis is not the same thing as accepting the null hypothesis.accepting the null hypothesis.

46. 28-Oct-03 ITED 434 - J. Wixson45 Steps to Hypothesis Testing 1. The first step in hypothesis testing is to specify the null hypothesis (H 0 ) and the alternative hypothesis (H 1 ). If the research concerns whether one method of presenting pictorial stimuli leads to better recognition than another, the null hypothesis would most likely be that there is no difference between methods (H 0 : µ 1 - µ 2 = 0). The alternative hypothesis would be H 1 : µ 1 = µ 2. If the research concerned the correlation between grades and SAT scores, the null hypothesis would most likely be that there is no correlation (H 0 : ρ= 0). The alternative hypothesis would be H 1 : ρ 0.hypothesisalternative hypothesis 2. The next step is to select a significance level. Typically the.05 or the.01 level is used.significance level. 3. The third step is to calculate a statistic analogous to the parameter specified by the null hypothesis. If the null hypothesis were defined by the parameter µ 1 - µ 2, then the statistic M 1 - M 2 would be computed.statisticparameter

47. 28-Oct-03 ITED 434 - J. Wixson46 Steps to Hypothesis Testing 4. The fourth step is to calculate the probability value (often called the p value) which is the probability of obtaining a statistic as different or more different from the parameter specified in the null hypothesis as the statistic computed from the data. The calculations are made assuming that the null hypothesis is true. (click here for a concrete example)probability value(click here for a concrete example) 5. The probability value computed in Step 4 is compared with the significance level chosen in Step 2. If the probability is less than or equal to the significance level, then the null hypothesis is rejected; if the probability is greater than the significance level then the null hypothesis is not rejected. When the null hypothesis is rejected, the outcome is said to be "statistically significant"; when the null hypothesis is not rejected then the outcome is said be "not statistically significant.""statistically significant";

48. 28-Oct-03 ITED 434 - J. Wixson47 Steps to Hypothesis Testing n 6. If the outcome is statistically significant, then the null hypothesis is rejected in favor of the alternative hypothesis. If the rejected null hypothesis were that µ 1 - µ 2 = 0, then the alternative hypothesis would be that µ 1 = µ 2. If M 1 were greater than M 2 then the researcher would naturally conclude that µ 1 µ 2. (Click here to see why you can conclude more than µ 1 = µ 2 ).here n 7. The final step is to describe the result and the statistical conclusion in an understandable way. Be sure to present the descriptive statistics as well as whether the effect was significant or not. For example, a significant difference between a group that received a drug and a control group might be described as follow: descriptive statistics –Subjects in the drug group scored significantly higher (M = 23) than did subjects in the control group (M = 17), t(18) = 2.4, p = 0.027.

49. 28-Oct-03 ITED 434 - J. Wixson48 Steps to Hypothesis Testing n The statement that "t(18) =2.4" has to do with how the probability value (p) was calculated. A small minority of researchers might object to two aspects of this wording.calculated. n First, some believe that the significance level rather than the probability level should be reported. The argument for reporting the probability value is presented in another section.another section. n Second, since the alternative hypothesis was stated as µ 1 = µ 2, some might argue that it can only be concluded that the population means differ and not that the population mean for the drug group is higher than the population mean for the control group.

50. 28-Oct-03 ITED 434 - J. Wixson49 Steps to Hypothesis Testing n This argument is misguided. Intuitively, there are strong reasons for inferring that the direction of the difference in the population is the same as the difference in the sample. There is also a more formal argument. A non-significant effect might be described as follows:formal argument. –Although subjects in the drug group scored higher (M = 23) than did subjects in the control group, (M = 20), the difference between means was not significant, t(18) = 1.4, p =.179. n It would not have been correct to say that there was no difference between the performance of the two groups. There was a difference. It is just that the difference was not large enough to rule out chance as an explanation of the difference. It would also have been incorrect to imply that there is no difference in the population. Be sure not to accept the null hypothesis.accept
