Hierarchical Error-Driven Approximation of Implicit Surfaces from Polygonal Meshes Takashi Kanai Yutaka Ohtake Kiwamu Kase University of Tokyo RIKEN, VCAD Modeling Team 4 th Symposium on Geometry Processing, Cagliari, Sardinia, Italy 26 th June, 2006
2

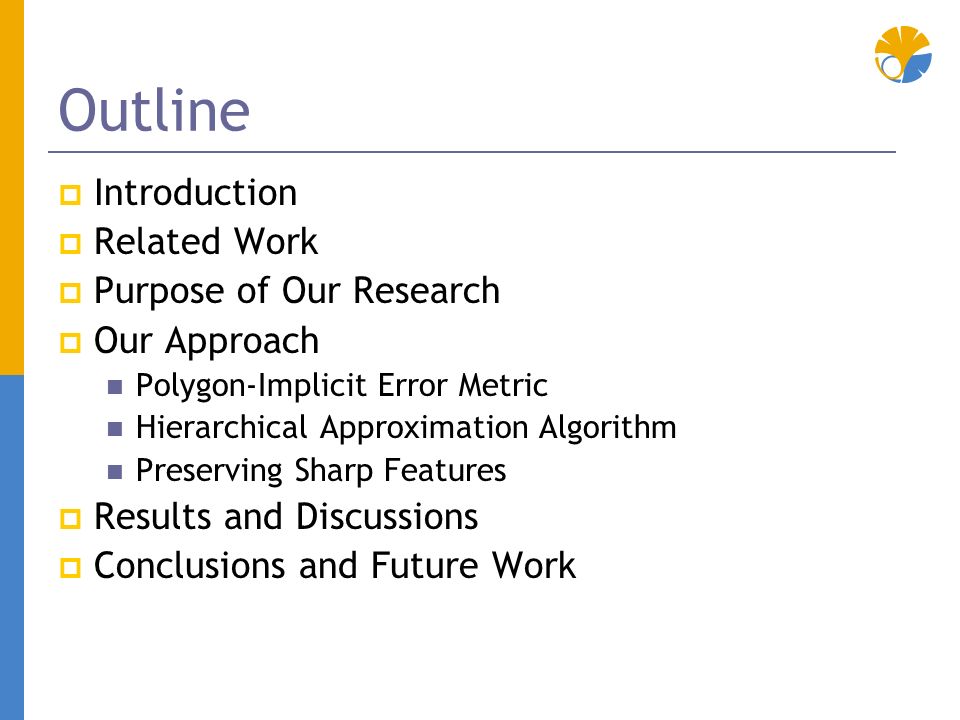

Outline Introduction Related Work Purpose of Our Research Our Approach Polygon-Implicit Error Metric Hierarchical Approximation Algorithm Preserving Sharp Features Results and Discussions Conclusions and Future Work
3

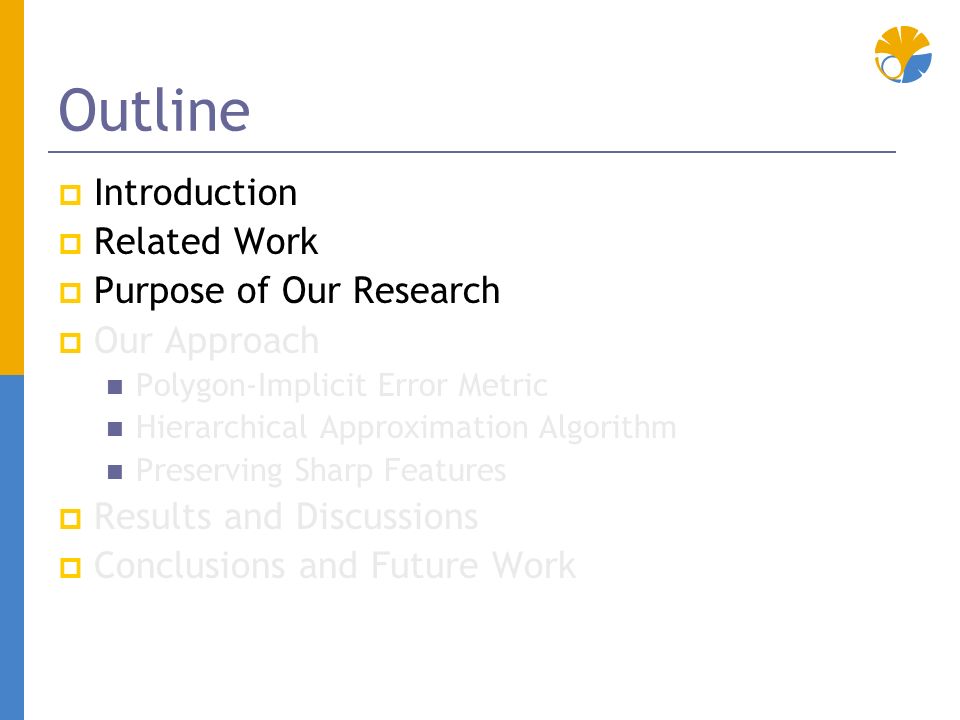

Outline Introduction Related Work Purpose of Our Research Our Approach Polygon-Implicit Error Metric Hierarchical Approximation Algorithm Preserving Sharp Features Results and Discussions Conclusions and Future Work
4
Implicit Surface Modeling Points with Normals (typical output of range scanners) Implicit Solid f (x,y,z) > 0 … inside f (x,y,z) < 0 … outside f (x,y,z) = 0 … approximates points Surface Reconstruction by Implicit Surfaces
5

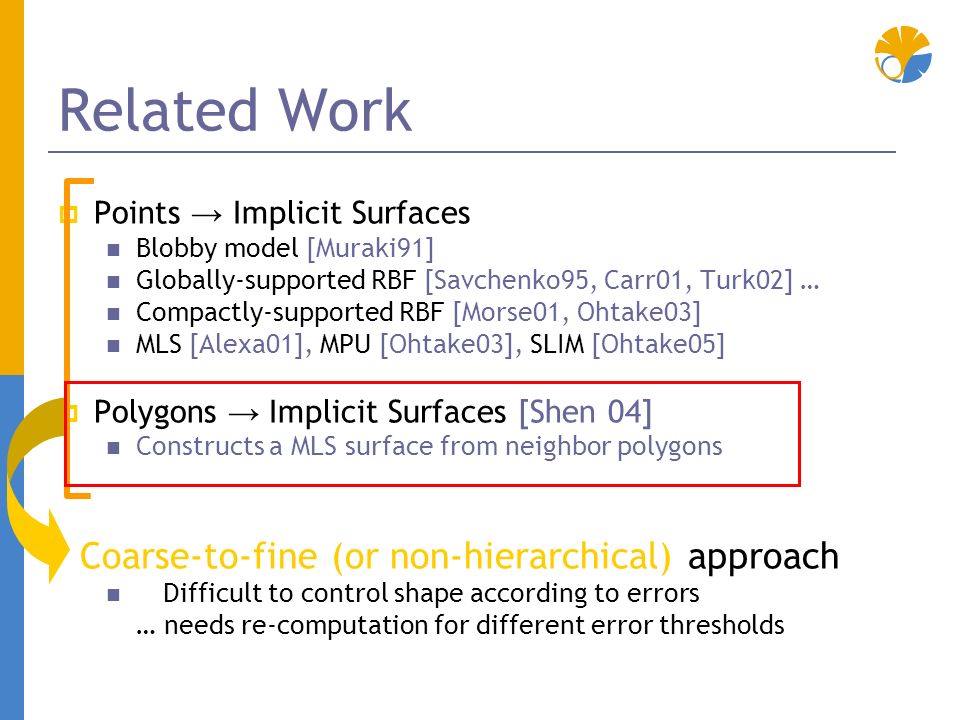

Related Work Points → Implicit Surfaces Blobby model [Muraki91] Globally-supported RBF [Savchenko95, Carr01, Turk02] … Compactly-supported RBF [Morse01, Ohtake03] MLS [Alexa01], MPU [Ohtake03], SLIM [Ohtake05] Polygons → Implicit Surfaces [Shen 04] Constructs a MLS surface from neighbor polygons Coarse-to-fine (or non-hierarchical) approach Difficult to control shape according to errors … needs re-computation for different error thresholds
6

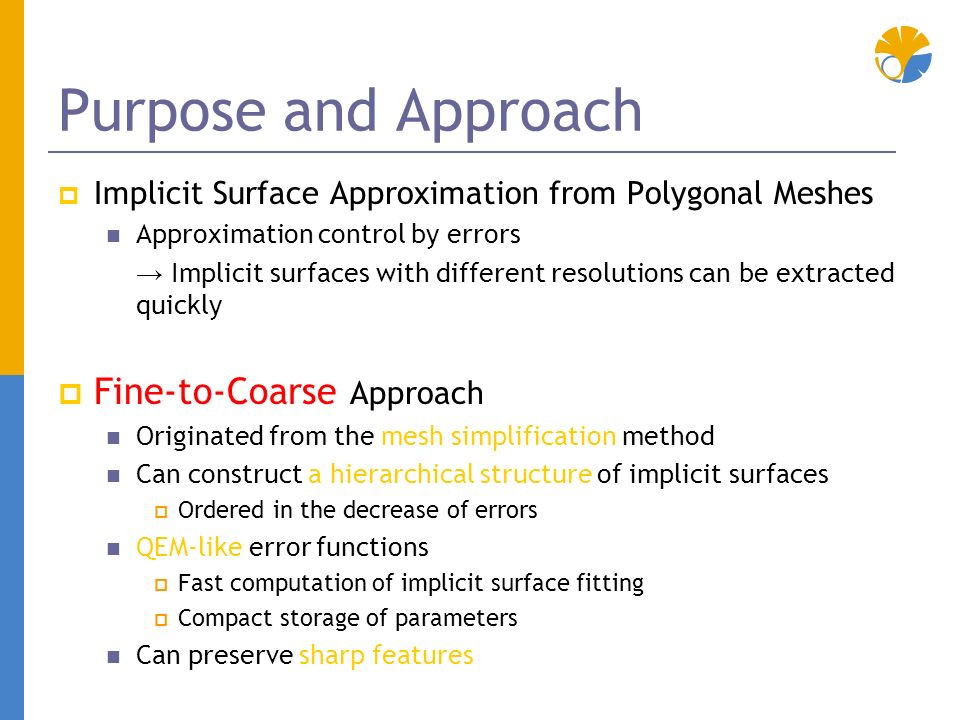

Purpose and Approach Implicit Surface Approximation from Polygonal Meshes Approximation control by errors → Implicit surfaces with different resolutions can be extracted quickly Fine-to-Coarse Approach Originated from the mesh simplification method Can construct a hierarchical structure of implicit surfaces Ordered in the decrease of errors QEM-like error functions Fast computation of implicit surface fitting Compact storage of parameters Can preserve sharp features
7
Outline Introduction Related Work Purpose of Our Research Our Approach Polygon-Implicit Error Metric Hierarchical Approximation Algorithm Preserving Sharp Features Results and Discussions Conclusions and Future Work
8

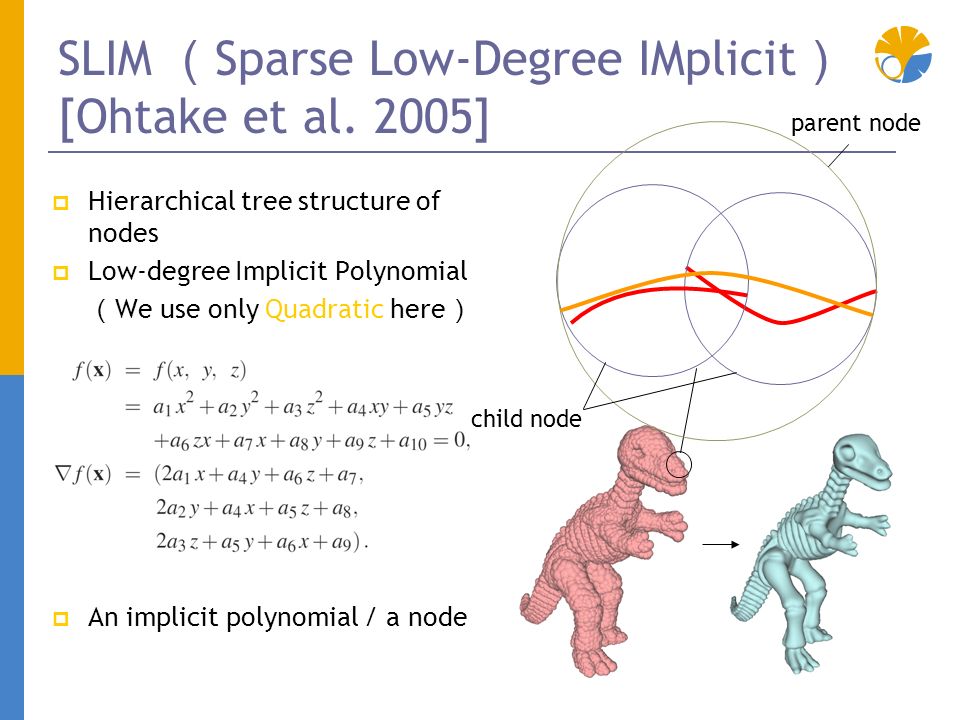

SLIM ( Sparse Low-Degree IMplicit ) [Ohtake et al. 2005] Hierarchical tree structure of nodes Low-degree Implicit Polynomial ( We use only Quadratic here ) An implicit polynomial / a node parent node child node
9

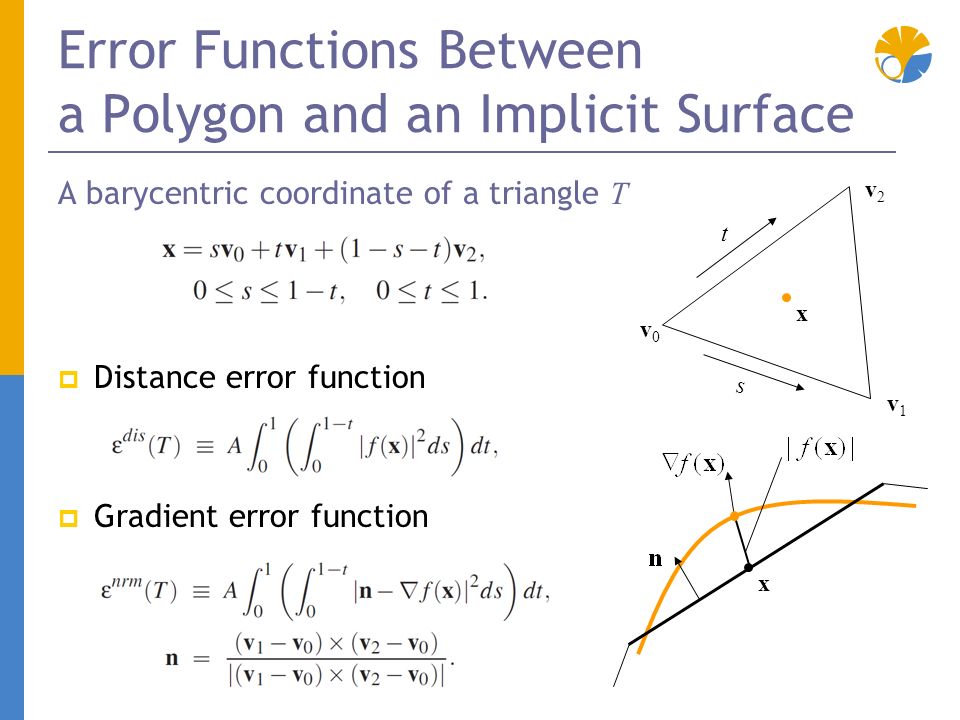

Error Functions Between a Polygon and an Implicit Surface A barycentric coordinate of a triangle T Distance error function Gradient error function v0v0 v1v1 v2v2 x s t x
10

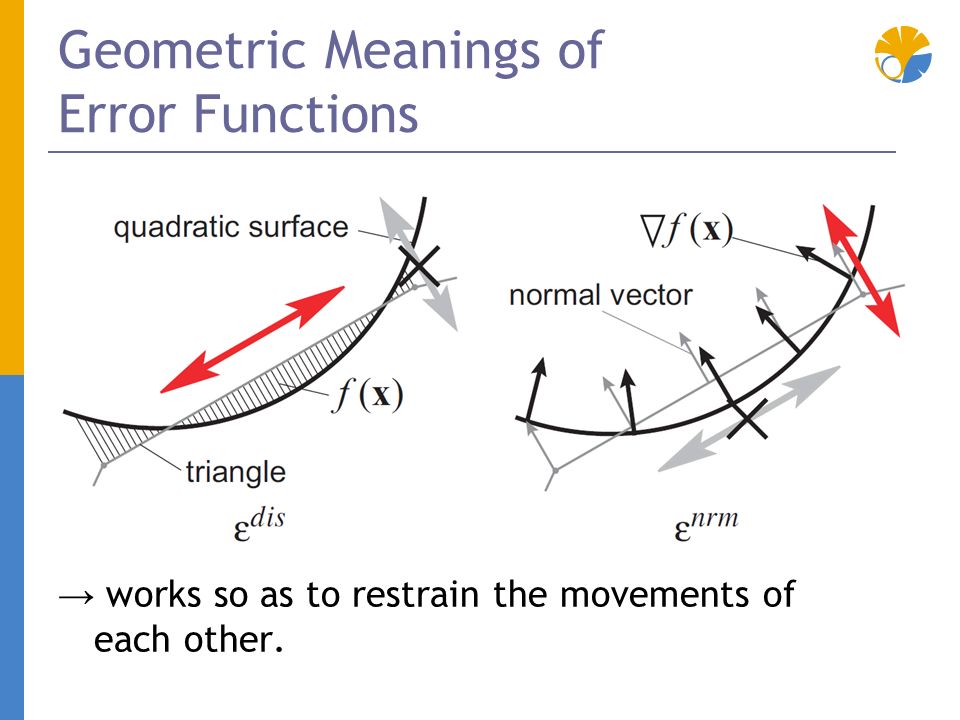

Geometric Meanings of Error Functions → works so as to restrain the movements of each other.
11
Error Function as Quadric Form Two error functions can also be represented as the Quadric Form: : 10-dim. coefficient vector : 10×10 symmetric matrix : 10-dim. vector : a scalar … PIEM (Polygon-Implicit Error Metric)
12

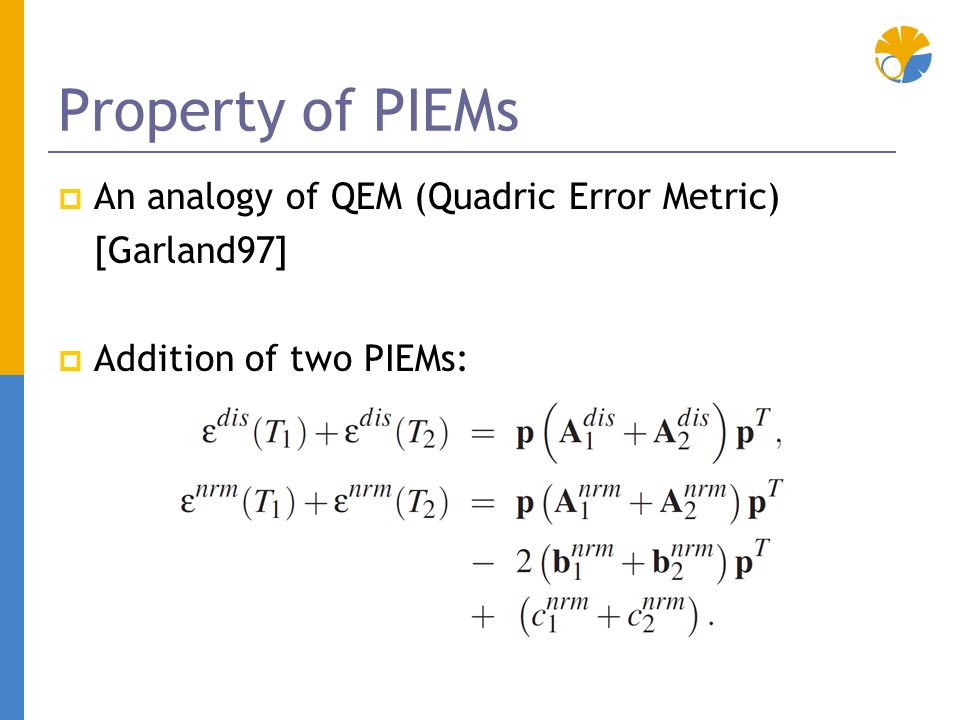

Property of PIEMs An analogy of QEM (Quadric Error Metric) [Garland97] Addition of two PIEMs:
13
Error Function for Polygonal Mesh λ … A parameter for adjusting the scale of two functions E dis (M) … two-dimensional quantity (squared distance) E nrm (M) … dimensionless quantity (normalized gradient) ( A i … the area of a triangle )
14
Error function of two meshes Does not satisfy the linearity → add λ to PIEM 122 floating points per a node
15
Implicit Surface Optimization Solving p by least squares fitting 10-dimensional linear equation ( non-sparse matrix ) → SVD (Singular Value Decomposition) min
16

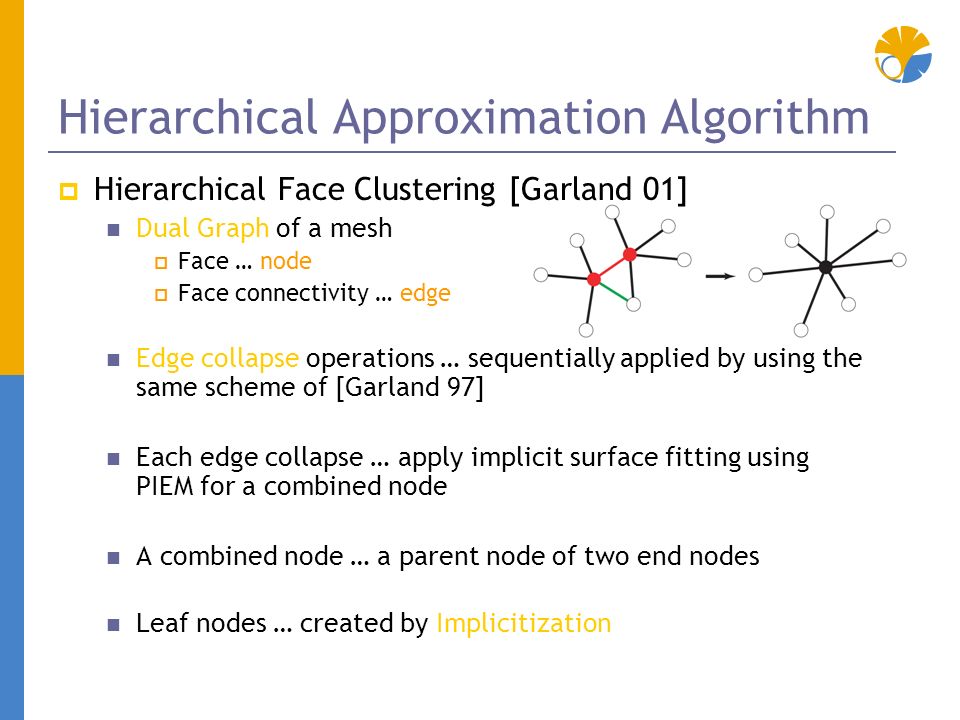

Hierarchical Approximation Algorithm Hierarchical Face Clustering [Garland 01] Dual Graph of a mesh Face … node Face connectivity … edge Edge collapse operations … sequentially applied by using the same scheme of [Garland 97] Each edge collapse … apply implicit surface fitting using PIEM for a combined node A combined node … a parent node of two end nodes Leaf nodes … created by Implicitization
17

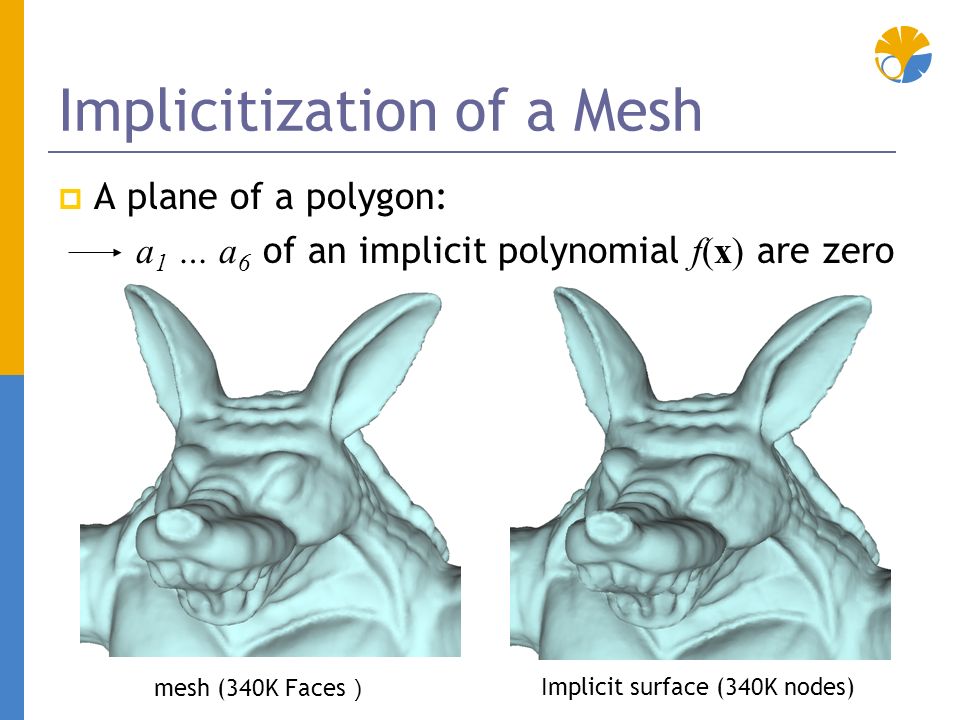

Implicitization of a Mesh mesh (340K Faces ) Implicit surface (340K nodes) A plane of a polygon: a 1 … a 6 of an implicit polynomial f(x) are zero
18
Management of Error Metrics Management by PIEMs Fast computation, but requires large memory space (200K polygons → 325MB) “on-the-fly” management Saves memory space, but relatively slow (especially before the end of the algorithm) A hybrid scheme (◎) on-the-fly (90% of the whole process) → PIEMs
19
Preserving Sharp Features PU (Partition of Unity) [Ohtake03] Sharp edges are not preserved Definition of Sharp features in MPU More than two implicit polynomials for a node Apply max/min Boolean operation → The algorithm is more complicated
20
A New PU Evaluation Method Cluster faces on-the-fly Judgement by using a gradient on a point x Execute PU for each cluster max/min Boolean operation between clusters A slight modification of the approximation algorithm Delete DG edges of sharp features Multiply large weights (e.g. 1,000) to the boundary nodes (same as [Garland97]) × Up to three clusters × Can not perform large simplification Future work
21

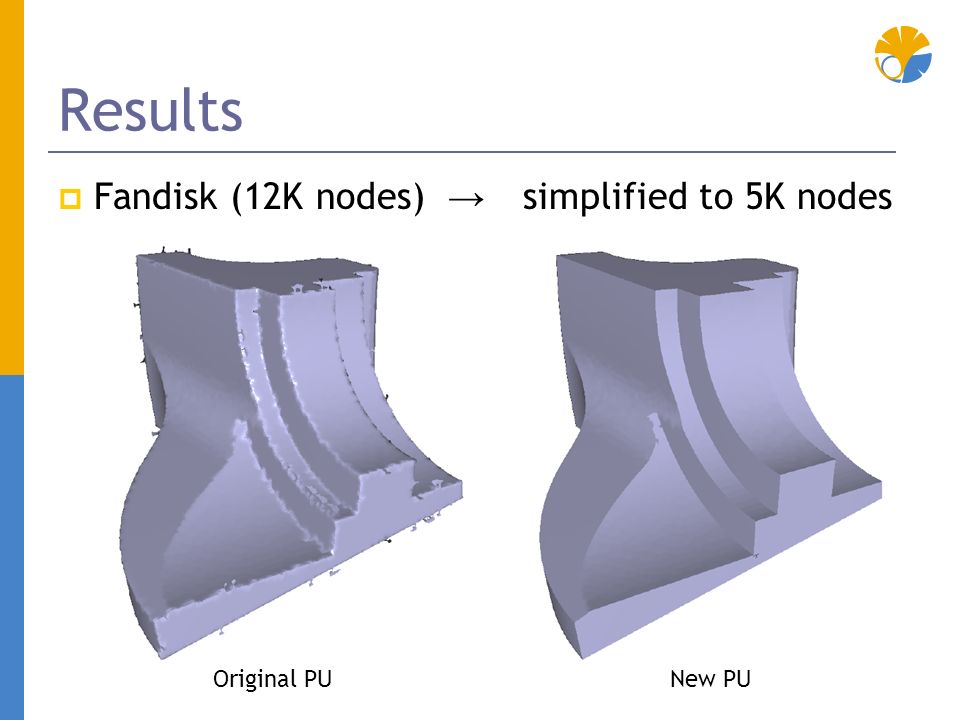

Results Fandisk (12K nodes) → simplified to 5K nodes Original PU New PU
22
Outline Introduction Related Work Purpose of Our Research Our Approach Polygon-Implicit Error Metric Hierarchical Approximation Algorithm Preserving Sharp Features Results and Discussions Conclusions and Future Work
23

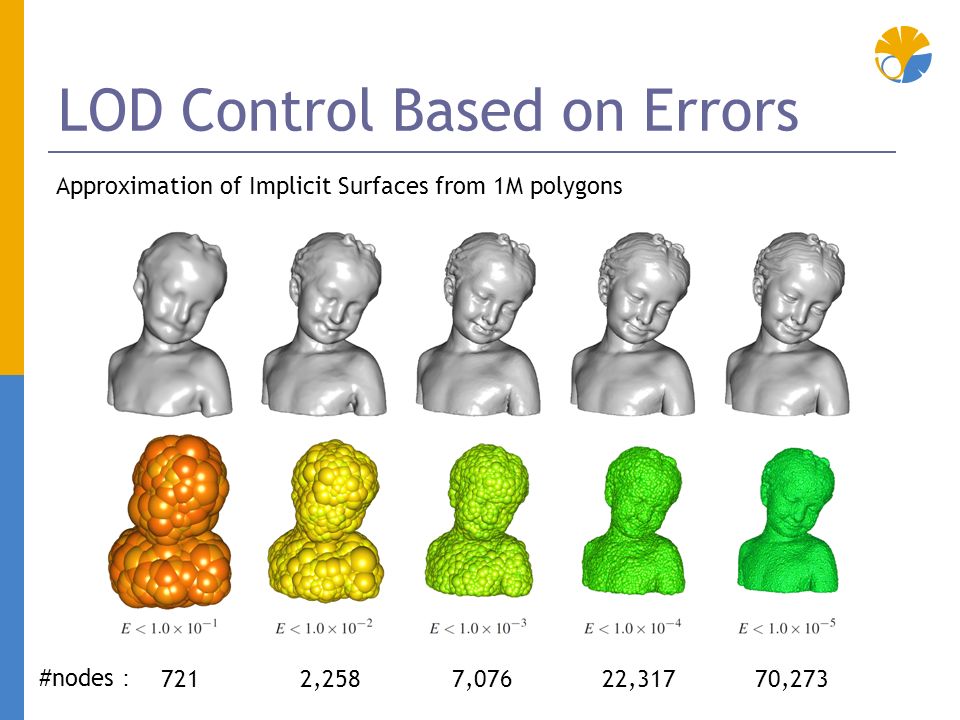

LOD Control Based on Errors 7212,2587,07622,31770,273 #nodes : Approximation of Implicit Surfaces from 1M polygons
24

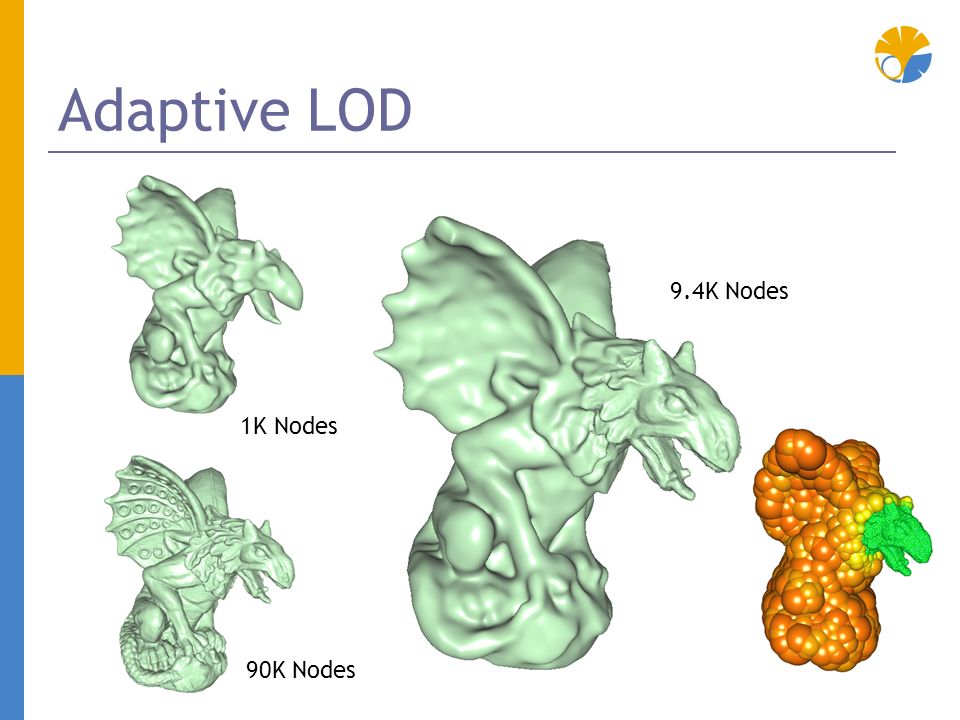

Adaptive LOD 1K Nodes 90K Nodes 9.4K Nodes
25

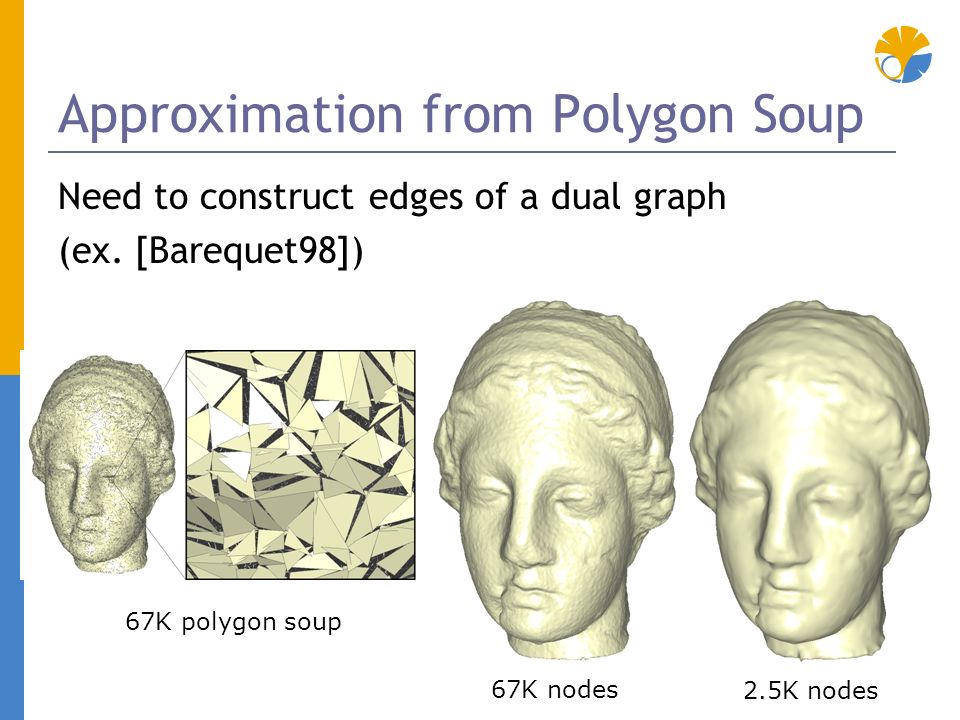

Approximation from Polygon Soup Need to construct edges of a dual graph (ex. [Barequet98]) 67K polygon soup 67K nodes 2.5K nodes
26

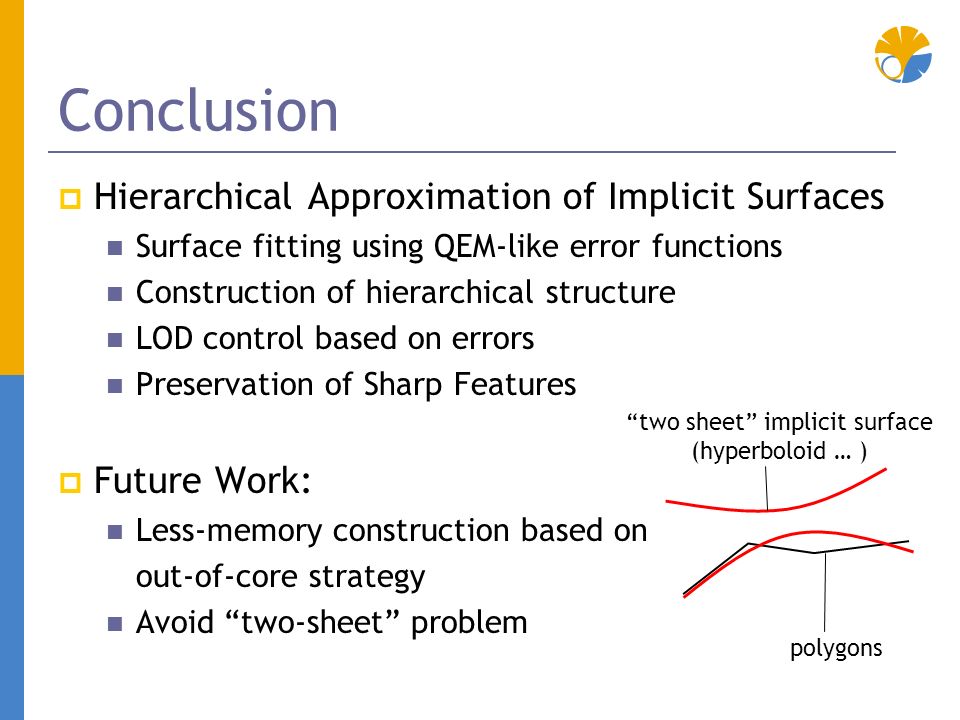

Conclusion Hierarchical Approximation of Implicit Surfaces Surface fitting using QEM-like error functions Construction of hierarchical structure LOD control based on errors Preservation of Sharp Features Future Work: Less-memory construction based on out-of-core strategy Avoid “two-sheet” problem polygons “two sheet” implicit surface (hyperboloid … )
27
Thank You!
29

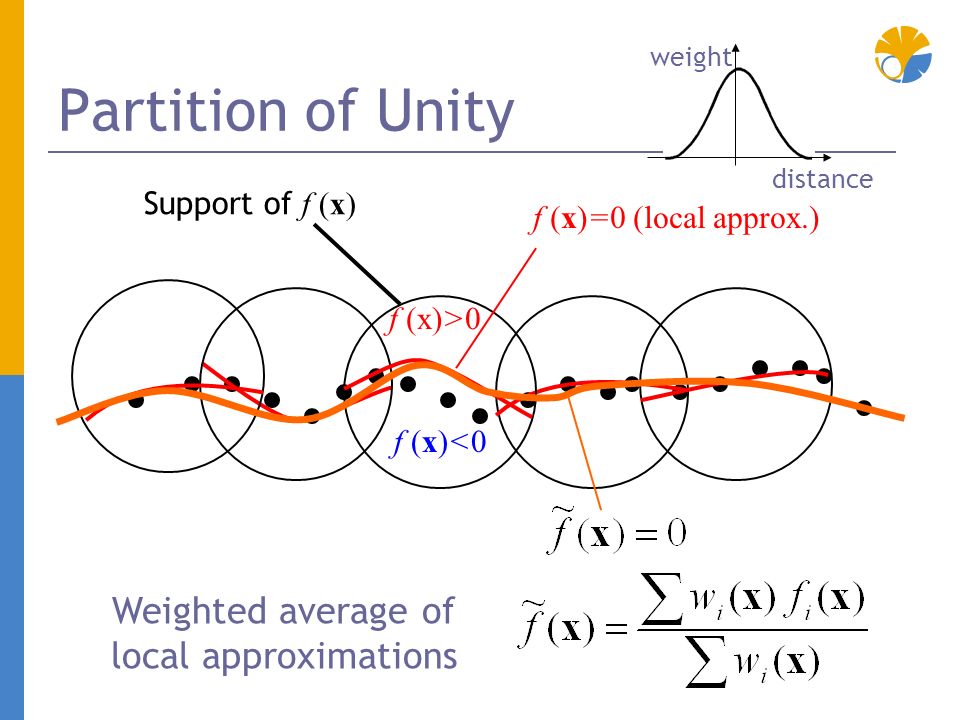

Partition of Unity distance weight Support of f (x) f (x)=0 (local approx.) f (x)>0 f (x)<0 Weighted average of local approximations
30
Evaluation of Error Function Evaluation in 2D Measure [Taubin94] → Our metric yields the same effects as fitting with a highly dense point set Uniform sampling (5 point / an edge) Dense spatial Uniform sampling Our function Sparse spatial Uniform sampling
31

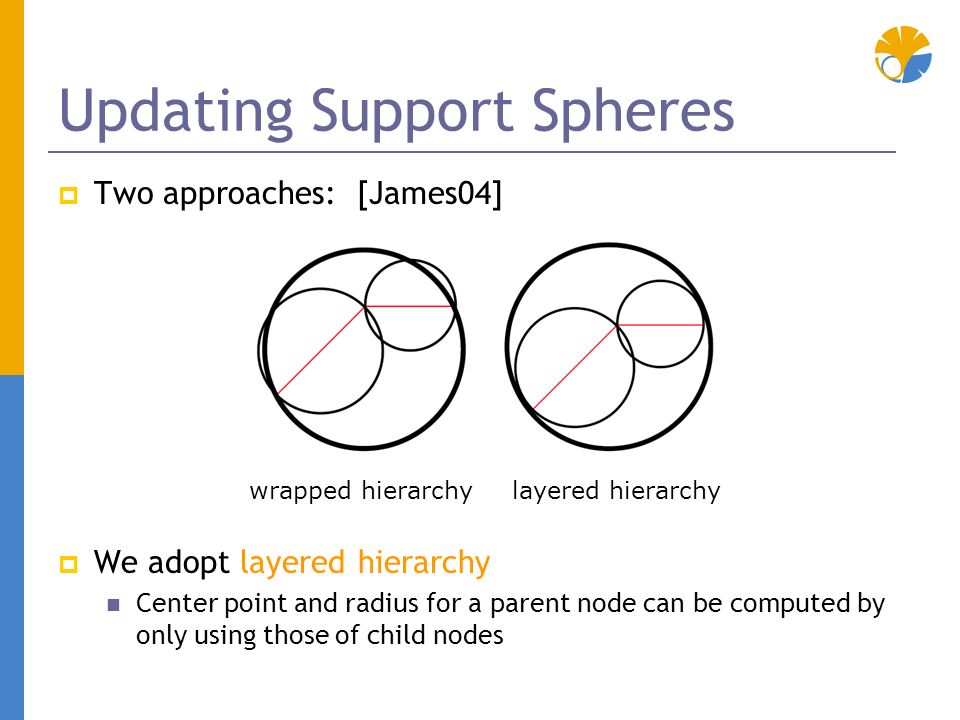

Updating Support Spheres Two approaches: [James04] We adopt layered hierarchy Center point and radius for a parent node can be computed by only using those of child nodes wrapped hierarchylayered hierarchy
32

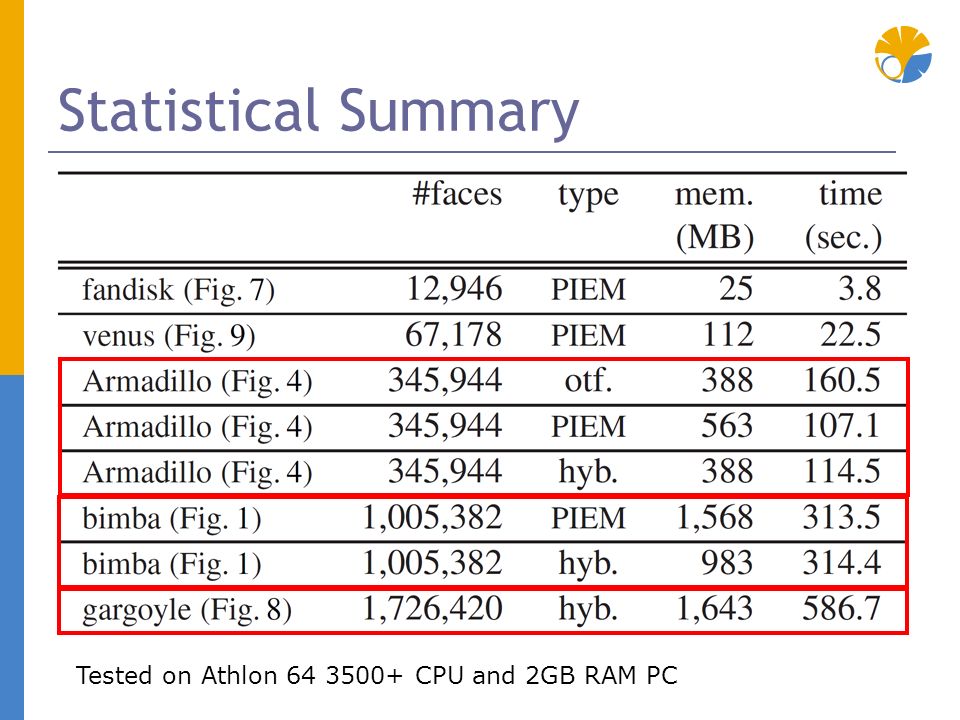

Statistical Summary Tested on Athlon 64 3500+ CPU and 2GB RAM PC
