Presentation on theme: "C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH."— Presentation transcript:

1

2 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

3 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

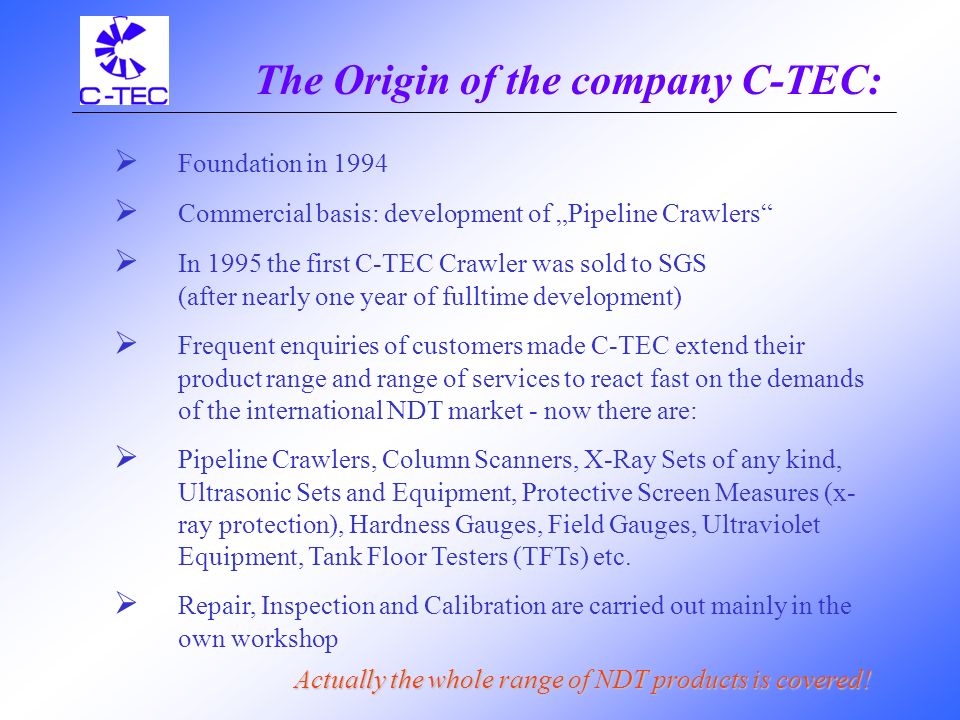

4 The Origin of the company C-TEC: Foundation in 1994 Commercial basis: development of Pipeline Crawlers In 1995 the first C-TEC Crawler was sold to SGS (after nearly one year of fulltime development) Frequent enquiries of customers made C-TEC extend their product range and range of services to react fast on the demands of the international NDT market - now there are: Pipeline Crawlers, Column Scanners, X-Ray Sets of any kind, Ultrasonic Sets and Equipment, Protective Screen Measures (x- ray protection), Hardness Gauges, Field Gauges, Ultraviolet Equipment, Tank Floor Testers (TFTs) etc. Repair, Inspection and Calibration are carried out mainly in the own workshop Actually the whole range of NDT products is covered!

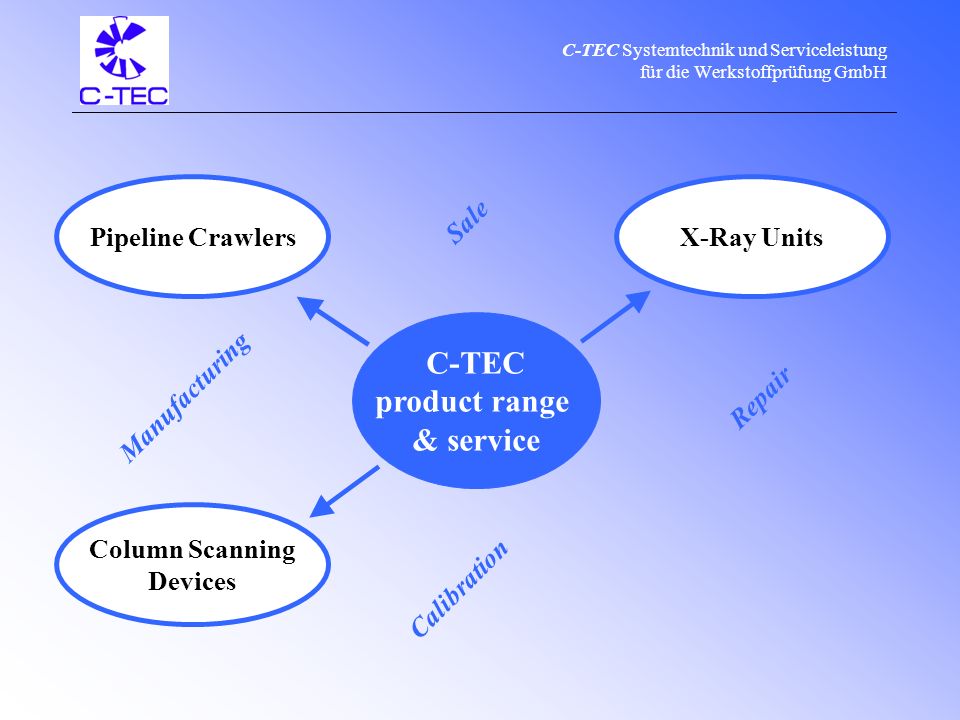

5 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH C-TEC product range & service Pipeline Crawlers Calibration Manufacturing Sale Repair

6 Pipeline Crawlers C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

7 Pipe l ineCrawler Type C200: Type C400:

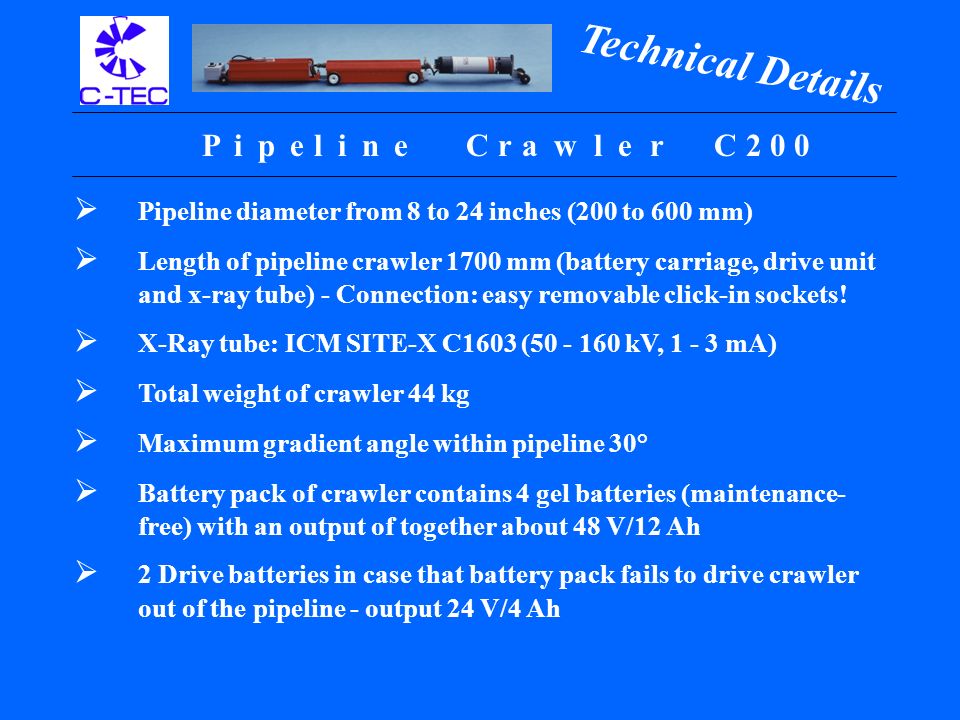

8 Pipe l ineCrawlerC002 Technical Details Pipeline diameter from 8 to 24 inches (200 to 600 mm) Length of pipeline crawler 1700 mm (battery carriage, drive unit and x-ray tube) - Connection: easy removable click-in sockets! X-Ray tube: ICM SITE-X C1603 ( kV, mA) Total weight of crawler 44 kg Maximum gradient angle within pipeline 30° Battery pack of crawler contains 4 gel batteries (maintenance- free) with an output of together about 48 V/12 Ah 2 Drive batteries in case that battery pack fails to drive crawler out of the pipeline - output 24 V/4 Ah

9 Pipe l ineCrawlerC004 Technical Details Pipeline diameter from 16 to 64 inches (400 to 1600 mm) Length of pipeline crawler 3000 mm (battery carriage, drive unit and x-ray tube) - Connection: easy removable click-in sockets! X-Ray tube: ICM SITE-X C3003 ( kV, mA) orICM SITE-X C2254 ( kV, mA) Total weight of crawler 178 kg (with C3003) or 175 kg (with C2254) Maximum gradient angle within pipeline 30° Battery pack of crawler contains 10 gel batteries (maintenance- free) with an output of together about 120 V/18 Ah 2 Drive batteries in case that battery pack fails to drive crawler out of the pipeline - output 24 V/18 Ah

10 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH C-TEC product range & service Pipeline CrawlersX-Ray Units Calibration Manufacturing Sale Repair

11 X-Ray Units C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

12 ICM X-RAY UNITS

13 Service range of C-TEC Sale ICM x-ray units with energy range of kV/3 - 6 mA new and 2 nd hand x-ray units of all other manufacturers (e. g. Yxlon (Philips/Andex), Seifert, Gilardoni, Scanray, Toshiba etc.) C-TEC => your link to all manufacturers Service Annual inspection including certificate, BGV A2 inspection Focal spot and energy measuring including certificate General repair (big stock of spare parts available) Rental

14 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH C-TEC product range & service Pipeline CrawlersX-Ray Units Column Scanning Devices Calibration Manufacturing Sale Repair

15 Column Scanning Devices C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

16 C-TEC C-SCAN Column Scanning Device

17 Advantages of the C-SCAN

18 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH C-TEC product range & service Pipeline CrawlersX-Ray Units Other Services in NDT Column Scanning Devices Calibration Manufacturing Sale Repair

19 C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH Other Services in NDT

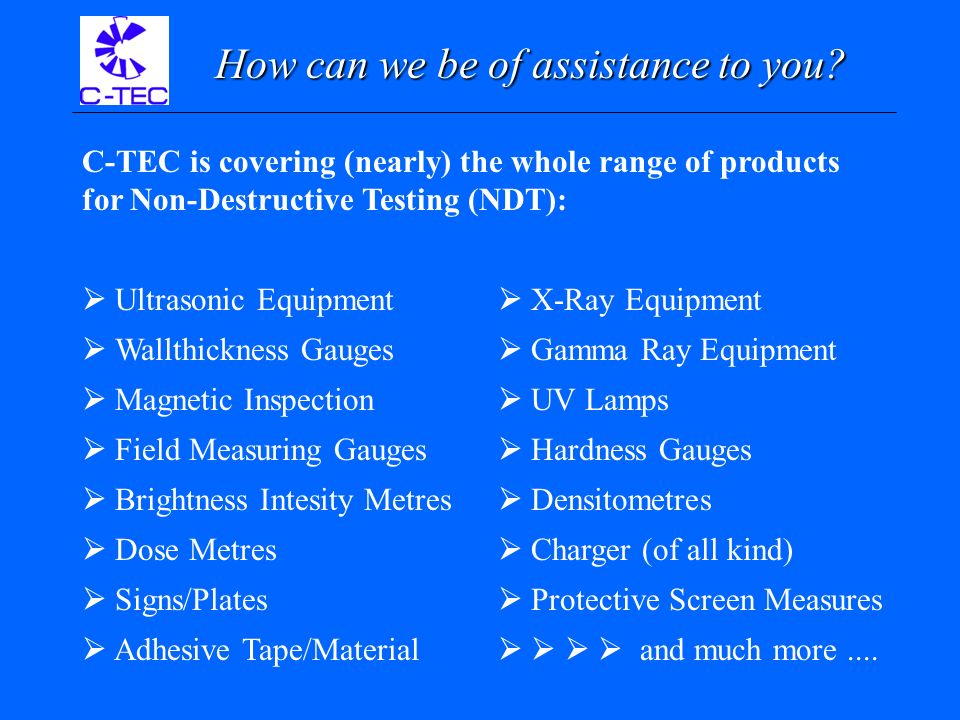

20 How can we be of assistance to you? C-TEC is covering (nearly) the whole range of products for Non-Destructive Testing (NDT): Ultrasonic Equipment X-Ray Equipment Wallthickness Gauges Gamma Ray Equipment Magnetic Inspection UV Lamps Field Measuring Gauges Hardness Gauges Brightness Intesity Metres Densitometres Dose Metres Charger (of all kind) Signs/Plates Protective Screen Measures Adhesive Tape/Material and much more....

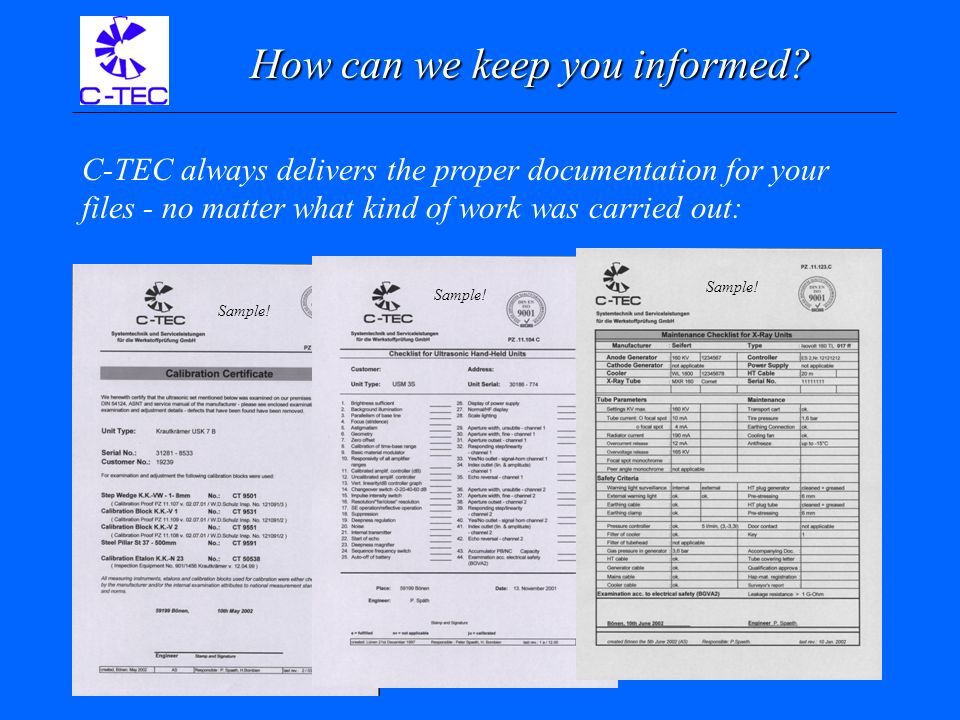

21 How can we keep you informed? C-TEC always delivers the proper documentation for your files - no matter what kind of work was carried out: Sample! Sample! Sample!

22 We are looking forward to welcoming you! C-TEC Systemtechnik & Serviceleistung für die Werkstoffprüfung GmbH Robert-Bosch-Straße 10 D Bönen, Germany Telefon: Telefax: URL:
