1 Dynamic Scenes Paul Arthur Navrátil ParallelismJustIsn’tEnough

2 Outline Toward Rapid Reconstruction for Animated Ray Tracing Lext and Akenine-Möller, Eurographics 2001 –Lessons for parallel implementations? Parallel Tree Building on a Range of Shared Address Space Multiprocessors: Algorithms and Application Performance Shan and Singh, Proc. IPPS/SPDP 1998 –Application to Ray Tracing acceleration structures?

3 Animated Ray Tracing: Motivation [Lext and Akenine-Möller, 2001] Two competing goals in graphics processing –Generate photo-realistic images –Render at real-time rates ( > 20 fps ) Can Ray Tracing give us both? –Parallelizing RT and frameless rendering help –Latest efforts yielding interactive rates for static scenes (e.g., [Wald et al., 01]) –Dynamic scenes still too computationally intensive

4 Why doesn’t parallelism solve the problem? Data Structure overhead –Reconstructing the acceleration data structures has worse complexity and less obvious parallelism –In a dynamic scene, all changed objects need to be updated in the acceleration structure –Traditionally, this means rebuild it!

5 Previous Work Special-case animated objects [Parker et al., 1999] – Objects outside the acceleration structure not scalable Reuse frame information to save render time [Adelson and Hodges, 1995] –Performance improved 92%, but only for scenes with eye movement Use lazy evaluation to prune acceleration structure [McNeill et al., 1992] –Evaluates only the structure that is actually used –Only tested on static scenes

6 Insight: Only Part of the Scene is Dynamic! Distinguish between static and dynamic objects in acceleration structure Dynamic objects exhibit spatial locality Update transform matrices for each scene node, transform rays before calculating intersection [Wald et al., 2002]

7 Dynamic versus Static Parts

8 Idea: Be Lazy! If modifying the scene graph fails to provide significant speedup (or even if it does) use lazy evaluation of the acceleration structure –Evaluate a subsection only when a ray enters the voxel Adapt acceleration structure according to use –Simplify or eliminate the structure if usage is low –Do this at runtime, based on some feedback measure? Neither of these ideas were in the tested system, but it can be extended to include them

9 Data Structure: Hierarchical Bounding Boxes Surround each set of primitives with a minimum area Oriented Bounding Box (OBB) –Set defined as primitives to which one transform is applied (static or dynamic) –Put a recursive grid in each OBB Encapsulate all top-level dynamic OBBs in a special OBB-grid –These are recalculated every frame due to the movement of the contained grids

10 Algorithm Execution Create OBB grids –One grid for static objects, the rest contain all dynamic objects Update OBB grids –Transform to root node CS, then to original node CS (previous frame?) Recurse if this contains subgrids –Apply incremental transformations to primitives –Create new OBB around subgrids (and primitives?) –Transform to new OBB CS

11 A Benchmark for Animated Ray Tracing (BART) [Lext et al., 2001] BART Robots Benchmark video http://www.ce.chalmers.se/BART/

12 Results: A Silver Lining

13 Tree Building Methods: Motivation Use tree structures to organize work solving N-body problems –Classic example: find positions of N bodies attracted by gravity after a period of time –Graphics corollary? Find position of dynamic objects in given frame Studies 5 strategies across 4 systems –Physically distributed memory (SGI Origin 2000) –Bus-based shared memory MP (SGI Challenge) –Shared virtual memory in software (Intel Paragon) –Configurable memory in software with hardware assistance (Wisconsin Typhoon-zero)

14 Strategy Characteristics ORIG –Global octree built by processors loading objects into a single shared tree. –Split cells into 8 subcells when objects within cell exceed threshold –Processor operates on cells it ‘created’ ORIG-LOCAL –Optimized version of ORIG –Uses different data structures for internal nodes than leaves –Processor allocates and manages its own cell and leaf arrays –Thus cells can be kept in contiguous memory

15 Strategy Characteristics UPDATE –Insight: distributions evolve slowly over time (in animation too?) –Objects that move out of the cell in which they’re placed (think: location in the scene) is small –Update only as much as the tree as is necessary –Leverage tree hierarchy to find new cell (if cells arranged according to scene space)

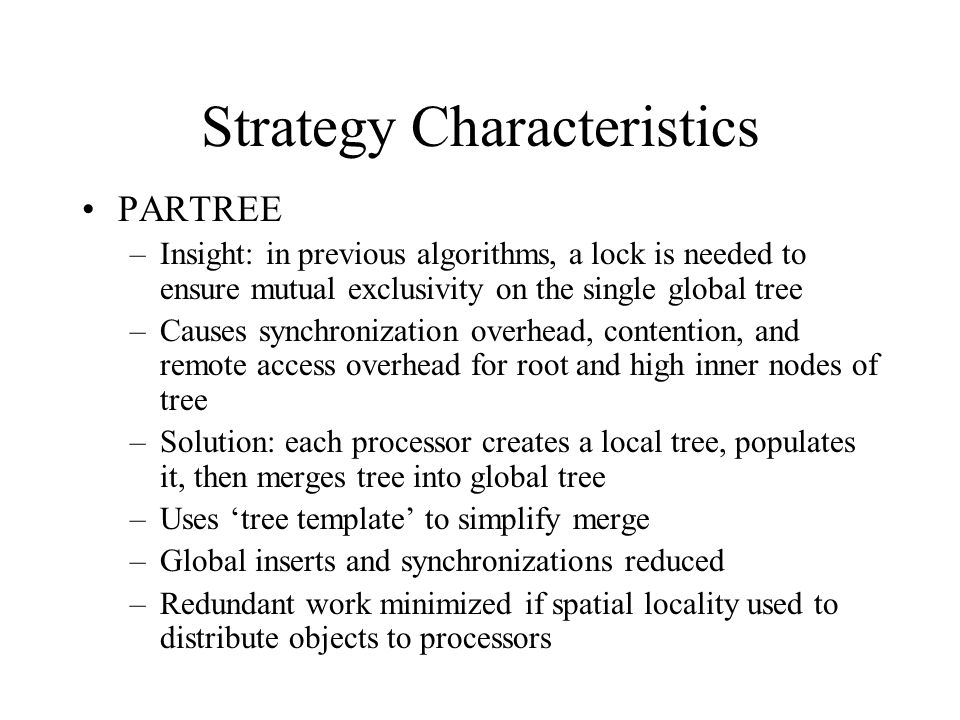

16 Strategy Characteristics PARTREE –Insight: in previous algorithms, a lock is needed to ensure mutual exclusivity on the single global tree –Causes synchronization overhead, contention, and remote access overhead for root and high inner nodes of tree –Solution: each processor creates a local tree, populates it, then merges tree into global tree –Uses ‘tree template’ to simplify merge –Global inserts and synchronizations reduced –Redundant work minimized if spatial locality used to distribute objects to processors

17 Strategy Characteristics SPACE –Divide up space among processors, rather than objects (Pharr?) –Each process loads objects that are in its space Ideally space units (voxels) map to tree cells –No need for locking, but high potential for load imbalances if number of objects per space is unbound –Can lose data locality since processors don’t necessarily compute on the objects they put in the tree (true for graphics?) –No locking during global tree assembly, because only one processor has the cells for a given subtree
