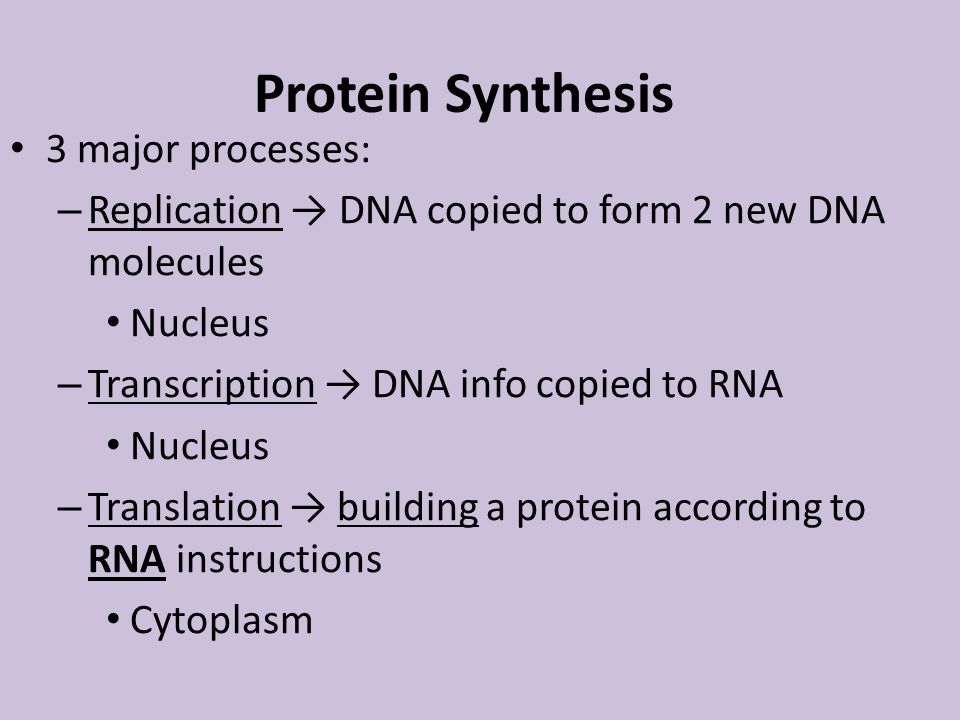

1. Protein Synthesis 3 major processes: – Replication → DNA copied to form 2 new DNA molecules Nucleus – Transcription → DNA info copied to RNA Nucleus – Translation → building a protein according to RNA instructions Cytoplasm

2. DNA Replication

4. DNA Replication = DNA  DNA – Parent DNA makes 2 exact copies of DNA – Occurs in nucleus – Why?? Occurs in Cell Cycle before MITOSIS so each new cell can have its own FULL copy of DNA

5. http://www.sumanasinc.com/webcontent/animations/content/meselson.html Models of DNA Replication

7. Segments of single-stranded DNA are called template strands. Copied strand is called the complement strand (think “c” for copy) BEGINNING OF DNA REPLICATION (INITIATION) DNA helicase (think “helix”) – binds to the DNA at the replication fork (origin of replication) – DNA strand separates into TWO – untwist (“unzips”) DNA using energy from ATP by breaking hydrogen bonds between base pairs at several places along the segments of DNA  called “origins of replication” Single-stranded DNA-binding proteins (SSBP) – stabilize the single-stranded template DNA during the process so they don’t bond back together.

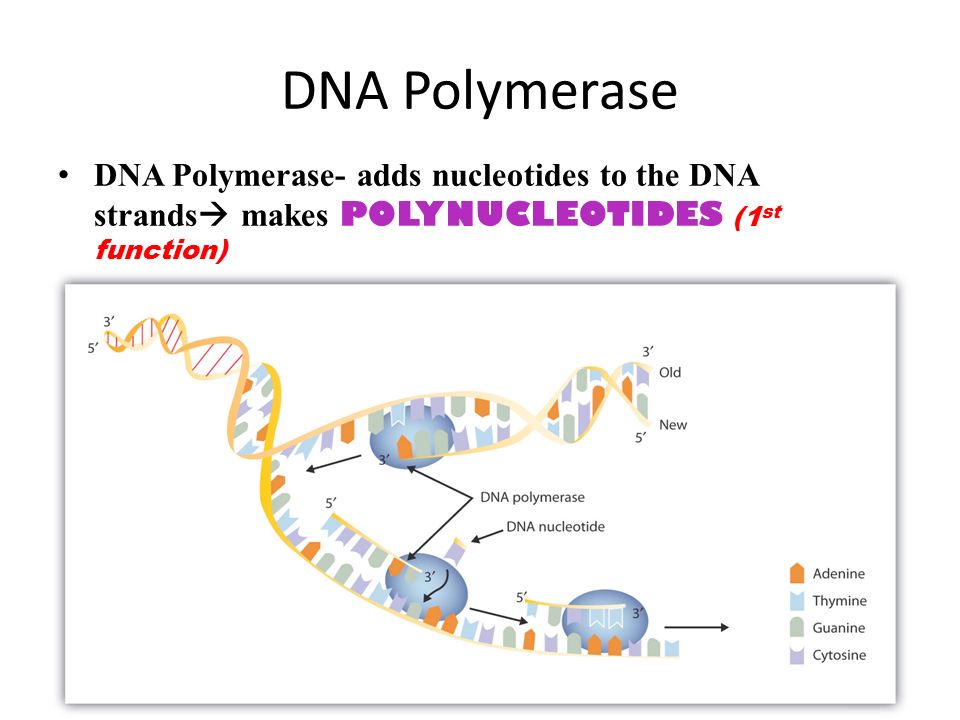

8. DNA Polymerase DNA Polymerase- adds nucleotides to the DNA strands  makes POLYNUCLEOTIDES (1 st function)

9. Helicase unzips the DNA molecule DNA Polymerase adds nucleotides to create two NEW identical daughter molecules (A to T) and (G to C)

10. Complementary bases match up – Two new strands are formed – A with T – C with G

12. Elongation Antiparallel nature: Sugar (3’end)/phosphate (5’ end) backbone runs in opposite directions – one strand runs 5’  3’, – other runs 3’  5’ DNA polymerase only adds nucleotides at the free 3’ end of NEW STRAND forming new DNA strands in the 5’  3’ direction only!!!

14. DNA Replication (Elongation) After SSBP’s bind to each template… Primase – primase is required for DNA synthesis – Like a “ key ” for a car ignition – makes a short RNA primers Short pieces of RNA needed for DNA synthesis DNA polymerase – adds nucleotides to RNA primer  makes POLYNUCLEOTIDES (1 st function) – After all nucleotides are added to compliment strand… RNA primer is removed and replaced with DNA by DNA polymerase (2 nd function) DNA ligase – “seals” the gaps in DNA – Connects DNA pieces by making phosphodiester bonds

15. Elongation (con’t) Leading (daughter) strand – NEW strand made toward the replication fork (only in 5’  3’ direction from the 3’  5’ template strand – Needs ONE RNA primer made by Primase – This new leading strand is made CONTINOUSLY

16. Elongation (con’t) Lagging (daughter) strand NEW strand synthesis away from replication fork Replicate DISCONTINUOUSLY – Creates Okazaki fragments Short pieces of DNA – Okazaki fragments joined by DNA ligase “Stitches” fragments together – Needs MANY RNA primer made by Primase

17. 3 DNA Polymerase 5’  3’ Leading strand base pairs 5’ 3’ Supercoiled DNA relaxed by gyrase & unwound by helicase + proteins: Helicase ATP SSB Proteins RNA Primer primase 2 DNA Polymerase Lagging strand Okazaki Fragments 1 RNA primer replaced by DNA Polymerase & gap is sealed by DNA ligase

20. Why Replication again? DNA replication is necessary to create identical copies of DNA so it can be passed onto a new cell (cell division & reproduction)

21. Summary

22. Accuracy of Replication Very low mistake rate (1/billion!) because cells have enzymes (like DNA Polymerase) that proofread, recognize, and fix mistakes! HOWEVER, mistakes can happen  MUTATIONS (cancer)

23. Mistakes Made during DNA Replication Mutation – Change in DNA (genetic material) Frameshift(s) – extra or missing base(s). Substitutions – when the wrong nucleotide is incorporated (mismatch mutation). Deletions – Nucleotides are deleted shortening the DNA

24. Review: What is DNA replication? 1.A new sugar-phosphate backbone is made for each new strand 2.Base pairs are added 3.Two strands are created in place of the original strand
