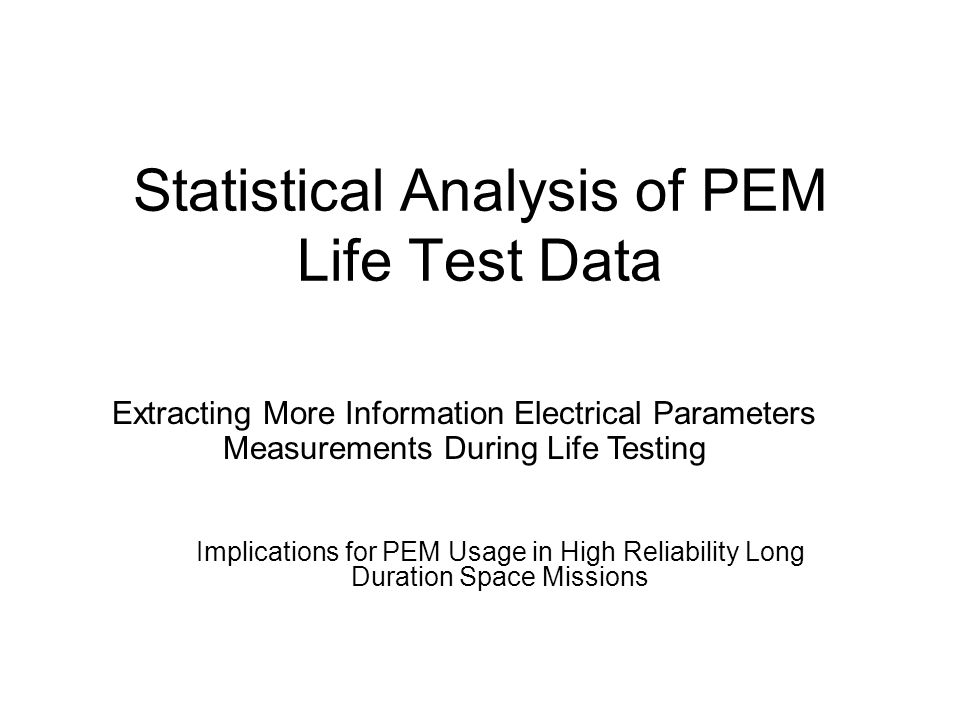

1. Statistical Analysis of PEM Life Test Data Implications for PEM Usage in High Reliability Long Duration Space Missions Extracting More Information Electrical Parameters Measurements During Life Testing

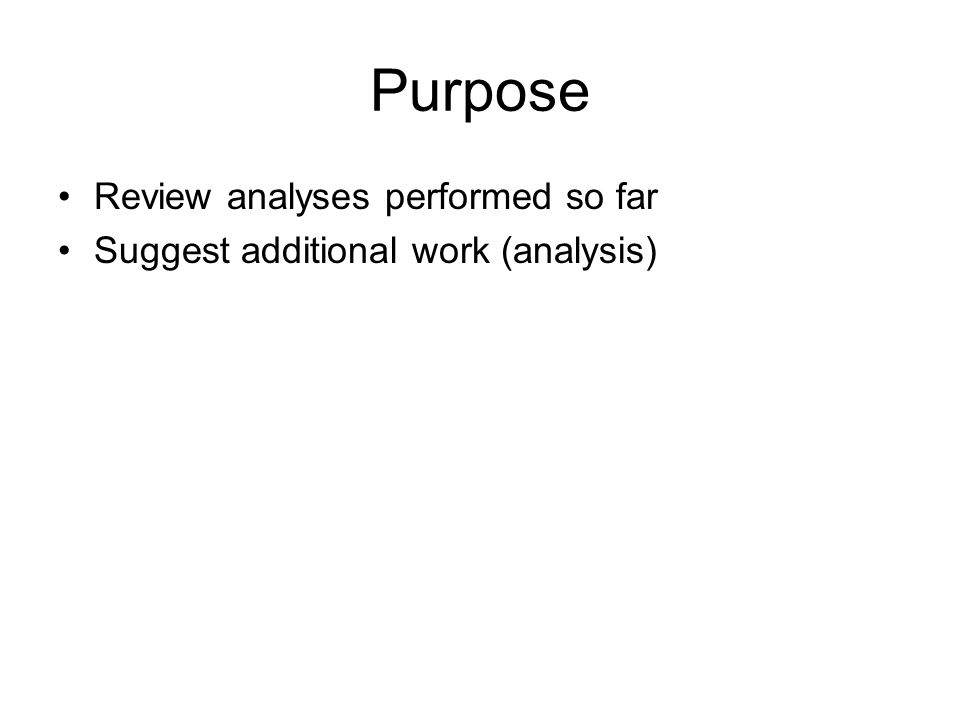

2. Purpose Review analyses performed so far Suggest additional work (analysis)

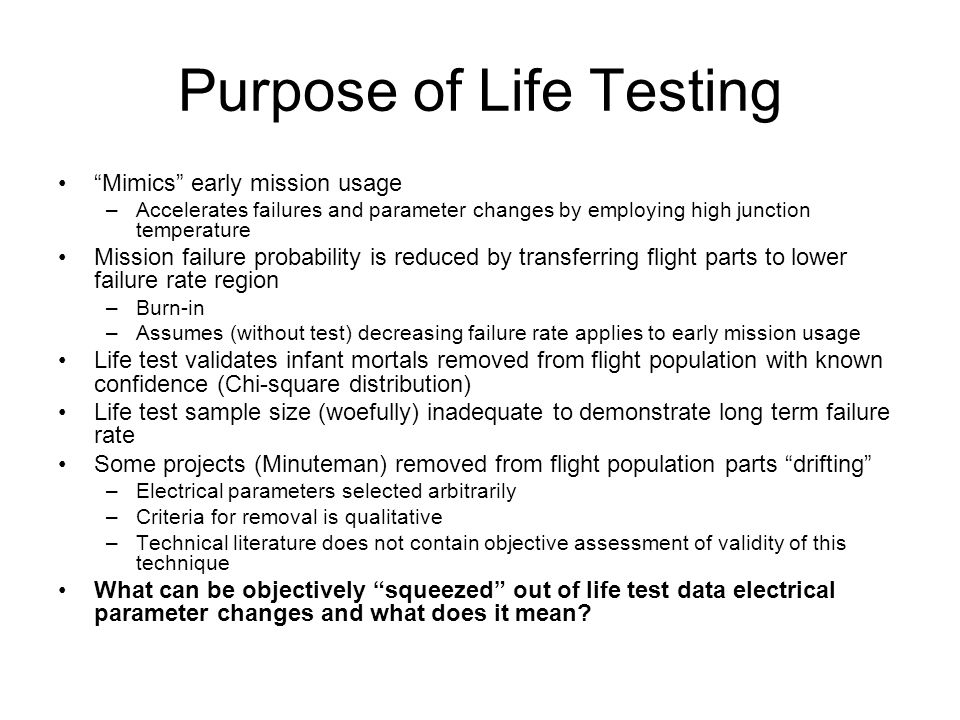

3. Purpose of Life Testing “Mimics” early mission usage –Accelerates failures and parameter changes by employing high junction temperature Mission failure probability is reduced by transferring flight parts to lower failure rate region –Burn-in –Assumes (without test) decreasing failure rate applies to early mission usage Life test validates infant mortals removed from flight population with known confidence (Chi-square distribution) Life test sample size (woefully) inadequate to demonstrate long term failure rate Some projects (Minuteman) removed from flight population parts “drifting” –Electrical parameters selected arbitrarily –Criteria for removal is qualitative –Technical literature does not contain objective assessment of validity of this technique What can be objectively “squeezed” out of life test data electrical parameter changes and what does it mean?

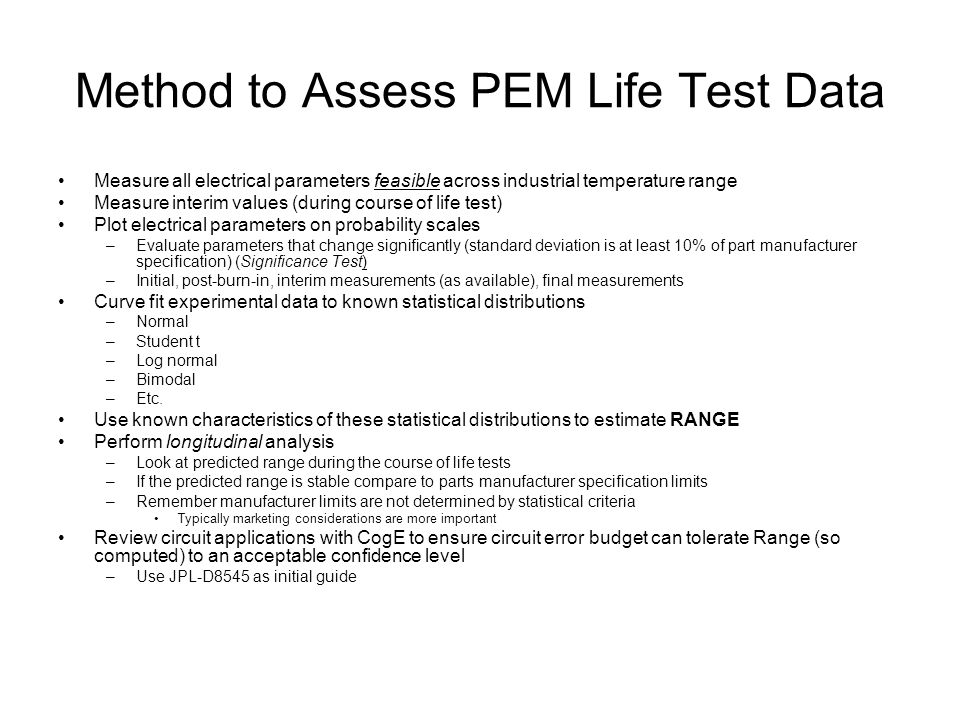

4. Method to Assess PEM Life Test Data Measure all electrical parameters feasible across industrial temperature range Measure interim values (during course of life test) Plot electrical parameters on probability scales –Evaluate parameters that change significantly (standard deviation is at least 10% of part manufacturer specification) (Significance Test) –Initial, post-burn-in, interim measurements (as available), final measurements Curve fit experimental data to known statistical distributions –Normal –Student t –Log normal –Bimodal –Etc. Use known characteristics of these statistical distributions to estimate RANGE Perform longitudinal analysis –Look at predicted range during the course of life tests –If the predicted range is stable compare to parts manufacturer specification limits –Remember manufacturer limits are not determined by statistical criteria Typically marketing considerations are more important Review circuit applications with CogE to ensure circuit error budget can tolerate Range (so computed) to an acceptable confidence level –Use JPL-D8545 as initial guide

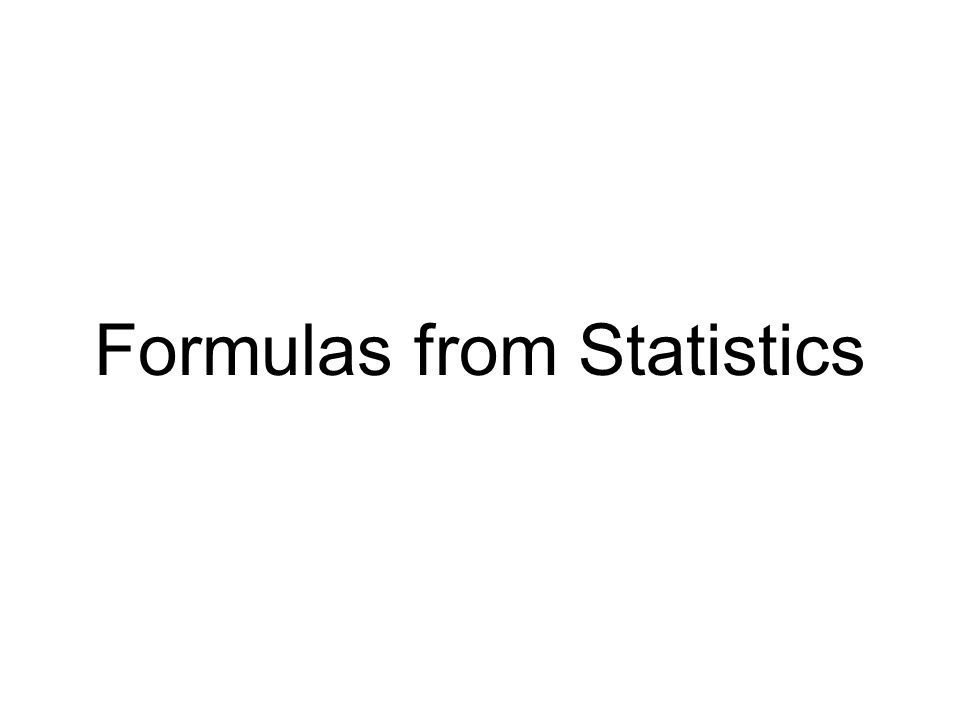

5. Formulas from Statistics

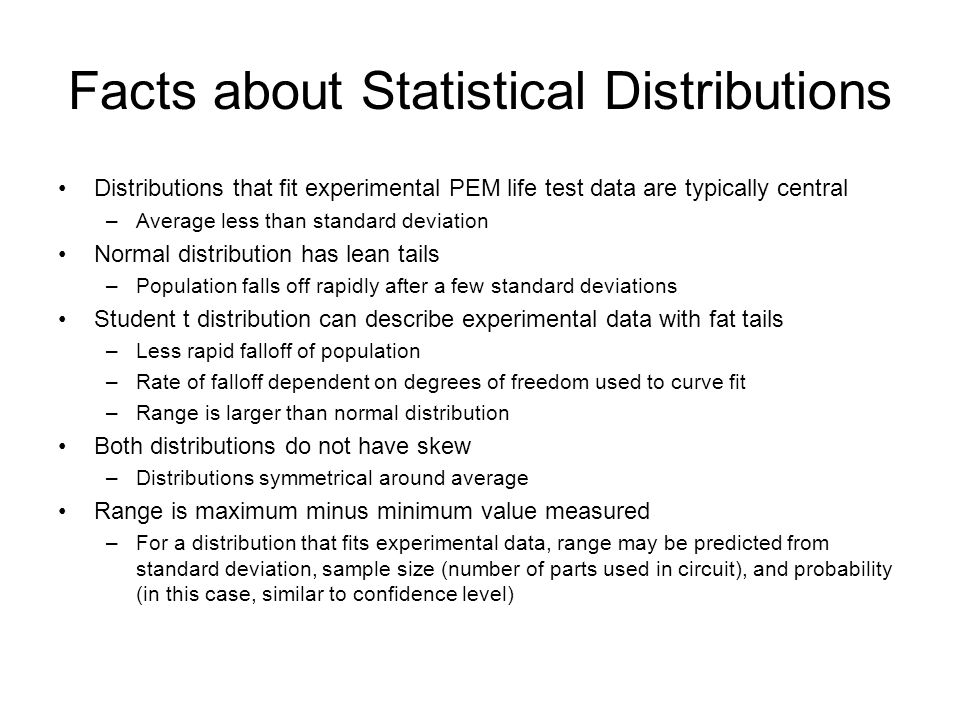

6. Facts about Statistical Distributions Distributions that fit experimental PEM life test data are typically central –Average less than standard deviation Normal distribution has lean tails –Population falls off rapidly after a few standard deviations Student t distribution can describe experimental data with fat tails –Less rapid falloff of population –Rate of falloff dependent on degrees of freedom used to curve fit –Range is larger than normal distribution Both distributions do not have skew –Distributions symmetrical around average Range is maximum minus minimum value measured –For a distribution that fits experimental data, range may be predicted from standard deviation, sample size (number of parts used in circuit), and probability (in this case, similar to confidence level)

7. Range of Normal Distribution (W) Sample Size (n)W (90%)W(99%) 5 3.48  4.60  10 4.13  5.16  20 4.69  5.65 

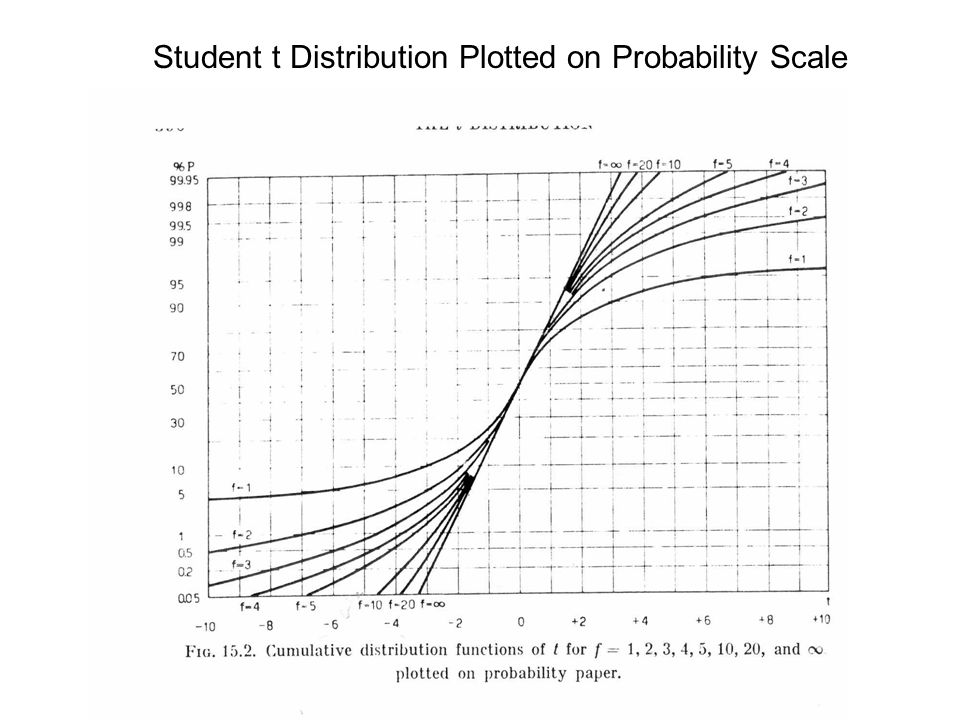

8. Student t Distribution Plotted on Probability Scale

9. Student t Distribution Degrees of Freedom (f)Standard Deviation 101.05 51.12 41.15 21.41 Studentized Range

10. Examples

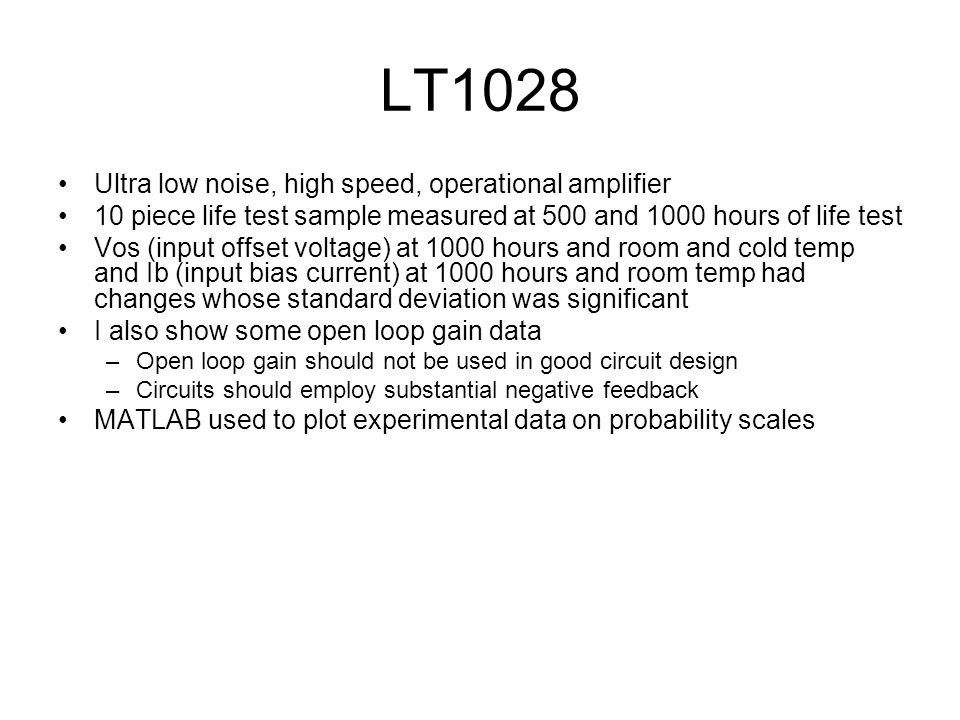

11. LT1028 Ultra low noise, high speed, operational amplifier 10 piece life test sample measured at 500 and 1000 hours of life test Vos (input offset voltage) at 1000 hours and room and cold temp and Ib (input bias current) at 1000 hours and room temp had changes whose standard deviation was significant I also show some open loop gain data –Open loop gain should not be used in good circuit design –Circuits should employ substantial negative feedback MATLAB used to plot experimental data on probability scales

16. Voltage Offset 25C AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial5.027139+/- 80 Post burn-in-6.128144+/- 80 500 hours2.228144+/- 80 1000 hours3.429149+/- 80

21. Voltage Offset at -40C AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial-1435178+/- 150 Post burn-in-2437192+/- 150 500 hours2.038195+/- 150 1000 hours2647244+/- 150

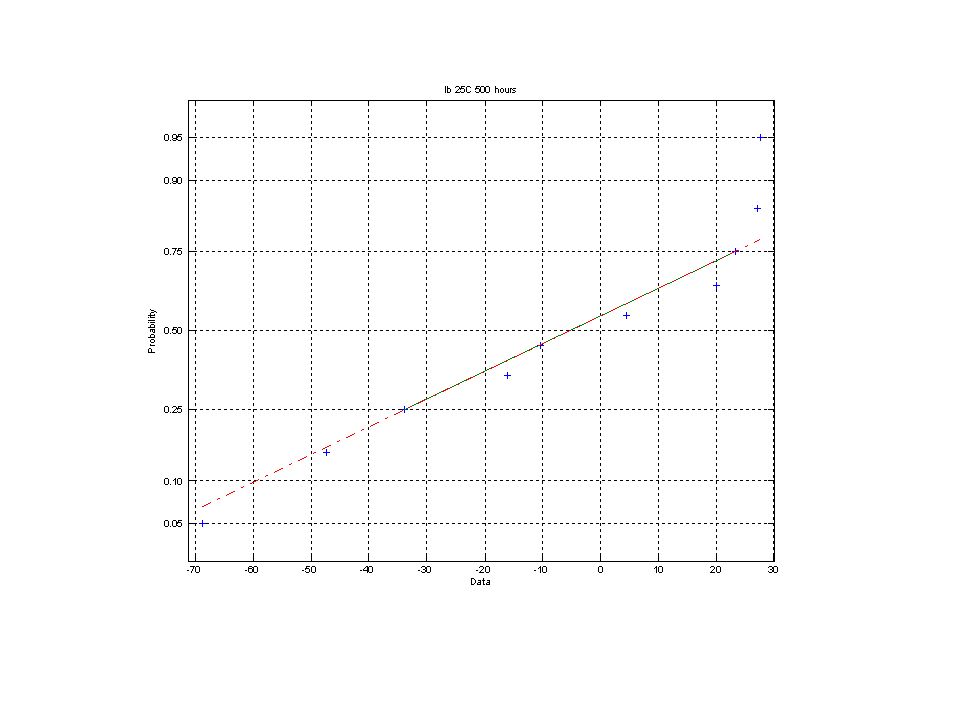

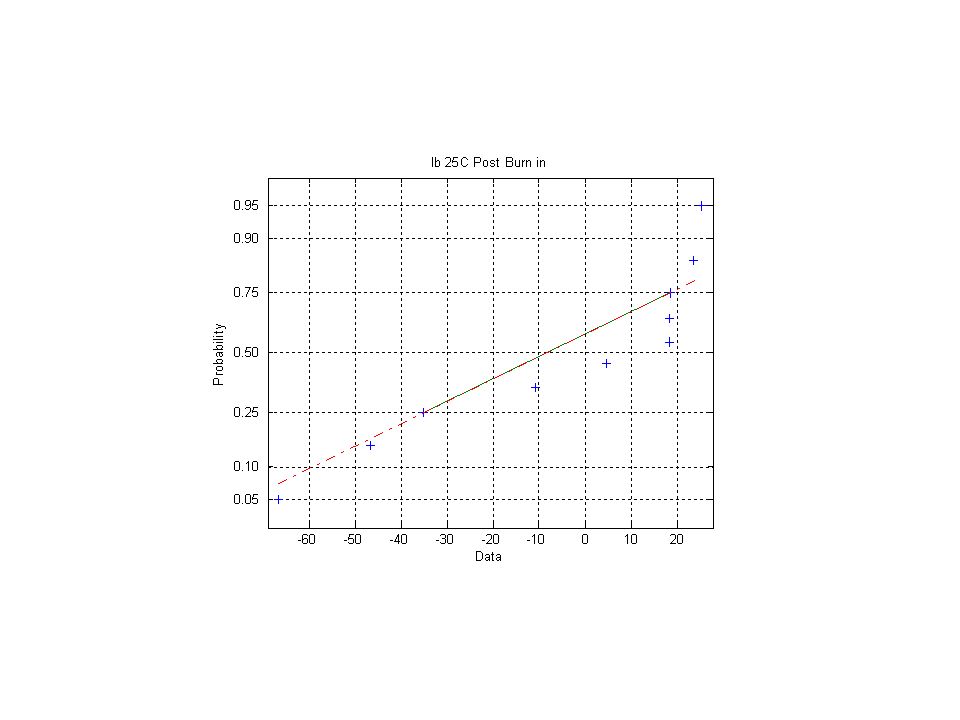

26. Input Bias Current 25C AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial-0.231162+/- 90 Post burn-in-5.133172+/- 90 500 hours7.434175+/- 90 1000 hours1836188+/- 90

31. Assessment Input offset voltage fits normal distribution (25C and -40C) Input bias current fits normal distribution (25C) (FYI) Log Open loop gain fits normal distribution better than open loop gain –e.g. open loop gain fits log normal distribution Critical application parameters fit within part manufacturer specified range to high confidence

32. LT1813 Dual high speed very high slew rate operational amplifier 22 piece life test sample measured at 1000 hours Vos (input offset voltage) at 1000 hours (25C) and Iio (input offset current) at 1000 hours (25C) had changes whose standard deviation was significant MATLAB used to plot experimental data on probability scales

36. Input Voltage Offset (25C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial0.340.381.9+/- 1.5 Post burn-in0.470.371.9+/- 1.5 1000 hours0.340.381.96+/- 1.5

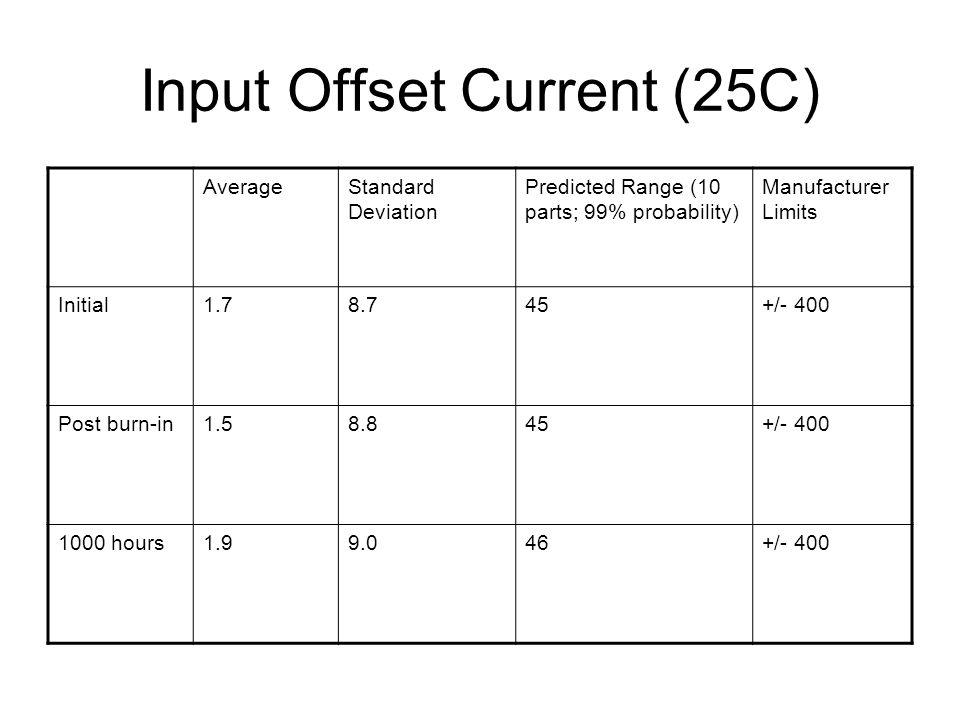

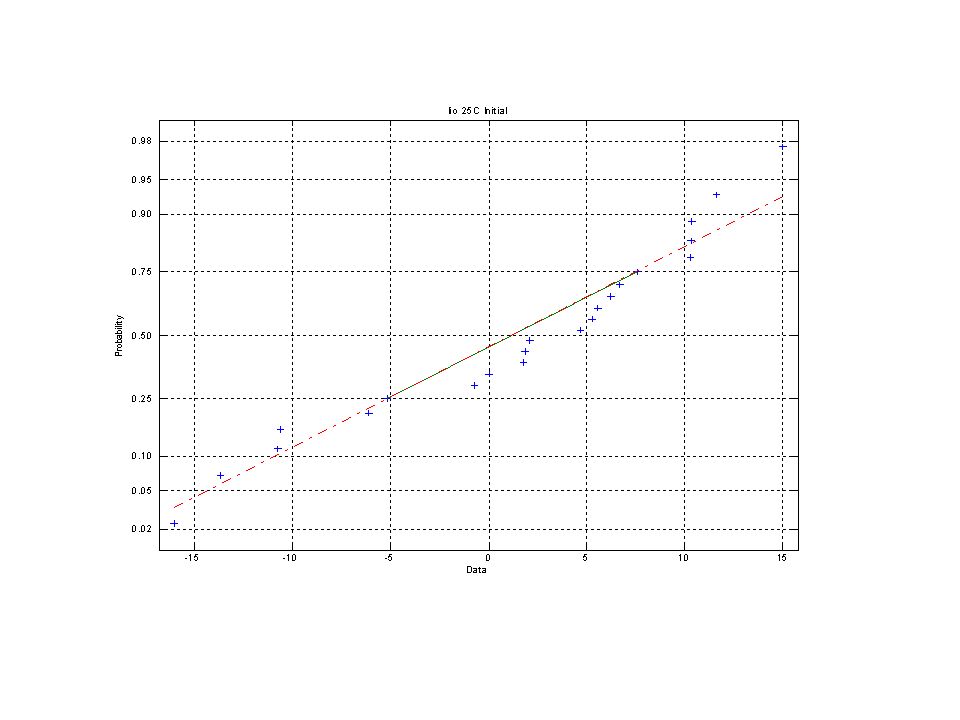

40. Input Offset Current (25C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial1.78.745+/- 400 Post burn-in1.58.845+/- 400 1000 hours1.99.046+/- 400

41. Assessment Parameters well fit to normal distribution Ranges within part manufacturer data sheet limits to high confidence Most parameters changed very little

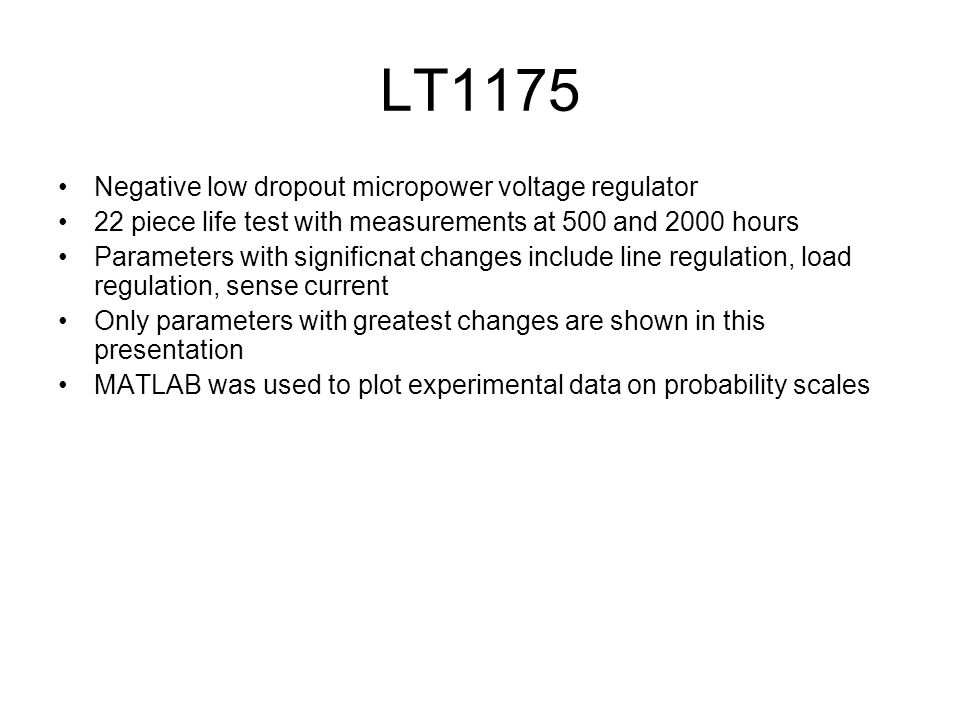

42. LT1175 Negative low dropout micropower voltage regulator 22 piece life test with measurements at 500 and 2000 hours Parameters with significnat changes include line regulation, load regulation, sense current Only parameters with greatest changes are shown in this presentation MATLAB was used to plot experimental data on probability scales

46. Line Regulation (85C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial0.0010.00150.00770.015 500 hours0.0010.00150.00770.015 2000 hours0.000.0380.40.015

50. Load Regulation (-40C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial=0.290.150.780.035 500 hours0.0190.120.610.035 2000 hours-0.180.120.630.035

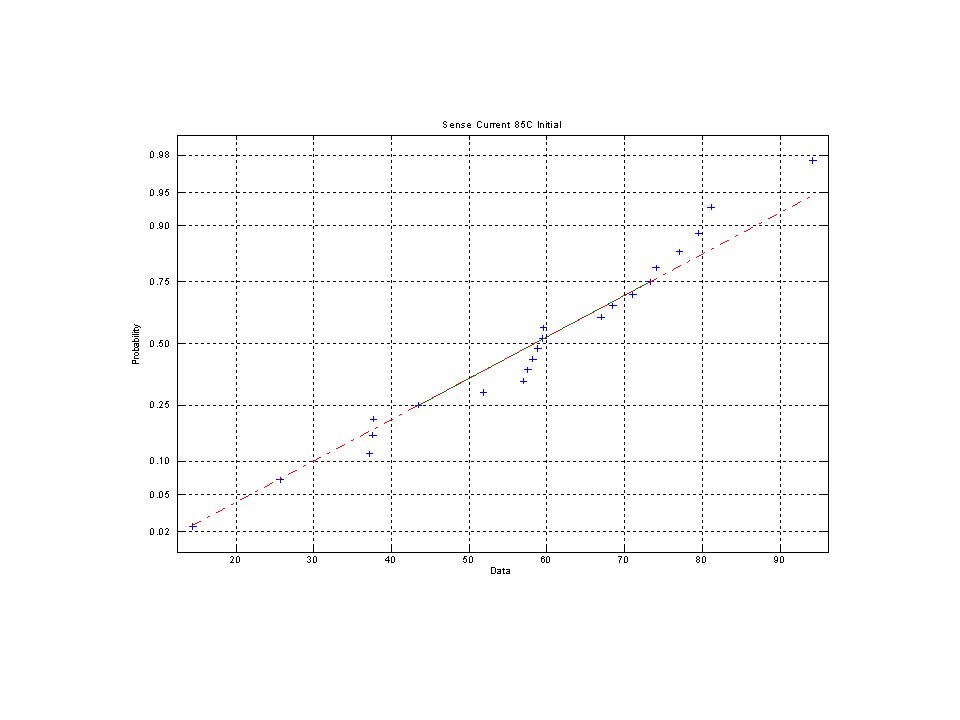

54. Sense Current 85C AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial5819101150 500 hours4322111150 2000 hours0.10.0040.02150 2000 hour data was reviewed and is bad at both temperature extremes

55. Assessment Line regulation (85C) fits normal distribution except at 2000 hours where the fat tails require a student t fit with 3 degrees of freedom Load regulation (-40C) fits normal distribution Sense current (85C) fits normal distribution except 2000 hour data is corrupt Extra derating is needed for circuit applications at temperature extremes Distributions at room temperature are well fitted to normal distribution and have less predicted range

56. AD780BR High Precision (Band Gap) Voltage Reference 49 devices subjected to life test and measured at 250 hours, 500 hours, 1000 hours Output voltage (3V nom) had significant standard deviation of the change at -40C and 250 hours Load regulation (sink mode B) had significant standard deviation of change at 25C and 500 hours; output voltage at 85C and 500 hours Load regulation (sink mode B) had significant standard deviation of changes at four temperatures and 1000 hours; output voltage at 125C/85C/-40C and 1000 hours and load regulation (sink mode A) load regulation (shunt mode) at 125C/-40C and 1000 hours MATLAB used to plot changes for significant recurring parameters

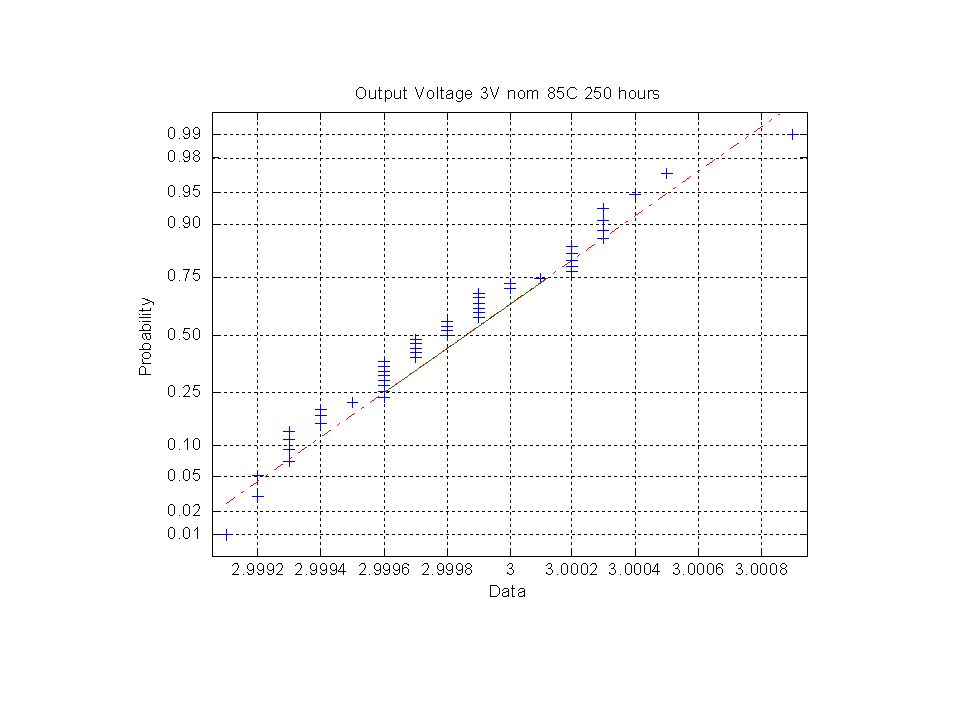

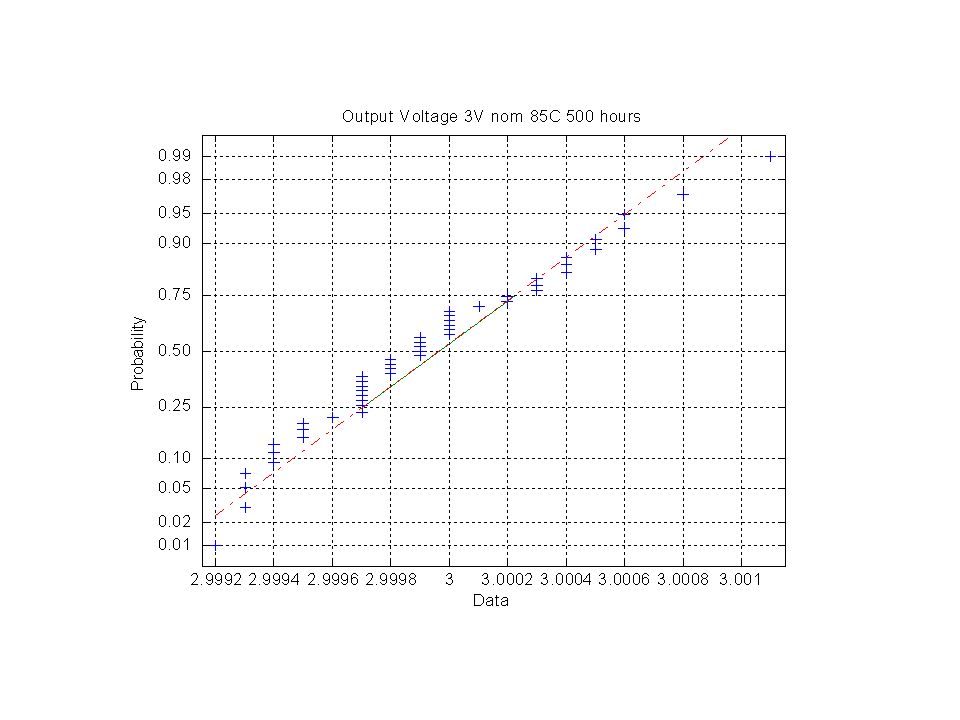

62. Output Voltage (3V nom) (85C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Manufacturer Limits Initial2.99980.000450.0023+/- 0.001 Post Burn-in2.99970.000450.0023+/- 0.001 250 hours2.99980.000390.0020+/- 0.001 500 hours2.99990.00040.0022+/- 0.001 1000 hours2.99930.00040.0021+/- 0.001

67. Load Regulation Sink Mode B (25C) AverageStandard Deviation Predicted Range (10 parts; 99% probability) Predicted Range (log normal fit) Manufacturer Limits Initial0.0070.0570.29 *0.75 Post Burn-in0.0270.0460.240.75 250 hours0.0170.0380.190.75 500 hours0.0210.0600.31*0.75 1000 hours0.0220.0620.32 *0.75 * Log normal fit to positive values is better fit

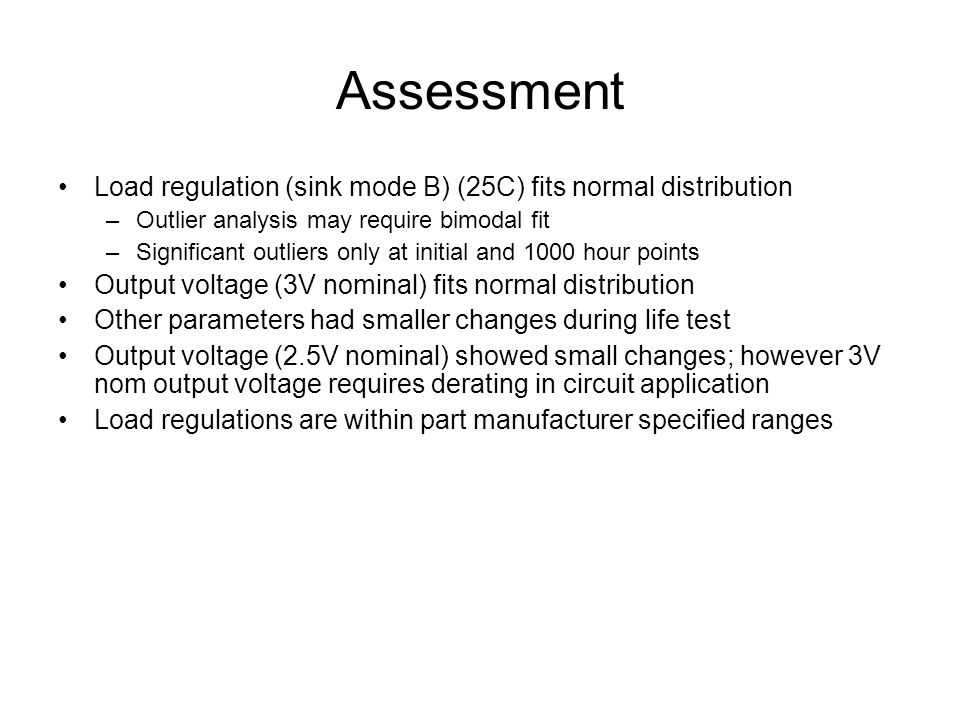

68. Assessment Load regulation (sink mode B) (25C) fits normal distribution –Outlier analysis may require bimodal fit –Significant outliers only at initial and 1000 hour points Output voltage (3V nominal) fits normal distribution Other parameters had smaller changes during life test Output voltage (2.5V nominal) showed small changes; however 3V nom output voltage requires derating in circuit application Load regulations are within part manufacturer specified ranges

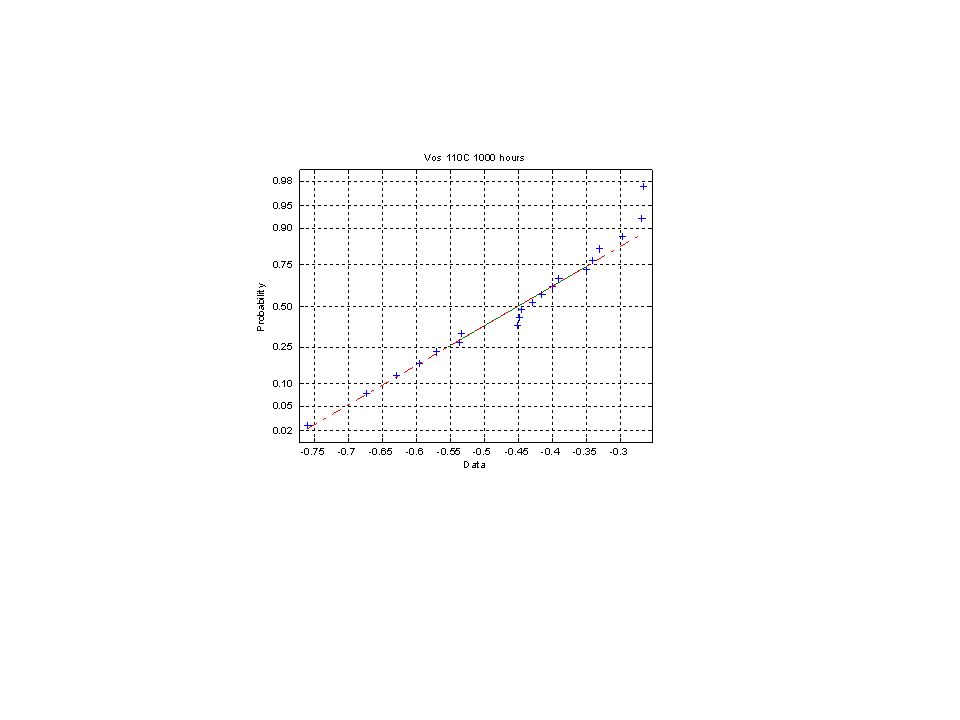

69. AD8028 Low Distortion Dual Rail to Rail Operational Amplifier 10 pieces tested after burn-in (herein identified as initial measurements), after 500 hours life test, after 1000 hours life test. This is a dual device, and, where applicable, measurements on same parameters combined to increase sample size for statistical validity improvement Measurements were taken at 25C, +110C, -40C.

73. Initial500 hours1000 hours Average -0.484-0.461-0.457 Standard Deviation 0.1540730.1424650.138103 Predicted Range 0.7950170.735120.712613 Note: Input Offset voltage specified at 25C as 0.8 millivolts max. No specification at temperature extremes. Measurements hardly changed at all during life test.

74. ISL43110 Low-Voltage, Single Supply, SPST, High Performance Analog Switches 48 pieces were tested initially and after 80 hours, 160 hours of burn-in and 240 hours of burn-in Typical circuit critical parameters are On resistance, On resistance flatness, various leakage currents. Measurements were taken at 25°C, -40°C and +85°C.

79. Ron 25C statistical values after 80 hours burn-in Average 12.85815.70611.26911.587 Standard deviation 0.1768510.1208160.1276840.154643 Predicted range 0.9125520.6234110.6588470.797956 Ron 25C statistical values after 160 hours burn-in Average12.93515.75611.34111.665 Standard deviation0.171580.1002020.1236710.15427 Predicted range0.8853510.5170410.6381440.796035 Ron 25C statistical values after 240 hours burn-in Average12.94315.80311.36511.681 Standard deviation0.2072190.1279290.1540250.184966 Predicted range1.0692520.6601140.7947680.954427 Distributions are reasonably matched to normal. Small changes observed in average and standard deviations. Predicted range in all cases was less than 1.1 ohm. Vendor datasheet specified maximum is 20 ohms at 25C. Therefore statistical scatter is small and remains so for the population throughout the burn-in.

80. General Conclusions Performing statistical analysis to actual experimental data showed the large majority of data is well fitted to normal distribution Most parameters have predicted range within part manufacturer datasheet specified range –Some parameters require derating in circuit application depending on quantity of parts used and confidence levels required Some experimental data is suspect and tests should be repeated if feasible It is recommended that an analysis of the accuracy of experimental measurements be made in all cases so there is more confidence in validity of test data
