1. Lecture 6: Message Passing Interface (MPI)

2. Parallel Programming Models Message Passing Model Used on Distributed memory MIMD architectures Multiple processes execute in parallel asynchronously Process creation may be static or dynamic Processes communicate by using send and receive primitives

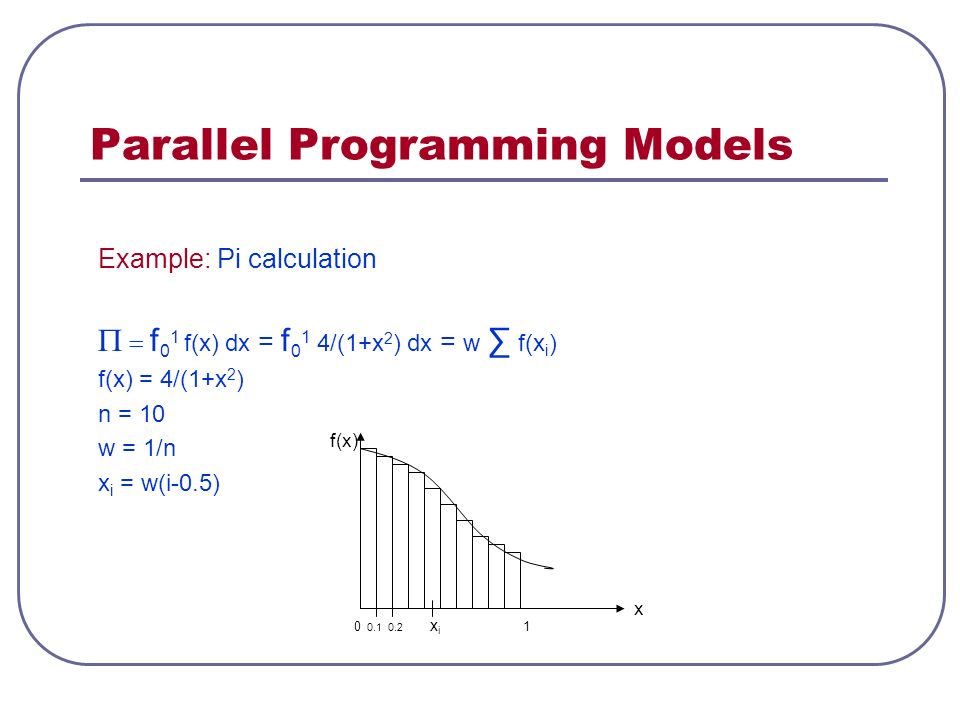

3. Parallel Programming Models Example: Pi calculation   f 0 1 f(x) dx = f 0 1 4/(1+x 2 ) dx = w ∑ f(x i ) f(x) = 4/(1+x 2 ) n = 10 w = 1/n x i = w(i-0.5) x f(x) 0 0.1 0.2 x i 1

4. Parallel Programming Models Sequential Code #define f(x) 4.0/(1.0+x*x); main(){ intn,i; float w,x,sum,pi; printf(“n?\n”); scanf(“%d”, &n); w=1.0/n; sum=0.0; for (i=1; i<=n; i++){ x=w*(i-0.5); sum += f(x); } pi=w*sum; printf(“%f\n”, pi); }  = w ∑ f(x i ) f(x) = 4/(1+x 2 ) n = 10 w = 1/n x i = w(i-0.5) x f(x) 0 0.1 0.2 x i 1

5. Message-Passing Interface (MPI) http://www.mpi-forum.org

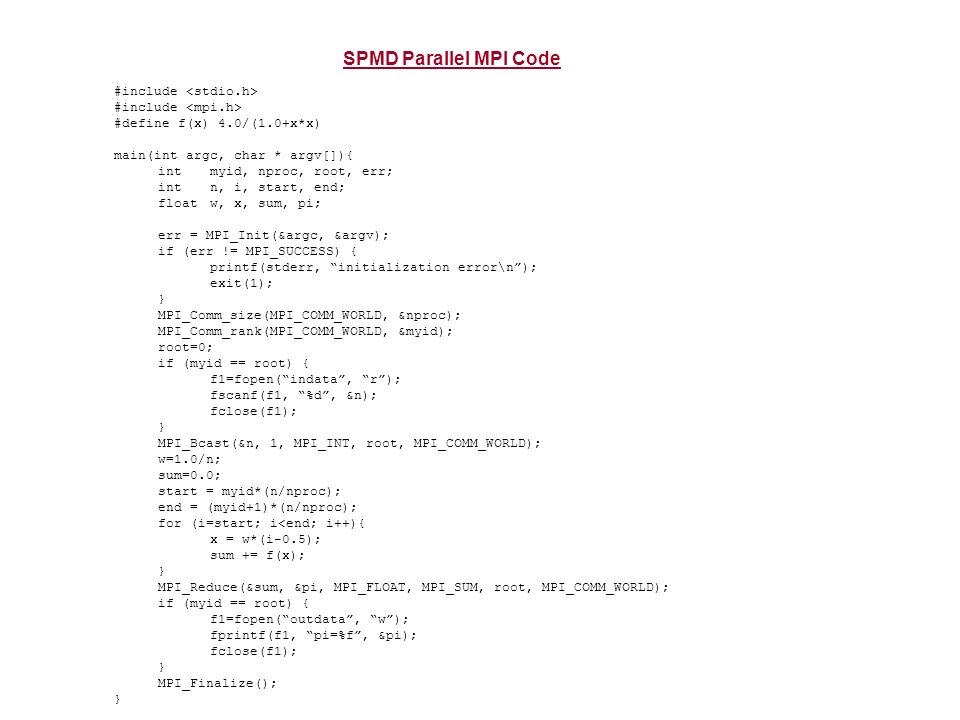

6. SPMD Parallel MPI Code #include #define f(x) 4.0/(1.0+x*x) main(int argc, char * argv[]){ intmyid, nproc, root, err; intn, i, start, end; floatw, x, sum, pi; err = MPI_Init(&argc, &argv); if (err != MPI_SUCCESS) { printf(stderr, “initialization error\n”); exit(1); } MPI_Comm_size(MPI_COMM_WORLD, &nproc); MPI_Comm_rank(MPI_COMM_WORLD, &myid); root=0; if (myid == root) { f1=fopen(“indata”, “r”); fscanf(f1, “%d”, &n); fclose(f1); } MPI_Bcast(&n, 1, MPI_INT, root, MPI_COMM_WORLD); w=1.0/n; sum=0.0; start = myid*(n/nproc); end = (myid+1)*(n/nproc); for (i=start; i<end; i++){ x = w*(i-0.5); sum += f(x); } MPI_Reduce(&sum, &pi, MPI_FLOAT, MPI_SUM, root, MPI_COMM_WORLD); if (myid == root) { f1=fopen(“outdata”, “w”); fprintf(f1, “pi=%f”, &pi); fclose(f1); } MPI_Finalize(); }

7. Message-Passing Interface (MPI) MPI_INIT(int *argc, char ***argv): Initiate an MPI computation. MPI_FINALIZE(): Terminate a computation. MPI_COMM_SIZE (comm, size): Determine number of processes. MPI_COMM_RANK(comm, pid): Determine my process identifier. MPI_SEND(buf, count, datatype, dest, tag, comm): Send a message. MPI_RECV(buf, count, datatype, source, tag, comm, status): Receive a message. tag: message tag or MPI_ANY_TAG source: process id of source process or MPI_ANY_SOURCE

8. Message-Passing Interface (MPI) Deadlock: MPI_SEND and MPI_RECV are blocking. Consider the program where the two processes exchange data:... if (rank.eq. 0) then call mpi_send( abuf, n, MPI_INTEGER, 1, 0, MPI_COMM_WORLD, ierr ) call mpi_recv( buf, n, MPI_INTEGER, 1, 0, MPI_COMM_WORLD, &status, ierr ) else if (rank.eq. 1) then call mpi_send( abuf, n, MPI_INTEGER, 1, 0, MPI_COMM_WORLD, ierr ) call mpi_recv( buf, n, MPI_INTEGER, 1, 0, MPI_COMM_WORLD, &status, ierr ) endif

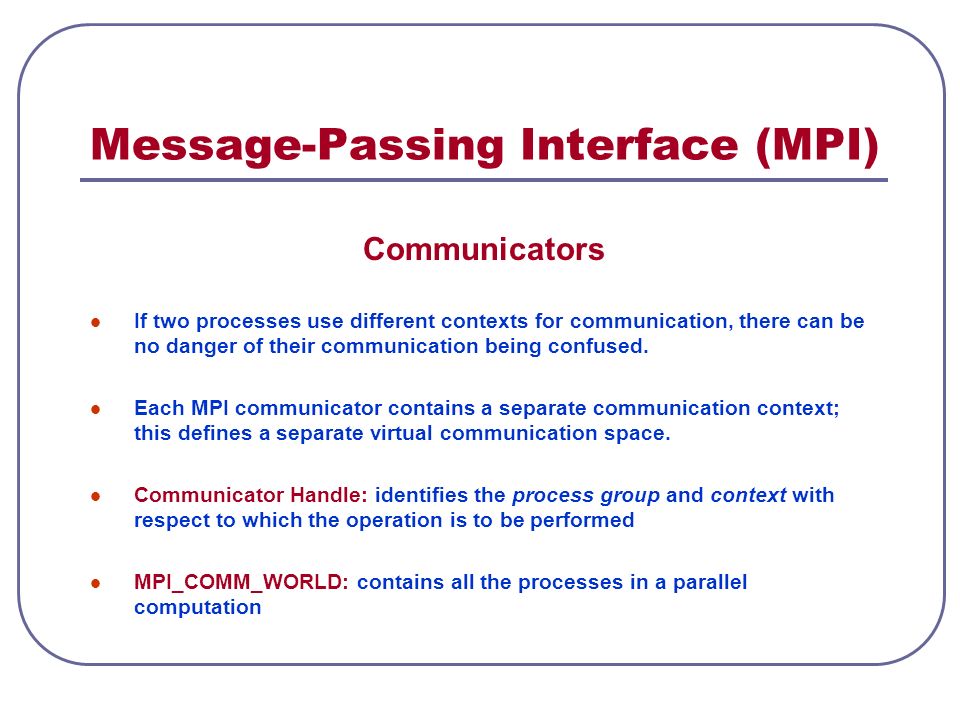

9. Message-Passing Interface (MPI) Communicators If two processes use different contexts for communication, there can be no danger of their communication being confused. Each MPI communicator contains a separate communication context; this defines a separate virtual communication space. Communicator Handle: identifies the process group and context with respect to which the operation is to be performed MPI_COMM_WORLD: contains all the processes in a parallel computation

10. Message-Passing Interface (MPI) Collective Operations These operations are all executed in a collective fashion, meaning that each process in a process group calls the communication routine Barrier: Synchronize all processes. Broadcast: Send data from one process to all processes. Gather: Gather data from all processes to one process. Scatter: Scatter data from one process to all processes. Reduction operations: addition, multiplication, etc. of distributed data.

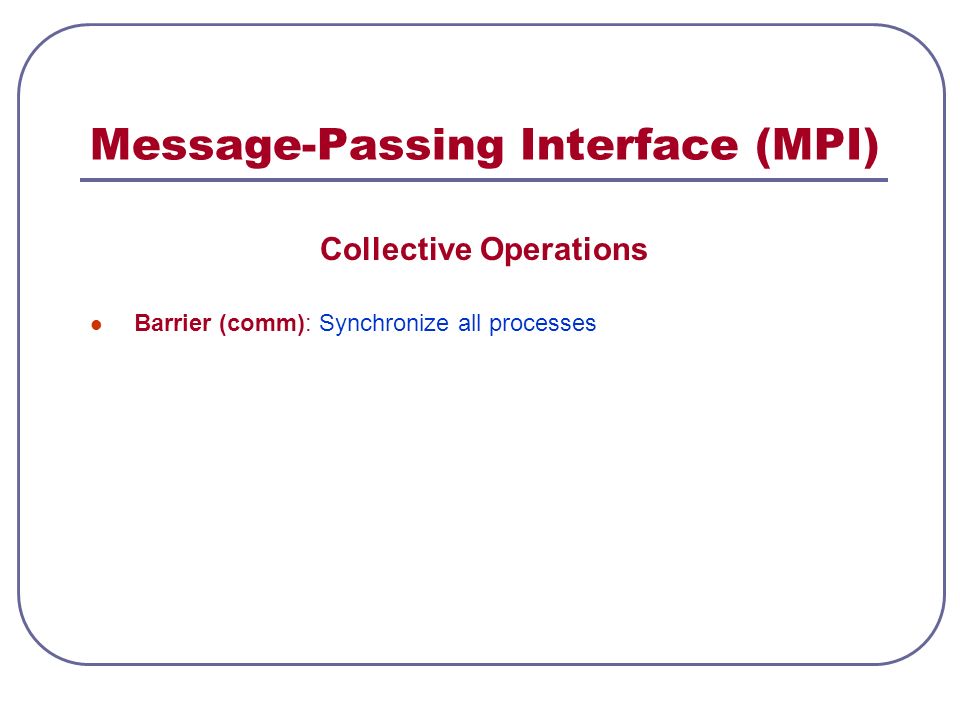

11. Message-Passing Interface (MPI) Collective Operations Barrier (comm): Synchronize all processes

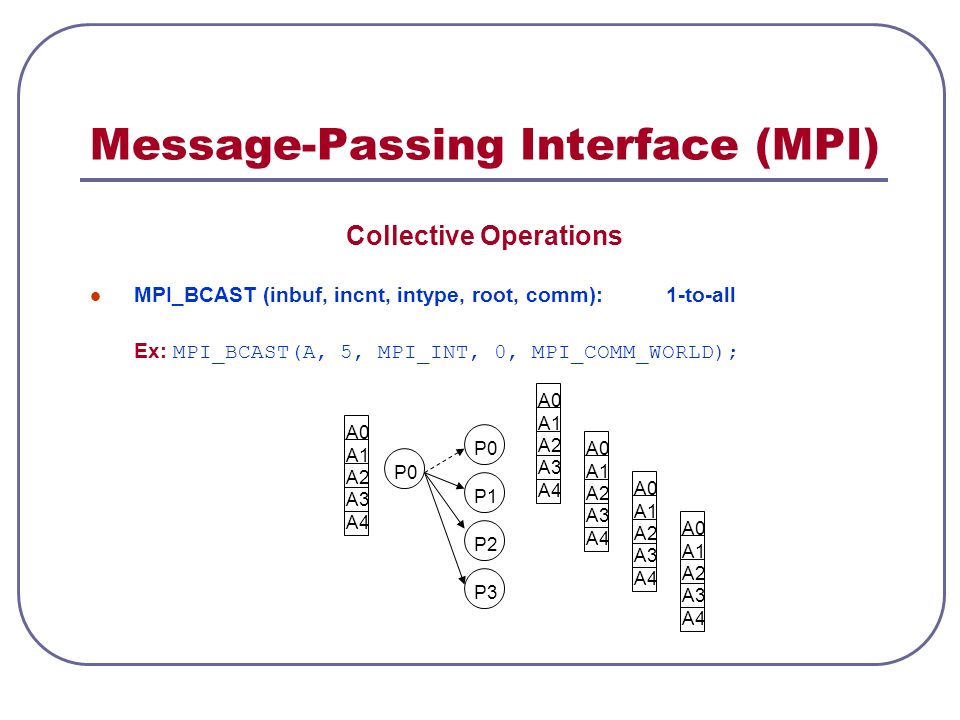

12. Message-Passing Interface (MPI) Collective Operations MPI_BCAST (inbuf, incnt, intype, root, comm):1-to-all Ex: MPI_BCAST(A, 5, MPI_INT, 0, MPI_COMM_WORLD); A0 A1 A2 A3 A4 P0 P1 P2 P3 P0 A0 A1 A2 A3 A4 A0 A1 A2 A3 A4 A0 A1 A2 A3 A4 A0 A1 A2 A3 A4

13. Message-Passing Interface (MPI) Collective Operations MPI_SCATTER (inbuf, incnt, intype, outbuf, outcnt, outtype, root, comm):1-to-all Ex: int A[100], B[25]; MPI_SCATTER(A, 25, MPI_INT, B, 25, MPI_INT, 0, MPI_COMM_WORLD); A A0 A1 A2 A3 P0 P1 P2 P3 P0 B A0 A1 A2 A3

14. Message-Passing Interface (MPI) Collective Operations MPI_GATHER (inbuf, incnt, intype, outbuf, outcnt, outtype, root, comm):all-to-1 Ex: int A[100], B[25]; MPI_GATHER(B, 25, MPI_INT, A, 25, MPI_INT, 0, MPI_COMM_WORLD); A B0 B1 B2 B3 P0 P1 P2 P3 P0 B B0 B1 B2 B3

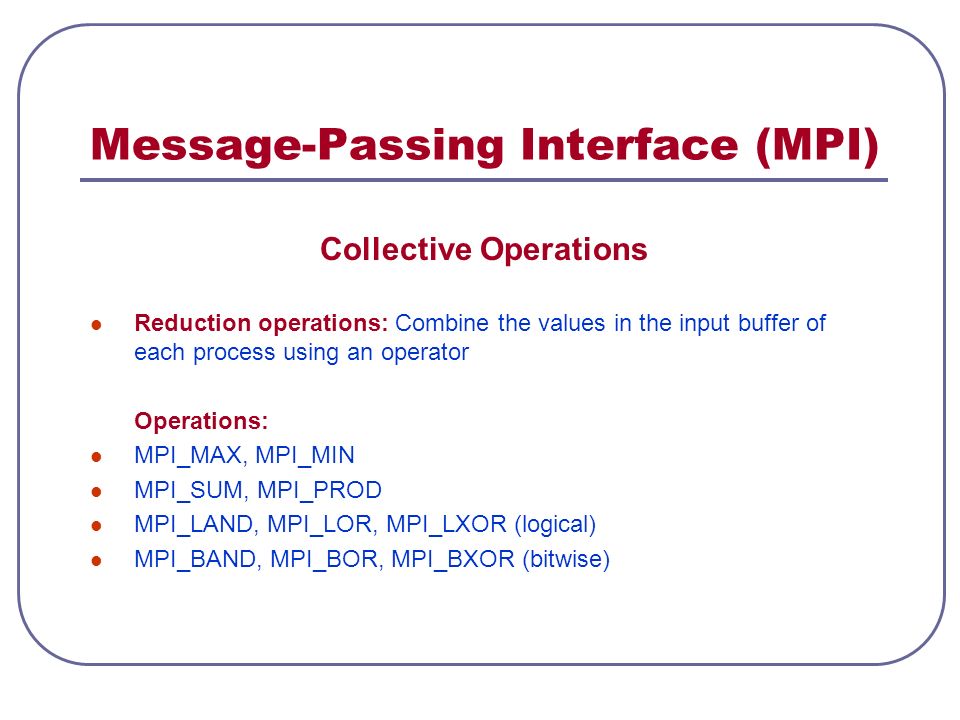

15. Message-Passing Interface (MPI) Collective Operations Reduction operations: Combine the values in the input buffer of each process using an operator Operations: MPI_MAX, MPI_MIN MPI_SUM, MPI_PROD MPI_LAND, MPI_LOR, MPI_LXOR (logical) MPI_BAND, MPI_BOR, MPI_BXOR (bitwise)

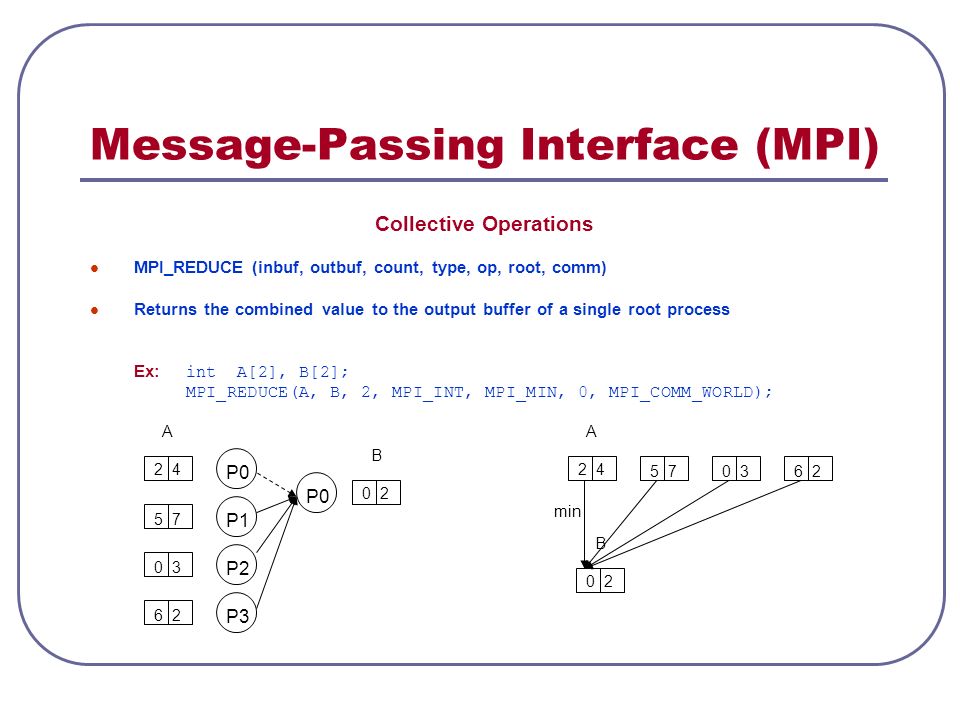

16. Message-Passing Interface (MPI) Collective Operations MPI_REDUCE (inbuf, outbuf, count, type, op, root, comm) Returns the combined value to the output buffer of a single root process Ex: int A[2], B[2]; MPI_REDUCE(A, B, 2, MPI_INT, MPI_MIN, 0, MPI_COMM_WORLD); P0 P1 P2 P3 P0 5 7 A 2 4 0 3 6 2 B 0 2 5 7 A 2 4 0 36 2 B 0 2 min

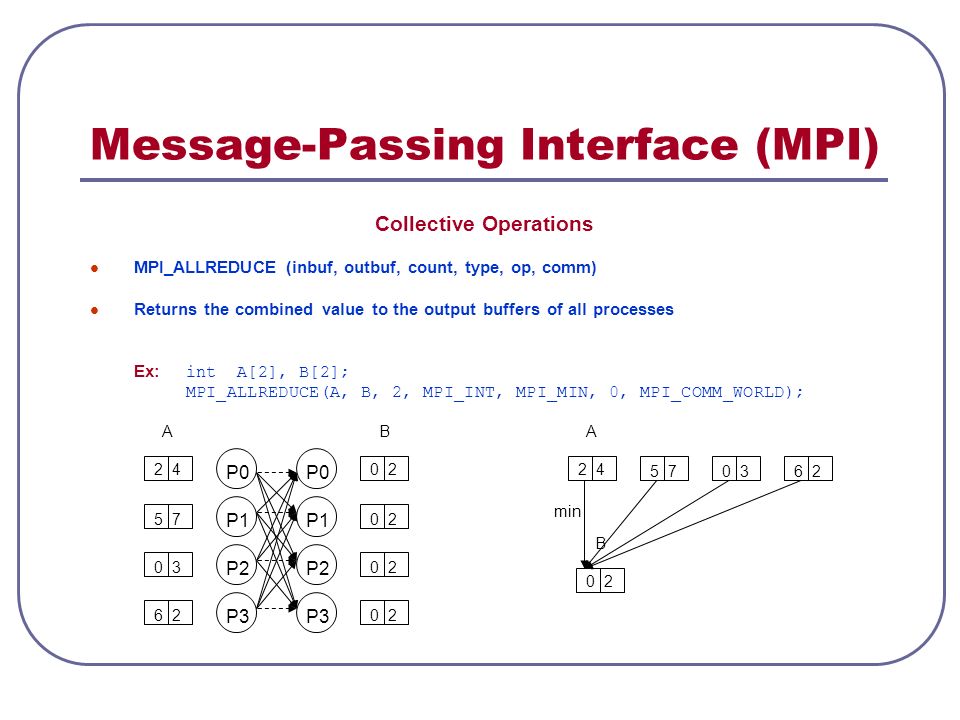

17. Message-Passing Interface (MPI) Collective Operations MPI_ALLREDUCE (inbuf, outbuf, count, type, op, comm) Returns the combined value to the output buffers of all processes Ex: int A[2], B[2]; MPI_ALLREDUCE(A, B, 2, MPI_INT, MPI_MIN, 0, MPI_COMM_WORLD); P1 P2 P3 P0 5 7 A 2 4 0 3 6 2 5 7 A 2 4 0 36 2 B 0 2 min P1 P2 P3 P0 0 2 B 0 2

18. Message-Passing Interface (MPI) Asynchronous Communication Data is distributed among processes which must then poll periodically for pending read and write requests Local computation may interleave with the processing of incoming messages Non-blocking send/receive MPI_ISEND (buf, count, datatype, dest, tag, comm): Send a message. MPI_IRECV (buf, count, datatype, source, tag, comm, status): Receive a message. MPI_WAIT (MPI_Request *request, MPI_Status *status): Complete a non-blocking operation

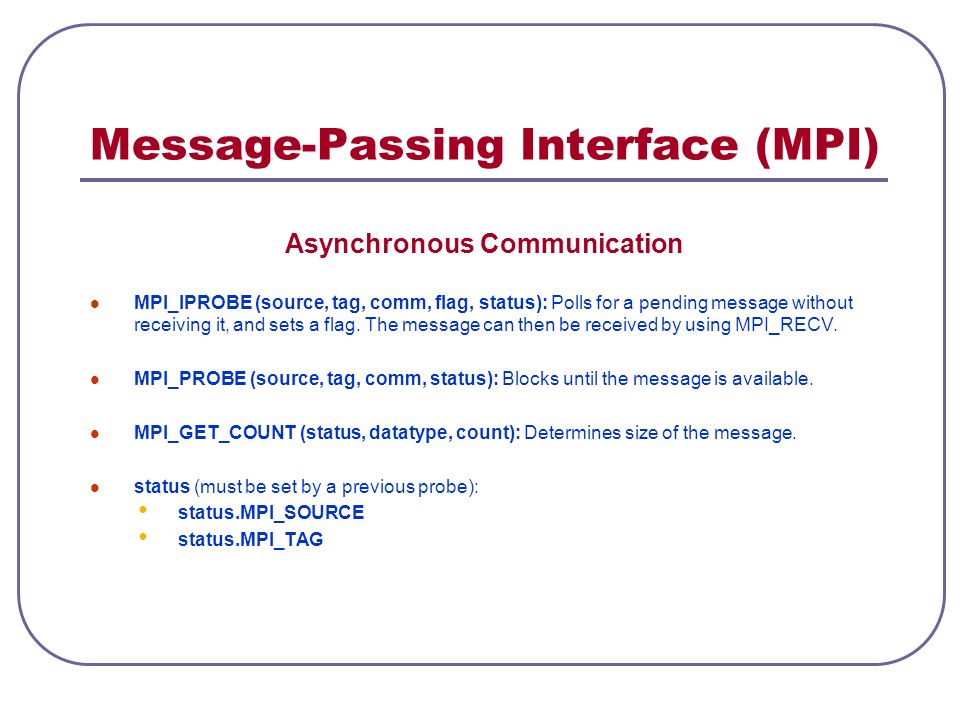

19. Message-Passing Interface (MPI) Asynchronous Communication MPI_IPROBE (source, tag, comm, flag, status): Polls for a pending message without receiving it, and sets a flag. The message can then be received by using MPI_RECV. MPI_PROBE (source, tag, comm, status): Blocks until the message is available. MPI_GET_COUNT (status, datatype, count): Determines size of the message. status (must be set by a previous probe): status.MPI_SOURCE status.MPI_TAG

20. Message-Passing Interface (MPI) Asynchronous Communication Ex: intcount, *buf, source; MPI_PROBE (MPI_ANY_SOURCE, 0, MPI_COMM_WORLD, &status); source = status.MPI_SOURCE; MPI_GET_COUNT(status, MPI_INT, count); buf = malloc(count*sizeof(int)); MPI_RECV (buf, count, MPI_INT, source, 0, MPI_COMM_WORLD, &status);

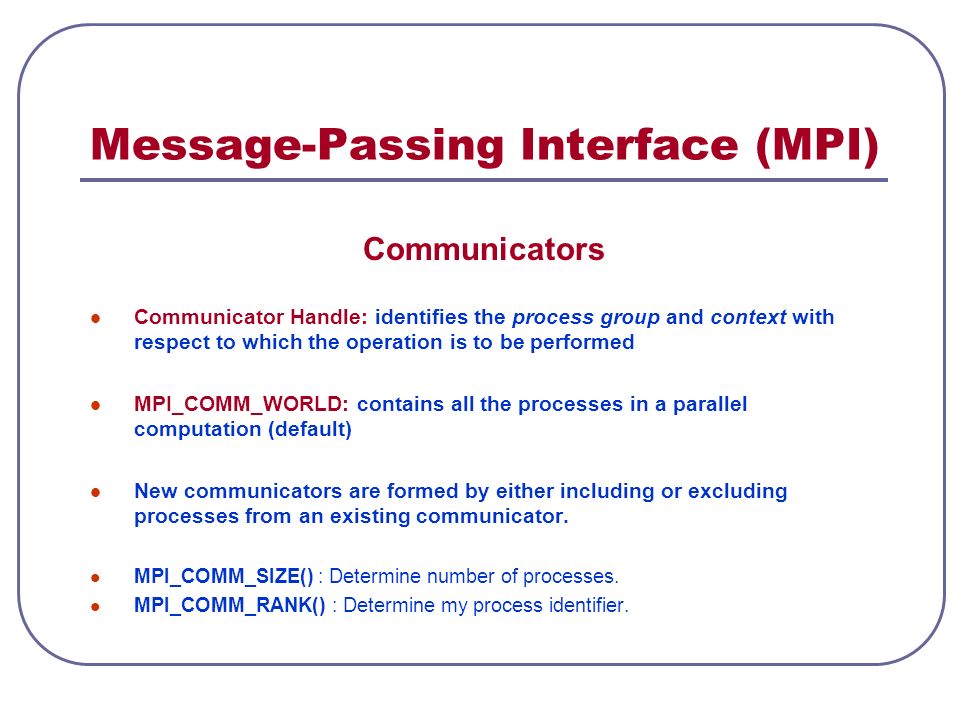

21. Message-Passing Interface (MPI) Communicators Communicator Handle: identifies the process group and context with respect to which the operation is to be performed MPI_COMM_WORLD: contains all the processes in a parallel computation (default) New communicators are formed by either including or excluding processes from an existing communicator. MPI_COMM_SIZE() : Determine number of processes. MPI_COMM_RANK() : Determine my process identifier.

22. Message-Passing Interface (MPI) Communicators MPI_COMM_DUP (comm, newcomm): creates a new handle for the same process group MPI_COMM_SPLIT (comm, color, key, newcomm): creates a new handle for a subset of a given process group MPI_INTERCOMM_CREATE (comm, leader, peer, rleader, tag, inter): links processes in two groups MPI_COMM_FREE (comm): destroys a handle

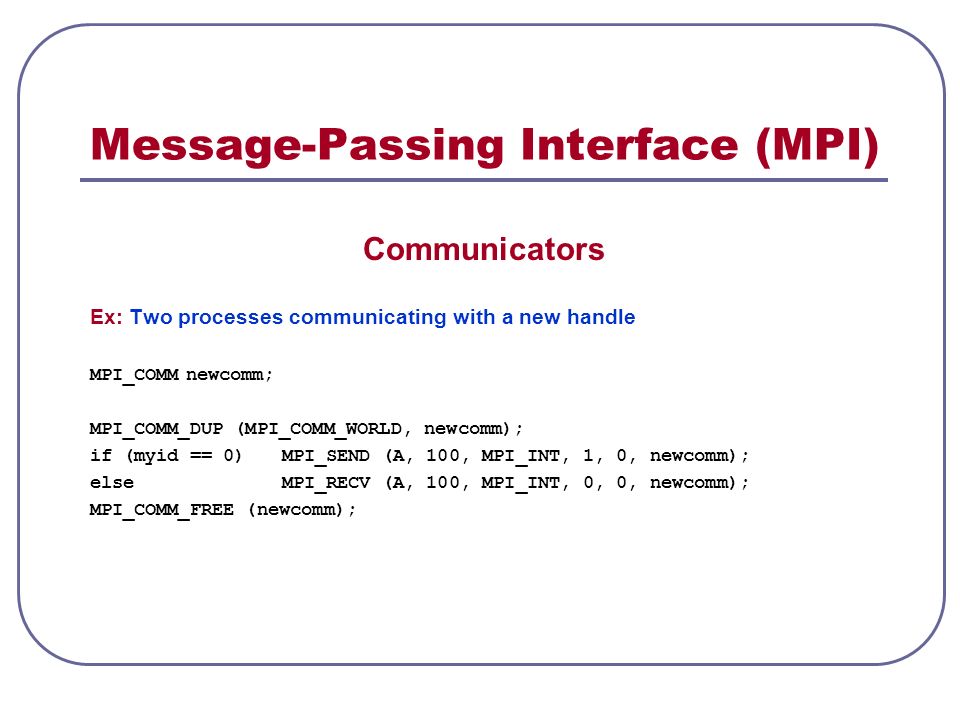

23. Message-Passing Interface (MPI) Communicators Ex: Two processes communicating with a new handle MPI_COMMnewcomm; MPI_COMM_DUP (MPI_COMM_WORLD, newcomm); if (myid == 0)MPI_SEND (A, 100, MPI_INT, 1, 0, newcomm); elseMPI_RECV (A, 100, MPI_INT, 0, 0, newcomm); MPI_COMM_FREE (newcomm);

24. Message-Passing Interface (MPI) Communicators Ex: Creating a new group with 4 members MPI_COMMcomm, newcomm; int myid, color;... MPI_COMM_RANK (comm, &myid); if (myid<4)color=1; elsecolor=MPI_UNDEFINED; MPI_COMM_SPLIT (comm, color, myid, &newcomm); MPI_SCATTER (A, 10, MPI_INT, B, 10, MPI_INT, 0, newcomm); Processes : P0P1P2P3P4P5P6P7 Ranks in comm:01234567 Color:1111???? Ranks in newcomm:0123

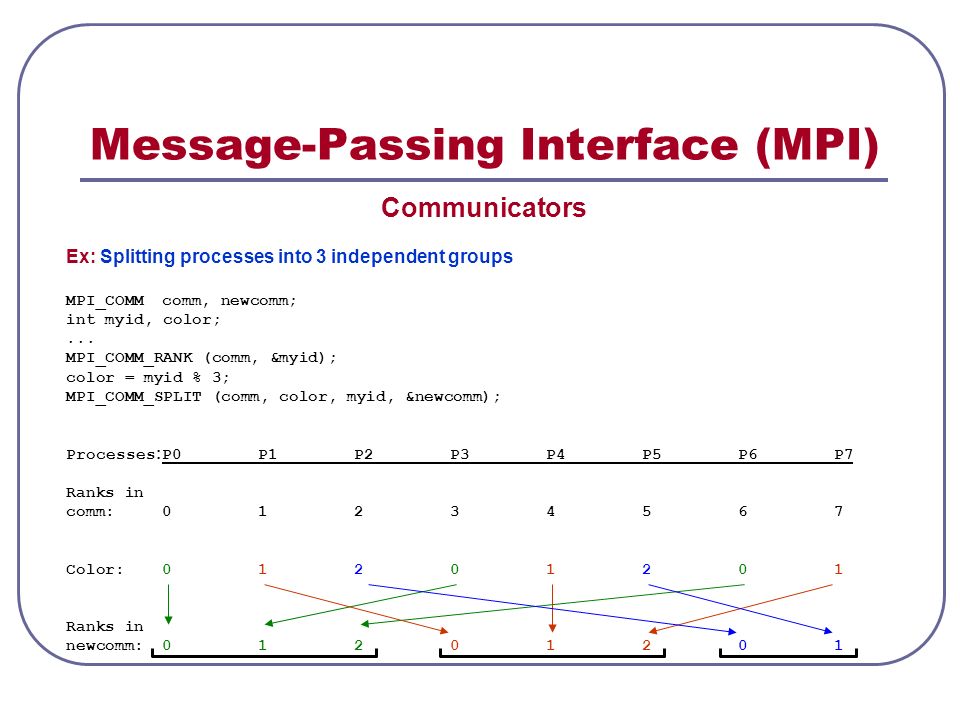

25. Message-Passing Interface (MPI) Communicators Ex: Splitting processes into 3 independent groups MPI_COMMcomm, newcomm; int myid, color;... MPI_COMM_RANK (comm, &myid); color = myid % 3; MPI_COMM_SPLIT (comm, color, myid, &newcomm); Processes : P0P1P2P3P4P5P6P7 Ranks in comm:01234567 Color:01201201 Ranks in newcomm:01201201

26. Message-Passing Interface (MPI) Communicators MPI_INTERCOMM_CREATE (comm, local_leader, peer_comm, remote_leader, tag, intercomm): links processes in two groups comm: intracommunicator (within group) local_leader: leader within the group peer_comm: parent communicator remote_leader: other groups’ leader within the parent communicator

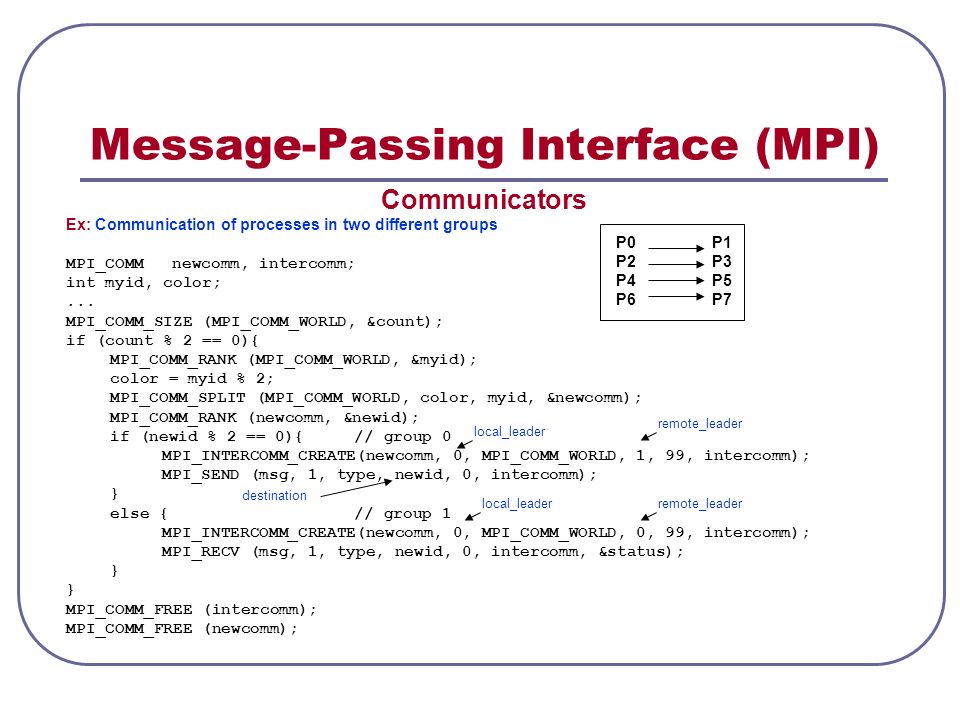

27. Message-Passing Interface (MPI) Communicators Ex: Communication of processes in two different groups MPI_COMM newcomm, intercomm; int myid, color;... MPI_COMM_SIZE (MPI_COMM_WORLD, &count); if (count % 2 == 0){ MPI_COMM_RANK (MPI_COMM_WORLD, &myid); color = myid % 2; MPI_COMM_SPLIT (MPI_COMM_WORLD, color, myid, &newcomm); MPI_COMM_RANK (newcomm, &newid); if (newid % 2 == 0){// group 0 MPI_INTERCOMM_CREATE(newcomm, 0, MPI_COMM_WORLD, 1, 99, intercomm); MPI_SEND (msg, 1, type, newid, 0, intercomm); } else {// group 1 MPI_INTERCOMM_CREATE(newcomm, 0, MPI_COMM_WORLD, 0, 99, intercomm); MPI_RECV (msg, 1, type, newid, 0, intercomm, &status); } MPI_COMM_FREE (intercomm); MPI_COMM_FREE (newcomm); local_leader r em ote_leader local_lea d erremote_leader destination P0P1 P2P3 P4P5 P6P7

28. Message-Passing Interface (MPI) Communicators Ex: Communication of processes in two different groups Processes : P0P1P2P3P4P5P6P7 Rank in MPI_COMM_WORLD : 01234567 Processes : P0P2P4P6P1P3P5P7 Rank in MPI_COMM_WORLD: 02461357 Rank in newcomm: 01230123 local_leaderremote_leader newcomm local_leader remote_leader

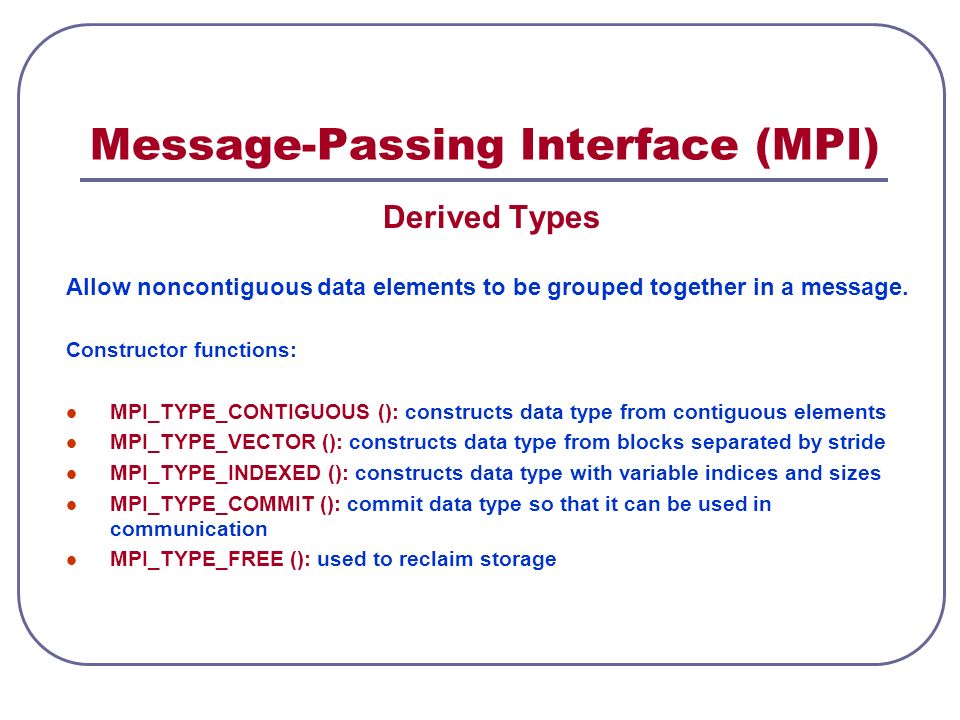

29. Message-Passing Interface (MPI) Derived Types Allow noncontiguous data elements to be grouped together in a message. Constructor functions: MPI_TYPE_CONTIGUOUS (): constructs data type from contiguous elements MPI_TYPE_VECTOR (): constructs data type from blocks separated by stride MPI_TYPE_INDEXED (): constructs data type with variable indices and sizes MPI_TYPE_COMMIT (): commit data type so that it can be used in communication MPI_TYPE_FREE (): used to reclaim storage

30. Message-Passing Interface (MPI) Derived Types MPI_TYPE_CONTIGUOUS (count, oldtype, newtype): constructs data type from contiguous elements Ex: MPI_TYPE_CONTIGUOUS (10, MPI_REAL, &newtype); MPI_TYPE_VECTOR (count, blocklength, stride, oldtype, newtype): constructs data type from blocks separated by stride Ex: MPI_TYPE_VECTOR (5, 1, 4, MPI_FLOAT, &floattype); MemoryA

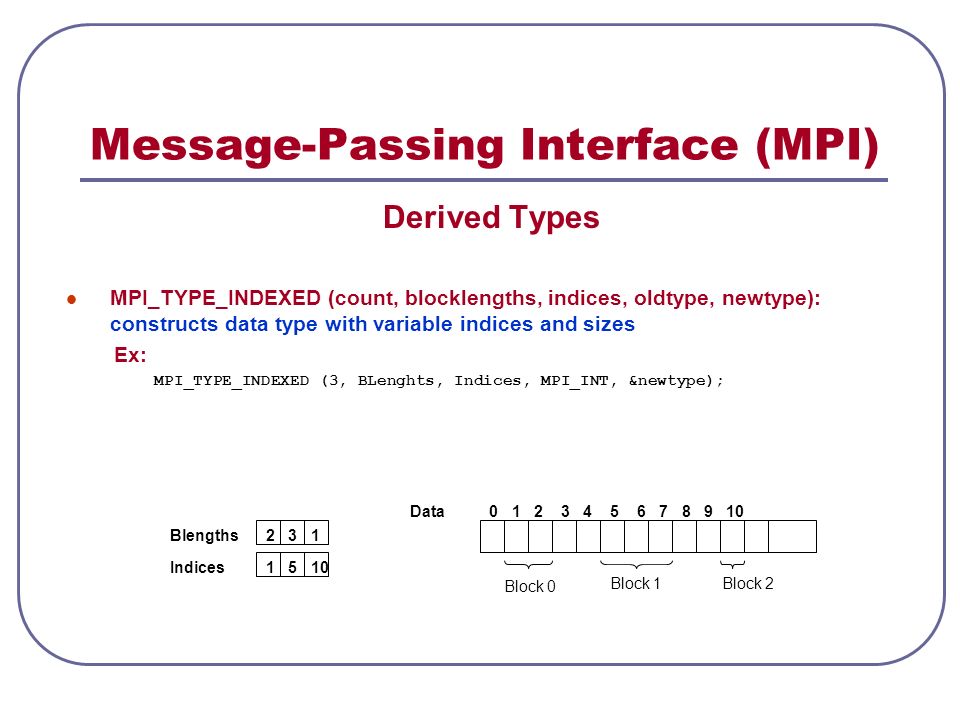

31. Message-Passing Interface (MPI) Derived Types MPI_TYPE_INDEXED (count, blocklengths, indices, oldtype, newtype): constructs data type with variable indices and sizes Ex: MPI_TYPE_INDEXED (3, BLenghts, Indices, MPI_INT, &newtype); Blengths2 3 1 Indices1 5 10 Data 0 1 2 3 4 5 6 7 8 9 10 Block 0 Block 1Block 2

32. Message-Passing Interface (MPI) Derived Types MPI_TYPE_COMMIT (type): commit data type so that it can be used in communication MPI_TYPE_FREE (type): used to reclaim storage

33. Message-Passing Interface (MPI) Derived Types Ex: MPI_TYPE_INDEXED (3, BLenghts, Indices, MPI_INT, &newtype); MPI_TYPE_COMMIT (&newtype); MPI_SEND (A, 1, newtype, dest, 0, MPI_COMM_WORLD); MPI_TYPE_FREE (newtype); Blengths2 3 1 Indices1 5 10 A 0 1 2 3 4 5 6 7 8 9 10 Block 0 Block 1Block 2
