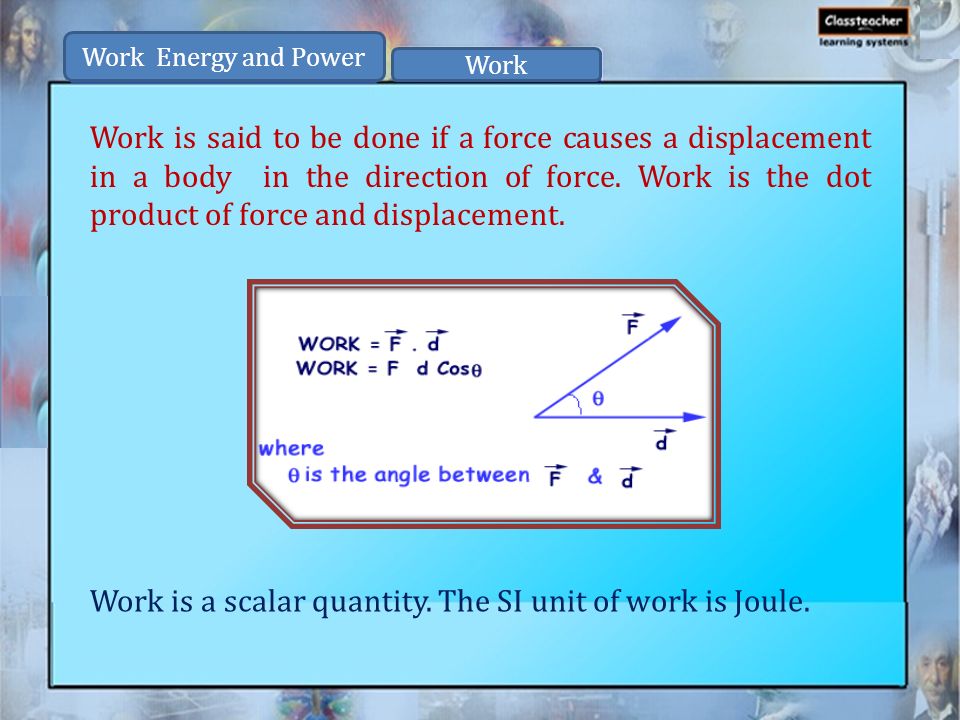

1. Work is said to be done if a force causes a displacement in a body in the direction of force. Work is the dot product of force and displacement. Work is a scalar quantity. The SI unit of work is Joule. Work Energy and Power Work

2. Work Energy and Power Categories of Work If force and displacement are in the same direction, work will be positive or if  = 0 or  < 90°. POSITIVE WORK

3. ZERO WORK Work = Fd Cos  Work = Fd Cos 90° Work = (F)(d)(0) Work = 0 Work Energy and Power Categories of Work If force and displacement are perpendicular to each other, work will be zero.

4. Work = Fd Cos  Work = Fd Cos 180° Work = (F)(d)(-1) Work = -Fd NEGATIVE WORK Work Energy and Power Categories of Work If force and displacement are in the opposite direction, work will be negative.

5. A cyclist comes to a skidding stop in 20 m. During this process, the force on the cycle due to the road is 300 N and is directly opposed to the motion. Work Energy and Power Example (a) How much work does the road do on the cycle ? (b) How much work does the cycle do on the road ?

6. Work done on the cycle by the road is the work done by the stopping (frictional) force on the cycle due to the road. (a)The stopping force and the displacement make an angle of 180  (π rad) with each other. Thus, work done by the road, W = Fd cosθ = 300. 20. cos π = – 6000 J Work Energy and Power Solution

7. It is this negative work that brings the cycle to a halt in accordance with WE theorem. (b) From Newton’s third law an equal and opposite force acts on the road due to the cycle. Its magnitude is 300 N. However, the road undergoes no displacement. Thus, work done by cycle on the road is zero. Work Energy and Power Solution
