Arc Length Start with the formula for radian measure … … and multiply both sides by r to get … Arc length = radius times angle measure in radians.

Published byEverett Kelly Modified over 8 years ago

Similar presentations

Presentation on theme: "Arc Length Start with the formula for radian measure … … and multiply both sides by r to get … Arc length = radius times angle measure in radians."— Presentation transcript:

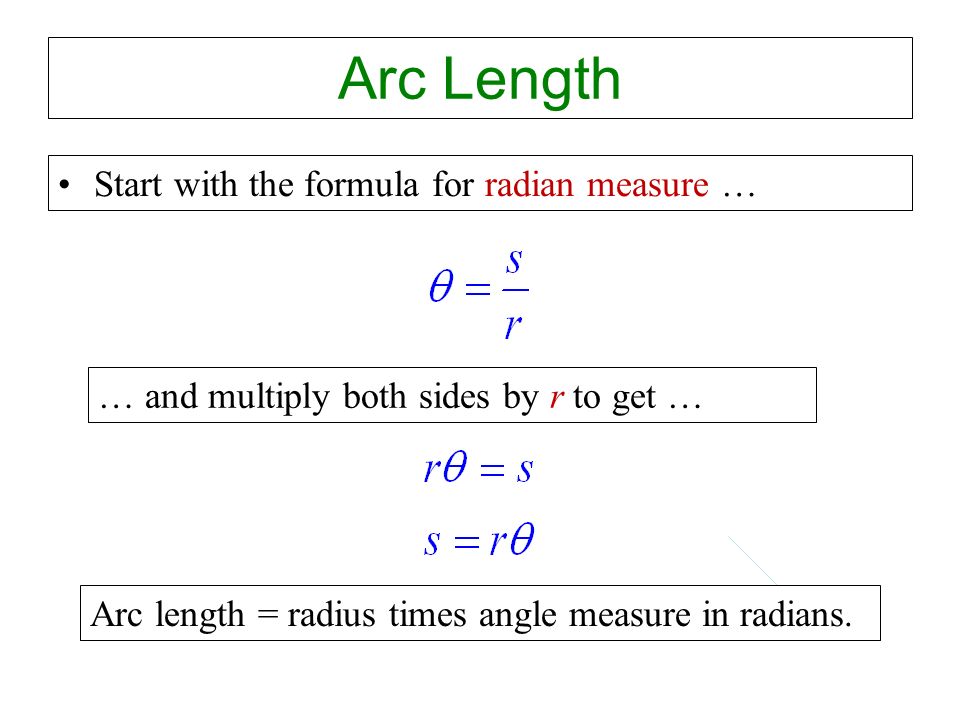

1 Arc Length Start with the formula for radian measure … … and multiply both sides by r to get … Arc length = radius times angle measure in radians.

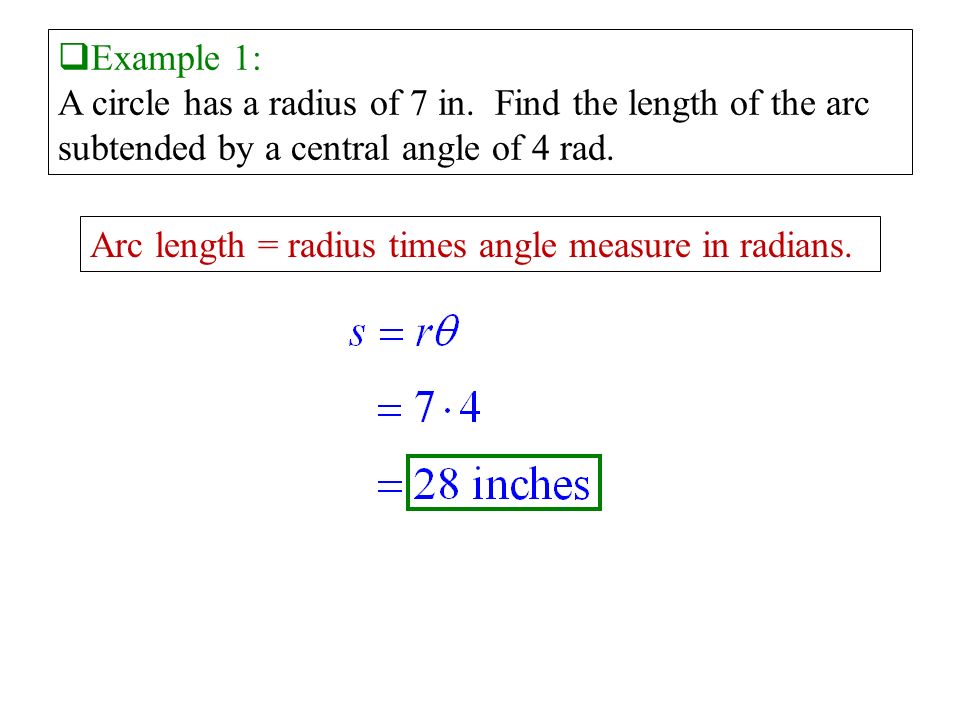

2  Example 1: A circle has a radius of 7 in. Find the length of the arc subtended by a central angle of 4 rad. Arc length = radius times angle measure in radians.

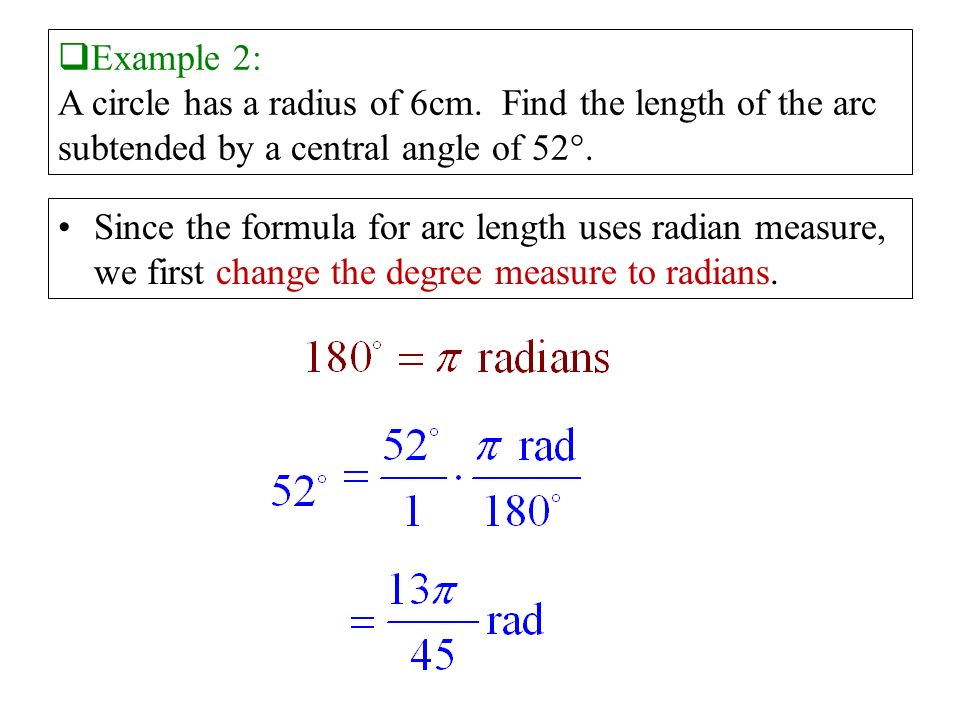

3  Example 2: A circle has a radius of 6cm. Find the length of the arc subtended by a central angle of 52°. Since the formula for arc length uses radian measure, we first change the degree measure to radians.

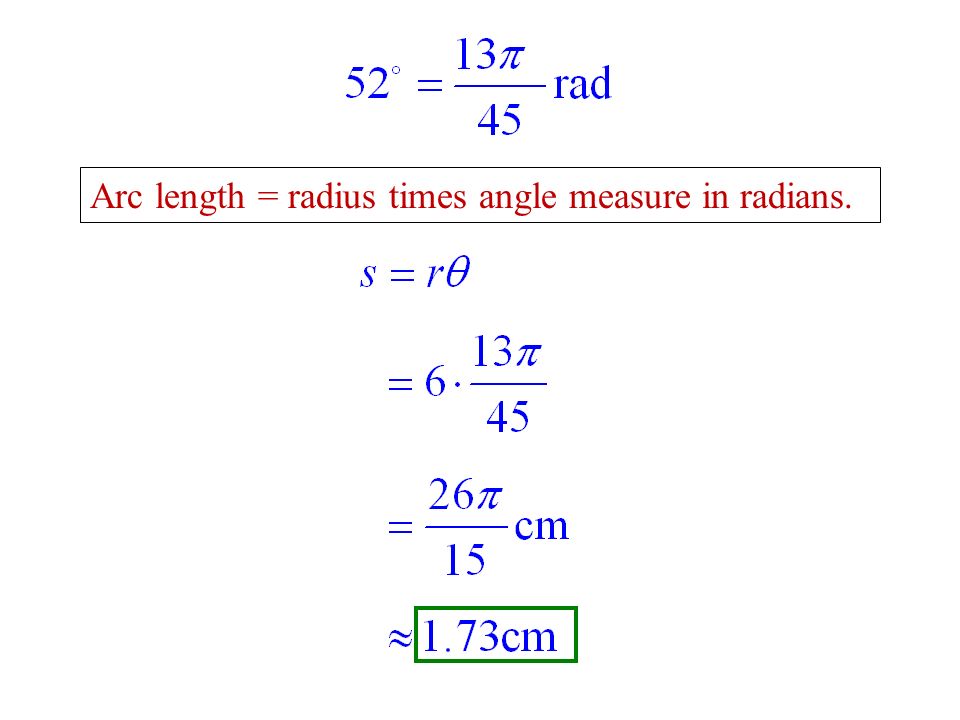

4 Arc length = radius times angle measure in radians.
