1. Hybrid QM/MM Methods Paul Sherwood CLRC Daresbury Laboratory p.sherwood@dl.ac.uk

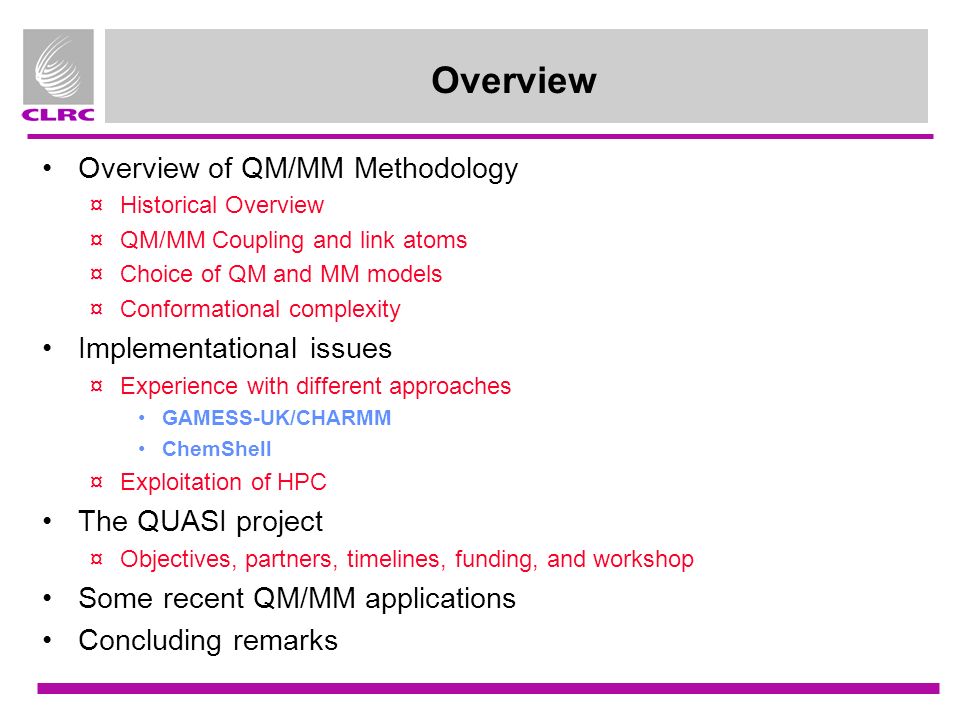

2. Overview Overview of QM/MM Methodology ¤Historical Overview ¤QM/MM Coupling and link atoms ¤Choice of QM and MM models ¤Conformational complexity Implementational issues ¤Experience with different approaches GAMESS-UK/CHARMM ChemShell ¤Exploitation of HPC The QUASI project ¤Objectives, partners, timelines, funding, and workshop Some recent QM/MM applications Concluding remarks

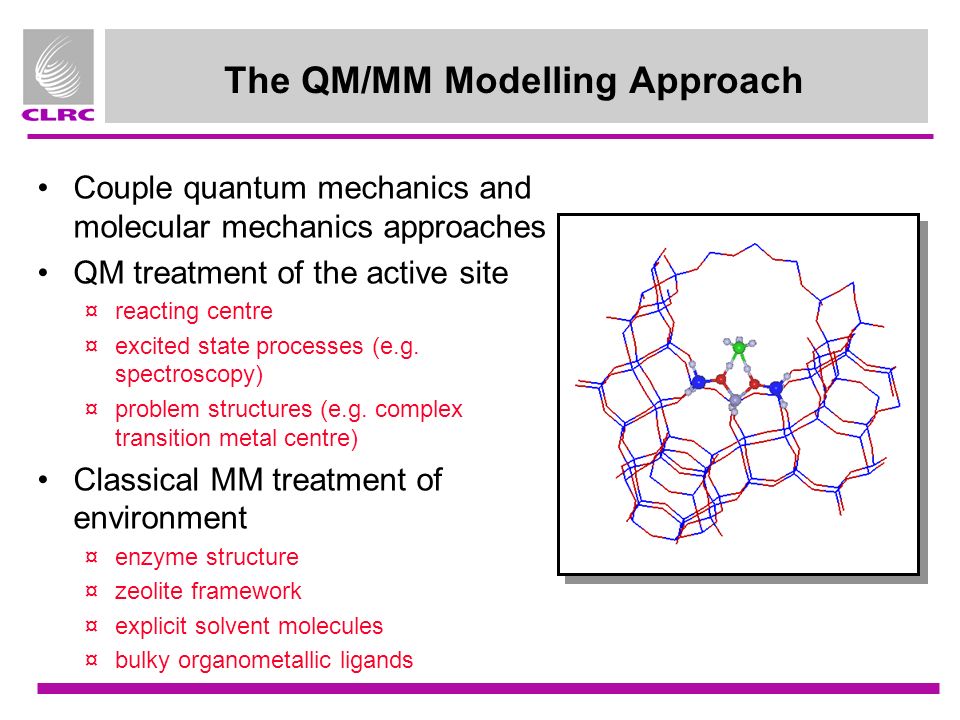

3. The QM/MM Modelling Approach Couple quantum mechanics and molecular mechanics approaches QM treatment of the active site ¤reacting centre ¤excited state processes (e.g. spectroscopy) ¤problem structures (e.g. complex transition metal centre) Classical MM treatment of environment ¤enzyme structure ¤zeolite framework ¤explicit solvent molecules ¤bulky organometallic ligands

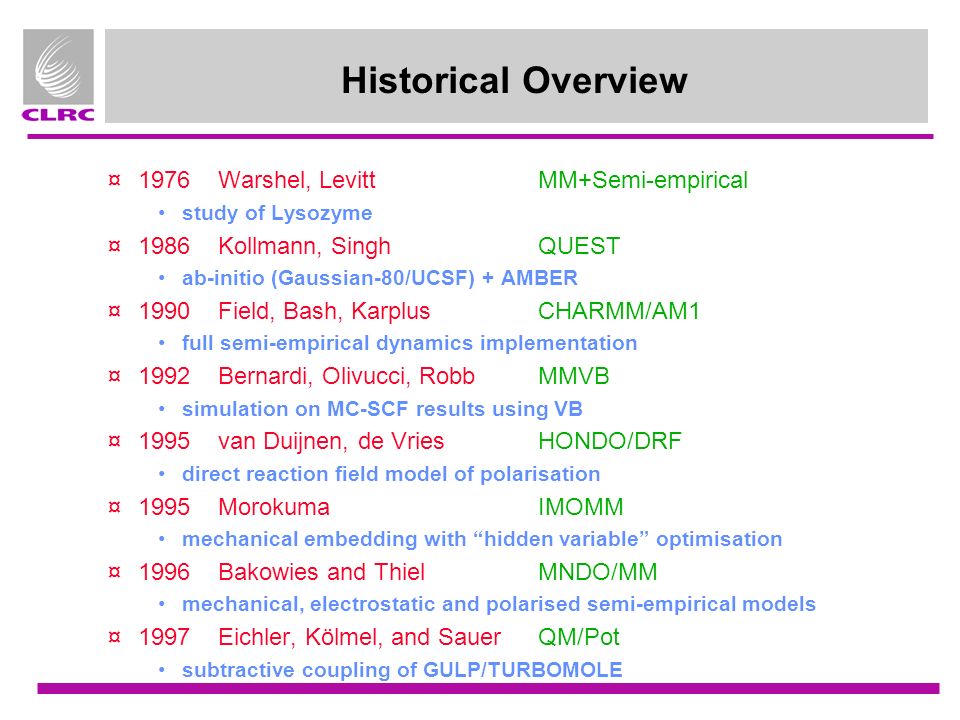

4. Historical Overview ¤1976Warshel, LevittMM+Semi-empirical study of Lysozyme ¤1986Kollmann, SinghQUEST ab-initio (Gaussian-80/UCSF) + AMBER ¤1990Field, Bash, KarplusCHARMM/AM1 full semi-empirical dynamics implementation ¤1992Bernardi, Olivucci, RobbMMVB simulation on MC-SCF results using VB ¤1995van Duijnen, de VriesHONDO/DRF direct reaction field model of polarisation ¤1995MorokumaIMOMM mechanical embedding with “hidden variable” optimisation ¤1996Bakowies and ThielMNDO/MM mechanical, electrostatic and polarised semi-empirical models ¤1997 Eichler, Kölmel, and SauerQM/Pot subtractive coupling of GULP/TURBOMOLE

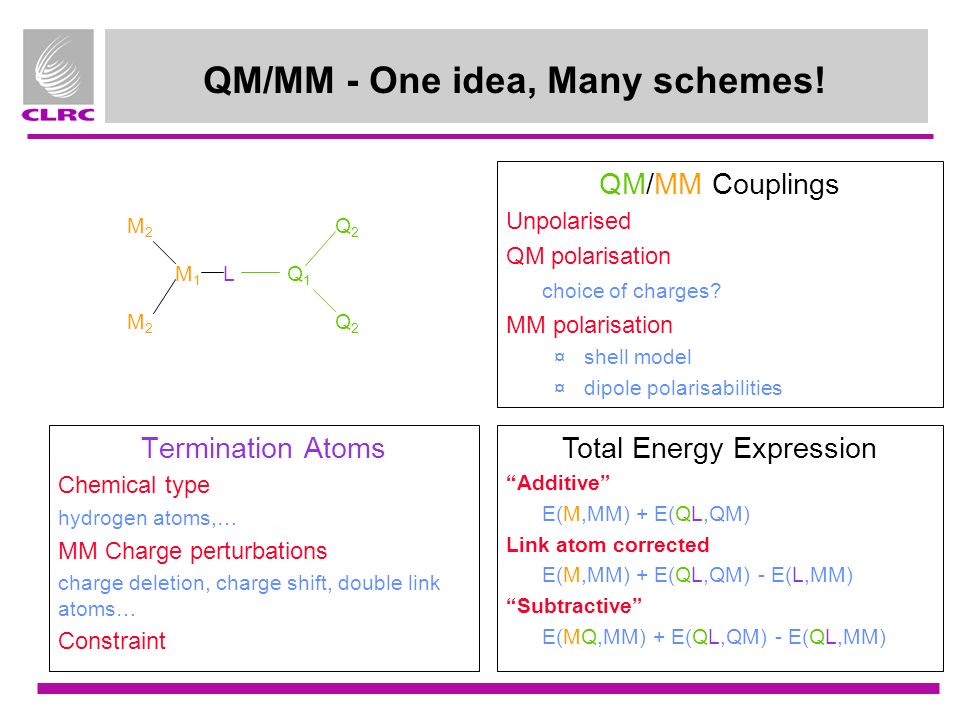

5. QM/MM - One idea, Many schemes! Termination Atoms Chemical type hydrogen atoms,… MM Charge perturbations charge deletion, charge shift, double link atoms… Constraint QM/MM Couplings Unpolarised QM polarisation choice of charges? MM polarisation ¤shell model ¤dipole polarisabilities Total Energy Expression “Additive” E(M,MM) + E(QL,QM) Link atom corrected E(M,MM) + E(QL,QM) - E(L,MM) “Subtractive” E(MQ,MM) + E(QL,QM) - E(QL,MM) M1M1 M2M2 Q1Q1 Q2Q2 L M2M2 Q2Q2

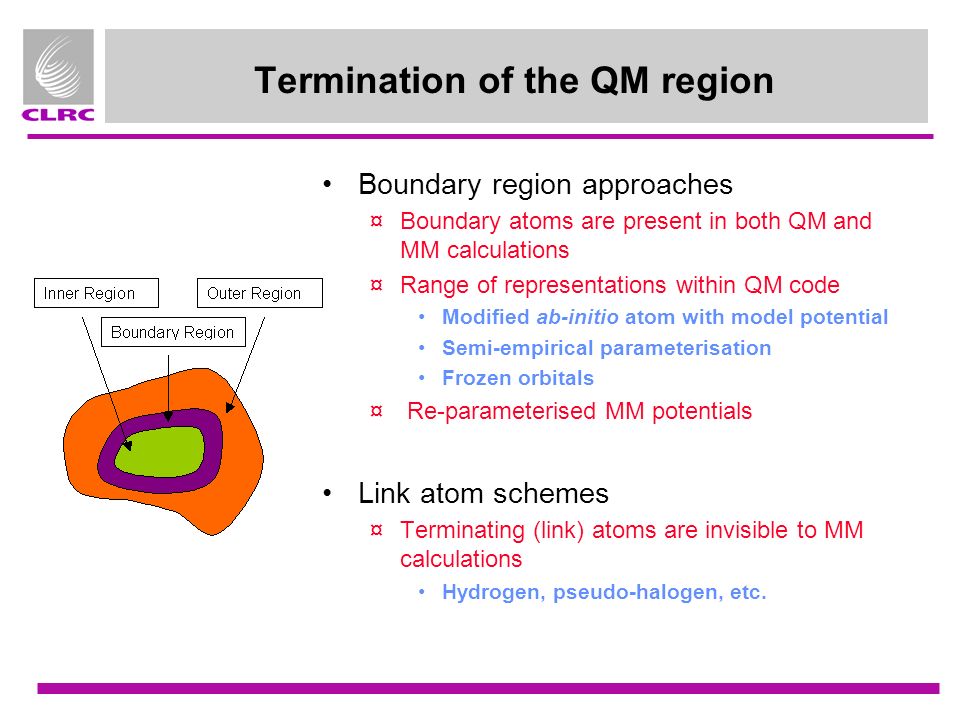

6. Termination of the QM region Boundary region approaches ¤Boundary atoms are present in both QM and MM calculations ¤Range of representations within QM code Modified ab-initio atom with model potential Semi-empirical parameterisation Frozen orbitals ¤ Re-parameterised MM potentials Link atom schemes ¤Terminating (link) atoms are invisible to MM calculations Hydrogen, pseudo-halogen, etc.

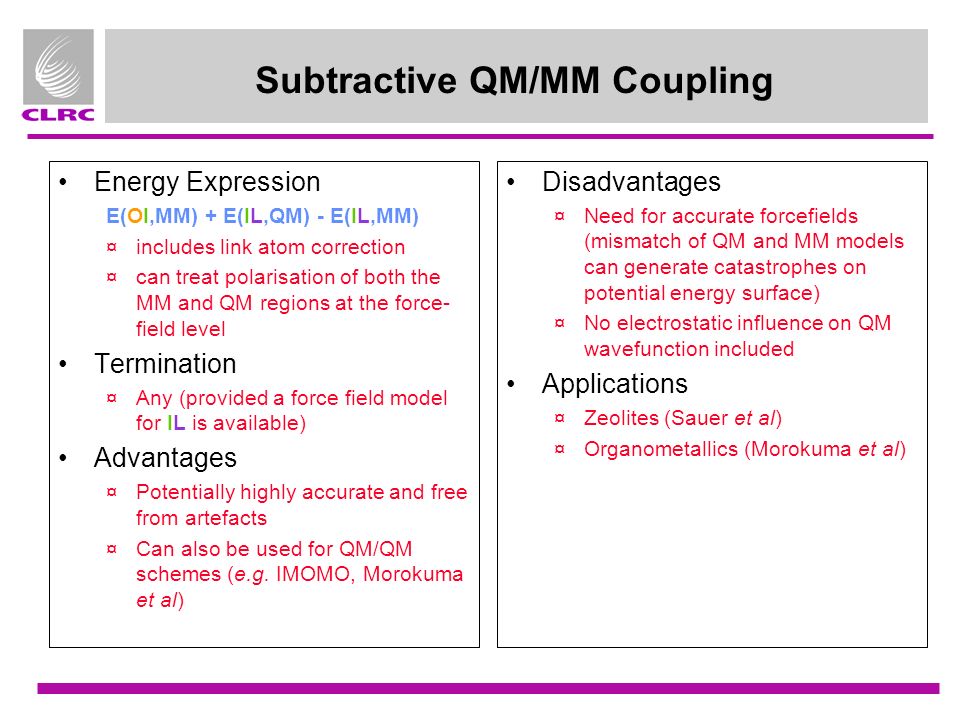

7. Subtractive QM/MM Coupling Energy Expression E(OI,MM) + E(IL,QM) - E(IL,MM) ¤includes link atom correction ¤can treat polarisation of both the MM and QM regions at the force- field level Termination ¤Any (provided a force field model for IL is available) Advantages ¤Potentially highly accurate and free from artefacts ¤Can also be used for QM/QM schemes (e.g. IMOMO, Morokuma et al) Disadvantages ¤Need for accurate forcefields (mismatch of QM and MM models can generate catastrophes on potential energy surface) ¤No electrostatic influence on QM wavefunction included Applications ¤Zeolites (Sauer et al) ¤Organometallics (Morokuma et al)

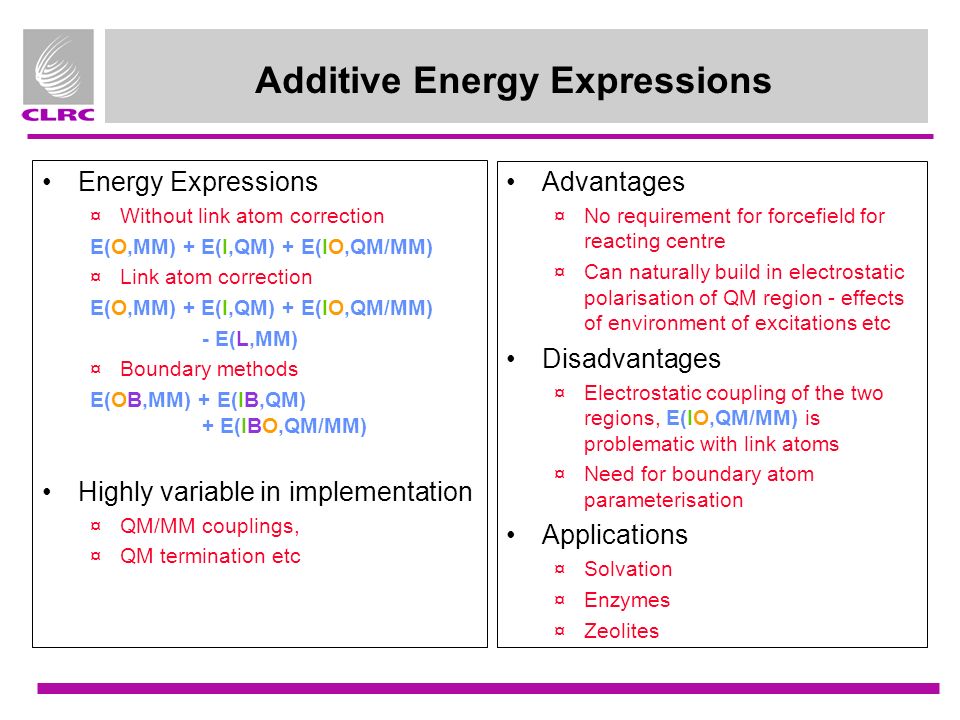

8. Additive Energy Expressions Energy Expressions ¤Without link atom correction E(O,MM) + E(I,QM) + E(IO,QM/MM) ¤Link atom correction E(O,MM) + E(I,QM) + E(IO,QM/MM) - E(L,MM) ¤Boundary methods E(OB,MM) + E(IB,QM) + E(IBO,QM/MM) Highly variable in implementation ¤QM/MM couplings, ¤QM termination etc Advantages ¤No requirement for forcefield for reacting centre ¤Can naturally build in electrostatic polarisation of QM region - effects of environment of excitations etc Disadvantages ¤Electrostatic coupling of the two regions, E(IO,QM/MM) is problematic with link atoms ¤Need for boundary atom parameterisation Applications ¤Solvation ¤Enzymes ¤Zeolites

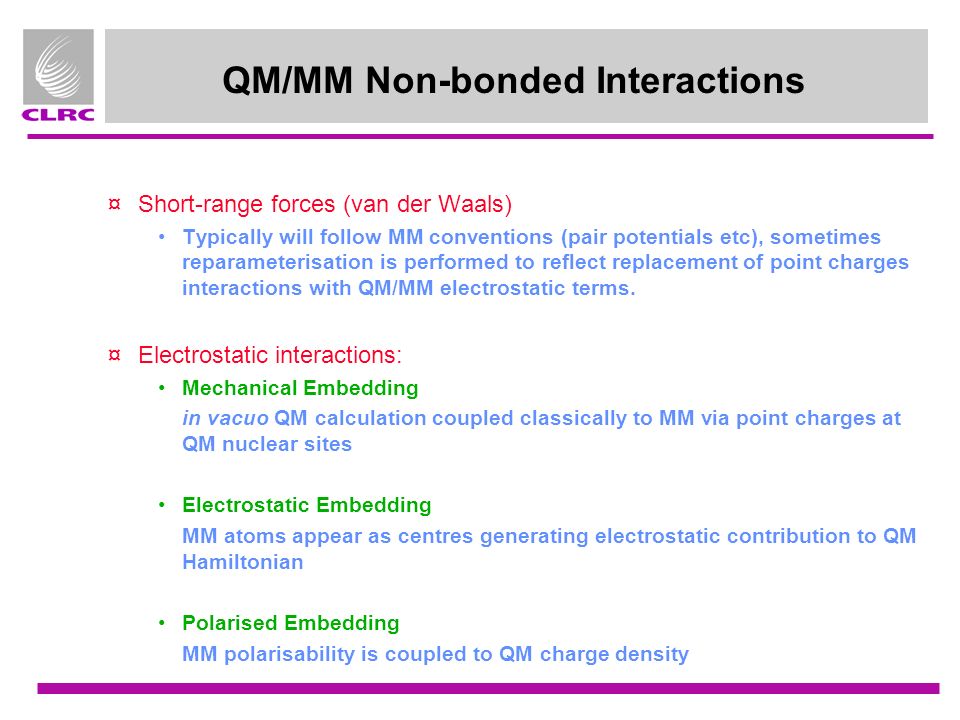

9. QM/MM Non-bonded Interactions ¤Short-range forces (van der Waals) Typically will follow MM conventions (pair potentials etc), sometimes reparameterisation is performed to reflect replacement of point charges interactions with QM/MM electrostatic terms. ¤Electrostatic interactions: Mechanical Embedding in vacuo QM calculation coupled classically to MM via point charges at QM nuclear sites Electrostatic Embedding MM atoms appear as centres generating electrostatic contribution to QM Hamiltonian Polarised Embedding MM polarisability is coupled to QM charge density

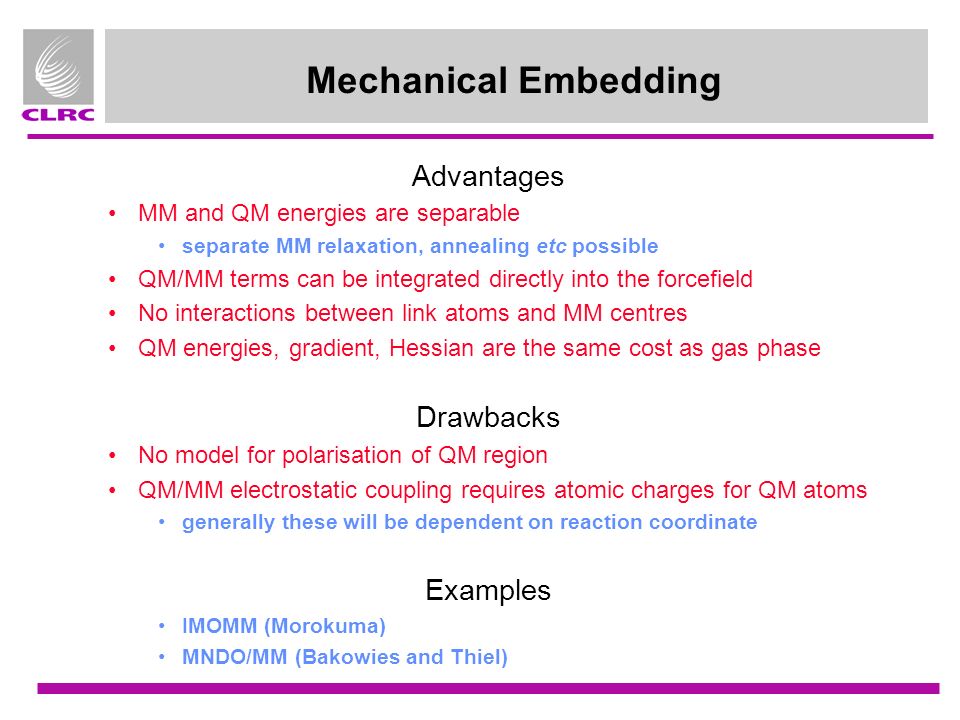

10. Mechanical Embedding Advantages MM and QM energies are separable separate MM relaxation, annealing etc possible QM/MM terms can be integrated directly into the forcefield No interactions between link atoms and MM centres QM energies, gradient, Hessian are the same cost as gas phase Drawbacks No model for polarisation of QM region QM/MM electrostatic coupling requires atomic charges for QM atoms generally these will be dependent on reaction coordinate Examples IMOMM (Morokuma) MNDO/MM (Bakowies and Thiel)

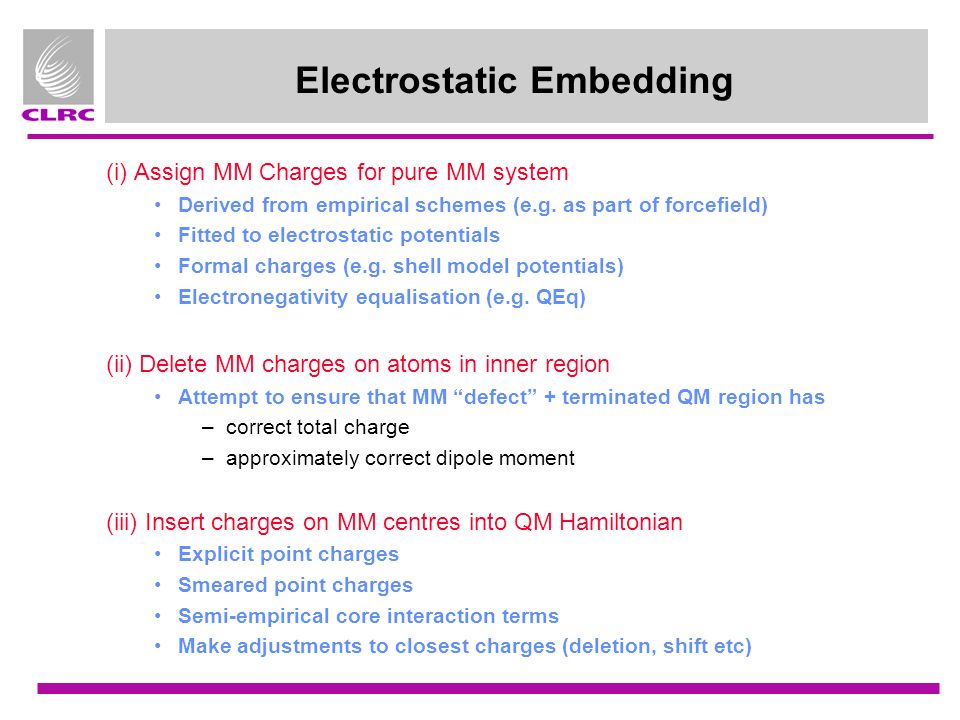

11. Electrostatic Embedding (i) Assign MM Charges for pure MM system Derived from empirical schemes (e.g. as part of forcefield) Fitted to electrostatic potentials Formal charges (e.g. shell model potentials) Electronegativity equalisation (e.g. QEq) (ii) Delete MM charges on atoms in inner region Attempt to ensure that MM “defect” + terminated QM region has –correct total charge –approximately correct dipole moment (iii) Insert charges on MM centres into QM Hamiltonian Explicit point charges Smeared point charges Semi-empirical core interaction terms Make adjustments to closest charges (deletion, shift etc)

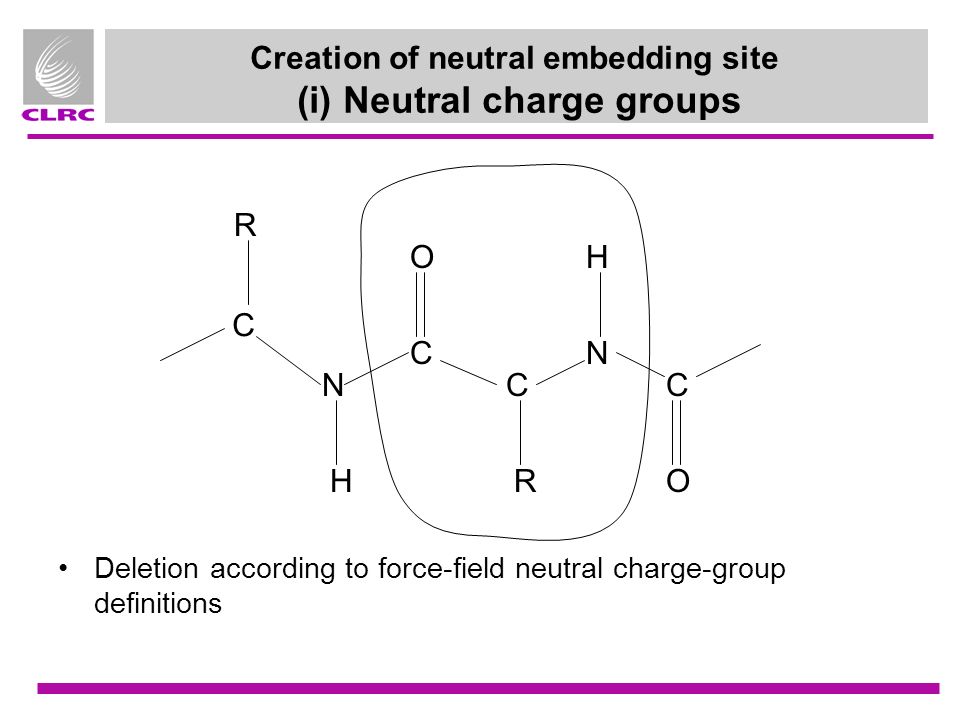

12. Creation of neutral embedding site (i) Neutral charge groups Deletion according to force-field neutral charge-group definitions C N C C O HR N H C O R

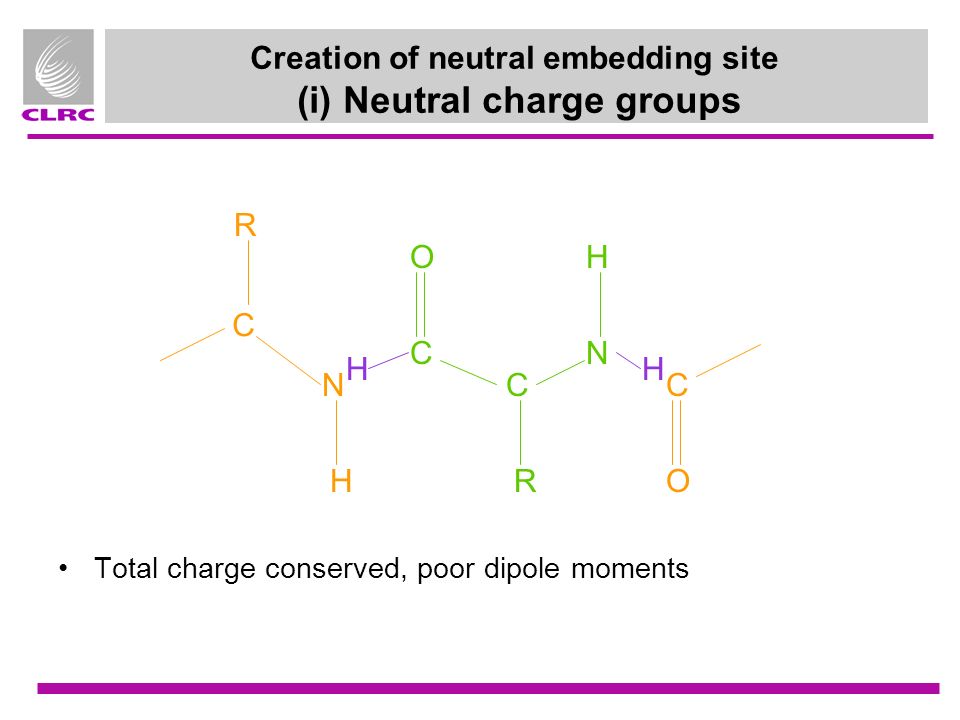

13. Creation of neutral embedding site (i) Neutral charge groups Total charge conserved, poor dipole moments C N C C O HR N H C O R HH

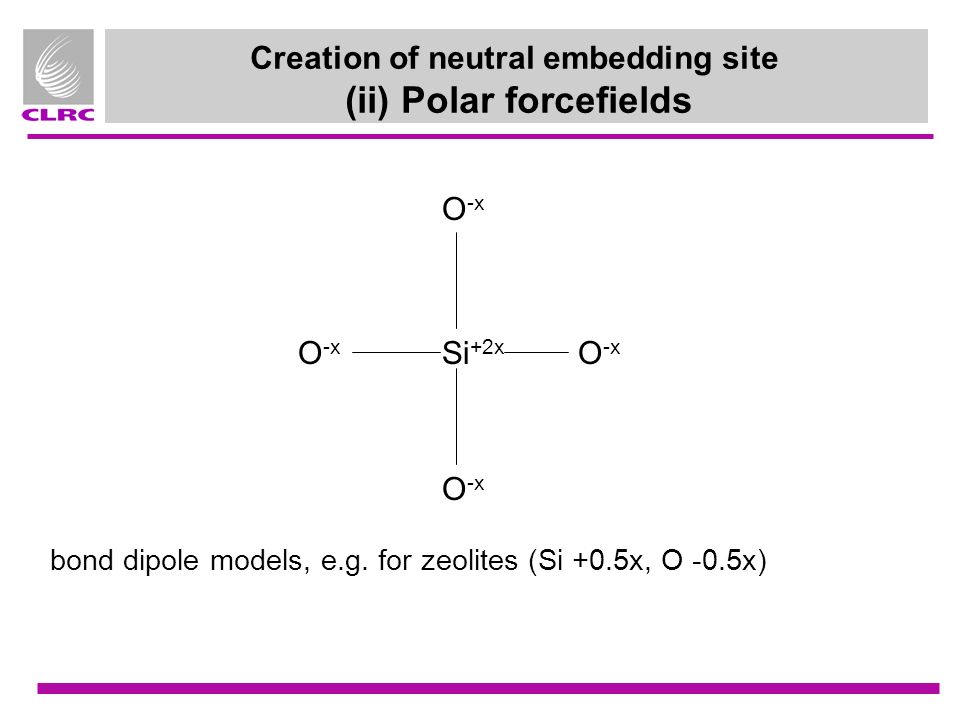

14. Creation of neutral embedding site (ii) Polar forcefields bond dipole models, e.g. for zeolites (Si +0.5x, O -0.5x) O -x Si +2x

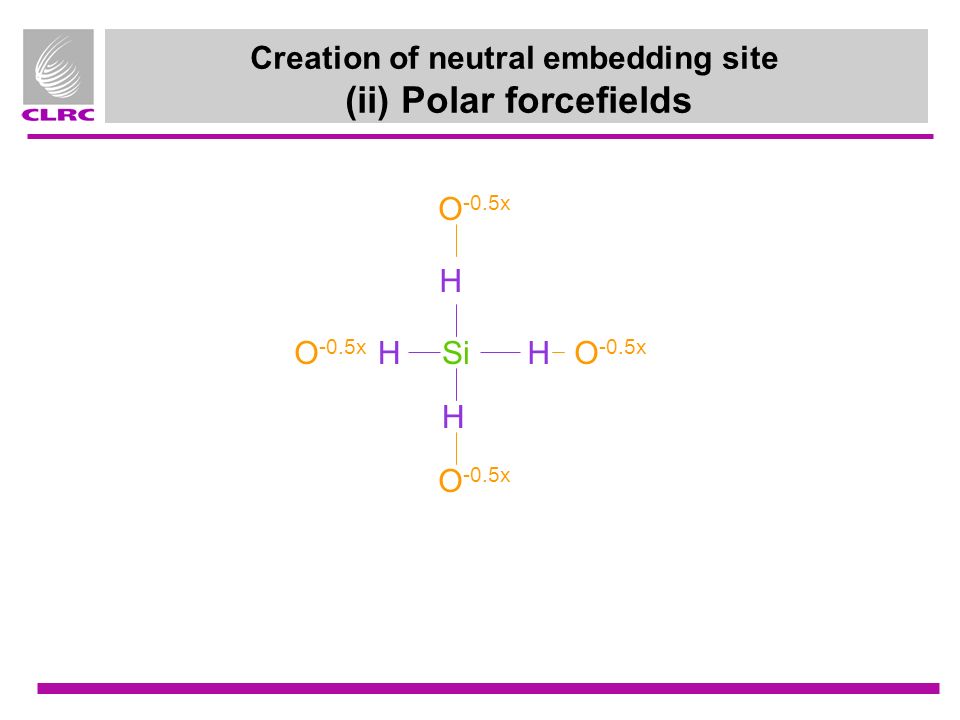

15. Creation of neutral embedding site (ii) Polar forcefields O -0.5x Si H H HH

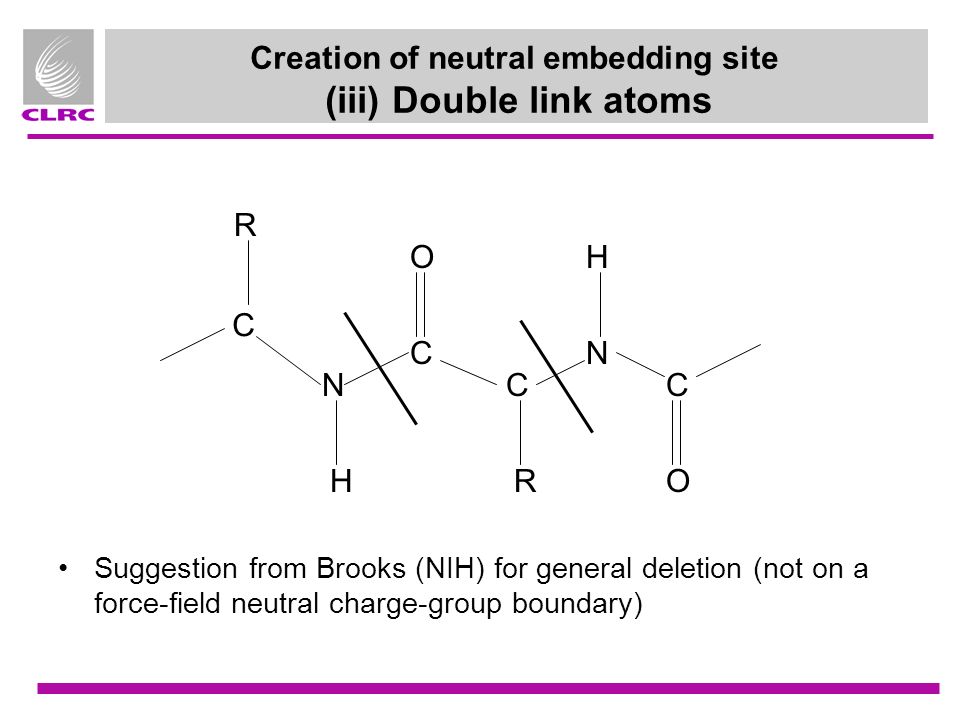

16. Creation of neutral embedding site (iii) Double link atoms Suggestion from Brooks (NIH) for general deletion (not on a force-field neutral charge-group boundary) C N C C O HR N H C O R

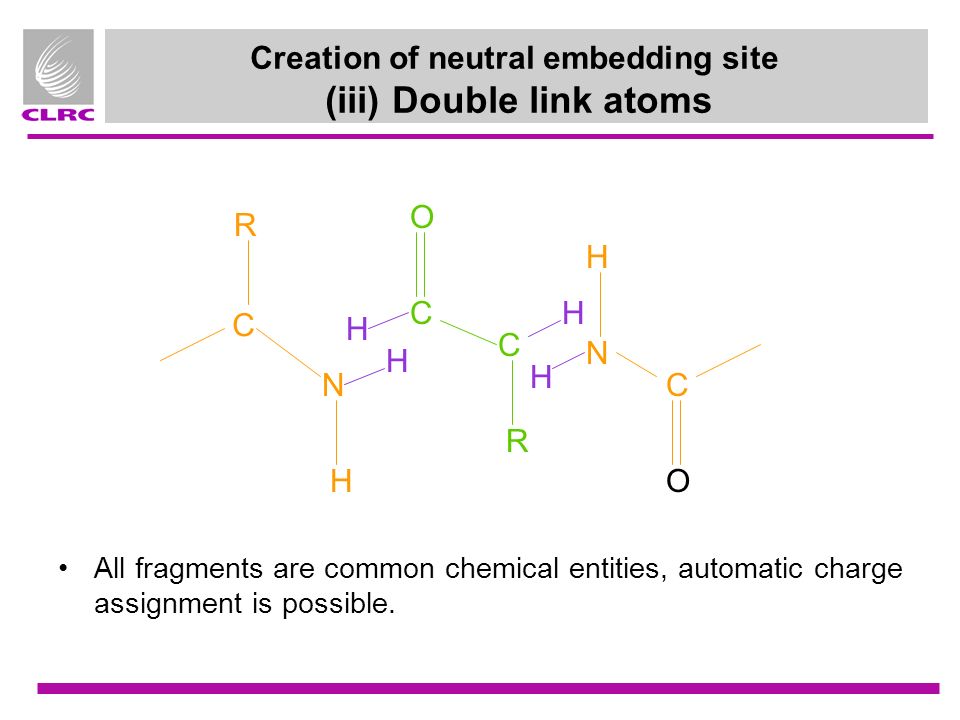

17. Creation of neutral embedding site (iii) Double link atoms All fragments are common chemical entities, automatic charge assignment is possible. C N C C O H R N H C O R H H H H

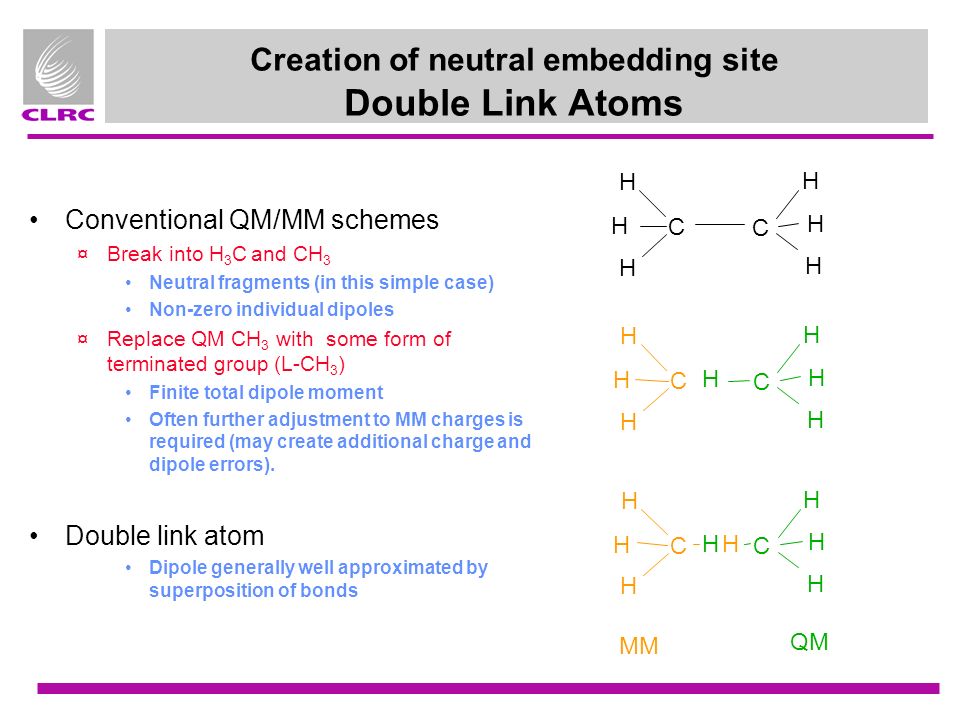

18. Creation of neutral embedding site Double Link Atoms Conventional QM/MM schemes ¤Break into H 3 C and CH 3 Neutral fragments (in this simple case) Non-zero individual dipoles ¤Replace QM CH 3 with some form of terminated group (L-CH 3 ) Finite total dipole moment Often further adjustment to MM charges is required (may create additional charge and dipole errors). Double link atom Dipole generally well approximated by superposition of bonds C C H H H H H H C C H H H H H H H MM QM C C H H H H H H H H

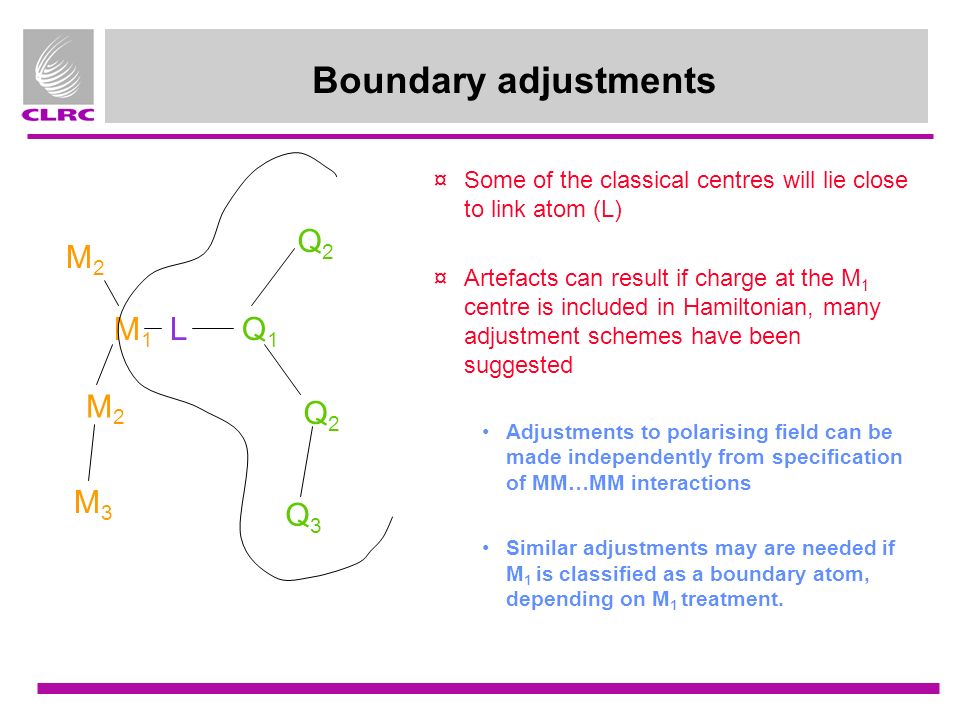

19. Boundary adjustments ¤Some of the classical centres will lie close to link atom (L) ¤Artefacts can result if charge at the M 1 centre is included in Hamiltonian, many adjustment schemes have been suggested Adjustments to polarising field can be made independently from specification of MM…MM interactions Similar adjustments may are needed if M 1 is classified as a boundary atom, depending on M 1 treatment. M2M2 M1M1 Q1Q1 Q2Q2 Q2Q2 M2M2 M3M3 Q3Q3 L

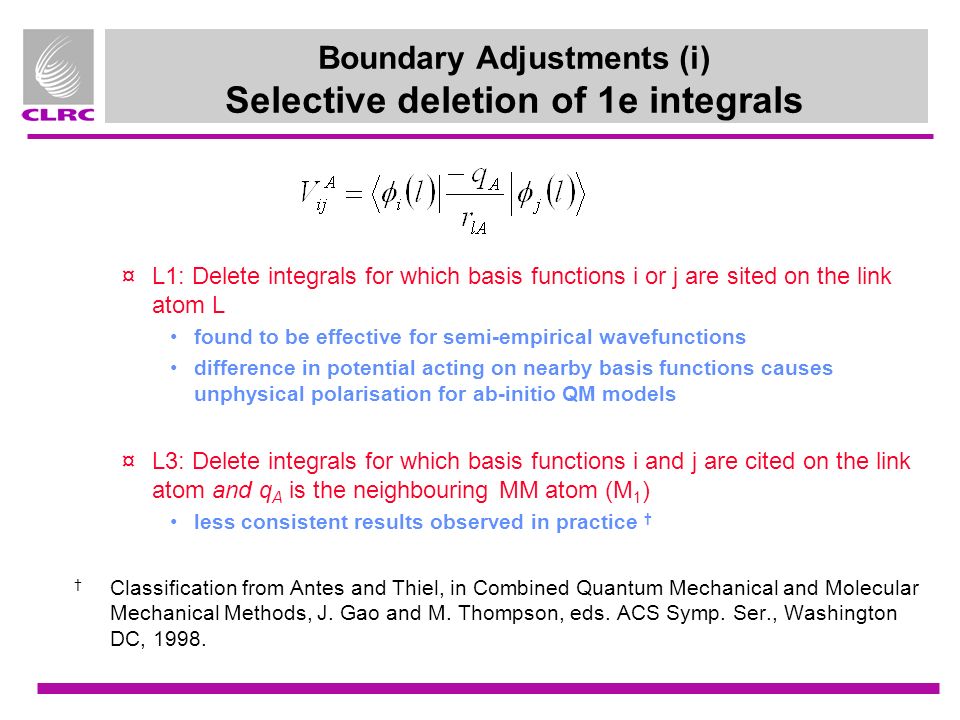

20. Boundary Adjustments (i) Selective deletion of 1e integrals ¤L1: Delete integrals for which basis functions i or j are sited on the link atom L found to be effective for semi-empirical wavefunctions difference in potential acting on nearby basis functions causes unphysical polarisation for ab-initio QM models ¤L3: Delete integrals for which basis functions i and j are cited on the link atom and q A is the neighbouring MM atom (M 1 ) less consistent results observed in practice † † Classification from Antes and Thiel, in Combined Quantum Mechanical and Molecular Mechanical Methods, J. Gao and M. Thompson, eds. ACS Symp. Ser., Washington DC, 1998.

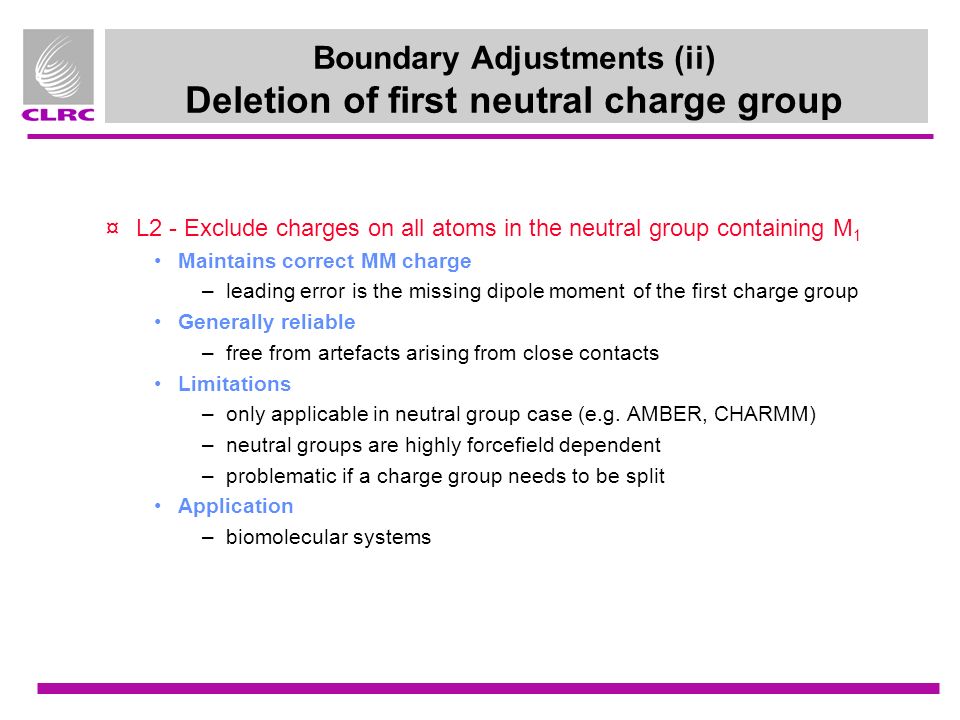

21. Boundary Adjustments (ii) Deletion of first neutral charge group ¤L2 - Exclude charges on all atoms in the neutral group containing M 1 Maintains correct MM charge –leading error is the missing dipole moment of the first charge group Generally reliable –free from artefacts arising from close contacts Limitations –only applicable in neutral group case (e.g. AMBER, CHARMM) –neutral groups are highly forcefield dependent –problematic if a charge group needs to be split Application –biomolecular systems

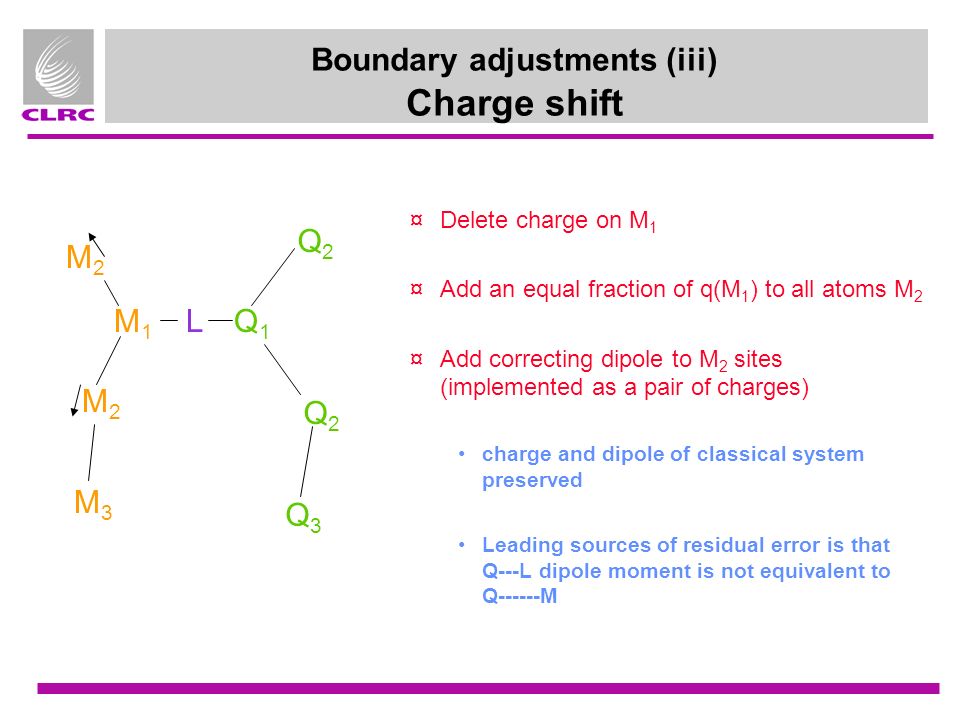

22. Boundary adjustments (iii) Charge shift ¤Delete charge on M 1 ¤Add an equal fraction of q(M 1 ) to all atoms M 2 ¤Add correcting dipole to M 2 sites (implemented as a pair of charges) charge and dipole of classical system preserved Leading sources of residual error is that Q---L dipole moment is not equivalent to Q------M M2M2 M1M1 Q1Q1 Q2Q2 Q2Q2 M2M2 M3M3 Q3Q3 L

23. Adjusted Connection Atoms

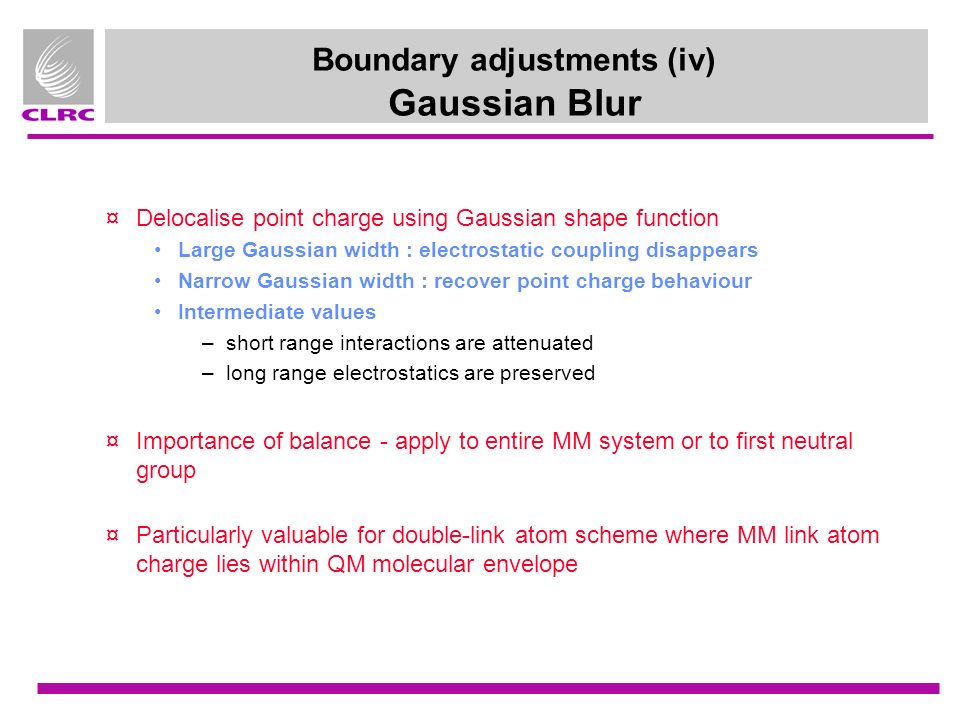

24. Boundary adjustments (iv) Gaussian Blur ¤Delocalise point charge using Gaussian shape function Large Gaussian width : electrostatic coupling disappears Narrow Gaussian width : recover point charge behaviour Intermediate values –short range interactions are attenuated –long range electrostatics are preserved ¤Importance of balance - apply to entire MM system or to first neutral group ¤Particularly valuable for double-link atom scheme where MM link atom charge lies within QM molecular envelope

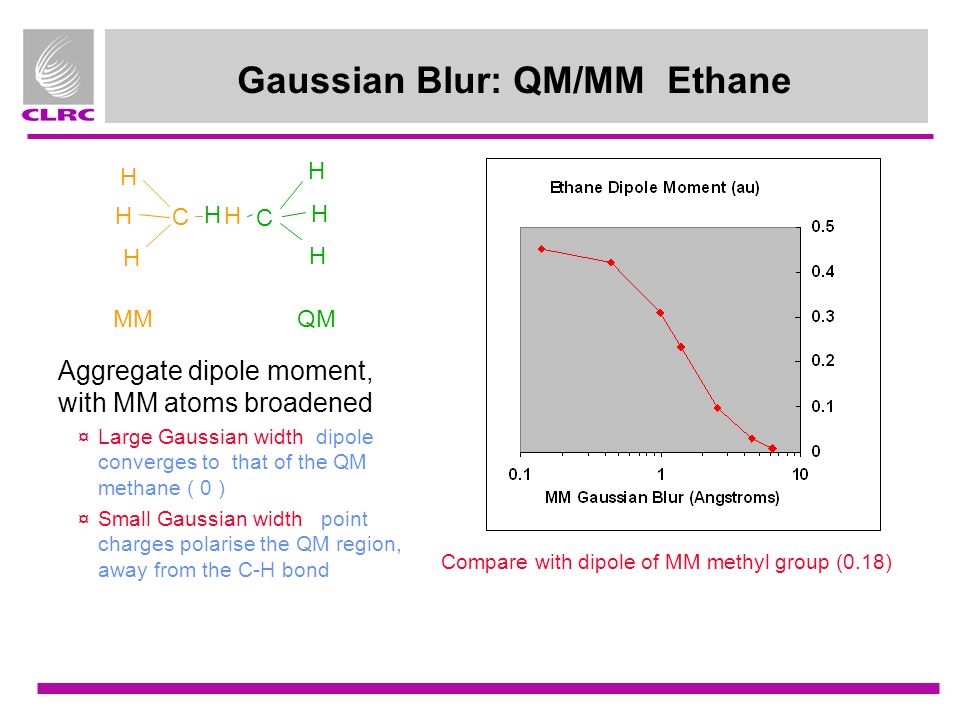

25. Gaussian Blur: QM/MM Ethane Aggregate dipole moment, with MM atoms broadened ¤Large Gaussian width dipole converges to that of the QM methane ( 0 ) ¤Small Gaussian width point charges polarise the QM region, away from the C-H bond MM QM C C H H H H H H H H Compare with dipole of MM methyl group (0.18)

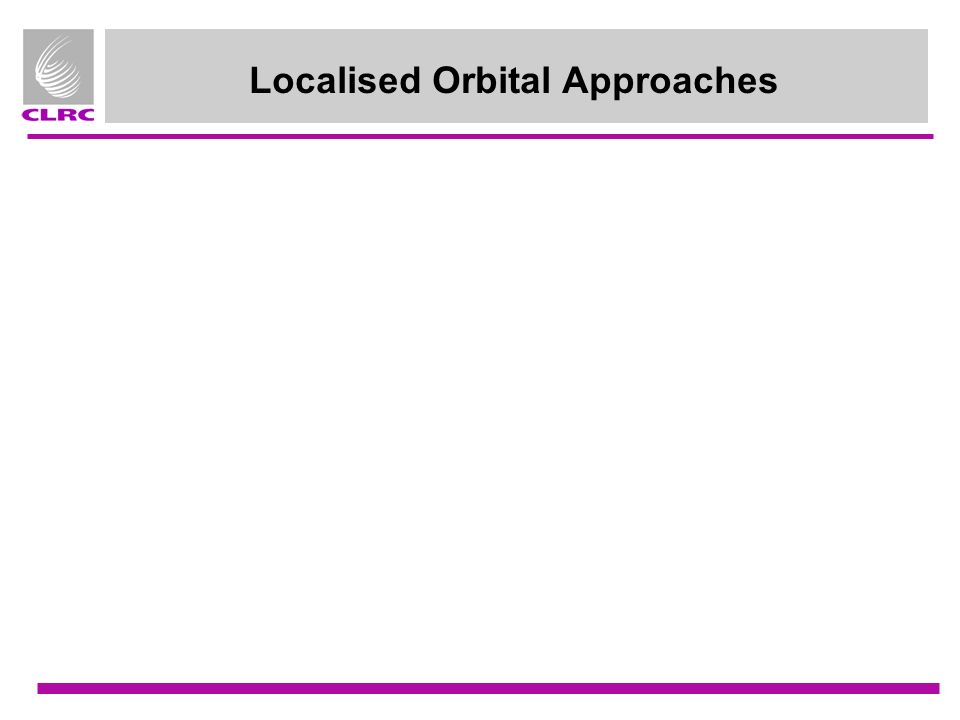

26. Localised Orbital Approaches

27. Electrostatic Embedding Summary Advantages Capable of treating changes in charge density of QM important for solvation energies etc No need for a charge model of QM region can readily model reactions that involve charge separation Drawbacks Charges must provide a reliable model of electrostatics reparameterisation may be needed for some forcefields Danger of spurious interactions between link atoms and charges QM evaluation needed to obtain accurate MM forces QM energy, gradient, Hessian are more costly than gas phase QM

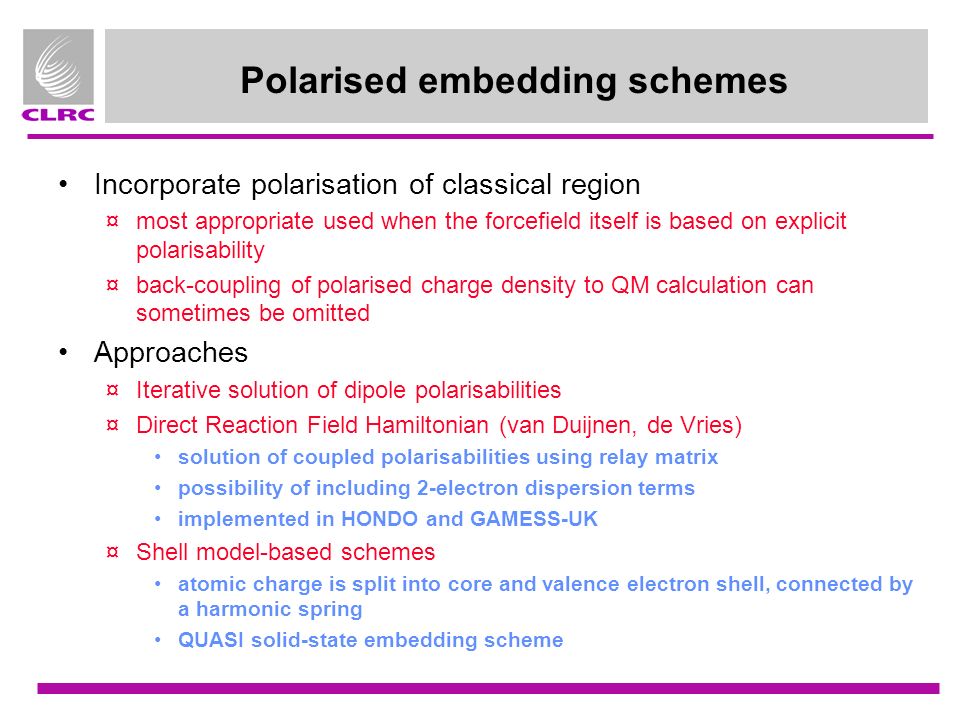

28. Polarised embedding schemes Incorporate polarisation of classical region ¤most appropriate used when the forcefield itself is based on explicit polarisability ¤back-coupling of polarised charge density to QM calculation can sometimes be omitted Approaches ¤Iterative solution of dipole polarisabilities ¤Direct Reaction Field Hamiltonian (van Duijnen, de Vries) solution of coupled polarisabilities using relay matrix possibility of including 2-electron dispersion terms implemented in HONDO and GAMESS-UK ¤Shell model-based schemes atomic charge is split into core and valence electron shell, connected by a harmonic spring QUASI solid-state embedding scheme

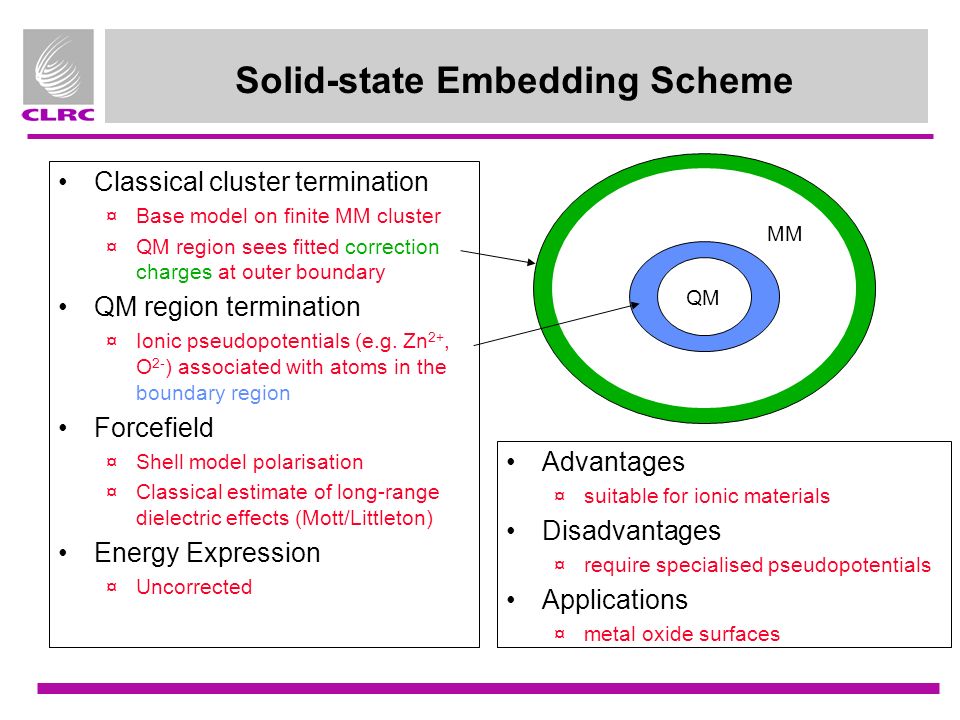

29. QM Solid-state Embedding Scheme Classical cluster termination ¤Base model on finite MM cluster ¤QM region sees fitted correction charges at outer boundary QM region termination ¤Ionic pseudopotentials (e.g. Zn 2+, O 2- ) associated with atoms in the boundary region Forcefield ¤Shell model polarisation ¤Classical estimate of long-range dielectric effects (Mott/Littleton) Energy Expression ¤Uncorrected Advantages ¤suitable for ionic materials Disadvantages ¤require specialised pseudopotentials Applications ¤metal oxide surfaces MM

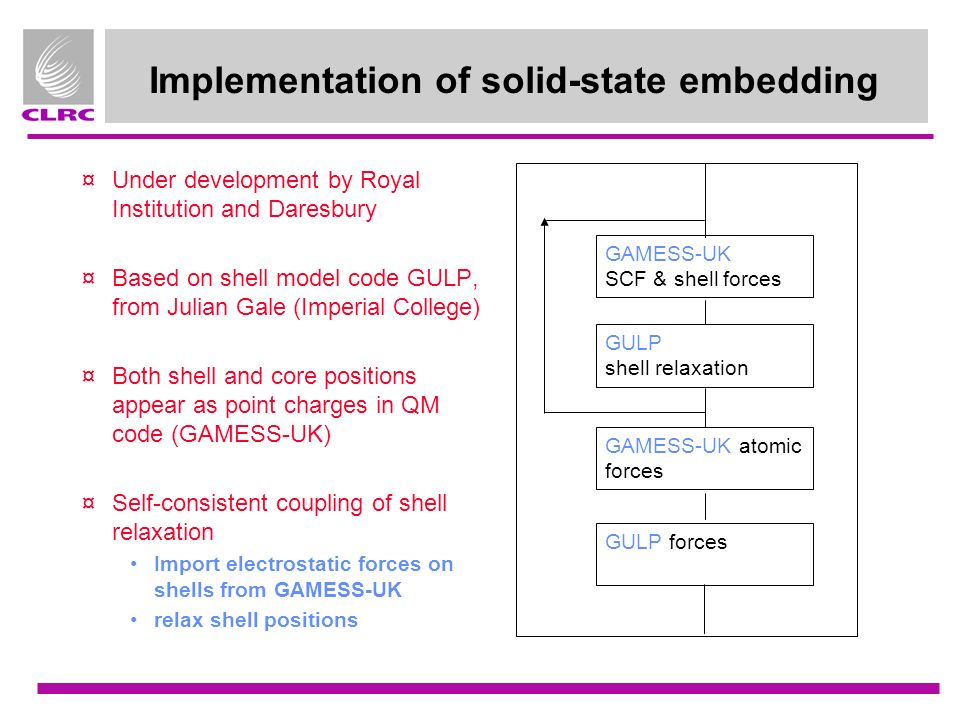

30. Implementation of solid-state embedding ¤Under development by Royal Institution and Daresbury ¤Based on shell model code GULP, from Julian Gale (Imperial College) ¤Both shell and core positions appear as point charges in QM code (GAMESS-UK) ¤Self-consistent coupling of shell relaxation Import electrostatic forces on shells from GAMESS-UK relax shell positions GULP shell relaxation GAMESS-UK SCF & shell forces GAMESS-UK atomic forces GULP forces

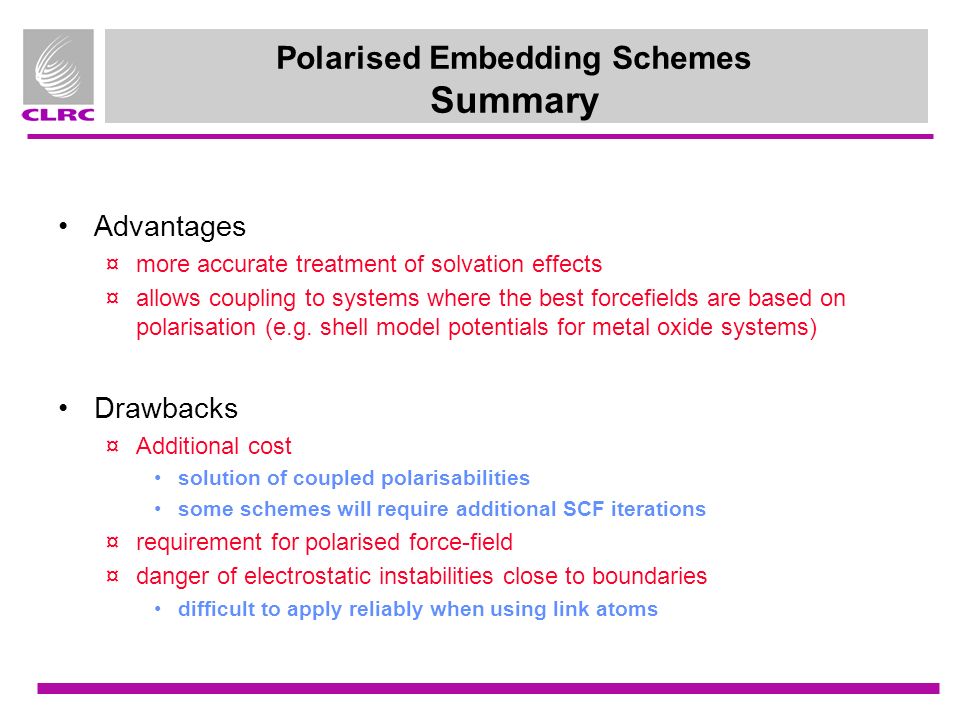

31. Polarised Embedding Schemes Summary Advantages ¤more accurate treatment of solvation effects ¤allows coupling to systems where the best forcefields are based on polarisation (e.g. shell model potentials for metal oxide systems) Drawbacks ¤Additional cost solution of coupled polarisabilities some schemes will require additional SCF iterations ¤requirement for polarised force-field ¤danger of electrostatic instabilities close to boundaries difficult to apply reliably when using link atoms

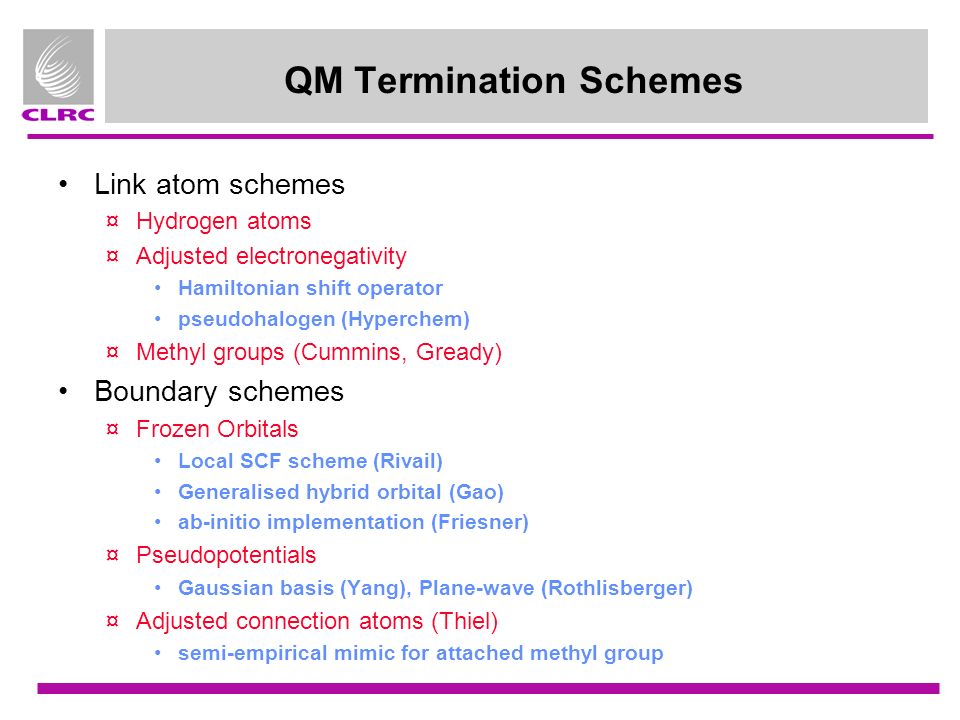

32. QM Termination Schemes Link atom schemes ¤Hydrogen atoms ¤Adjusted electronegativity Hamiltonian shift operator pseudohalogen (Hyperchem) ¤Methyl groups (Cummins, Gready) Boundary schemes ¤Frozen Orbitals Local SCF scheme (Rivail) Generalised hybrid orbital (Gao) ab-initio implementation (Friesner) ¤Pseudopotentials Gaussian basis (Yang), Plane-wave (Rothlisberger) ¤Adjusted connection atoms (Thiel) semi-empirical mimic for attached methyl group

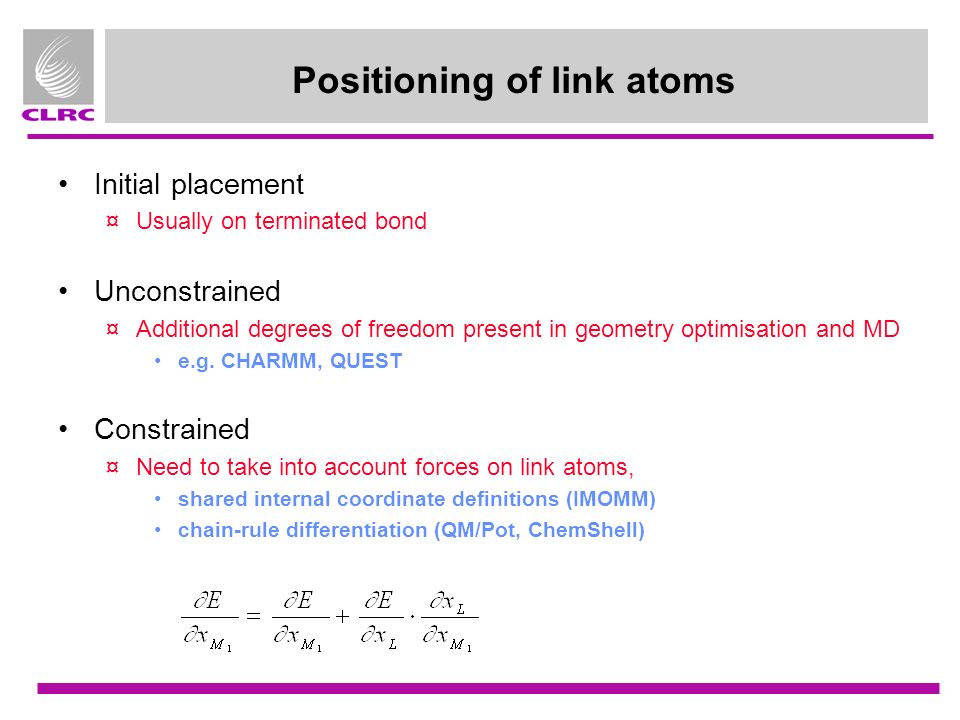

33. Initial placement ¤Usually on terminated bond Unconstrained ¤Additional degrees of freedom present in geometry optimisation and MD e.g. CHARMM, QUEST Constrained ¤Need to take into account forces on link atoms, shared internal coordinate definitions (IMOMM) chain-rule differentiation (QM/Pot, ChemShell) Positioning of link atoms

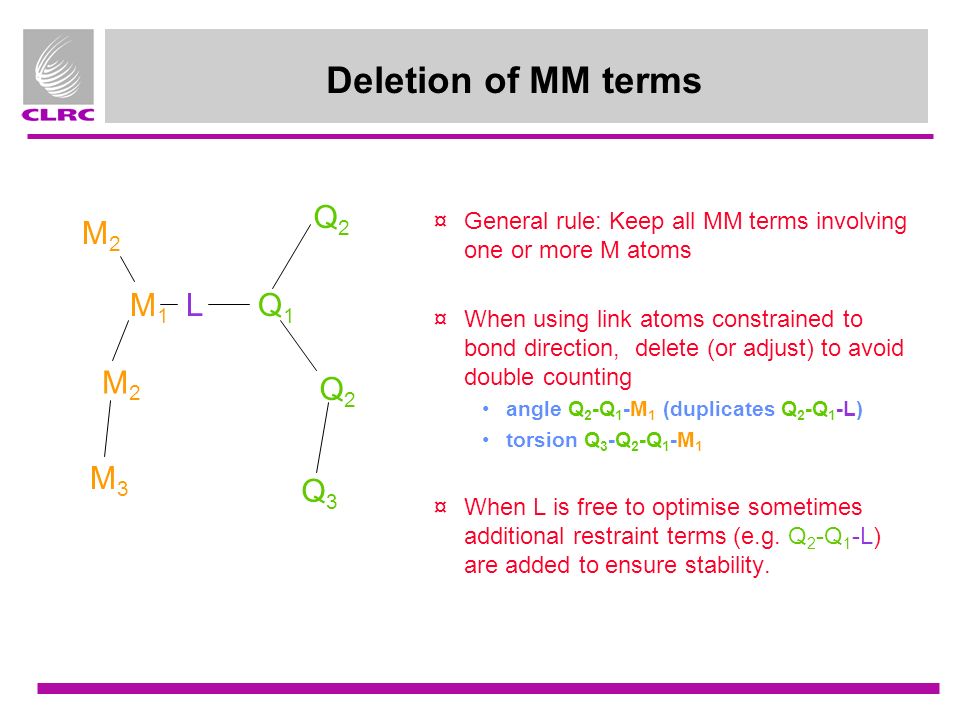

34. Deletion of MM terms ¤General rule: Keep all MM terms involving one or more M atoms ¤When using link atoms constrained to bond direction, delete (or adjust) to avoid double counting angle Q 2 -Q 1 -M 1 (duplicates Q 2 -Q 1 -L) torsion Q 3 -Q 2 -Q 1 -M 1 ¤When L is free to optimise sometimes additional restraint terms (e.g. Q 2 -Q 1 -L) are added to ensure stability. M2M2 M1M1 Q1Q1 Q2Q2 Q2Q2 M2M2 M3M3 Q3Q3 L

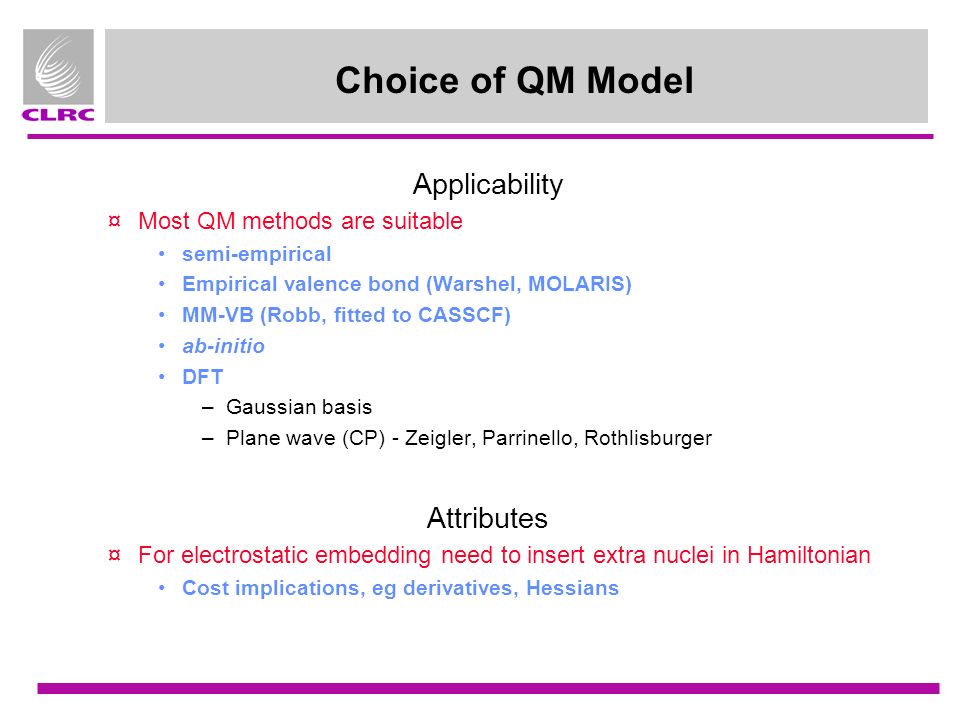

35. Choice of QM Model Applicability ¤Most QM methods are suitable semi-empirical Empirical valence bond (Warshel, MOLARIS) MM-VB (Robb, fitted to CASSCF) ab-initio DFT –Gaussian basis –Plane wave (CP) - Zeigler, Parrinello, Rothlisburger Attributes ¤For electrostatic embedding need to insert extra nuclei in Hamiltonian Cost implications, eg derivatives, Hessians

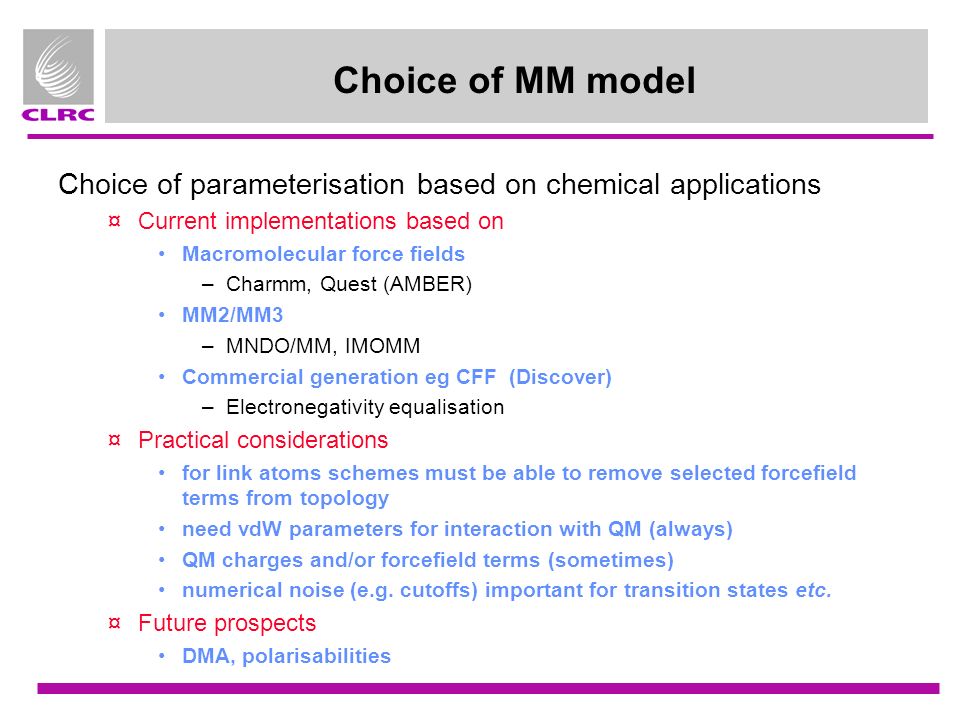

36. Choice of MM model Choice of parameterisation based on chemical applications ¤Current implementations based on Macromolecular force fields –Charmm, Quest (AMBER) MM2/MM3 –MNDO/MM, IMOMM Commercial generation eg CFF (Discover) –Electronegativity equalisation ¤Practical considerations for link atoms schemes must be able to remove selected forcefield terms from topology need vdW parameters for interaction with QM (always) QM charges and/or forcefield terms (sometimes) numerical noise (e.g. cutoffs) important for transition states etc. ¤Future prospects DMA, polarisabilities

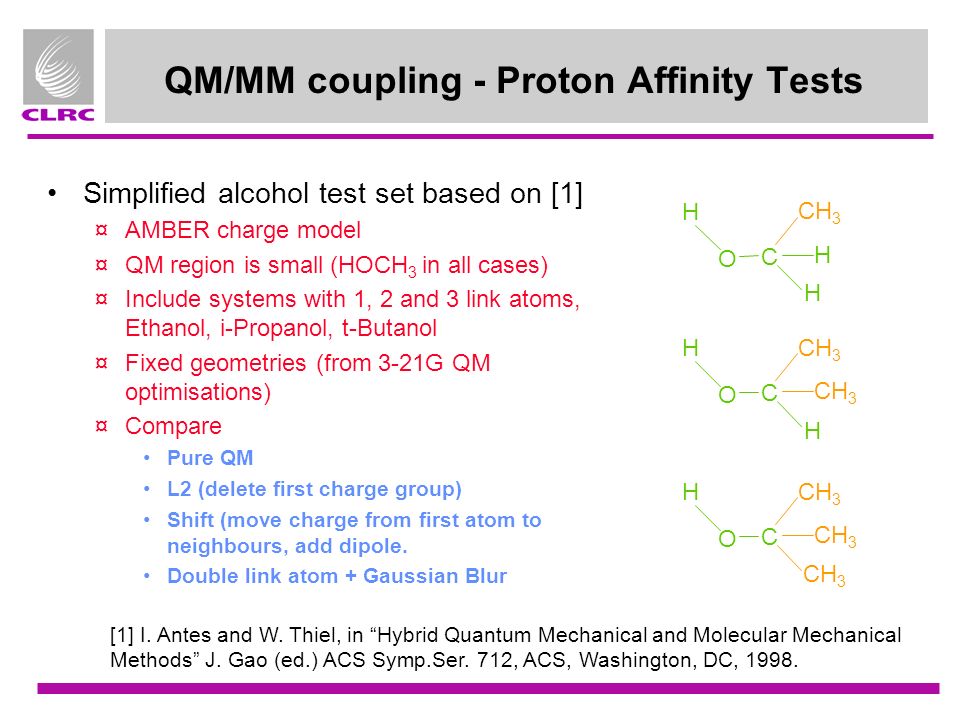

37. QM/MM coupling - Proton Affinity Tests Simplified alcohol test set based on [1] ¤AMBER charge model ¤QM region is small (HOCH 3 in all cases) ¤Include systems with 1, 2 and 3 link atoms, Ethanol, i-Propanol, t-Butanol ¤Fixed geometries (from 3-21G QM optimisations) ¤Compare Pure QM L2 (delete first charge group) Shift (move charge from first atom to neighbours, add dipole. Double link atom + Gaussian Blur H C CH 3 O H C O H H C O H H [1] I. Antes and W. Thiel, in “Hybrid Quantum Mechanical and Molecular Mechanical Methods” J. Gao (ed.) ACS Symp.Ser. 712, ACS, Washington, DC, 1998.

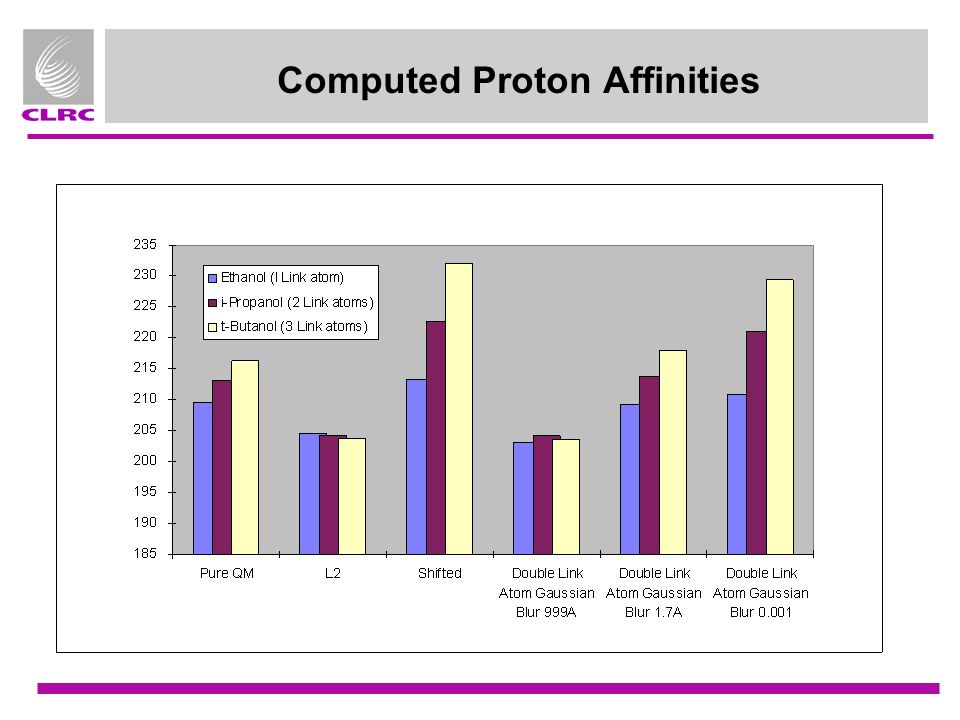

38. Computed Proton Affinities

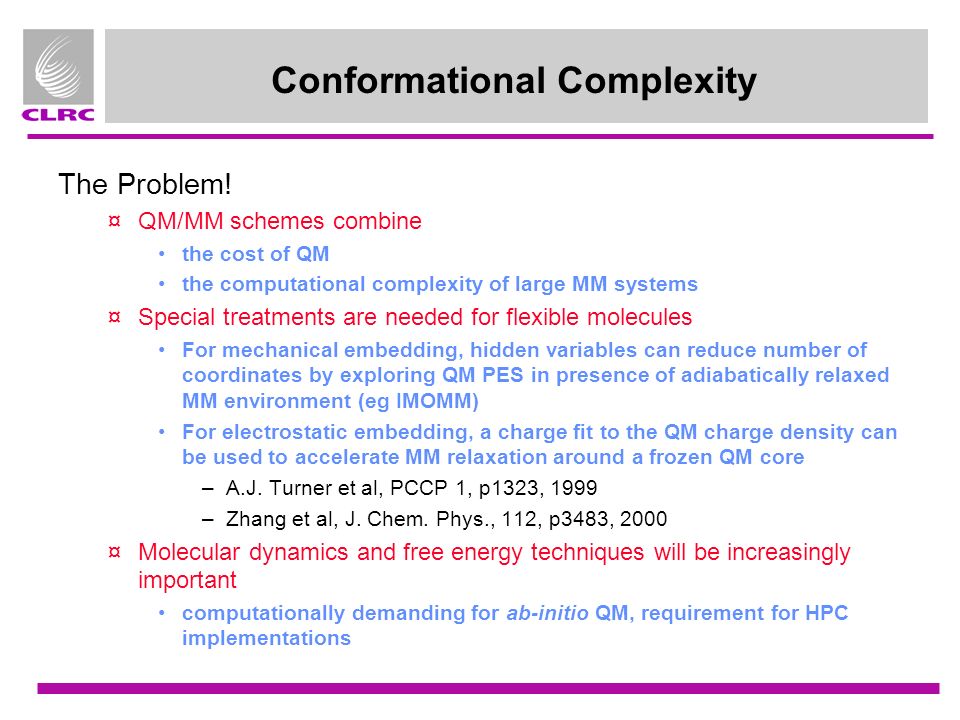

39. Conformational Complexity The Problem! ¤QM/MM schemes combine the cost of QM the computational complexity of large MM systems ¤Special treatments are needed for flexible molecules For mechanical embedding, hidden variables can reduce number of coordinates by exploring QM PES in presence of adiabatically relaxed MM environment (eg IMOMM) For electrostatic embedding, a charge fit to the QM charge density can be used to accelerate MM relaxation around a frozen QM core –A.J. Turner et al, PCCP 1, p1323, 1999 –Zhang et al, J. Chem. Phys., 112, p3483, 2000 ¤Molecular dynamics and free energy techniques will be increasingly important computationally demanding for ab-initio QM, requirement for HPC implementations

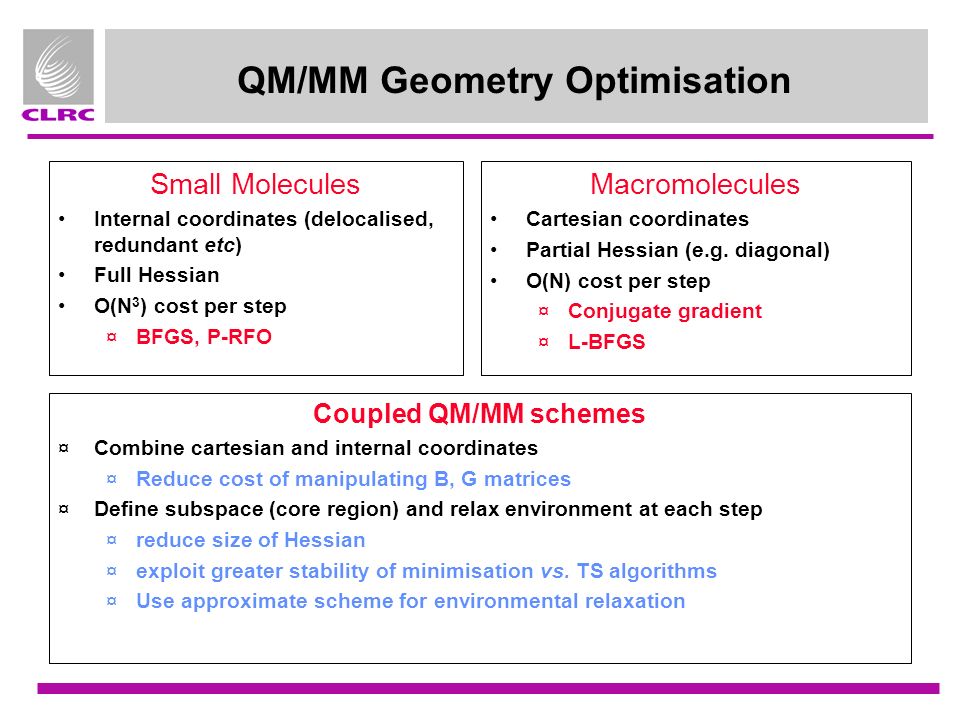

40. QM/MM Geometry Optimisation Small Molecules Internal coordinates (delocalised, redundant etc) Full Hessian O(N 3 ) cost per step ¤BFGS, P-RFO Macromolecules Cartesian coordinates Partial Hessian (e.g. diagonal) O(N) cost per step ¤Conjugate gradient ¤L-BFGS Coupled QM/MM schemes ¤Combine cartesian and internal coordinates ¤Reduce cost of manipulating B, G matrices ¤Define subspace (core region) and relax environment at each step ¤reduce size of Hessian ¤exploit greater stability of minimisation vs. TS algorithms ¤Use approximate scheme for environmental relaxation

41. HDLC Optimiser

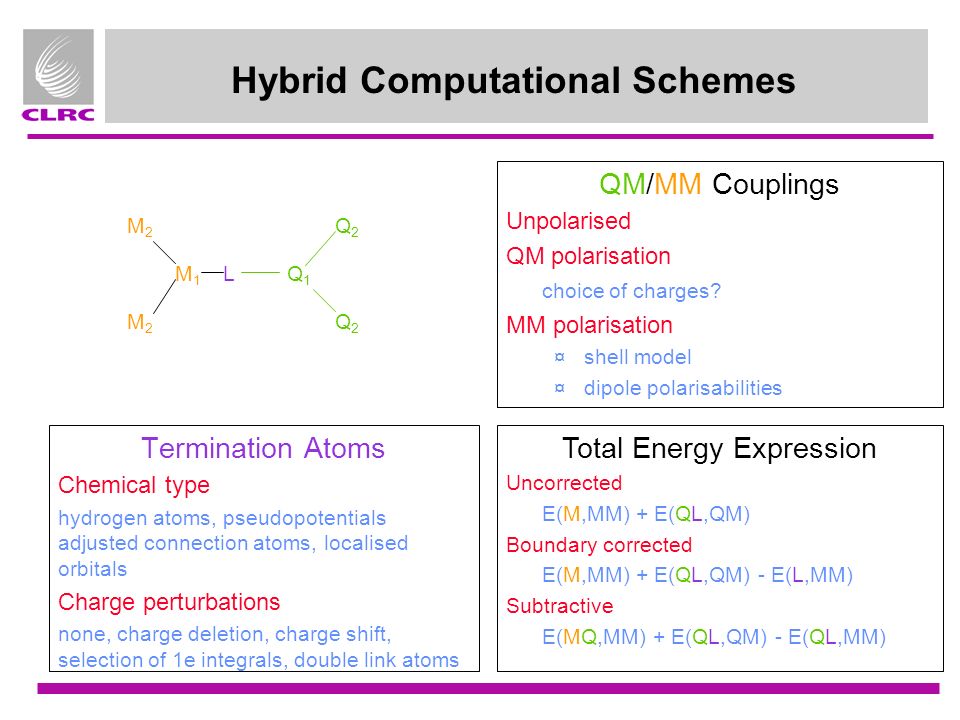

42. Hybrid Computational Schemes Termination Atoms Chemical type hydrogen atoms, pseudopotentials adjusted connection atoms, localised orbitals Charge perturbations none, charge deletion, charge shift, selection of 1e integrals, double link atoms QM/MM Couplings Unpolarised QM polarisation choice of charges? MM polarisation ¤shell model ¤dipole polarisabilities Total Energy Expression Uncorrected E(M,MM) + E(QL,QM) Boundary corrected E(M,MM) + E(QL,QM) - E(L,MM) Subtractive E(MQ,MM) + E(QL,QM) - E(QL,MM) M1M1 M2M2 Q1Q1 Q2Q2 L M2M2 Q2Q2

43. Termination of the QM region Boundary region approaches ¤Boundary atoms are present in both QM and MM calculations ¤Range of representations within QM code Modified ab-initio atom with model potential Semi-empirical parameterisation Frozen orbitals ¤ Re-parameterised MM potentials Link atom schemes ¤Terminating (link) atoms are invisible to MM calculations Hydrogen, pseudo-halogen, etc.

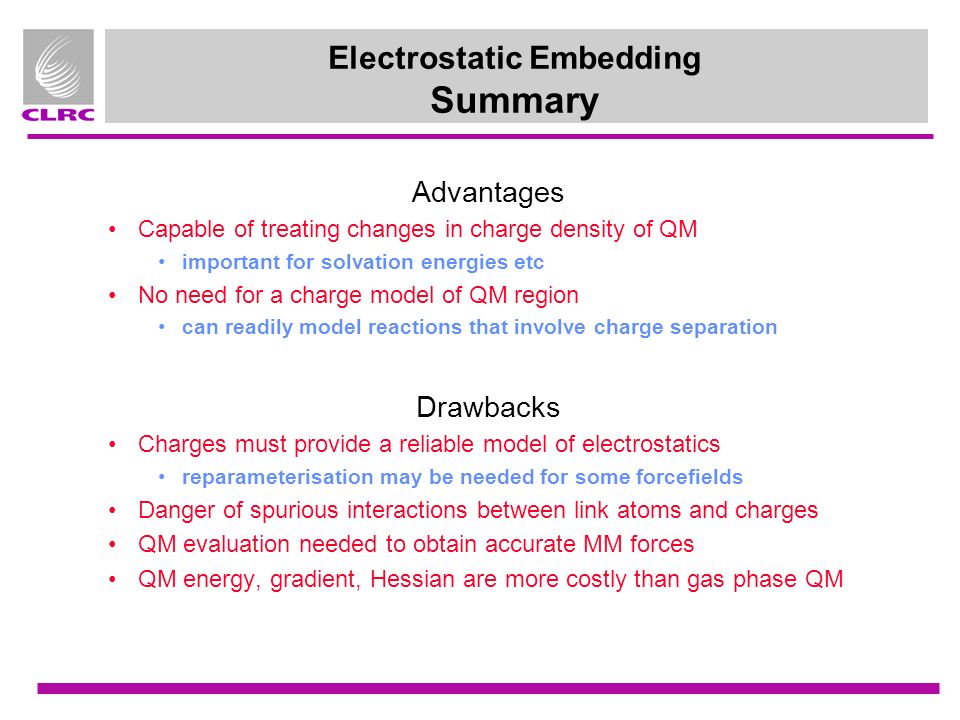

44. Electrostatic Embedding Summary Advantages Capable of treating changes in charge density of QM important for solvation energies etc No need for a charge model of QM region can readily model reactions that involve charge separation Drawbacks Charges must provide a reliable model of electrostatics reparameterisation may be needed for some forcefields Danger of spurious interactions between link atoms and charges QM evaluation needed to obtain accurate MM forces QM energy, gradient, Hessian are more costly than gas phase QM

45. QM Solid-state Embedding Scheme Classical cluster termination ¤Base model on finite MM cluster ¤QM region sees fitted correction charges at outer boundary QM region termination ¤Ionic pseudopotentials (e.g. Zn 2+, O 2- ) associated with atoms in the boundary region Forcefield ¤Shell model polarisation ¤Classical estimate of long-range dielectric effects (Mott/Littleton) Energy Expression ¤Uncorrected Advantages ¤suitable for ionic materials Disadvantages ¤require specialised pseudopotentials Applications ¤metal oxide surfaces MM

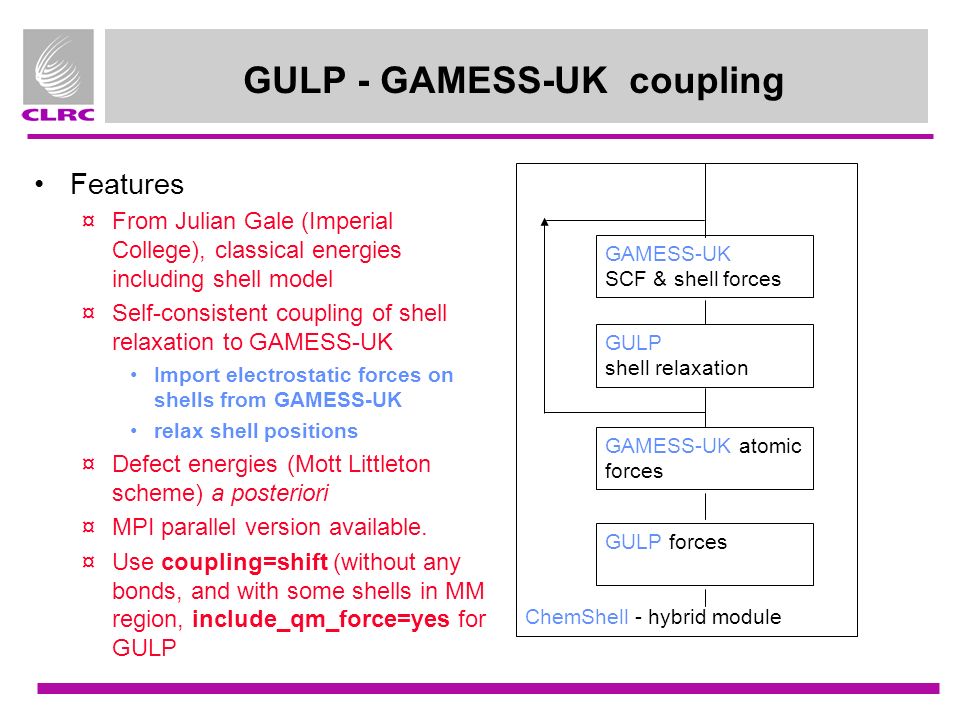

46. GULP - GAMESS-UK coupling Features ¤From Julian Gale (Imperial College), classical energies including shell model ¤Self-consistent coupling of shell relaxation to GAMESS-UK Import electrostatic forces on shells from GAMESS-UK relax shell positions ¤Defect energies (Mott Littleton scheme) a posteriori ¤MPI parallel version available. ¤Use coupling=shift (without any bonds, and with some shells in MM region, include_qm_force=yes for GULP ChemShell - hybrid module GULP shell relaxation GAMESS-UK SCF & shell forces GAMESS-UK atomic forces GULP forces
