1. The length of vertex pursuit games Anthony Bonato Ryerson University CCC 2013

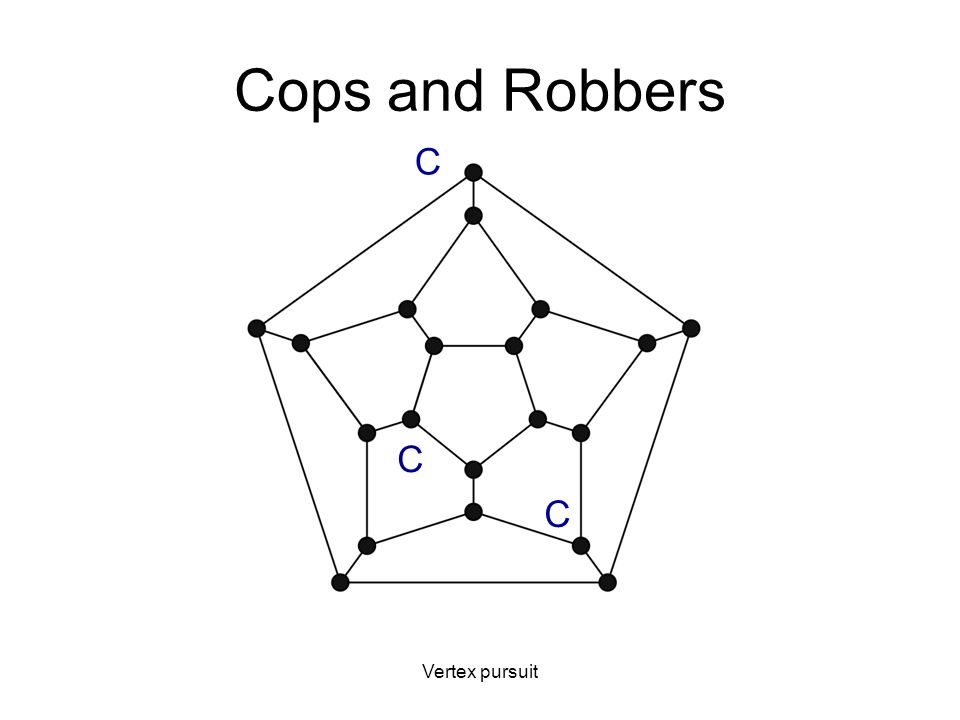

2. Cops and Robbers Vertex pursuit C C C

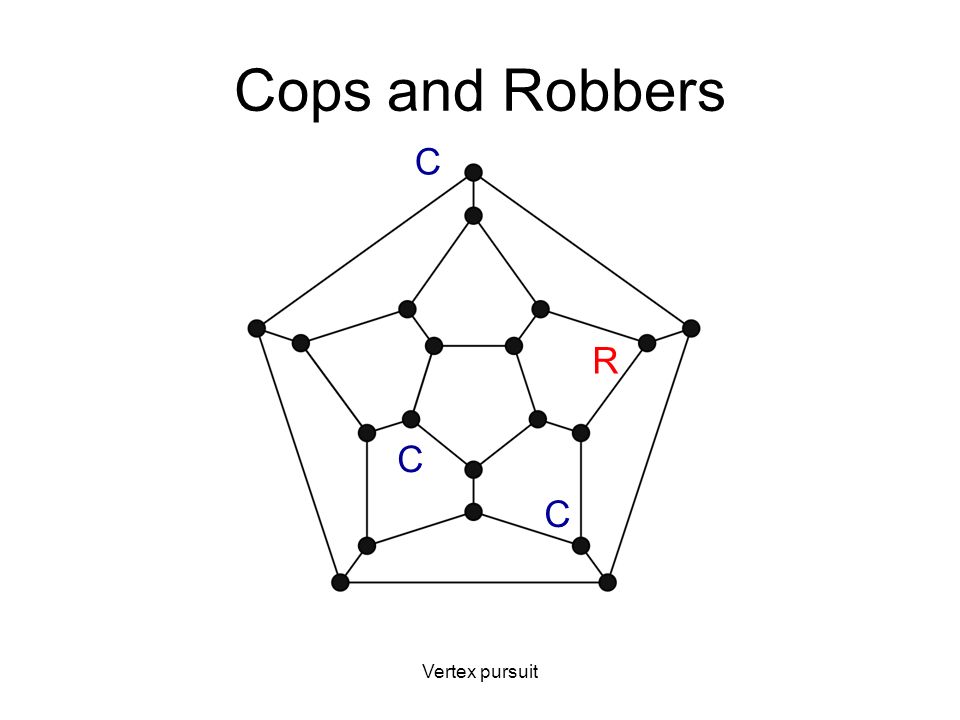

3. Cops and Robbers Vertex pursuit C C C R

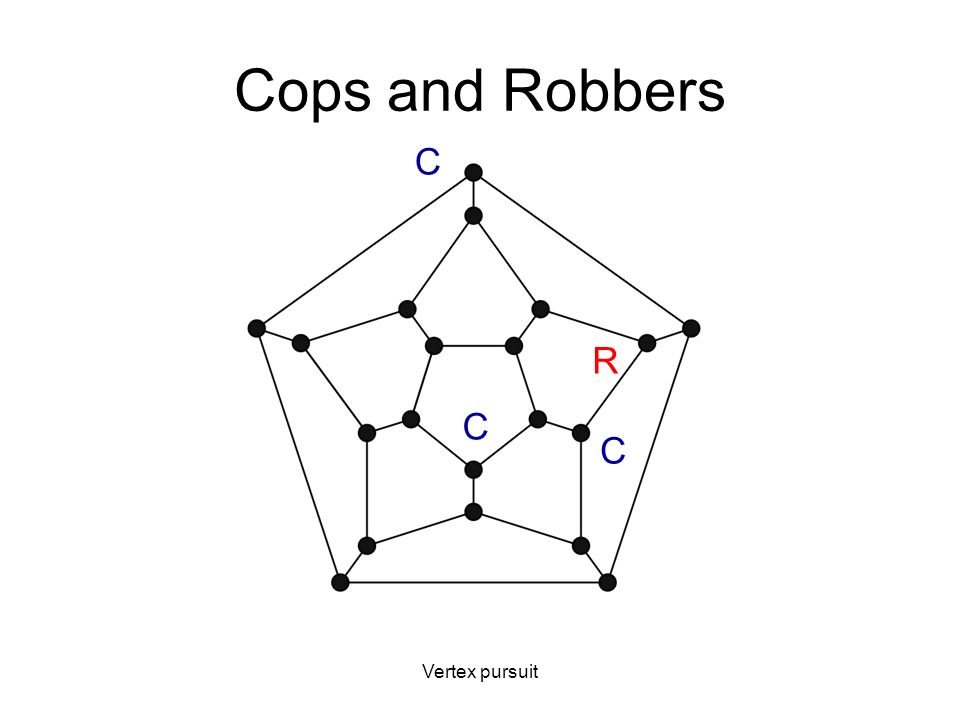

4. Cops and Robbers Vertex pursuit C C C R

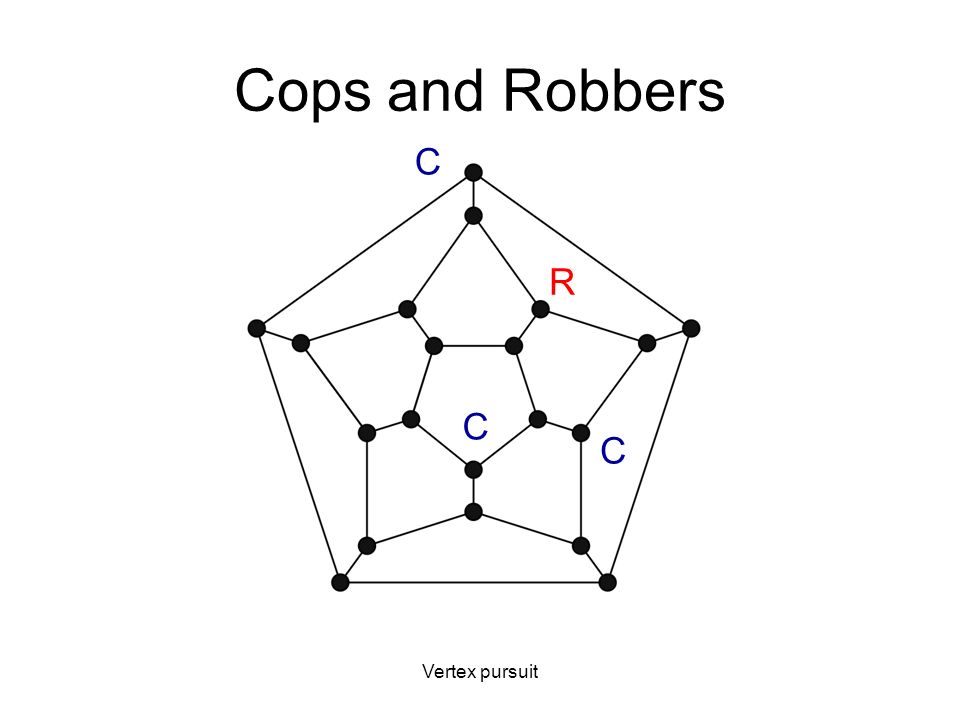

5. Cops and Robbers Vertex pursuit C C C R

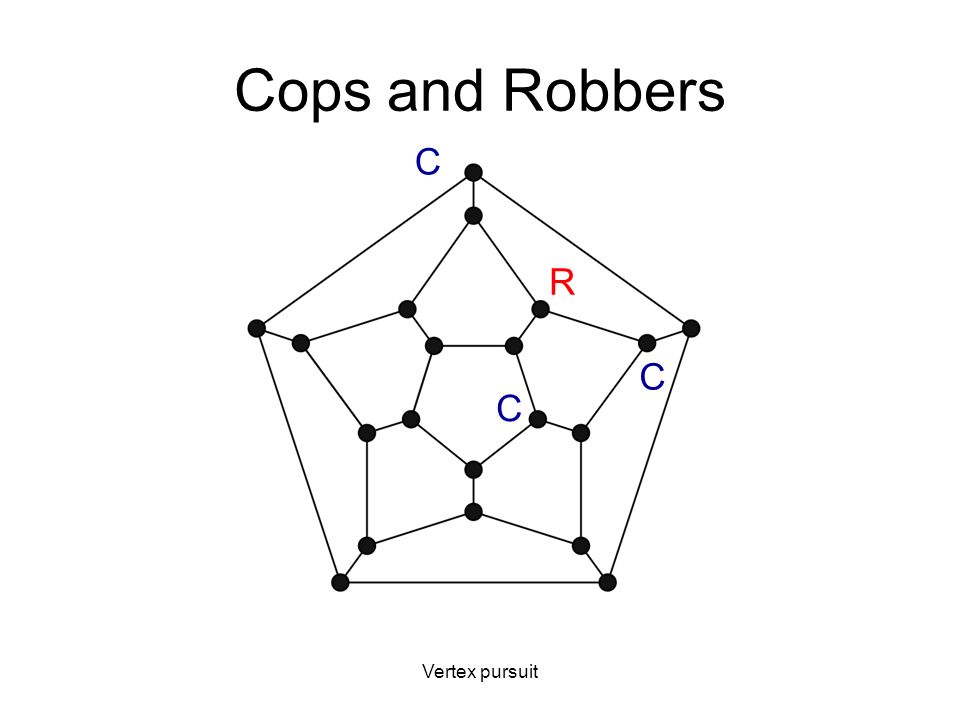

6. Cops and Robbers Vertex pursuit C C C R

7. Cops and Robbers Vertex pursuit C C C R

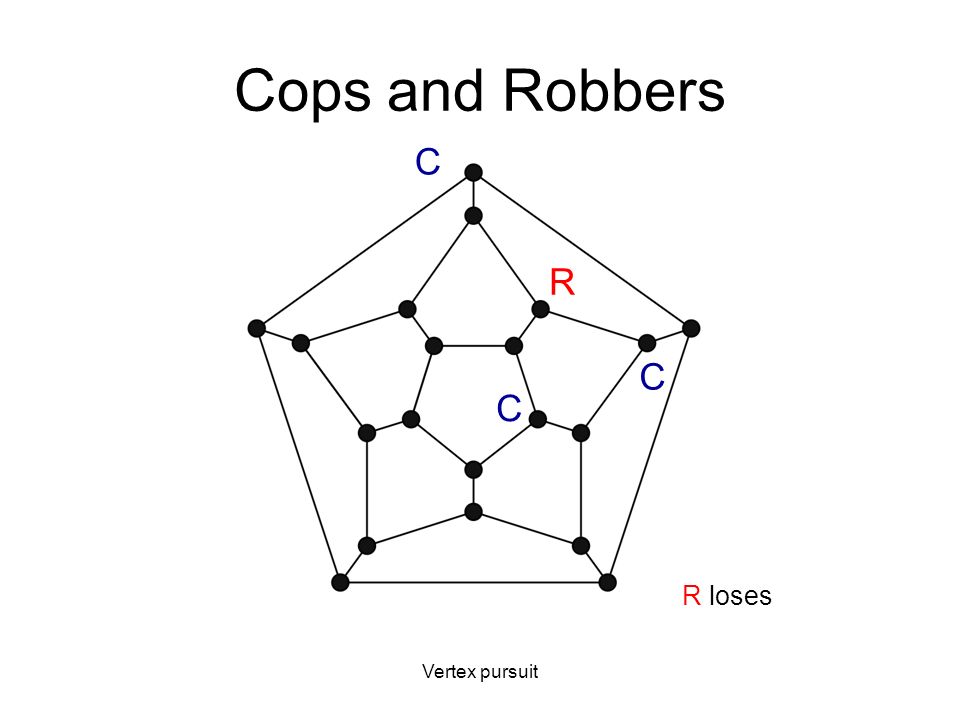

8. Cops and Robbers Vertex pursuit C C C R R loses

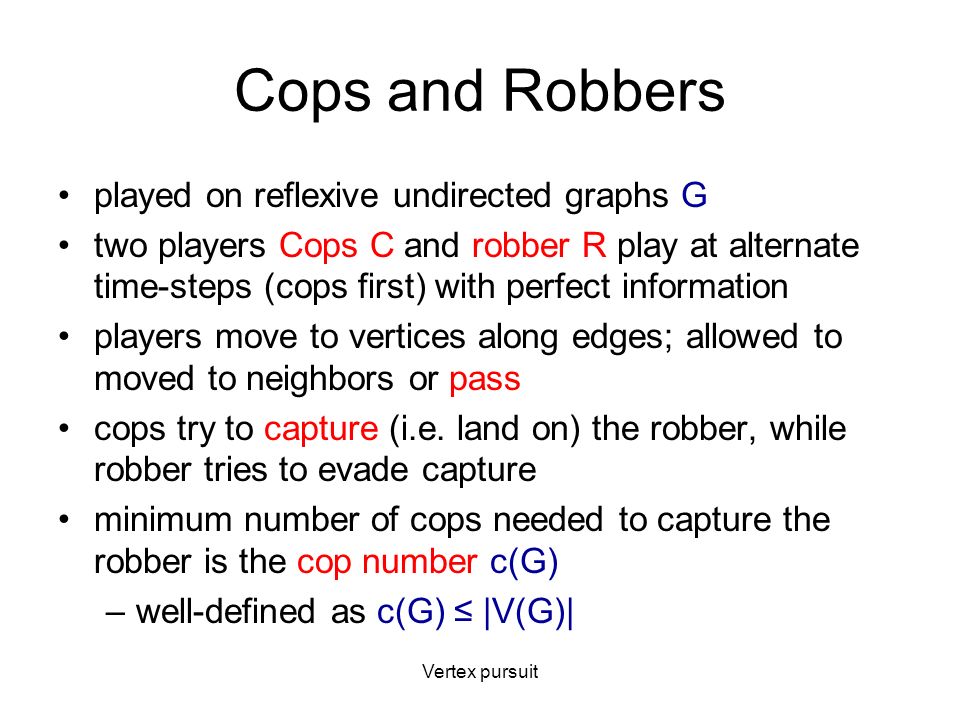

9. Cops and Robbers played on reflexive undirected graphs G two players Cops C and robber R play at alternate time-steps (cops first) with perfect information players move to vertices along edges; allowed to moved to neighbors or pass cops try to capture (i.e. land on) the robber, while robber tries to evade capture minimum number of cops needed to capture the robber is the cop number c(G) –well-defined as c(G) ≤ |V(G)| Vertex pursuit

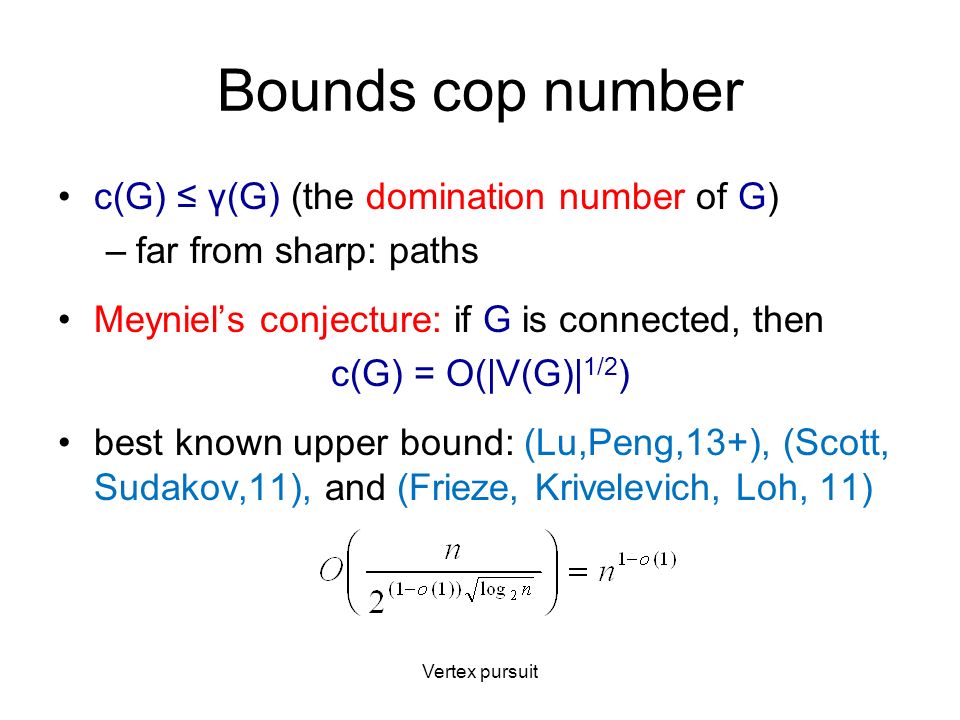

10. Bounds cop number c(G) ≤ γ(G) (the domination number of G) –far from sharp: paths Meyniel’s conjecture: if G is connected, then c(G) = O(|V(G)| 1/2 ) best known upper bound: (Lu,Peng,13+), (Scott, Sudakov,11), and (Frieze, Krivelevich, Loh, 11) Vertex pursuit

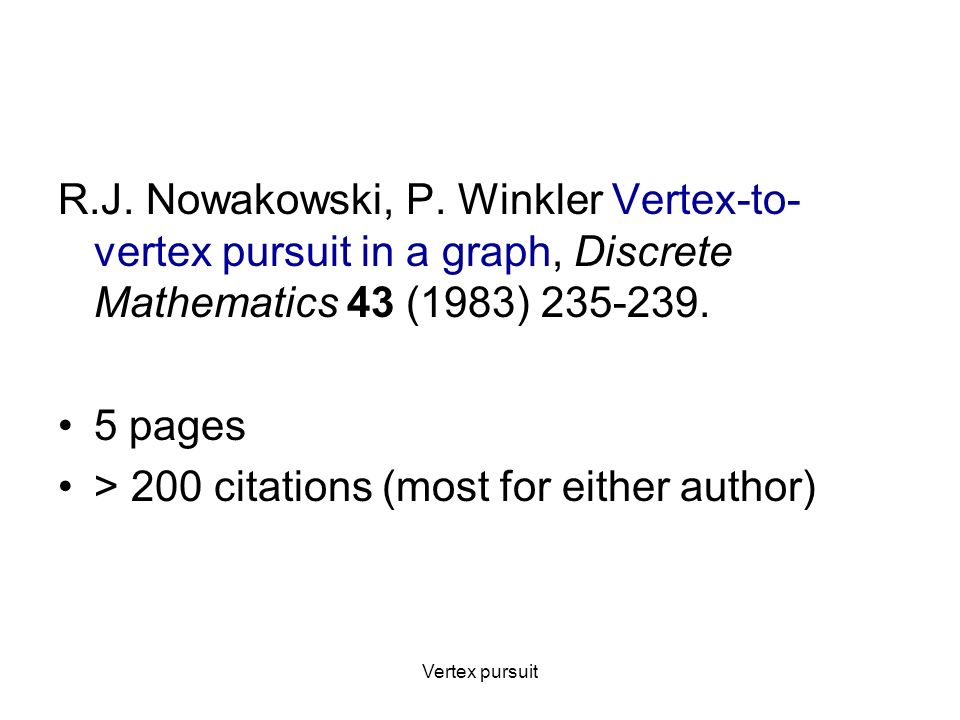

12. R.J. Nowakowski, P. Winkler Vertex-to- vertex pursuit in a graph, Discrete Mathematics 43 (1983) 235-239. 5 pages > 200 citations (most for either author) Vertex pursuit

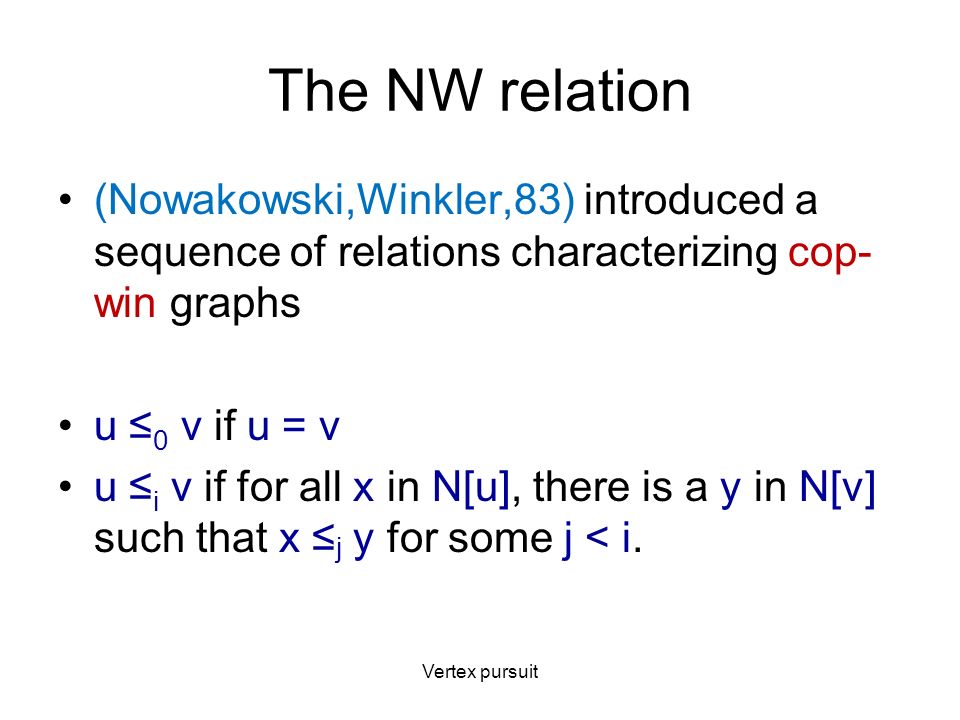

13. The NW relation (Nowakowski,Winkler,83) introduced a sequence of relations characterizing cop- win graphs u ≤ 0 v if u = v u ≤ i v if for all x in N[u], there is a y in N[v] such that x ≤ j y for some j < i. Vertex pursuit

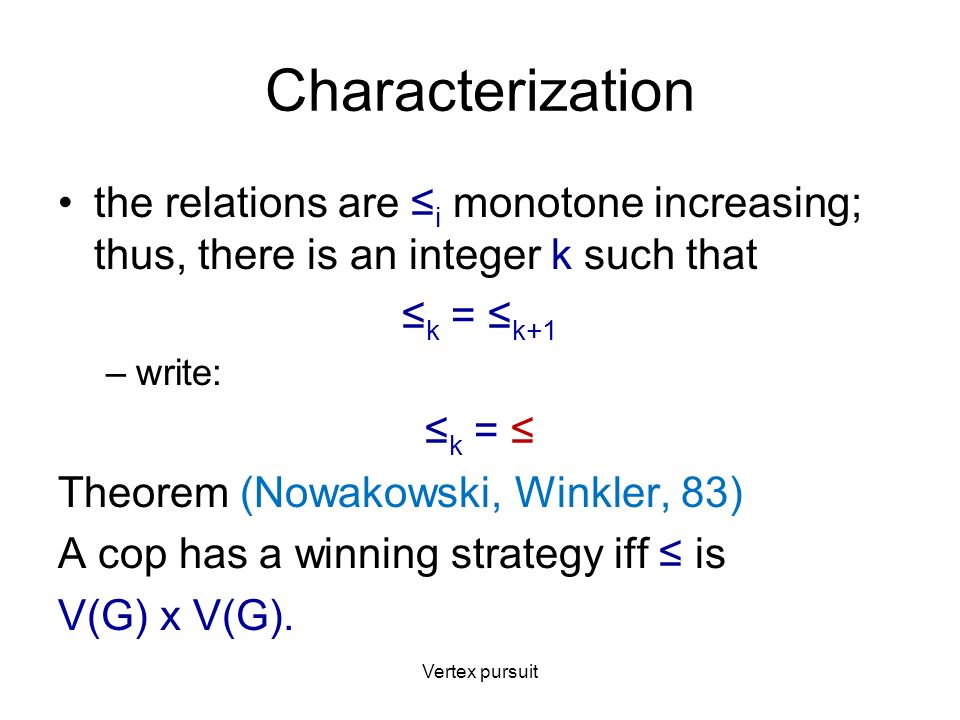

14. Characterization the relations are ≤ i monotone increasing; thus, there is an integer k such that ≤ k = ≤ k+1 –write: ≤ k = ≤ Theorem (Nowakowski, Winkler, 83) A cop has a winning strategy iff ≤ is V(G) x V(G). Vertex pursuit

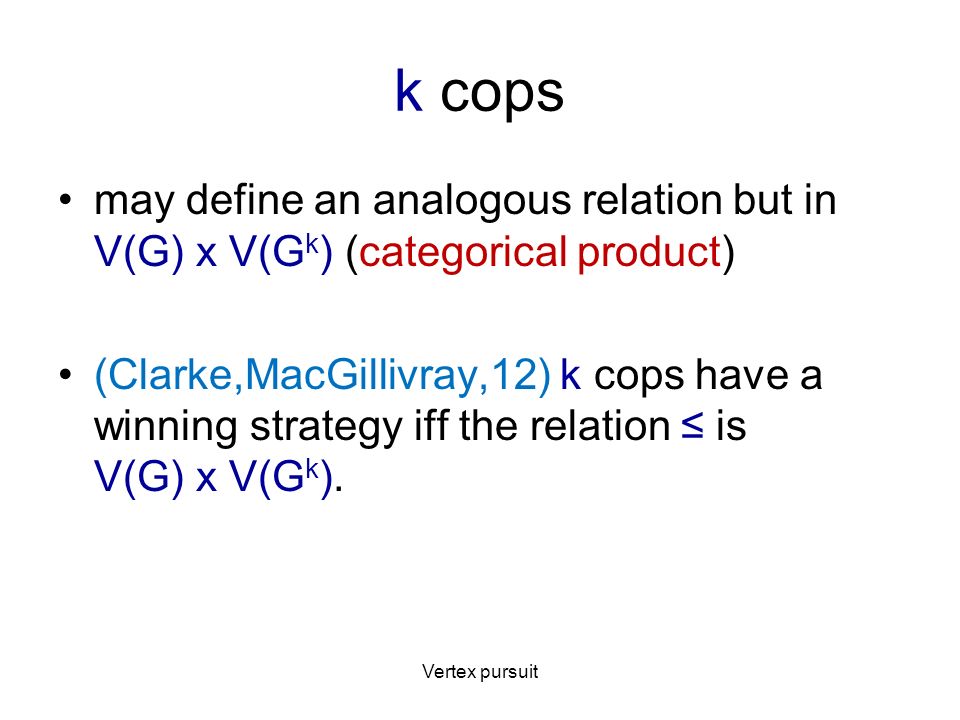

15. k cops may define an analogous relation but in V(G) x V(G k ) (categorical product) (Clarke,MacGillivray,12) k cops have a winning strategy iff the relation ≤ is V(G) x V(G k ). Vertex pursuit

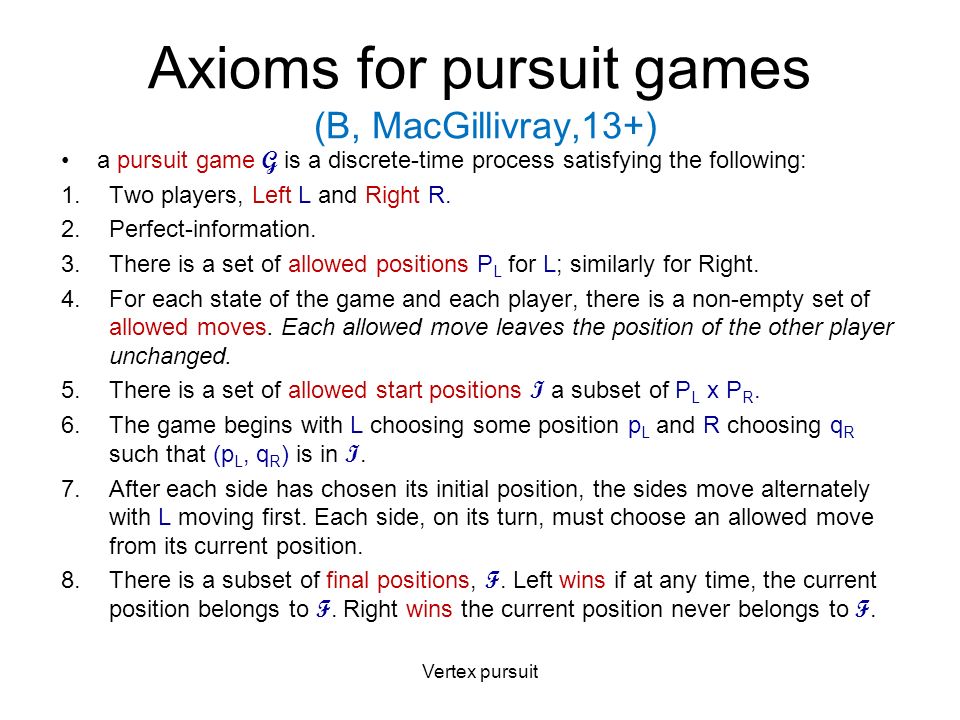

16. Axioms for pursuit games (B, MacGillivray,13+) a pursuit game G is a discrete-time process satisfying the following: 1.Two players, Left L and Right R. 2.Perfect-information. 3.There is a set of allowed positions P L for L; similarly for Right. 4.For each state of the game and each player, there is a non-empty set of allowed moves. Each allowed move leaves the position of the other player unchanged. 5.There is a set of allowed start positions I a subset of P L x P R. 6.The game begins with L choosing some position p L and R choosing q R such that (p L, q R ) is in I. 7.After each side has chosen its initial position, the sides move alternately with L moving first. Each side, on its turn, must choose an allowed move from its current position. 8.There is a subset of final positions, F. Left wins if at any time, the current position belongs to F. Right wins the current position never belongs to F. Vertex pursuit

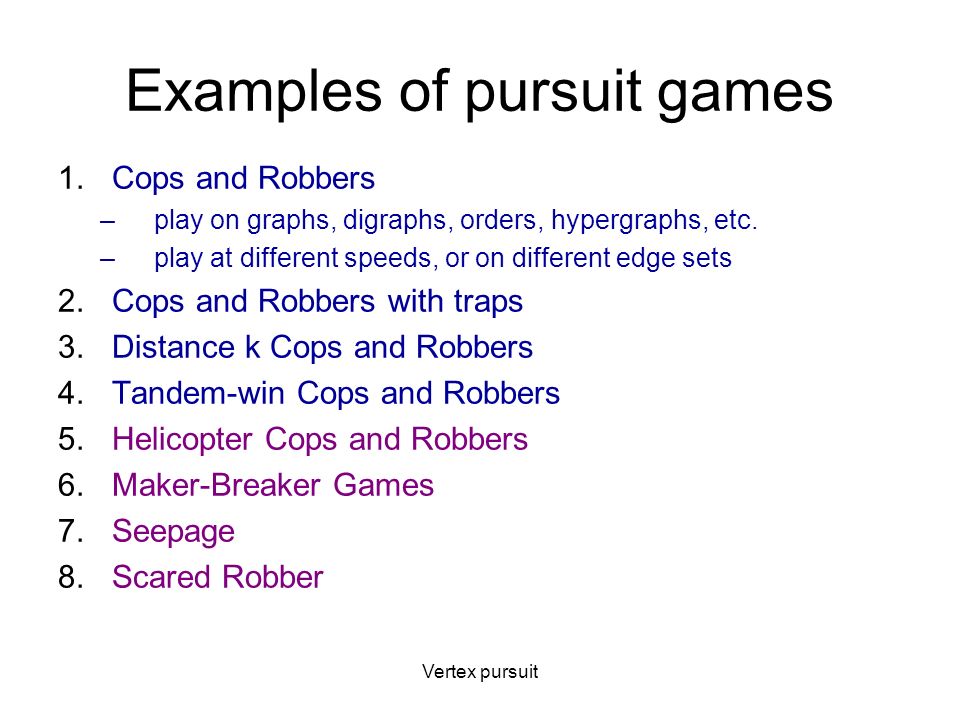

17. Examples of pursuit games 1.Cops and Robbers –play on graphs, digraphs, orders, hypergraphs, etc. –play at different speeds, or on different edge sets 2.Cops and Robbers with traps 3.Distance k Cops and Robbers 4.Tandem-win Cops and Robbers 5.Helicopter Cops and Robbers 6.Maker-Breaker Games 7.Seepage 8.Scared Robber Vertex pursuit

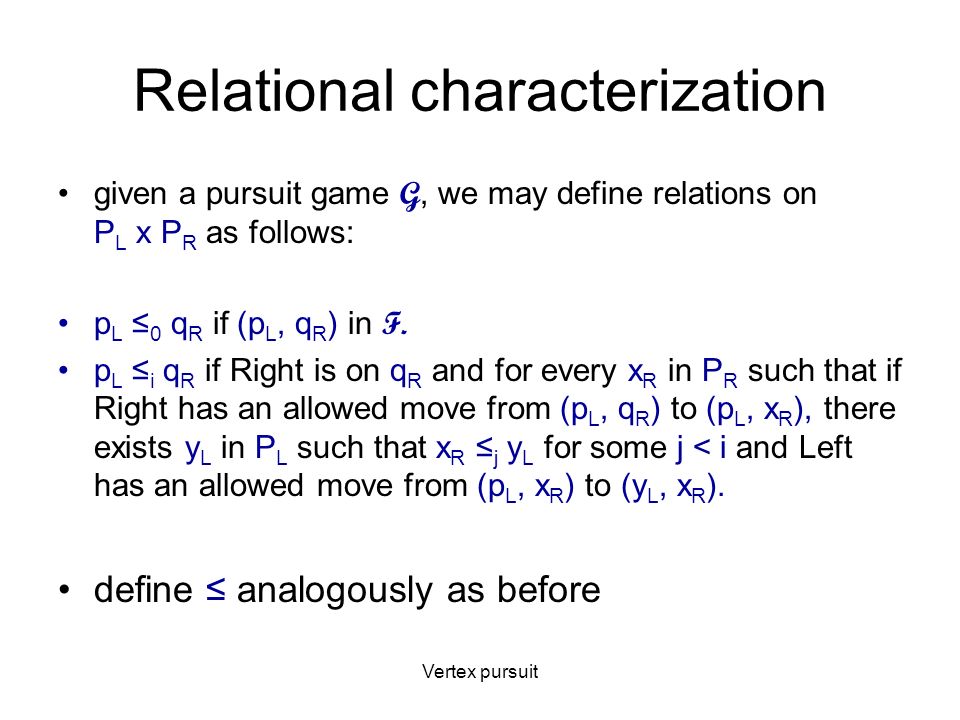

18. Relational characterization given a pursuit game G, we may define relations on P L x P R as follows: p L ≤ 0 q R if (p L, q R ) in F. p L ≤ i q R if Right is on q R and for every x R in P R such that if Right has an allowed move from (p L, q R ) to (p L, x R ), there exists y L in P L such that x R ≤ j y L for some j < i and Left has an allowed move from (p L, x R ) to (y L, x R ). define ≤ analogously as before Vertex pursuit

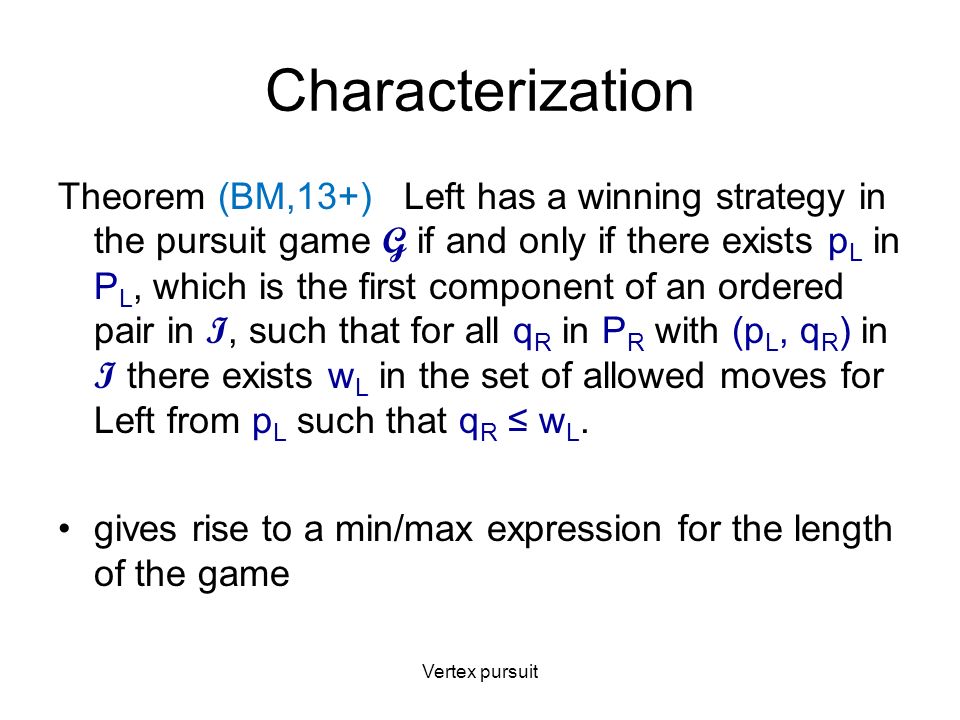

19. Characterization Theorem (BM,13+) Left has a winning strategy in the pursuit game G if and only if there exists p L in P L, which is the first component of an ordered pair in I, such that for all q R in P R with (p L, q R ) in I there exists w L in the set of allowed moves for Left from p L such that q R ≤ w L. gives rise to a min/max expression for the length of the game Vertex pursuit

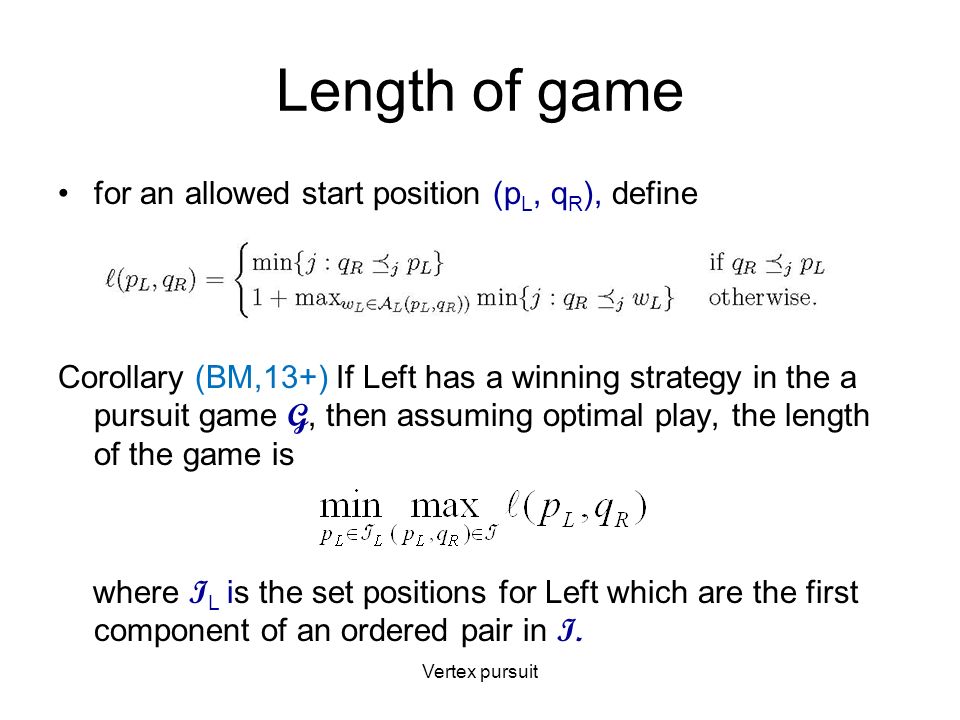

20. Length of game for an allowed start position (p L, q R ), define Corollary (BM,13+) If Left has a winning strategy in the a pursuit game G, then assuming optimal play, the length of the game is where I L is the set positions for Left which are the first component of an ordered pair in I. Vertex pursuit

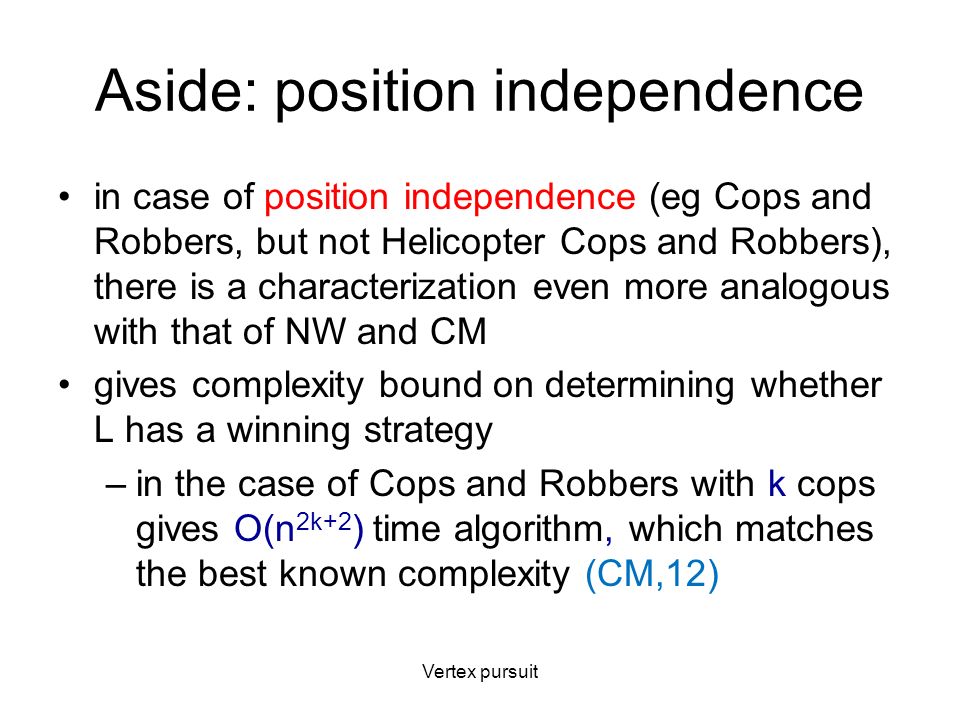

21. Aside: position independence in case of position independence (eg Cops and Robbers, but not Helicopter Cops and Robbers), there is a characterization even more analogous with that of NW and CM gives complexity bound on determining whether L has a winning strategy –in the case of Cops and Robbers with k cops gives O(n 2k+2 ) time algorithm, which matches the best known complexity (CM,12) Vertex pursuit

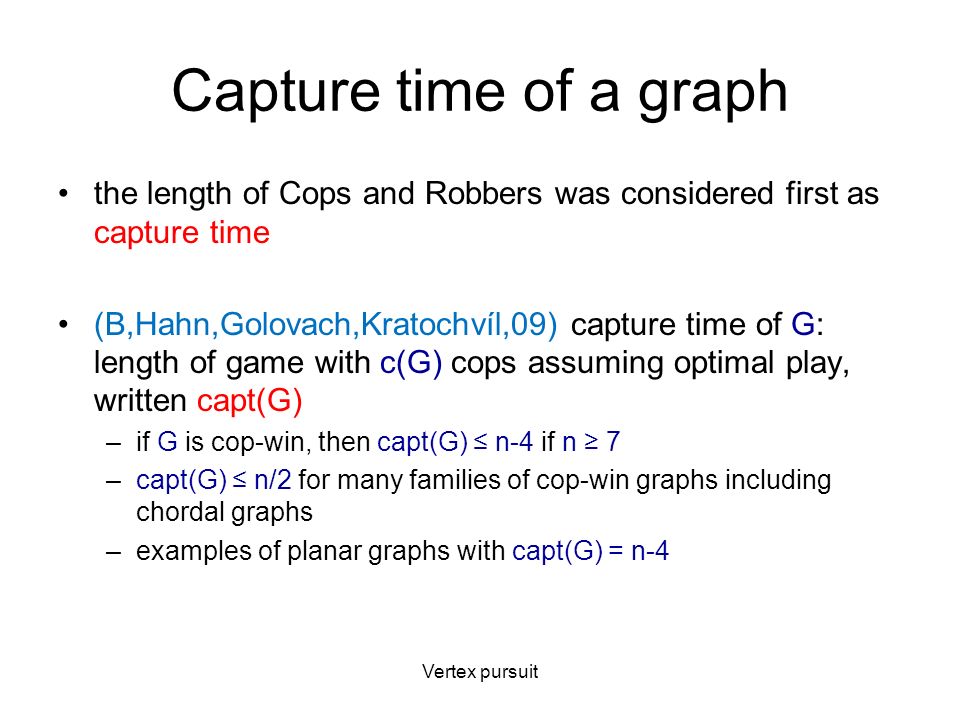

22. Capture time of a graph the length of Cops and Robbers was considered first as capture time (B,Hahn,Golovach,Kratochvíl,09) capture time of G: length of game with c(G) cops assuming optimal play, written capt(G) –if G is cop-win, then capt(G) ≤ n-4 if n ≥ 7 –capt(G) ≤ n/2 for many families of cop-win graphs including chordal graphs –examples of planar graphs with capt(G) = n-4 Vertex pursuit

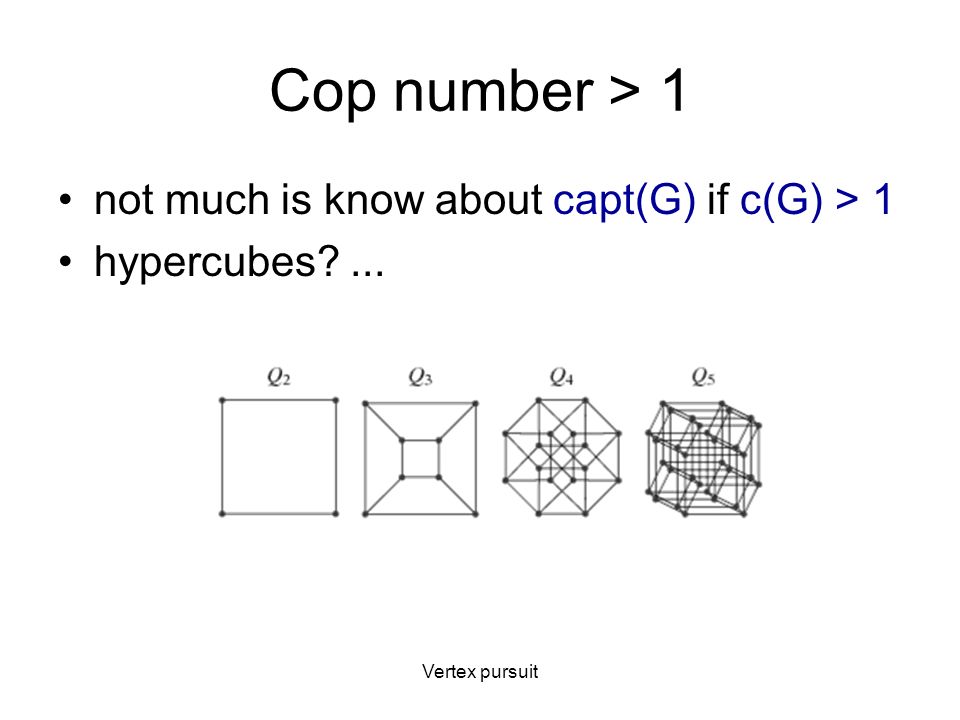

23. Cop number > 1 not much is know about capt(G) if c(G) > 1 hypercubes?... Vertex pursuit

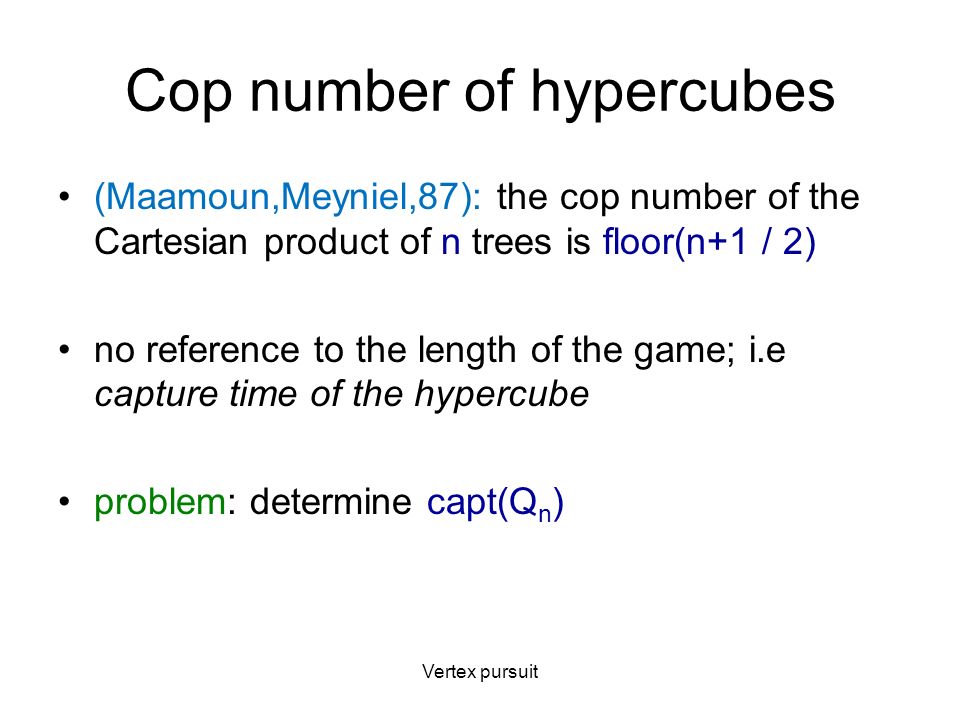

25. Cop number of hypercubes (Maamoun,Meyniel,87): the cop number of the Cartesian product of n trees is floor(n+1 / 2) no reference to the length of the game; i.e capture time of the hypercube problem: determine capt(Q n ) Vertex pursuit

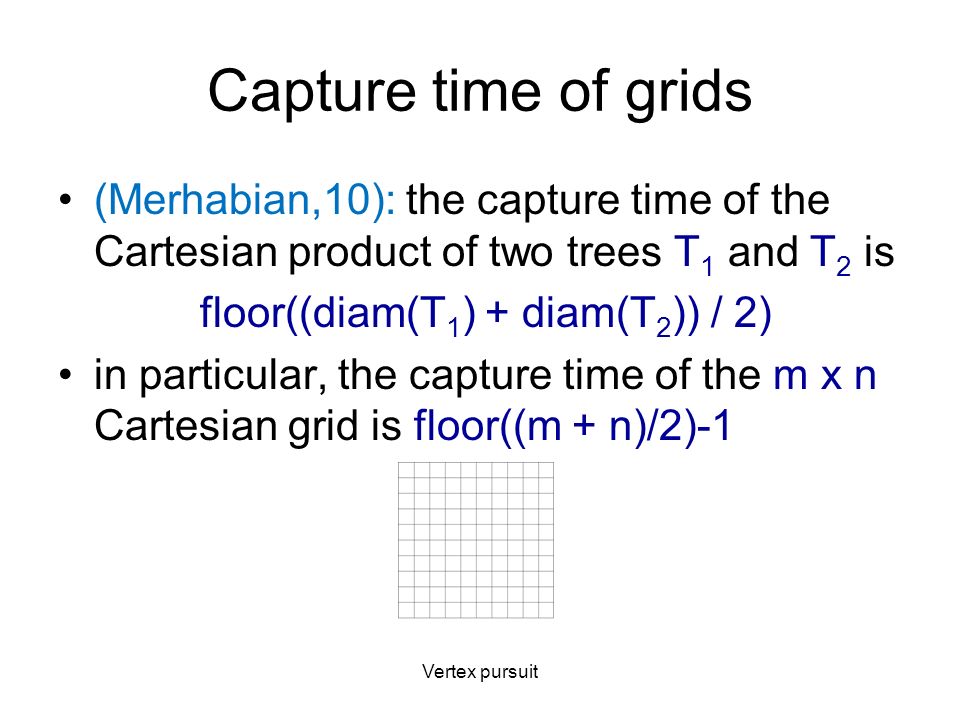

26. Capture time of grids (Merhabian,10): the capture time of the Cartesian product of two trees T 1 and T 2 is floor((diam(T 1 ) + diam(T 2 )) / 2) in particular, the capture time of the m x n Cartesian grid is floor((m + n)/2)-1 Vertex pursuit

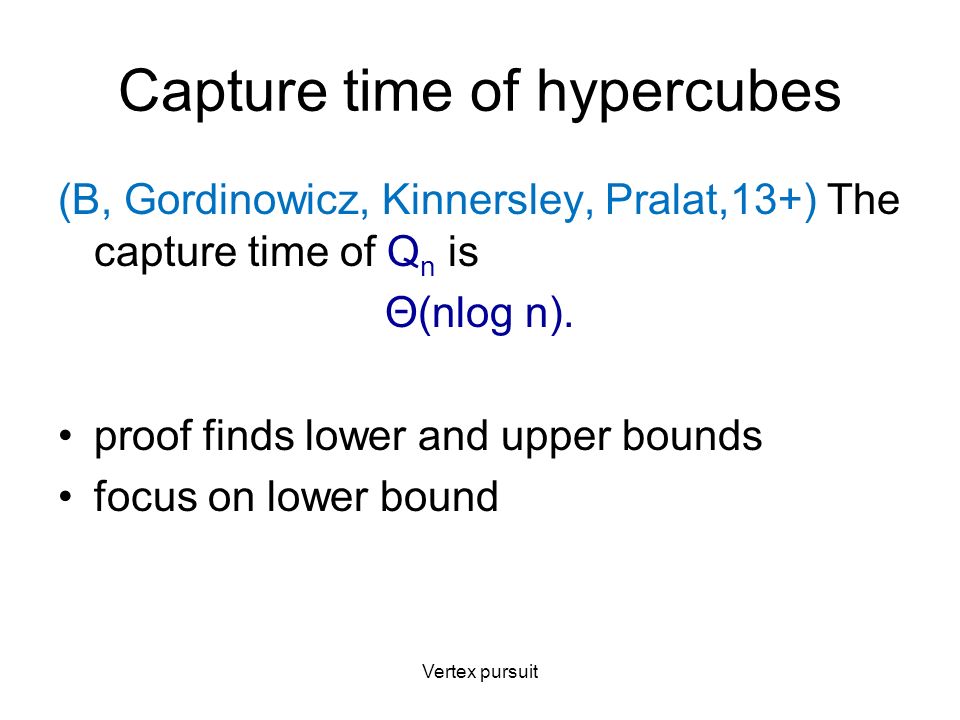

27. Capture time of hypercubes (B, Gordinowicz, Kinnersley, Pralat,13+) The capture time of Q n is Θ(nlog n). proof finds lower and upper bounds focus on lower bound Vertex pursuit

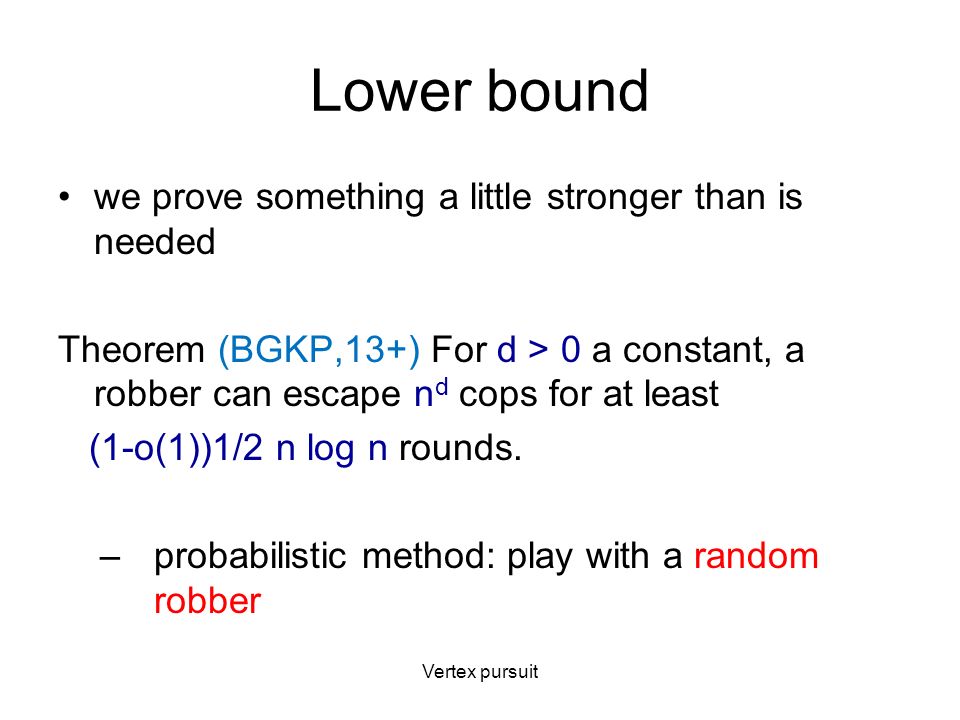

28. Lower bound we prove something a little stronger than is needed Theorem (BGKP,13+) For d > 0 a constant, a robber can escape n d cops for at least (1-o(1))1/2 n log n rounds. –probabilistic method: play with a random robber Vertex pursuit

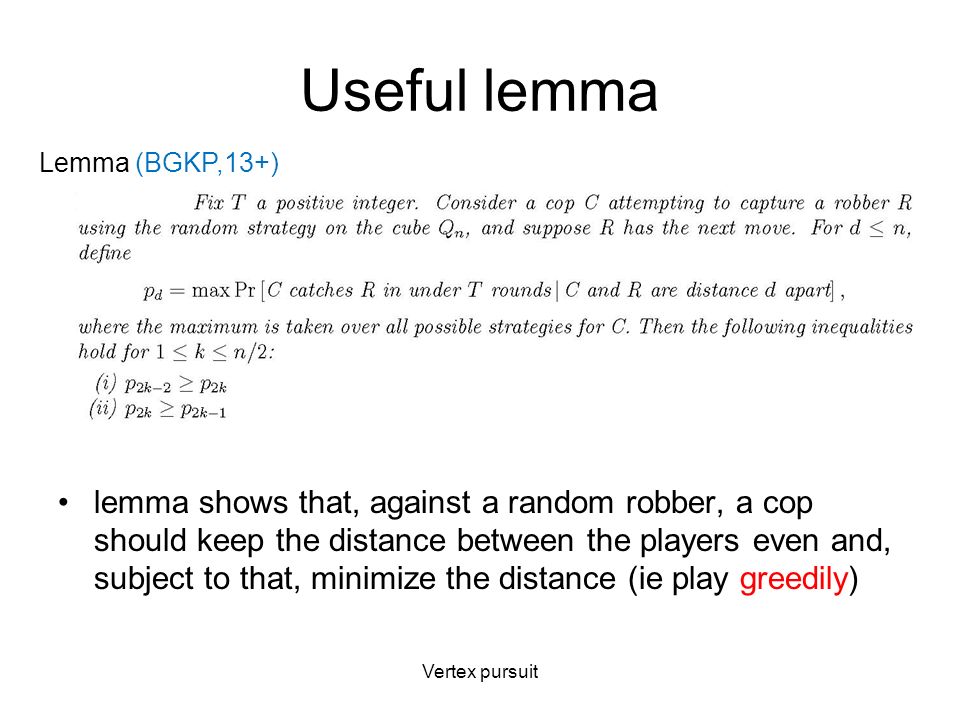

29. Useful lemma lemma shows that, against a random robber, a cop should keep the distance between the players even and, subject to that, minimize the distance (ie play greedily) Vertex pursuit Lemma (BGKP,13+)

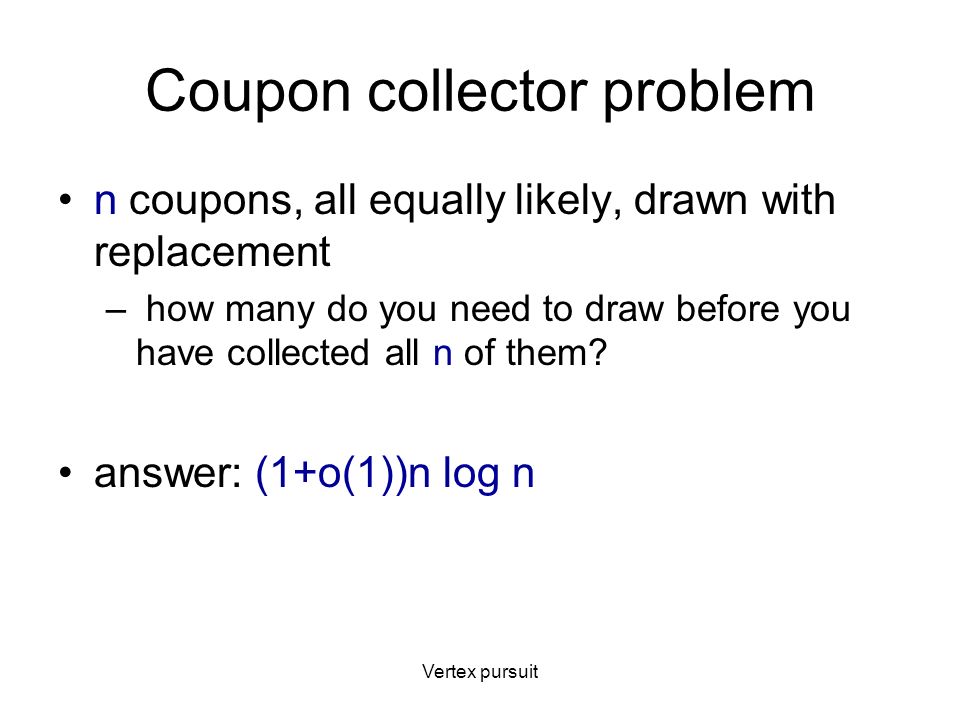

30. Coupon collector problem n coupons, all equally likely, drawn with replacement – how many do you need to draw before you have collected all n of them? answer: (1+o(1))n log n Vertex pursuit

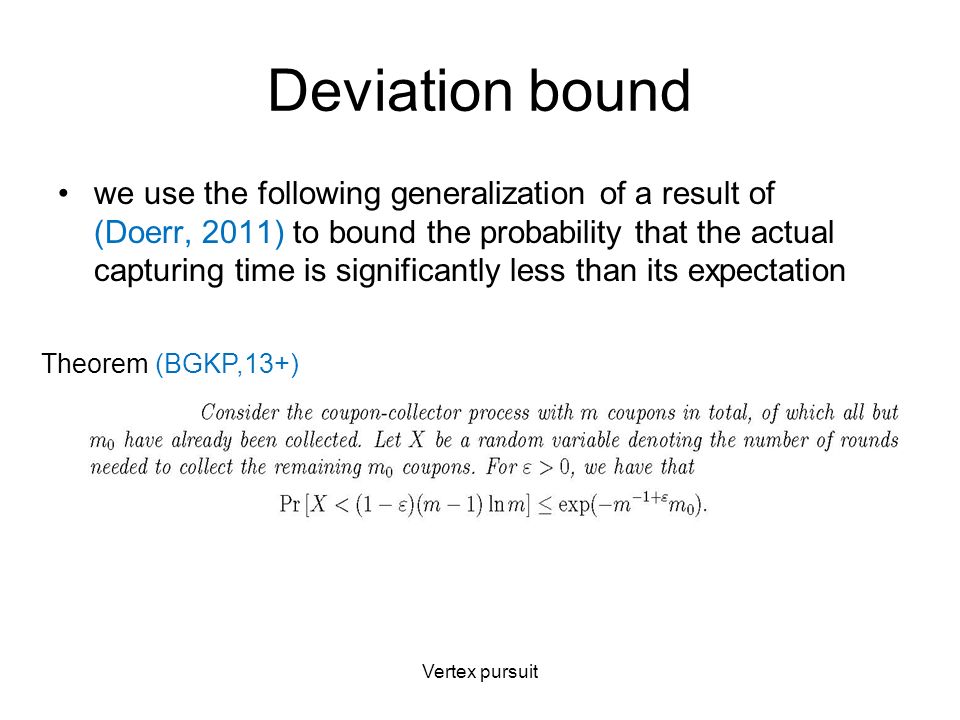

31. Deviation bound we use the following generalization of a result of (Doerr, 2011) to bound the probability that the actual capturing time is significantly less than its expectation Vertex pursuit Theorem (BGKP,13+)

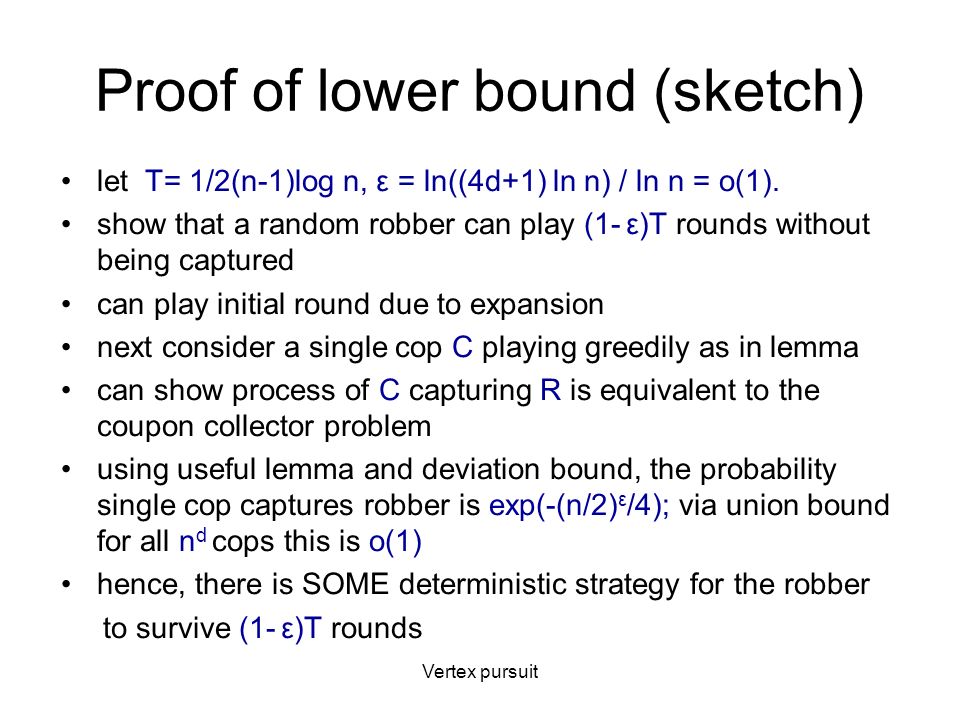

32. Proof of lower bound (sketch) let T= 1/2(n-1)log n, ε = ln((4d+1) ln n) / ln n = o(1). show that a random robber can play (1- ε)T rounds without being captured can play initial round due to expansion next consider a single cop C playing greedily as in lemma can show process of C capturing R is equivalent to the coupon collector problem using useful lemma and deviation bound, the probability single cop captures robber is exp(-(n/2) ε /4); via union bound for all n d cops this is o(1) hence, there is SOME deterministic strategy for the robber to survive (1- ε)T rounds Vertex pursuit

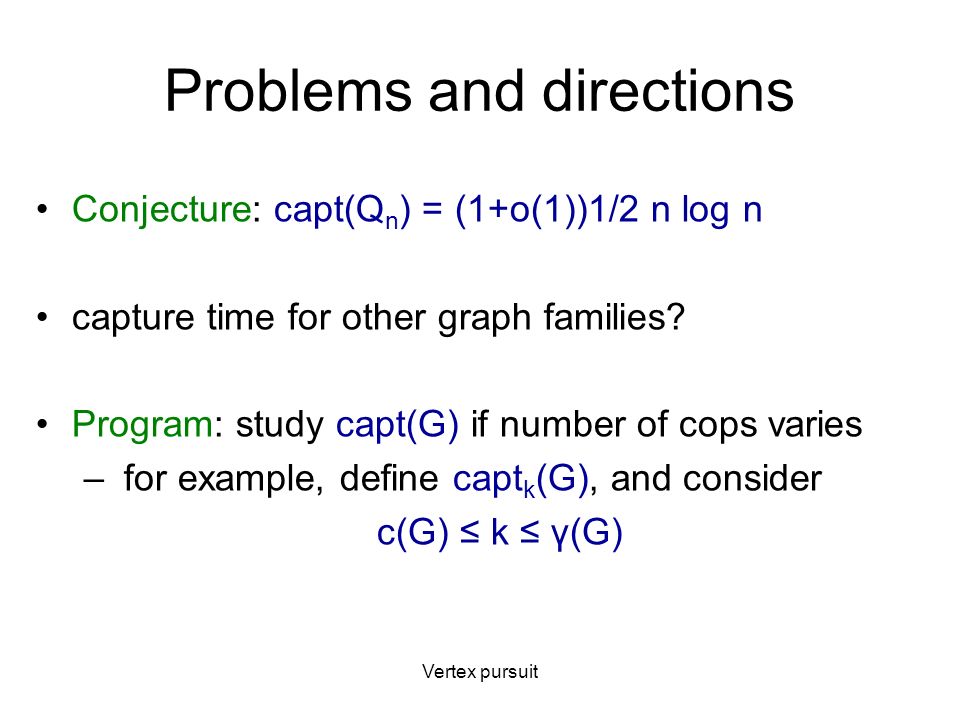

33. Problems and directions Conjecture: capt(Q n ) = (1+o(1))1/2 n log n capture time for other graph families? Program: study capt(G) if number of cops varies – for example, define capt k (G), and consider c(G) ≤ k ≤ γ(G) Vertex pursuit

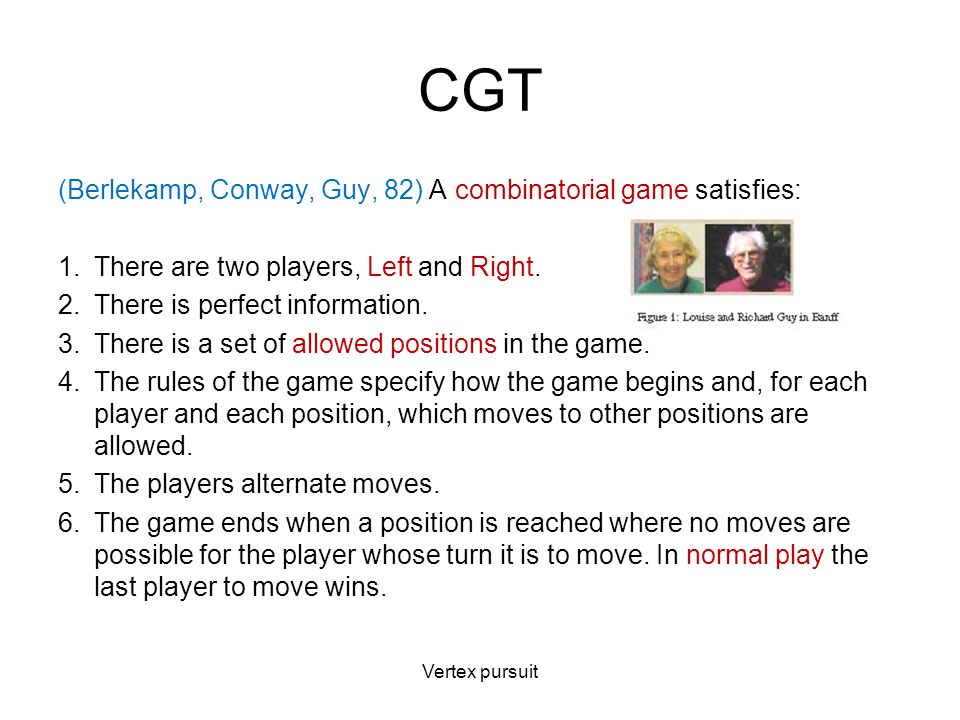

36. CGT (Berlekamp, Conway, Guy, 82) A combinatorial game satisfies: 1.There are two players, Left and Right. 2.There is perfect information. 3.There is a set of allowed positions in the game. 4.The rules of the game specify how the game begins and, for each player and each position, which moves to other positions are allowed. 5.The players alternate moves. 6.The game ends when a position is reached where no moves are possible for the player whose turn it is to move. In normal play the last player to move wins. Vertex pursuit

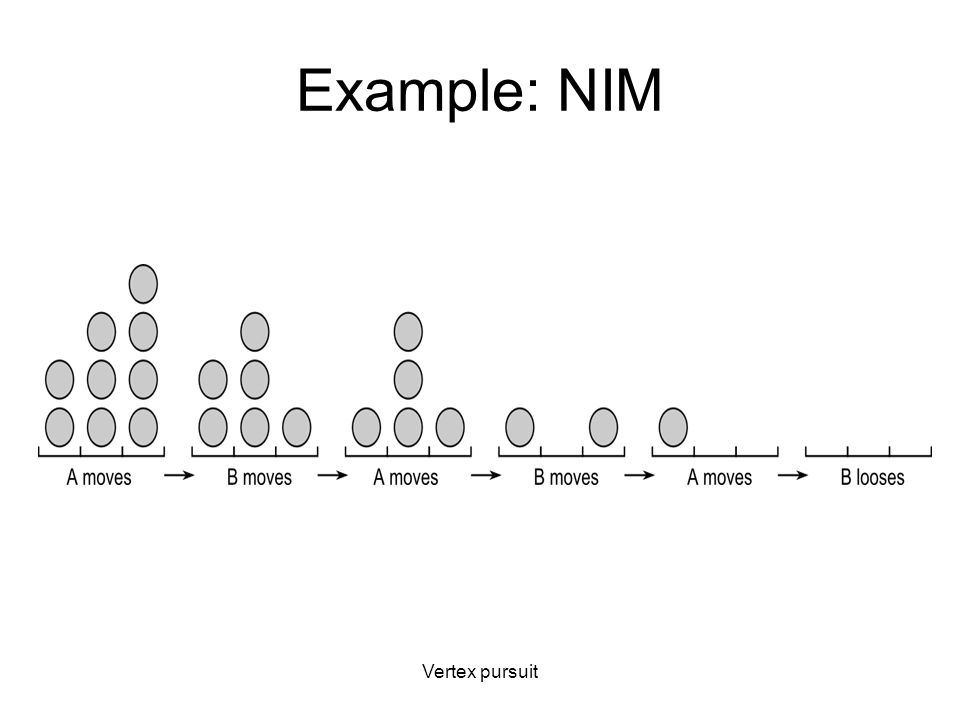

37. Example: NIM Vertex pursuit

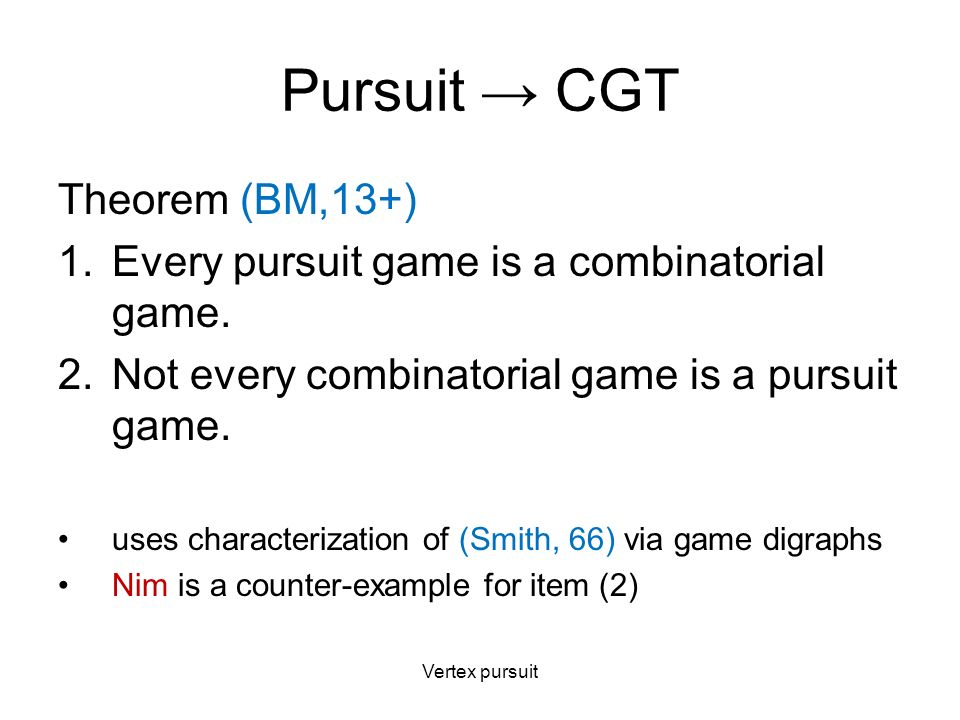

38. Pursuit → CGT Theorem (BM,13+) 1.Every pursuit game is a combinatorial game. 2.Not every combinatorial game is a pursuit game. uses characterization of (Smith, 66) via game digraphs Nim is a counter-example for item (2) Vertex pursuit
