1. 1 Threads, SMP, and Microkernels Chapter 4

2. 2

3. 3 Multithreading Operating system supports multiple threads of execution within a single process MS-DOS supports a single thread UNIX supports multiple user processes but only supports one thread per process Windows, Solaris, Linux, Mach, and OS/2 support multiple threads

4. 4

5. 5 Process Resource ownership - process includes a virtual address space to hold the process image and access to I/O Scheduling/execution- follows an execution path that may be interleaved with other processes These two characteristics are treated independently by the operating system

6. 6 Process Dispatching is referred to as a thread or lightweight process Resource of ownership is referred to as a process or task

7. 7 Thread An execution state (running, ready, etc.) Saved thread context when not running Has an execution stack Some per-thread static storage for local variables Access to the memory and resources of its process –all threads of a process share this

8. 8 User-Level Threads

9. 9 All thread management is done by the application The kernel is not aware of the existence of threads I/O requests causes the whole process to be blocked.

10. 10 Kernel-Level Threads

11. 11 Kernel-Level Threads Windows is an example of this approach Kernel maintains context information for the process and the threads Scheduling is done on a thread basis I/O requests only cause the affect thread to be blocked.

12. 12 VAX Running UNIX-Like Operating System

13. 13 Combined Approaches

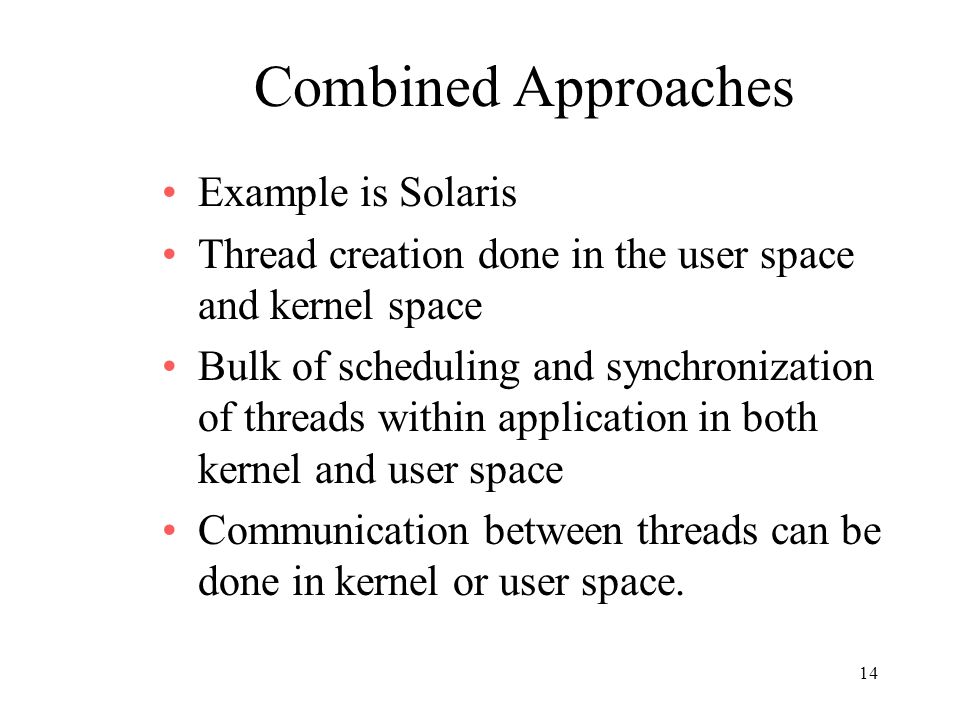

14. 14 Combined Approaches Example is Solaris Thread creation done in the user space and kernel space Bulk of scheduling and synchronization of threads within application in both kernel and user space Communication between threads can be done in kernel or user space.

15. 15 Benefits of Threads Takes less time to create a new thread than a process Less time to terminate a thread than a process Less time to switch between two threads within the same process Since threads within the same process share memory and files, they can communicate with each other without invoking the kernel

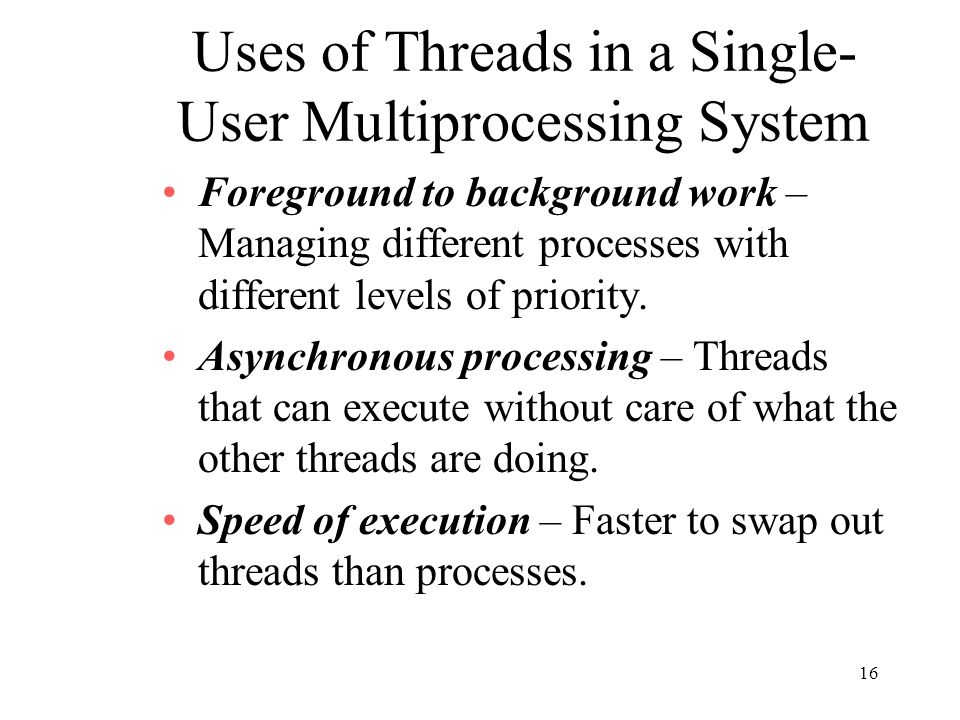

16. 16 Uses of Threads in a Single- User Multiprocessing System Foreground to background work – Managing different processes with different levels of priority. Asynchronous processing – Threads that can execute without care of what the other threads are doing. Speed of execution – Faster to swap out threads than processes.

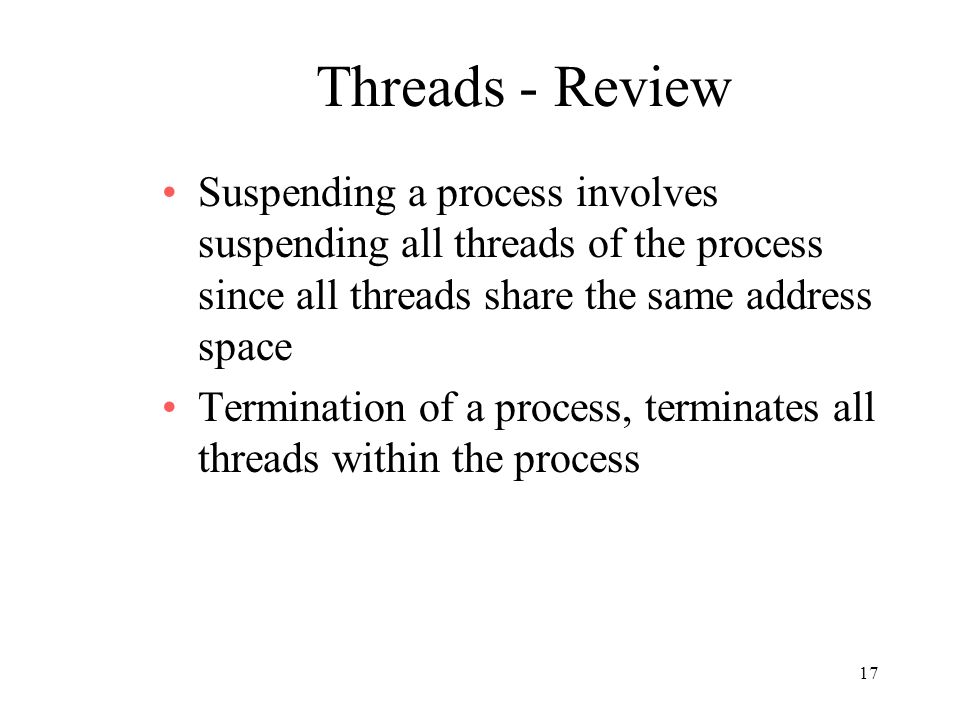

17. 17 Threads - Review Suspending a process involves suspending all threads of the process since all threads share the same address space Termination of a process, terminates all threads within the process

18. 18 Thread States States associated with a change in thread state –Spawn Spawn another thread –Block/Unblock –Ready/Running –Finish Deallocate register context and stacks

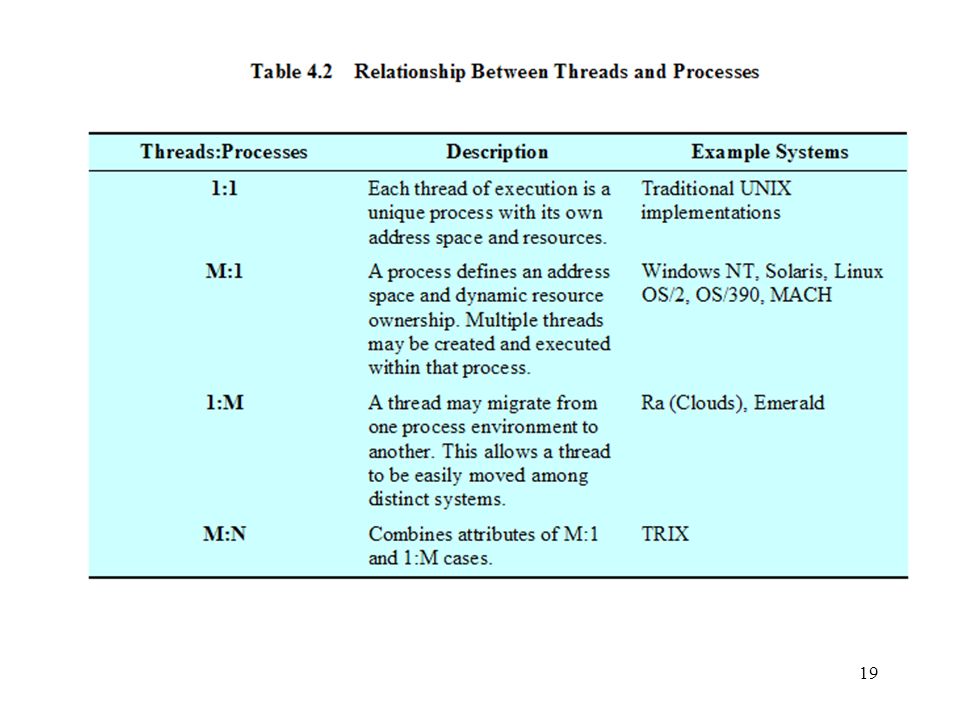

19. 19

20. 20 Processor Architectures

21. 21 Categories of Computer Systems Single Instruction Single Data (SISD) stream –Single processor executes a single instruction stream to operate on data stored in a single memory Single Instruction Multiple Data (SIMD) stream –Each instruction is executed on a different set of data by the different processors

22. 22 Categories of Computer Systems Multiple Instruction Single Data (MISD) stream –A sequence of data is transmitted to a set of processors, each of which executes a different instruction sequence. Never implemented Multiple Instruction Multiple Data (MIMD) –A set of processors simultaneously execute different instruction sequences on different data sets

23. 23

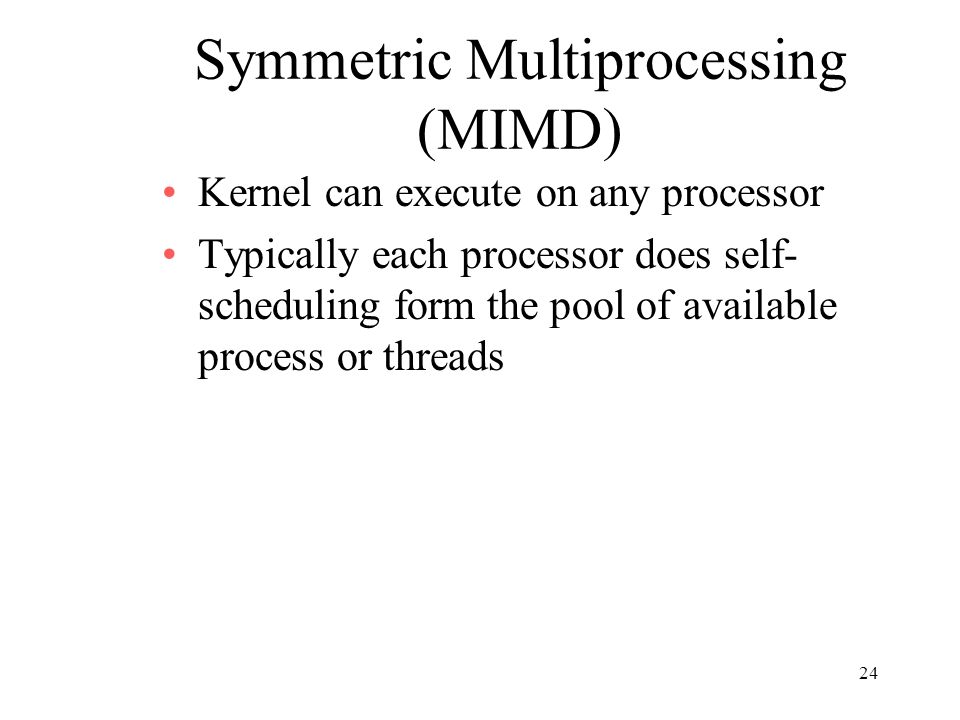

24. 24 Symmetric Multiprocessing (MIMD) Kernel can execute on any processor Typically each processor does self- scheduling form the pool of available process or threads

25. 25

26. 26 Symmetric Multiprocessing (MIMD) What new issues might we have to deal with? –Having to worry about proper sharing of Memory –Two processes executing the same code either on purpose or by accident –The Kernel can be running on multiple processors at the same time.

27. 27 Multiprocessor Operating System Design Considerations Simultaneous concurrent processes or threads Scheduling Synchronization Memory management Reliability and fault tolerance

28. 28 Microkernels

29. 29 Microkernels Small operating system core Contains only essential core operating systems functions Many services traditionally included in the operating system are now external subsystems –Device drivers –File systems –Virtual memory manager –Windowing system –Security services

30. 30

31. 31 Benefits of a Microkernel Organization Uniform interface on request made by a process –Don’t distinguish between kernel-level and user- level services (Where are all the services?) –All services are provided by means of message passing Extensibility –Allows the addition of new services Flexibility –New features added –Existing features can be subtracted

32. 32 Benefits of a Microkernel Organization Portability –Changes needed to port the system to a new processor is changed in the microkernel - not in the other services Reliability –Modular design –Small microkernel can be rigorously tested

33. 33 Benefits of Microkernel Organization Distributed system support –Message are sent without knowing what the target machine is Object-oriented operating system –Components are objects with clearly defined interfaces that can be interconnected to form software

34. 34 Microkernel Design Low-level memory management –Mapping each virtual page to a physical page frame (Kernel) –Memory protection and allocation (User-Level)

35. 35 Microkernel Supporting External Paging and Virtual Memory Management: –Grant : A User-Level process can grant/assign memory to another process. –Map : Placing one or more pages of memory in overlapping space. –Flush : The granter process can reclaim any memory.

36. 36 Microkernel Design Interprocess communication –Uses messages that contains a header and a body. I/O and interrupt management –Interrupts recognized by the kernel, but handed off to a user-level process.

37. 37 Closer Look at Windows and Solaris

38. 38 Windows Processes Implemented as objects An executable process may contain one or more threads Both processes and thread objects have built-in synchronization capabilities Threads and Processes run in kernel mode

39. 39

40. 40 Solaris User-level and Kernel-level Threads Process includes the user’s address space, stack, and process control block –Accessible by the Kernel Threads Lightweight processes (LWP) –Shadow of the Process that allows the User- Level threads to function without making direct calls to the Kernel threads.

41. 41

42. 42 Windows 2000 Thread States

43. 43

44. 44 End

45. 45 Remote Procedure Call Using Single Thread

46. 46 Remote Procedure Call Using Threads

47. 47 Multithreading

48. 48 Adobe PageMaker

49. 49

50. 50

51. 51

52. 52 Closer Look at Solaris

53. 53 Solaris Lightweight Data Structure Identifier Priority Signal mask Saved values of user-level registers Kernel stack Resource usage and profiling data Pointer to the corresponding kernel thread Pointer to the process structure

54. 54

55. 55 Linux Task Data Structure State Scheduling information Identifiers Interprocess communication Links Times and timers File system Address space Processor-specific context

56. 56

57. 57 Linux States of a Process Running Interruptable Uninterruptable Stopped Zombie
