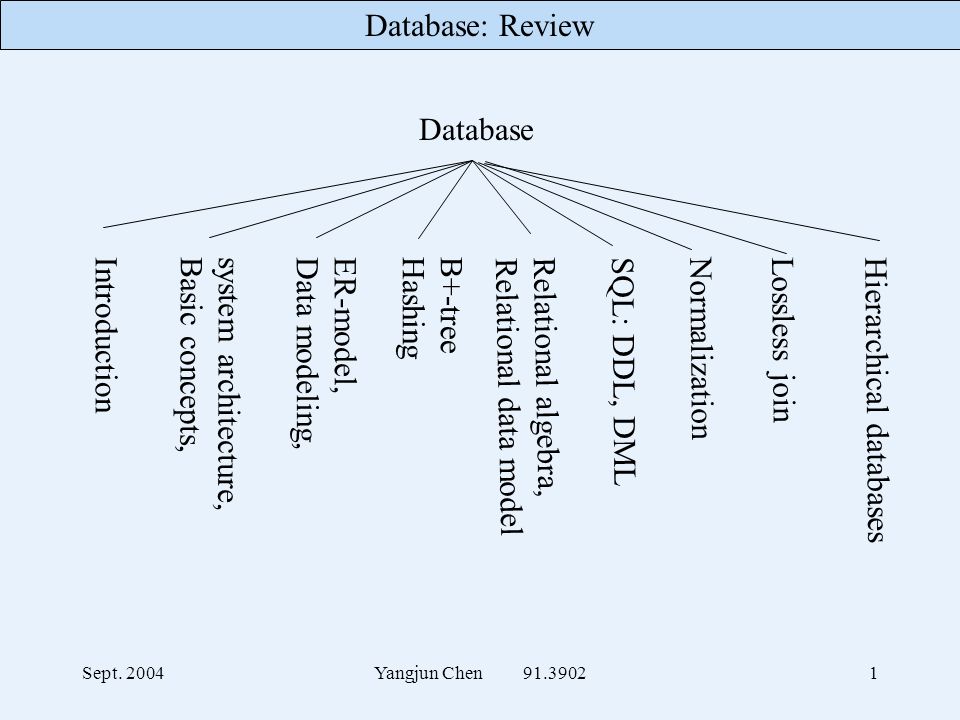

1. Database: Review Sept. 2004Yangjun Chen 91.39021 Database Introduction system architecture, Basic concepts, ER-model, Data modeling, B+-tree Hashing Relational algebra, Relational data model SQL: DDL, DMLNormalizationLossless join Hierarchical databases

2. Database: Review Sept. 2004Yangjun Chen 91.39022 Introduction to the database systems What is a database? The main characters of a database The basic database design method The entity-relationship data model for application modeling

3. Database: Review Sept. 2004Yangjun Chen 91.39023 The main characteristics of the database approach: single repository of data sharable by multiple users concurrency control and transaction concept security and integrity constraints self-describing - system catalogue contains meta data program-data independence some changes to the database are transparent to programs/users multiple views of data - to support individual needs of programs/users

4. Database: Review Sept. 2004Yangjun Chen 91.39024 Database schema, Schema evolution, Database state Working process with a database system Database system architecture Data independence concept Concepts and Architecture

5. Database: Review Sept. 2004Yangjun Chen 91.39025 Database schema Relation schema Schema evolution Database state Student Name StNo Class Major Smith 17 1 CS Brown 8 2 CS Course CName CNo CrHrs Dept Database 8803 3 CS C 2606 3 CS Section SId CNo Semester Yr Instructor 32 8803 Spring 2000 Smith 25 8803 Winter 2000 Smith 43 2606 Spring 2000 Jones Grades StNo Sid Grade 17 25 A 17 43 B

6. Database: Review Sept. 2004Yangjun Chen 91.39026 Working process with a database system: Definition record structure data elements names data types constraints etc Construction create database files populate the database with records Manipulation querying updating

7. Database: Review Sept. 2004Yangjun Chen 91.39027 Database Management System (DBMS) collection of software facilitating the definition, construction and manipulation of databases Users/ actors Request manager Storage manager, Query evaluation Meta data Stored database DBMS

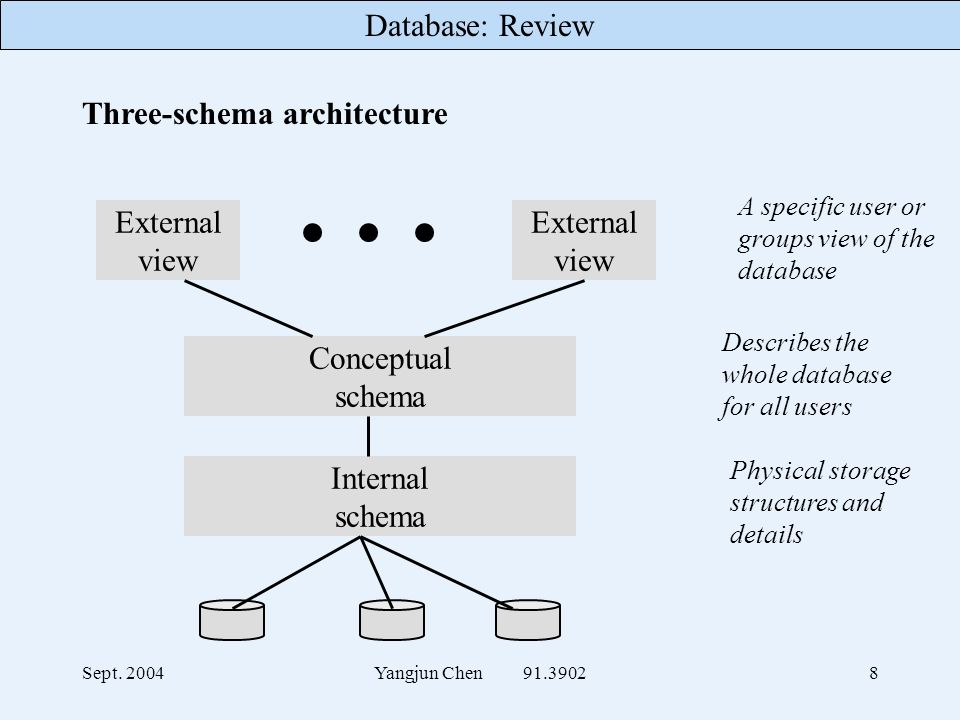

8. Database: Review Sept. 2004Yangjun Chen 91.39028 Three-schema architecture External view External view Conceptual schema Internal schema Physical storage structures and details Describes the whole database for all users A specific user or groups view of the database

9. Database: Review Sept. 2004Yangjun Chen 91.39029 Data modeling using ER-model Entity-relationship model -Entity types -strong entities -weak entities -Relationships among entities -Attributes - attribute classification -Constraints -cardinality constraints -participation constraints ER-to-Relation-mapping

10. Database: Review Sept. 2004Yangjun Chen 91.390210 employee department project dependent ER-model: works for manages works on dependents of controls supervision bdate ssn name lname minit fname sex address salary birthdatenamesex relationship name numberlocation name numberlocation number of employees startdate hours 1 1 1 N supervisorsupervisee N M N 1 M N1 M

11. Database: Review Sept. 2004Yangjun Chen 91.390211 external hashing static hashing & dynamic hashing hash function mathematical function that maps a key to a bucket address collisions collision resolution scheme - open addressing - chaining - multiple hashing linear hashing Hashing technique

12. Database: Review Sept. 2004Yangjun Chen 91.390212 External hashing: the data are on the disk. Static hashing: using a hashing function to map keys to bucket addresses primary area can not be changed collision resolution schema: open addressing chaining multiple hashing Dynamic hashing: primary area can be changed linear hashing

13. Database: Review Sept. 2004Yangjun Chen 91.390213 Linear hashing: 1.What is a phase? 2.How to split a bucket? 3.When to split a bucket? 4.What bucket will be chosen to split next?

14. Database: Review Sept. 2004Yangjun Chen 91.390214 Linear hashing: initially hash file contains M buckets h i = key mod 2 i  M (i = 0, 1, 2,...) insertion process can be divided into several phases phase 1: insertion using h 0 = key mod M splitting using h 1 = key mod 2  M splitting rule: overflow of a bucket or if load factor > constant (e.g., 0.70) overflow will be put in the overflow area or redistributed through splitting a bucket splitting buckets from n = 0 to n = M- 1 (after each splitting n is increased by 1. Phase 1 finishes when n = M (in this case, the primary area becomes 2  M buckets long)

15. Database: Review Sept. 2004Yangjun Chen 91.390215 phase 2: insertion using h 1 = key mod 2  M splitting using h 2 = key mod 4  M splitting rule: overflow of a bucket or if load factor > constant (e.g., 0.70) overflow will be put in the overflow area or redistributed through splitting a bucket splitting buckets from n = 0 to n = 2  M- 1 (after each splitting n is increased by 1. Phase 1 finishes when n = 2  M (in this case, the primary area will contain 4  M buckets.) phase 3:... … h 2 = …, h 3 = …,...

16. Database: Review Sept. 2004Yangjun Chen 91.390216 tree - root, internal, leaf, subtree - parent, child, sibling balanced, unbalanced b + -tree - splits on overflow; merge on underflow - in practice it is usually 3 or 4 levels deep search, insert, delete algorithms Multi-level index

17. Database: Review Sept. 2004Yangjun Chen 91.390217 B+-tree insertion: leaf node splitting, internal node splitting Leaf splitting When a leaf splits, a new leaf is allocated the original leaf is the left sibling, the new one is the right sibling key and pointer pairs are redistributed: the left sibling will have smaller keys than the right sibling a 'copy' of the key value which is the largest of the keys in the left sibling is promoted to the parent 33 12 22 3344 48 5512 2244 48 5531 33 22 33 insert 31

18. Database: Review Sept. 2004Yangjun Chen 91.390218 Internal node splitting If an internal node splits and it is not the root, insert the key and pointer and then determine the middle key a new 'right' sibling is allocated everything to its left stays in the left sibling everything to its right goes into the right sibling the middle key value along with the pointer to the new right sibling is promoted to the parent (the middle key value 'moves' to the parent to become the discriminator between this left and right sibling) 22 33 55 22 26 55 Insert 26 33

19. Database: Review Sept. 2004Yangjun Chen 91.390219 Internal node splitting When a new root is formed, a key value and two pointers must be placed into it. 26 55 Insert 40 26 55 40

20. Database: Review Sept. 2004Yangjun Chen 91.390220 Deleting nodes from a B+-tree: 1. When deleting a key from a node A, check whether the number of the remaining keys (or pointers) is   p/2 . 2. If it is not the case, redistribute the keys in the left sibling B or in the right sibling C if it is possible. Otherwise, merge A and B or merge A and C. 3.When redistributing or merging, change the key values in the parent node so that the following condition is satisfied: K 1 < K 2 <... < K q-1 (i.e. it is an ordered set) for the key values, X, in the subtree pointed to by P i K i-1 < X <= K i for 1 < i < q X <= K 1 for i = 1 K q-1 < X for i = q

21. Database: Review Sept. 2004Yangjun Chen 91.390221 A b + -tree 5 37 8 67 91258 13 Records p = 3, p leaf = 2.

22. Database: Review Sept. 2004Yangjun Chen 91.390222 Entry deletion - deletion sequence: 8, 12, 9, 7 5 37 9 67 12 59 13 Deleting 8 causes the node redistribute.

23. Database: Review Sept. 2004Yangjun Chen 91.390223 Entry deletion - deletion sequence: 8, 12, 9, 7 5 37 67 59 13 12 is removed.

24. Database: Review Sept. 2004Yangjun Chen 91.390224 Entry deletion - deletion sequence: 8, 12, 9, 7 5 36 657 13 9 is removed.

25. Database: Review Sept. 2004Yangjun Chen 91.390225 Entry deletion - deletion sequence: 8, 12, 9, 7 5 36 65 13 Deleting 7 makes this pointer no use. Therefore, a merge at the level above the leaf level occurs.

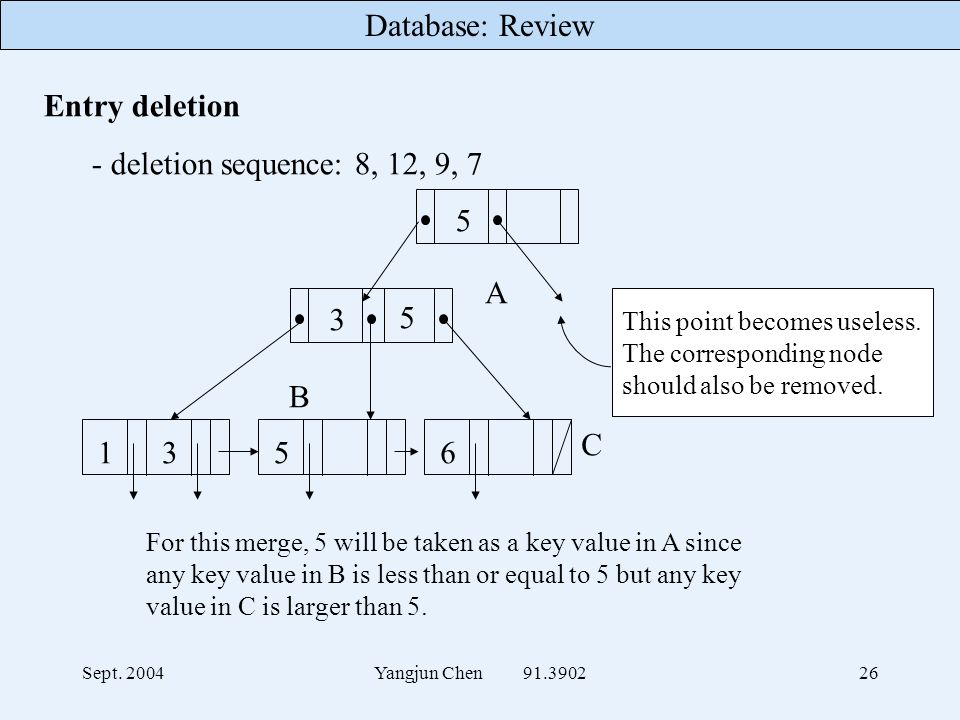

26. Database: Review Sept. 2004Yangjun Chen 91.390226 Entry deletion - deletion sequence: 8, 12, 9, 7 53 For this merge, 5 will be taken as a key value in A since any key value in B is less than or equal to 5 but any key value in C is larger than 5. 65 13 5 A B C 5 This point becomes useless. The corresponding node should also be removed.

27. Database: Review Sept. 2004Yangjun Chen 91.390227 Entry deletion - deletion sequence: 8, 12, 9, 7 6513 53 5

28. Database: Review Sept. 2004Yangjun Chen 91.390228 Data modeling using Relational model Relational algebra Relational Data Model -relational schema, relations -database schema, database state -integrity constraints and updating Relational algebra -select, project, join, cartesian product -division -set operations: union, intersection, difference,

29. Database: Review Sept. 2004Yangjun Chen 91.390229 Integrity Constraints any database will have some number of constraints that must be applied to ensure correct data (valid states) 1. domain constraints a domain is a restriction on the set of valid values domain constraints specify that the value of each attribute A must be an atomic value from the domain dom(A). 2. key constraints a superkey is any combination of attributes that uniquely identify a tuple: t 1 [superkey]  t 2 [superkey]. -Example: (in Employee) a key is superkey that has a minimal set of attributes -Example: (in Employee)

30. Database: Review Sept. 2004Yangjun Chen 91.390230 Integrity Constraints If a relation schema has more than one key, each of them is called a candidate key. one candidate key is chosen as the primary key (PK) foreign key (FK) is defined as follows: i) Consider two relation schemas R 1 and R 2 ; ii) The attributes in FK in R 1 have the same domain(s) as the primary key attributes PK in R 2 ; the attributes FK are said to reference or refer to the relation R 2 ; iii) A value of FK in a tuple t 1 of the current state r(R 1 ) either occurs as a value of PK for some tuple t 2 in the current state r(R 2 ) or is null. In the former case, we have t 1 [FK] = t 2 [PK], and we say that the tuple t 1 references or refers to the tuple t 2. Example: Employee(SSN, …, Dno)Dept(Dno, … ) FK

31. Database: Review Sept. 2004Yangjun Chen 91.390231 Integrity Constraints 3. entity integrity no part of a PK can be null 4. referential integrity domain of FK must be same as domain of PK FK must be null or have a value that appears as a PK value 5. semantic integrity other rules that the application domain requires: state constraint: gross salary > net income transition constraint: Widowed can only follow Married; salary of an employee cannot decrease

32. Database: Review Sept. 2004Yangjun Chen 91.390232 Relational algebra Retrieve for each female employee a list of the names of her dependents: FEMALE_EMPS   SEX = ‘F’ (EMPLOYEE) ACTUAL_DEPENDENTS  EMPNAMES EMPNAMES   FNAME,LNAME, SSN (FEMALE_EMPS) RESULT  FNAME, LNAME, DEPENDENT_NAME (ACTUAL_DEPENDENTS ) DEPENDENT SSN = ESSN

33. Database: Review Sept. 2004Yangjun Chen 91.390233 DDL - creating schemas - modifying schemas DML - select-from-where clause - group by, having, order by - update - view SQL

34. Database: Review Sept. 2004Yangjun Chen 91.390234 DDL - Examples: Create schema: Create schema COMPANY authorization JSMITH; Create table: Create table EMPLOYEE (FNAMEVARCHAR(15)NOT NULL, MINITCHAR, LNAMEVARCHAR(15)NOT NULL, SSNCHAR(9)NOT NULL, BDATEDATE, ADDRESSVARCHAR(30), SEXCHAR, SALARYDECIMAL(10, 2), SUPERSSNCHAR(9), DNOINTNOT NULL, PRIMARY KEY(SSN), FOREIGN KEY(SUPERSSN) REFERENCES EMPLOYEE(SSN), FOREIGN KEY(DNO) REFERENCES DEPARTMENT(DNUMBER));

35. Database: Review Sept. 2004Yangjun Chen 91.390235 DDL - Examples: drop schema DROP SCHEMA CAMPANY CASCADE; DROP SCHEMA CAMPANY RESTRICT; drop table DROP TABLE DEPENDENT CASCADE; DROP TABLE DEPENDENT RESTRICT; alter table ALTER TABLE COMPANY.EMPLOYEE ADD JOB VARCHAR(12); ALTER TABLE COMPANY.EMPLOYEE DROP ADDRESS CASCADE;

36. Database: Review Sept. 2004Yangjun Chen 91.390236 DML - select-from-where clause Retrieve a list of employees and the projects they are working on, ordered by department, within each department, ordered alphabetically by last name, first name: SELECTDNAME, LNAME, FNAME, PNAME FROM DEPARTMENT, EMPLOYEE, WORKS_ON, PROJECT WHEREDNUMBER = DNO AND SSN = ESSN AND PNO = PNUMBER ORDER BY DNAME, LNAME, FNAME order by – clause group by – clause having – clause aggregation functions: max, min, average, count, sum

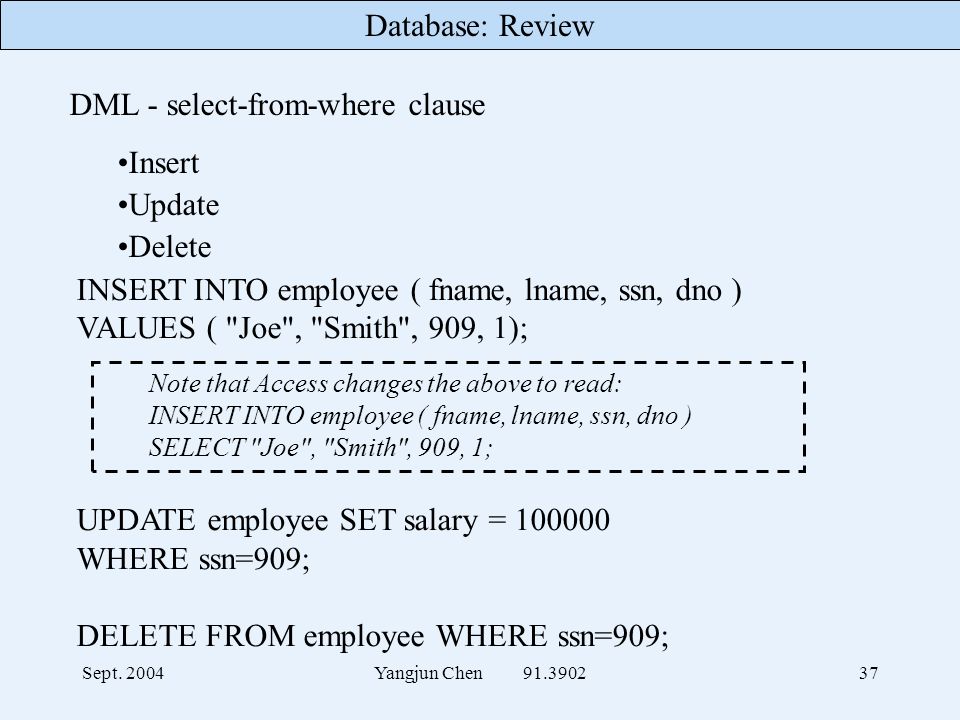

37. Database: Review Sept. 2004Yangjun Chen 91.390237 DML - select-from-where clause Insert Update Delete INSERT INTO employee ( fname, lname, ssn, dno ) VALUES ( "Joe", "Smith", 909, 1); UPDATE employee SET salary = 100000 WHERE ssn=909; DELETE FROM employee WHERE ssn=909; Note that Access changes the above to read: INSERT INTO employee ( fname, lname, ssn, dno ) SELECT "Joe", "Smith", 909, 1;

38. Database: Review Sept. 2004Yangjun Chen 91.390238 View definition Use a Create View command essentially a select specifying the data that makes up the view Create View Enames as select lname, fname from employee CREATE VIEWEnames (lname, fname) AS SELECTLNAME, FNAME FROMEMPLOYEE

39. Database: Review Sept. 2004Yangjun Chen 91.390239 CREATE VIEWDEPT_INFO (DEPT_NAME, NO_OF_EMPS, TOTAL_SAL) AS SELECTDNAME, COUNT(*), SUM(SALARY) FROMDEPARTMENT, EMPLOYEE WHEREDNUMBER = DNO GROUP BYDNAME;

40. Database: Review Sept. 2004Yangjun Chen 91.390240 function dependencies - data redundancy, update anomalies - what is a function dependency? - inference rules, minimal set of FDs normal forms - first normal form - second normal form - third normal form - Boyce Codd normal form Normalization

41. Database: Review Sept. 2004Yangjun Chen 91.390241 Data redundancy and update anomalies: enamessnbdateaddress EmployeeDepartment dnumberdname This is similar to Employee, but we have included dname

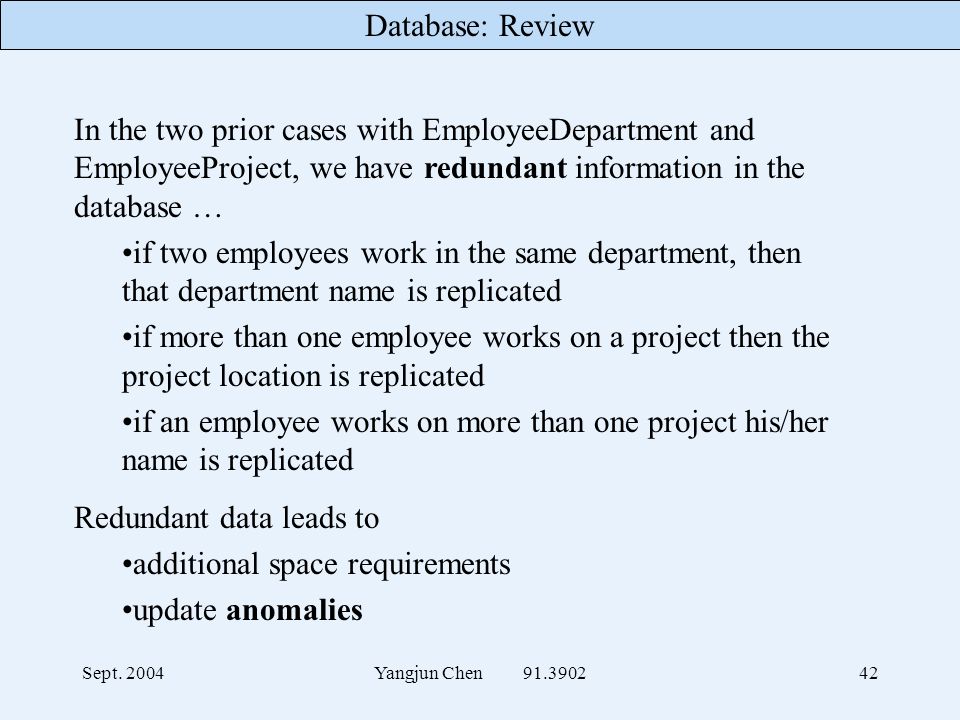

42. Database: Review Sept. 2004Yangjun Chen 91.390242 In the two prior cases with EmployeeDepartment and EmployeeProject, we have redundant information in the database … if two employees work in the same department, then that department name is replicated if more than one employee works on a project then the project location is replicated if an employee works on more than one project his/her name is replicated Redundant data leads to additional space requirements update anomalies

43. Database: Review Sept. 2004Yangjun Chen 91.390243 Suppose EmployeeDepartment is the only relation where department name is recorded insert anomalies adding a new department is complicated unless there is also an employee for that department deletion anomalies if we delete all employees for some department, what should happen to the department information? modification anomalies if we change the name of a department, then we must change it in all tuples referring to that department

44. Database: Review Sept. 2004Yangjun Chen 91.390244 Functional dependencies: Suppose we have a relation R comprising attributes X,Y, … We say a functional dependency exists between the attributes X and Y, if, whenever a tuple exists with the value x for X, it will always have the same value y for Y. XY XY LHSRHS

45. Database: Review Sept. 2004Yangjun Chen 91.390245 student_nostudent_namecourse_nogender Student Given a specific student number, there is only one value for student name and only one value for gender found with it. Student_noStudent_name gender

46. Database: Review Sept. 2004Yangjun Chen 91.390246 Inference Rules for Function Dependencies From a set of FDs, we can derive some other FDs Example: F = {ssn  {Ename  Bdate, Address, dnumber}, dnumber  {dname, dmgrssn}} ssn  {dname, dmgrssn}, ssn  dnumber, dnumber  dname. inference F + (closure of F): The set of all FDs that can be deduced from F (with F together) is called the closure of F.

47. Database: Review Sept. 2004Yangjun Chen 91.390247 Inference Rules for Function Dependencies Inference rules: - IR1 (reflexive rule): If X  Y, then X  Y. (X  X.) - IR2 (augmentation rule): {X  Y} |= ZX  Y. - IR3 (transitive rule): {X  Y, Y  Z} |= X . - IR4 (decomposition, or projective, rule): {X  Y} |= X  Y, X  Z. - IR5 (union, or additive, rule): {X  Y, Y  Z} |= X  Y. - IR6 (pseudotransitive rule): {X  Y, WY  Z} |= WX .

48. Database: Review Sept. 2004Yangjun Chen 91.390248 Equivalence of Sets of FDs E and F are equivalent if E + = F +. Minimal sets of FDs every dependency has a single attribute on the RHS the attributes on the LHS of a dependency are minimal we cannot remove any dependency from F and still have a set of dependencies that is equivalent to F. ssnpnumberhoursenameplocation {ssn, pnumber}  hours, ssn  ename, pnumber  plocation.

49. Database: Review Sept. 2004Yangjun Chen 91.390249 Normal Forms A series of normal forms are known that have, successively, better update characteristics. We’ll consider 1NF, 2NF, 3NF, and BCNF. A technique used to improve a relation is decomposition, where one relation is replaced by two or more relations. When we do so, we want to eliminate update anomalies without losing any information.

50. Database: Review Sept. 2004Yangjun Chen 91.390250 1NF - First Normal Form The domain of an attribute must only contain atomic values. This disallows repeating values, sets of values, relations within relations, nested relations, … In the example database we have a department located in possibly several locations: department 5 is located in Bellaire, Sugarland, and Houston. If we had the relation then it would not be 1NF because there are multiple values to be kept in dlocations. Department dnumberdnamedmgrssndlocations 5Research333445555 Bellaire, Sugarland, Houston

51. Database: Review Sept. 2004Yangjun Chen 91.390251 1NF - First Normal Form If we have a non-1NF relation we can decompose it, or modify it appropriately, to generate 1NF relations. There are 3 options: option 1: split off the problem attribute into a new relation (create a DepartmentLocation relation). dnumberdnamedmgrssndlocation Department dnumber DepartmentLocation 5Research333445555Bellaire5 5Sugarland 5Houston Generally considered the best solution

52. Database: Review Sept. 2004Yangjun Chen 91.390252 2NF - Second Normal Form full functional dependency X  Y is a full functional dependency if removal of any attribute A from X means that the dependency does not hold any more. ssnpnumberhoursenameplocation EmployeeProject {ssn, pnumber}  hours is a full dependency (neither ssn  hours, nor pnumber  hours).

53. Database: Review Sept. 2004Yangjun Chen 91.390253 2NF - Second Normal Form partial functional dependency X  Y is a partial functional dependency if removal of some attribute A from X does not affect the dependency. {ssn, pnumber}  ename is a partial dependency because ssn  ename holds.) ssnpnumberhoursenameplocation EmployeeProject

54. Database: Review Sept. 2004Yangjun Chen 91.390254 2NF - Second Normal Form A relation schema is in 2NF if (1) it is in 1NF and (2) every non-key attribute must be fully functionally dependent on the primary key. If we had the relation EmployeeProject ssnpnumberhoursenameplocation then this relation would not be 2NF because of two separate violations of the 2NF definition:

55. Database: Review Sept. 2004Yangjun Chen 91.390255 2NF - Second Normal Form We correct this by decomposing the relation into three relations - splitting off the offending attributes - splitting off partial dependencies on the key. ssnpnumberhoursenameplocation EmployeeProject ssnpnumberhours ename plocation ssn pnumber 2NF

56. Database: Review Sept. 2004Yangjun Chen 91.390256 3NF - Third Normal Form Transitive dependency A functional dependency X  Y in a relation schema R is a transitive dependency if there is a set of attributes Z that is not a subset of any key of R, and both X  Z and Z  Y hold. enamessnbdateaddress EmployeeDept dnumberdname ssn  dnumber and dnumber  dname

57. Database: Review Sept. 2004Yangjun Chen 91.390257 3NF - Third Normal Form A relation schema is in 3NF if (1) it is in 2NF and (2) each non-key attribute must not be fully functionally dependent on another non-key attribute (there must be no transitive dependency of a non-key attribute on the PK) If we had the relation enamessnbdateaddressdnumberdname then this relation would not be 3NF because dname is functionally dependent on dnumber and neither is a key attribute

58. Database: Review Sept. 2004Yangjun Chen 91.390258 3NF - Third Normal Form We correct this by decomposing - splitting off the transitive dependencies enamessnbdateaddress EmployeeDept dnumberdname enamessnbdateaddressdnumber dnamednumber 3NF

59. Database: Review Sept. 2004Yangjun Chen 91.390259 Boyce Codd Normal Form, BCNF Consider a different definition of 3NF, which is equivalent to the previous one. A relation schema R is in 3NF if, whenever a function dependency X  A holds in R, either (a)X is a superkey of R, or (b)A is a prime attribute of R. A superkey of a relation schema R = {A1, A2,..., An} is a set of attributes S  R with the propertity that no tuples t1 and t2 in any legal state r of R will have t1[S] = t2[S]. An attribute is called a prime attribute if it is a member of any key.

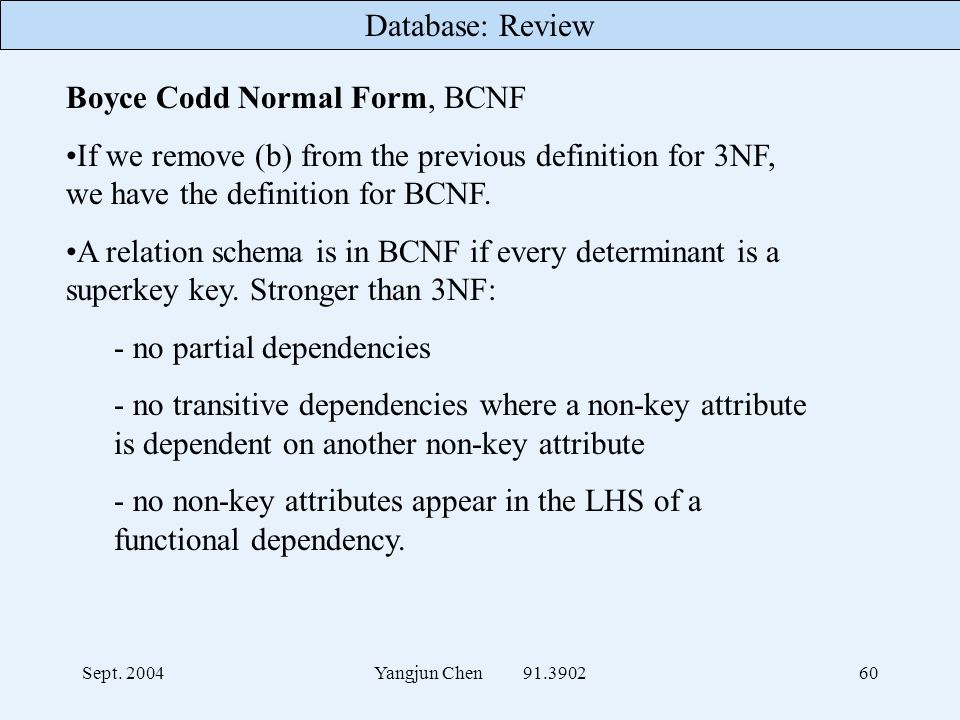

60. Database: Review Sept. 2004Yangjun Chen 91.390260 Boyce Codd Normal Form, BCNF If we remove (b) from the previous definition for 3NF, we have the definition for BCNF. A relation schema is in BCNF if every determinant is a superkey key. Stronger than 3NF: - no partial dependencies - no transitive dependencies where a non-key attribute is dependent on another non-key attribute - no non-key attributes appear in the LHS of a functional dependency.

61. Database: Review Sept. 2004Yangjun Chen 91.390261 Boyce Codd Normal Form, BCNF Consider: student_nocourse_noinstr_no Instructor teaches one course only. Student takes a course and has one instructor. In 3NF! {student_no, course_no}  instr_no instr_no  course_no

62. Database: Review Sept. 2004Yangjun Chen 91.390262 Boyce Codd Normal Form, BCNF This decomposition preserves all the information. course_noinstr_no student_noinstr_no 121180399 121190377 222180366 22277 99 77 66 S#C#I# Only FD is instr_no course_no but the join preserves {student_no, course_no} instr_no

63. Database: Review Sept. 2004Yangjun Chen 91.390263 Definition of lossless join property - relation decomposition - lossless join property Testing algorithm - matrix construction - matrix initialization - matrix modification Lossless join

64. Database: Review Sept. 2004Yangjun Chen 91.390264 Basic definition of Lossless-join A decomposition D = {R 1, R 2,..., R m } of R has the lossless join property with respect to the set of dependencies F on R if, for every relation r of R that satisfies F, the following holds,  (  R1 (r),...,  Rm (r)) = r, where  is the natural join of all the relations in D. The word loss in lossless refers to loss of information, not to loss of tuples.

65. Database: Review Sept. 2004Yangjun Chen 91.390265 SSNPNUMhoursENAME Emp_PROJ PNAMEPLOCATION F = {SSN  ENAME, PNUM  {PNAME, PLOCATION}, {SSN, PNUM}  hours} SSNENAME R1 PNUMPNAMEPLOCATION R2 SSNPNUMhours R3 Lossless join

66. Database: Review Sept. 2004Yangjun Chen 91.390266 decomposion-1 A1 SSN A2 ENAME A3 PNUM A4 PNAME A5 PLOCATION A6 hours b11 b21 b31 b12 b22 b32 b13 b23 b33 b14 b24 b34 b15 b25 b35 b16 b26 b36 R1 R2 R3 a1 b21 a1 a2 b22 b32 b13 a3 b14 a4 b34 b15 a5 b35 b16 b26 a6 R1 R2 R3

67. Database: Review Sept. 2004Yangjun Chen 91.390267 a1 b21 a1 a2 b22 a2 b13 a3 b14 a4 b34 b15 a5 b35 b16 b26 a6 R1 R2 R3 a1 b21 a1 a2 b22 a2 b13 a3 b14 a4 b15 a5 b16 b26 a6 R1 R2 R3 SSN  ENAME PNUM  {PNAME, PLOCATION} SSNENAME PNUMPNAMEPLOCATION

68. Database: Review Sept. 2004Yangjun Chen 91.390268 Example: decomposition-2 SSNPNUMhoursENAME Emp_PROJ PNAMEPLOCATION F = {SSN  ENAME, PNUM  {PNAME, PLOCATION}, {SSN, PNUM}  hours} ENAME R1 SSNPNAME PLOCATION R2 PNUMhours Not lossless join PLOCATION

69. Database: Review Sept. 2004Yangjun Chen 91.390269 decomposition-2 A1 SSN A2 ENAME A3 PNUM A4 PNAME A5 PLOCATION A6 hours b11 b21 b12 b22 b13 b23 b14 b24 b15 b25 b16 b26 R1 R2 b11 a1 a2 b22 b13 a3 b14 a4 a5 b16 a6 R1 R2 The matrix can not be changed! SSN  ENAME PNUM  {PNAME, PLOCATION} {SSN, PNUM}  hours

70. Database: Review Sept. 2004Yangjun Chen 91.390270 Hierarchical database schema - hierarchical schema - record type, PCR type - virtual PCR: virtual child, virtual parent Database languages - HDDL - HDML Hierarchical databases

71. Database: Review Sept. 2004Yangjun Chen 91.390271 dependent Dept_locations employee department project ERD for Chapter 6 database example 1 1 1 1 n n n n n n m 1 1 1 Works on

72. Database: Review Sept. 2004Yangjun Chen 91.390272 Virtual Parent-child Relationships -Hierarchical schema using VPCR - for a Company database Department Dname Dnum Project Pname …... Dlocation Location Demployee EPTR Dmanager MPTR Pworker Hours WPTR Employee Ename Minit …... Esupervisee SPTR Dependent DEPnameMinit... DE L P Y M W S T StartDate
