1. Scene Completion Using Millions of Photographs James Hays, Alexei A. Efros Carnegie Mellon University ACM SIGGRAPH 2007

2. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

3. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

4. Introduction  Every once in a while, we all wish we could erase something from our photograph

5. Introduction  Image completion(inpainting, hole-filling)  Filling in or replacing an image region with new image data such that the modification can not be detected

6. Introduction  The data could have been there  The data should have been there

7. Introduction  The existing methods operate by extending adjacent textures and contours into the unknown region  Filling in the unknown region with content from the known parts of the input image

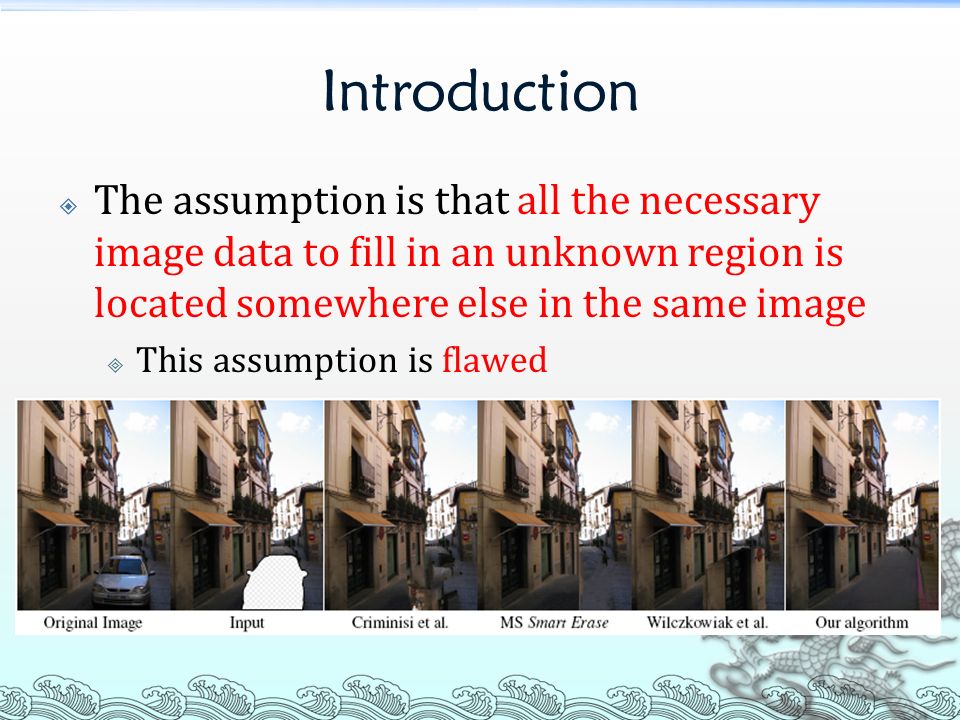

8. Introduction  The assumption is that all the necessary image data to fill in an unknown region is located somewhere else in the same image  This assumption is flawed

9. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

10. Overview  We perform image completion by leveraging a massive database of images  Two compelling reasons  A region will be impossible to fill plausibly using only image data from the source image  Reusing that content would often leave obvious duplications

11. Overview  There are several challenges with drawing content from other images  Computational  Semantically invalid  Seamlessly

12. Overview  Alleviate computational and semantic  Find images depicting semantically similar scenes  Use only the best matching scenes to find patches which match the content surrounding the missing region  Seamlessly combine image regions  Graph cut segmentation  Poisson blending

13. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

14. Semantic Scene Matching  Our image database  Download images in thirty Flickr.com groups  Download images based on keyword searches  Discarded duplicate images and images that are too small  Distributed among a cluster of 15 machines  Acquir about 2.3 million unique images

15. Semantic Scene Matching  Look for scenes which are most likely to be semantically equivalent to the image requiring completion  GIST descriptor  Augment the scene descriptor with color information of the query image down-sampled to the spatial resolution of the gist

16. Semantic Scene Matching  Given an input image to be hole-filled, we first compute its gist descriptor with the missing regions excluded  We calculate the SSD between the the gist of the query image and every gist in the database  The color difference is computed in the lab color space

17. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

18. Local Context Matching  Having constrained our search to semantically similar scenes we can use Template matching to more precisely align

19. Local Context Matching  Pixel-wise alignment score  We define the local context to be all pixels within an 80 pixel radius of the hole’s boundary  This context is compared against the 200 best matching scenes  Using SSD error in lab color space

20. Local Context Matching  Texture similarity score  Measure coarse compatibility of the proposed fill-in region to the source image within the local context  Computed as a 5x5 median filter of image gradient magnitude at each pixel  The descriptors of the two images are compared via SSD

21. Local Context Matching  Composite each matching scene into the incomplete image at its best placement using a form of graph cut seam finding and standard poisson blending

22. Local Context Matching  Past image completion algorithms  The remaining valid pixels in an image can not changed  Our completion algorithms  Allow to remove valid pixels from the query image  But discourage the cutting of too many pixels

23. Local Context Matching  Past seam-finding  Minimum intensity difference between two images  Cause the seam to pass through many high frequency edges  Our seam-finding  Minimum the gradient of the image difference along the seam

24. Local Context Matching  We find the seam by minimizing the following cost function  : unary costs of assigning any pixel p, to a specific label L(p)  L(p) : patch or exist

25. Local Context Matching  For missing regions of the existing image  is a very large number  For regions of the image not covered by the scene match  is a very large number  For all other pixels   is pixel’s distance from the hole  k = 0.02

26. Local Context Matching  is non-zero only for immediately adjacent, 4-way connected pixels  L(p) = L(q), the cost is zero  L(p) L(q),  is the magnitude of the gradient of the SSD between the existing image and the scene match at pixels p and q

27. Local Context Matching  Finally we assign each composite a score  The scene matching distance  The local context matching distance  The local texture similarity distance  The cost of the graph cut  We present the user with the 20 composites with the lowest scores

28. Local Context Matching

29. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

30. Results and Comparison

34.  Lucky  Find another image from the same physical location  It is not our goal to complete scenes and objects with their true selves in the database

35. Results and Comparison

37.  Failure cases : artifact

38. Results and Comparison  Failure cases : semantic violations

39. Results and Comparison  Failure cases : no object recognition

40. Results and Comparison  Failure cases : past methods perform well  For uniformly textured backgrounds  Our method is unlikely to find the exact same texture in another photograph

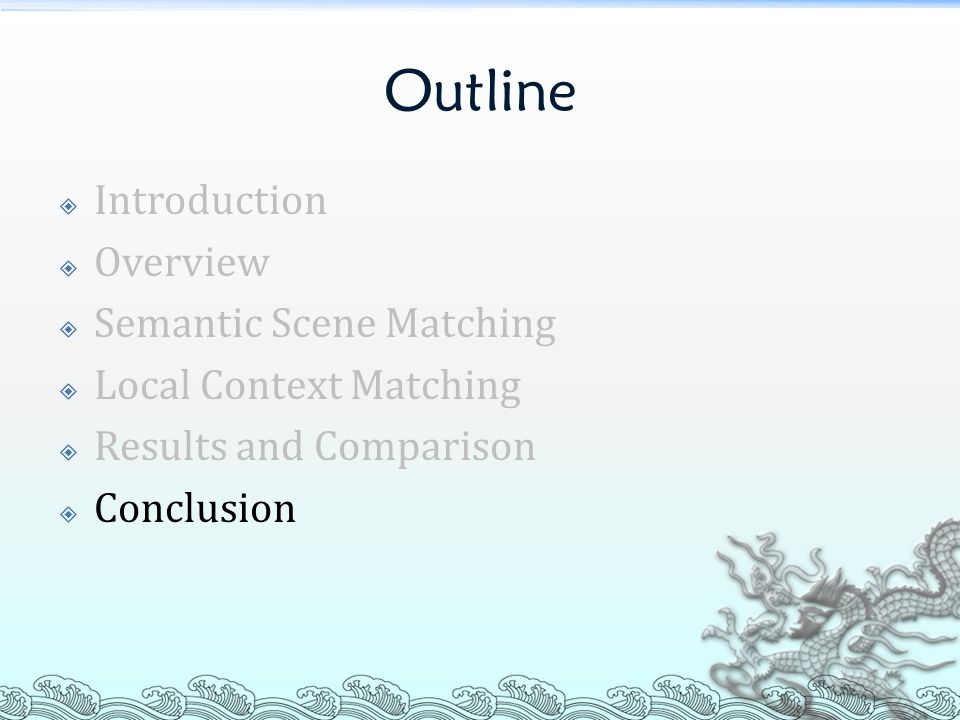

42. Outline  Introduction  Overview  Semantic Scene Matching  Local Context Matching  Results and Comparison  Conclusion

43. Conclusion  This paper  Present a new image completion algorithm powered by a huge database.  Unlike past methods that reuse visual data within the source image.  Further work  Two million images are still a tiny fraction of the high quality photograph available.  Our approach would be an attractive web-base application.

44. Thank you!!!
