1. Graphical Models over Multiple Strings Markus Dreyer and Jason Eisner Dept. of Computer Science, Johns Hopkins University EMNLP 2009 Presented by Ji Zongcheng

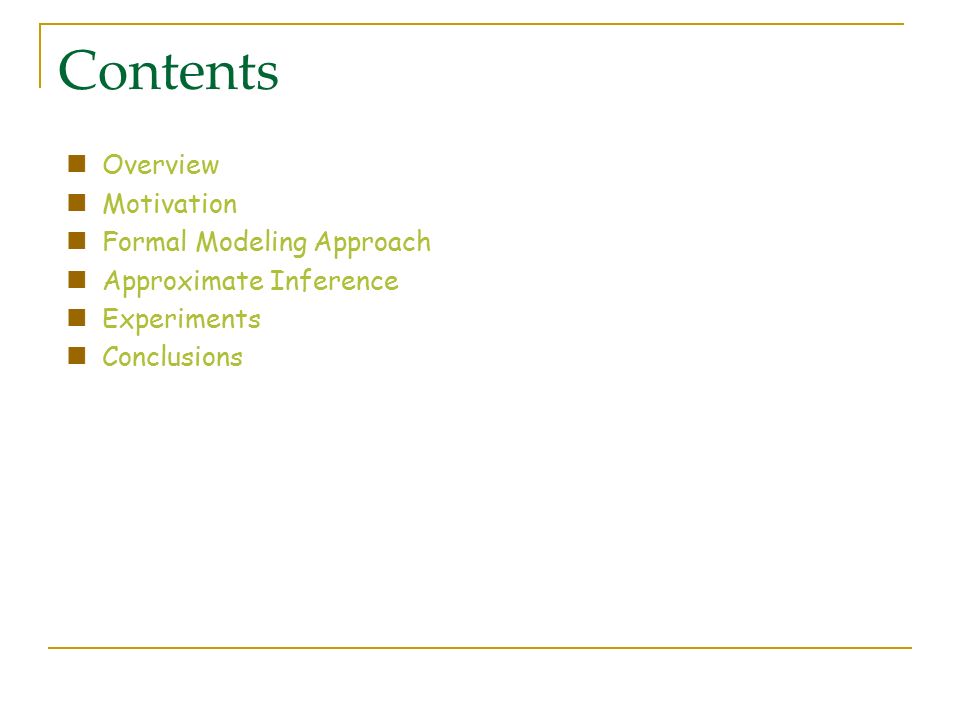

2. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

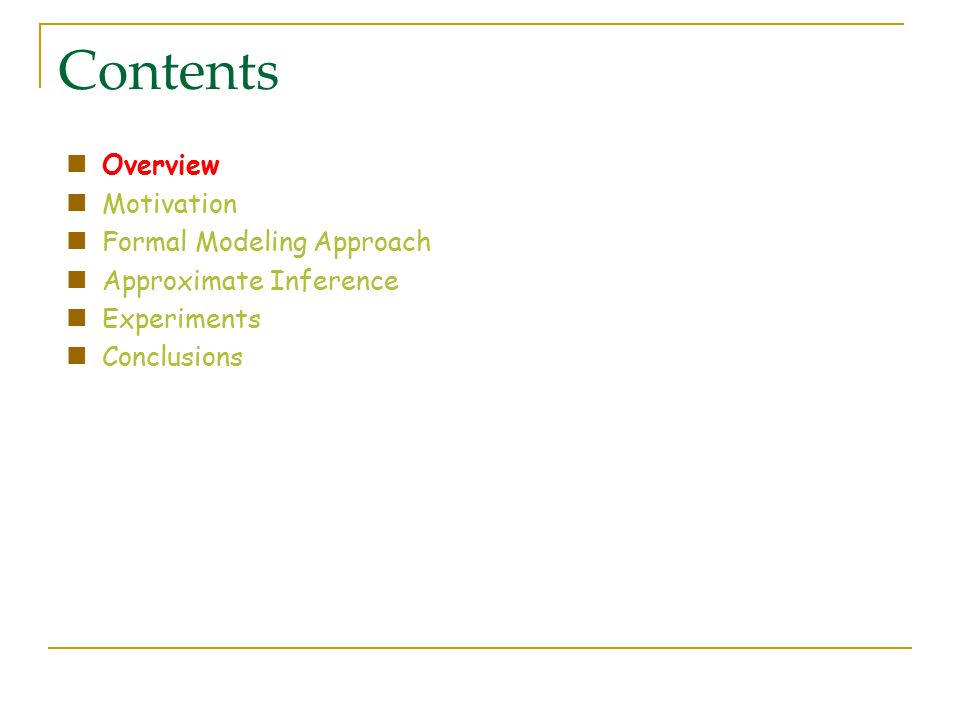

3. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

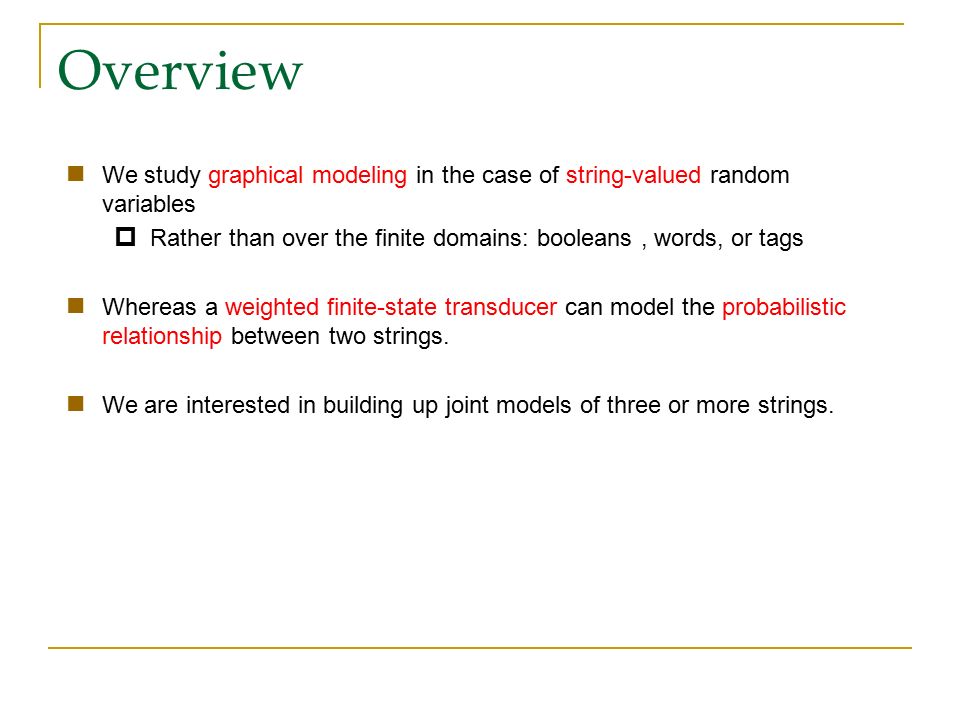

4. Overview We study graphical modeling in the case of string-valued random variables  Rather than over the finite domains: booleans, words, or tags Whereas a weighted finite-state transducer can model the probabilistic relationship between two strings. We are interested in building up joint models of three or more strings.

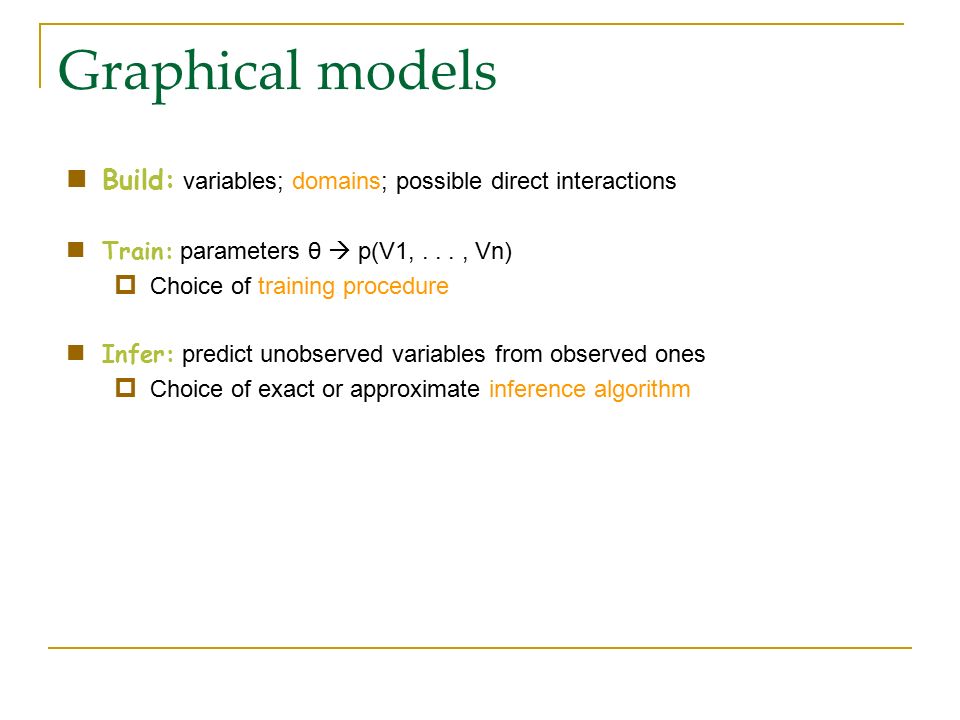

5. Graphical models Build: variables; domains; possible direct interactions Train: parameters θ  p(V1,..., Vn)  Choice of training procedure Infer: predict unobserved variables from observed ones  Choice of exact or approximate inference algorithm

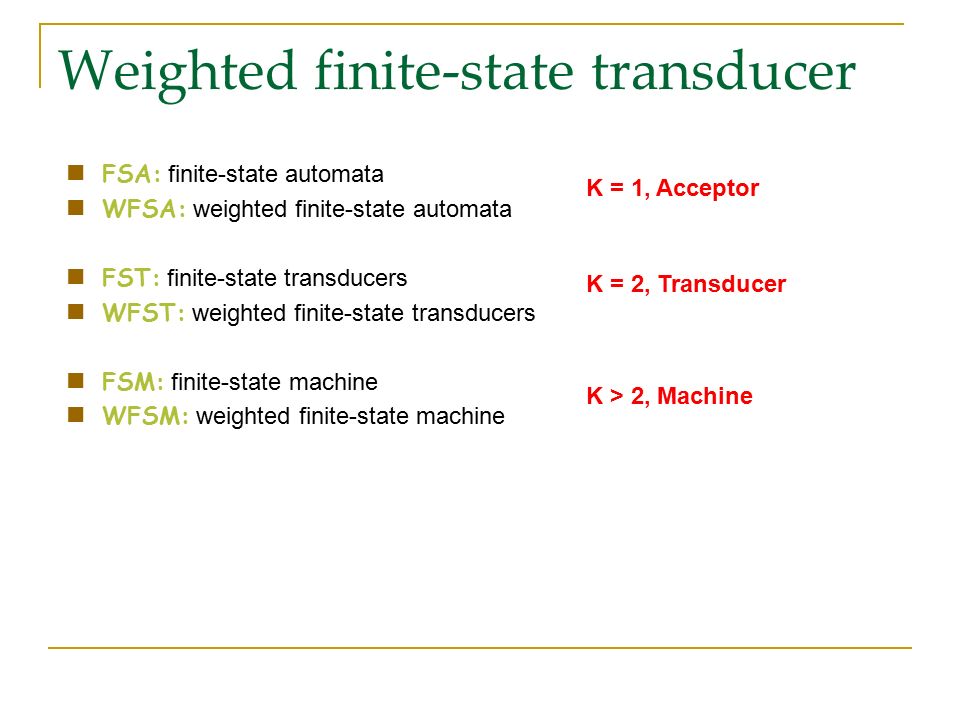

6. Weighted finite-state transducer FSA: finite-state automata WFSA: weighted finite-state automata FST: finite-state transducers WFST: weighted finite-state transducers FSM: finite-state machine WFSM: weighted finite-state machine K = 1, Acceptor K = 2, Transducer K > 2, Machine

7. Contents Overview Motivation Formal Modeling Approach Approximate Inference Training the Model Parameters Comparison With Other Approaches Experiments Conclusions

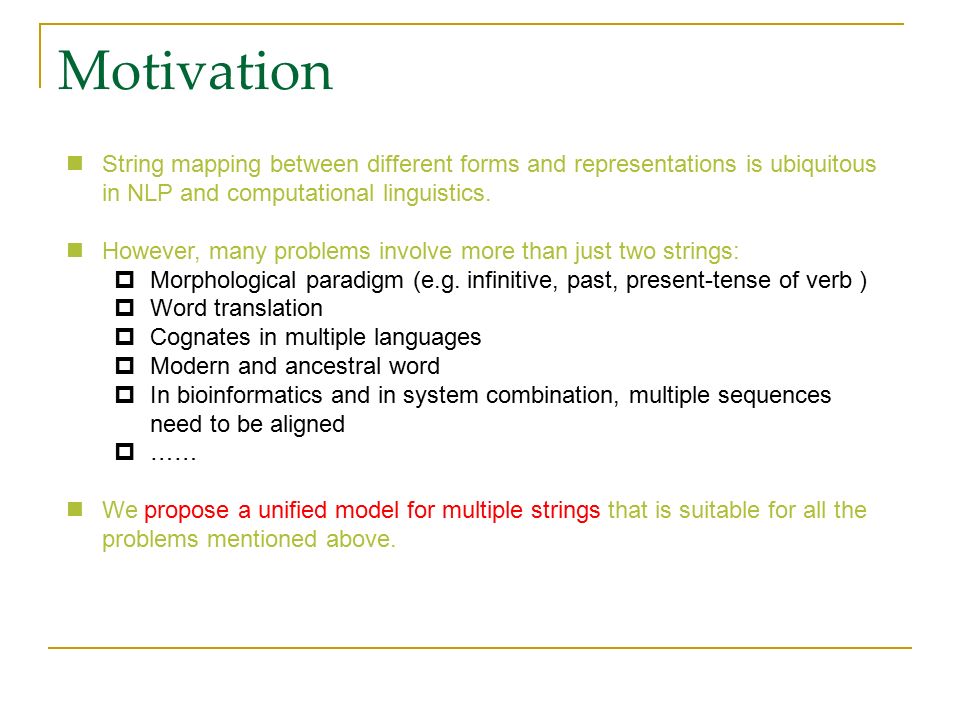

8. Motivation String mapping between different forms and representations is ubiquitous in NLP and computational linguistics. However, many problems involve more than just two strings:  Morphological paradigm (e.g. infinitive, past, present-tense of verb )  Word translation  Cognates in multiple languages  Modern and ancestral word  In bioinformatics and in system combination, multiple sequences need to be aligned  …… We propose a unified model for multiple strings that is suitable for all the problems mentioned above.

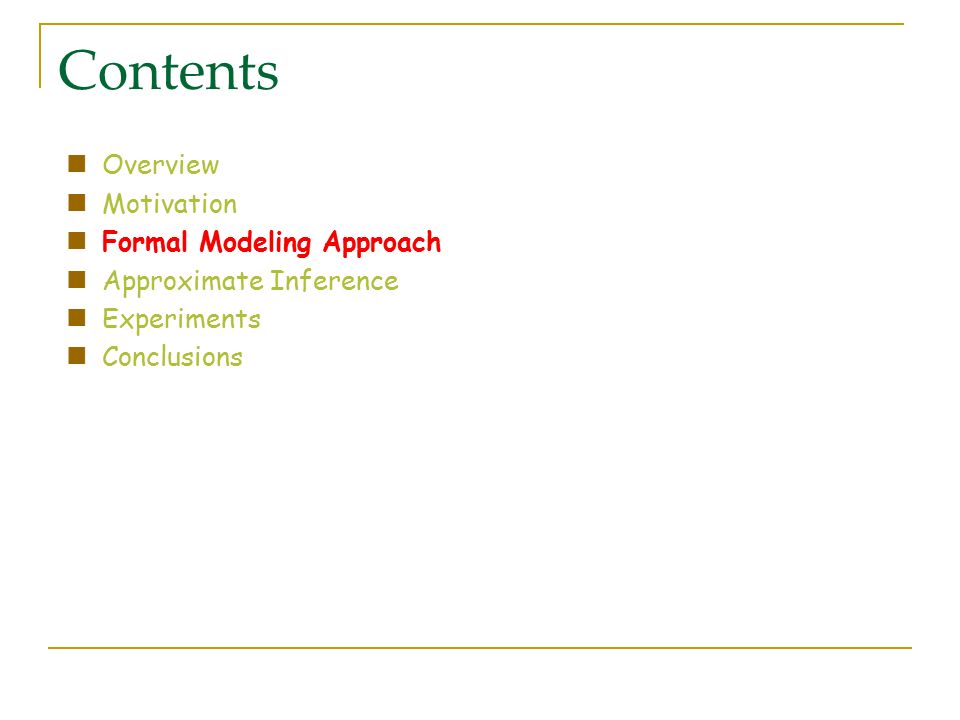

9. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

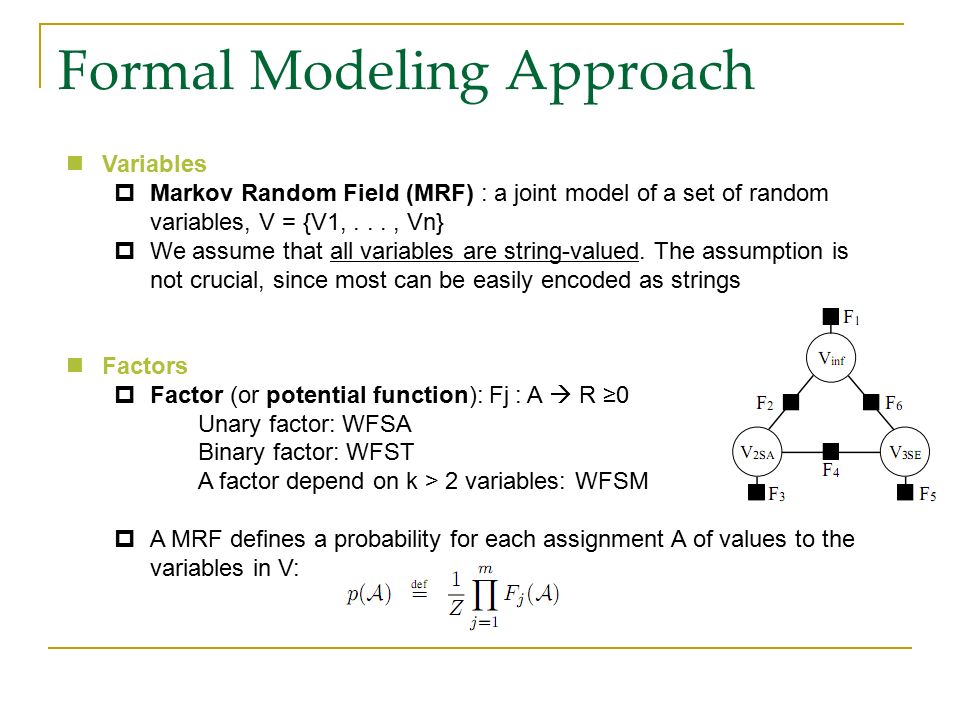

10. Formal Modeling Approach Variables  Markov Random Field (MRF) : a joint model of a set of random variables, V = {V1,..., Vn}  We assume that all variables are string-valued. The assumption is not crucial, since most can be easily encoded as strings Factors  Factor (or potential function): Fj : A  R ≥0 Unary factor: WFSA Binary factor: WFST A factor depend on k > 2 variables: WFSM  A MRF defines a probability for each assignment A of values to the variables in V:

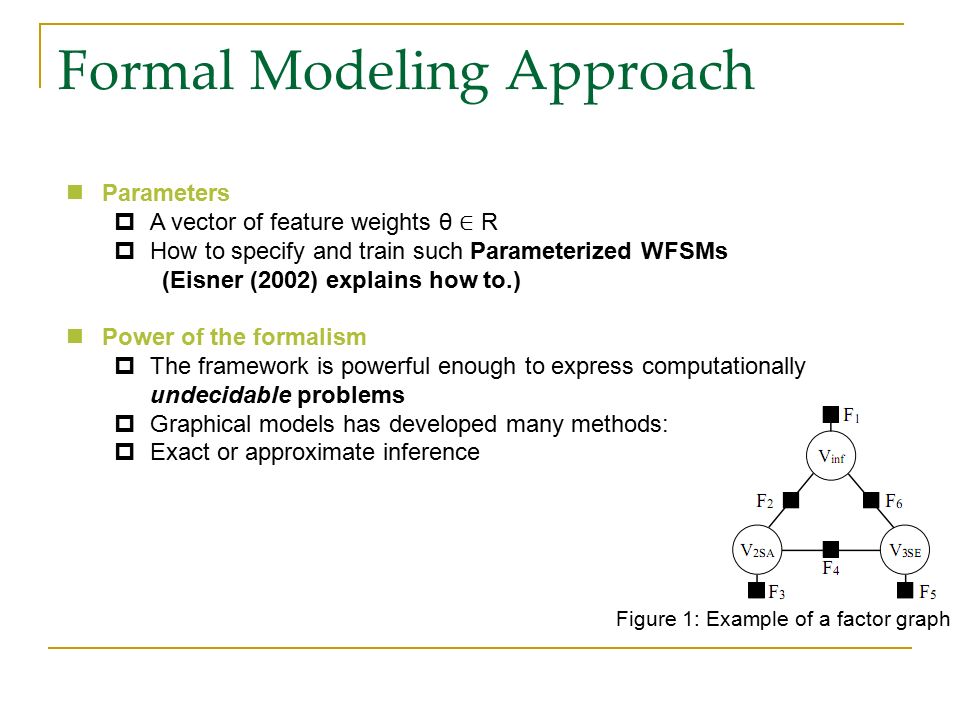

11. Formal Modeling Approach Parameters  A vector of feature weights θ ∈ R  How to specify and train such Parameterized WFSMs (Eisner (2002) explains how to.) Power of the formalism  The framework is powerful enough to express computationally undecidable problems  Graphical models has developed many methods:  Exact or approximate inference Figure 1: Example of a factor graph

12. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

13. Approximate Inference Belief Propagation  BP vs. forward-backward algorithm (only on chain-structured factor graphs)  Loopy Belief Propagation (factor graphs have cycles)

14. Approximate Inference How BP works in general?  Each variable V maintains a belief about it’s value:  Two messages:  The final beliefs are the output of the algorithm  If variable V is observed: modify (2),(4) by multiplying evidence potential (1 on v and 0 on other)

15. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

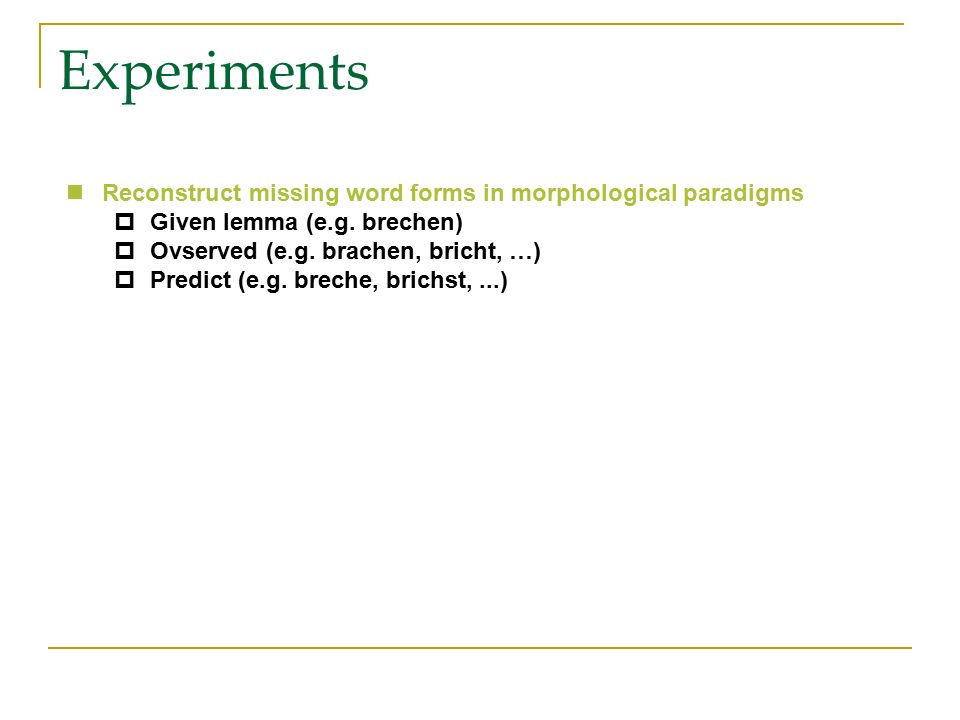

16. Experiments Reconstruct missing word forms in morphological paradigms  Given lemma (e.g. brechen)  Ovserved (e.g. brachen, bricht, …)  Predict (e.g. breche, brichst,...)

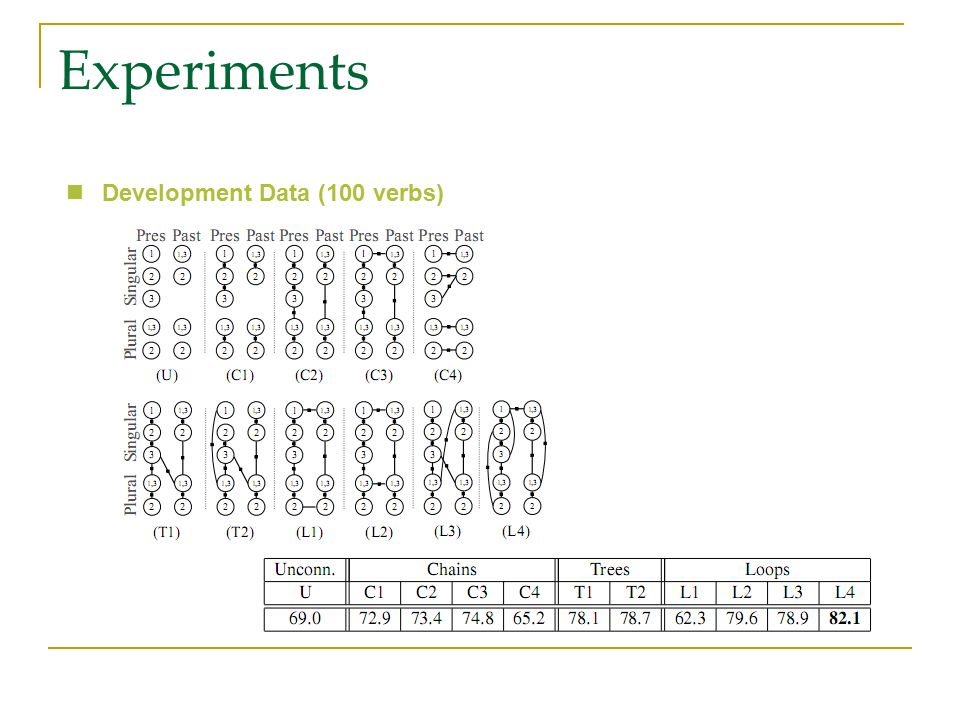

17. Experiments Development Data (100 verbs)

18. Experiments Test Data (9293 test paradigms)

19. Contents Overview Motivation Formal Modeling Approach Approximate Inference Experiments Conclusions

20. Graphical model with string-valued variables  Factors are defined by WFSA  Approximate inference can be done by loopy BP Potentially applicable  Transliteration  Cognate modeling  Multiple-sequence alignment  System combination

21. Thank you!
