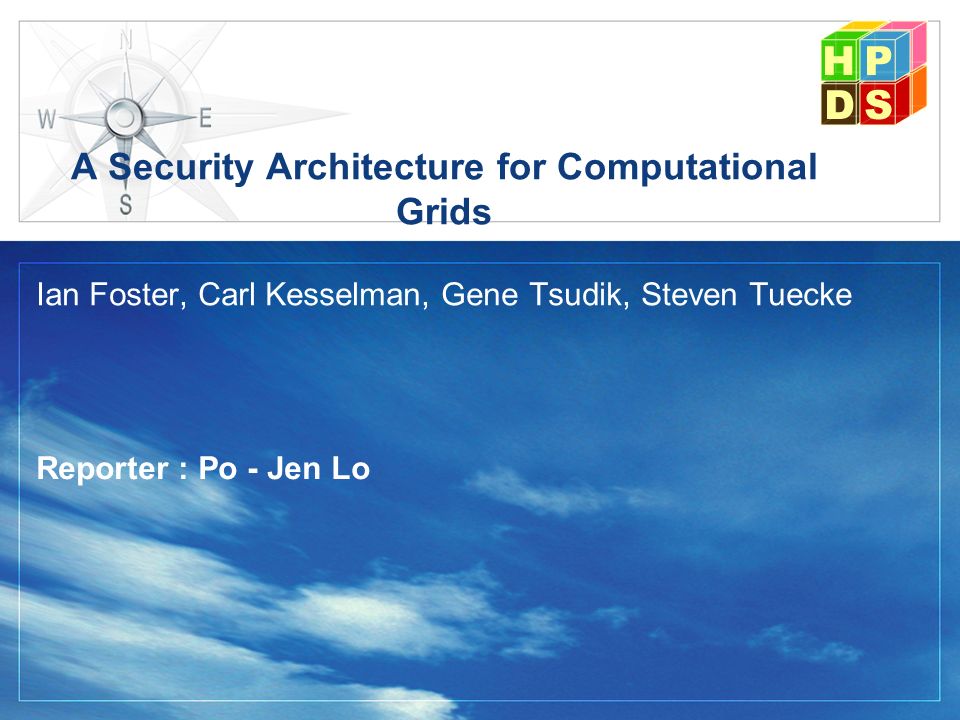

1. A Security Architecture for Computational Grids Ian Foster, Carl Kesselman, Gene Tsudik, Steven Tuecke Reporter : Po - Jen Lo

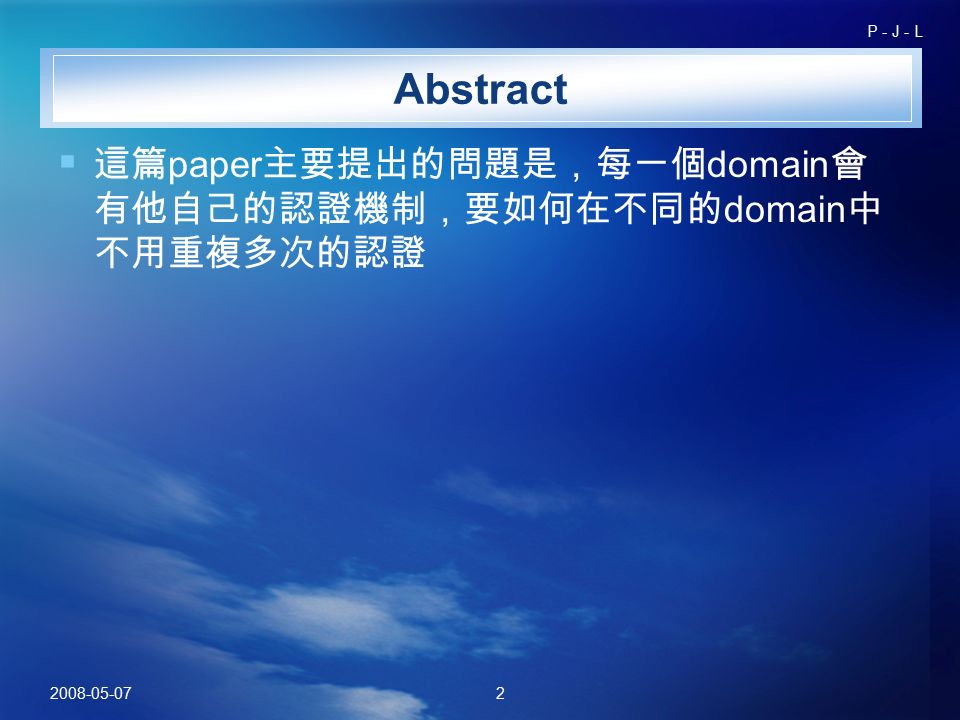

2. 2008-05-07 P - J - L 2 Abstract  這篇 paper 主要提出的問題是，每一個 domain 會 有他自己的認證機制，要如何在不同的 domain 中 不用重複多次的認證

3. 2008-05-07 P - J - L 3 Outline Security Requirements 2 Implementation 4 Introduction 31 Grid Security Architecture 33 Conclusion 35

4. 2008-05-07 P - J - L 4 Introduction  The interdomain security solutions used for grids must be able to interoperate with, rather than replace, the diverse intradomain access control technologies inevitably encountered in individual domains.  We propose a security policy for grid systems that addresses requirements for single sign-on, interoperability with local policies, and dynamically varying resource requirements

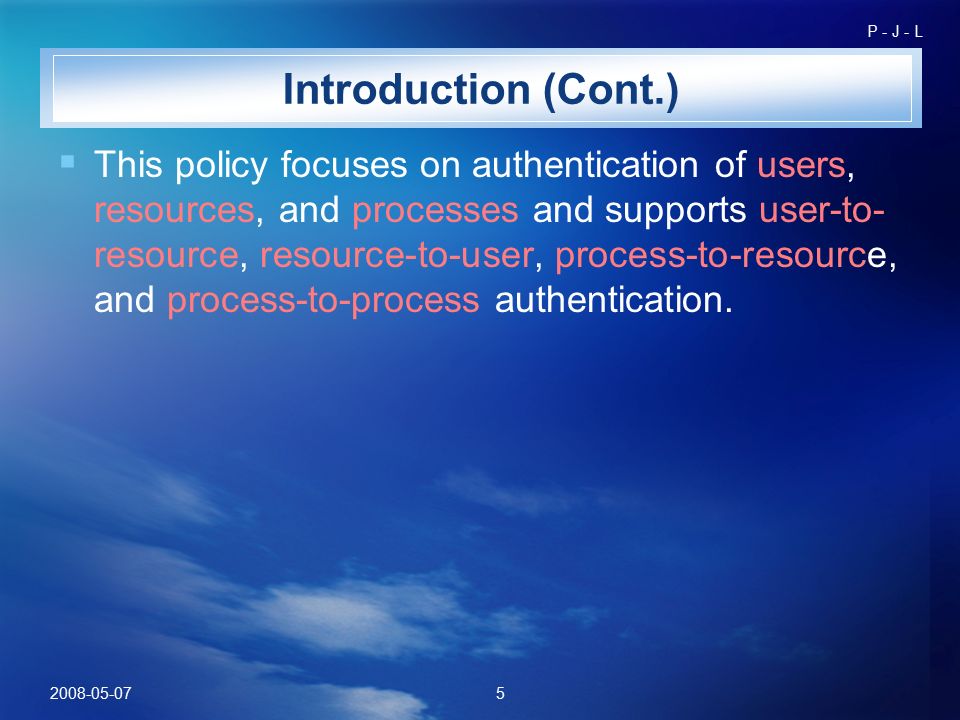

5. 2008-05-07 P - J - L 5 Introduction (Cont.)  This policy focuses on authentication of users, resources, and processes and supports user-to- resource, resource-to-user, process-to-resource, and process-to-process authentication.

6. 2008-05-07 P - J - L 6 The Grid Security Problem

7. 2008-05-07 P - J - L 7 Security Requirements  Grid systems and applications may require any or all of the standard security functions  including authentication, access control, integrity, privacy, and nonrepudiation  provide authentication solutions that allow a user, the processes that comprise a user's computation, and the resources used by those processes, to verify each other's identity  allow local access control mechanisms to be applied without change, whenever possible

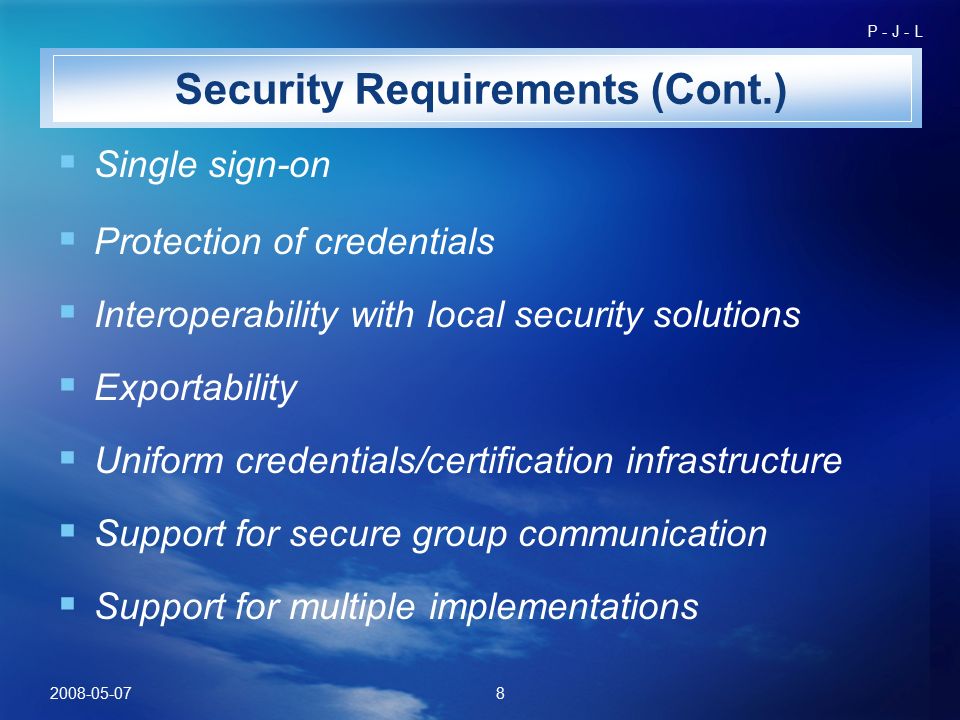

8. 2008-05-07 P - J - L 8 Security Requirements (Cont.)  Single sign-on  Protection of credentials  Interoperability with local security solutions  Exportability  Uniform credentials/certification infrastructure  Support for secure group communication  Support for multiple implementations

9. 2008-05-07 P - J - L 9 Grid Security Architecture  User Proxy Creation Protocol  Resource Allocation Protocol  Resource Allocation from a Process Protocol  Mapping Registration Protocol

10. 2008-05-07 P - J - L 10 Grid Security Architecture (Cont.)

11. 2008-05-07 P - J - L 11 Implementation  GSI was developed as part of the Globus project  understand the basic infrastructure required to support the execution of wide range of computational grid applications  build prototype implementations of this infrastructure  evaluate applications on large-scale testbeds

12. 2008-05-07 P - J - L 12 Implementation (Cont.)  Use of the Generic Security Services Application Programming Interface (GSSAPI)  GSS-API allows us to construct GSI simply by transcribing the grid security protocols into GSS calls

13. 2008-05-07 P - J - L 13 Implementation (Cont.)  Use of the Generic Security Services Application Programming Interface (GSSAPI)  GSS-API bindings have been defined for several mechanisms. one based on plaintext passwords –Implementation was designed to support system debugging and small-scale deployment one based on X.509 certificates –Implementation is used for wide-area “production" use  The flexibility of our GSS-API implementation allows us to switch between public key and plaintext versions of Globus without changing a single line of Globus code

14. 2008-05-07 P - J - L 14 Implementation (Cont.)  Support for Public Key Technology in GSI  The GSI implementation currently uses the authentication protocols defined by the Secure Socket Library (SSL) protocol  it is possible to separate the authentication and communication components of SSL  To avoid confusion between the SSL authentication protocol and the SSL communication library SSL Authentication Protocol or SAP to refer specifically to the authentication elements of SSL

15. 2008-05-07 P - J - L 15 Implementation (Cont.)  Support for Public Key Technology in GSI  there exists a high-quality, public-domain implementation of the SSL protocol (SSLeay), developed outside of the United States and hence avoiding export control issues.  SSLeay is structured in a way that allows a token stream to be extracted easily, thus making the GSS implementation straightforward

16. 2008-05-07 P - J - L 16 Implementation (Cont.)  Support for Public Key Technology in GSI  SSL is widely adopted as the method of choice for authentication and secure communication for a broad range of distributed services  Consequently, a computation can use GSI to access not only Globus services, but also generic Web services.

17. 2008-05-07 P - J - L 17 Conclusions  This implementation has been deployed on a national-scale testbed  The resource proxy enables interoperability with local security solutions, as the resource proxy can translate between interdomain and intradomain security solutions.
